Nissan GT-R. Manual - part 44

AV

FRONT DOOR SPEAKER

AV-171

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

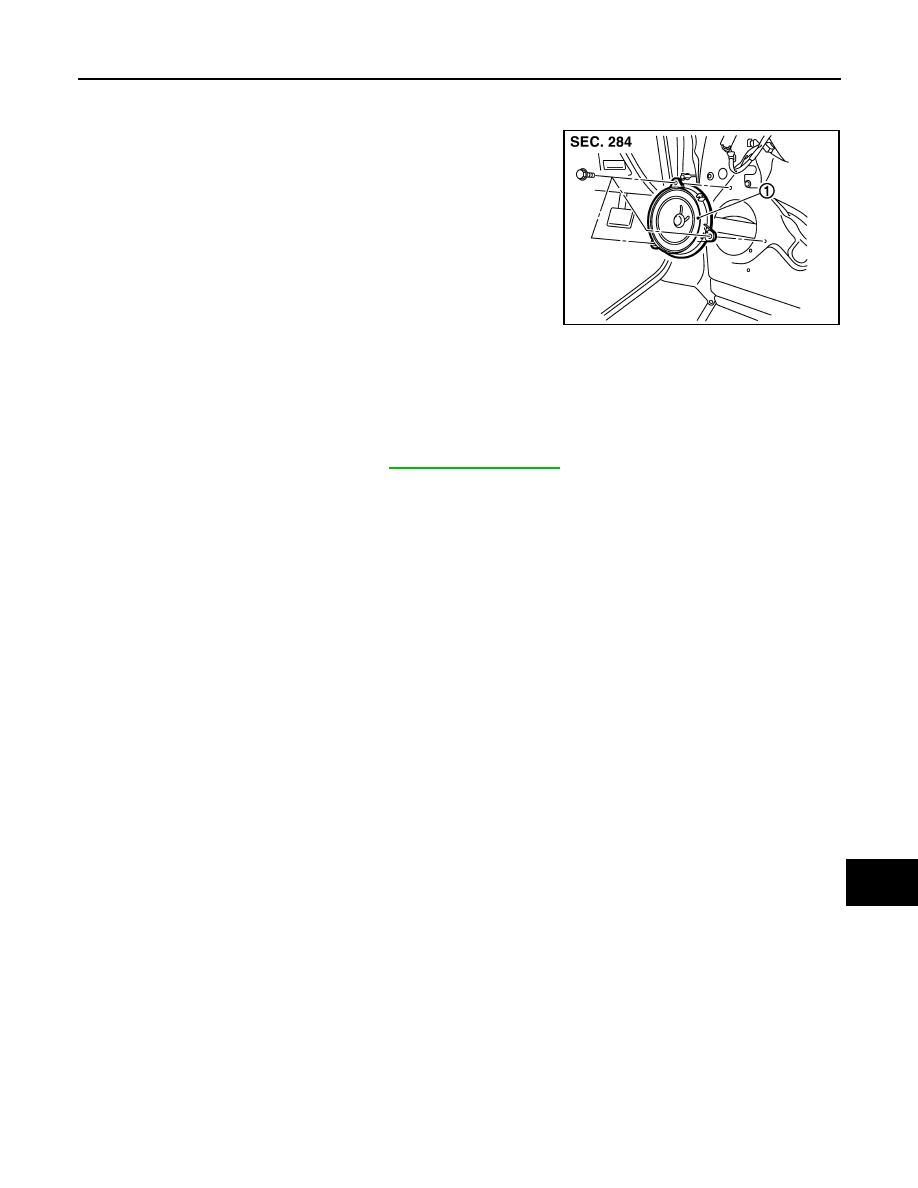

FRONT DOOR SPEAKER

Exploded View

INFOID:0000000009163432

Removal and Installation

INFOID:0000000009163433

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "Exploded View"

.

2.

Disconnect the connector and remove the screws, and remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.

NNNIA0036ZZ

1.

Front door speaker

AV-172

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

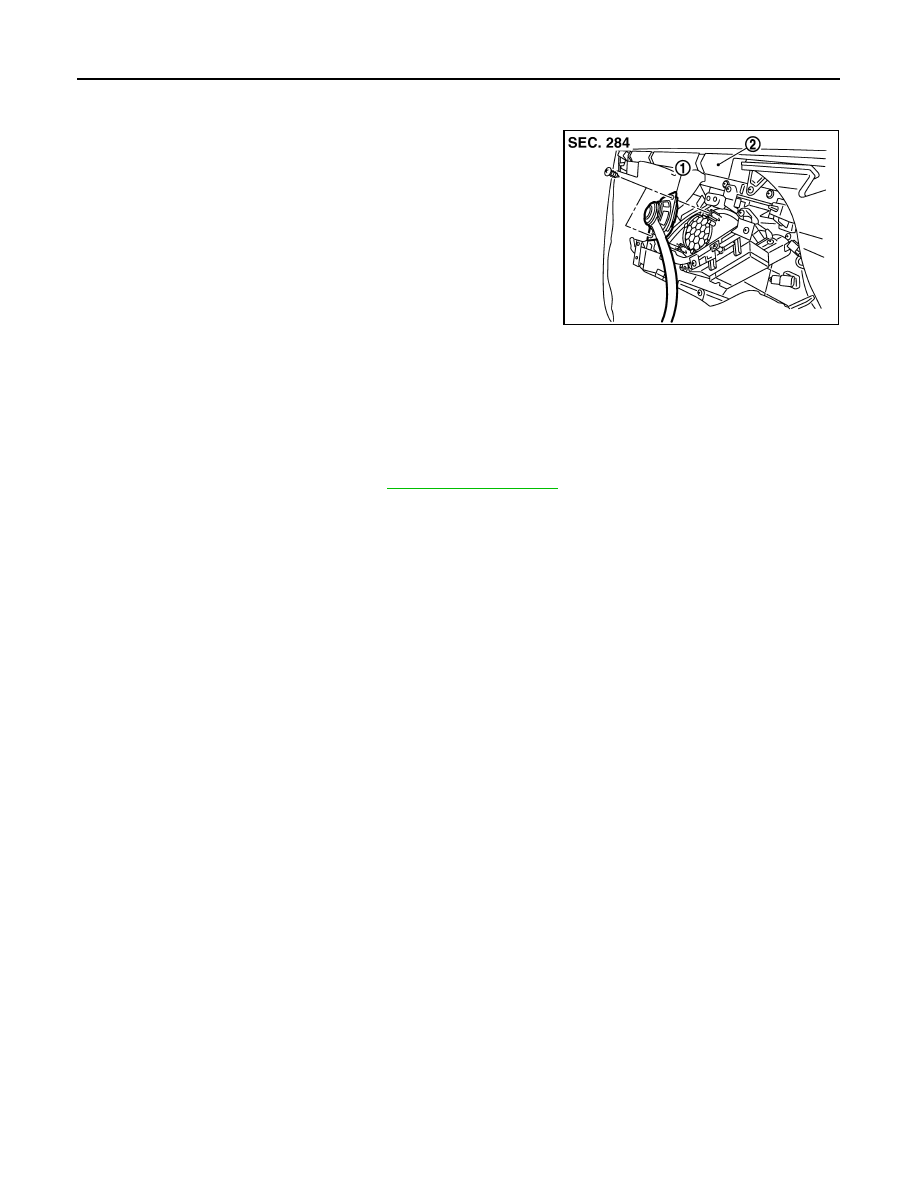

FRONT DOOR SQUAWKER

FRONT DOOR SQUAWKER

Exploded View

INFOID:0000000009163434

Removal and Installation

INFOID:0000000009163435

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "Exploded View"

.

2.

Remove the screws, and then remove the front door squawker from the front door finisher.

INSTALLATION

Install in the reverse order of removal.

NNNIA0037ZZ

1.

Front door squawker

2.

Front door finisher

AV

TWEETER

AV-173

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

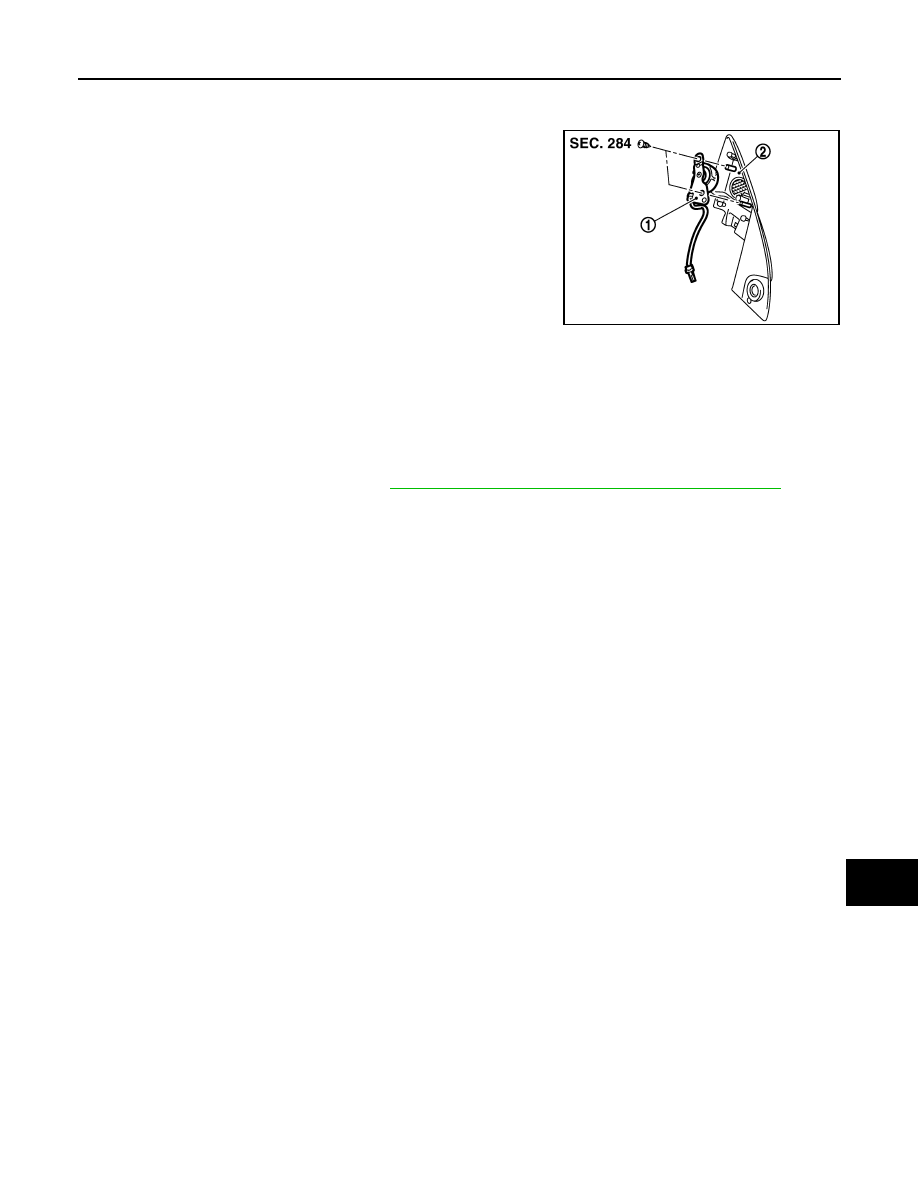

TWEETER

Exploded View

INFOID:0000000009163436

Removal and Installation

INFOID:0000000009163437

REMOVAL

1.

Remove the door corner cover. Refer to

MIR-16, "DOOR MIRROR ASSEMBLY : Exploded View"

.

2.

Remove the screws, and remove the tweeter from the door corner cover.

INSTALLATION

Install in the reverse order of removal.

NNNIA0039ZZ

1.

Tweeter

2.

Door corner cover

AV-174

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

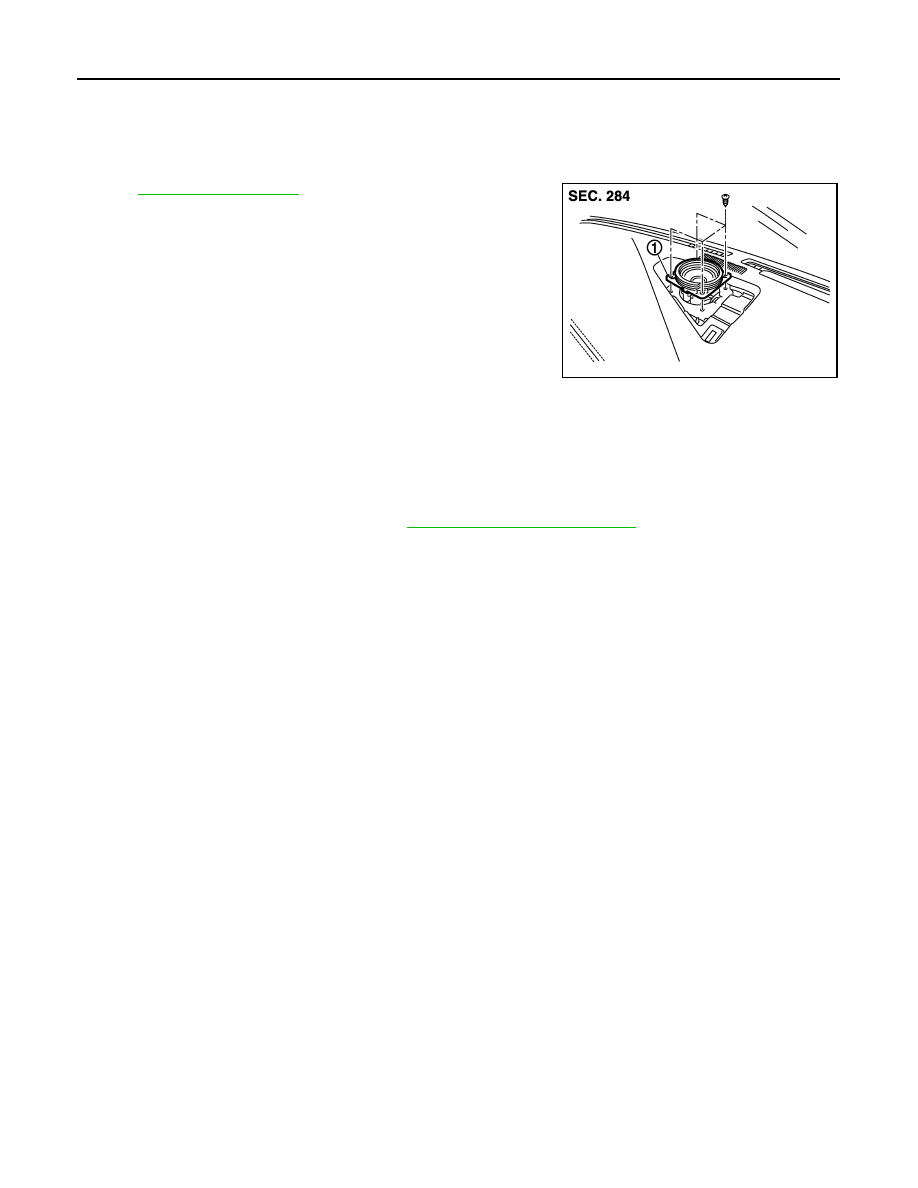

CENTER SPEAKER

CENTER SPEAKER

Exploded View

INFOID:0000000009163438

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009163439

REMOVAL

1.

Remove the center speaker grille. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws and disconnect the connector, and then remove the center speaker.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1133ZZ

1.

Center speaker
