AV

GPS ANTENNA

AV-91

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Exploded View

INFOID:0000000009163320

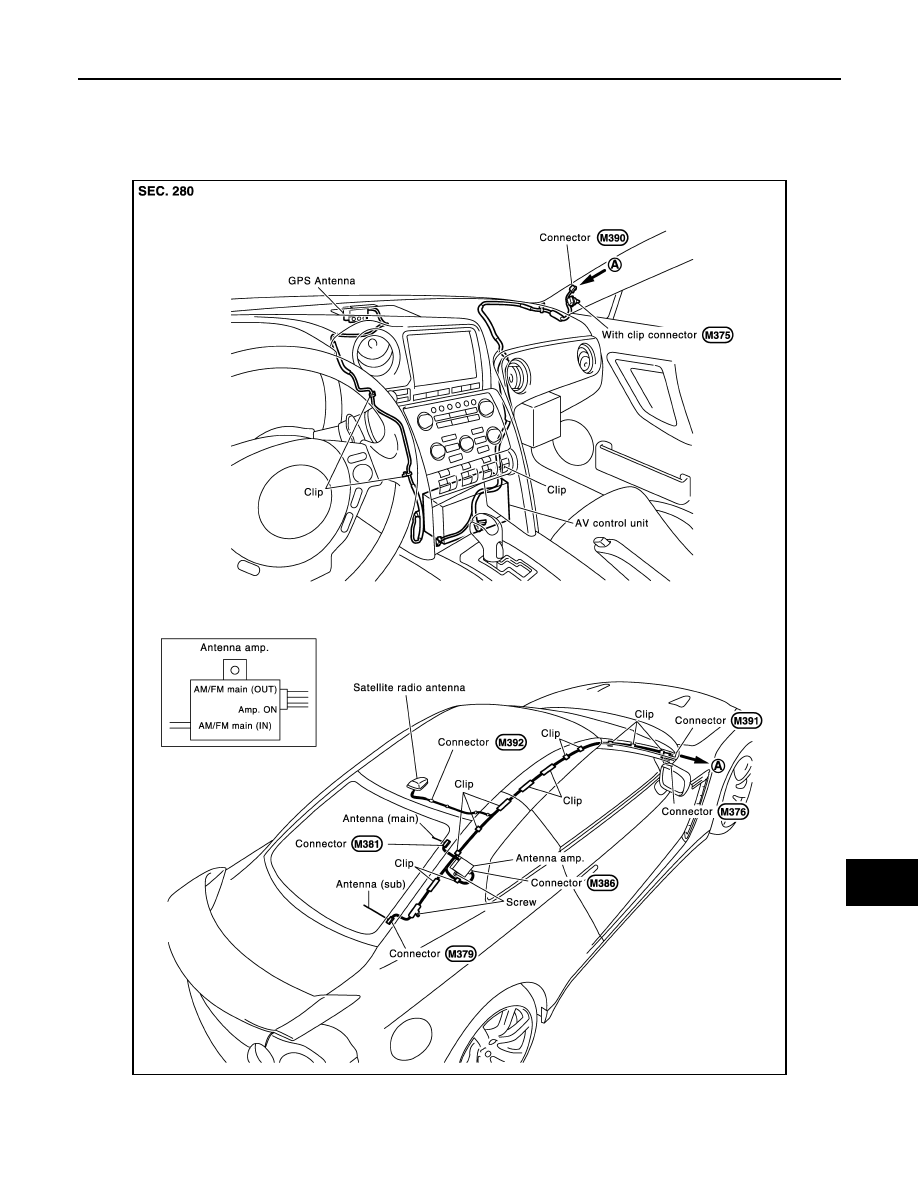

Feeder layout

Removal and Installation

INFOID:0000000009163321

REMOVAL

JSNIA2952GB

AV-92

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

GPS ANTENNA

1.

Remove the instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

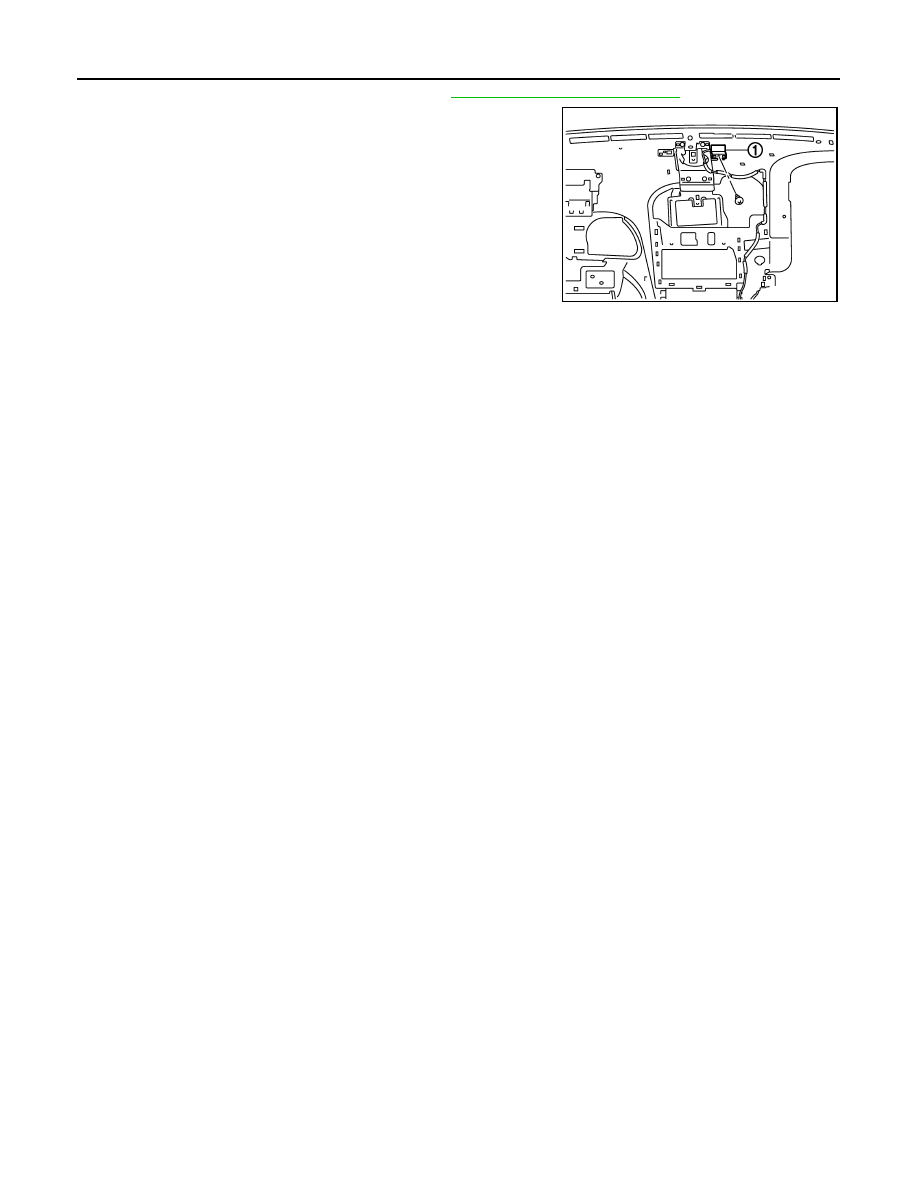

Remove the screws, and then remove GPS antenna (1) from the
instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

JPNIA1139ZZ

AV

ANTENNA FEEDER

AV-93

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA FEEDER

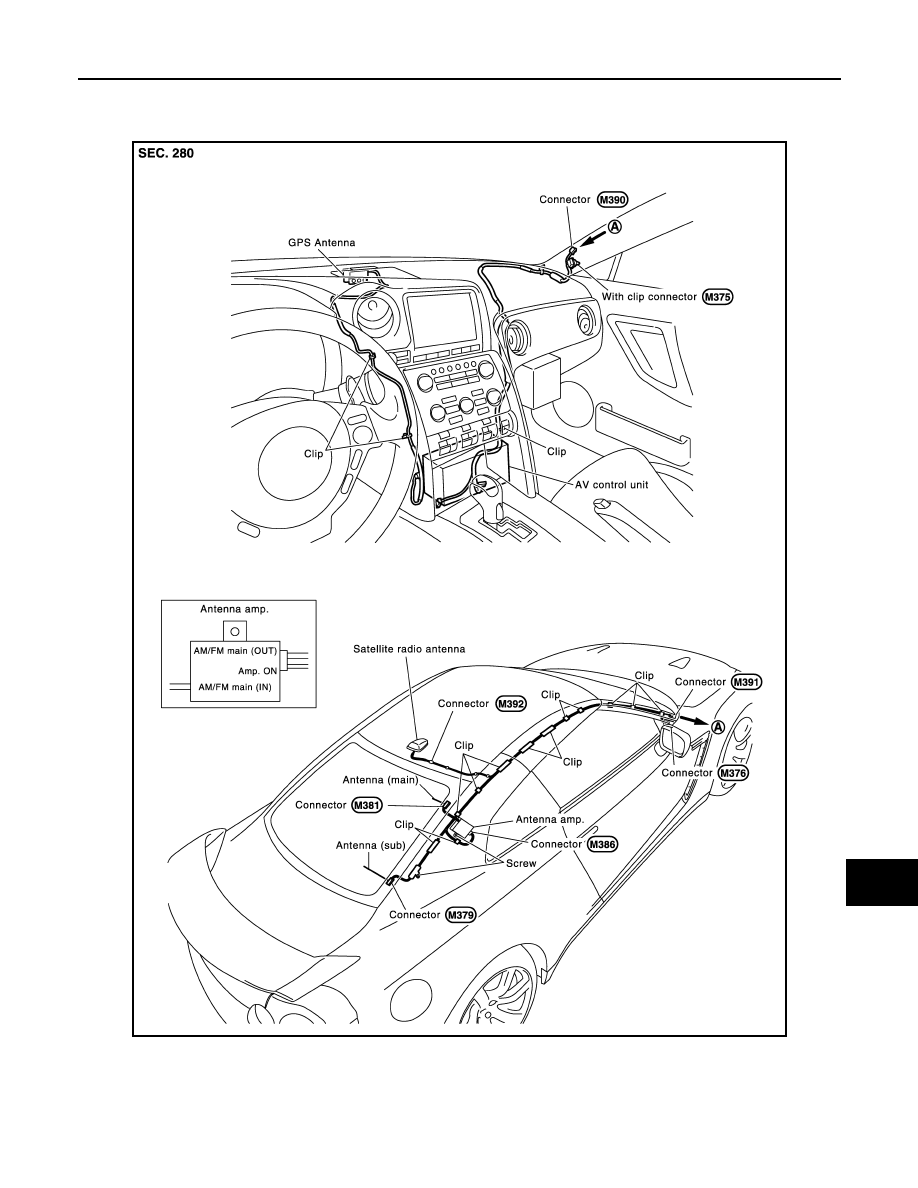

Feeder layout

INFOID:0000000009163322

JSNIA2952GB

AV-94

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

USB CONNECTOR

USB CONNECTOR

Exploded View

INFOID:0000000009163323

Removal and Installation

INFOID:0000000009163324

REMOVAL

1.

Remove center console. Refer to

IP-23, "Exploded View"

.

2.

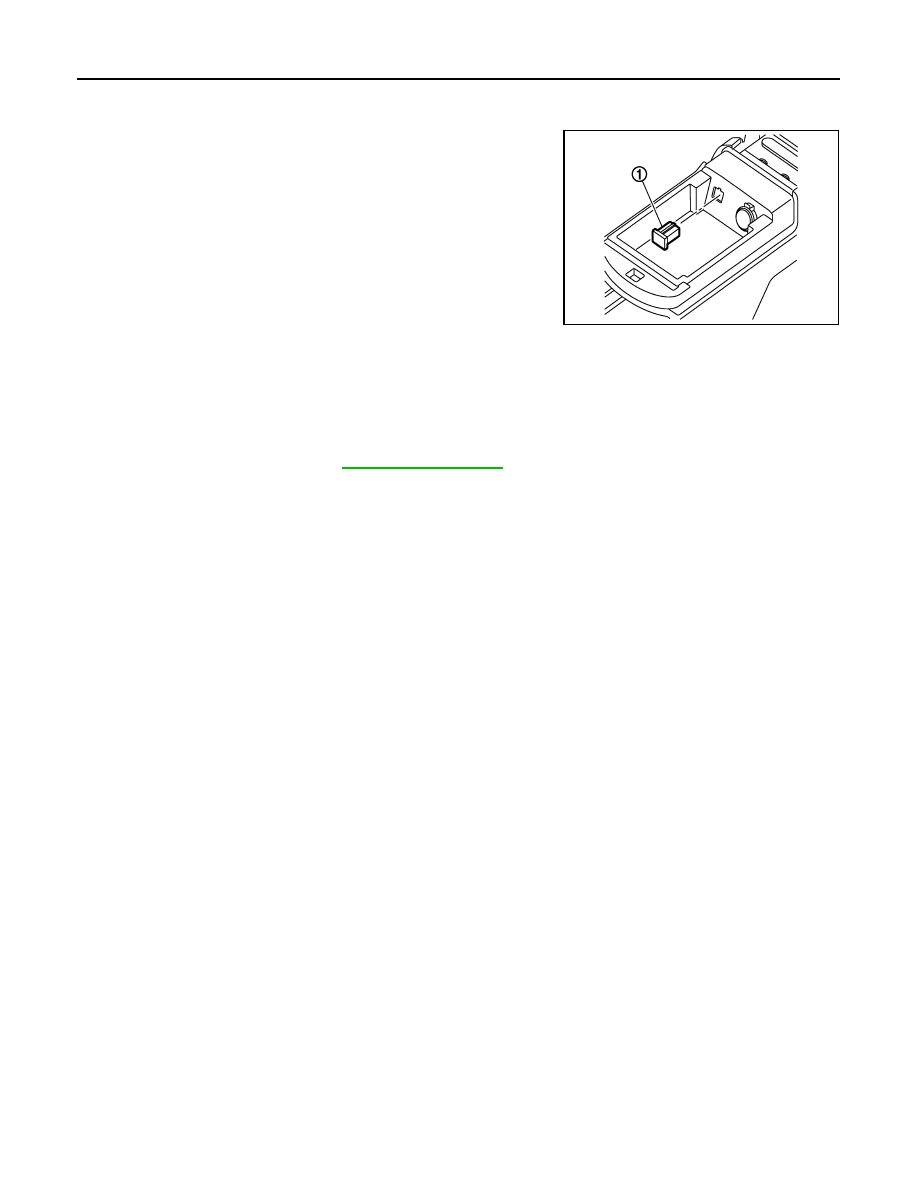

Push the pawl from the back of center console to remove USB connector.

INSTALLATION

Install in the reverse order of removal.

NNNIA0182ZZ

1.

USB connector
