AUDIO AMP.

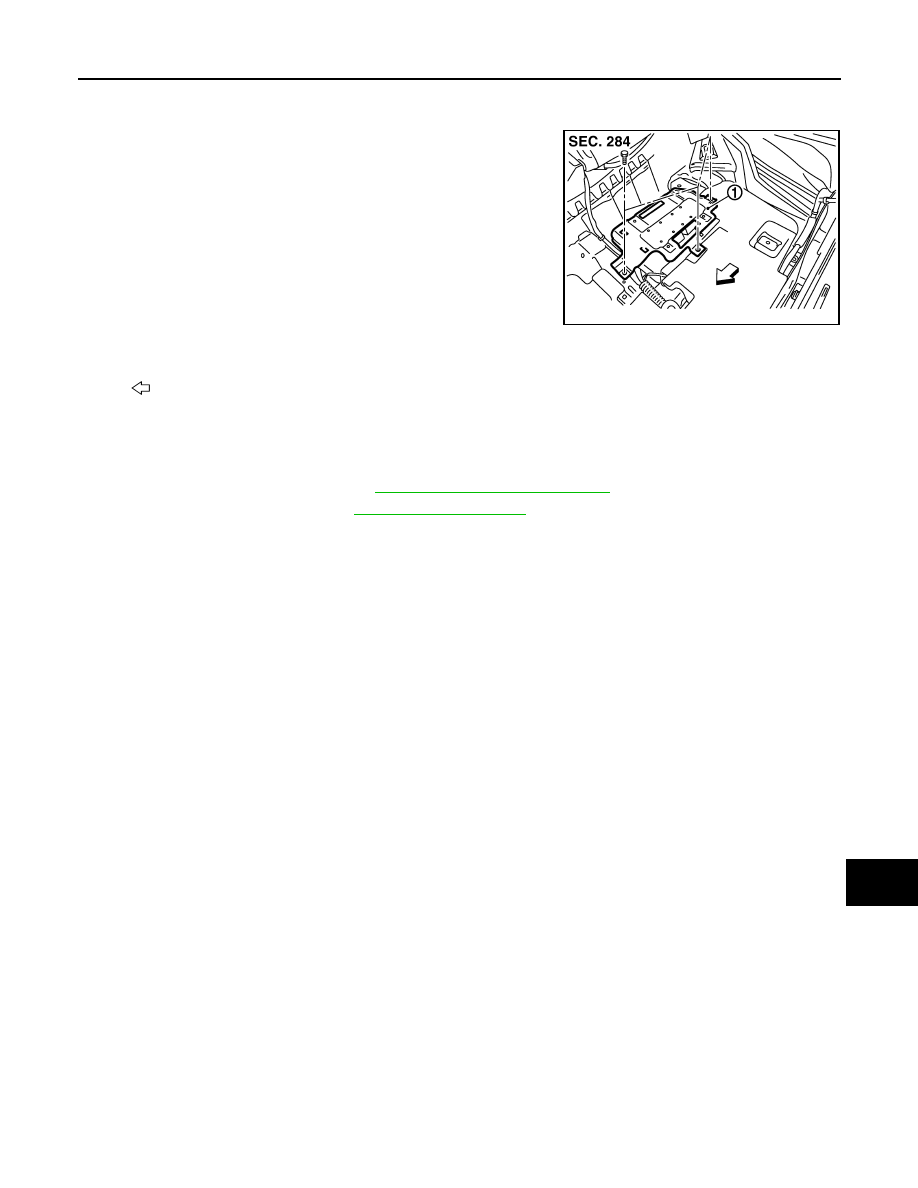

Exploded View

INFOID:0000000009163304

Removal and Installation

INFOID:0000000009163305

REMOVAL

1.

Remove the passenger seat. Refer to

SE-49, "Removal and Installation"

.

2.

Turn over the floor carpet (refer to

INT-22, "Exploded View"

), remove the screw and disconnect the con-

nector, and then remove the audio amplifier.

INSTALLATION

Install in the reverse order of removal.

NNNIA0044ZZ

1.

Audio amp.

: Vehicle front

AV-84

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

ANTENNA AMP.

ANTENNA AMP.

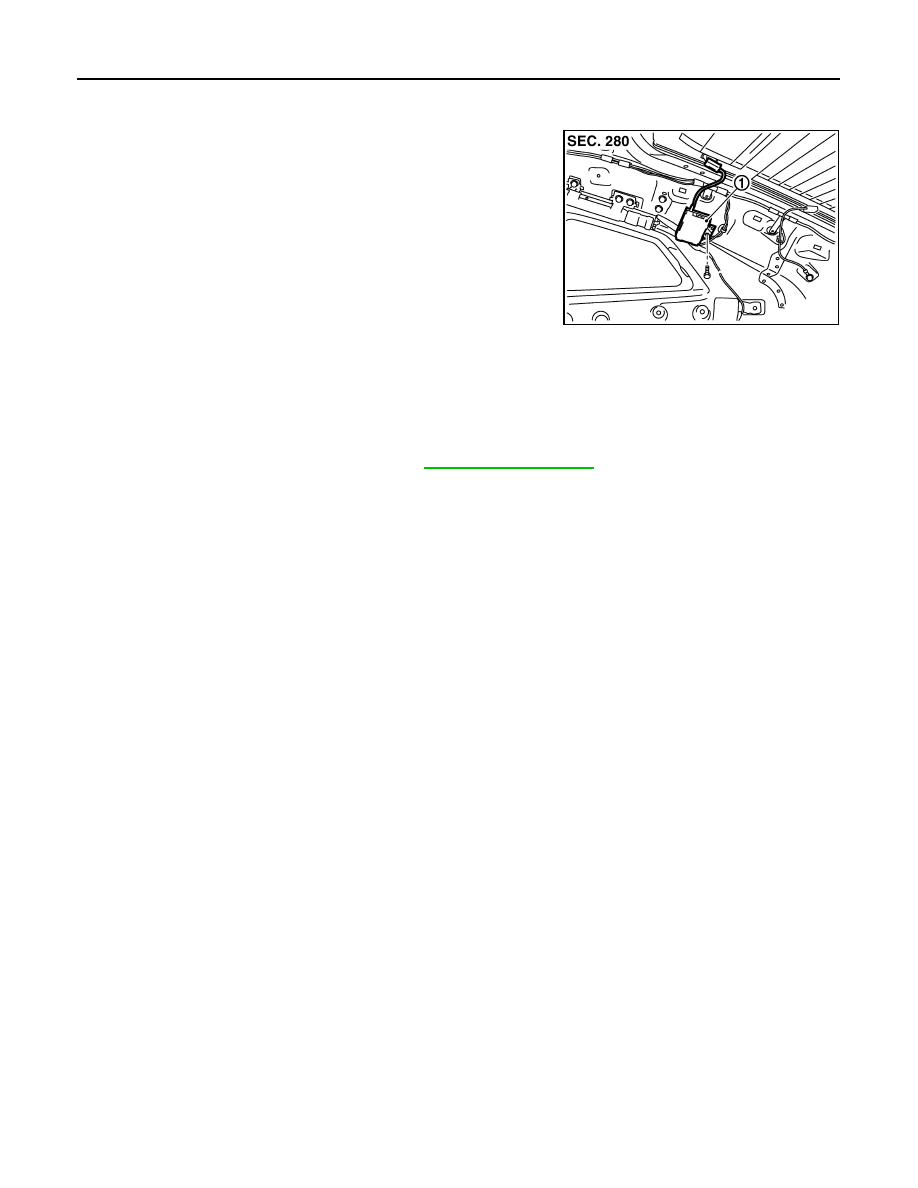

Exploded View

INFOID:0000000009163306

Removal and Installation

INFOID:0000000009163307

REMOVAL

1.

Remove the rear pillar finisher (RH). Refer to

INT-15, "Exploded View"

.

2.

Remove the screw and disconnect the connector, and then remove the radio antenna amplifier from the
vehicle.

INSTALLATION

Install in the reverse order of removal.

NNNIA0045ZZ

1.

Antenna amp.

AV

SATELLITE RADIO ANTENNA

AV-85

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO ANTENNA

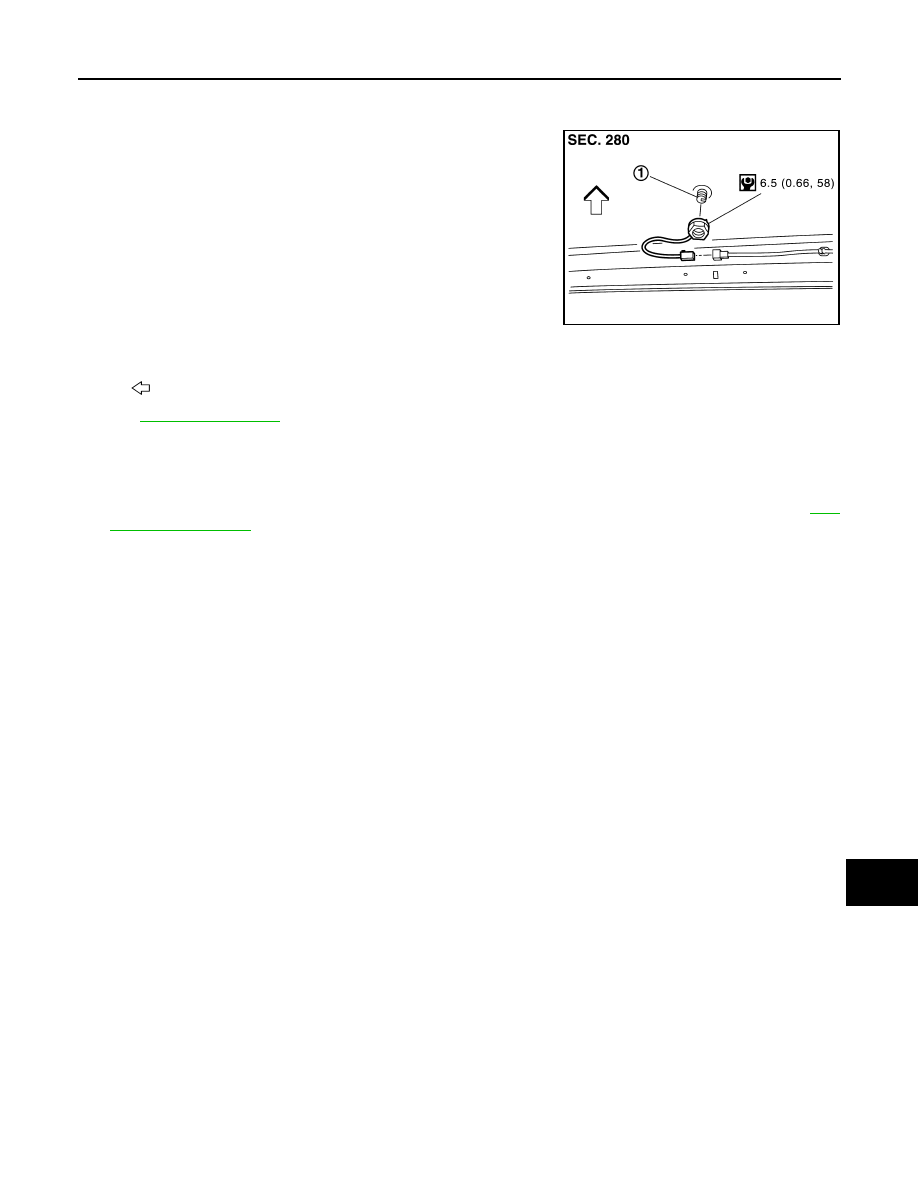

Exploded View

INFOID:0000000009163308

Refer to

GI-4, "Components"

 symbols in the figure.

Removal and Installation

INFOID:0000000009163309

REMOVAL

1.

Remove headlining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

24, "Exploded View"

.

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when satellite radio antenna mounting nut tightening torque is loose.

JPNIA0487ZZ

1.

Satellite radio antenna

:

Vehicle front

AV-86

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000009163310

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163311

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-13, "Removal and Installation"

.

2.

Remove the screws (A), and then remove the multifunction
switch from the cluster lid C (upper).

INSTALLATION

Installation is the reverse order of removal.

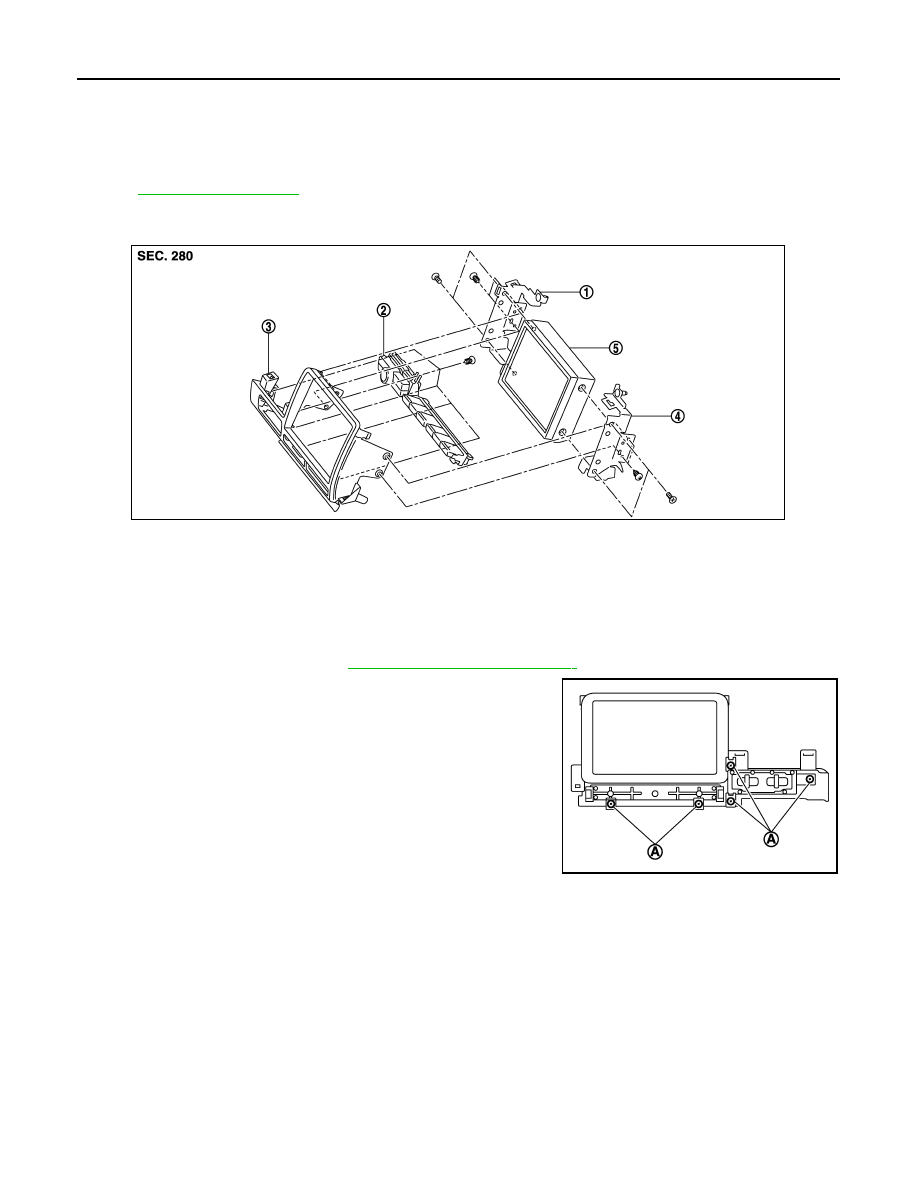

1.

Bracket (LH)

2.

Multifunction switch

3

Cluster lid C (upper)

4.

Bracket (RH)

5.

Display unit

JPNIA1135ZZ

JPNIA1136ZZ
