NORMAL OPERATING CONDITION

AV-75

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RELATED TO ROUTE CALCULATION AND VISUAL GUIDANCE

The map does not scroll even when
the vehicle is moving.

The current location map screen is not dis-
played.

Press “MAP”.

The vehicle icon is not displayed.

The current location map screen is not dis-
played.

Press “MAP”.

The location of the vehicle icon is
misaligned from the actual position.

When using tire chains or replacing the tires,
speed calculations based on the speed sensor
may be incorrect.

Drive the vehicle for a while [at approximately
30 km/h (19 MPH) for about 30 minutes] to
automatically correct the vehicle icon posi-
tion.
If this does not correct the vehicle icon posi-
tion, contact an INFINITI dealer.

The map data has a mistake or is incomplete
(the vehicle icon position is always misaligned
in the same area).

Updated road information will be included in
the next version of the map data.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Waypoints are not included in
the auto reroute calculation.

Waypoints that you have already passed are not included in
the auto reroute calculation.

If you want to go to that waypoint
again, you need to edit the route.

Route information is not dis-
played.

Route calculation has not yet been performed.

Set the destination and perform route
calculation.

You are not driving on the suggested route.

Drive on the suggested route.

Route guidance is set to off.

Turn on route guidance.

Route information is not provided for certain types of roads
(roads displayed in gray).

This is not a malfunction.

The auto reroute calculation (or
detour calculation) suggests
the same route as the one pre-
viously suggested.

Route calculations took priority conditions into consider-
ation, but the same route was calculated.

This is not a malfunction.

A waypoint cannot be added.

Five waypoints are already set on the route, including ones
that you have already passed.

A maximum of 5 waypoints can be set
on the route. If you want to go to 6 or
more waypoints, perform route calcu-
lations multiple times as necessary.

The suggested route is not dis-
played.

Roads near the destination cannot be calculated.

Reset the destination to a main or or-
dinary road, and recalculate the route.

The starting point and destination are too close.

Set a more distant destination.

The starting point and destination are too far away.

Divide your trip by selecting one or two
intermediate destinations, and per-
form route calculations multiple times.

There are time restricted roads (by the day of the week, by
time) near the current vehicle location or destination.

Set [Use Time Restricted Roads] to
off.

The part of the route that you
have already passed is deleted.

A route is managed by sections between waypoints. If you
passed the first waypoint, the section between the starting
point and the waypoint is deleted. (It may not be deleted de-
pending on the area.)

This is not a malfunction.

An indirect route is suggested.

If there are restrictions (such as one-way streets) on roads
close to the starting point or destination, the system may
suggest an indirect route.

Adjust the location of the starting of
the starting point or destination.

The system may suggest an indirect route because route
calculation does not take into consideration some areas
such as narrow streets (gray roads.)

Reset the destination to a main or or-
dinary road, and recalculate the route.

AV-76

< SYMPTOM DIAGNOSIS >

[BASE AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

RELATED TO VOICE GUIDANCE

RELATED TO HANDS-FREE PHONE

The landmark information does
not correspond to the actual in-
formation.

This may be caused by insufficient or incorrect map data.

Updated information will be included
in the next version of the data.

The suggested route does not
exactly connect to the starting
point, waypoints, or destina-
tion.

There is no data for route calculation closes to these loca-
tions.

Set the starting point, waypoints and
destination on a main road, and per-
form route calculation.

Symptom

Possible cause

Possible solution

Symptom

Possible cause

Possible solution

Voice guidance is not available

Voice guidance is only available at certain intersections
marked with? In some case, voice guidance is not avail-
able even when the vehicle should make a turn.

This is not a malfunction.

The vehicle has deviated from the suggested route.

Go back to the suggested route or request
route calculation again

Voice guide is set to off.

Turn on voice guidance.

Route guidance is set to off.

Turn on voice guidance.

The guidance contact does not
correspond to the actual condi-
tion.

The contact of voice guidance may vary, depending on
the types of intersections at which turn are made.

Follow all traffic rules and regulations.

Symptom

Cause and Counter measure

Does not recognize cellular phone connection. (No connection is
displayed on the display at the guide.)

Some Bluetooth

®

 enabled cellular phones may not be recognized

by the in-vehicle phone module. Refer to “RELATED TO HANDS-
FREE PHONE (Check Compatibility)” of MULTI AV SYSTEM
SYMPTOM.

Cannot use hands-free phone

Customer will not be able to use a hands-free phone under the fol-
lowing conditions.
• The vehicle is outside of the telephone service area.
• The vehicle is in an area where it is difficult to receive radio

waves; such as in a tunnel, in an underground parking garage,
near a tall building or in a mountainous area.

• The cellular phone is locked to prevent it from being dialed.
NOTE:

While a cellular phone is connected through the Bluetooth

®

 wire-

less connection, the battery power of the cellular phone may dis-

charge quicker than usual. The Bluetooth

®

 Hands-Free Phone

System cannot charge cellular phones.

The other party's voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person's voice during a
call.

Poor sound quality

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

AV

AV CONTROL UNIT

AV-77

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Exploded View

INFOID:0000000009163294

CAUTION:

Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the igni-
tion switch OFF.
NOTE:
After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163295

CAUTION:

Be careful of the following items at removal and installation of A/T shift selector. Refer to

TM-16,

"Removal and Installation"

 for details.

• For electro-medical apparatus user, keep the range sensor away from the device.
• Keep the range sensor away from magnetic objects during work.
• Remove battery terminal and AV control unit after a lapse of 30 seconds or more after turning the

ignition switch OFF.

NOTE:
After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.
Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

REMOVAL

NOTE:
When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before
replacement. Refer to

AV-49, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

1.

Remove the cluster lid C (lower). Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect the connector, and then remove the AV control unit together with the bracket from the vehicle.

3.

Remove the bracket from the AV control unit.

INSTALLATION

1.

Bracket LH

2.

Cluster lid C (lower)

3.

Disk eject switch

4.

Bracket RH

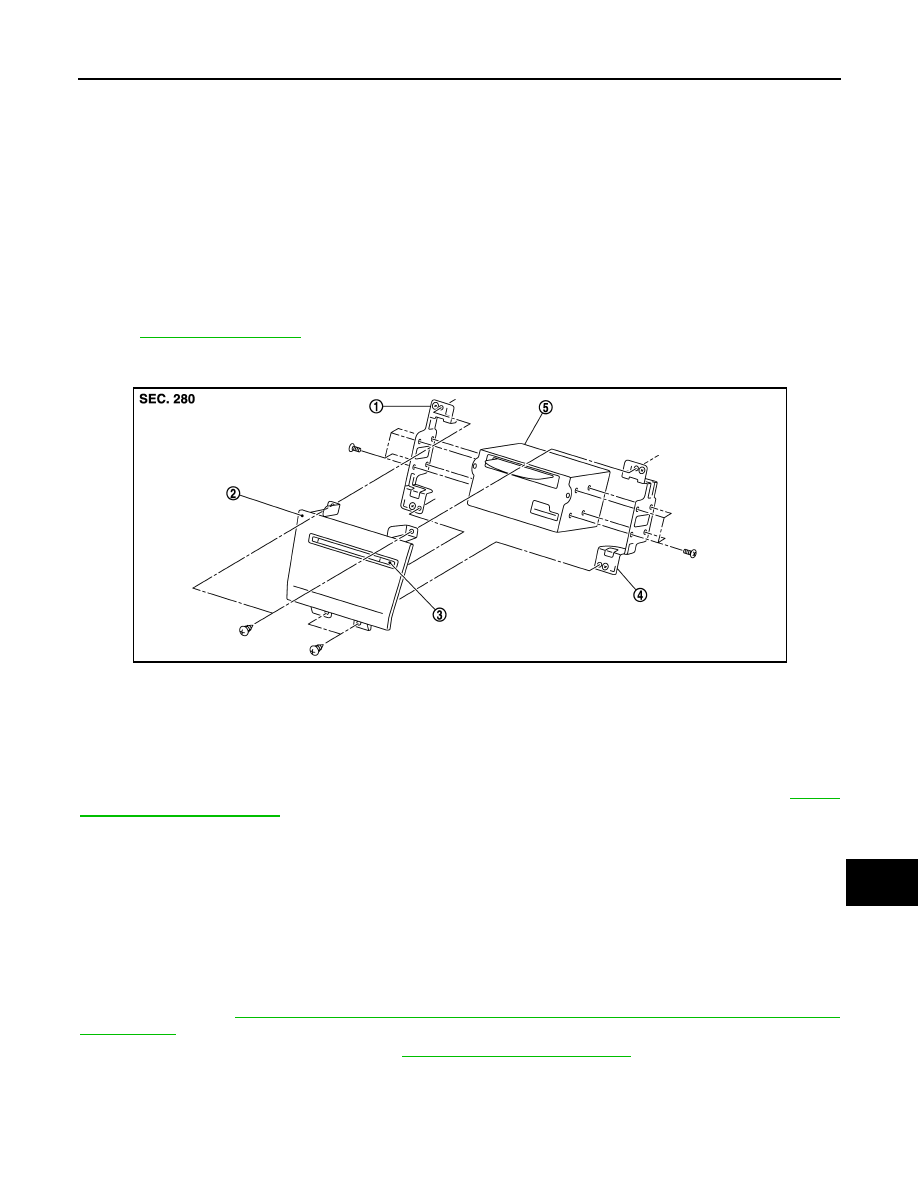

5.

AV control unit

NNNIA0171ZZ

AV-78

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

Install in the reverse order of removal.

CAUTION:

When replacing AV control unit, you must perform “Read/Write Configuration” with CONSULT. Refer to

AV-49, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.
