DISPLAY UNIT

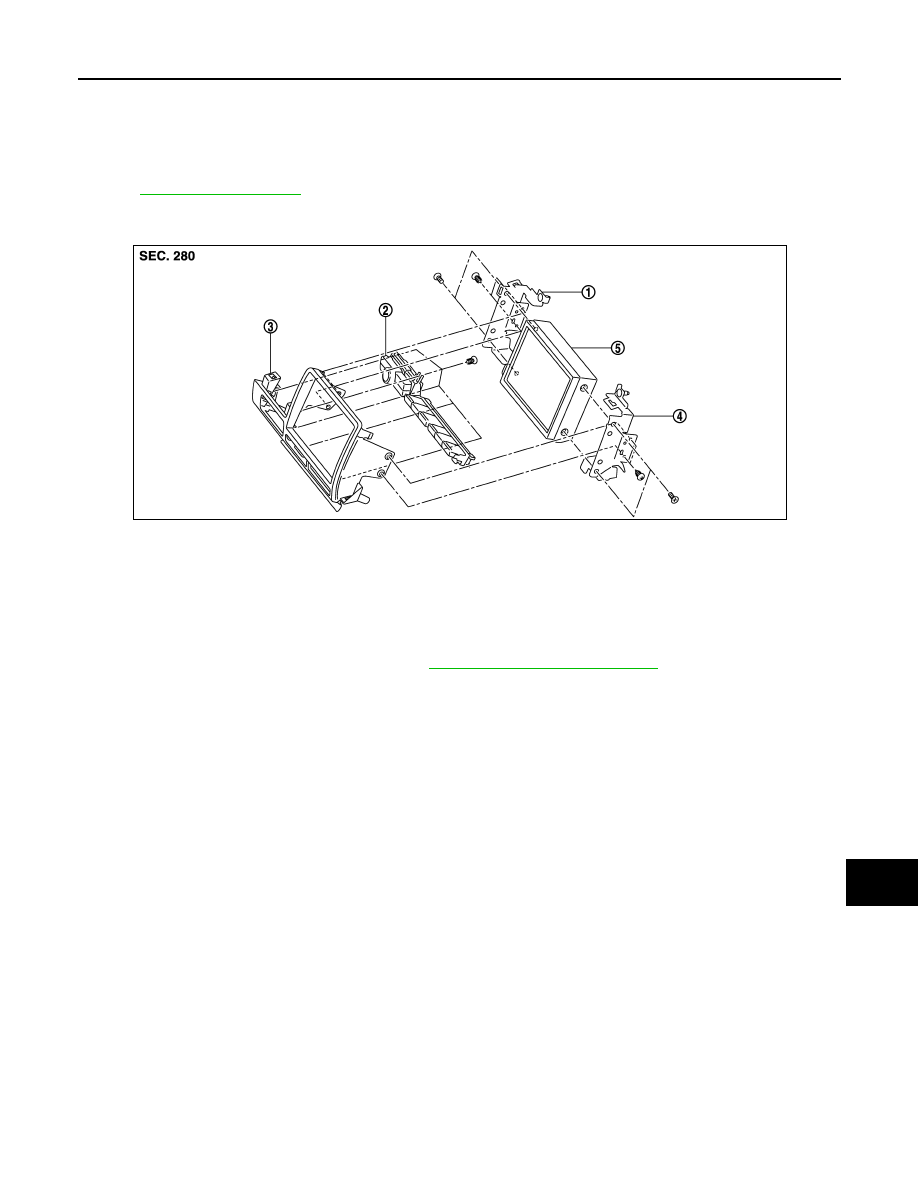

Exploded View

INFOID:0000000009163296

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009163297

REMOVAL

1.

Remove the instrument panel pad A. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect the connector, and then remove the display together with the bracket and the cluster lid C
(upper).

3.

Remove the display together with the bracket from the cluster lid C (upper).

4.

Remove the bracket from the display.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket (LH)

2.

Multifunction switch

3

Cluster lid C (upper)

4.

Bracket (RH)

5.

Display unit

JPNIA1135ZZ

AV-80

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

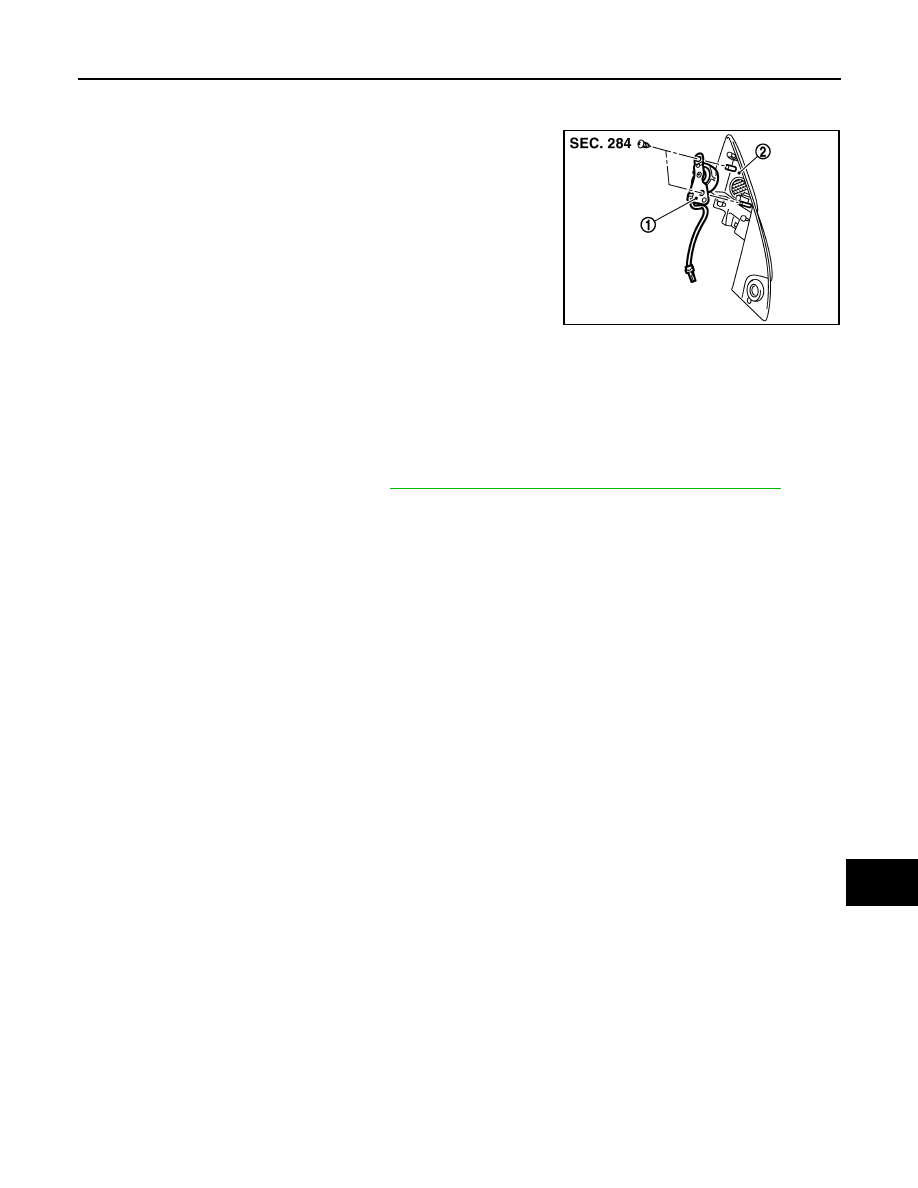

Exploded View

INFOID:0000000009163298

Removal and Installation

INFOID:0000000009163299

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "Exploded View"

.

2.

Disconnect the connector and remove the screws, and remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.

NNNIA0036ZZ

1.

Front door speaker

AV

TWEETER

AV-81

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TWEETER

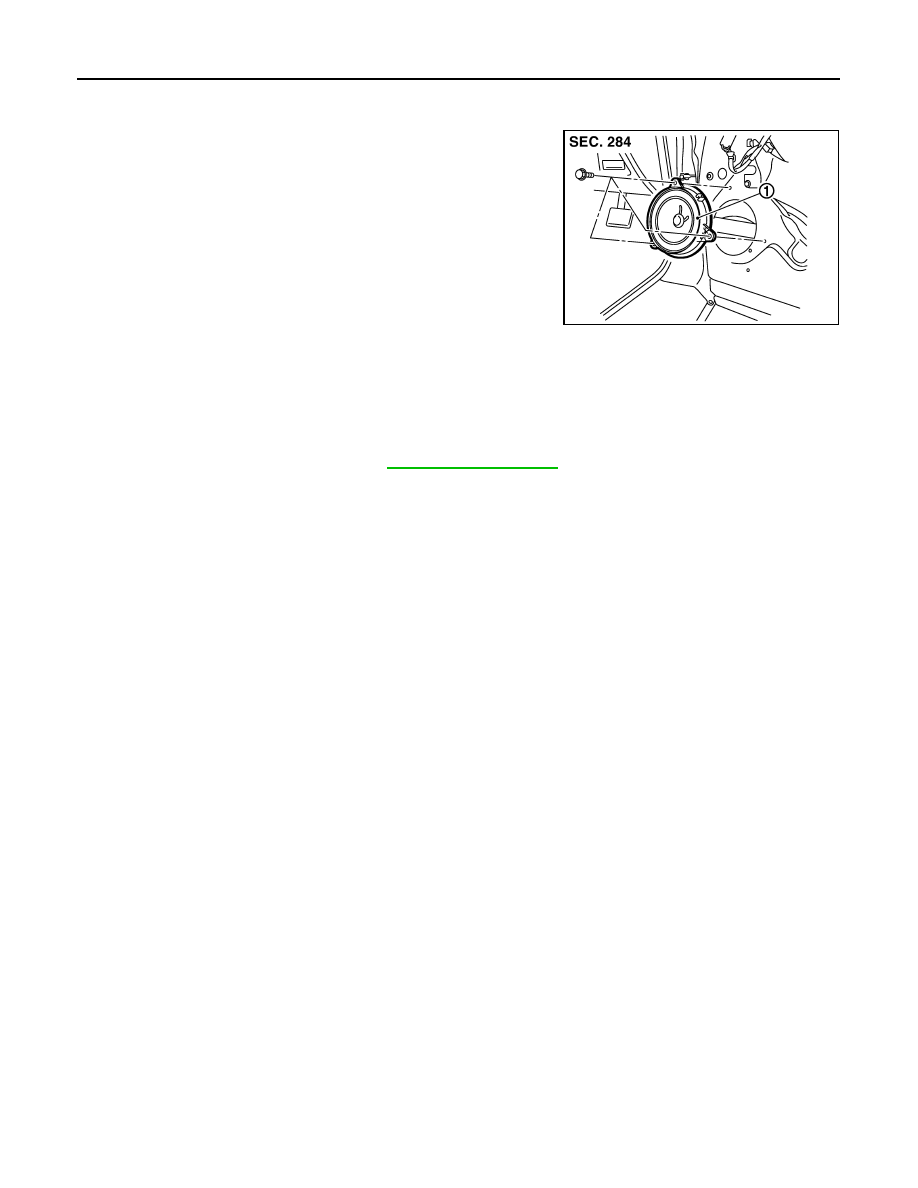

Exploded View

INFOID:0000000009163300

Removal and Installation

INFOID:0000000009163301

REMOVAL

1.

Remove the door corner cover. Refer to

MIR-16, "DOOR MIRROR ASSEMBLY : Exploded View"

.

2.

Remove the screws, and remove the tweeter from the door corner cover.

INSTALLATION

Install in the reverse order of removal.

NNNIA0039ZZ

1.

Tweeter

2.

Door corner cover

AV-82

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH NAVIGATION]

REAR SPEAKER

REAR SPEAKER

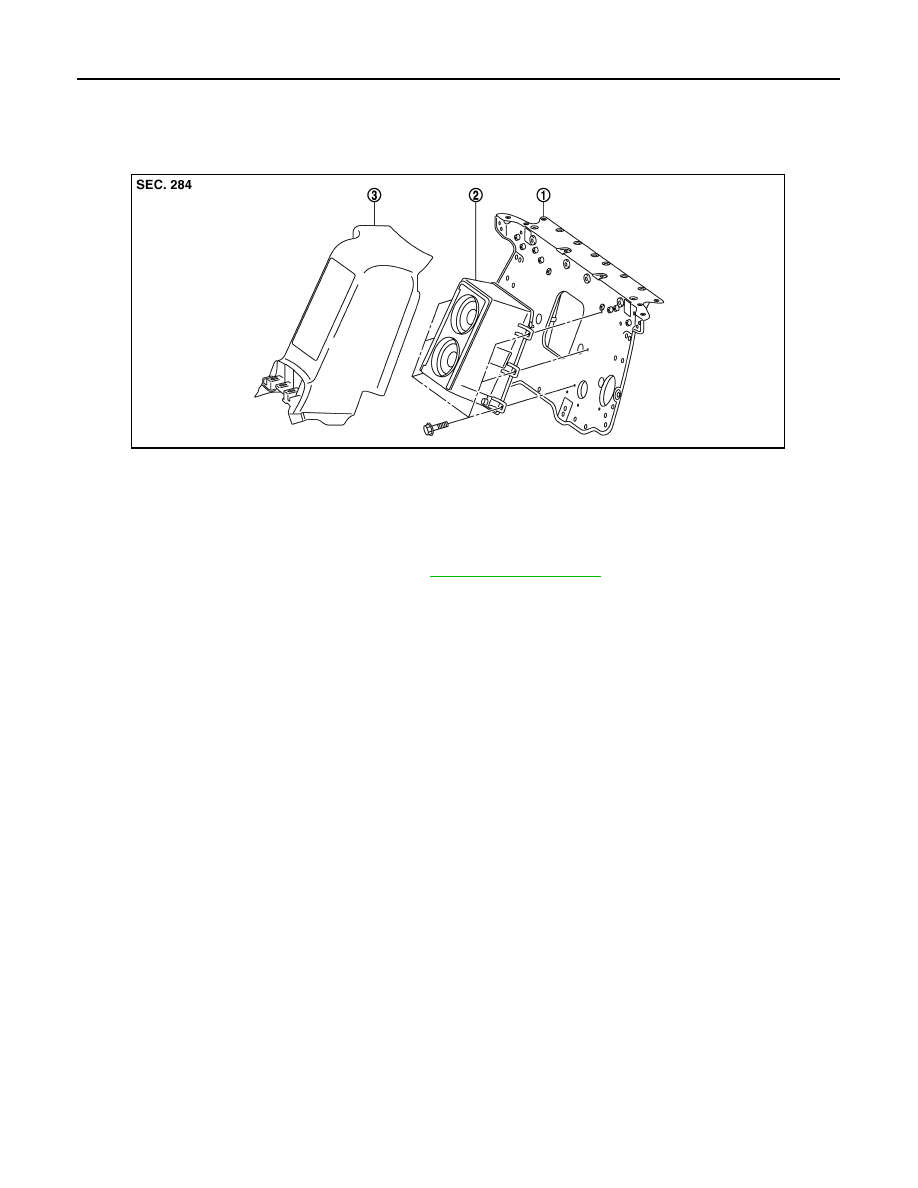

Exploded View

INFOID:0000000009163302

Removal and Installation

INFOID:0000000009163303

REMOVAL

1.

Remove the rear seat center finisher. Refer to

INT-19, "Exploded View"

.

2.

Remove the mounting screw and disconnect the connector, and then remove the rear speaker.

INSTALLATION

Install in the reverse order of removal.

1.

Rear seatback support

2.

Rear speaker

3.

Rear seat center finisher

NNNIA0089ZZ
