MULTI AV SYSTEM

AV-19

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

Driving History Information Display Mode

Displays the sub-functions (driving route history and required time
history) indicating the driving history.

Fail-Safe

INFOID:0000000009163202

When the ambiance temperature becomes extremely low or extremely high, AV control unit displays the mes-
sage and limits the AV control unit function.

FAIL-SAFE CONDITIONS

When the ambiance temperature is

−

C (

−

F) or lower, or when it is 70

C (158

F) or higher

Display

The messages displayed on fail-safe conditions are as shown below:

Display

Display item

Description

Signal route

Display

form

Display

range

Unit

GEAR POSI-
TION

GEAR

Selected gear position

Position sensor

→

TCM

→

Combination meter

→

AV control unit

Value/

symbol

R, P, N, 1 -

—

SPEED

Vehicle speed

Wheel sensor

→

ABS

actuator and electric
unit (control unit)

→

control unit

Value

0 - 340

km/h

0 - 215

MPH

GEAR
EFFICIENCY

Displays ECO/power band per
gear.

TCM

→

Combination

meter

→

AV control unit

Special

display

—

FUEL ECONO-
MY

FUEL EFFICIENCY

Displays the current ECO level.

ECM/TCM/Combina-
tion meter

→

AV control

unit

Gauge

10 levels

—

FUEL ECON

Interval fuel consumption
(for 1 minuets)

ECM/Combination
meter

→

AV control unit

Value

0 - 30

l/100

Graph

0 - 30

Value

0 - 60

MPG

Graph

0 - 30

FUEL EFFICIENCY

Displays the history of an aver-
age ECO level per minute
(20 minutes data)

ECM/TCM/Combina-
tion meter

→

AV control

unit

Graph

10 levels

—

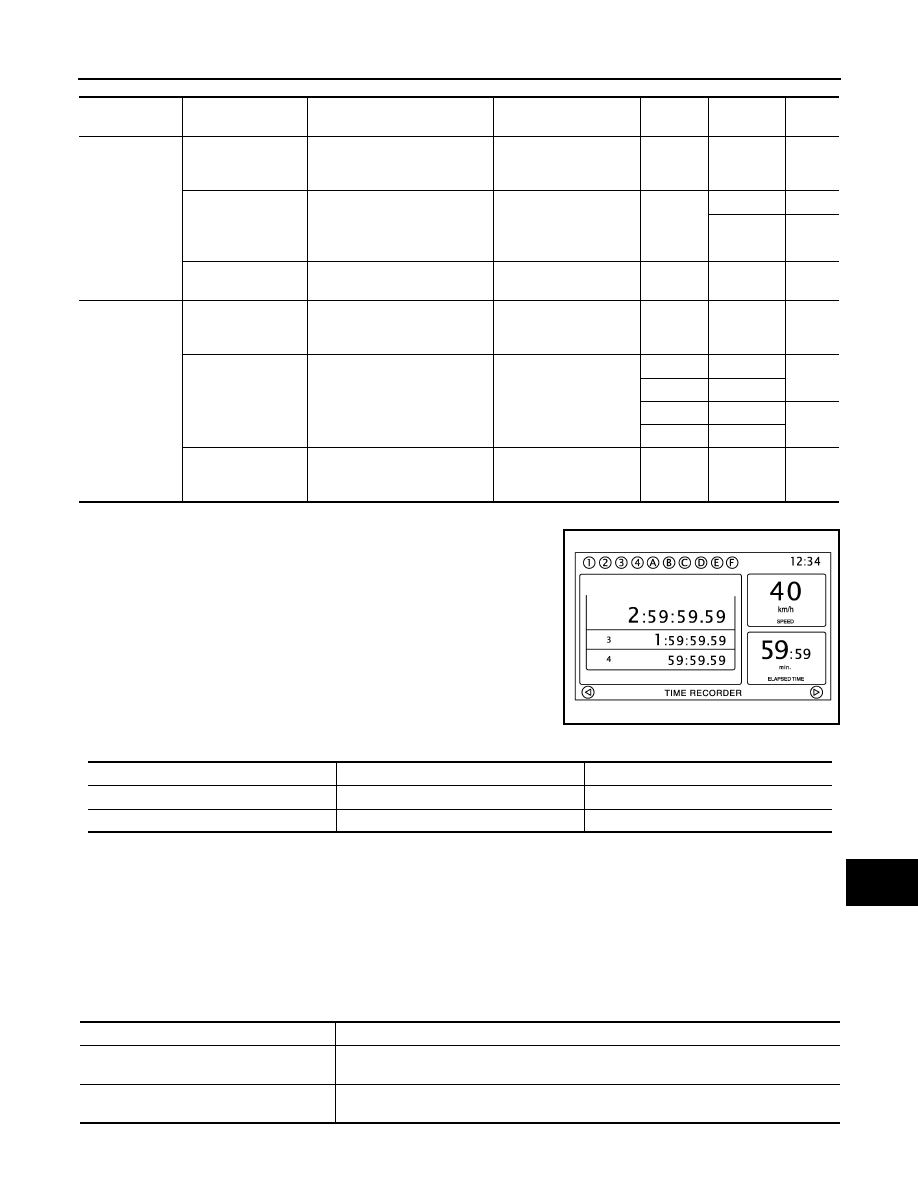

NNNIA0169ZZ

Display

Description

Display form

STOP WATCH

Displays the measured TIME results.

Special display

DRIVER'S NOTES

Displays the driving history information

Special display

Fail-safe mode

Display (display of the fail-safe condition)

When HDD temperature is low

HDD system is experiencing problems due to extreme low temperature.
Normal operation will resume when temperature rises.

When HDD temperature is high

HDD system is experiencing problems due to extreme high temperature.
Normal operation will resume when temperature drops.

AV-20

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

DESCRIPTION OF CONTROLS

Ability Operation Mode

There is an ability operation mode for Fail-safes due to low or high ambiance temperature.
If HDD data can be read, fail-safe is shown, then normal displays are displayed only for functions which can be
operated.

RELEASE CONDITIONS OF FAIL-SAFE

Fail-safe is released on following conditions and normal mode is restored.

When The Temperature of HDD Is Low or High

If the ambient temperature becomes out of fail-safe condition range, normal mode is restored.

Function

When Fail-safe Function is activated

Air conditioner

Operation

Only multifunction switch (preset switch) can be operated.

Display

• LED of multifunction switch (preset switch) illuminates.
• Aimed temperature, blow angle, and flow rate are displayed in simplified mode.

Audio

Operation

Only ON/OFF and volume control operations by multifunction switch (preset switch) are possible.

Display

No display (“Fail-safe mode” is displayed)

Camera

Operation

Image tone cannot be controlled.

Display

Cannot be superimposed. (warning display, tone control display)

Hands-free phone

Operation

Cannot be operated.

Navigation

Operation

Cannot be operated.

Self diagnosis

The display in simplified mode of fail-safe condition

CONSULT diagnosis

Cannot be operated.

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-21

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Description

INFOID:0000000009163203

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function, etc.

On Board Diagnosis Function

INFOID:0000000009163204

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be
checked.

Self-diagnosis Mode

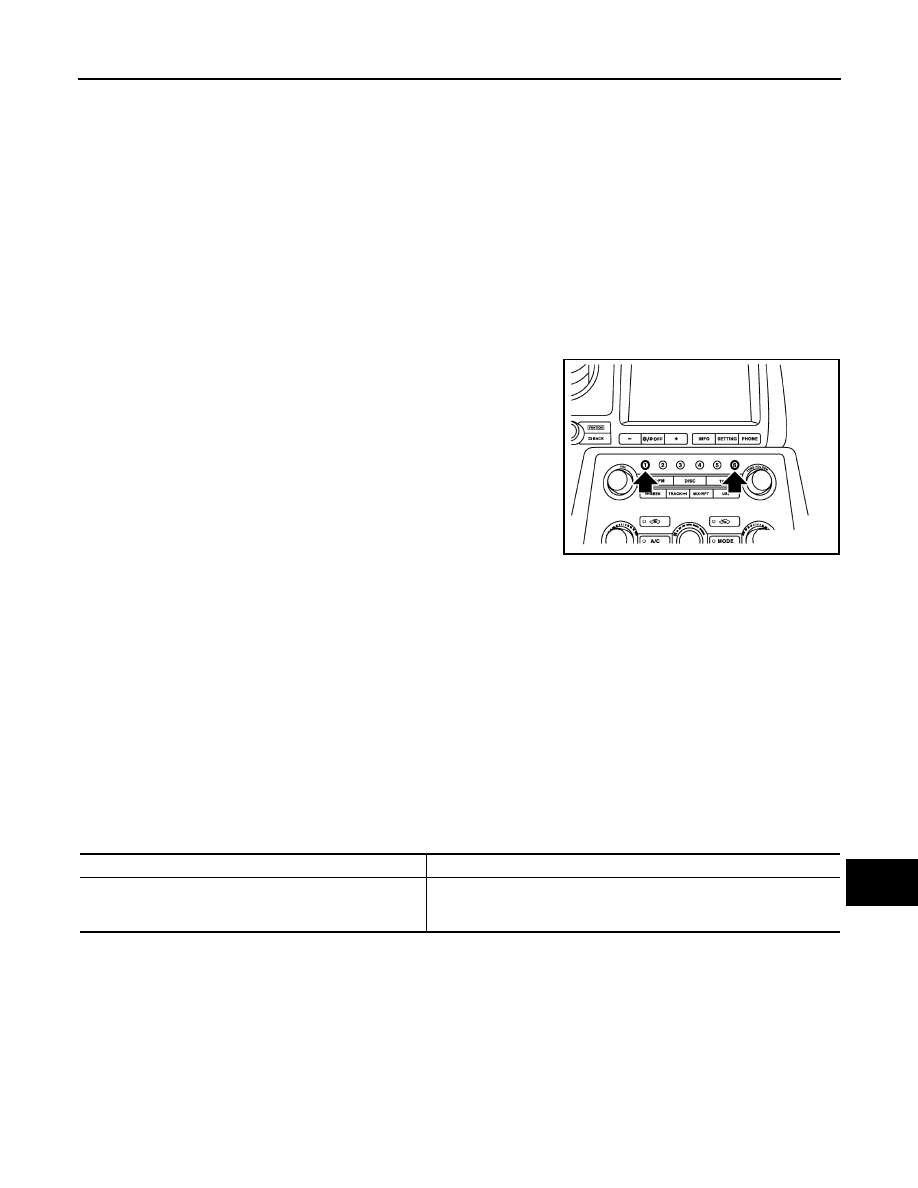

• Press both the preset switches “1” and “6” simultaneously within 10

seconds after turning the ignition switch from OFF to ACC and hold
them for 3 seconds or more. Then release the switches. The
buzzer sounds, all indicators of the centralized and preset switches
illuminate, and the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

ON BOARD DIAGNOSIS ITEM

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• The self-diagnosis mode performs diagnoses on the AV control unit, connections between system compo-

nents as well as connections between AV control unit and GPS antenna. Then it displays the diagnosis
results on the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The checking,
modifying or adjusting generally require human intervention and judgment (the system cannot make judg-
ment automatically).

On Board Diagnosis Item

NNNIA0122ZZ

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• Diagnoses the connections across system components, between AV

control unit and GPS antenna.

AV-22

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

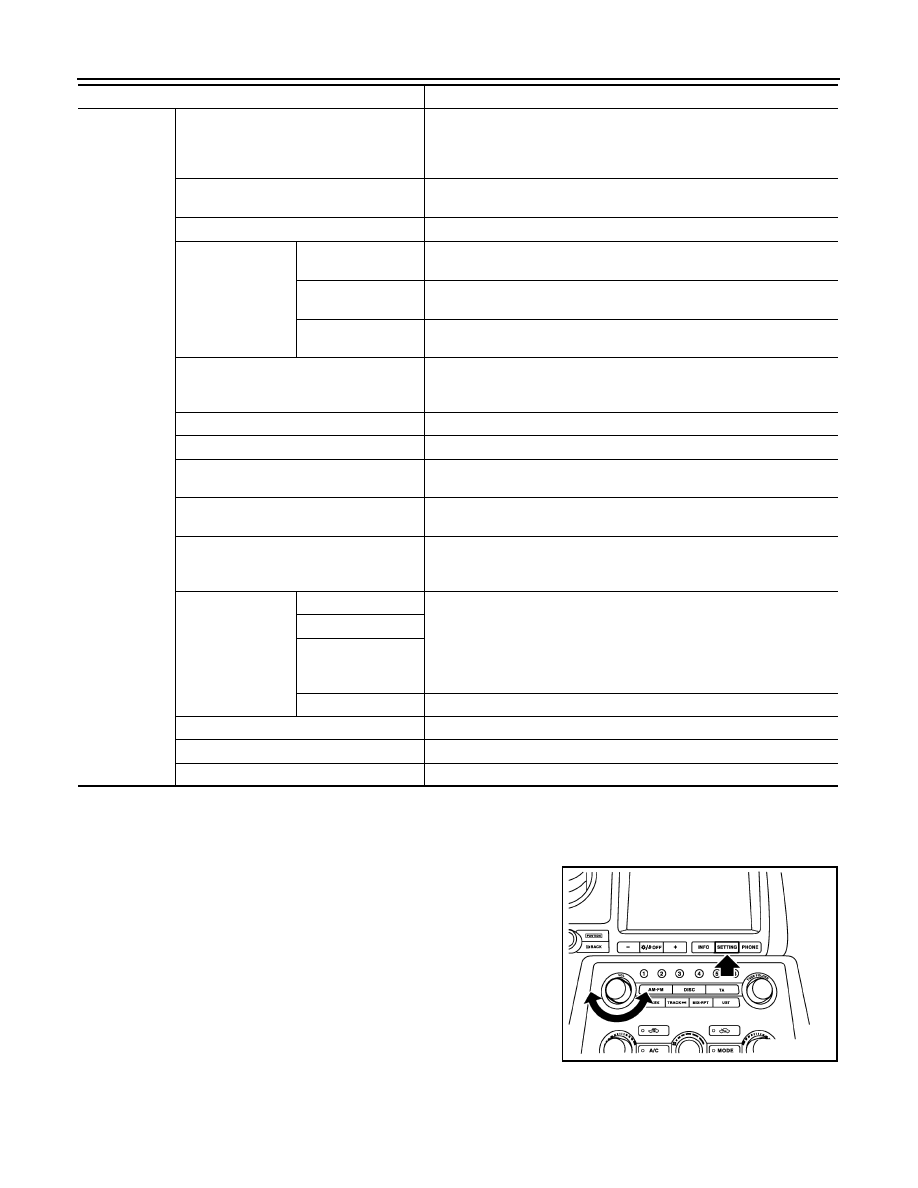

METHOD OF STARTING

Start the engine.

Turn the audio system OFF.

Turn the “VOL” dial either clockwise or counterclockwise for 40
clicks or more while pressing the “SETTING” button. (Beep
sounds when starting the self-diagnosis mode.) Press the
“BACK” switch and the initial system screen will be shown.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color
bar display, light and shade check by gray scale display, touch panel cal-
ibration, touch panel response check and color tone check by white dis-
play.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition, reverse, side view switch and room lamp.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Navigation

Steering Angle Ad-
justment

When there is a difference between the actual turning angle and the ve-
hicle mark turning angle, it can be adjusted.

Speed Calibration

When there is a difference between the current location mark and the ac-
tual location, it can be adjusted.

XM SAT Subscrip-
tion Status

The XM NavTraffic subscription status can be checked.

Error History

The system malfunction and the frequency when occurring in the past
are displayed. When the malfunctioning item is selected, the time and
place that the selected malfunction last occurred are displayed.

Synchronizer FES Clock

–

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

Hands-free Phone

The received volume adjustment of hands-free phone, microphone
speaker check, and erase memory can be performed.

Camera Cont.

The four functions of “Correct Draw Line of Rear view Camera”, “Alter/
Confirm Configuration”, “Reset Configuration” and “Camera Syst Type”
are available.

XM Navi Trffic

Change Channel

• Any necessary channels required to receive traffic information from

the satellite radio system can be set.
Change Application ID

• Any application ID'-s required to receive traffic information from the

satellite radio system can be set.

XM NavWeather

XM CGS

Diag

Not used.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

Version Information

Version information of the AV control unit is displayed.

Mode

Description

NNNIA0123ZZ
