AV

MULTI AV SYSTEM

AV-11

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• AV control unit function by transmitting/receiving data one by one with each unit (slave unit) that configures

them completely as a master unit by connecting between units that configure MULTI AV system with two AV
communication lines (H, L).

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• The AV control unit is connected with CAN communication line and receives data signals from the ECM,

combination meter, TCM, AWD control unit, A/C auto amp., ABS actuator and electric unit (control unit),
steering angle sensor and low tire pressure warning control unit. Using the obtained information, it computes
values for the display items relating to the fuel consumption information, multifunction meter, and tire pres-
sure information and displays them.

• AV control unit is connected with display and serial communication, and it transmits the required signal of

display and display control and receives the response signal from display.

• The AV control unit, which has the vehicle setting function, transmits and receives data on vehicle setting

condition via CAN communication with the BCM.

NAVIGATION SYSTEM FUNCTION

Description

• The AV control unit controls navigation function while GPS tuner has built-in map data, GYRO (angle speed

sensor), on the HDD (Hard Disk Drive).

• The AV control unit inputs operation signal with communication signal, through display (touch panel) and

multifunction switch and steering switch.

• Guide sound is output to front speaker through audio amp. from AV control unit when operating navigation

system.

• A vehicle position is calculated with the GYRO (angle speed sensor), vehicle sensor, signal from GPS satel-

lite and map data stored on HDD (Hard Disk Drive), and transmits the map image signal (RGB digital image
signal) to the display.

Position Detection Principle

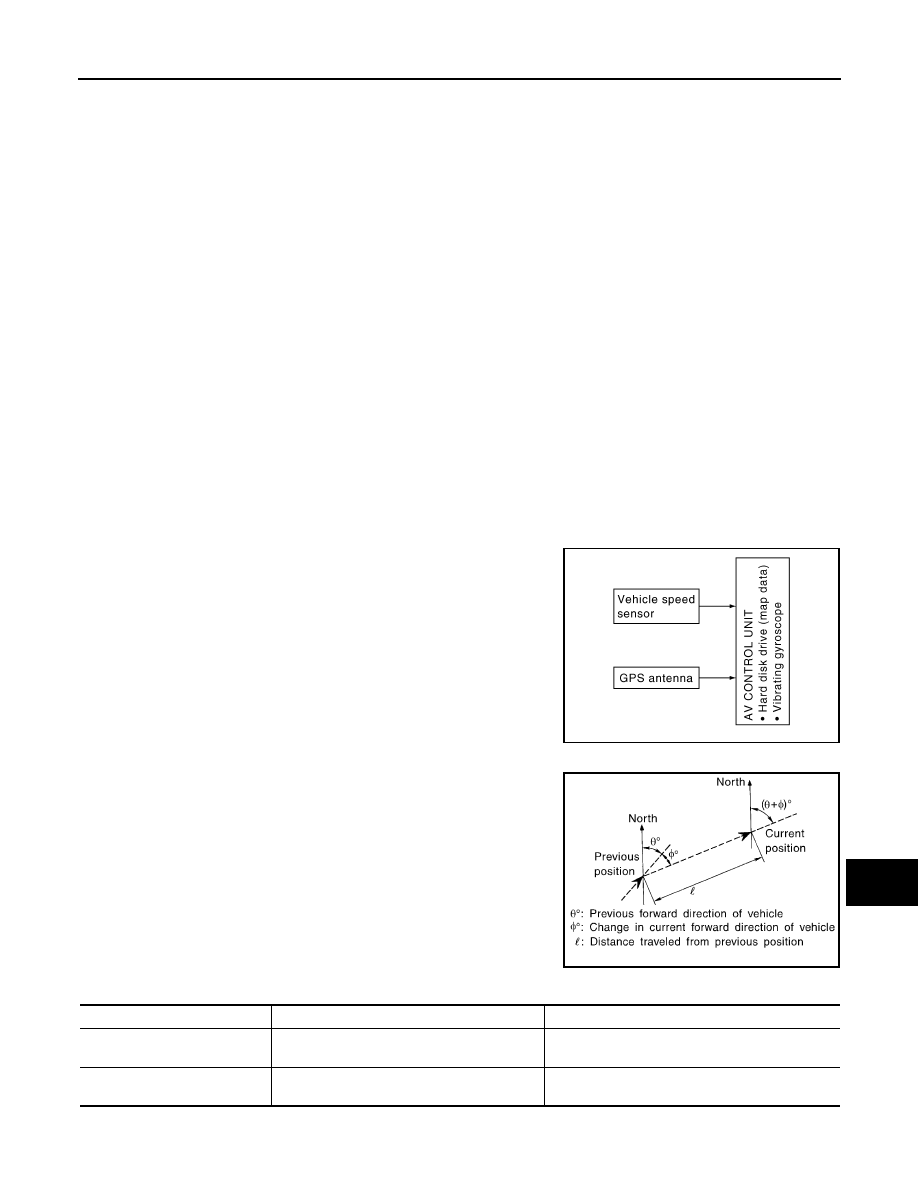

The navigation system periodically calculates the current vehicle
position according to the following three types of signals.
• Travel distance of the vehicle as determined by the vehicle speed

sensor

• Vehicle turning angle determined by the gyroscope (angular speed

sensor)

• The travel direction of the vehicle determined by the GPS antenna

(GPS information)

The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data, which is stored in the HDD
(Hard Disk Drive) (map-matching), and indicated on the screen with
a current location mark. More accurate data is used by comparing
position detection results from GPS to the map-matching.
The current position is calculated by detecting the travel distance
from the previous calculation point, and its direction change.
• Travel distance

The travel distance is generated from the vehicle speed sensor
input signal. The automatic distance correction function is adopted
for preventing a miss-detection of the travel distance because of
tire wear etc.

• Travel direction

The gyroscope (angular velocity sensor) and GPS antenna (GPS
information) generate the change of the travel direction. Both have
advantages and disadvantages as per the following descriptions.

Input signals are prioritized in each situation. However, this order of priority may change in accordance with
more detailed travel conditions so that the travel direction is detected more accurately.

JSNIA0177GB

SEL684V

Type

Advantage

Disadvantage

Gyroscope (angular velocity
sensor)

The turning angle is precisely detected.

Errors are accumulated when driving a long dis-
tance without stopping.

GPS antenna (GPS informa-
tion)

The travel direction (North/South/East/West) is
detected.

The travel direction is not precisely detected when
driving slowly.

AV-12

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

Map-matching

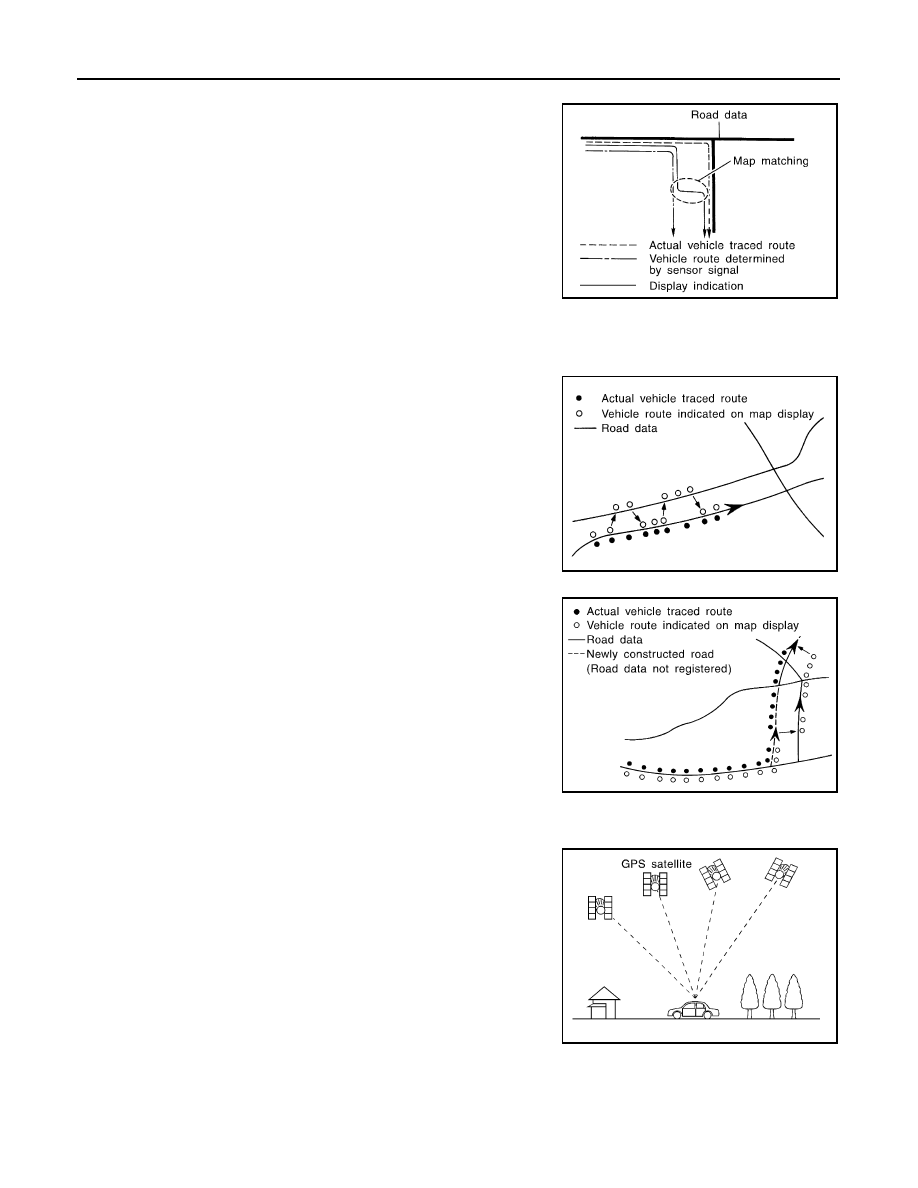

Map-matching repositions the vehicle on the road map when a new
location is judged to be more accurate. This is done by comparing
the current vehicle position (calculated by the normal position detec-
tion method) from the map data stored in the HDD (Hard Disk Drive).

There is a possibility that the vehicle position may not be corrected in the following case, and when vehicle is
driven over a certain distance or time in which GPS information is hard to receive. Correct manually the cur-
rent location mark on the screen.
• In map-matching, several alternative routes are prepared and pri-

oritized in addition to the road judged as currently driving on.
Therefore, due to errors in the distance and/or direction, an incor-
rect road may be prioritized, and the current location mark may be
repositioned to the incorrect road.
If two roads are running in parallel, they are of the same priority.
Therefore, the current location mark may appear on either of them
alternately, depending on maneuvering of the steering wheel and
configuration of the road, etc.

• Map-matching does not function correctly when road on which the

vehicle is driving is new, etc. and not recorded in the map data.
Also, map-matching does not function correctly when road pattern
stored in the map data and the actual road pattern are different due
to repair, etc.
Therefore, the map-matching function judges other road as a cur-
rently driving road if the road is not in the map, and displays the
current location mark on it. Later, the current location mark may be
repositioned to the road if the correct road is detected.

• Effective range for comparing the vehicle position and travel direc-

tion calculated by the distance and direction with the road data is
limited. Therefore, correction by map-matching is not possible
when there is an excessive gap between current vehicle position and the position on the map.

GPS (Global Positioning System)

GPS (Global Positioning System) is developed for and is controlled
by the US Department of Defense. The system utilizes GPS satel-
lites (NAVSTAR), transmitting out radio waves while flying on an orbit
around the earth at an altitude of approximately 21,000 km (13,049
mile).
The receiver calculates the travel position in three dimensions (lati-
tude/longitude/altitude) according to the time lag of the radio waves
that four or more GPS satellites transmit (three-dimensional position-
ing). The GPS receiver calculates the travel position in two dimen-
sions (latitude/longitude) with the previous altitude data if the GPS
receiver receives only three radio waves (two-dimensional position-
ing). GPS position correction is not performed while stopping the
vehicle.

Accuracy of the GPS will deteriorate under the following conditions:
• In two-dimensional positioning, GPS accuracy will deteriorate when altitude of the vehicle position changes.

SEL685V

SEL686V

JSNIA0180GB

SEL526V

AV

MULTI AV SYSTEM

AV-13

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The position of GPS satellite affects GPS detection precision. The position detection may not be precisely

performed.

• The position detection is not performed if GPS receiver does not receive radio waves from GPS satellites.

(Inside a tunnel, parking in a building, under an elevated highway etc.) GPS receiver may not receive radio
waves from GPS satellites if any object is placed on the GPS antenna.

NOTE:
• The detection result has an error of approximately 10 m (32.81 ft) even with a high-precision three dimen-

sional positioning.

• There may be cases when the accuracy is lowered and radio waves are stopped intentionally because the

GPS satellite signal is controlled by the US trace control center.

AUDIO FUNCTION

The audio system is equipped with the following functions. Each function is operated with multifunction switch,
preset switch, touch panel, steering switch or audio recognition. Operation status of audio is indicated at dis-
play.

Operating Signal

Audio system operation can be performed with multifunction switch, preset switch, steering switch, touch
panel function or voice recognition function.
• Operating signal is transmitted to AV control unit with AV communication when it is operated by multifunction

switch or preset switch. The disk ejection operating signal is performed by hardwire.

• Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering

switch.

Screen Display

Switching of display is performed with serial communication between display unit and AV control unit.

AM/FM Radio Mode

• AM/FM radio tuner is built into AV control unit.
• Audio signal is received by glass antenna, next it is amplified by antenna amp., and finally it is input to AV

control unit. Audio signal is input to audio amp., and audio amp. outputs to each speakers.

Satellite Radio Mode

• Satellite radio tuner is built into AV control unit.
• Audio wave (satellite radio) is received by satellite radio antenna, and it is input to AV control unit. AV control

unit outputs audio signal to audio amp. The signal is also outputted from audio amp.

CD Mode

• CD function is built into AV control unit.
• AV control unit outputs audio signal to audio amp., and audio amp. outputs to each speakers when CD is

inserted to AV control unit.

Bluetooth

®

 Audio

• Bluetooth

®

 audio function is built into AV control unit.

• When the Bluetooth

®

 audio is connected to the portable audio equipped with the Bluetooth

®

 communication

compliant profile via Bluetooth

®

 communication, it can be play the music data in the portable audio.

• A maximum of five Bluetooth

®

 devices including the audio devices and cellular phones can be registered in

the AV control unit.

HANDS-FREE PHONE FUNCTION

• Hands-free communication can be operated by connecting using Bluetooth

®

 communication with cellular

phone.

FUNCTION

AM/FM radio

Satellite radio

CD

Bluetooth

®

 audio

USB connection

AV-14

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

• Operation is performed by steering switch and multifunction switch, and operating condition is indicated on

display.

• Guide sound that is heard during operation is input from AV control unit to audio amp., and is output from

front door speaker.

When A Call Is Originated

Spoken voice sound output from the microphone (Mic. Signal) is input to AV control unit. AV control unit out-
puts to cellular phone with Bluetooth

®

 communication as a TEL voice signal. Voice sound is then heard at the

other party.

When Receiving A Call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to front door
speaker, and the signal is input to audio amp. via AV control unit by establishing Bluetooth

®

 communication

from cellular phone.

VOICE RECOGNITION FUNCTION

• Each operation of multi AV system can be performed by inputting sound to microphone.
• Start of voice recognition system can be performed by steering switch.

TOUCH PANEL SYSTEM

Each operation of multi AV system can be performed by directly touching a display.

REAR VIEW MONITOR FUNCTION

• The AV control unit supplies power to the rear view camera when receiving a reverse signal.
• The rear view camera transmits camera images to the display unit when power is supplied from the AV con-

trol unit.

• The AV control unit transmits a warning message, fixed guide lines, and predictive course lines to the display

unit by RGB digital image signal. Rear view monitor images are displayed by combining the RGB digital
image signal and the camera image signals from the rear view camera.

• Predictive course lines are controlled by a steering angle sensor signal received the AV control unit via CAN

communication.

VEHICLE INFORMATION FUNCTION

• Status of audio, climate control system, fuel economy, tire pressure and maintenance is displayed.
• AV control unit displays the fuel consumption status while receiving data signal through CAN communication

from ECM, combination meter.

• AV control unit displays the tire pressure status while receiving data signal through CAN communication

from low tire pressure warning control unit.

USB CONNECTION FUNCTION

• iPod or music files and video data

*

 of USB memory can be played.

• iPod audio signals are transmitted from USB connector to the AV control unit and to each speaker via audio

amp.

• Video signals are transmitted from USB connector to the display unit via the AV control unit.
• iPod

®

 is recharged when connected to USB connector.

*: Image signal can not be getting from iPod

®

.

iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

NOTE:
Use the enclosed USB harness when connecting iPod

®

 to USB connector.

DVD PLAY FUNCTION

• DVD is played by inserting DVD into the AV control unit.
• DVD image signals are transmitted to the display unit and DVD audio signals are transmitted to each

speaker via audio amp.

MULTIFUNCTION METER SYSTEM

Multi function meter system can be performed with multi function switch.
• To inform the user of the most suitable usage of the high-performance vehicle, the mechanical information

display function, driving assist display function, gear and fuel consumption display function, and driving his-
tory information display function are adopted.





















содержание   ..  1  2  3  4  5  ..
