DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-23

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4.

The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation/Adjustment” can be
selected.

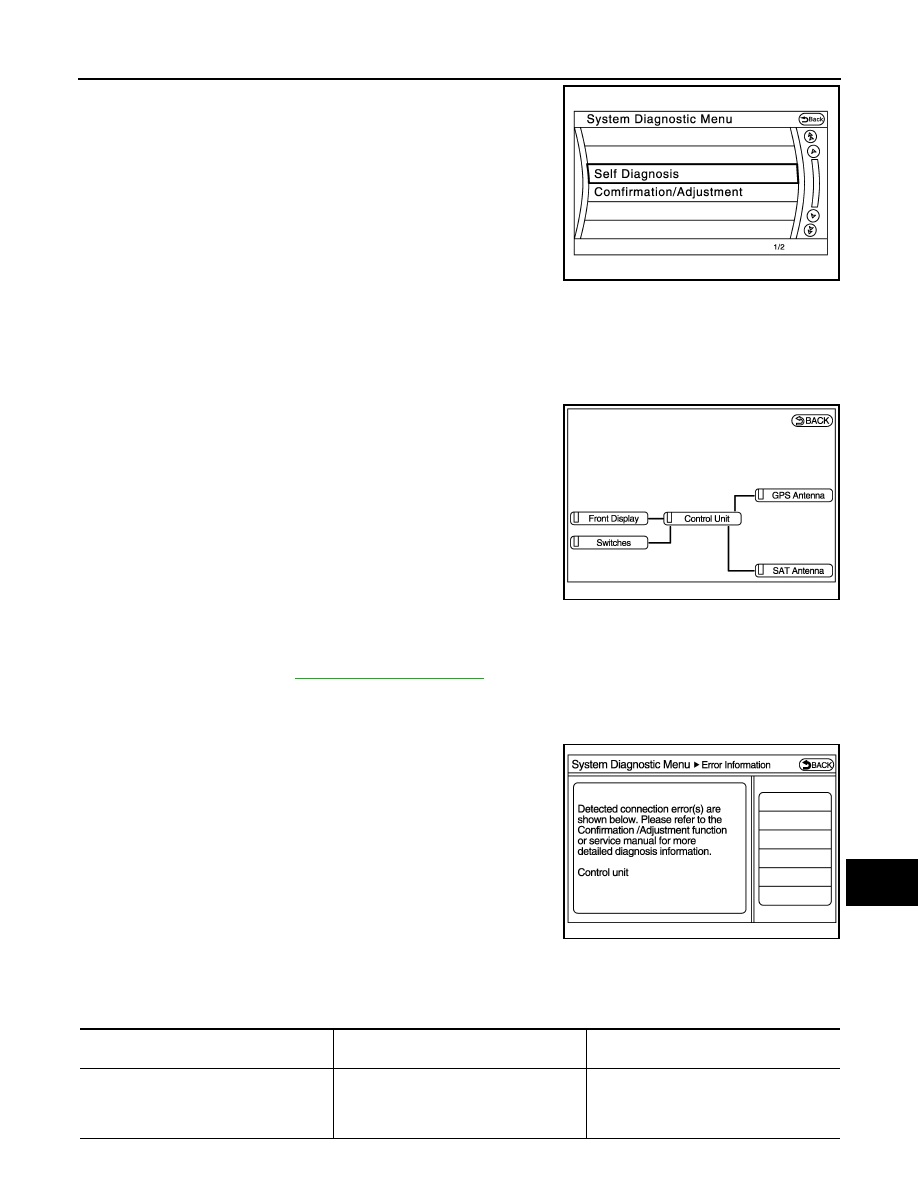

SELF-DIAGNOSIS MODE

1.

Start the self-diagnosis function and select “Self Diagnosis”.

-

Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.

-

The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-
ble diagnosis.

2.

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

NOTE:

• Only the control unit (AV control unit) is displayed in red.

• Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated. The symptom is AV con-

trol unit internal error. Refer to

AV-77, "Removal and Installation"

.

-

If multiple errors occur at the same time for a single unit, the screen switch colors are determined accord-
ing to the following order of priority: red > gray.

-

The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.

SELF-DIAGNOSIS RESULTS

Check the applicable display at the following table, and then repair the malfunctioning parts.

Only Unit Part Is Displayed In Red.

JSNIA2173ZZ

Diagnosis results

Unit

Con-

nection

line

Normal

Green

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

JSNIA2486ZZ

JPNIA1787ZZ

Screen switch

Description

Possible malfunction location / Action to

take

Control unit

Malfunction is detected in AV control unit
power supply and ground circuits.

Check AV control unit power supply and
ground circuits. When detecting no mal-
function in those components, replace AV
control unit.

AV-24

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

A Connecting Cable Between Units Is Displayed In Yellow.

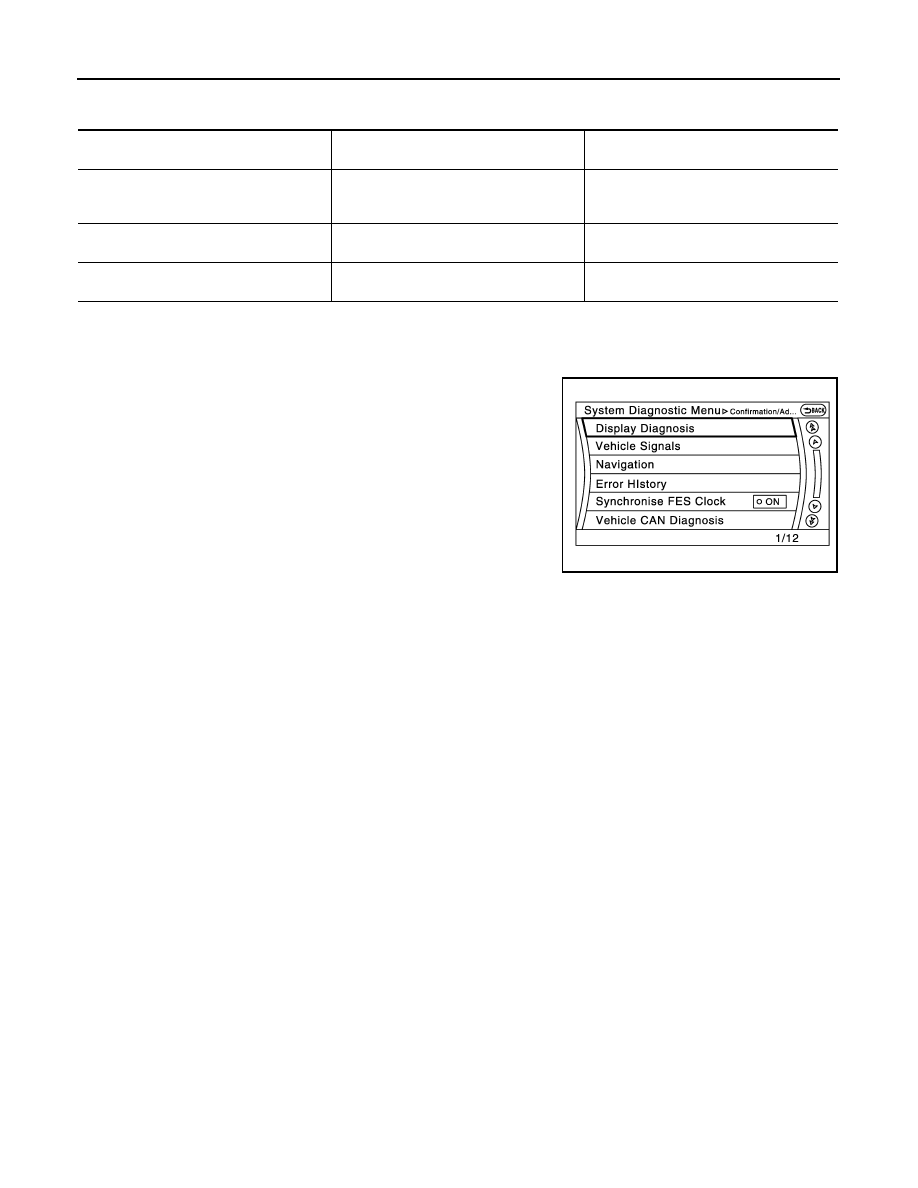

CONFIRMATION/ADJUSTMENT MODE

1.

Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.

2.

Select each switch on the “Confirmation/Adjustment Mode”
screen to display the relevant trouble diagnosis screen. Press
the “Back” switch to return to the initial Confirmation/Adjustment
Mode screen.

Area with yellow connection lines

Description

Possible malfunction location / Action to

take

Control unit

 Front Display

Malfunction is detected in serial communi-
cation circuits between AV control unit and
display unit.

Serial communication circuits between AV
control unit and display unit.

Control unit

 GPS Antenna

GPS antenna connection malfunctions de-
tected.

GPS antenna

Control unit

 SAT Antenna

Satellite radio antenna connection malfunc-
tions detected.

Satellite radio antenna

NNNIA0186ZZ

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-25

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Display Diagnosis

Vehicle Signals

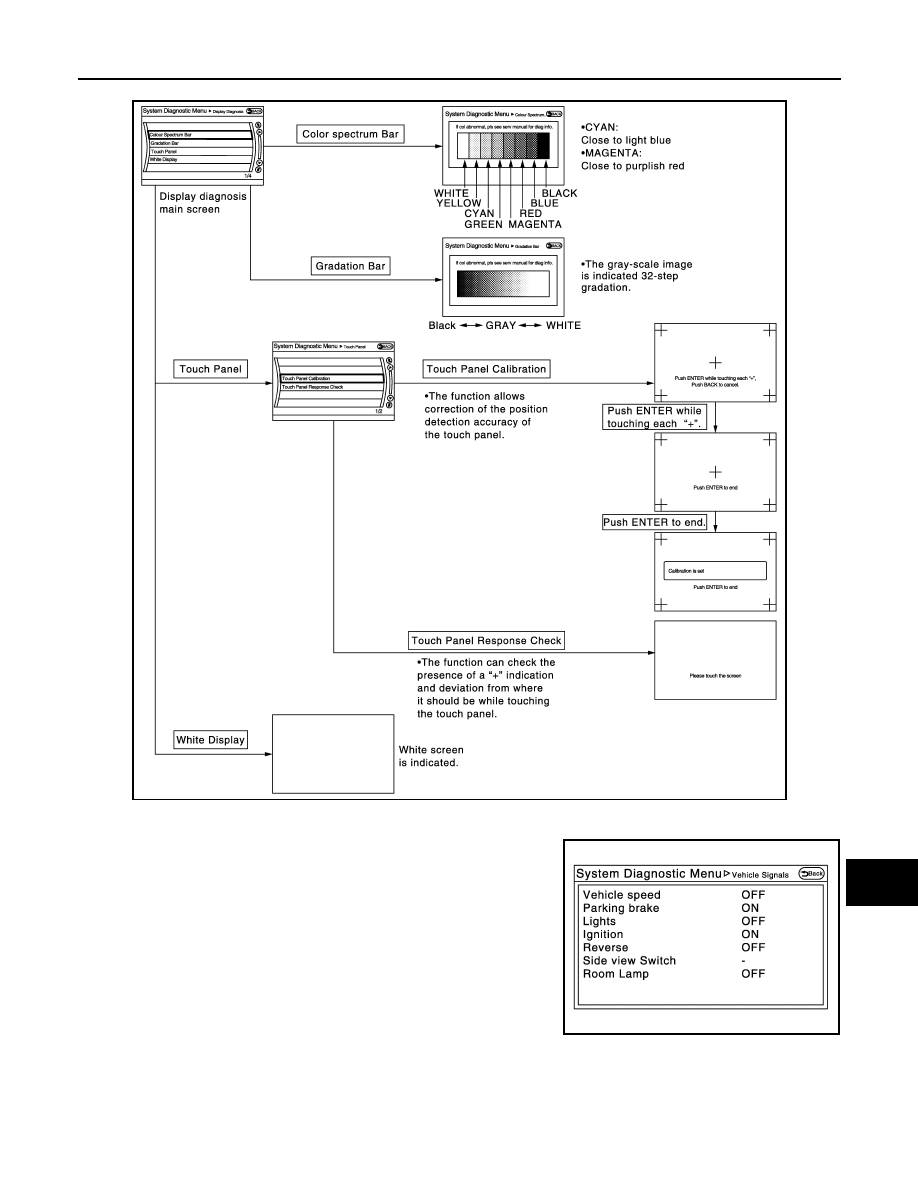

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

JSNIA2176GB

JSNIA2177ZZ

AV-26

< SYSTEM DESCRIPTION >

[BASE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Navigation

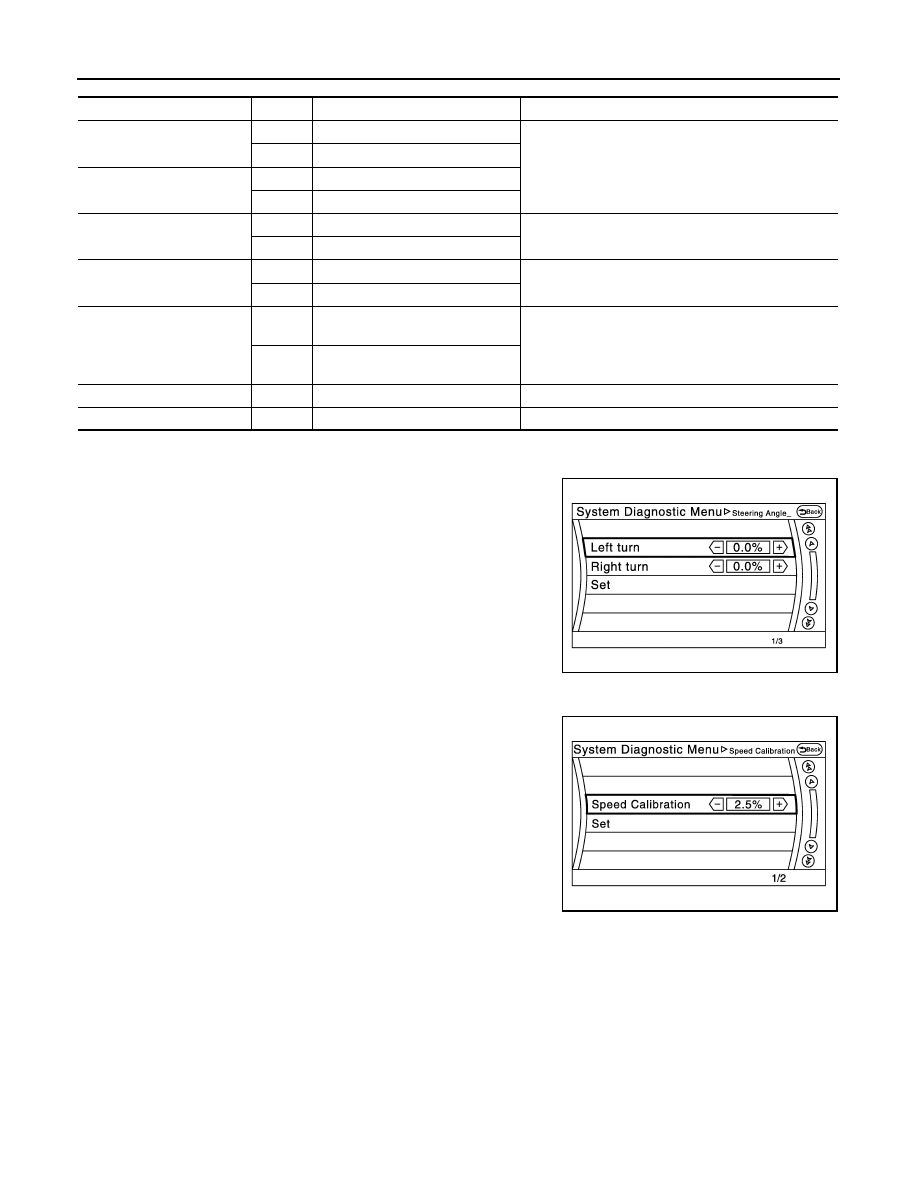

STEERING ANGLE ADJUSTMENT
The steering angle output value detected with the gyroscope is
adjusted.

SPEED CALIBRATION
During normal driving, distance error caused by tire wear and tire
pressure change is automatically adjusted for by the automatic dis-
tance correction function. This function, on the other hand, is for
immediate adjustment, in cases such as driving with tire chain fitted
on tires.

XM SAT SUBSCRIPTION STATUS
The XM NavTraffic subscription status can be checked.

Error History

The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The error record displays the time and place of the most recent occurrence of that error. However, take note of
the following points.

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

Parking brake

ON

Parking brake is applied

OFF

Parking brake is released

Lights

ON

Light switch ON

OFF

Light switch OFF

Ignition

ON

Ignition switch ON

OFF

Ignition switch in ACC position

Reverse

ON

Shift the selector lever to “R” posi-
tion

Changes in indication may be delayed. This is normal.

OFF

Shift the selector lever other than
“R” position

SIDE VIEW SW

This item is displayed, but cannot be monitored.

ROOM LAMP

OFF

This item is displayed, but not used.

JSNIA2179ZZ

JSNIA2180ZZ
