Nissan Pathfinder (2012 year). Manual - part 473

MWI

METER SYSTEM

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER : Component Description

INFOID:0000000007347429

TACHOMETER

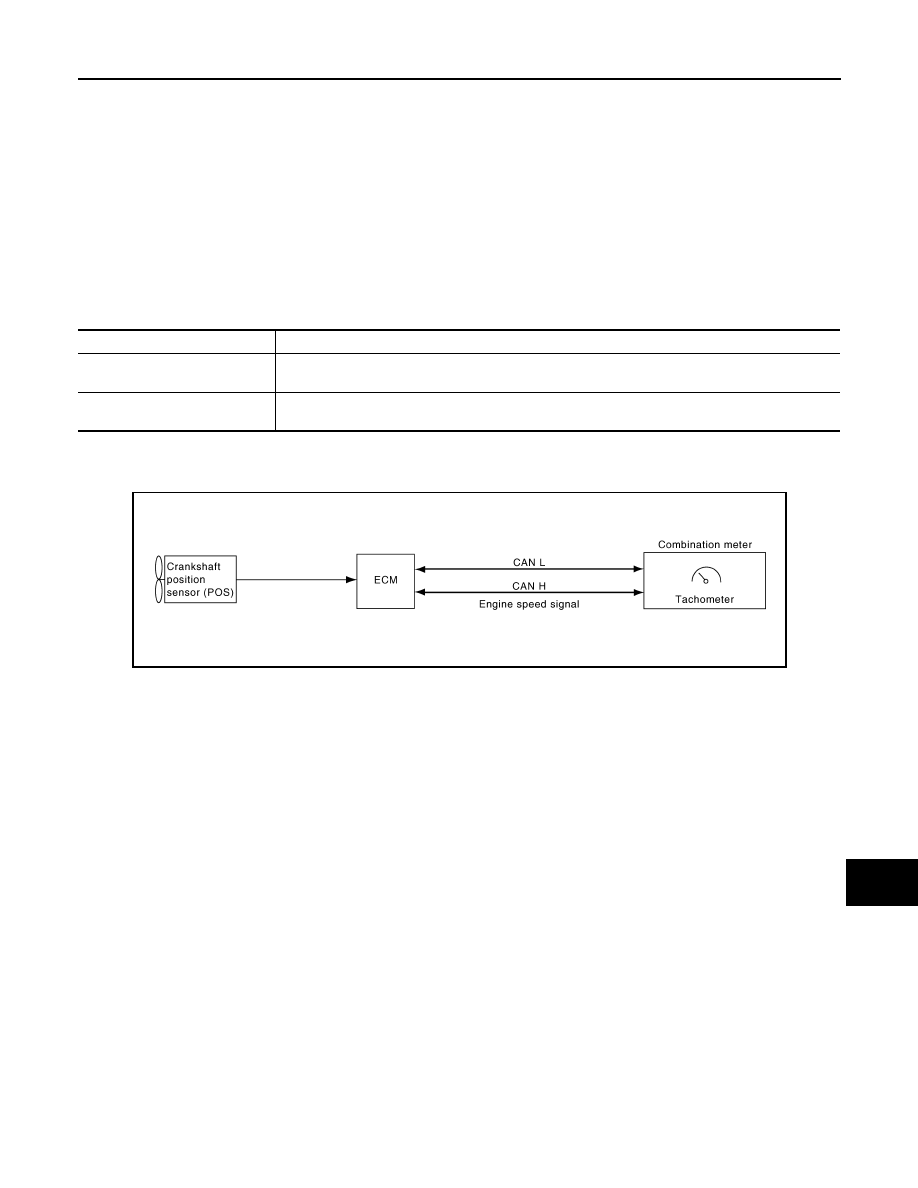

TACHOMETER : System Diagram

INFOID:0000000007347430

TACHOMETER : System Description

INFOID:0000000007347431

The tachometer indicates engine speed in revolutions per minute (rpm).

The ECM provides an engine speed signal to the combination meter via CAN communication lines.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E

August 2012

2012 Pathfinder

MWI-10

< SYSTEM DESCRIPTION >

METER SYSTEM

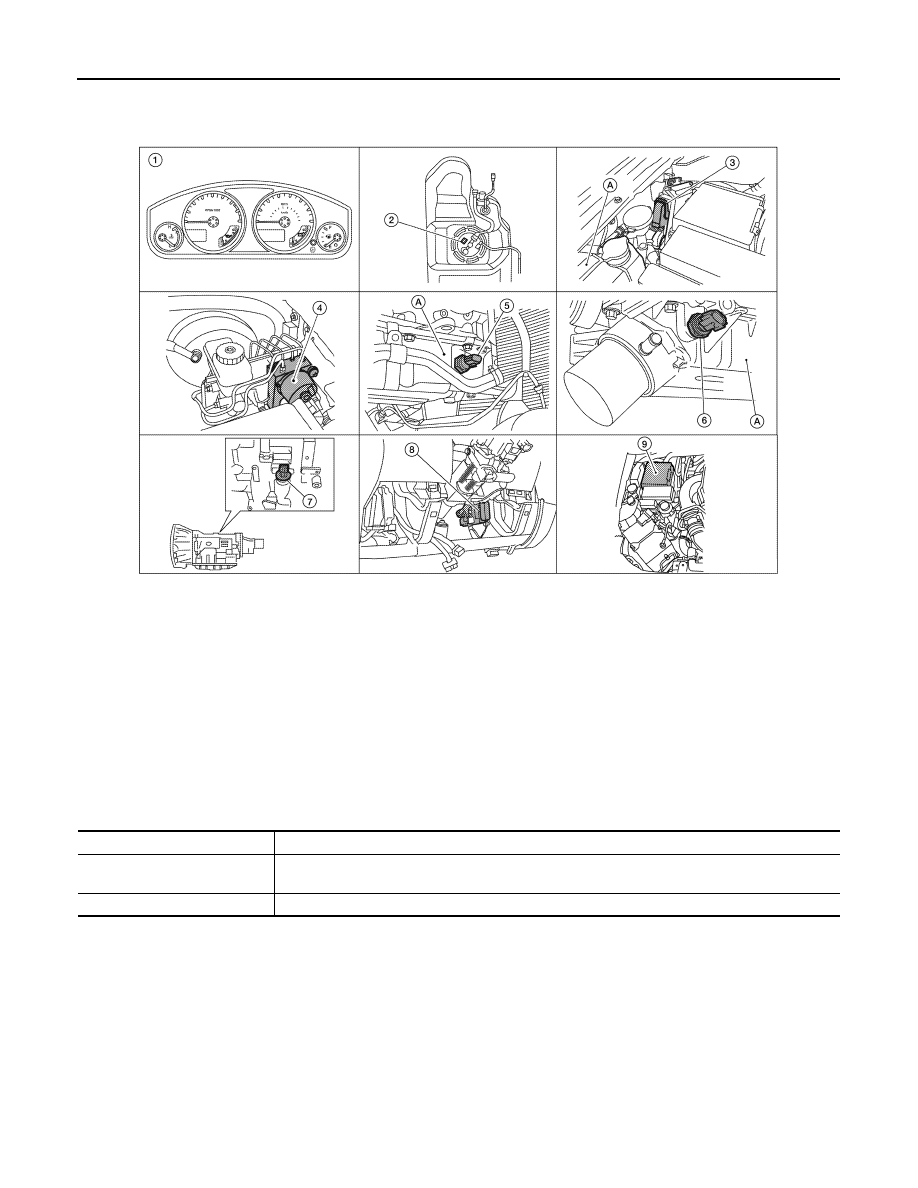

TACHOMETER : Component Parts Location

INFOID:0000000007347432

TACHOMETER : Component Description

INFOID:0000000007347433

ENGINE COOLANT TEMPERATURE GAUGE

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the engine speed in RPM according to the engine speed signal received from ECM via
CAN communication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

August 2012

2012 Pathfinder

MWI

METER SYSTEM

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

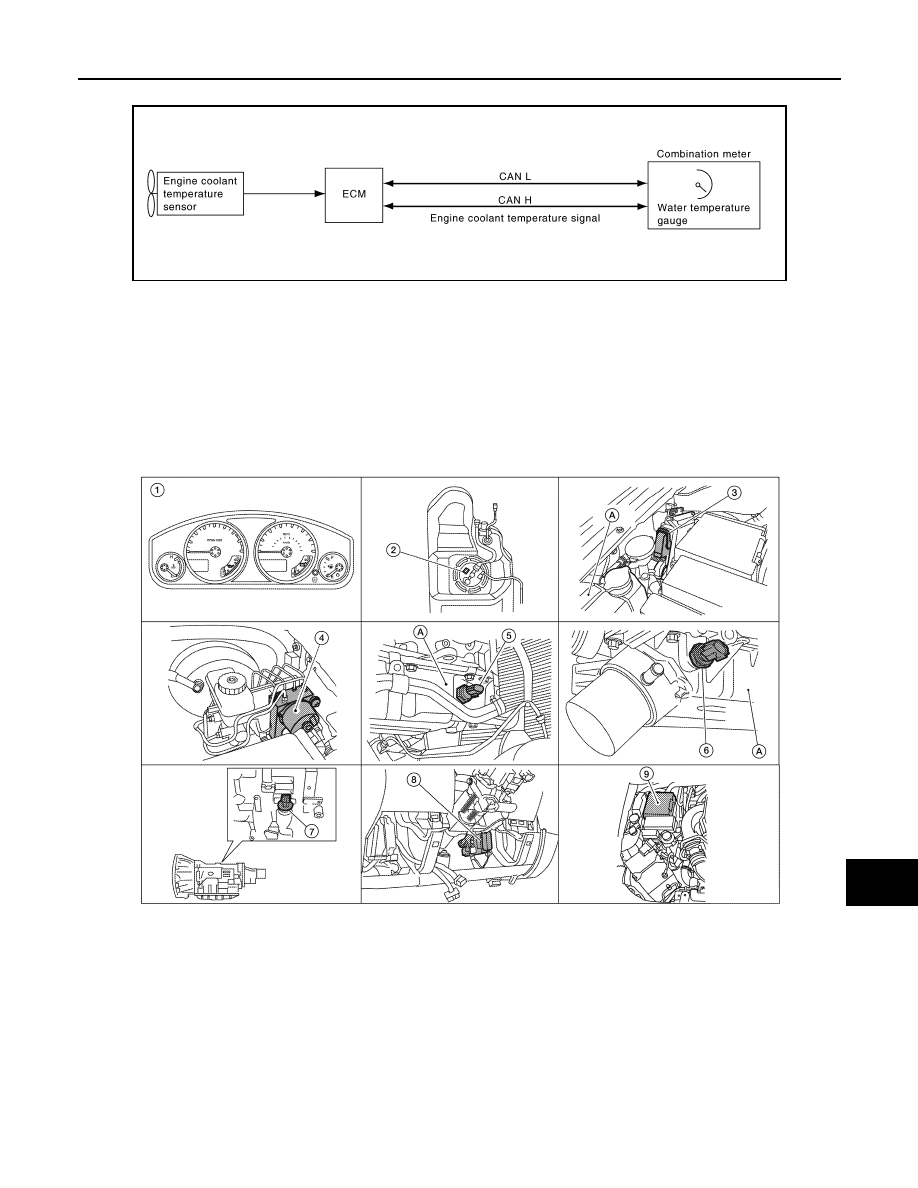

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000007347434

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000007347435

The engine coolant temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter via CAN communication

lines.

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000007347436

SKIB6905E

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

August 2012

2012 Pathfinder

MWI-12

< SYSTEM DESCRIPTION >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000007347437

FUEL GAUGE

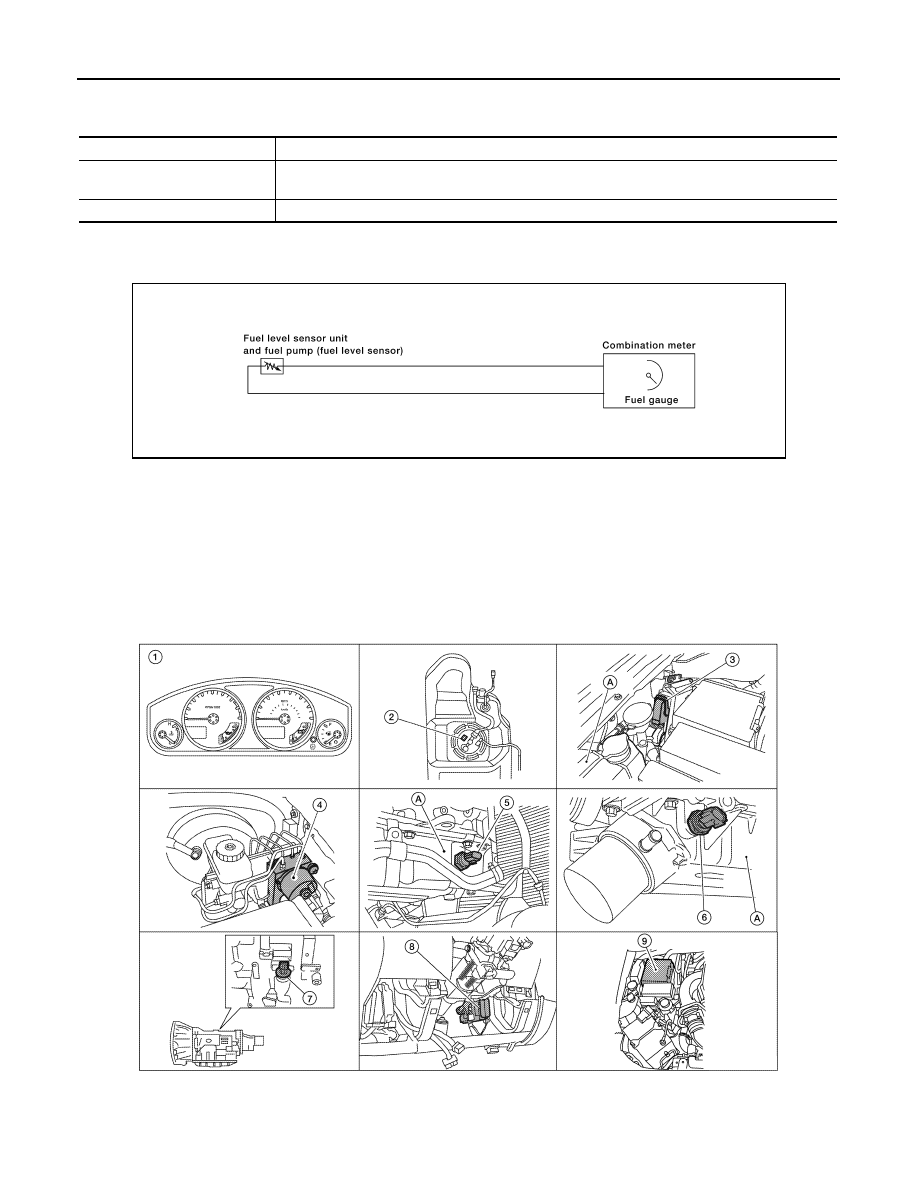

FUEL GAUGE : System Diagram

INFOID:0000000007347438

FUEL GAUGE : System Description

INFOID:0000000007347439

The fuel gauge indicates the approximate fuel level in the fuel tank.

The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied by the fuel

level sensor unit.

FUEL GAUGE : Component Parts Location

INFOID:0000000007347440

Unit

Description

Combination meter

Indicates the engine coolant temperature according to the engine coolant temperature signal re-
ceived from ECM via CAN communication.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communication.

AWNIA0004GB

AWNIA0217ZZ

August 2012

2012 Pathfinder

MWI

METER SYSTEM

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL GAUGE : Component Description

INFOID:0000000007347441

ENGINE OIL PRESSURE GAUGE
ENGINE OIL PRESSURE GAUGE : System Diagram

INFOID:0000000007347442

ENGINE OIL PRESSURE GAUGE : System Description

INFOID:0000000007347443

The engine oil pressure gauge indicates whether the engine oil pressure is low or normal.

The oil pressure gauge is controlled by the IPDM E/R. The IPDM E/R reads the ON/OFF signals from the oil

pressure switch and transmits the oil pressure switch signal to the combination meter via BCM with the CAN

communication line. The oil pressure gauge displays a low or normal indication according to the oil pressure

switch signal received via CAN communication.

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-34, "Description"

.

AWNIA0174GB

August 2012

2012 Pathfinder

MWI-14

< SYSTEM DESCRIPTION >

METER SYSTEM

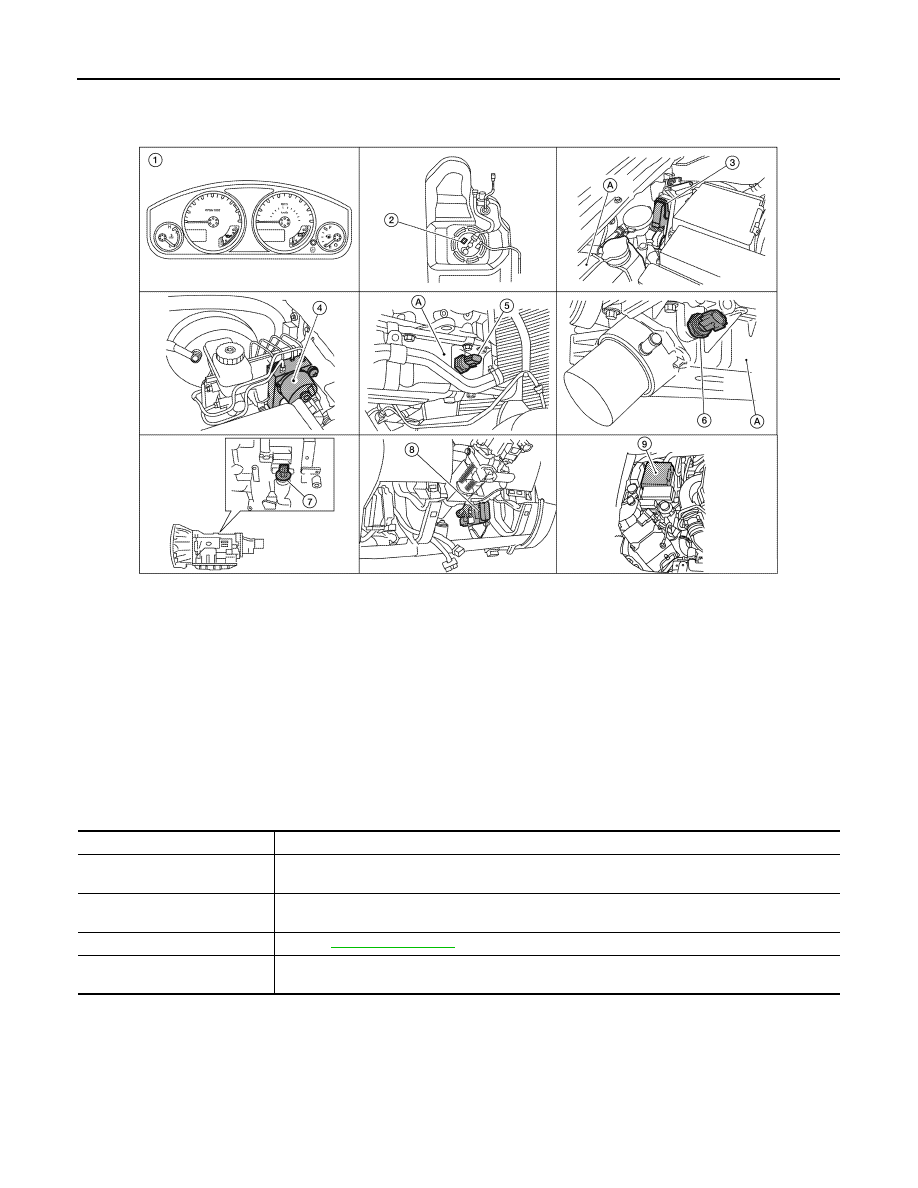

ENGINE OIL PRESSURE GAUGE : Component Parts Location

INFOID:0000000007347444

ENGINE OIL PRESSURE GAUGE : Component Description

INFOID:0000000007347445

VOLTAGE GAUGE

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Indicates the engine oil pressure (low/normal) according to the oil pressure switch signal received
from BCM with CAN communication line.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-37, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.

August 2012

2012 Pathfinder

MWI

METER SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

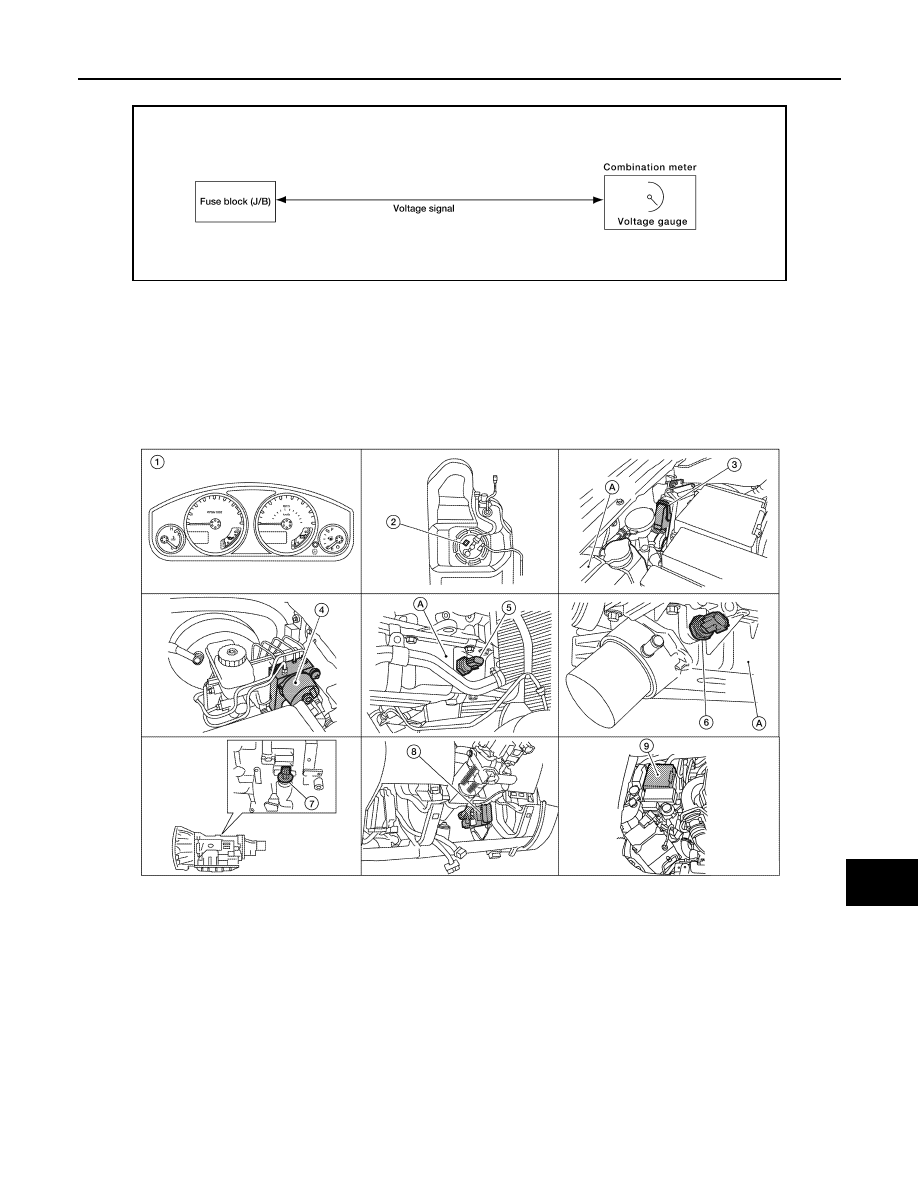

VOLTAGE GAUGE : System Diagram

INFOID:0000000007347446

VOLTAGE GAUGE : System Description

INFOID:0000000007347447

The voltage gauge indicates the battery/charging system voltage.

The voltage gauge is regulated by the unified meter control unit.

VOLTAGE GAUGE : Component Parts Location

INFOID:0000000007347448

AWNIA0106GB

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

August 2012

2012 Pathfinder

MWI-16

< SYSTEM DESCRIPTION >

METER SYSTEM

VOLTAGE GAUGE : Component Description

INFOID:0000000007347449

ODO/TRIP METER

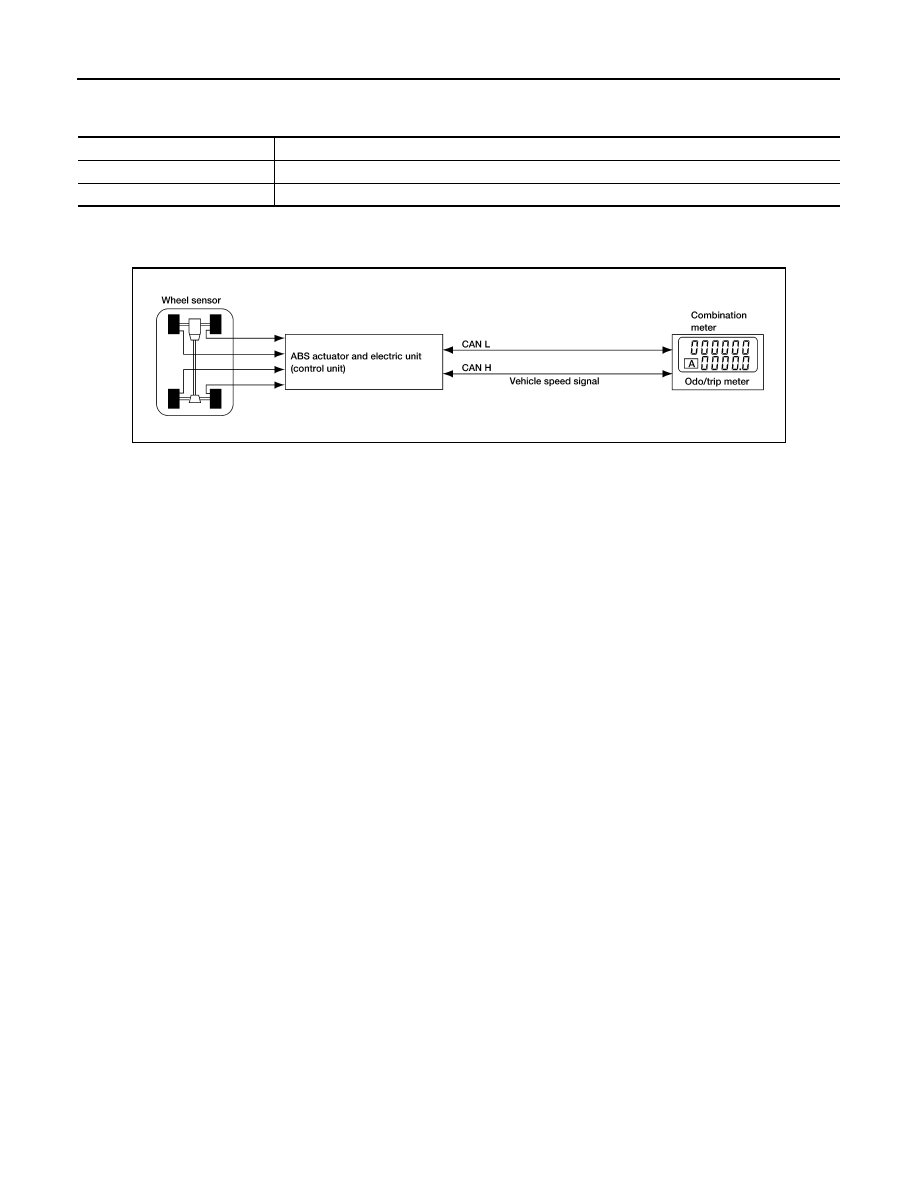

ODO/TRIP METER : System Diagram

INFOID:0000000007347450

ODO/TRIP METER : System Description

INFOID:0000000007347451

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-

nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

LOOSE FUEL CAP WARNING

The LOOSE FUEL CAP indicator will display in the odometer when the fuel-filler cap is not tightened correctly.

The indicator will turn off as soon as the ECM detects the fuel-filler cap is properly tightened.  The ECM pro-

vides a loose fuel cap signal to the combination meter via CAN communication lines.

CHECK TIRE PRESSURE WARNING

The CHECK TIRE PRESSURE indicator will display in the odometer when BCM has detected a low tire pres-

sure condition.

Unit

Description

Combination meter

Indicates the battery voltage according to the voltage signal received from the fuse block (J/B).

Fuse block (J/B)

Transmits the battery voltage signal to the combination meter.

AWNIA0005GB
