Nissan Pathfinder (2012 year). Manual - part 474

MWI

METER SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

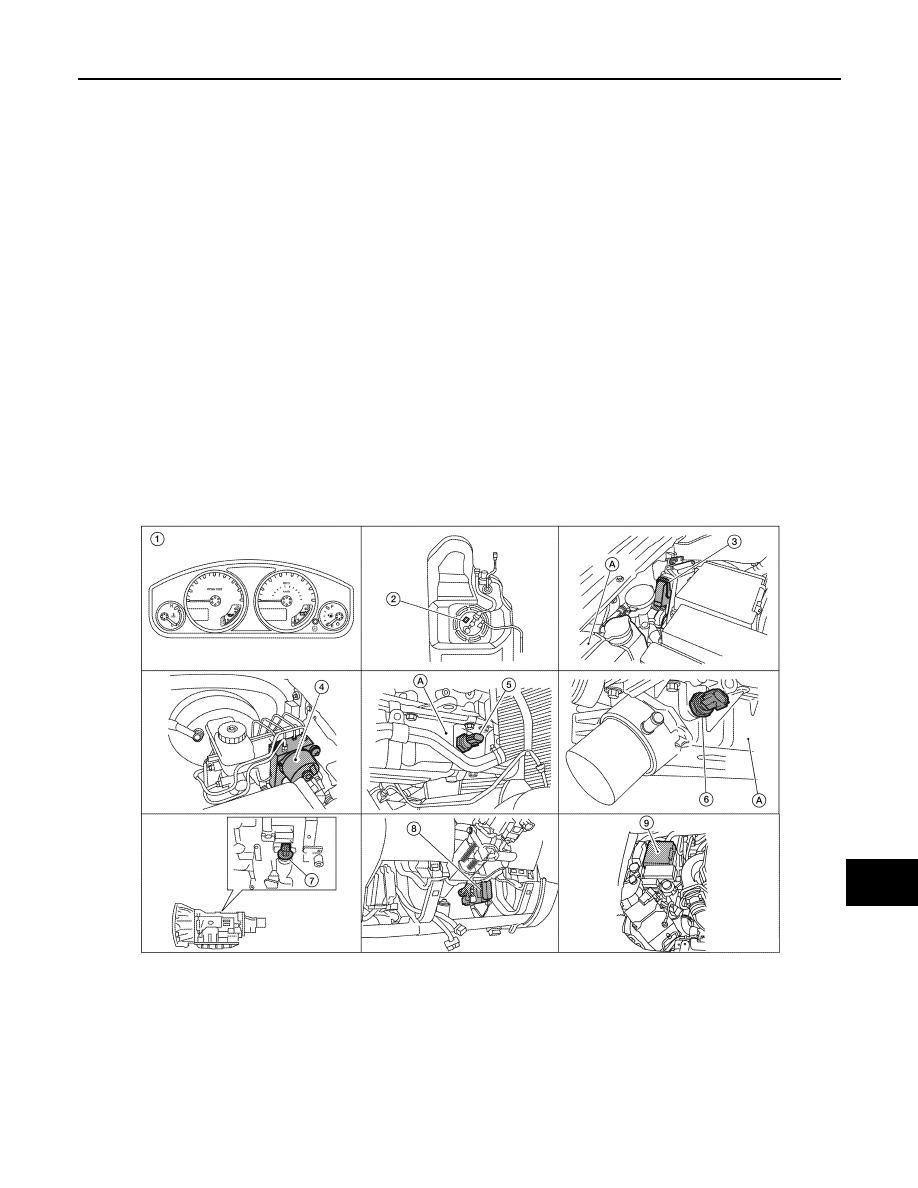

ODO/TRIP METER : Component Parts Location

INFOID:0000000007347452

ODO/TRIP METER : Component Description

INFOID:0000000007347453

SHIFT POSITION INDICATOR

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage, and it displays the accumulated mileage to the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

August 2012

2012 Pathfinder

MWI-18

< SYSTEM DESCRIPTION >

METER SYSTEM

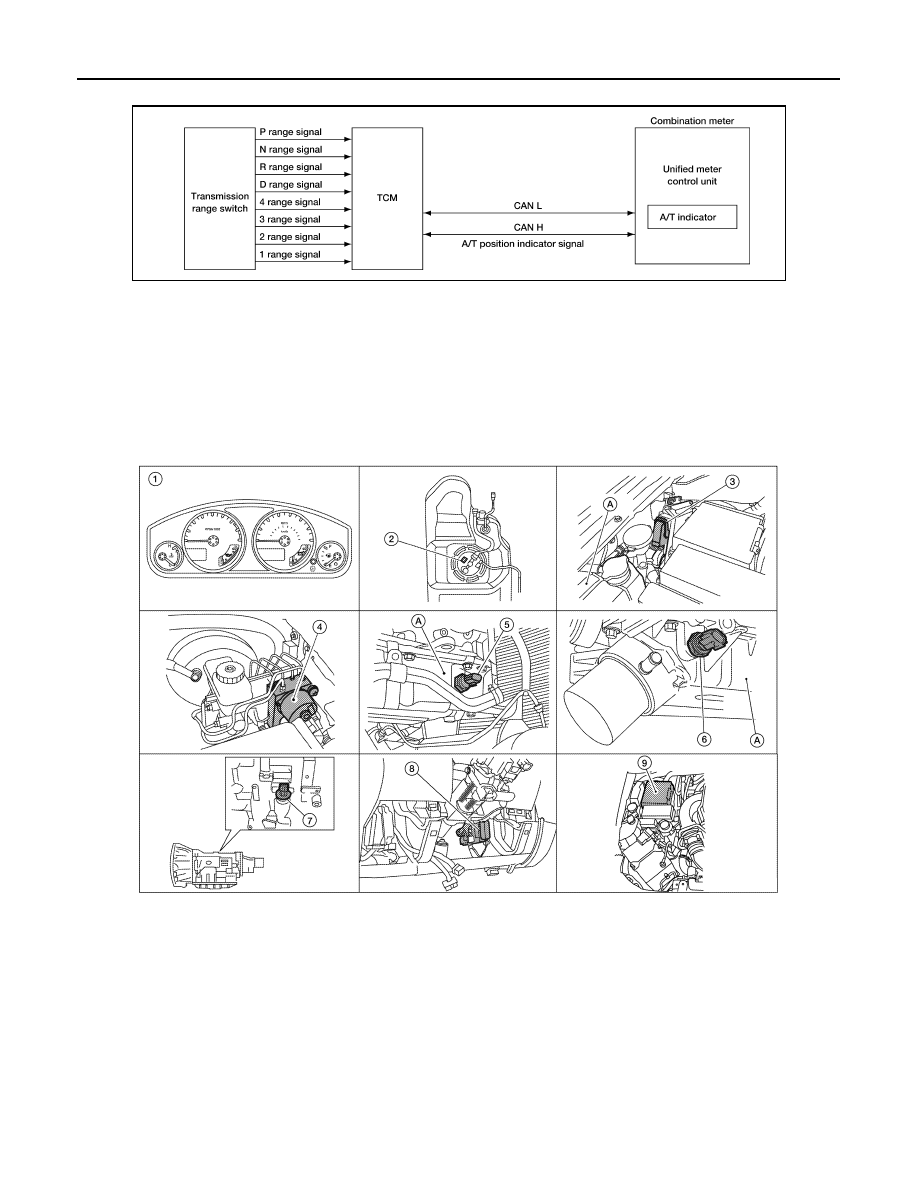

SHIFT POSITION INDICATOR : System Diagram

INFOID:0000000007347454

SHIFT POSITION INDICATOR : System Description

INFOID:0000000007347455

The TCM receives A/T indicator signals from the transmission range switch. The TCM then sends A/T position

indicator signals to the combination meter via CAN communication lines. The combination meter indicates the

received shift position.

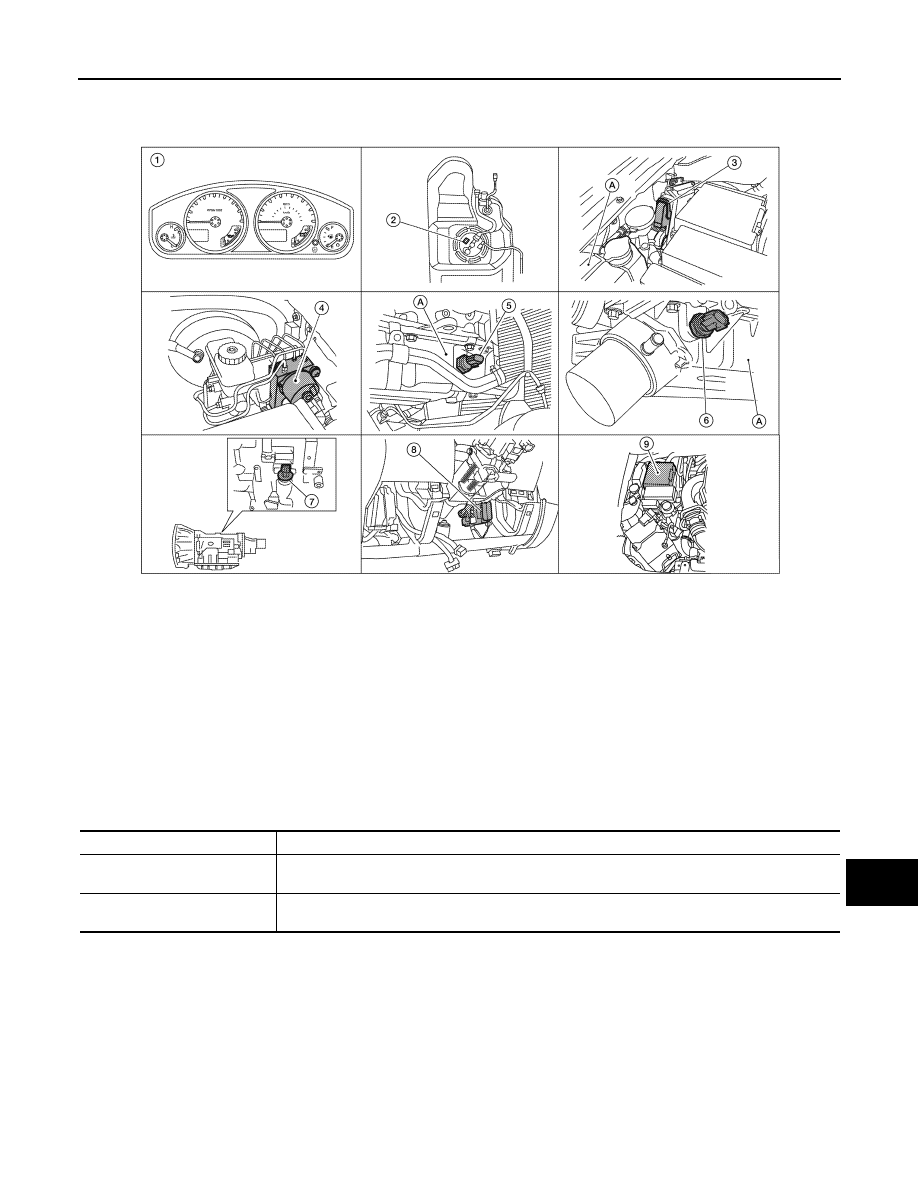

SHIFT POSITION INDICATOR : Component Parts Location

INFOID:0000000007347456

AWNIA1906GB

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

August 2012

2012 Pathfinder

MWI

METER SYSTEM

MWI-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHIFT POSITION INDICATOR : Component Description

INFOID:0000000007347457

WARNING LAMPS/INDICATOR LAMPS

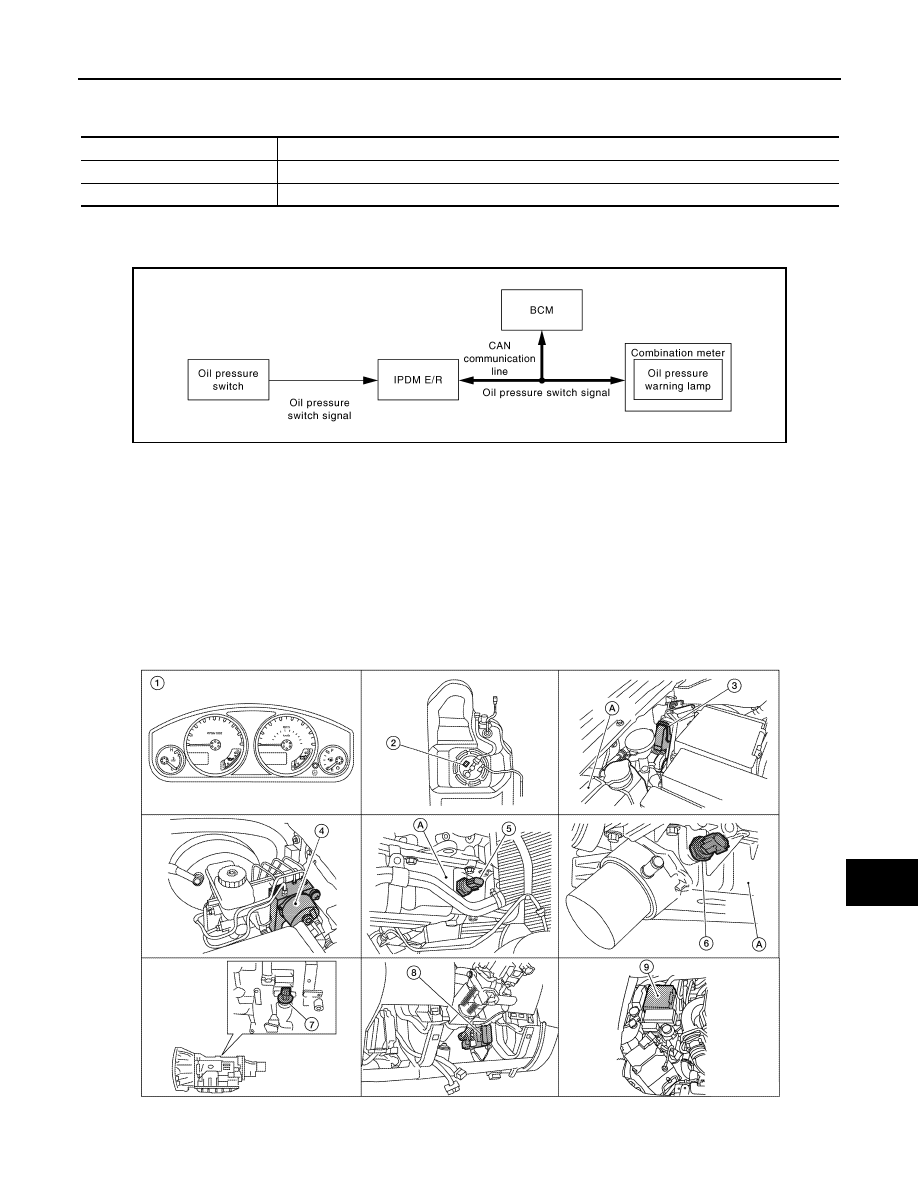

WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000007347458

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000007347459

OIL PRESSURE WARNING LAMP

• IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch sig-

nal to the combination meter via BCM with the CAN communication line.

• The combination meter turns the oil pressure warning lamp ON/OFF according to the oil pressure switch sig-

nal received via CAN communication.

WARNING LAMPS/INDICATOR LAMPS : Component Parts Location

INFOID:0000000007347460

Unit

Description

Combination meter

Displays the shift position using shift position signal received from TCM.

TCM

Transmits the shift position signal to the combination meter via CAN communication.

JSNIA0449GB

AWNIA0217ZZ

August 2012

2012 Pathfinder

MWI-20

< SYSTEM DESCRIPTION >

METER SYSTEM

WARNING LAMPS/INDICATOR LAMPS : Component Description

INFOID:0000000007347461

TRIP COMPUTER

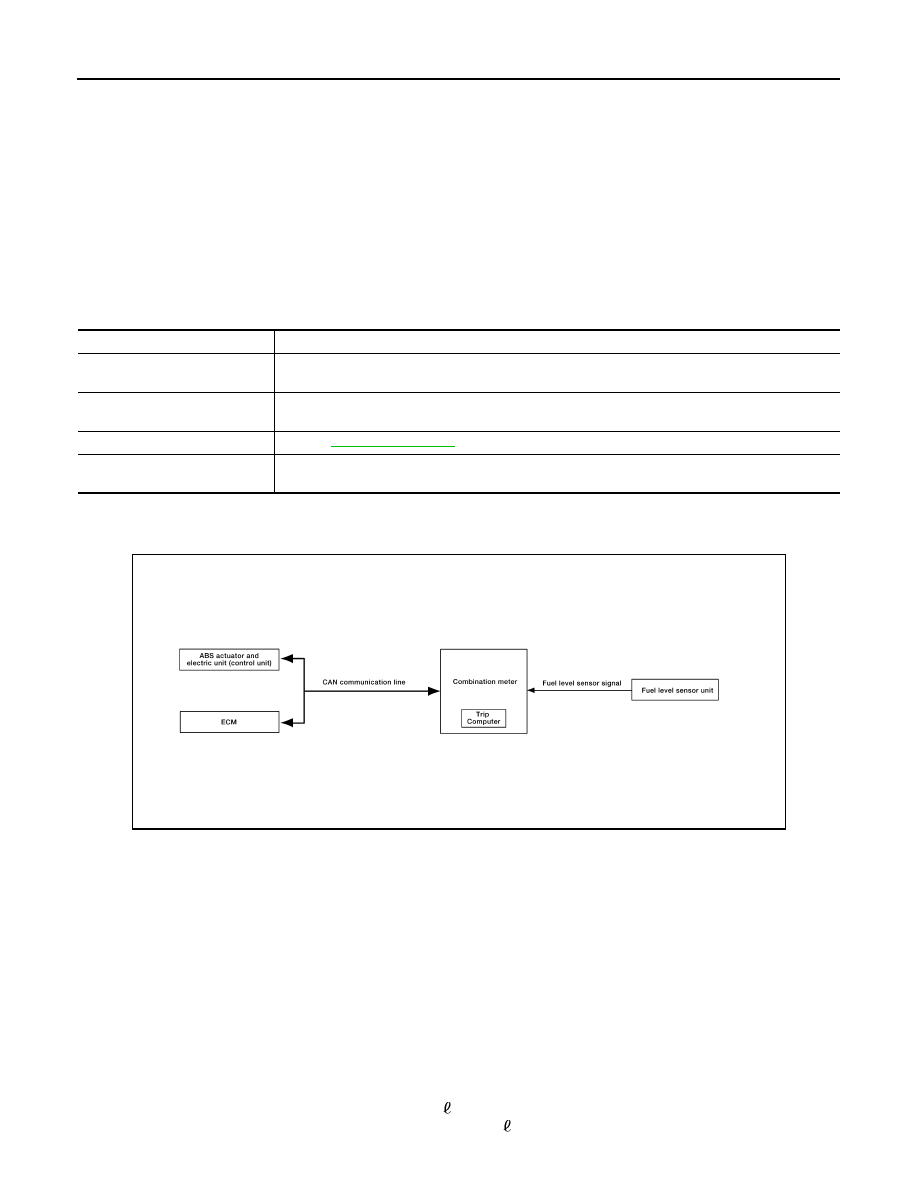

TRIP COMPUTER : System Diagram

INFOID:0000000007347462

TRIP COMPUTER : System Description

INFOID:0000000007347463

FUNCTION

The trip computer can indicate the following items.

• DTE (distance to empty)

• Trip distance

• Trip time

• Average fuel consumption

• Average vehicle speed

DTE (DISTANCE TO EMPTY) INDICATION

The range indication provides the driver with an estimation of the distance that can be driven before refueling.

The range is calculated by signals from the fuel level sensor unit (fuel remaining), ECM (fuel consumption)

and the ABS actuator and electric unit (vehicle speed). The indication will be refreshed every 30 seconds.
When fuel remaining is less than approximately 11.6  (3 1/8 US gal, 2 1/2 Imp gal), the indication will blink as
a warning. If the fuel remaining is less than approximately 9.6  (2 1/2 US gal, 2 1/8 Imp gal), the indication will

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

Unit

Description

Combination meter

Turns the oil pressure warning lamp ON/OFF according to the oil pressure switch signal received
from BCM by means of communication.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-37, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.

AWNIA0218GB

August 2012

2012 Pathfinder

MWI

METER SYSTEM

MWI-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

show “---”. In this case, the display will change to the DTE mode even though the display is showing a different

mode. When the battery is disconnected and reconnected, DTE mode will display “---” until the vehicle is

driven 0.3 miles (0.5 km).

TRIP DISTANCE

Trip distance is calculated by signal from the ABS actuator and electric unit (vehicle speed). If trip distance is

reset, trip time will be reset at the same time.

TRIP TIME

Trip time displays cumulative ignition switch ON time. If trip time is reset, trip distance will be reset at the same

time.

AVERAGE FUEL CONSUMPTION

Average fuel consumption indication is calculated by signals from the ABS actuator and electric unit (vehicle

speed) and the ECM (fuel consumption). The indication will be refreshed every 30 seconds.

AVERAGE VEHICLE SPEED

Average vehicle speed indication is calculated by running distance and running time. The indication will be

refreshed every 30 seconds. If average vehicle speed is reset, average fuel consumption will be reset at the

same time. After resetting, the display will show “---” for 30 seconds.

HOW TO CHANGE/RESET INDICATION

Refer to Owner's Manual for trip computer operating instructions.

TRIP COMPUTER : Component Parts Location

INFOID:0000000007347464

AWNIA0217ZZ

1.

Combination meter M24

2.

Fuel level sensor unit and fuel pump C5
(view with fuel tank removed)

3.

ECM (view with ECM cover removed)
E7 (with VK56DE)
E16 (with VQ40DE)
A. Coolant reservoir

4.

ABS actuator and electric unit (control
unit)
E125 (with VQ40DE)
E127 (with VK56DE)

5.

Oil pressure switch E208 (with VQ40DE)
A. Oil pan (upper)

6.

Oil pressure switch F4 (with VK56DE)
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

9.

IPDM E/R E122, E124

August 2012

2012 Pathfinder

MWI-22

< SYSTEM DESCRIPTION >

METER SYSTEM

TRIP COMPUTER : Component Description

INFOID:0000000007347465

Unit

Description

Combination meter

Controls the information display according to the signal received from each unit.

Fuel level sensor unit

Refer to

MWI-34, "Description"

.

ECM

Transmits the following signals to the combination meter via CAN communication line.

• Engine speed signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication line.

August 2012

2012 Pathfinder

MWI

COMPASS

MWI-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPASS

Description

INFOID:0000000007347466

DESCRIPTION

With the ignition switch in the ON position, and the mode or (N)

switch ON, the compass display will indicate the direction the vehicle

is heading.

Vehicle direction is displayed as follows:

• N: north

• E: east

• S: south

• W:  west

ZONE VARIATION SETTING PROCEDURE

The difference between magnetic north and geographical north can sometimes be great enough to cause

false compass readings. This difference is known as variance. In order for the compass to operate properly

(accurately) in a particular zone, the zone variation must be calibrated using the following procedure.

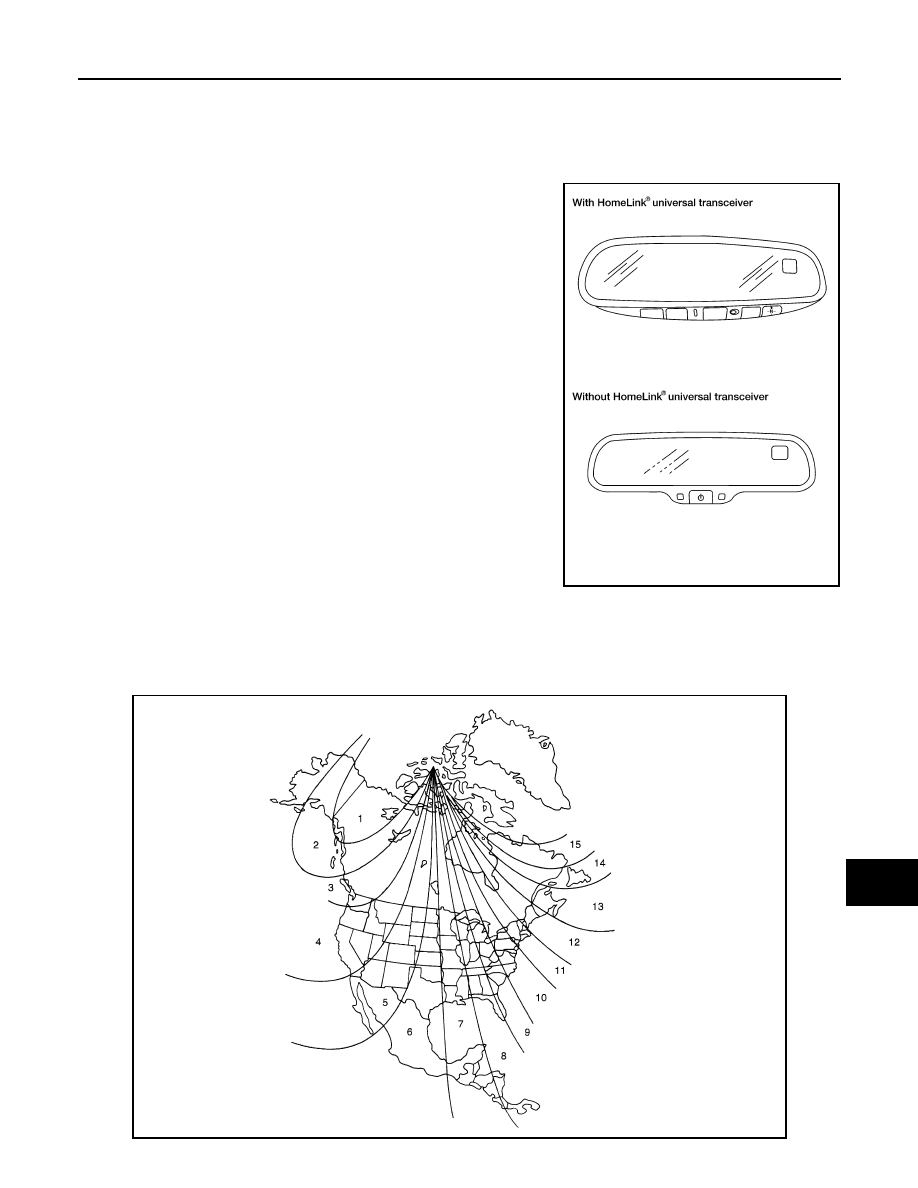

Zone Variation Chart

WKIA4889E

WKIA4148E

August 2012

2012 Pathfinder

MWI-24

< SYSTEM DESCRIPTION >

COMPASS

1. Determine your location on the zone map.
2. Turn the ignition switch to the ON position.
3. Press and hold the (N) switch (with HomeLink™ universal transceiver) or the mode switch (without

HomeLink™ universal transceiver) until the current zone number is displayed.

4. Press the mode or (N) switch repeatedly until the desired zone number appears in the display.
Once the desired zone number is displayed, stop pressing the mode or (N) switch and the display will show a

compass direction after a few seconds.

NOTE:

Use zone number 5 for Hawaii.

CALIBRATION PROCEDURE

The compass display is equipped with an automatic correction function. If the compass display reads “CAL” or

the direction is not shown correctly, perform the correction procedure below.

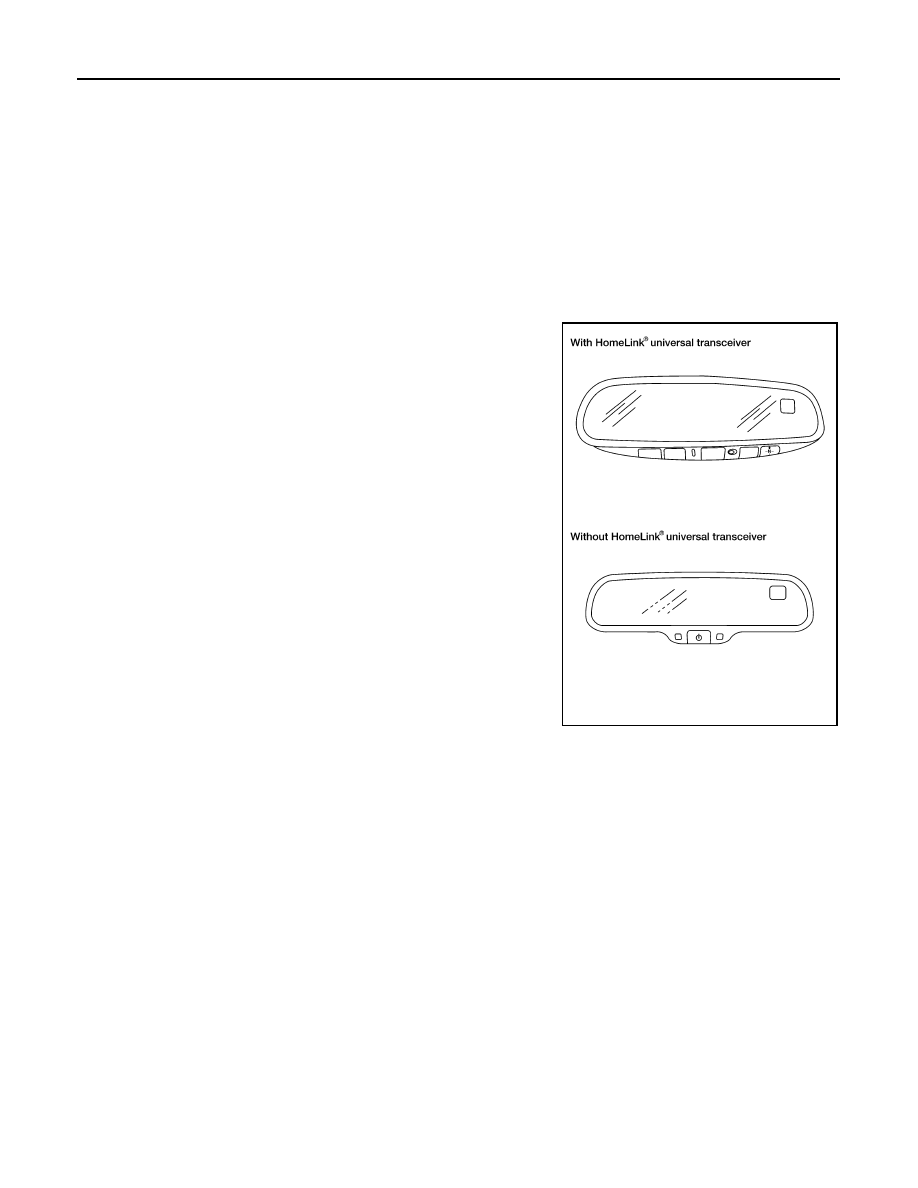

1. Press and hold the (N) switch (with HomeLink™ universal trans-

ceiver) or the mode switch (without HomeLink™ universal trans-

ceiver) until "CAL" is displayed.

2. Drive the vehicle slowly in a circle, in an open, safe place. The

initial calibration is completed in about 3 turns.

NOTE:

In places where the terrestrial magnetism is extremely disturbed, the

initial correction may start automatically.

WKIA4889E
