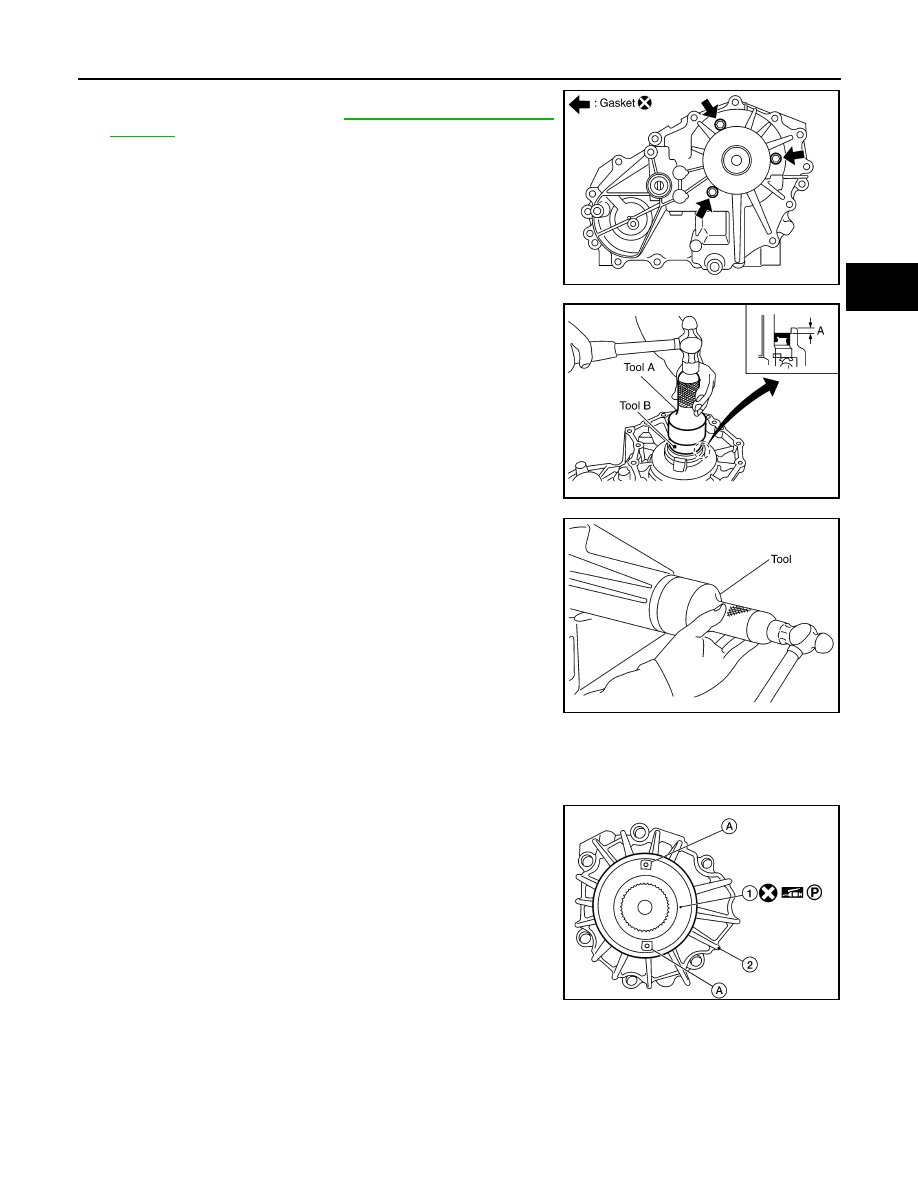

29. Install the retainer bolts with new gaskets. Tighten the bolts to

the specified torque. Refer to

DLN-154, "Component Parts

Location"

.

CAUTION:

• Do not reuse gaskets.

• Tighten them to the specified torque again.

30. Apply petroleum jelly to the circumference of the new oil seal,

and install it to the front case using Tools.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

31. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

Apply petroleum jelly to oil seal.

32. Install the oil cover until it reaches the end face of the new dust cover.

CAUTION:

• Do not reuse dust cover.

• Position oil cover with the notch at the bottom position.

33. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

Position the protrusions at the position shown.

• 1: Dust cover

• 2: Rear case assembly

• A: Protrusions

SDIA2789E

Tool number

(A): ST30720000 (J-25405)
(B): KV40104830 ( — )

Dimension (A)

: 4.0 - 4.6 mm (0.157 - 0.181 in)

SDIA3191E

Tool number

: KV38100500 ( — )

PDIA0115E

AWDIA0550GB

August 2012

2012 Pathfinder

DLN-302

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

TRANSFER ASSEMBLY

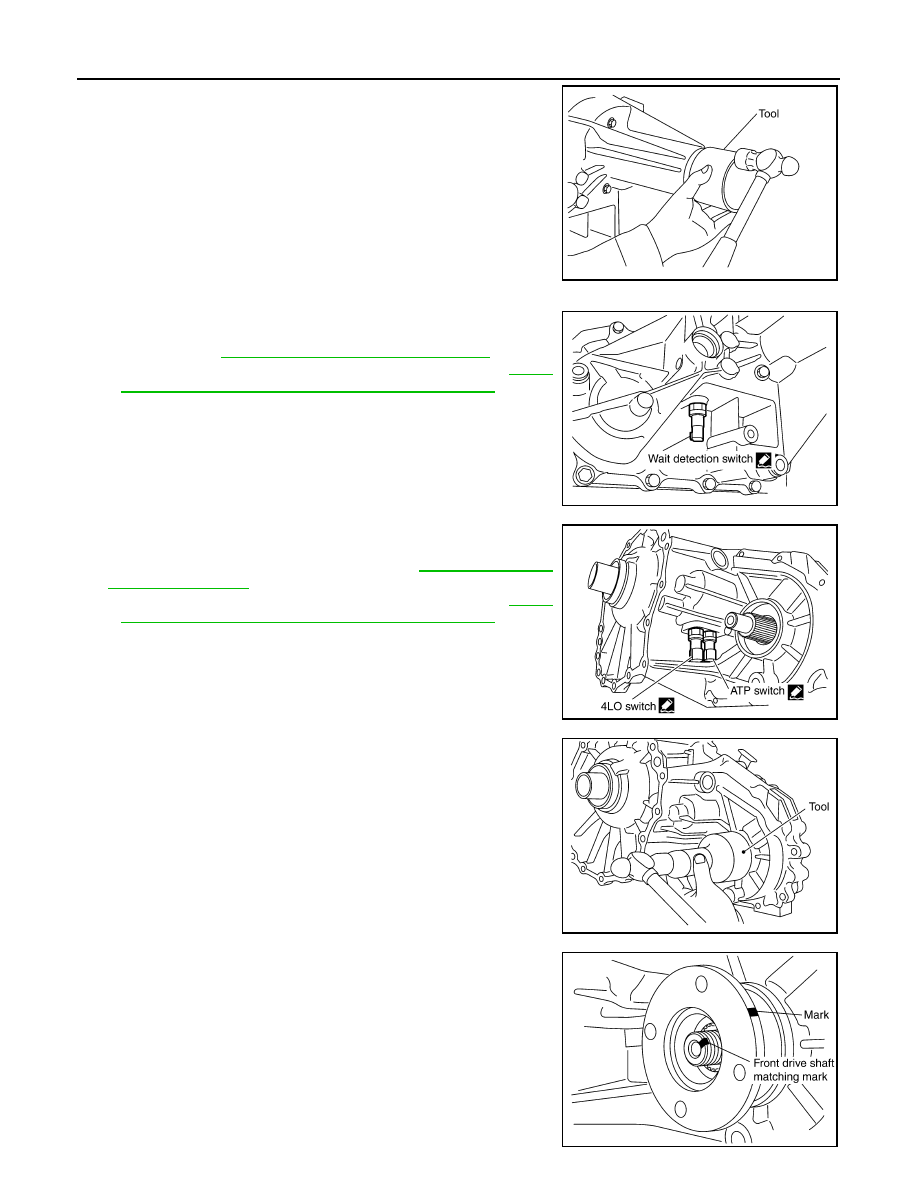

34. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

35. Apply sealant to the threads of the wait detection switch (gray).

Then install it to the rear case and tighten to the specified

torque. Refer to

DLN-154, "Component Parts Location"

.

Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

36. Apply sealant to the threads of the 4LO switch (gray with green

paint) and ATP switch (black). Then install them to the front case

and tighten to the specified torque. Refer to

DLN-154, "Compo-

nent Parts Location"

.

Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

37. Install the new front oil seal until it is flush with the end face of

the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

38. Align the matching mark on the front drive shaft with the mark on

the companion flange, then install the companion flange.

Tool number

: KV40105310 ( — )

PDIA0116E

SDIA3389E

SDIA3390E

Tool number

: KV38100500 ( — )

PDIA0117E

SDIA2779E

August 2012

2012 Pathfinder

TRANSFER ASSEMBLY

DLN-303

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

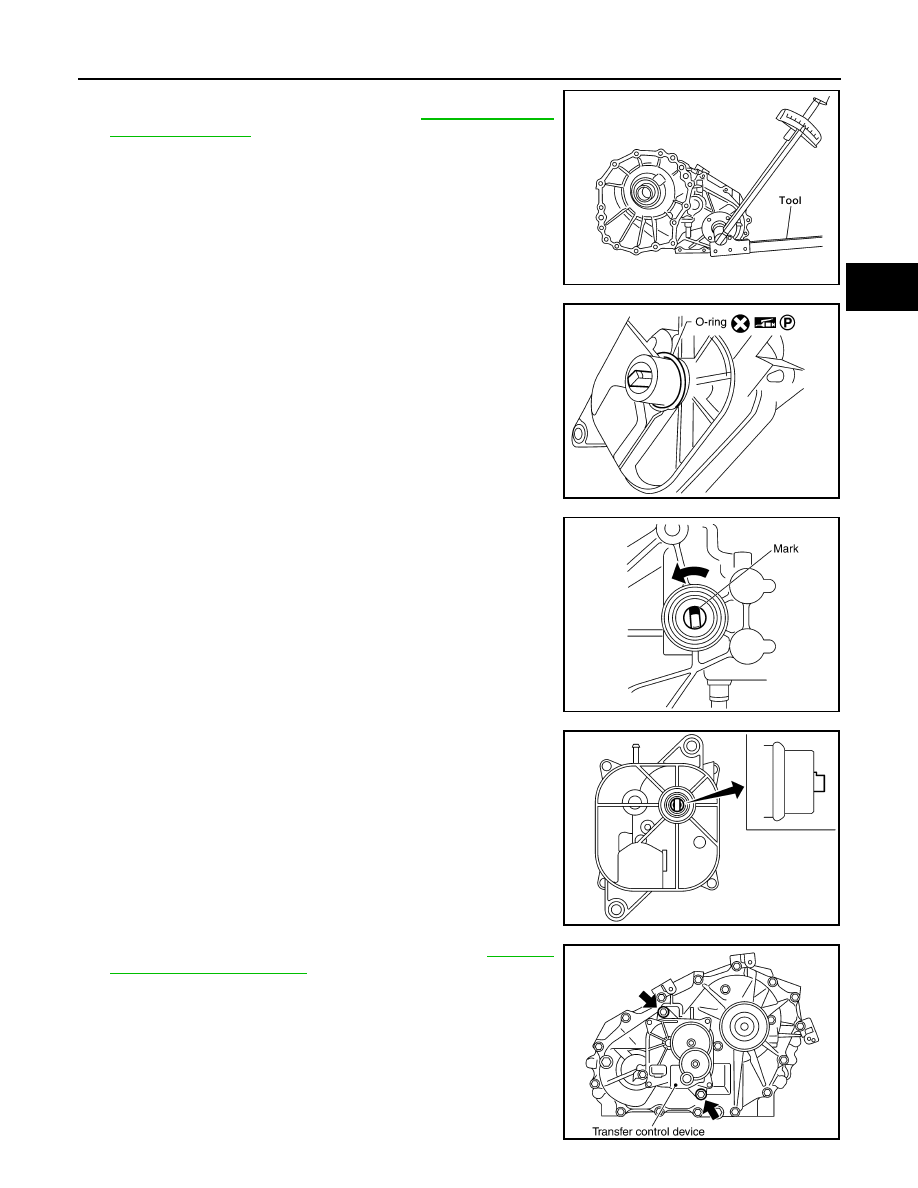

39. Install the new companion flange self-lock nut. Tighten to the

specified torque using suitable tool. Refer to

DLN-154, "Compo-

nent Parts Location"

.

CAUTION:

Do not reuse self-lock nut.

40. Install the new O-ring to the transfer control device.

CAUTION:

• Do not reuse O-ring.

• Apply petroleum jelly to O-ring.

41. Install the transfer control device to the rear case.
a. Turn the control shift rod fully counterclockwise using a suitable

tool, and then put a mark on the control shift rod.

b. Align the transfer control device shaft cutout with the mark on

the control shift rod, and install it.

NOTE:

Turn the transfer control device when the transfer control device

connection does not match.

c. Tighten the bolts to the specified torque. Refer to

DLN-154,

"Component Parts Location"

.

WDIA0219E

SDIA3378E

PDIA0119E

PDIA0120E

SDIA2212E

August 2012

2012 Pathfinder

DLN-304

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

TRANSFER ASSEMBLY

42. Install the drain plug and filler plug with new gaskets to the rear case. Tighten to the specified torque.

Refer to

DLN-154, "Component Parts Location"

.

CAUTION:

Do not reuse gaskets.

August 2012

2012 Pathfinder

PLANETARY CARRIER

DLN-305

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PLANETARY CARRIER

Disassembly and Assembly

INFOID:0000000007357572

DISASSEMBLY

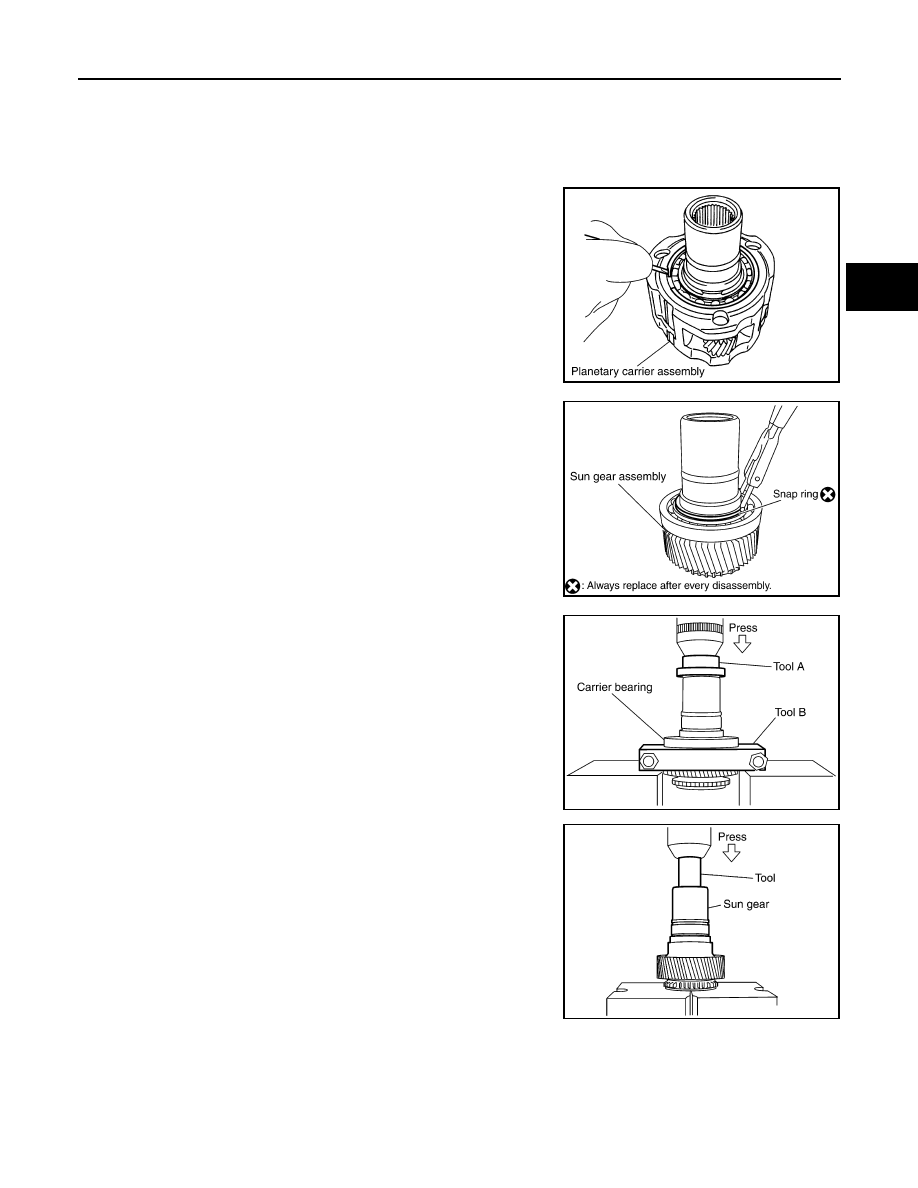

1. Remove the snap ring.
2. Remove the sun gear assembly from the planetary carrier

assembly using suitable tool.

3. Remove the snap ring from the sun gear assembly using suit-

able tool.

CAUTION:

Do not reuse snap ring.

4. Remove the carrier bearing from the sun gear using Tools.

5. Remove the needle bearing from the sun gear using Tool.

SDIA2792E

SDIA2353E

Tool number

(A): ST35300000 ( — )
(B): ST30021000 (J-22912-01)

SDIA2149E

Tool number

: ST33710000 ( — )

SDIA2354E

August 2012

2012 Pathfinder

DLN-306

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

PLANETARY CARRIER

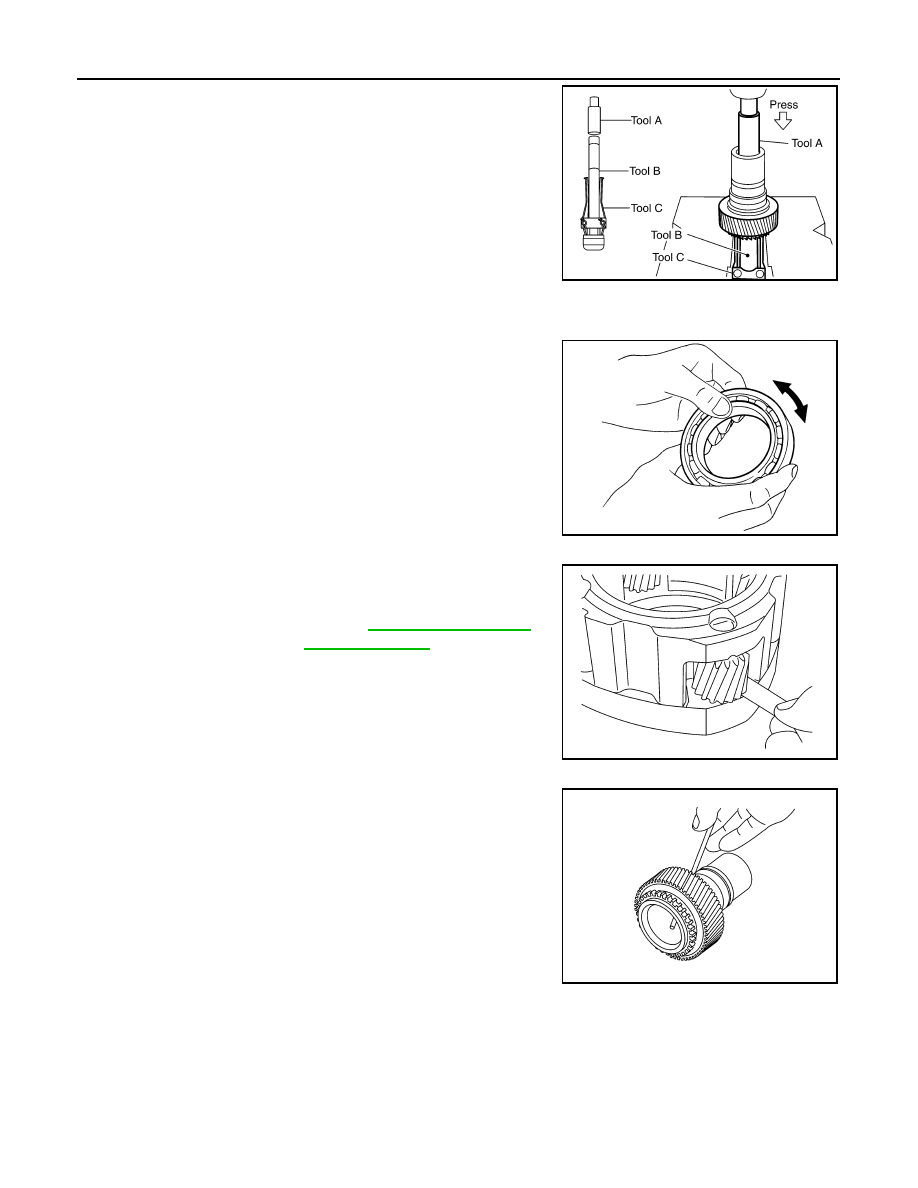

6. Remove the metal bushing from the sun gear using Tools.

INSPECTION AFTER DISASSEMBLY

Bearing

Check the bearing for damage and rough rotation. If necessary,

replace the bearing with a new one.

Planetary Carrier

• Measure the end play of each pinion gear. If it is out of specifica-

tion, replace the planetary carrier assembly with new one.

• Check the working face of each gear and bearing for damage,

burrs, partial wear, dents and other abnormality. If any is found,

replace the planetary carrier assembly with a new one.

Sun Gear

• Check if the oil passage of the sun gear assembly is clogged. For

this, try to pass a 3.6 mm (0.142 in) dia. wire through the oil pas-

sage as shown.

• Check the sliding and contact surface of each gear and bearing for

damage, burrs, partial wear, dents and other abnormality. If any is

found, replace the sun gear assembly with a new one.

Internal Gear

Tool number

(A): ST33710000 ( — )
(B): ST35325000 ( — )
(C): ST33290001 (J-34286)

SDIA2168E

MTF0041D

Pinion gear end play

Refer to

DLN-313, "Inspection

and Adjustment"

PDIA0146E

PDIA0147E

August 2012

2012 Pathfinder

PLANETARY CARRIER

DLN-307

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Check the internal gear teeth for damage, partial wear, dents or

other abnormality. If any is found, replace the internal gear with a

new one.

ASSEMBLY

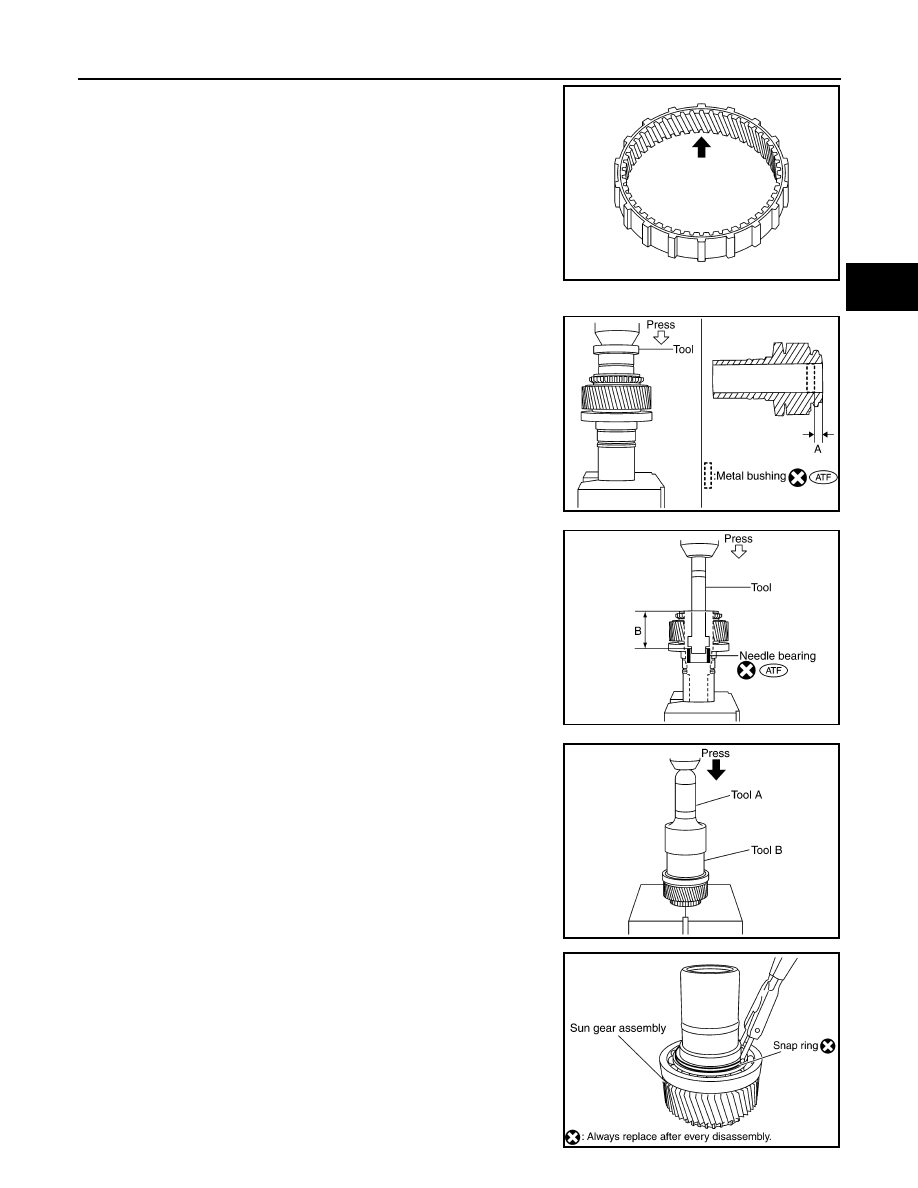

1. Apply ATF to the new metal bushing, then install the new metal

bushing until it becomes Dimension (A) using Tool.

CAUTION:

Do not reuse metal bushing.

2. Apply ATF to the new needle bearing, then install the new nee-

dle bearing until it becomes Dimension (B) using Tool.

CAUTION:

Do not reuse needle bearing.

3. Install the carrier bearing to the sun gear using Tools.

4. Install the new snap ring to the sun gear assembly using suitable

tool.

CAUTION:

Do not reuse snap ring.

PDIA0157E

Tool number

: ST35300000 ( — )

Dimension (A)

: 7.7 - 8.3mm (0.303 - 0.327in)

SDIA3189E

Tool number

: ST33220000 ( — )

Dimension (B)

: 62.5 - 63.1mm (2.461 - 2.484in)

SDIA3190E

Tool number

(A): ST30720000 (J-25405)
(B): ST27863000 ( — )

PDIA0149E

SDIA2353E

August 2012

2012 Pathfinder

DLN-308

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TX15B]

PLANETARY CARRIER

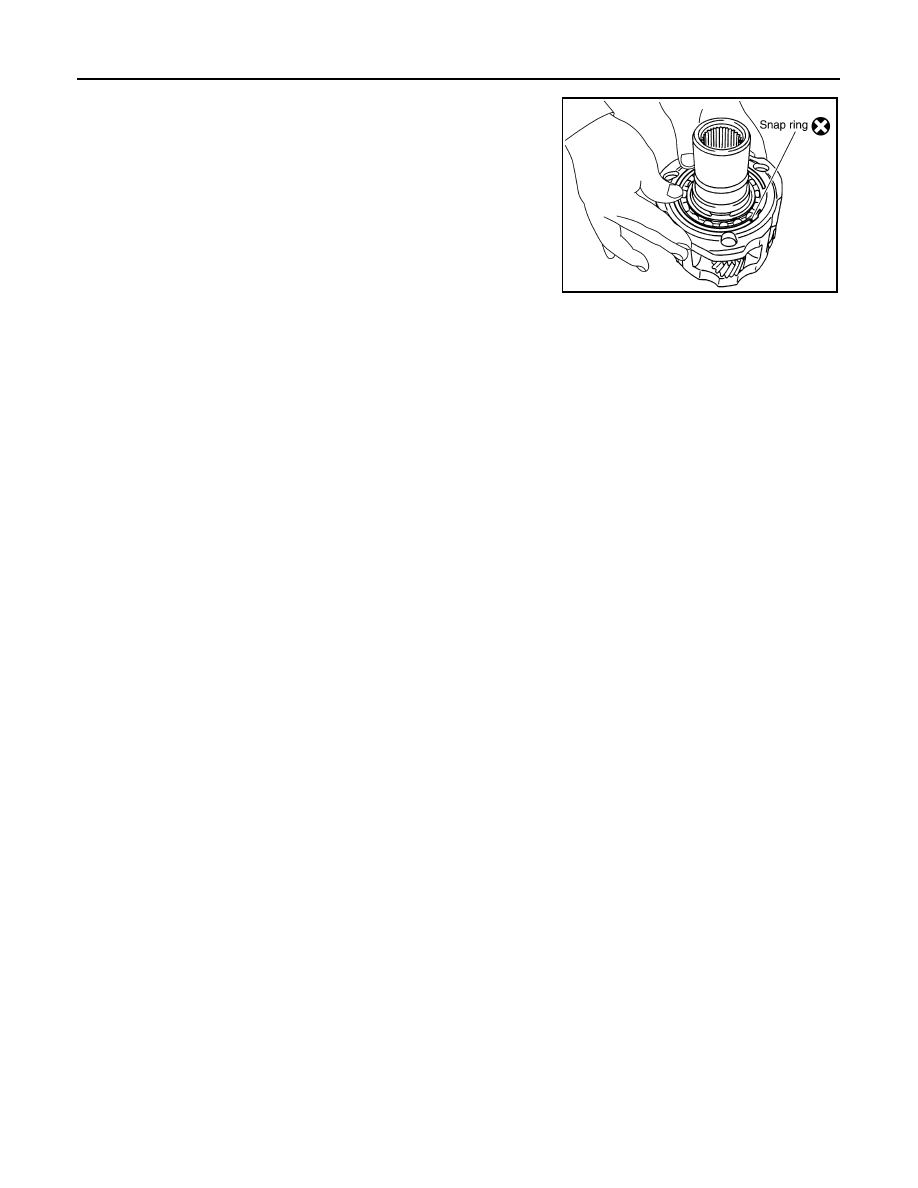

5. Install the sun gear assembly to the planetary carrier assembly.
