TRANSFER ASSEMBLY

DLN-189

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

•

Use Genuine Silicone RTV or equivalent. Refer to

GI-14, "Recommended Chemical Products and

Sealants"

.

NOTE:

Wait detection switch harness connector is black.

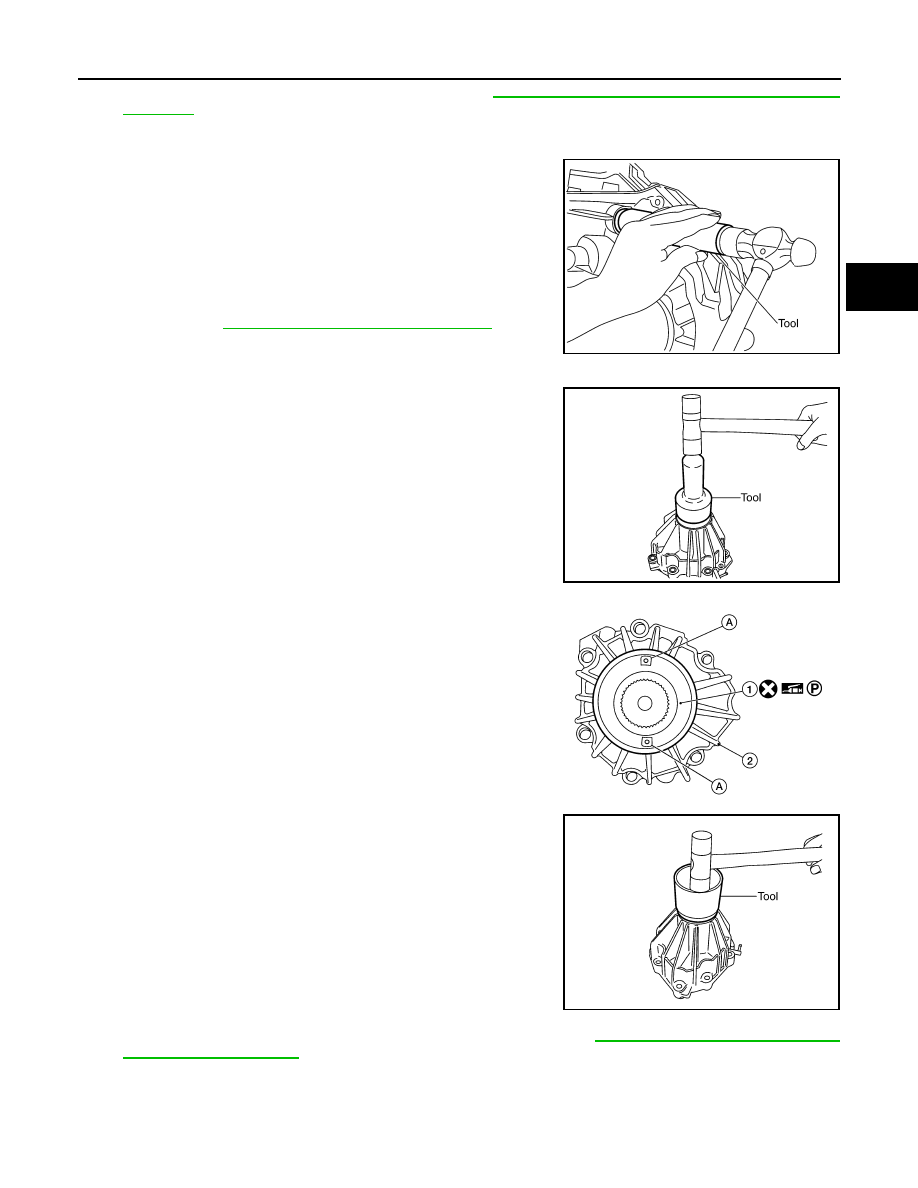

27. Install the new oil seal in the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to seal lip before installing.

28. Install the shift lever to the shift cross.
29. Install the lock pin and lock pin nut. Tighten to the specified

torque. Refer to

DLN-154, "Component Parts Location"

.

Rear Case

1. Apply petroleum jelly to the circumference of the new rear oil

seal. Install the new rear oil seal so that it is flush with the case

tip face using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to seal lip before installing.

2. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protrusions at the position shown.

• 1: Dust cover

• 2: Rear case assembly

• A: Protrusions

3. Install the new dust cover using Tool.

4. Install the air breather into the rear case.
5. Remove all the sealant from the rear case to center case mating

surfaces.

CAUTION:

Remove all foreign materials such as water, oil, and grease

from center case and rear case mating surfaces.

6. Apply liquid gasket to the entire rear case mating surface of the

center case.

•

Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-14, "Recommended Chemical

Products and Sealants"

.

CAUTION:

Do not to allow Liquid Gasket to enter stem bleeder hole.

Tool number

: ST22360002 (J-25679-01)

SDIA2182E

Tool number

: ST30720000 (J-25405)

SDIA2204E

AWDIA0550GB

Tool number

: KV40105310 ( — )

SDIA2205E

August 2012

2012 Pathfinder

DLN-190

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

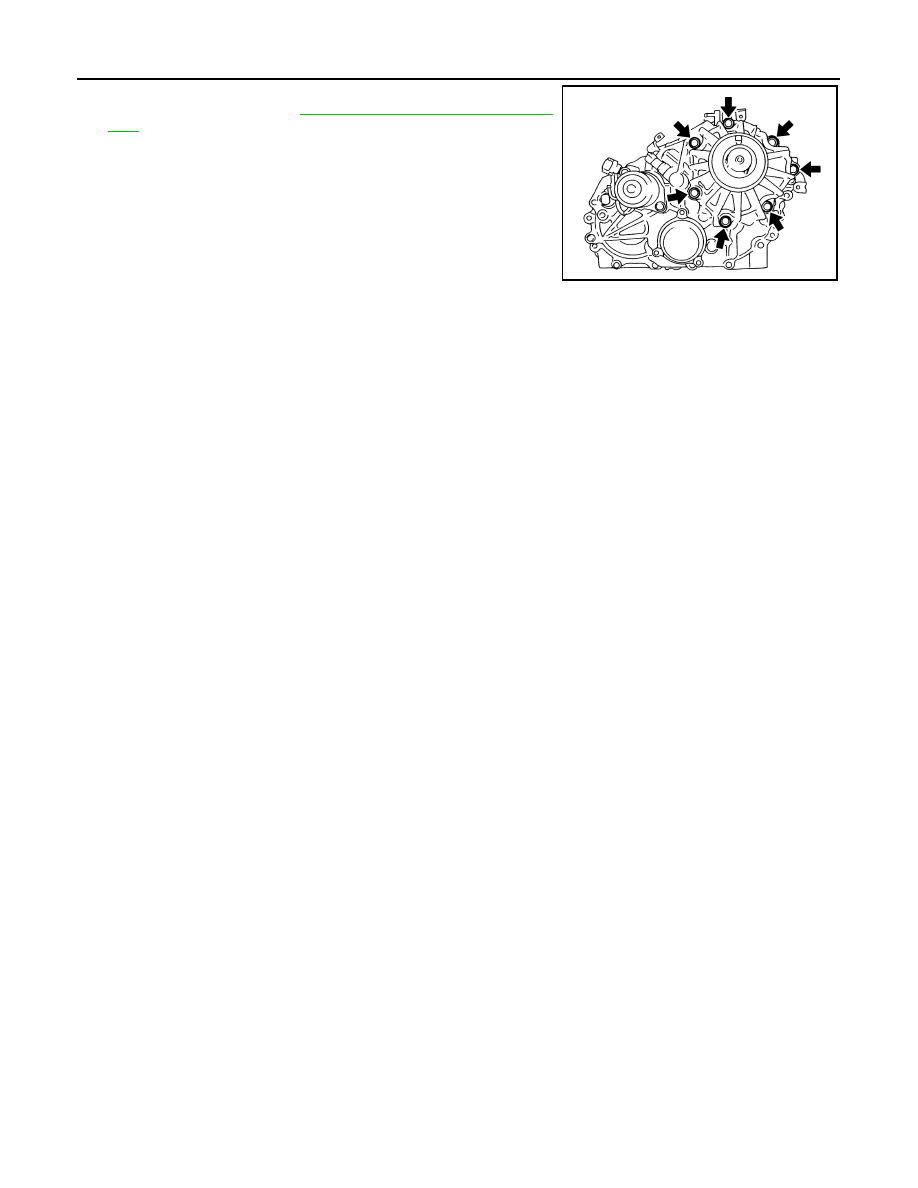

7. Install the rear case to the center case. Tighten the bolts to the

specified torque. Refer to

DLN-154, "Component Parts Loca-

tion"

.

SDIA2092E

August 2012

2012 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-191

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000007357481

Inspection and Adjustment

INFOID:0000000007357482

CLEARANCE BETWEEN INNER GEAR AND OUTER GEAR

Unit: mm (in)

CLUTCH

Unit: mm (in)

PINION GEAR END PLAY

Unit: mm (in)

CLEARANCE BETWEEN SHIFT FORK AND SLEEVE

Unit: mm (in)

SELECTIVE PARTS

Sub-oil Pump

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Main Oil Pump

Applied model

VQ40DE

VK56DE

Transfer model

ATX14B

Fluid capacity (Approx.)

 (US qt, lmp qt)

3.0 (3-1/8, 2-5/8)

Gear ratio

High

1.000

Low

2.596

2.625

Number of teeth

Planetary
gear

Sun gear

57

56

Internal gear

91

Front drive sprocket

38

Front drive shaft

38

Item

Specification

Sub-oil pump

0.015 - 0.035 (0.0006 - 0.0014)

Main oil pump

0.015 - 0.035 (0.0006 - 0.0014)

Item

Limit value

Drive plate

1.4 (0.055)

Item

Standard

Pinion gear end play

0.1 - 0.7 (0.004 - 0.028)

Item

Standard

Shift fork and sleeve

Less than 0.36 (0.0142)

Gear thickness

Part number*

Inner gear

Outer gear

9.27 - 9.28 (0.3650 - 0.3654)

31346 0W462

31347 0W462

9.28 - 9.29 (0.3654 - 0.3657)

31346 0W461

31347 0W461

9.29 - 9.30 (0.3657 - 0.3661)

31346 0W460

31347 0W460

August 2012

2012 Pathfinder

DLN-192

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSFER: ATX14B]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Control Valve

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Control Valve Spring

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Return Spring

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Gear thickness

Part number*

Inner gear

Outer gear

8.27 - 8.28 (0.3256 - 0.3260)

31346 7S112

31347 7S112

8.28 - 8.29 (0.3260 - 0.3264)

31346 7S111

31347 7S111

8.29 - 8.30 (0.3264 - 0.3268)

31346 7S110

31347 7S110

Mounting position

(Part name)

Part number*

Outer dia.

Overall length

L1

(2-4 shift valve)

31772 21X00

8.0 (0.315)

38.5 (1.516)

L2

(Clutch valve)

31772 80X11

10.0 (0.394)

40.0 (1.575)

L4

(Pilot valve)

31772 80X11

10.0 (0.394)

40.0 (1.575)

L5

(Regulator valve)

31741 0W410

12.0 (0.472)

68.0 (2.677)

Mounting position

(Part name)

Part number*

Free length

Outer dia.

Overall length

L1

(2-4 shift valve spring)

31742 2W500

31.85 (1.2539)

7.0 (0.276)

0.6 (0.024)

L2

(Clutch valve spring)

31742 2W505

40.6 (1.598)

8.9 (0.350)

0.7 (0.028)

L4

(Pilot valve spring)

31742 0W410

28.1 (1.106)

9.0 (0.354)

1.2 (0.047)

L5

(Regulator valve spring)

31742 2W515

39.7 (1.563)

11.0 (0.433)

1.3 (0.051)

Stamped mark

Part number*

Free length

1

31521 7S111

42.7 (1.168)

2

31521 7S112

43.1 (1.697)

3

31521 7S113

43.6 (1.717)

4

31521 7S114

44.0 (1.731)

August 2012

2012 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

DLN-193

< BASIC INSPECTION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

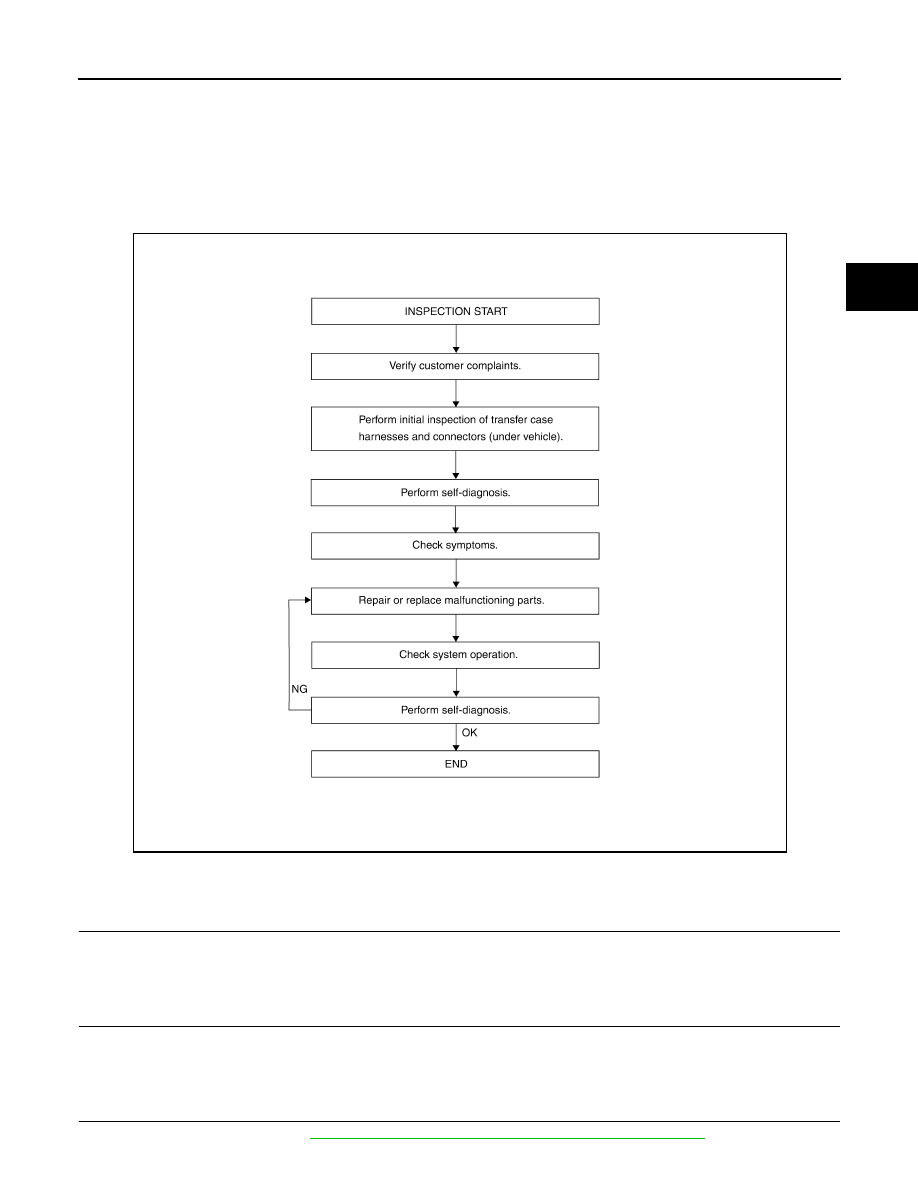

Work Flow

INFOID:0000000007357483

WORK FLOW

DETAILED FLOW

1.

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

2.

INITIAL INSPECTION

Perform an initial inspection of all accessible transfer case harnesses and connectors under the vehicle.

>> GO TO 3

3.

SELF-DIAGNOSIS

Perform self-diagnosis.  Refer to

DLN-202, "CONSULT Function (ALL MODE AWD/4WD)"

.

AWDIA0028GB

August 2012

2012 Pathfinder

DLN-194

< BASIC INSPECTION >

[TRANSFER: TX15B]

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 4

4.

SYMPTOM

Check for symptoms.  Refer to

DLN-254, "Symptom Table"

.

>> GO TO 5

5.

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

6.

SYSTEM OPERATION

Check system operation.

>> GO TO 7

7.

SELF-DIAGNOSIS

Perform self-diagnosis.
Are any DTCs displayed?

YES

>> GO TO 5

NO

>> Inspection End.

August 2012

2012 Pathfinder

4WD SYSTEM

DLN-195

< SYSTEM DESCRIPTION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

4WD SYSTEM

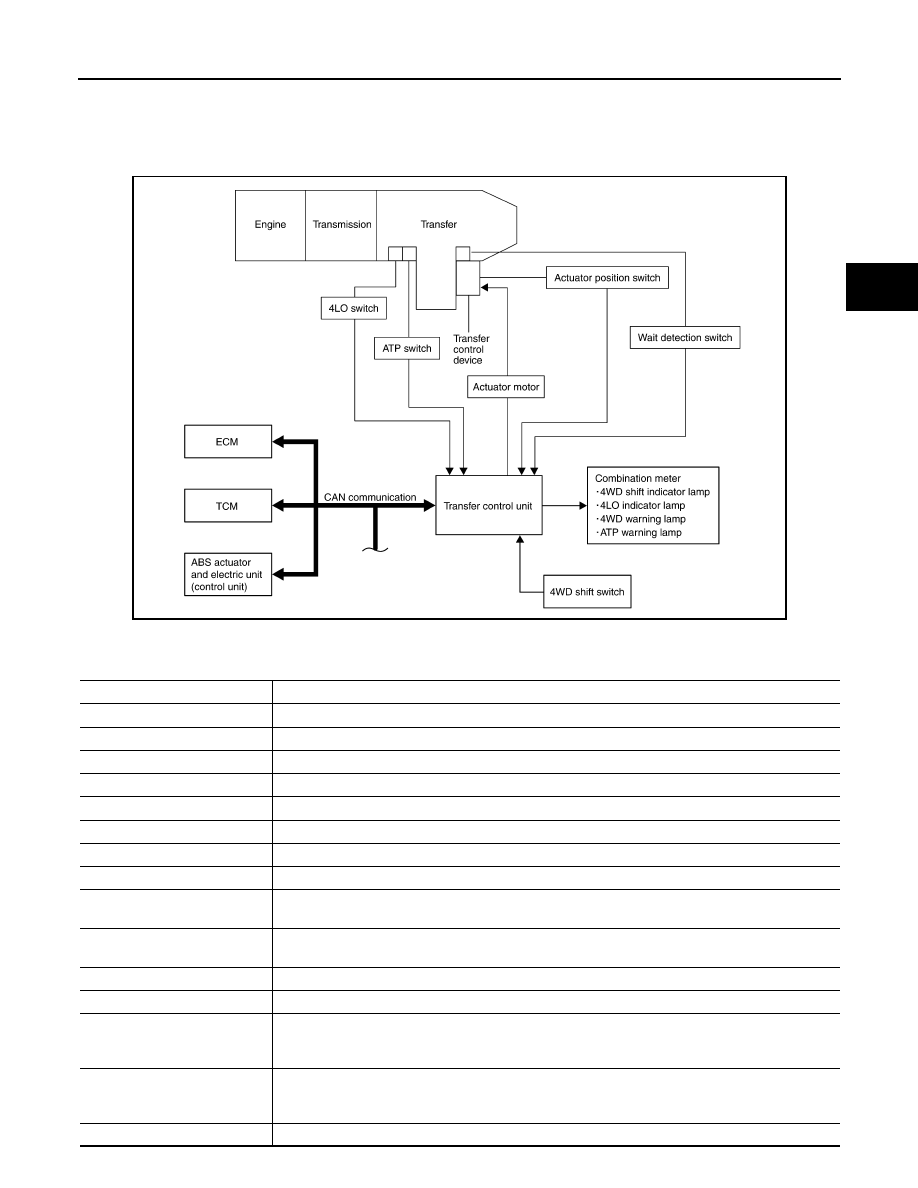

System Diagram

INFOID:0000000007357484

COMPONENT DESCRIPTION

PDIA0152E

Components

Function

Transfer control unit

Controls transfer control device and controls shifts between 2WD/4WD and 4H/4LO.

Transfer control device

Integrates actuator motor and actuator position switch.

Actuator motor

Moves shift rods when signaled by transfer control unit.

Actuator position switch

Detects actuator motor position.

Wait detection switch

Detects if transfer case is in 4WD.

4LO switch

Detects if transfer case is in 4LO.

ATP switch

Detects if transfer case is in neutral.

4WD shift switch

Allows driver to select from 2WD/4WD and 4H/4LO.

4WD warning lamp

• Illuminates if malfunction is detected in 4WD system.
• Flashes (1 flash / 2 seconds) if rotation difference of front wheels and rear wheels is large.

ATP warning lamp

Indicates that A/T parking mechanism does not operate when A/T selector lever is in “P” position be-
cause transfer case is in neutral.

4WD shift indicator lamp

Displays driving range selected by 4WD shift switch.

4LO indicator lamp

Displays 4LO range.

ABS actuator and electric unit
(control unit)

Transmits the following signals via CAN communication to transfer control unit.
• Vehicle speed signal
• Stop lamp switch signal (brake signal)

TCM

Transmits the following signal via CAN communication to transfer control unit.
• Output shaft revolution signal
• A/T position indicator signal (transmission range switch signal)

ECM

Transmits engine speed signal via CAN communication to transfer control unit.

August 2012

2012 Pathfinder

DLN-196

< SYSTEM DESCRIPTION >

[TRANSFER: TX15B]

4WD SYSTEM

System Description

INFOID:0000000007357485

TRANSFER CONTROL DEVICE

Integrates actuator motor and actuator position switch.

Actuator Motor

Moves shift rods when signaled by transfer control unit.

Actuator Position Switch

Detects actuator motor position and then sends signal to transfer control unit.

WAIT DETECTION SWITCH

Detects if transfer case is in 4WD by the 2-4 shift fork position.

NOTE:

If 4WD shift switch is switched to 4H or 4LO and the transfer case is not in 4WD completely, the wait detection

system will operate.

4LO SWITCH

4LO switch detects if the transfer case is in 4LO by the position of the L-H shift fork.

ATP SWITCH

ATP switch detects if transfer case is in neutral by the position of the L-H shift fork.

NOTE:

Transfer case may be in neutral when shifting between 4H-4LO.

TRANSFER CONTROL UNIT

• Transfer control unit controls transfer control device and it directs shifts from 4H-4LO and 2WD-4WD.

• Self-diagnosis can be done.

TRANSFER SHIFT HIGH AND LOW RELAYS

Transfer shift high and low relays apply power supply to transfer control device (actuator motor).

TRANSFER SHUT OFF RELAYS

Transfer shut off relays 1 and 2 apply power supply to transfer control unit.

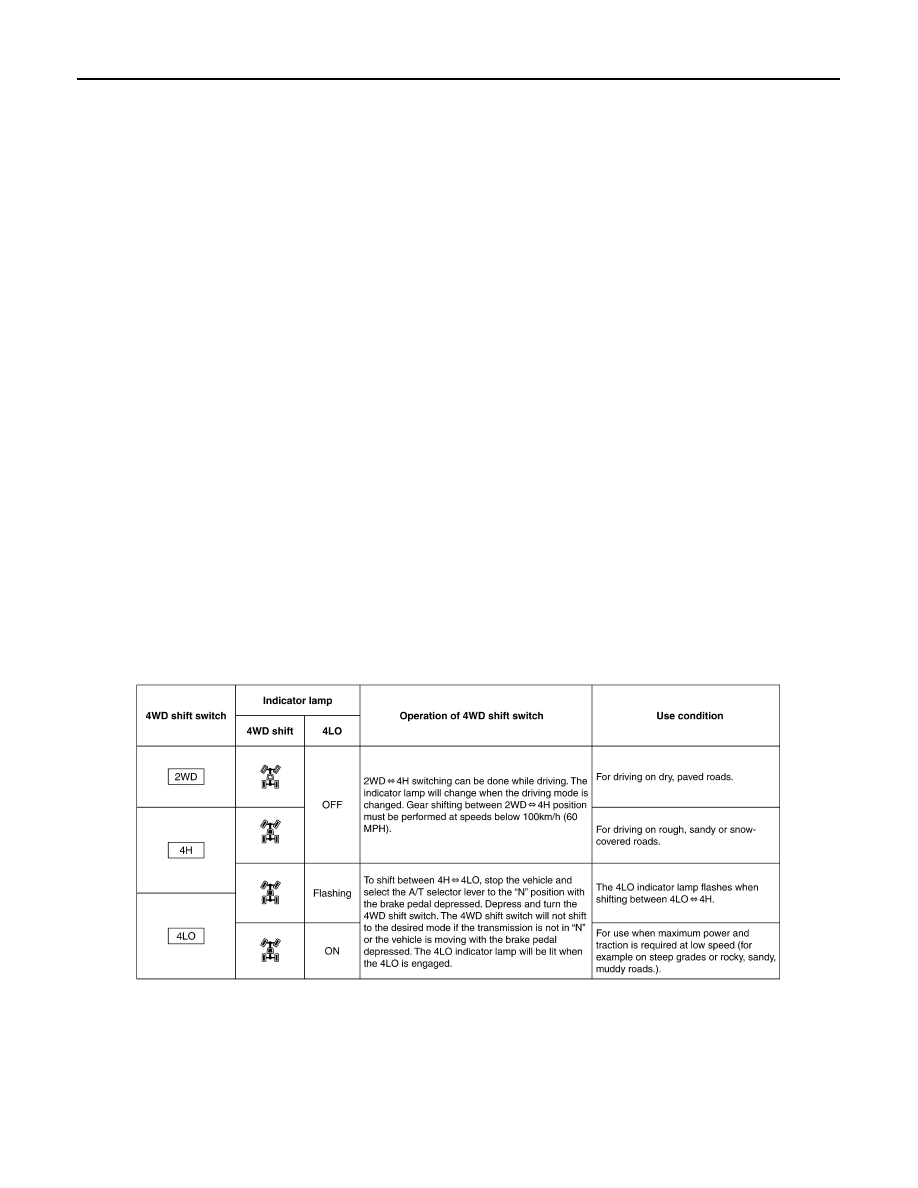

4WD SHIFT SWITCH AND INDICATOR LAMP

4WD Shift Switch

4WD shift switch is able to select from 2WD, 4H or 4LO.

4WD Shift Indicator Lamp

• Displays driving conditions selected by the 4WD shift switch while engine is running.  When the 4WD warn-

ing lamp is turned on, all 4WD shift indicator lamps will turn off.

• Turns ON when ignition switch is turned ON, for purpose of lamp check. Turns OFF approximately for 1 sec-

ond after the engine starts if system is normal.

WDIA0138E
