TRANSFER ASSEMBLY

DLN-181

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

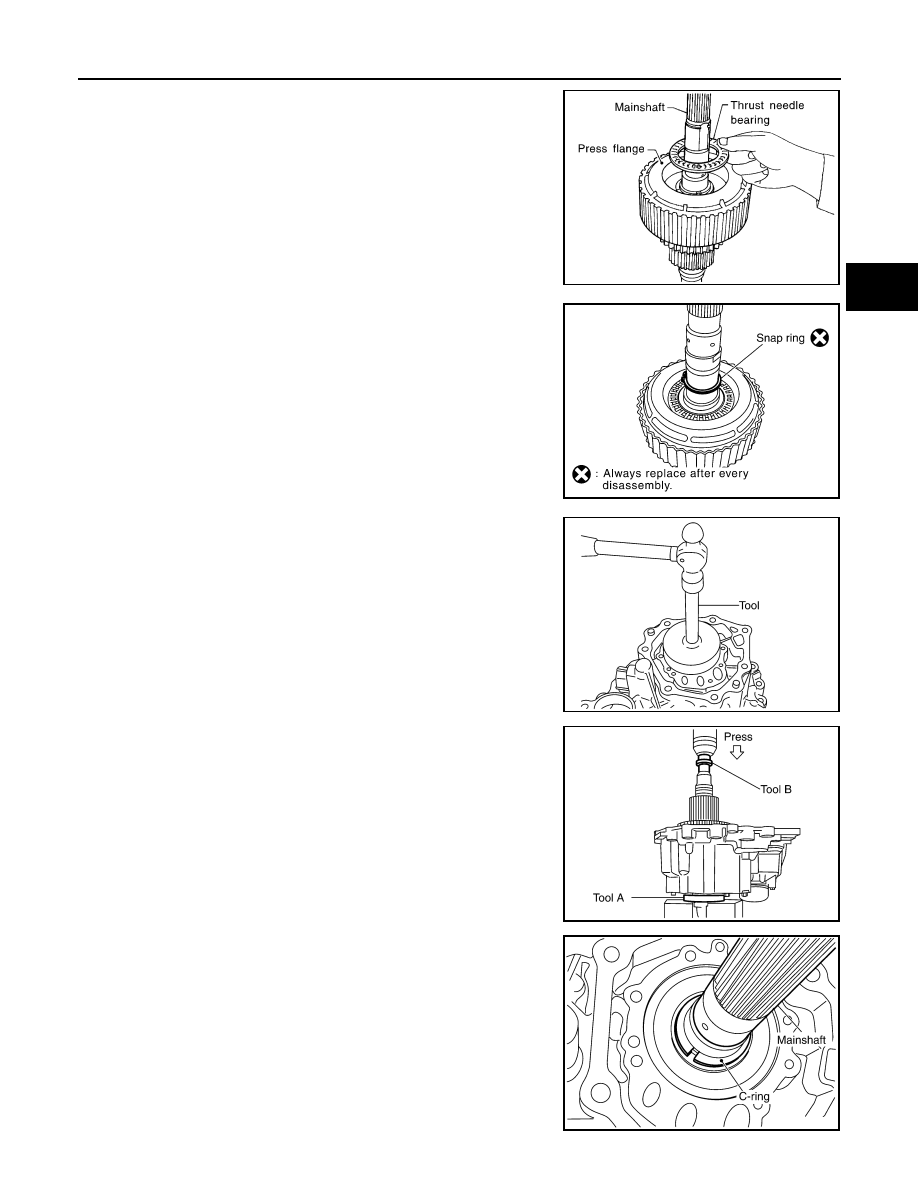

28. Apply ATF to the thrust needle bearing and install it on the press

flange.

29. Install the new snap ring to the main shaft.

CAUTION:

Do not reuse snap ring.

30. Install the mainshaft rear bearing to the center case using Tool.

31. Install the mainshaft assembly using a press.

• Press the mainshaft into the center case using Tools.

32. Install the C-rings to the mainshaft.

SDIA2109E

SDIA2195E

Tool number

: ST15310000 (J-25640-B)

SDIA2196E

Tool number

(A): ST30911000 ( — )
(B): ST35300000 ( — )

SDIA2197E

SDIA2201E

August 2012

2012 Pathfinder

DLN-182

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

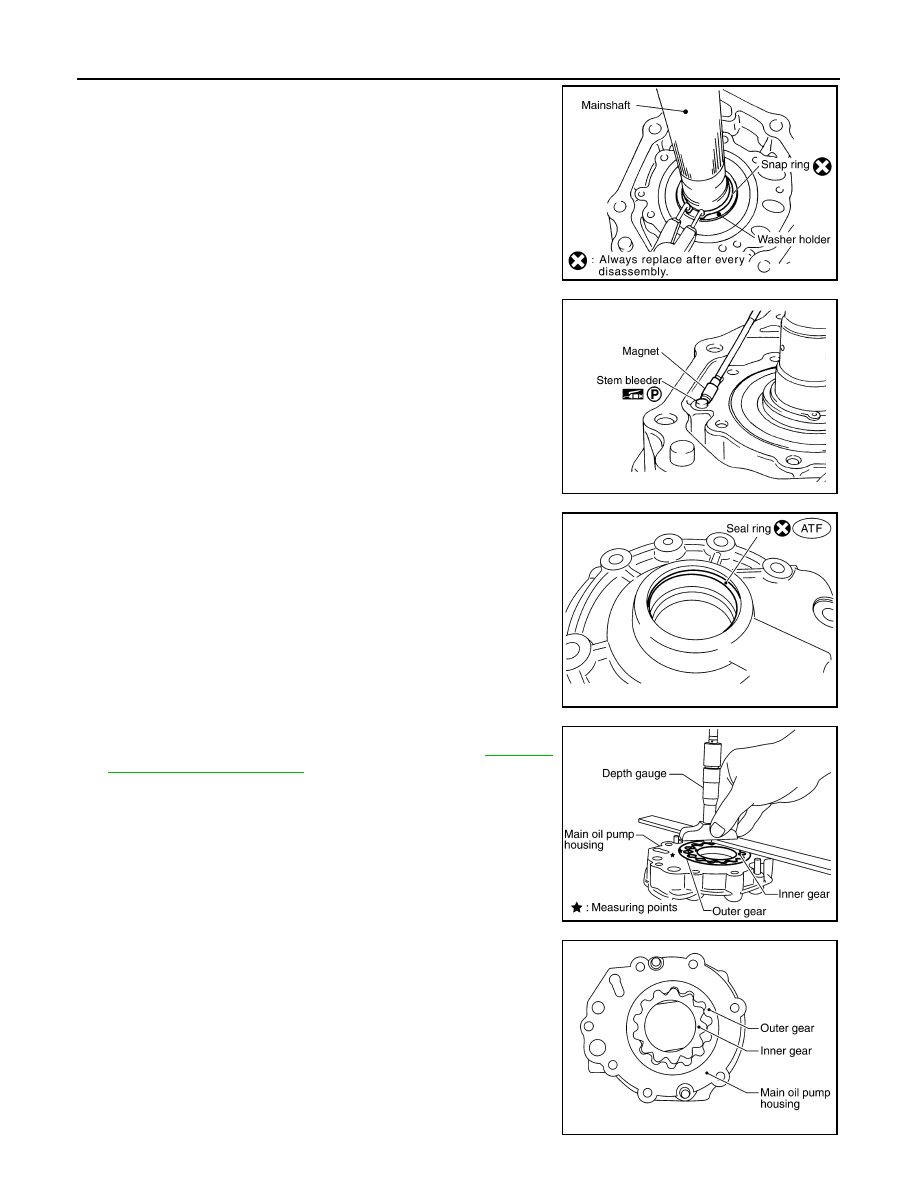

33. Set the washer holder on the mainshaft, and secure it with a

new snap ring.

CAUTION:

Do not reuse snap ring.

34. Apply petroleum jelly to the stem bleeder and install it to the cen-

ter case.

35. Apply ATF to the new seal ring and install it to the main oil pump

cover.

CAUTION:

Do not reuse seal ring.

36. Install the inner gear and outer gear in the main oil pump hous-

ing. Then, measure the side clearance. Refer to

DLN-191,

"Inspection and Adjustment"

.

37. Install the main oil pump housing, outer gear and inner gear to

the center case.

SDIA2104E

SDIA2780E

SDIA2783E

SDIA2174E

SDIA2188E

August 2012

2012 Pathfinder

TRANSFER ASSEMBLY

DLN-183

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

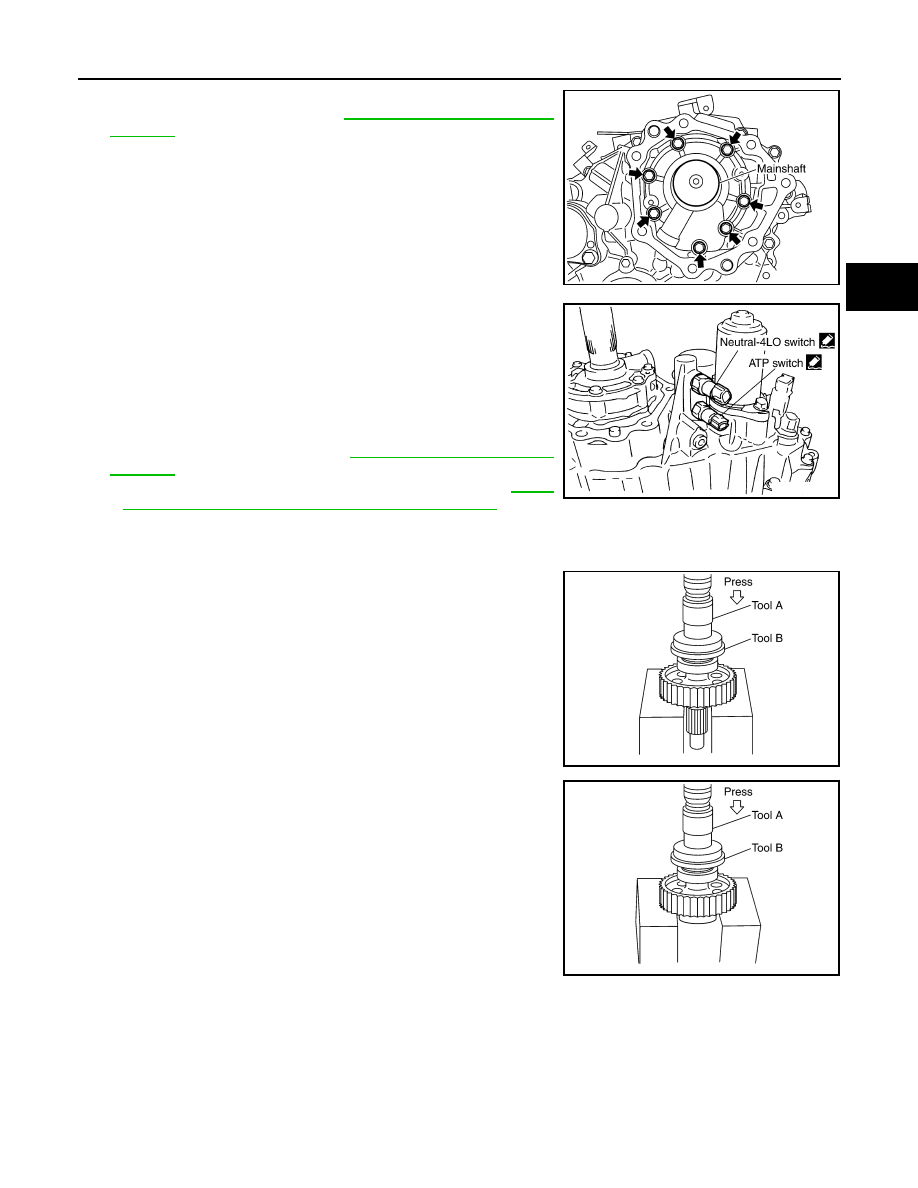

38. Install the main oil pump cover to the center case, and tighten to

the specified torque. Refer to

DLN-154, "Component Parts

Location"

.

39. Remove all the sealant from the switch location area and inside

the center case.

CAUTION:

Remove old sealant adhering to mounting surfaces. Also

remove any moisture, oil, or foreign material adhering to

application and mounting surfaces.

40. Thread the ATP switch and neutral-4LO switch in one to two

pitches and apply sealant to the threads of the switches. Tighten

to the specified torque. Refer to

DLN-154, "Component Parts

Location"

.

Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

"Recommended Chemical Products and Sealants"

.

NOTE:

• Neutral-4LO switch harness connector is gray.

• ATP switch harness connector is black.

41. Install the front drive shaft rear bearing using Tools.

42. Install the front drive shaft to the front bearing using Tools.

SDIA2130E

Tool number

(A): KV40100621 (J-25273)
(B): ST30032000 (J-26010-01)

SDIA3435E

SDIA2198E

Tool number

(A): KV40100621 (J-25273)
(B): ST30032000 (J-26010-01)

SDIA2199E

August 2012

2012 Pathfinder

DLN-184

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

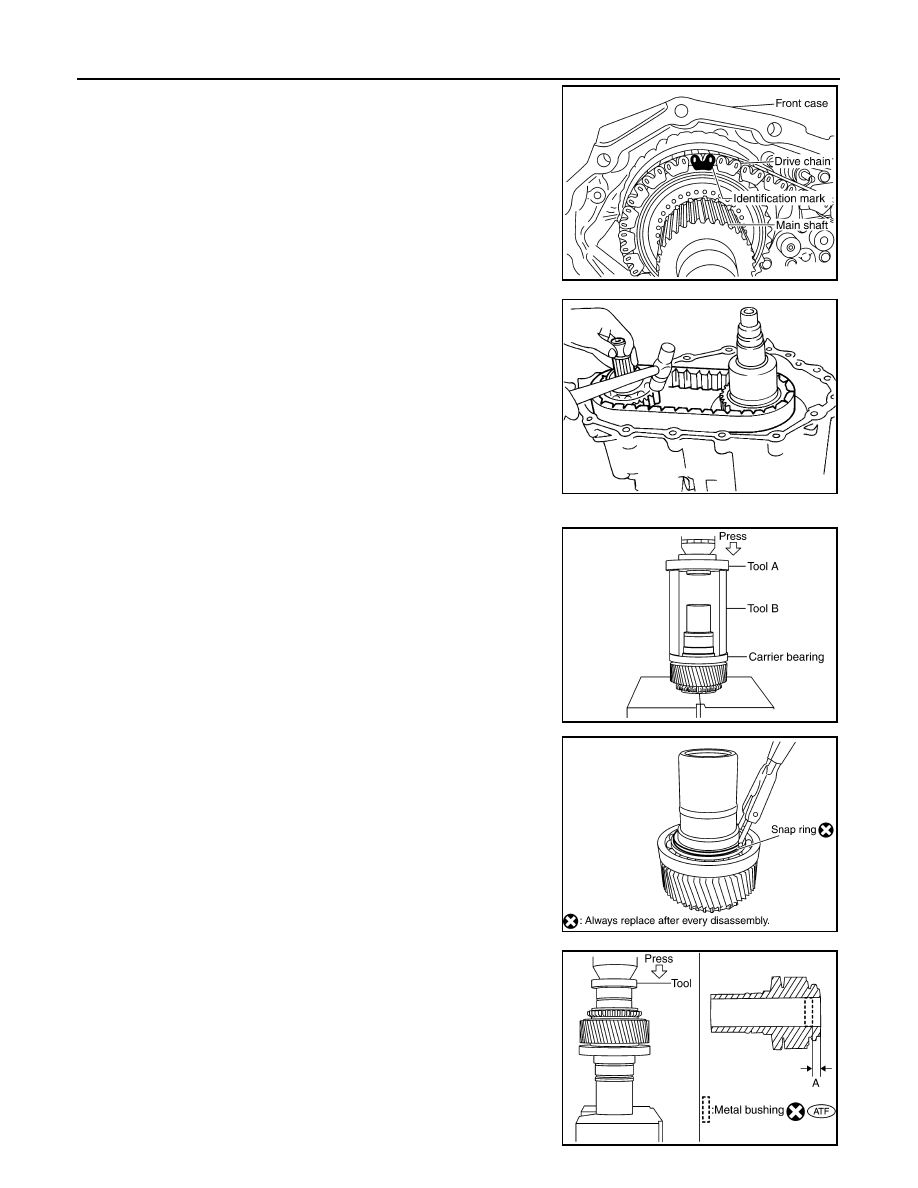

43. Install the drive chain to the front drive shaft and clutch drum.

CAUTION:

Install drive chain by aligning identification marks to the

rear as shown.

44. Tap the front drive shaft while keeping it upright and press-fit the

front drive shaft rear bearing.

CAUTION:

 Do not tap drive chain.

45. Install the front case assembly.
46. Install the rear case assembly.

Front Case

1. Install the carrier bearing to the sun gear using Tools.

2. Install the new snap ring to the sun gear assembly using suitable

tool.

CAUTION:

Do not reuse snap ring.

3. Apply ATF to the circumference of the new metal bushing and

install it to the sun gear assembly using suitable tool.

CAUTION:

• Do not reuse metal bushing.

• Apply ATF to metal bushing before installing.

SDIA2200E

SMT988C

Tool number

(A): ST30911000 ( — )
(B): KV31103300 ( — )

SDIA2179E

SDIA2148E

Dimension (A)

: 7.7 - 8.3 mm (0.303 - 0.327 in)

SDIA3189E

August 2012

2012 Pathfinder

TRANSFER ASSEMBLY

DLN-185

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

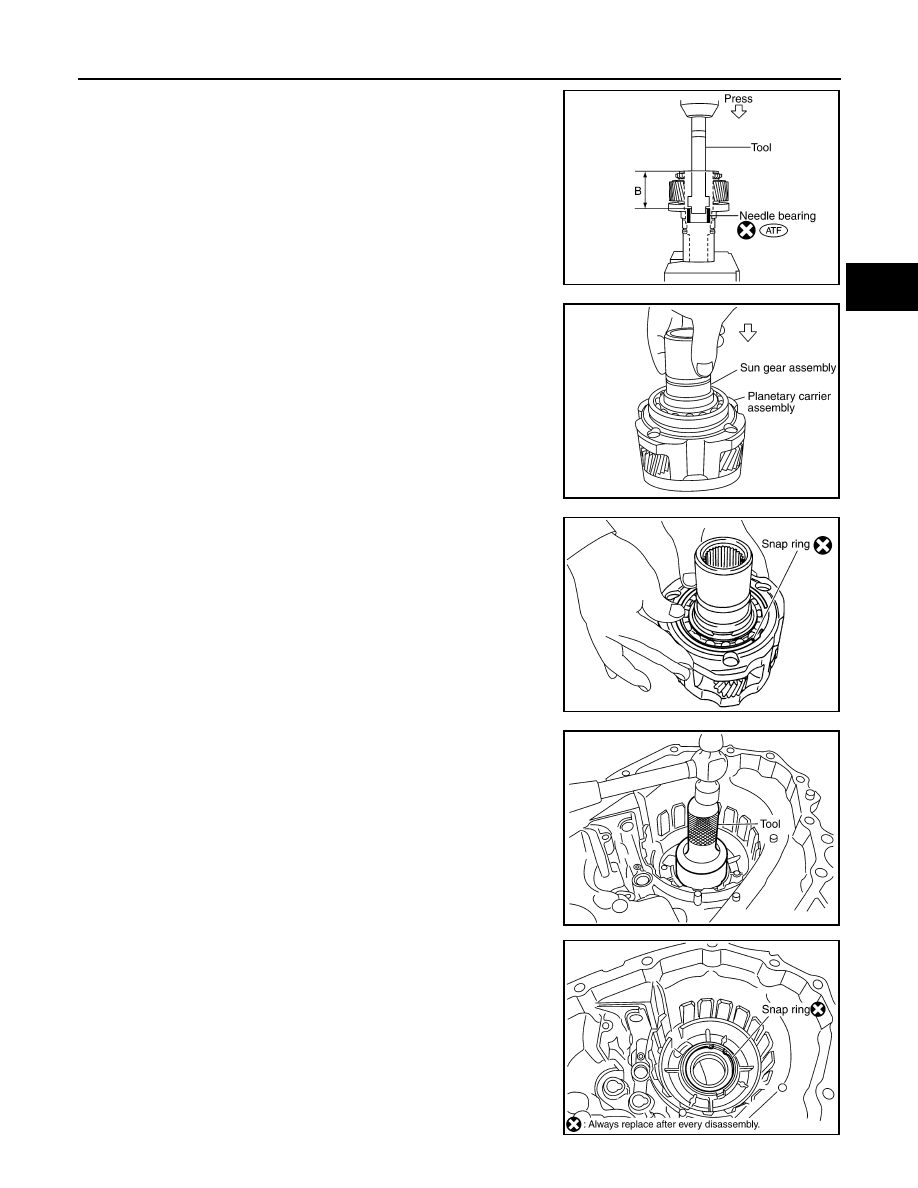

4. Apply ATF to the new needle bearing and install it to the sun

gear assembly using Tool.

CAUTION:

• Do not reuse needle bearing.

• Apply ATF to needle bearing before installing.

5. Install the sun gear assembly to the planetary carrier assembly.

6. Install the new snap ring to the planetary carrier assembly.

CAUTION:

Do not reuse snap ring.

7. Set the input bearing into the front case and install using Tool.

8. Install the new snap ring into the front case.

CAUTION:

Do not reuse snap ring.

Tool number

: ST33220000 ( — )

Dimension (B)

: 62.5 - 63.1 mm (2.461 - 2.484 in)

SDIA3190E

SDIA2180E

SDIA2794E

Tool number

: ST30720000 (J-25405)

SDIA2172E

SDIA2171E

August 2012

2012 Pathfinder

DLN-186

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

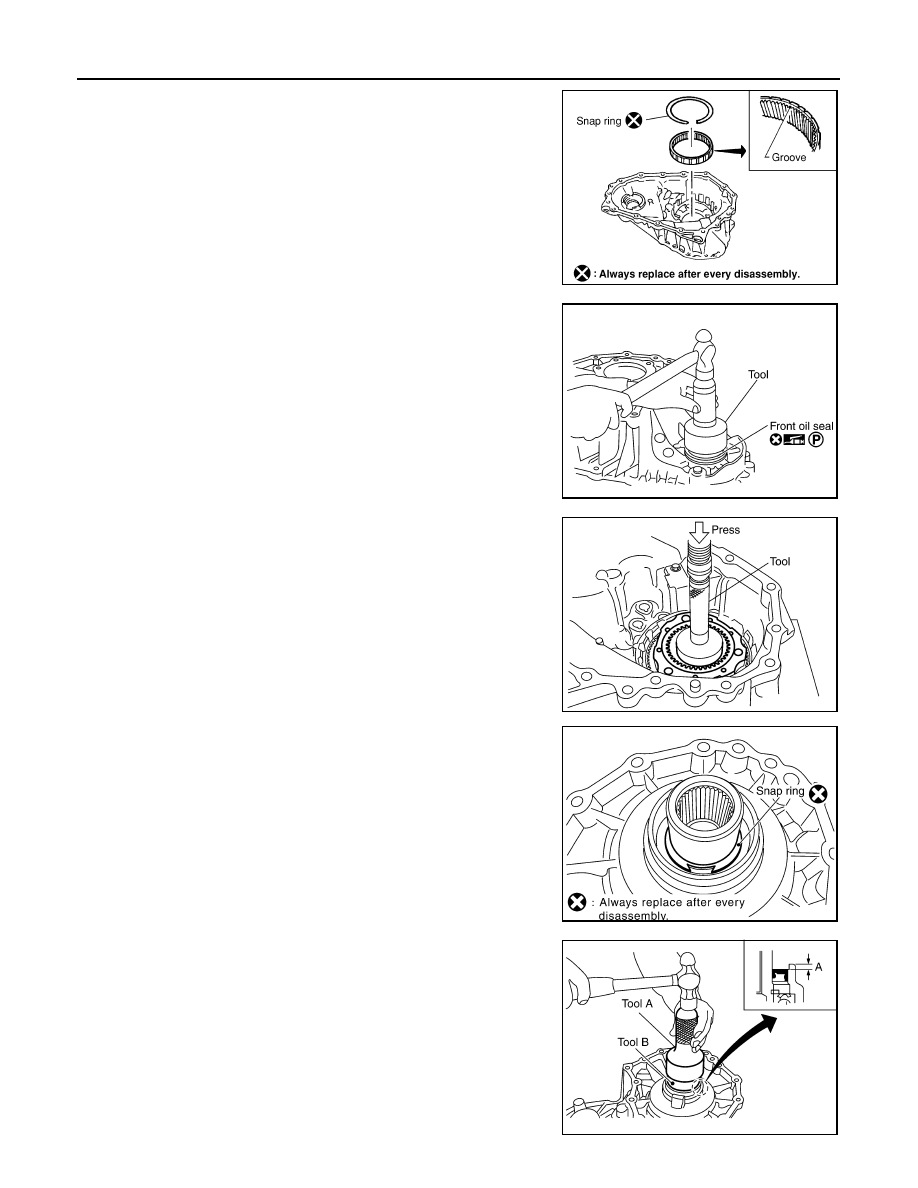

9. Install the internal gear with its groove facing the snap ring into

the front case. Then secure it with the new snap ring.

CAUTION:

Do not reuse snap ring.

10. Install the new front oil seal until it is seated flush with the end

face of the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal lip before installing.

11. Install the planetary carrier assembly and sun gear assembly to

the front case using Tool.

12. Install the new snap ring to the sun gear.

CAUTION:

Do not reuse snap ring.

13. Apply petroleum jelly to the circumference of the new oil seal,

and install it to the front case using Tools.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

WDIA0100E

Tool number

: KV38100500 ( — )

SDIA3383E

Tool number

: ST33200000 (J-26082)

SDIA2791E

SDIA2144E

Tool numbers

(A): ST30720000 (J-25405)
(B): ST33200000 (J-26802)

Dimension (A)

: 4.0 - 4.6 mm (0.157 - 0.181 in)

SDIA3191E

August 2012

2012 Pathfinder

TRANSFER ASSEMBLY

DLN-187

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

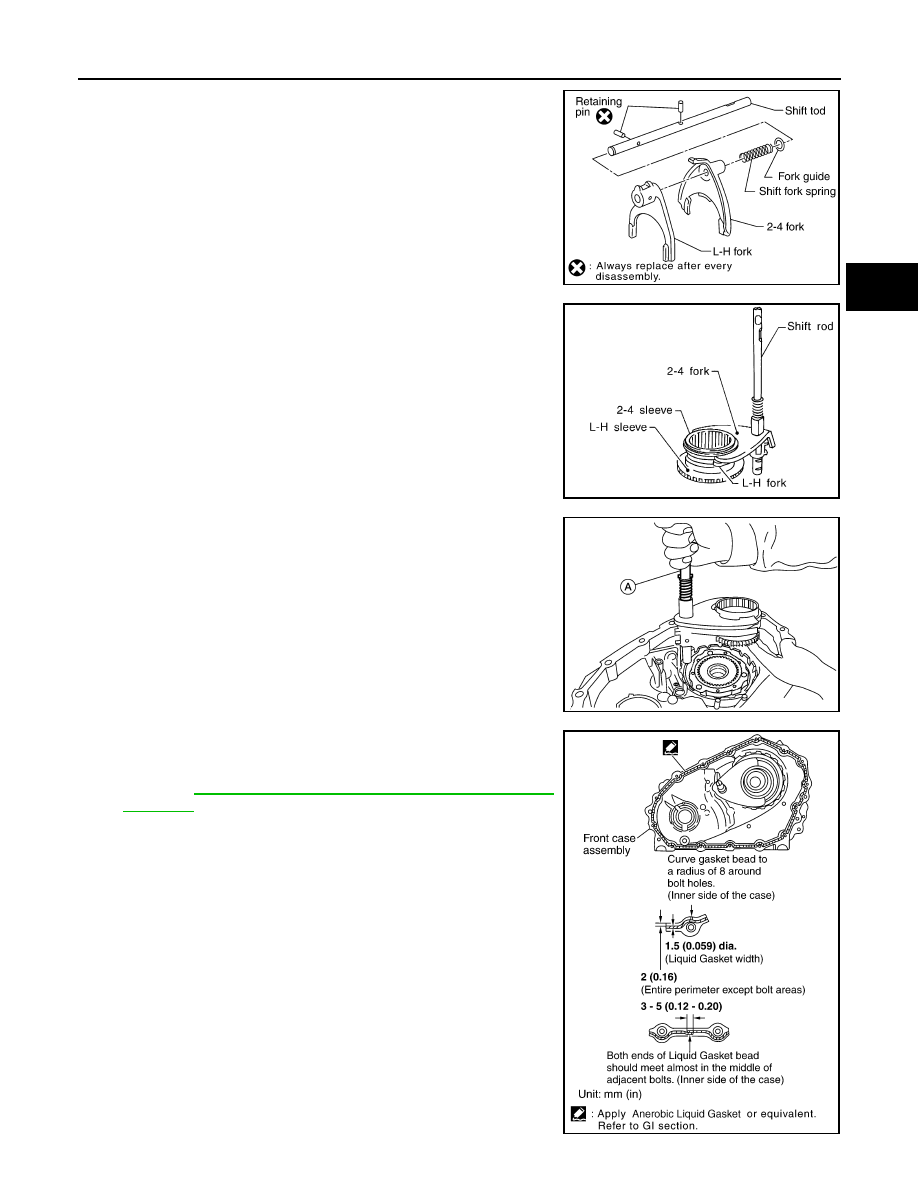

14. Install the fork guide, shift fork spring, 2-4 fork, and L-H fork to

the shift rod, and secure them with new retaining pins.

CAUTION:

Do not reuse retaining pins.

15. Install the 2-4 sleeve and L-H sleeve to each fork.
16. Install the shift cross to the front case.

17. While aligning the L-H sleeve with the planetary carrier, install

the shift rod assembly (A) to the front case.

18. Apply liquid gasket to the entire center case mating surface of

the front case assembly as shown.

Use Genuine Anaerobic Liquid Gasket or equivalent.

Refer to

GI-14, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Remove all foreign materials such as water, oil and grease

from center case and front case mating surfaces.

SDIA2142E

SMT992C

AWDIA0015ZZ

WDIA0157E

August 2012

2012 Pathfinder

DLN-188

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ATX14B]

TRANSFER ASSEMBLY

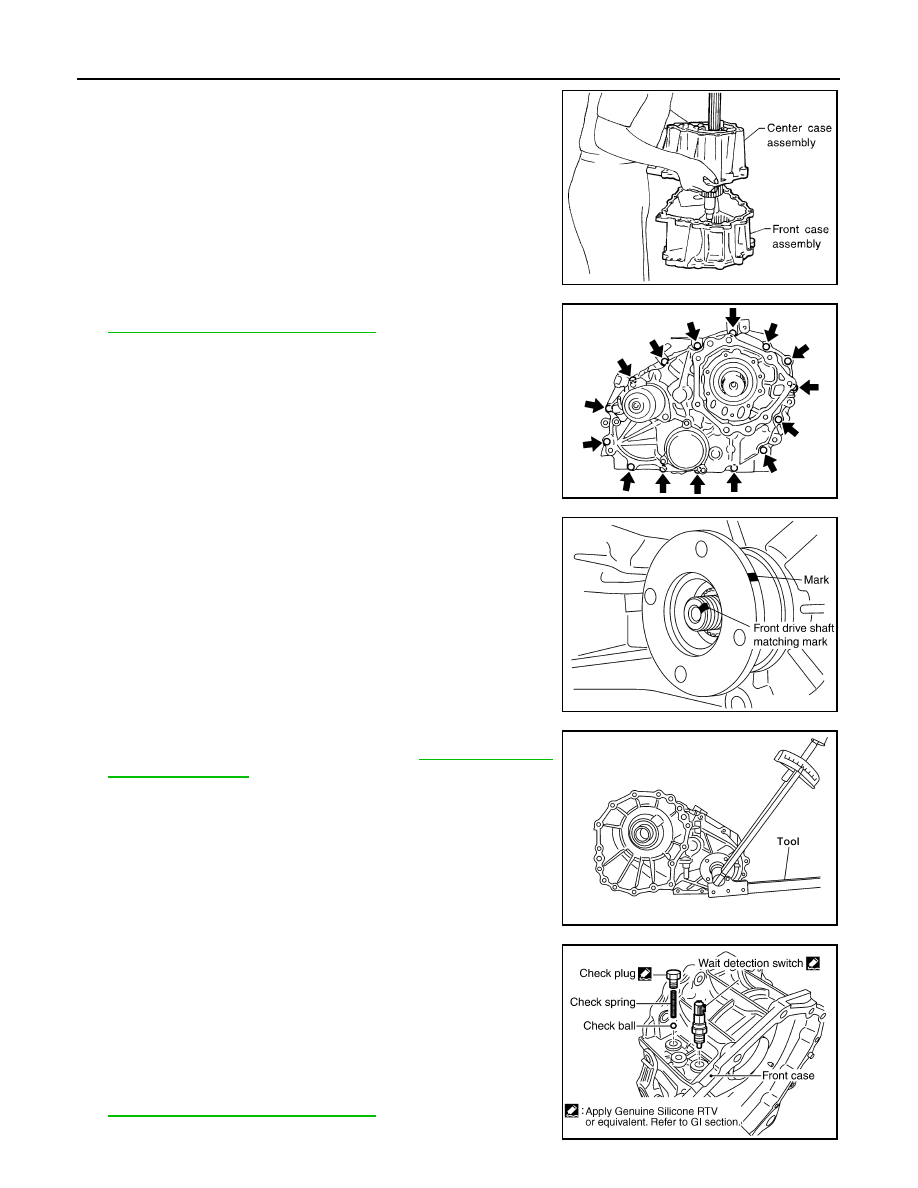

19. Install the center case assembly to the front case assembly.

CAUTION:

Do not damage mainshaft end.

20. Tap the center case lightly and press-fit the front drive shaft

bearing into the front case.

21. Tighten the front case bolts to the specified torque. Refer to

DLN-154, "Component Parts Location"

.

CAUTION:

Be sure to install air breather hose clamp, connector

bracket and harness clip.

22. Install the drain plug with a new gasket.

CAUTION:

Do not reuse gasket.

23. Align the matching mark on the front drive shaft with the mark on

the companion flange, then install the companion flange.

24. Install a new companion flange self-lock nut. Tighten to the

specified torque using suitable tool. Refer to

DLN-154, "Compo-

nent Parts Location"

.

CAUTION:

Do not reuse self-lock nut.

25. Remove all the sealant from the check plug, switch and front

case.

CAUTION:

Remove old sealant adhering to mating surfaces. Also

remove any moisture, oil, or foreign material adhering to

application and mounting surfaces.

26. Install the check ball and check spring to the front case. Apply

sealant to the check plug and wait detection switch and install

them to the front case. Tighten to the specified torque. Refer to

DLN-154, "Component Parts Location"

.

SDIA2138E

SDIA2100E

SDIA2779E

WDIA0219E

WDIA0158E

August 2012

2012 Pathfinder
