August 2012

2012 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

DLN-9

< BASIC INSPECTION >

[TRANSFER: ATX14B]

DLN

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000007357346

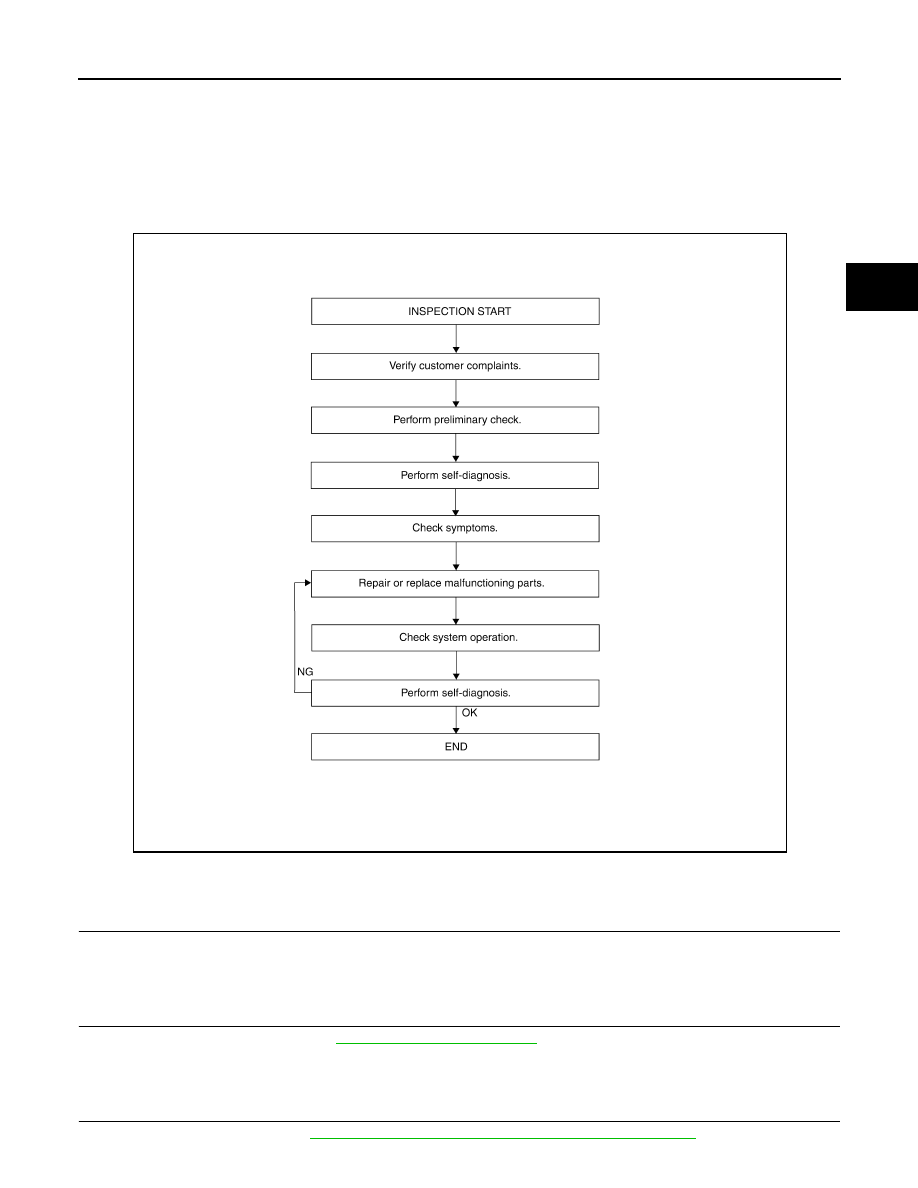

WORK FLOW

DETAILED FLOW

CUSTOMER INFORMATION

Interview the customer to obtain detailed information about the symptom.

>> GO TO 2

PRELIMINARY CHECK

Perform preliminary check. Refer to

DLN-10, "Preliminary Check"

>> GO TO 3

SELF-DIAGNOSIS

Perform self-diagnosis. Refer to

DLN-23, "CONSULT Function (ALL MODE AWD/4WD)"

AWNIA1592GB

August 2012

2012 Pathfinder

DLN-10

< BASIC INSPECTION >

[TRANSFER: ATX14B]

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 4

SYMPTOM

Check for symptoms. Refer to

DLN-110, "Symptom Table"

>> GO TO 5

MALFUNCTIONING PARTS

Repair or replace the applicable parts.

>> GO TO 6

SYSTEM OPERATION

Check system operation.

>> GO TO 7

SELF-DIAGNOSIS

Perform self-diagnosis.
Are any DTCs displayed?

YES

>> GO TO 5

>> Inspection End.

Preliminary Check

INFOID:0000000007357347

TRANSFER FLUID CHECK

Check for leaks and fluid level. Refer to

DLN-136, "Inspection"

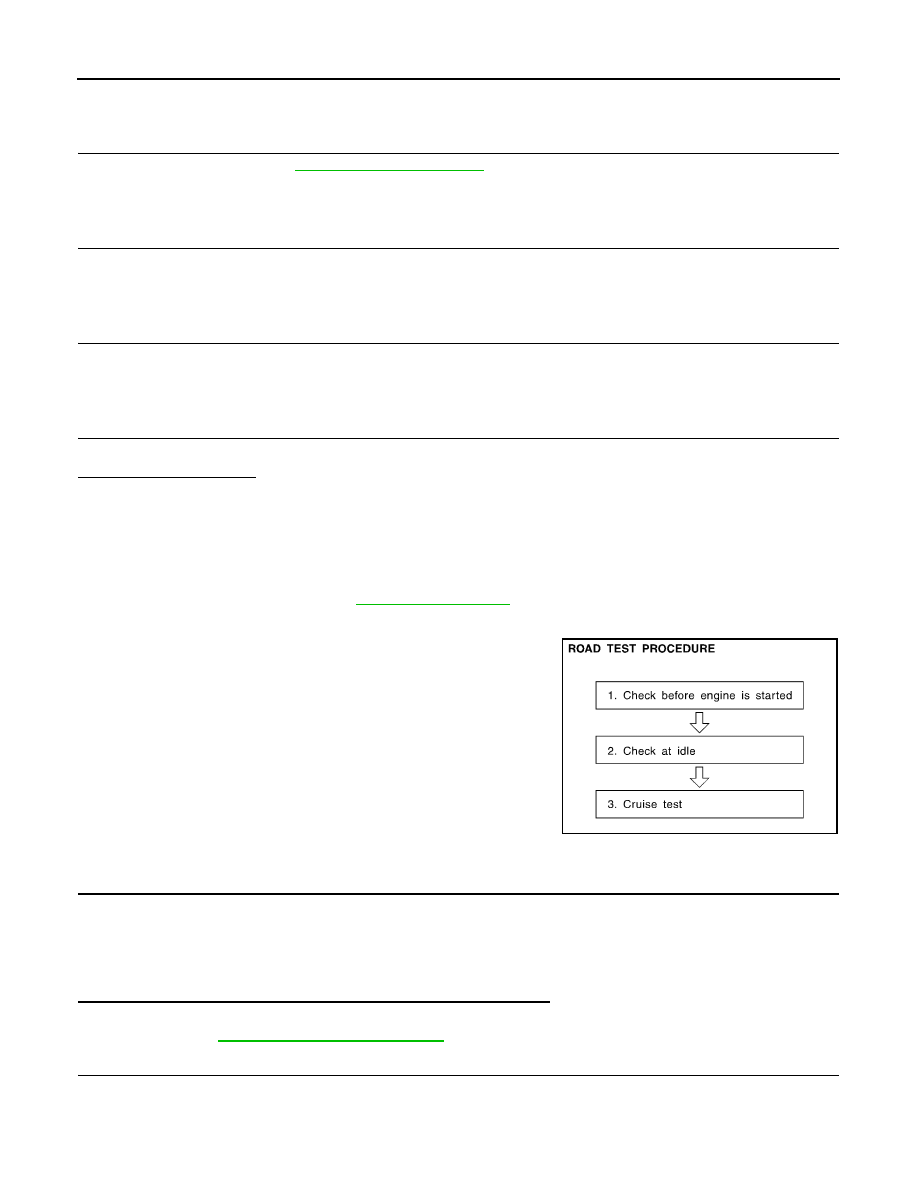

PREPARATION FOR ROAD TEST

The purpose of the test is to determine overall performance of trans-

fer case and analyze causes of malfunctions.

When a malfunction is found in any part of transfer, perform the road

test to locate the malfunction area and repair the malfunction parts.

The road test consists of the following three parts.

1. CHECK BEFORE ENGINE IS STARTED

2. CHECK AT IDLE

3. CRUISE TEST

CHECK BEFORE ENGINE IS STARTED

CHECK 4WD SHIFT INDICATOR LAMP

1. Park vehicle on flat surface.

2. Turn ignition switch to OFF position.

3. Move A/T selector lever to P position.

4. Set 4WD shift switch to 2WD position.

5. Turn ignition switch to ON position. (Do not start engine.)
Does 4WD shift indicator lamp turn ON for approximately 1 second?

YES

>> GO TO 2.

>> GO TO

DLN-111, "Diagnosis Procedure"

CHECK 4WD WARNING LAMP

1. Turn ignition switch to OFF position.

2. Move A/T selector lever to P position.

3. Set 4WD shift switch to 2WD position.

4. Turn ignition switch to ON position. (Do not start engine.)

SMT089D

August 2012

2012 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

DLN-11

< BASIC INSPECTION >

[TRANSFER: ATX14B]

DLN

Does 4WD warning lamp turn ON?

YES

>> GO TO CHECK AT IDLE.

>> GO TO

DLN-114, "Diagnosis Procedure"

CHECK AT IDLE

CHECK 4WD SHIFT INDICATOR LAMP

1. Park vehicle on flat surface and engage the parking brake.

2. Turn ignition switch to OFF position.

3. Move A/T selector lever to P position.

4. Set 4WD shift switch to 2WD position.

5. Start engine.
Does 4WD shift indicator lamp turn ON?

YES

>> GO TO 3.

>> GO TO 2.

CHECK 4WD WARNING LAMP

Check 4WD warning lamp state.
Is 4WD warning lamp turned ON?

YES

>> Perform the self-diagnosis. Refer to

DLN-23, "CONSULT Function (ALL MODE AWD/4WD)"

>> Refer to

DLN-117, "Diagnosis Procedure"

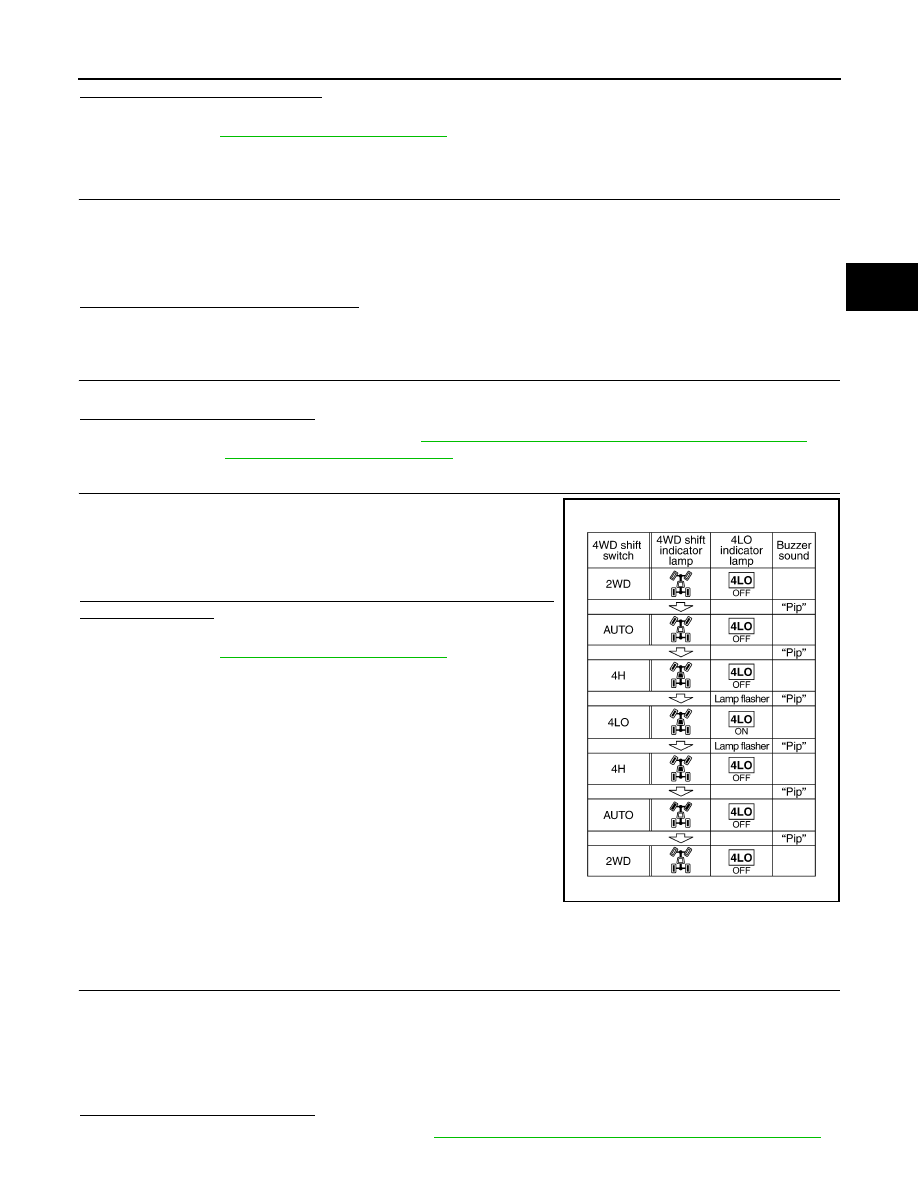

CHECK 4WD SHIFT INDICATOR AND 4LO INDICATOR OPERATION

1. Brake pedal depressed.

2. Move A/T selector lever to N position.

3. Set 4WD shift switch to 2WD, AUTO, 4H, 4LO, 4H, AUTO and

2WD in order. (Stay at each switch position for at least 1 sec-

ond.)

Does 4WD shift indicator and 4LO indicator lamps change properly

and buzzer sound?

YES

>> GO TO CRUISE TEST.

>> GO TO

DLN-117, "Diagnosis Procedure"

CRUISE TEST

CHECK INPUT SIGNAL

1. Warm up engine to normal operating temperature.

2. Park vehicle on flat surface.

3. Move A/T selector lever to P position.

4. Set 4WD shift switch to AUTO position.

5. Start engine.

6. Drive vehicle for at least 30 seconds at a speed higher than 20 km/h (12 MPH).
Is 4WD warning lamp turned ON?

On steady>>Perform the self-diagnosis. Refer to

DLN-23, "CONSULT Function (ALL MODE AWD/4WD)"

WDIA0136E

August 2012

2012 Pathfinder

DLN-12

< BASIC INSPECTION >

[TRANSFER: ATX14B]

DIAGNOSIS AND REPAIR WORKFLOW

Flash rapidly>>Refer to

DLN-122, "Diagnosis Procedure"

Flash slowly>>Refer to

DLN-123, "Diagnosis Procedure"

>> GO TO 2.

CHECK TIGHT CORNER BRAKING SYMPTOM (1)

1. Set 4WD shift switch to AUTO position.

2. Drive vehicle at speed lower than 20 km/h (12 MPH) with steering wheel fully turned.
Does tight corner braking symptom occur?

YES

>> GO TO

DLN-124, "Diagnosis Procedure"

>> GO TO 3.

CHECK TIGHT CORNER BRAKING SYMPTOM (2)

1. Set 4WD shift switch to 4HI position.

2. Drive vehicle at speed lower than 20 km/h (12 MPH) with steering wheel fully turned.
Does tight corner braking symptom occur?

YES

>> Inspection End.

>> GO TO

DLN-128, "Diagnosis Procedure"

August 2012
