BCS-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

CONFIGURATION (BCM) : Description

INFOID:0000000007354900

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.

Configuration has three functions as follows:

CAUTION:

• When replacing BCM, you must perform “Select Saved Data List” or "After Replace ECU" with CON-

SULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.

• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Select Saved Data List” or "After Replace ECU" except for new BCM.

CONFIGURATION (BCM) : Work Procedure

INFOID:0000000007354901

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of BCM.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select

applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

3.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1. Select “After Replace ECU” or “Manual Configuration”.

2. Identify the correct model and configuration list. Refer to

BCS-5, "CONFIGURATION (BCM) : Configura-

tion List"

.

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

4. Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-

figuration of brand new BCM is same as the desirable configuration. If not, configuration which is

set automatically by selecting vehicle model can not be memorized.

5. When "Completed", select "End".

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by BCM operates normally.

>> Work End.

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.

August 2012

2012 Pathfinder

BCS

INSPECTION AND ADJUSTMENT

BCS-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONFIGURATION (BCM) : Configuration List

INFOID:0000000007829993

CAUTION:

Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal

control of ECU.

: Items which confirm vehicle specifications

MANUAL SETTING ITEM

Items

Setting value

KEYLESS ENTRY

WITH

WITHOUT

I-KEY

WITH

WITHOUT

AUTO LIGHT

WITH

WITHOUT

DTRL

WITH

WITHOUT

THEFT ALARM

WITH

WITHOUT

TIRE PRESSURE

MODE1

MODE2

MODE3

MODE4

MODE5

MODE6

MODE7

MODE8

ASSIST LAMP TYPE

MODE1

MODE2

AUTO DOOR UNLOCK TIMING

WITH I-KEY

WITHOUT I-KEY

August 2012

2012 Pathfinder

BCS-6

< SYSTEM DESCRIPTION >

BODY CONTROL SYSTEM

SYSTEM DESCRIPTION

BODY CONTROL SYSTEM

System Description

INFOID:0000000007354902

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-

ponents. It also has the signal transmission function as the passed point of signal and the power consump-

tion control function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set-

tings.

BCM control function list

System

Refer to

Combination switch reading system

BCS-8, "System Diagram"

Signal buffer system

BCS-12, "System Diagram"

Power consumption control system

BCS-13, "System Diagram"

Auto light system

EXL-12, "System Diagram"

Turn signal and hazard warning lamp system

EXL-17, "System Diagram"

Headlamp system

EXL-7, "System Diagram"

Front fog lamp system (if equipped)

EXL-15, "System Diagram"

Daytime running light system (if equipped)

EXL-9, "System Diagram"

Interior room lamp control system

INL-6, "System Diagram"

Step lamp system

INL-6, "System Diagram"

Interior room lamp battery saver system

INL-6, "System Diagram"

Front wiper and washer system

WW-4, "System Diagram"

Rear wiper and washer system

WW-8, "System Diagram"

Warning chime system

WCS-4, "WARNING CHIME SYSTEM : System Diagram"

Door lock system

• WITH INTELLIGENT KEY SYSTEM:

DLK-15, "DOOR LOCK AND UN-

LOCK SWITCH : System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

DLK-215, "DOOR LOCK AND

UNLOCK SWITCH : System Diagram"

(NATS) Nissan anti-theft system

• WITH INTELLIGENT KEY SYSTEM:

SEC-15, "System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

SEC-121, "System Diagram"

Vehicle security system

• WITH INTELLIGENT KEY SYSTEM:

SEC-19, "System Diagram"

• WITHOUT INTELLIGENT KEY SYSTEM:

SEC-124, "System Diagram"

Rear window defogger system

DEF-4, "System Diagram"

Remote keyless entry system

DLK-217, "REMOTE KEYLESS ENTRY : System Diagram"

Intelligent Key system (if equipped)

DLK-43, "CONSULT Function (INTELLIGENT KEY)"

Power window system

PWC-6, "System Diagram"

RAP (retained accessory power) system

BCS-26, "RETAINED PWR : CONSULT Function (BCM - RETAINED PWR)"

TPMS (tire pressure monitoring system)

WT-8, "System Diagram"

August 2012

2012 Pathfinder

BCS

BODY CONTROL SYSTEM

BCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Component Parts Location

INFOID:0000000007354903

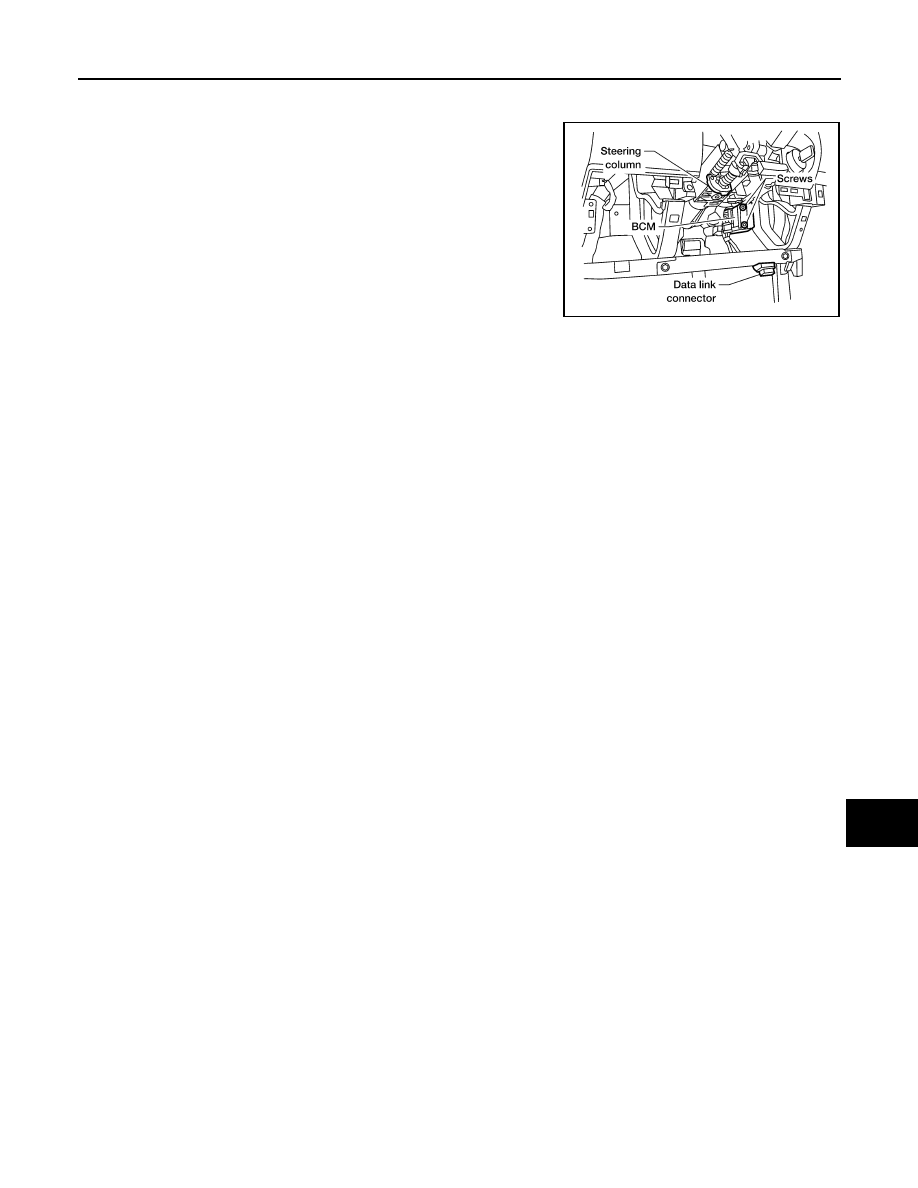

• BCM M18, M19, M20 (view with instrument panel removed)

LKIA0564E

August 2012

2012 Pathfinder

BCS-8

< SYSTEM DESCRIPTION >

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000007354904

System Description

INFOID:0000000007354905

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5) and reads

a maximum of 20 switch states.

COMBINATION SWITCH MATRIX

Combination switch circuit

Combination switch INPUT-OUTPUT system list

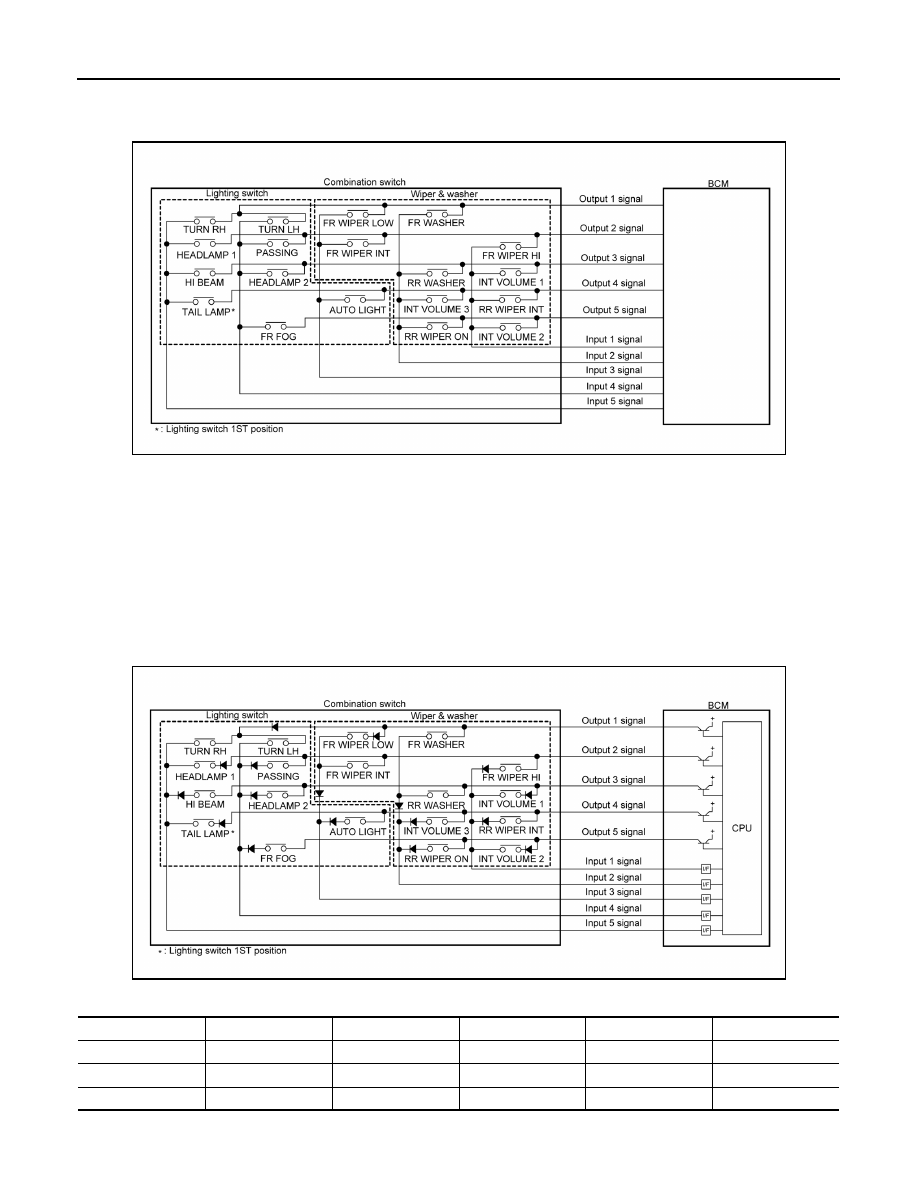

AWMIA1237GB

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

OUTPUT 1

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

OUTPUT 2

FR WIPER HI

FR WIPER INT

PASSING

HEADLAMP 1

OUTPUT 3

INT VOLUME 1

RR WASHER

HEADLAMP 2

HI BEAM

AWMIA1238GB

August 2012

2012 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms intervals normally.

NOTE:

BCM reads the status of the combination switch at 60 ms intervals when BCM is controlled at low power

consumption control mode.

• BCM operates as follows and judges the status of the combination switch.

- It operates the transistor on OUTPUT side in the following order: OUTPUT 1

 2

 3

 4

 5, and outputs

voltage waveform.

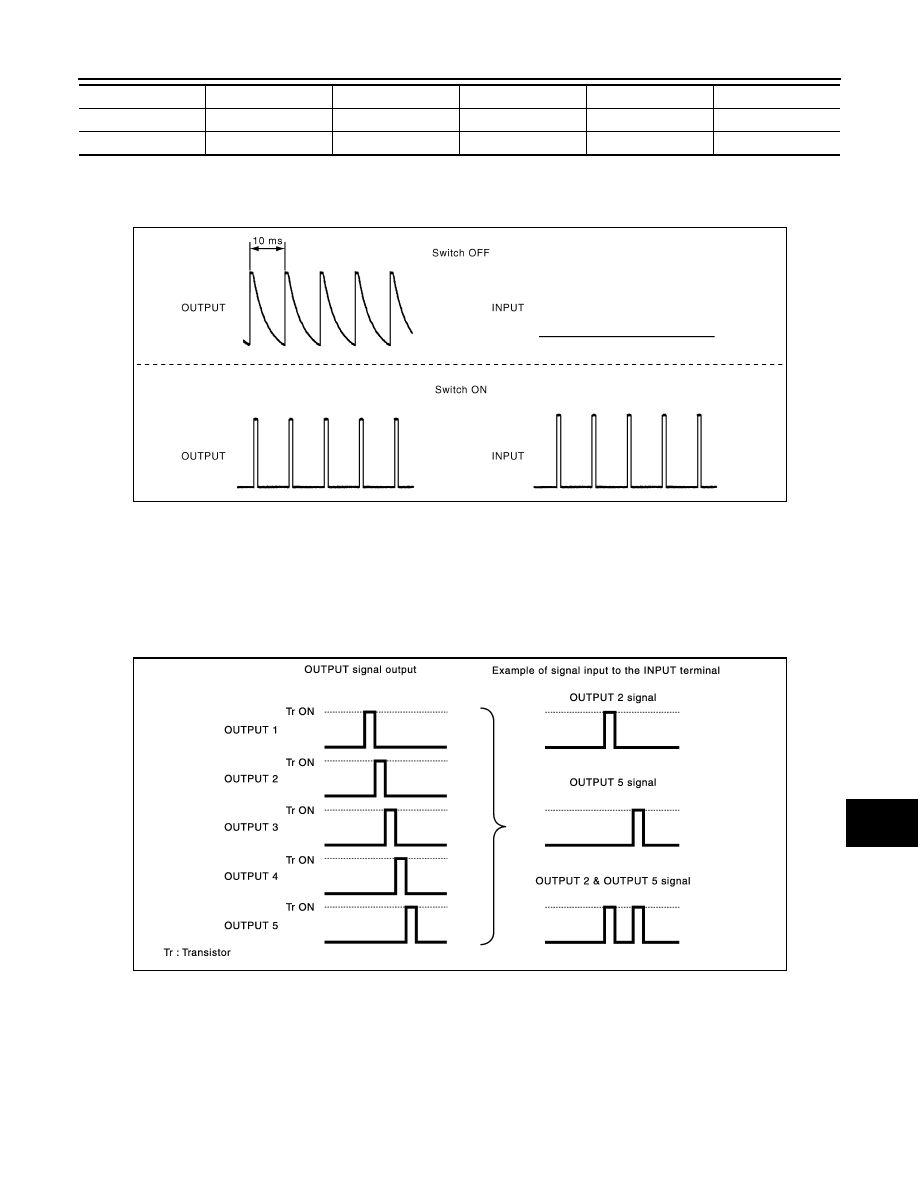

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced

as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TAIL LAMP) is turned ON

OUTPUT 4

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

TAIL LAMP

OUTPUT 5

INT VOLUME 2

RR WIPER ON

FR FOG

System

INPUT 1

INPUT 2

INPUT 3

INPUT 4

INPUT 5

JPMIA0609GB

JMMIA0326GB

August 2012

2012 Pathfinder

BCS-10

< SYSTEM DESCRIPTION >

COMBINATION SWITCH READING SYSTEM

• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.

• BCM detects the combination switch status signal “5D” when the signal of OUTPUT 4 is input to INPUT 5.

• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.

Example 2: When some switches (TURN RH, TAIL LAMP) are turned ON

• The circuits between OUTPUT 1 and INPUT 5 and between OUTPUT 4 and INPUT 5 are formed when the

TURN RH switch and TAIL LAMP switch are turned ON.

• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are

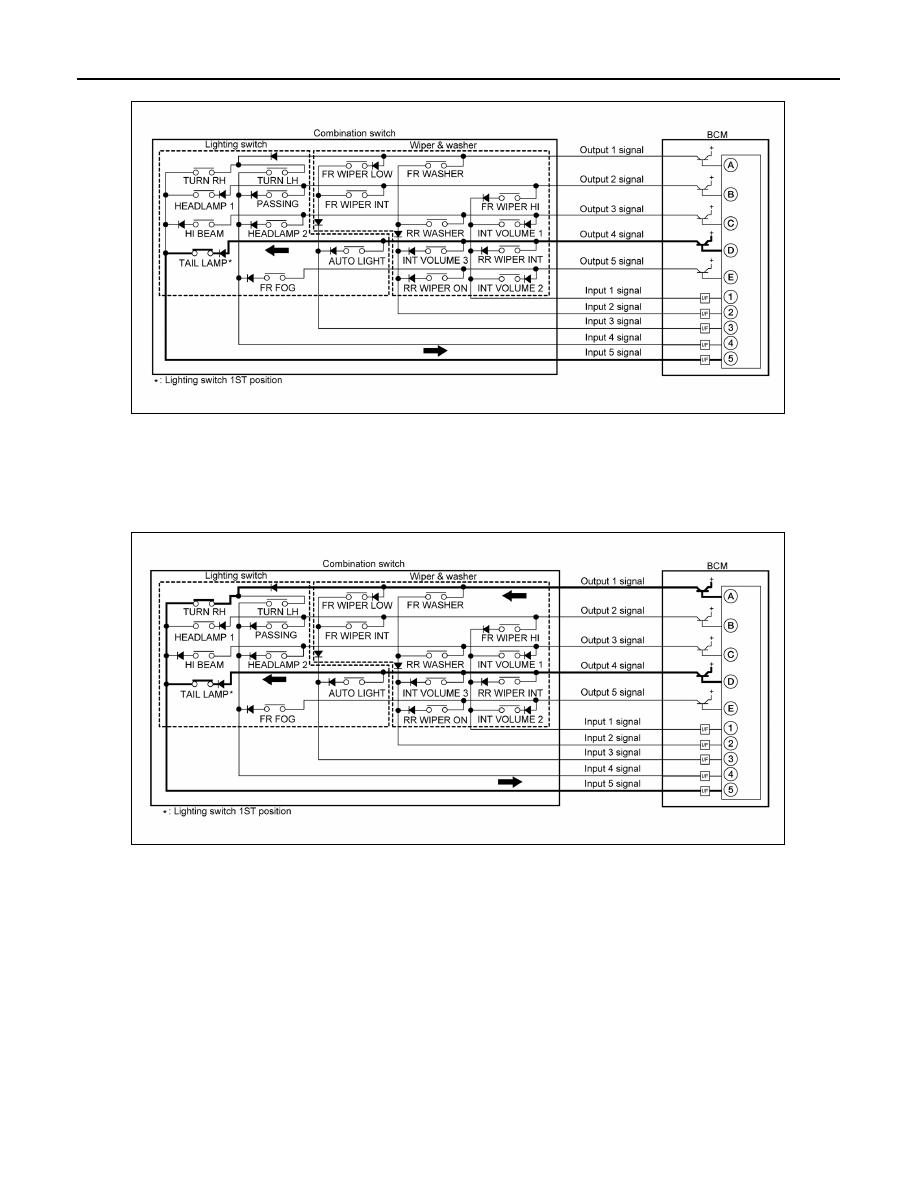

input to INPUT 5.

• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2, and 3 switches.

AWMIA1239GB

AWMIA1240GB

August 2012

2012 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Component Parts Location

INFOID:0000000007354906

Wiper intermittent

dial position

Intermittent

operation delay

interval

INT VOLUME switch ON/OFF status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

1

Short

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

1.

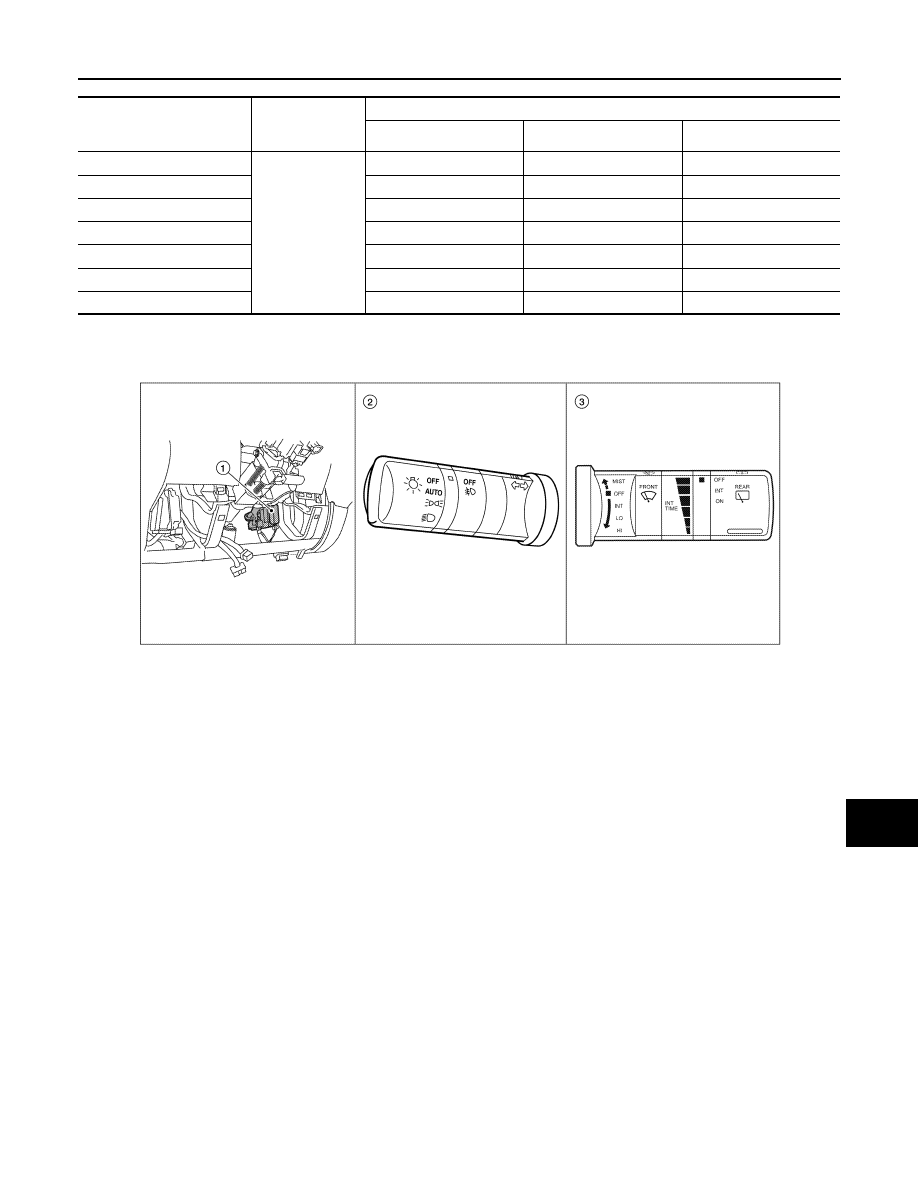

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

2.

Combination switch (lighting and
turn signal switch) M28

3.

Combination switch (wiper and
washer switch) M28

ALMIA0308ZZ

August 2012
