REAR DOOR TWEETER

REAR DOOR TWEETER

Removal and Installation of Rear Tweeter

INFOID:0000000007347948

REMOVAL

1. Remove rear door finisher. Refer to

INT-15, "Removal and Installation"

.

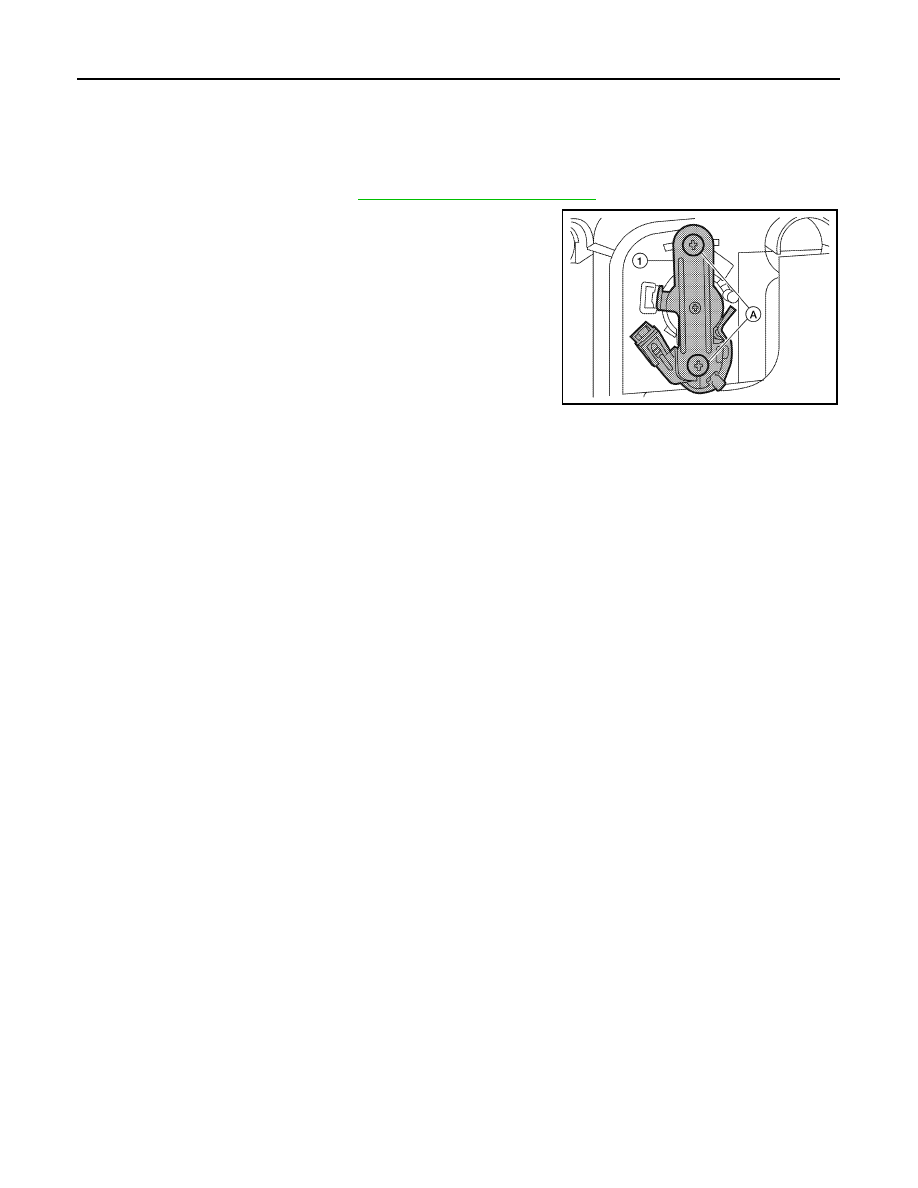

2. Remove the rear tweeter screws (A) and remove the rear

tweeter (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0351ZZ

August 2012

2012 Pathfinder

AV

BOSE SPEAKER AMP

AV-427

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000007830128

REMOVAL

NOTE:

Do not remove the LH front seat from the vehicle.
1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to

SE-33,

"Removal and Installation"

.

2. Tilt the LH front seat back to access the BOSE speaker amp.

(1), then remove the BOSE speaker amp. screws (B).
•

: Vehicle front

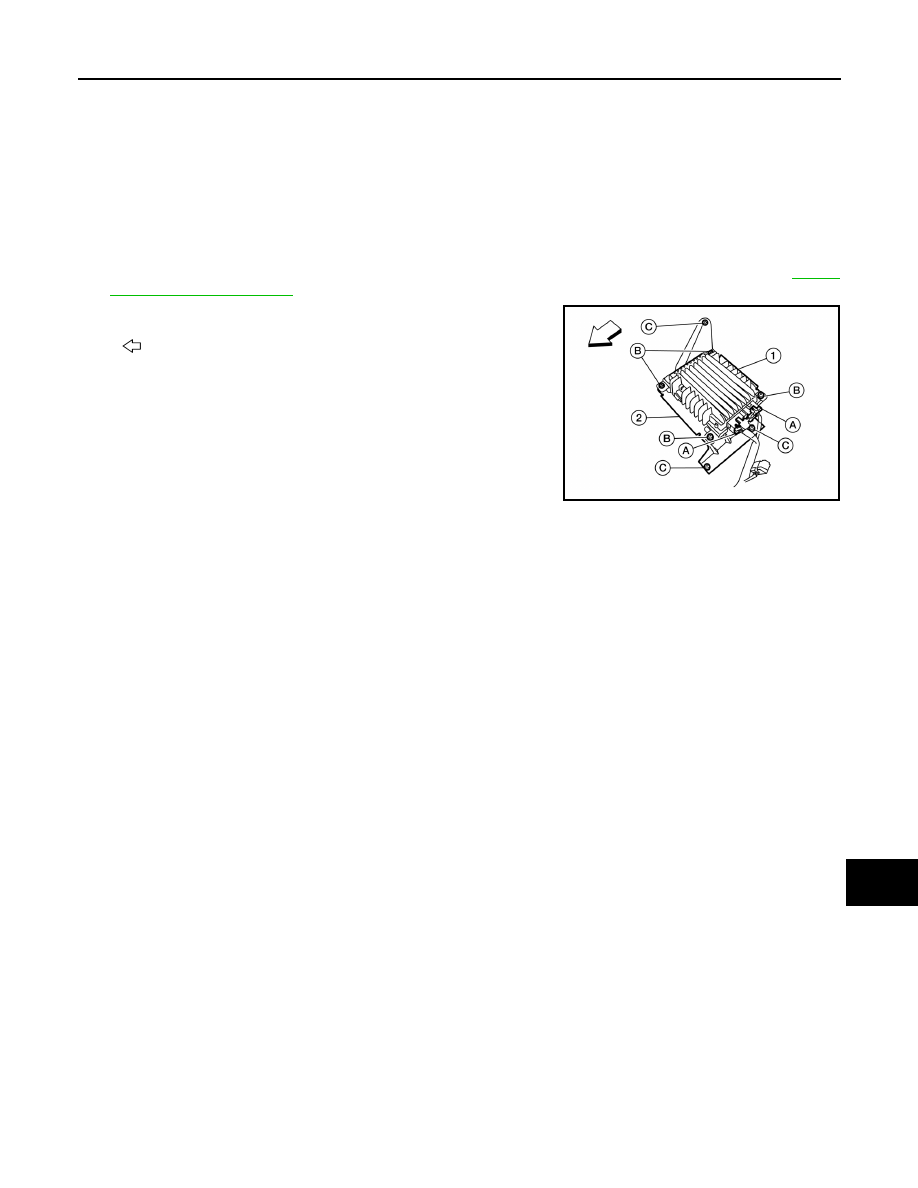

3. Disconnect the Bose speaker amp. connectors (A) and remove

Bose speaker amp. (1) from the bracket (2).

4. Then remove the BOSE speaker amp. bracket screws (C) and

remove bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1249ZZ

August 2012

2012 Pathfinder

AV-428

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

SUBWOOFER

SUBWOOFER

Removal and Installation

INFOID:0000000007347950

BOSE

Removal

1. Remove the luggage side lower finisher LH. Refer to

INT-25, "Removal and Installation"

.

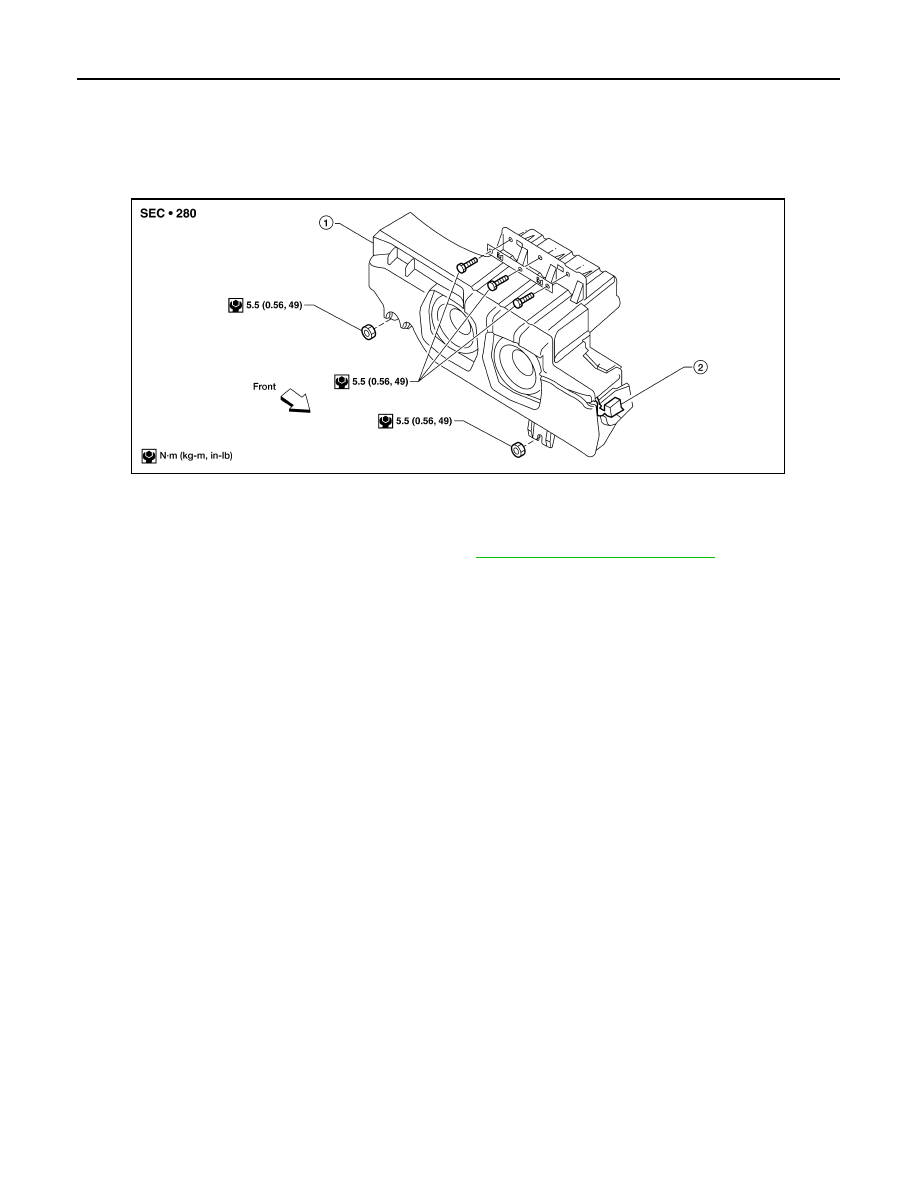

2. Remove subwoofer bolts and nuts.
3. Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.

1.

Subwoofer 2.

Subwoofer

connector

WKIA3712E

August 2012

2012 Pathfinder

AV

DVD ENTERTAINMENT SYSTEM

AV-429

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000007347951

REMOVAL

1. Remove the center console assembly. Refer to

IP-22, "Removal and Installation"

.

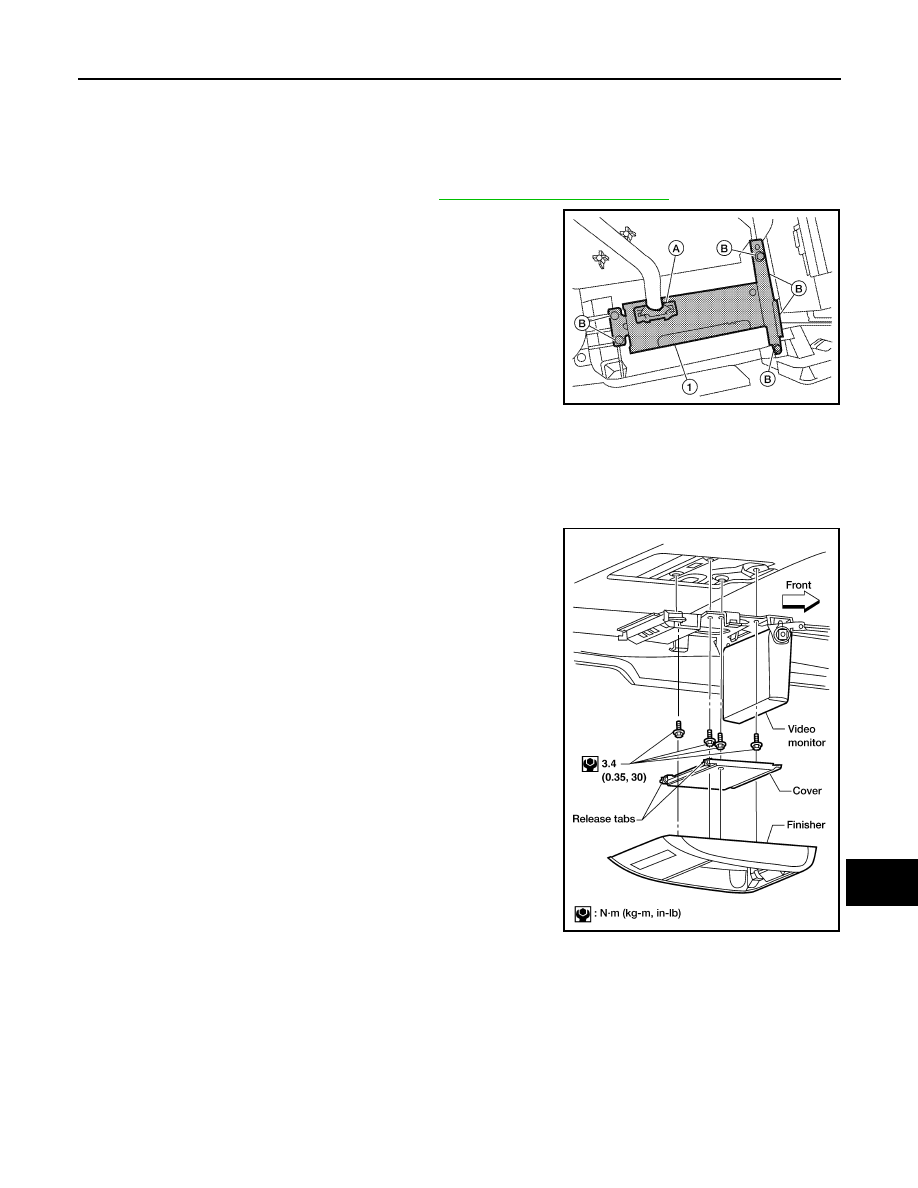

2. Disconnect the DVD player connector (A).
3. Remove the DVD player screws (B), then remove the DVD

player (1).

4. Remove the DVD player bracket screws, then remove DVD

player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of Video Monitor

INFOID:0000000007347952

REMOVAL

1. Release the clips and remove the video monitor finisher from

headlining.

2. Press the release tabs and remove the cover.
3. Remove the video monitor screws.
4. Gently lower the assembly and disconnect the connector, then

remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

August 2012

2012 Pathfinder

AV-430

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

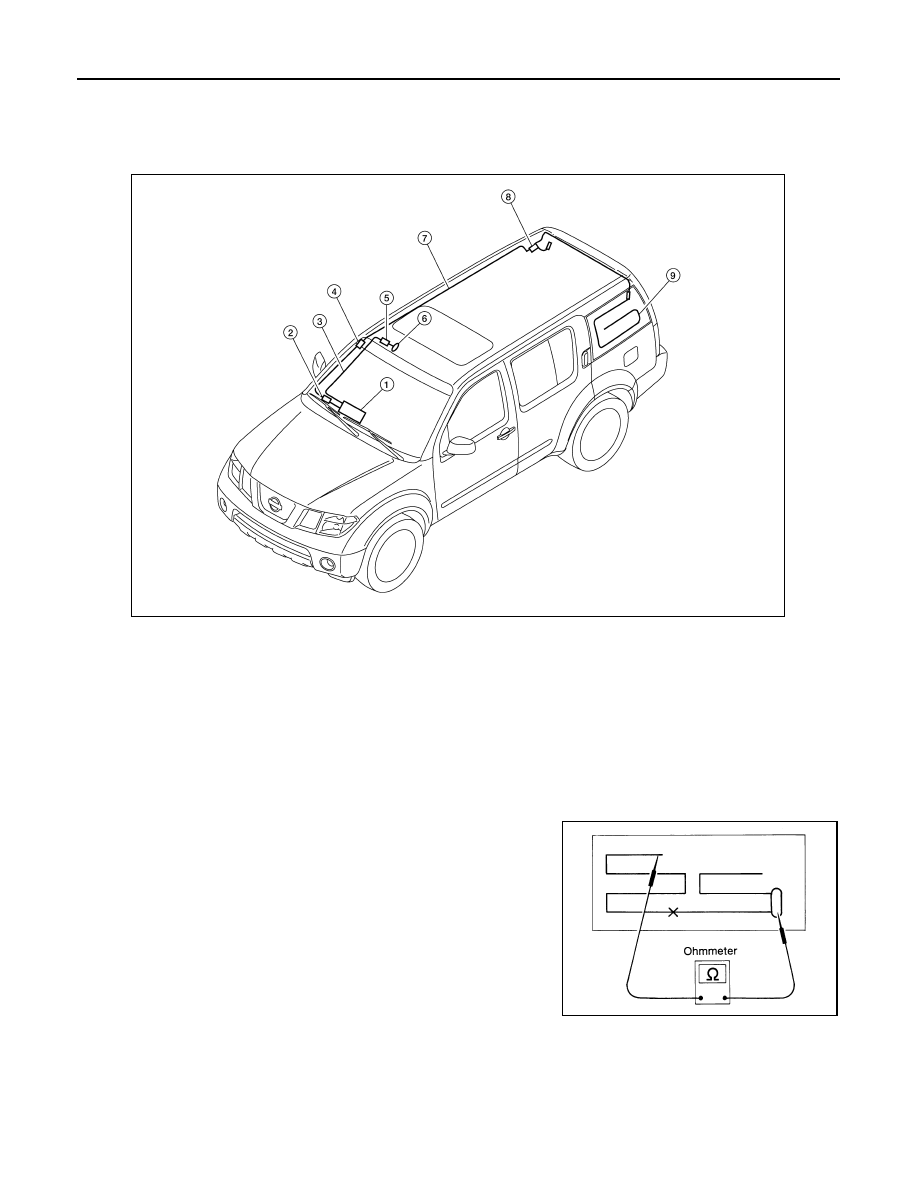

Location of Antenna

INFOID:0000000007347953

Window Antenna Repair

INFOID:0000000007347954

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

AV control unit M44, M71

2.

Harness connector
M78, M501

3.

Satellite antenna feeder

4.

Harness connector
M502, M601

5.

Harness connector
M73, M350

6.

Satellite antenna
M351

7.

Antenna feeder

8.

Antenna amp.
M602

9.

Window antenna grid

AWNIA1796ZZ

SEL250I

August 2012

2012 Pathfinder

AV

AUDIO ANTENNA

AV-431

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

•

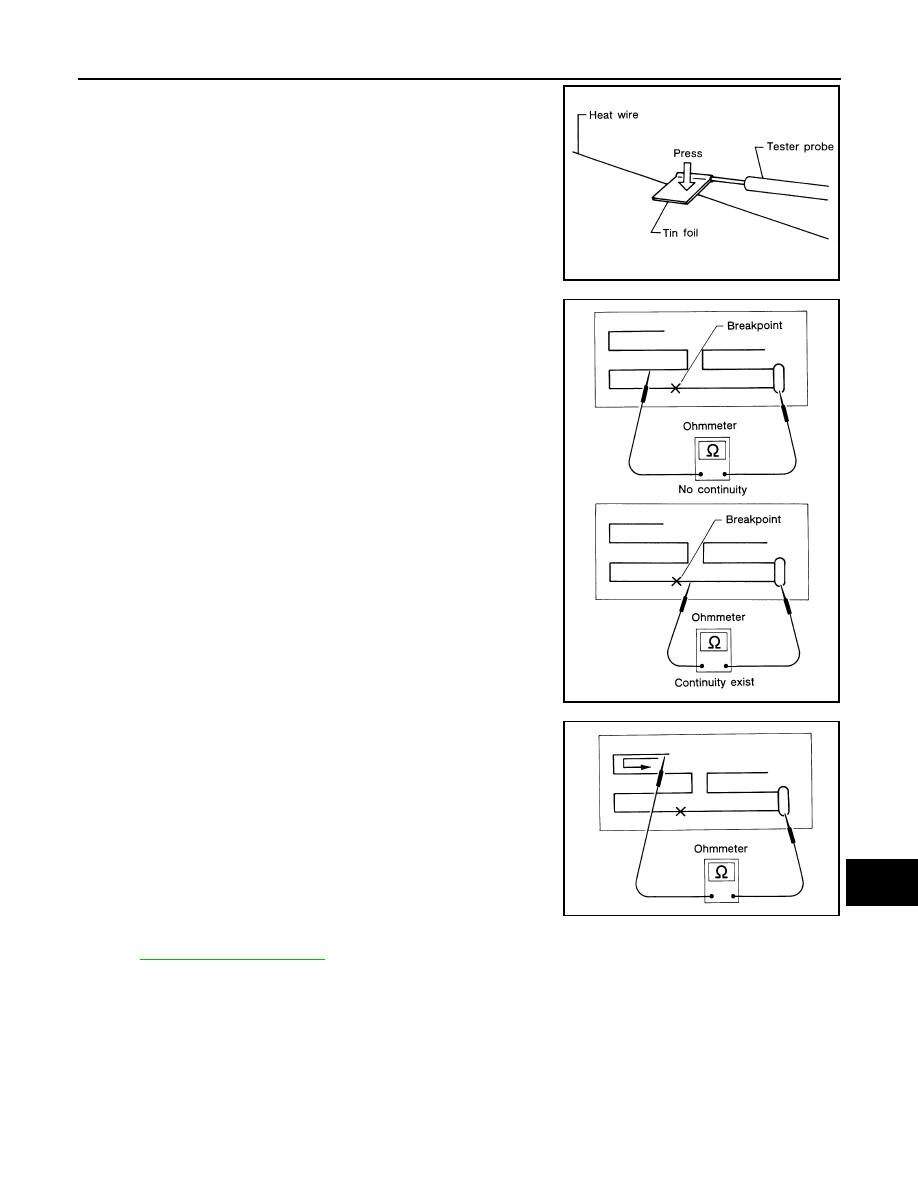

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-45, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

August 2012

2012 Pathfinder

AV-432

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000007347955

Removal

1. Remove the A/T finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

AV

ANTENNA AMP.

AV-433

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ANTENNA AMP.

Removal and Installation

INFOID:0000000007347956

REMOVAL

1. Remove the luggage side upper and lower RH finishers. Refer to

INT-25, "Removal and Installation"

.

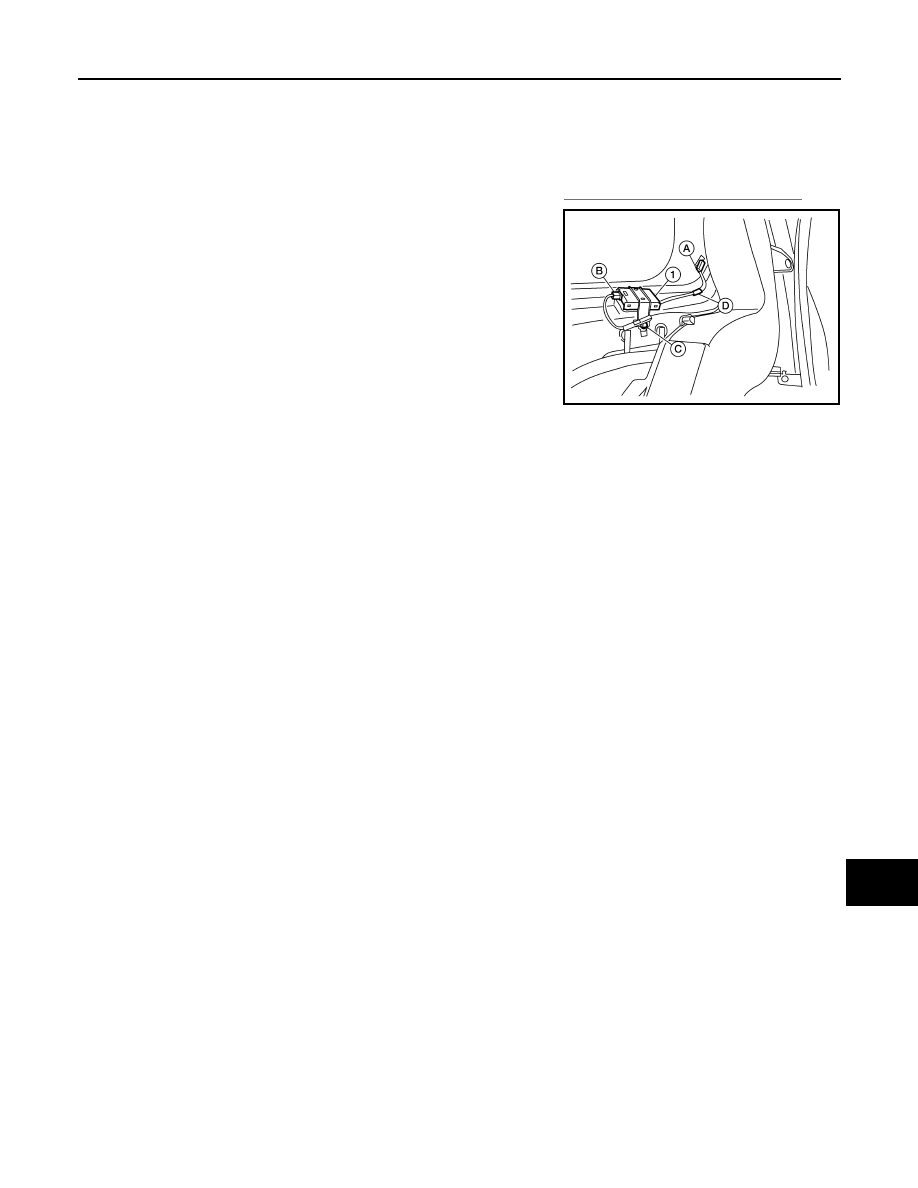

2. Detach the antenna amp. harness clip (D), disconnect the

antenna amp. connector (A), harness connector (B), then

remove the antenna amp. screw (C) and remove the antenna

amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1228ZZ

August 2012
