Nissan Pathfinder (2012 year). Manual - part 56

AV-266

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

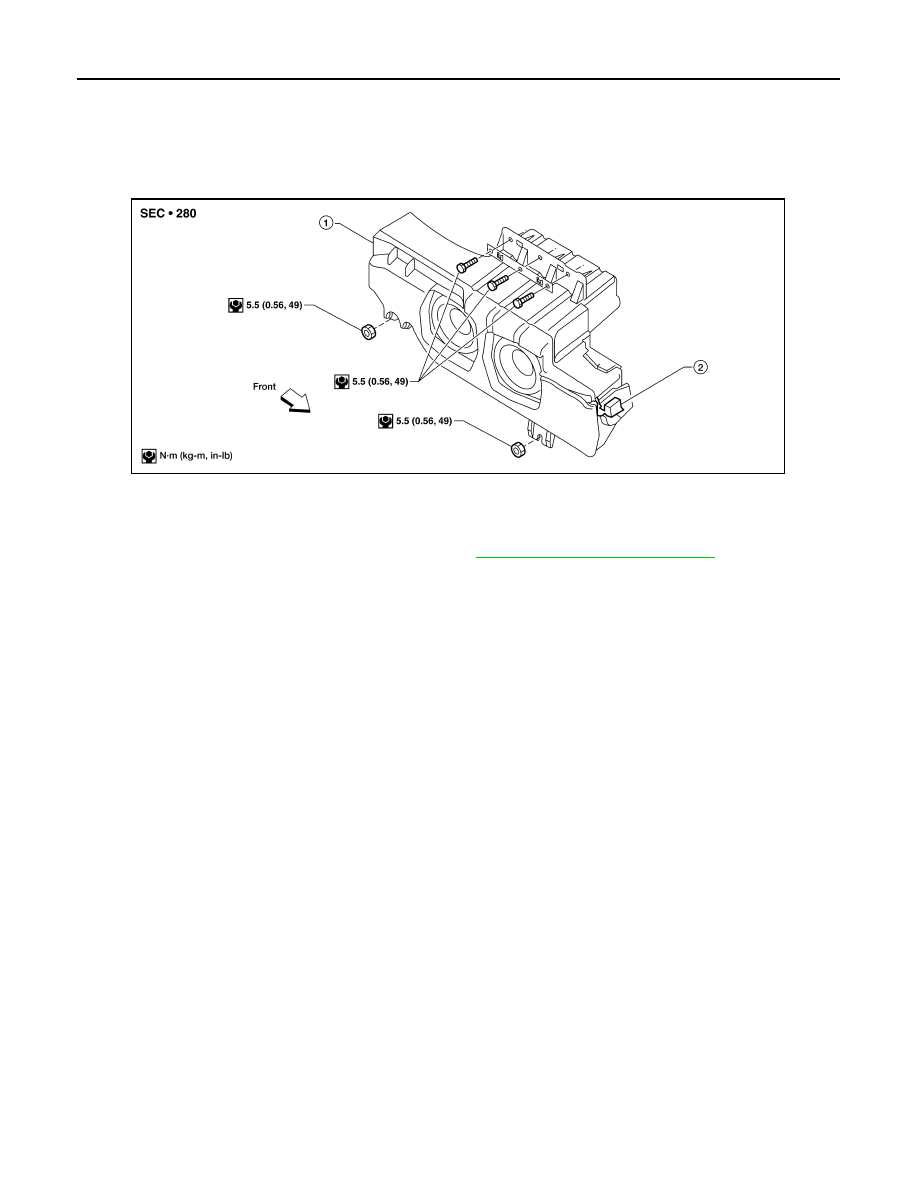

SUBWOOFER

SUBWOOFER

Removal and Installation

INFOID:0000000007347800

 BOSE SYSTEM

Removal

1. Remove the luggage side lower finisher LH. Refer to

INT-25, "Removal and Installation"

.

2. Remove subwoofer bolts and nuts.
3. Disconnect the subwoofer connector and remove the subwoofer.

Installation

Installation is in the reverse order of removal.

1.

Subwoofer 2.

Subwoofer

connector

WKIA3712E

August 2012

2012 Pathfinder

AV

DVD ENTERTAINMENT SYSTEM

AV-267

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

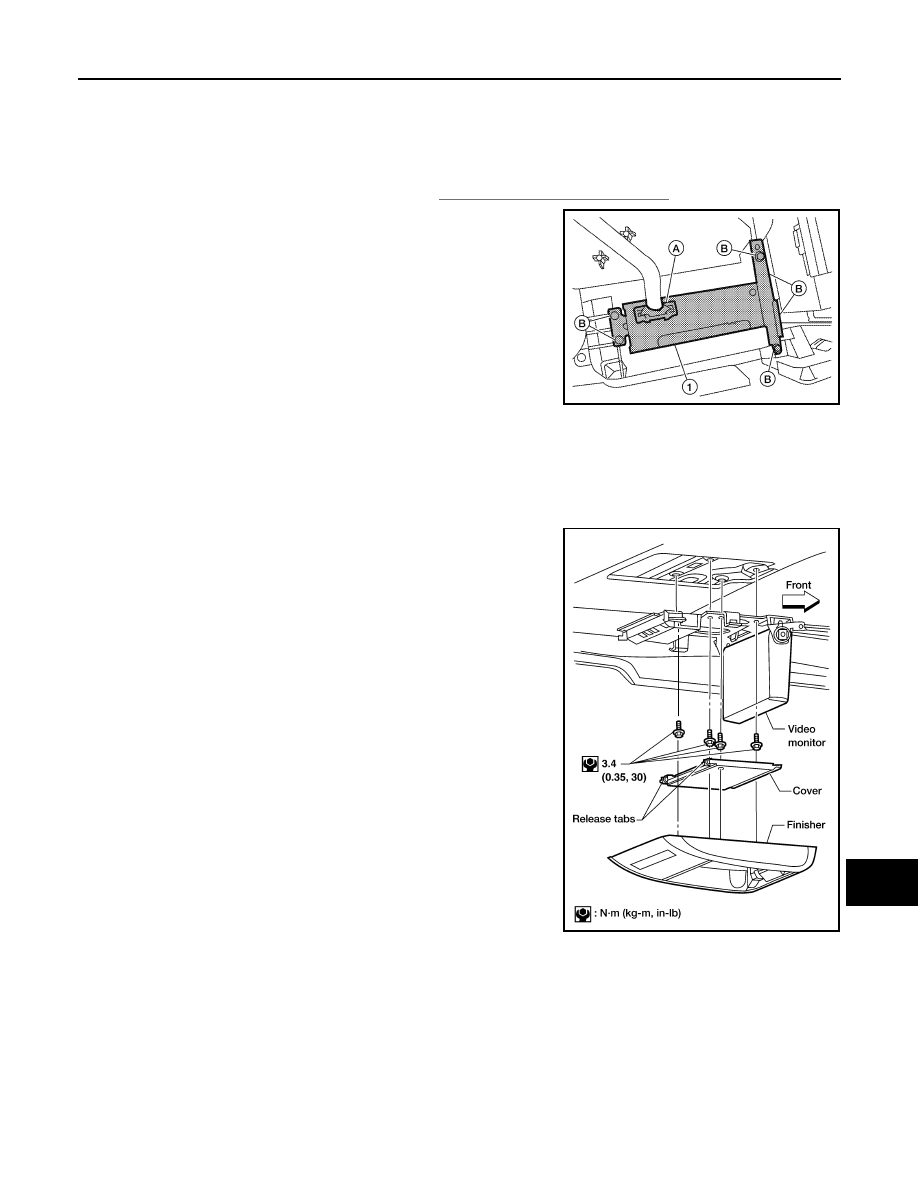

DVD ENTERTAINMENT SYSTEM

Removal and Installation of DVD Player

INFOID:0000000007347801

REMOVAL

1. Remove the center console assembly. Refer to

IP-22, "Removal and Installation"

.

2. Disconnect the DVD player connector (A).
3. Remove the DVD player screws (B), then remove the DVD

player (1).

4. Remove the DVD player bracket screws and then remove DVD

player brackets.

INSTALLATION

Installation is in reverse order of removal.

Removal and Installation of Video Monitor

INFOID:0000000007347802

REMOVAL

1. Release the clips and remove the video monitor finisher from

headlining.

2. Press the release tabs and remove the cover.
3. Remove the video monitor screws.
4. Gently lower the assembly and disconnect the connector, then

remove the video monitor from the headlining.

INSTALLATION

Installation is in reverse order of removal.

ALNIA0360ZZ

WKIA3714E

August 2012

2012 Pathfinder

AV-268

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

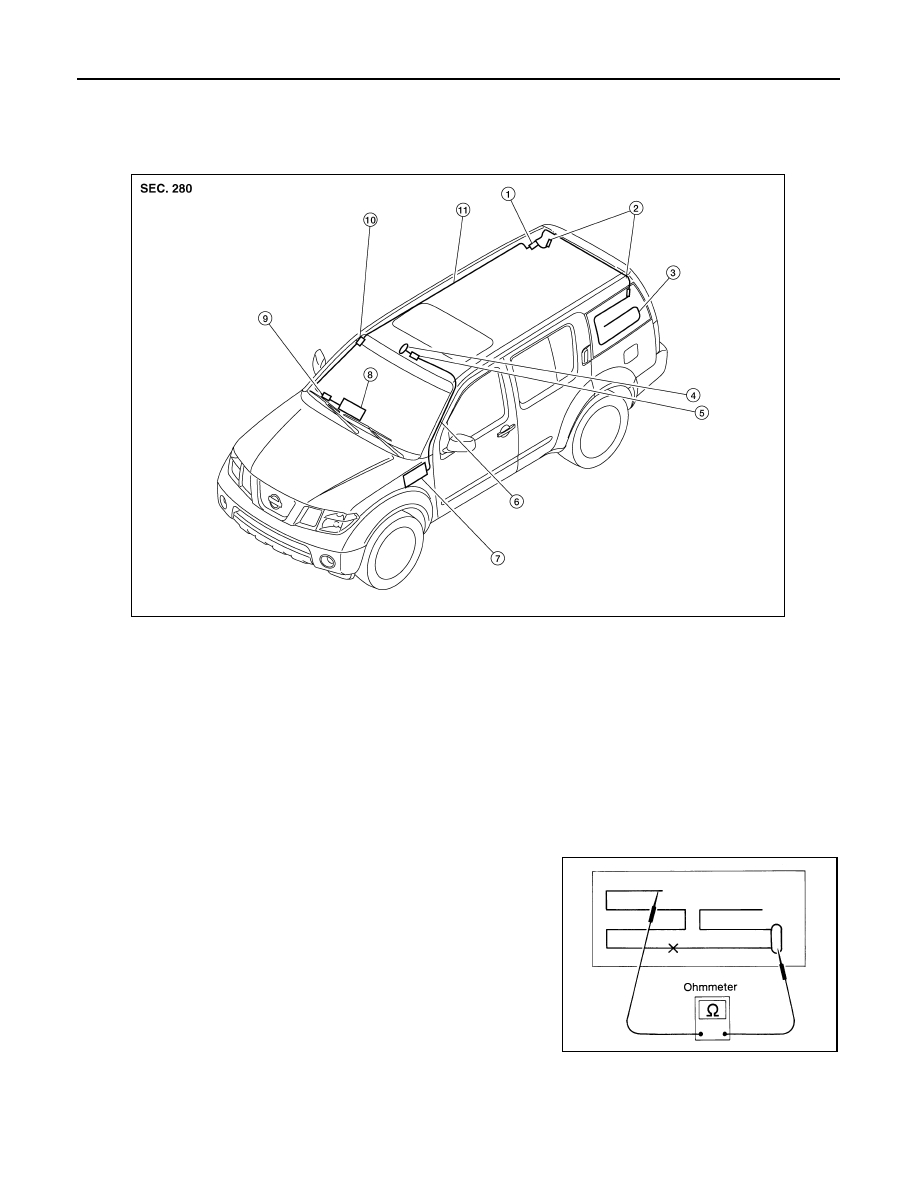

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antenna

INFOID:0000000007347803

Window Antenna Repair

INFOID:0000000007347804

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna amp.
M602

2.

Window antenna grid connector bracket

3.

Window antenna grid

4.

Satellite antenna
M351

5.

Harness connector
M73, M350

6.

Satellite antenna feeder

7.

Satellite radio tuner
M41, M129

8.

AV control unit M43, M44

9.

Harness connector
M78, M501

10. Harness connector

M502, M601

11. Antenna feeder

WKIA4984E

SEL250I

August 2012

2012 Pathfinder

AV

AUDIO ANTENNA

AV-269

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

•

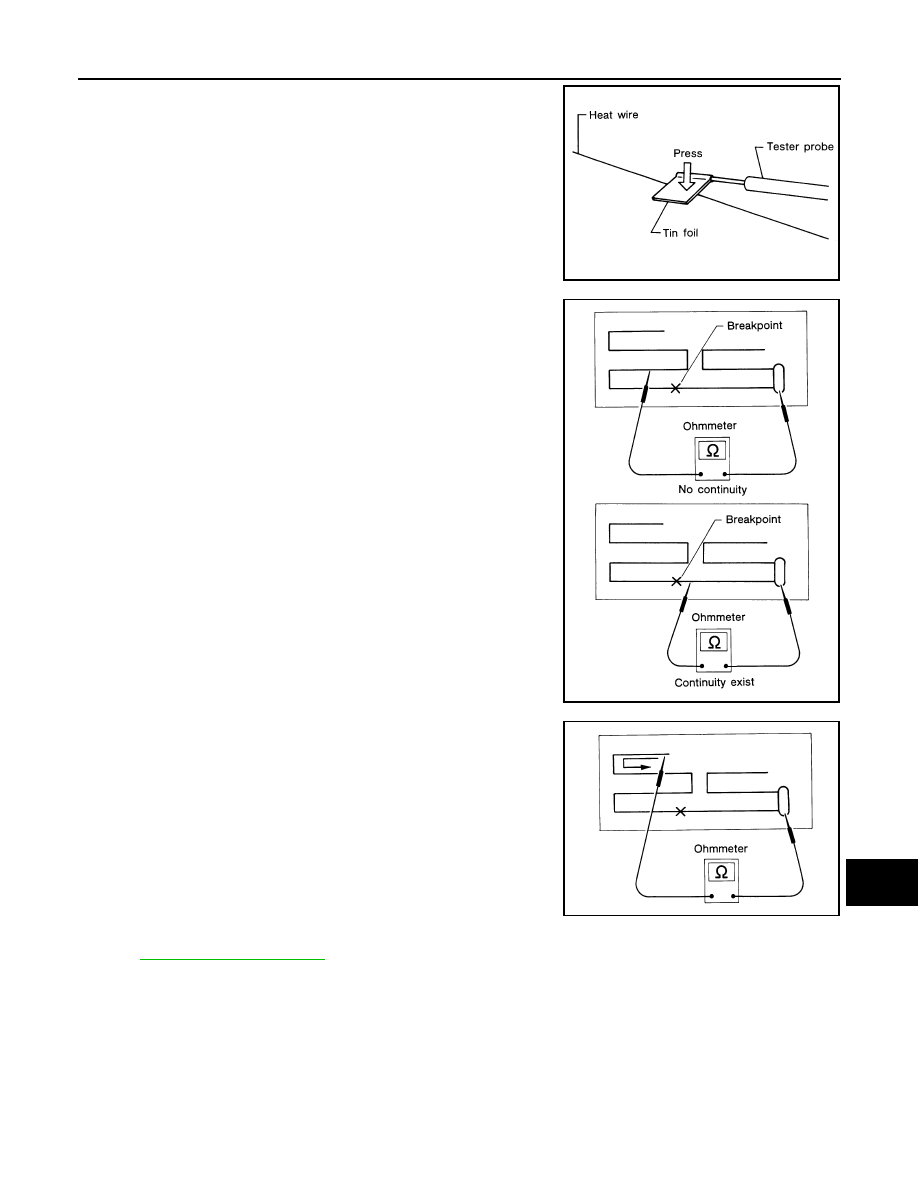

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-45, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

August 2012

2012 Pathfinder

AV-270

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

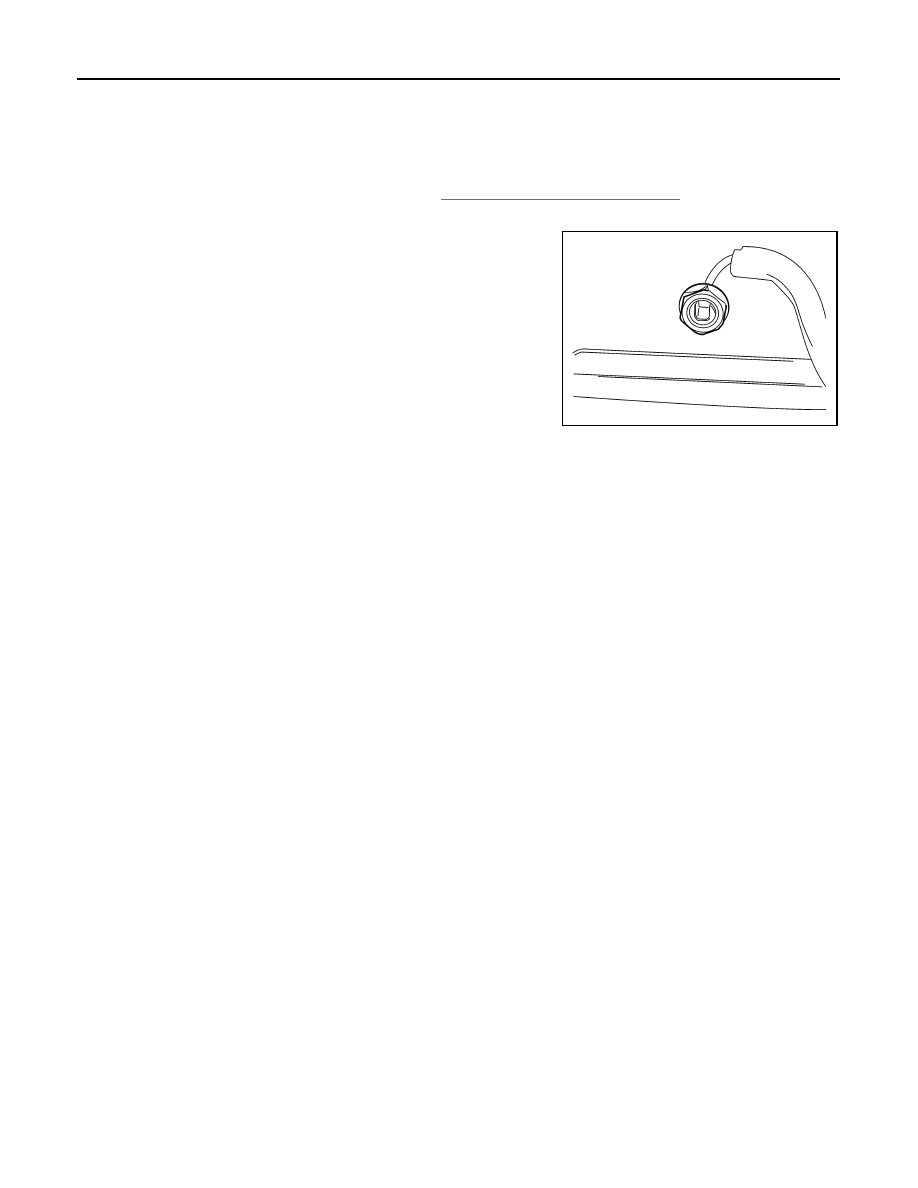

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000007347805

Removal

1. Remove the A/T finisher. Refer to

IP-21, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

August 2012

2012 Pathfinder

AV

ANTENNA AMP.

AV-271

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

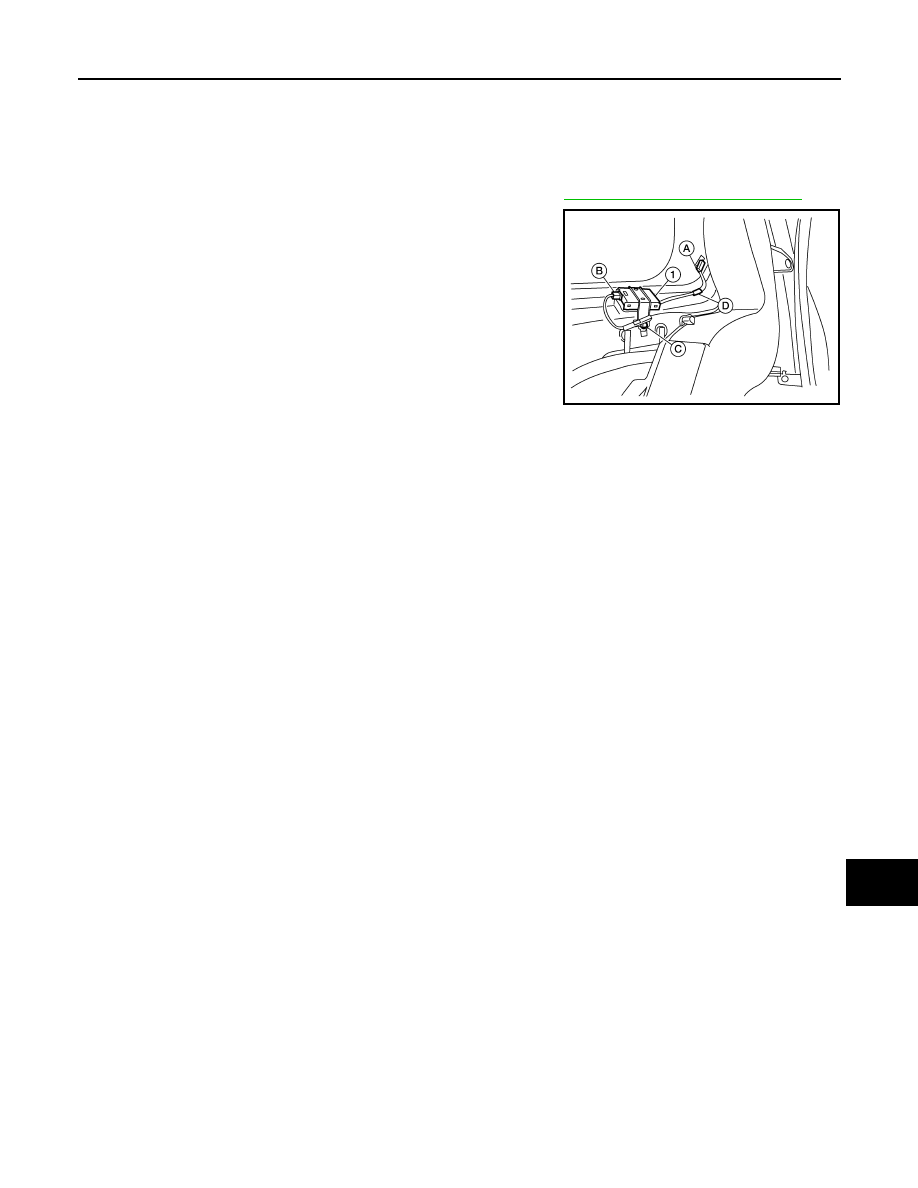

ANTENNA AMP.

Removal and Installation

INFOID:0000000007347806

REMOVAL

1. Remove the luggage side upper and lower RH finishers. Refer to

INT-25, "Removal and Installation"

.

2. Detach the antenna amp. harness clip (D), disconnect the

antenna amp. connector (A), harness connector (B), then

remove the antenna amp. screw (C) and remove the antenna

amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1228ZZ

August 2012

2012 Pathfinder

AV-272

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000007347807

REMOVAL

1. Remove the front roof console finisher. Refer to

INT-22, "Removal and Installation"

.

2. Disconnect the satellite antenna connector.
3. Remove the satellite antenna nut.
4. Remove the satellite antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

August 2012

2012 Pathfinder

AV

SATELLITE RADIO TUNER

AV-273

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

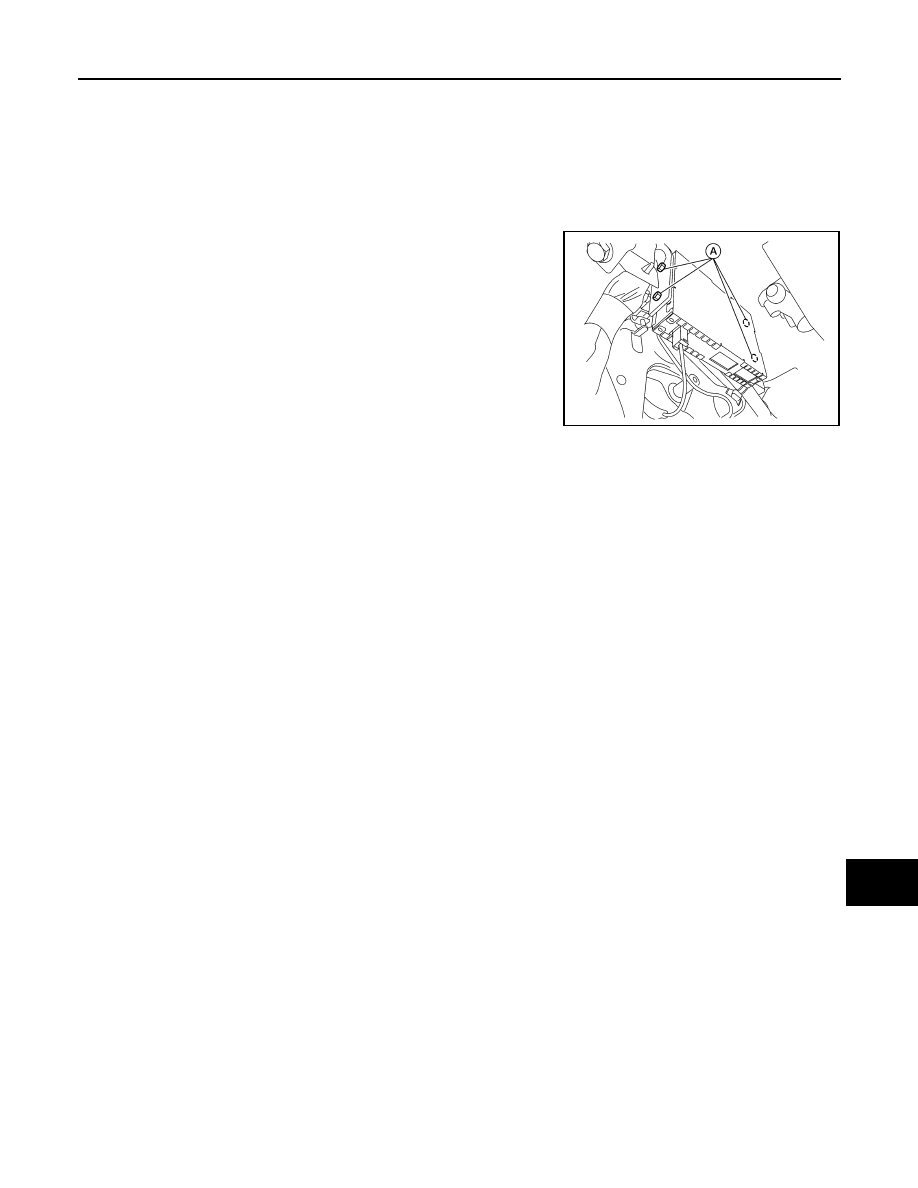

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000007347808

REMOVAL

1. Disconnect the battery negative terminal.
2. Disconnect the satellite radio tuner connectors.
3. Remove satellite radio tuner screws (A), and remove satellite

radio tuner from above the parking brake pedal.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0684E

August 2012

2012 Pathfinder
