AV-258

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000007347792

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

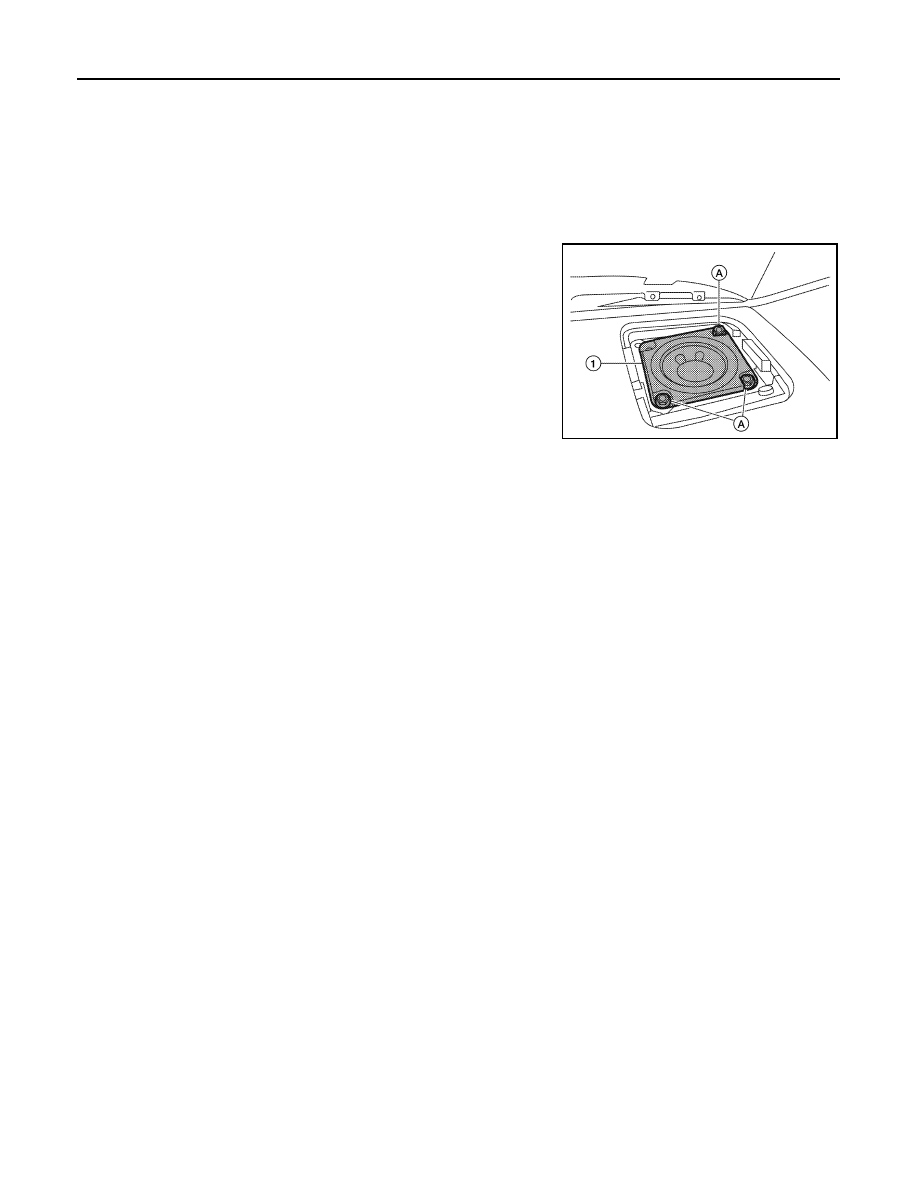

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

August 2012

2012 Pathfinder

AV

FRONT DOOR SPEAKER

AV-259

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000007347793

REMOVAL

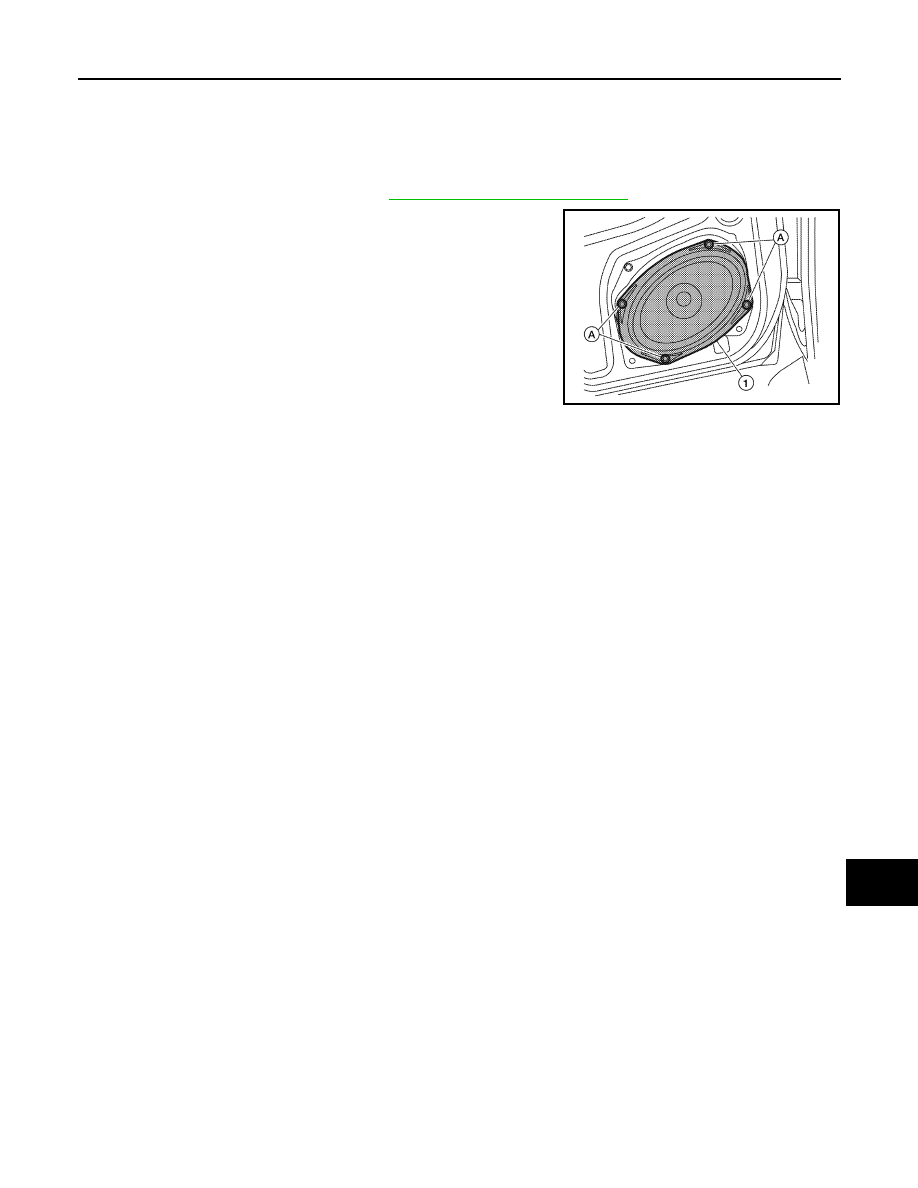

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

August 2012

2012 Pathfinder

AV-260

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation of Rear Door Speaker

INFOID:0000000007347794

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).

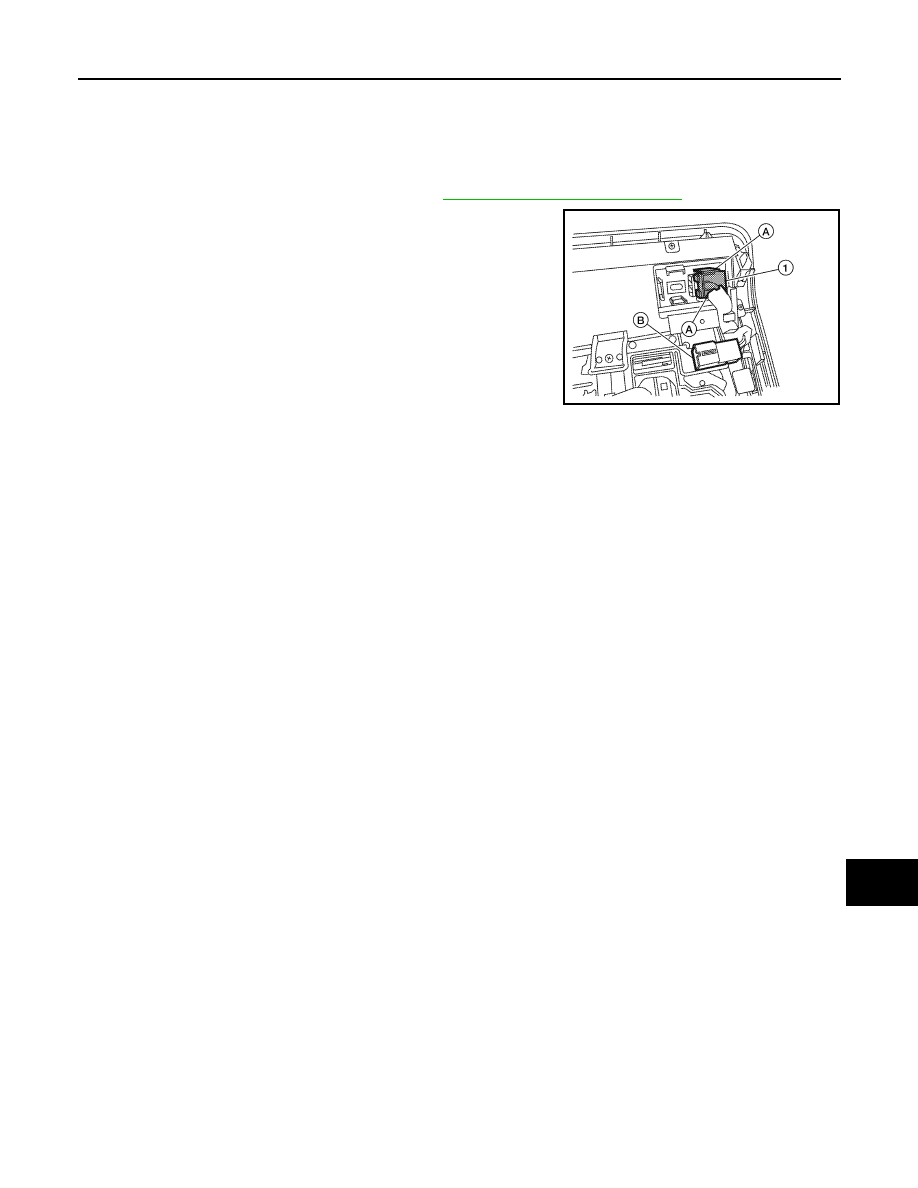

3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0348ZZ

August 2012

2012 Pathfinder

AV

REAR DOOR TWEETER

AV-261

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR TWEETER

Removal and Installation of Rear Tweeter

INFOID:0000000007347795

REMOVAL

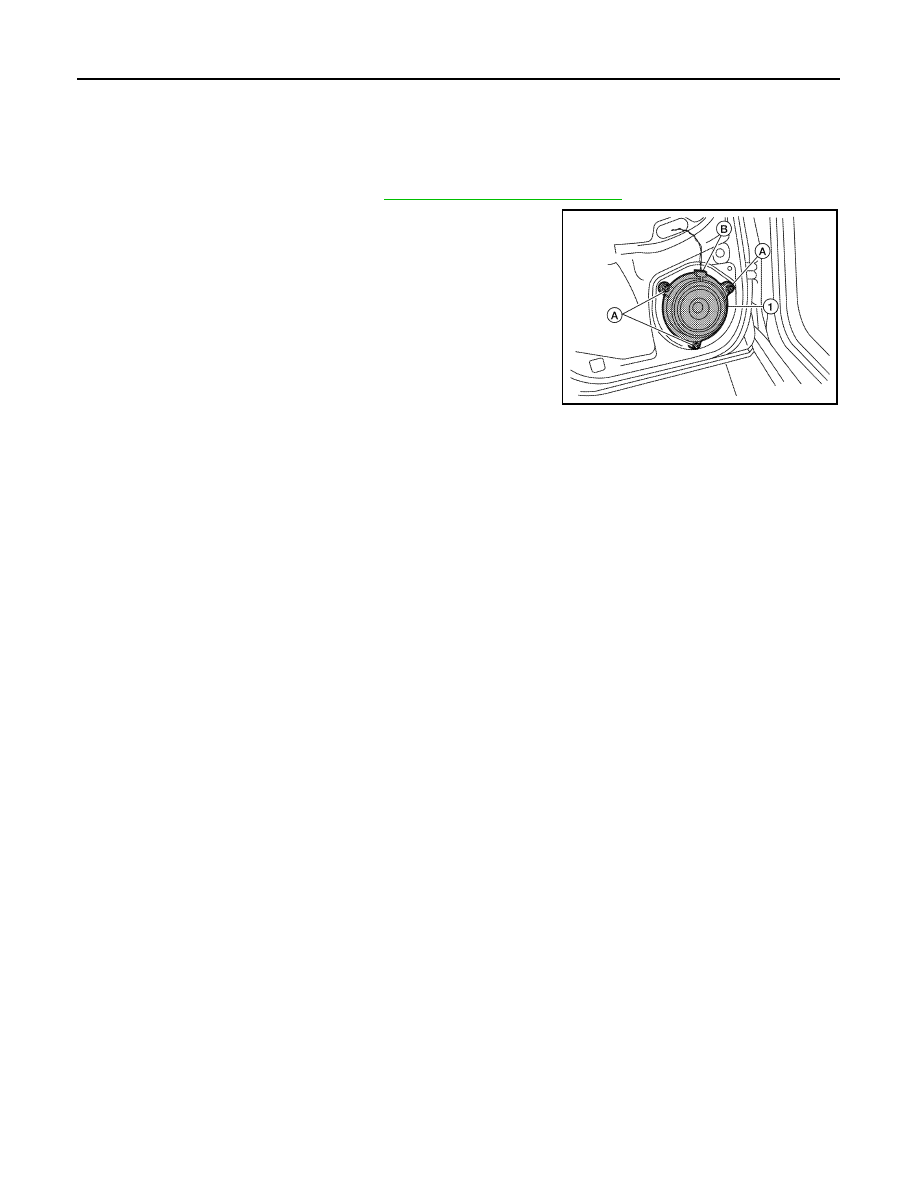

1. Remove rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear tweeter screws (A) and remove the rear

tweeter (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0351ZZ

August 2012

2012 Pathfinder

AV-262

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000007347796

REMOVAL

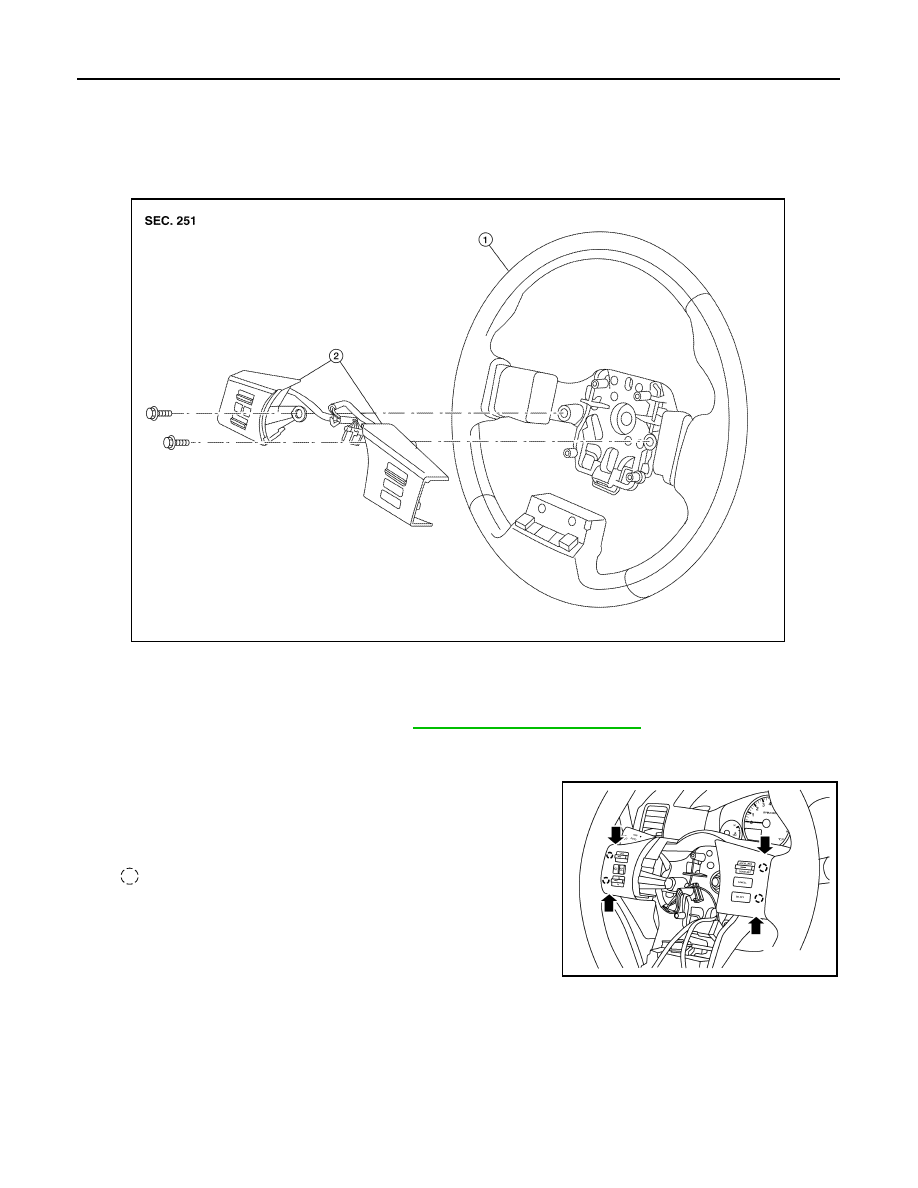

1. Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the steering wheel audio control switches connector.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

•

:  Pawl

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

August 2012

2012 Pathfinder

AV

MICROPHONE

AV-263

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000007347797

REMOVAL

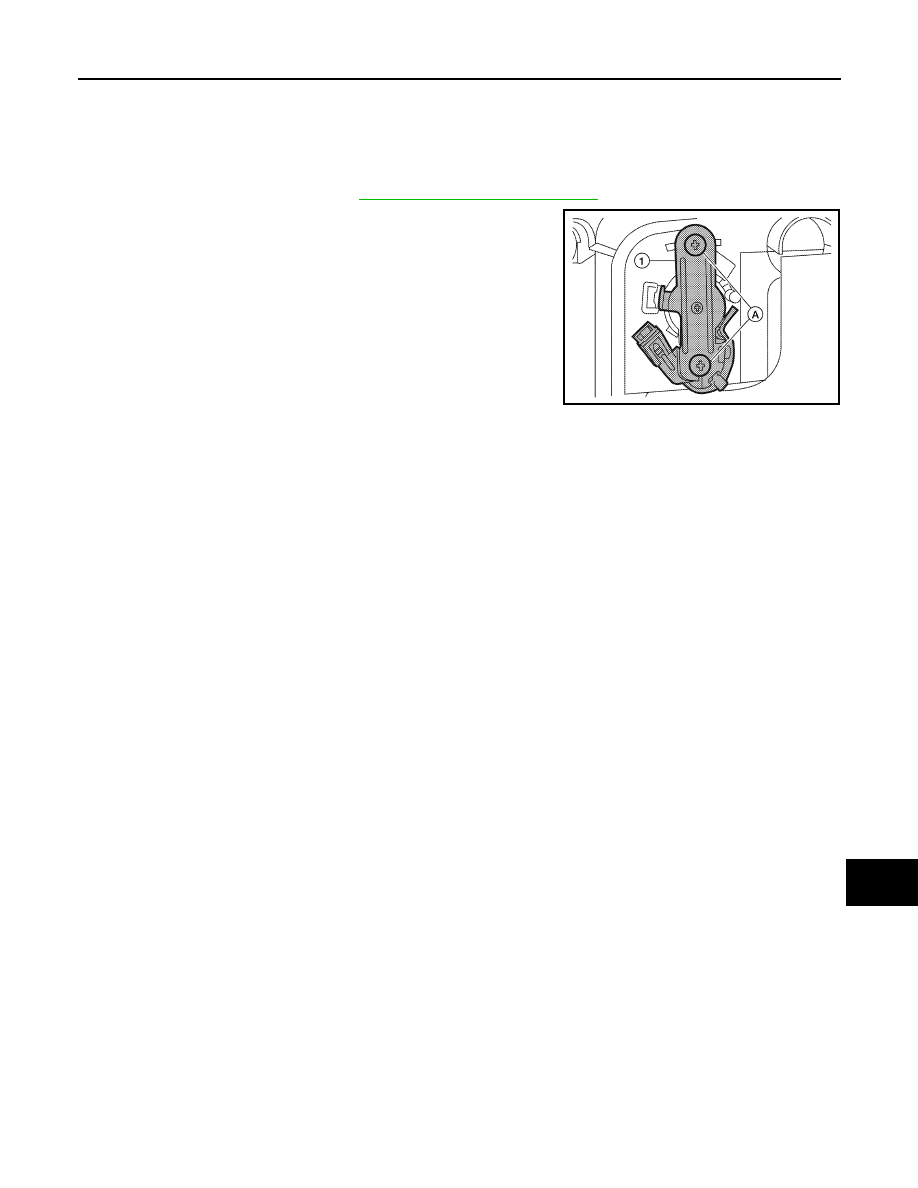

1. Remove the front roof console finisher. Refer to

INT-22, "Removal and Installation"

.

2.  Detach the microphone (1) from the front console finisher tabs

(A).

3. Disconnect the microphone connector (B) and remove the

microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0379ZZ

August 2012

2012 Pathfinder

AV-264

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000007347798

REMOVAL

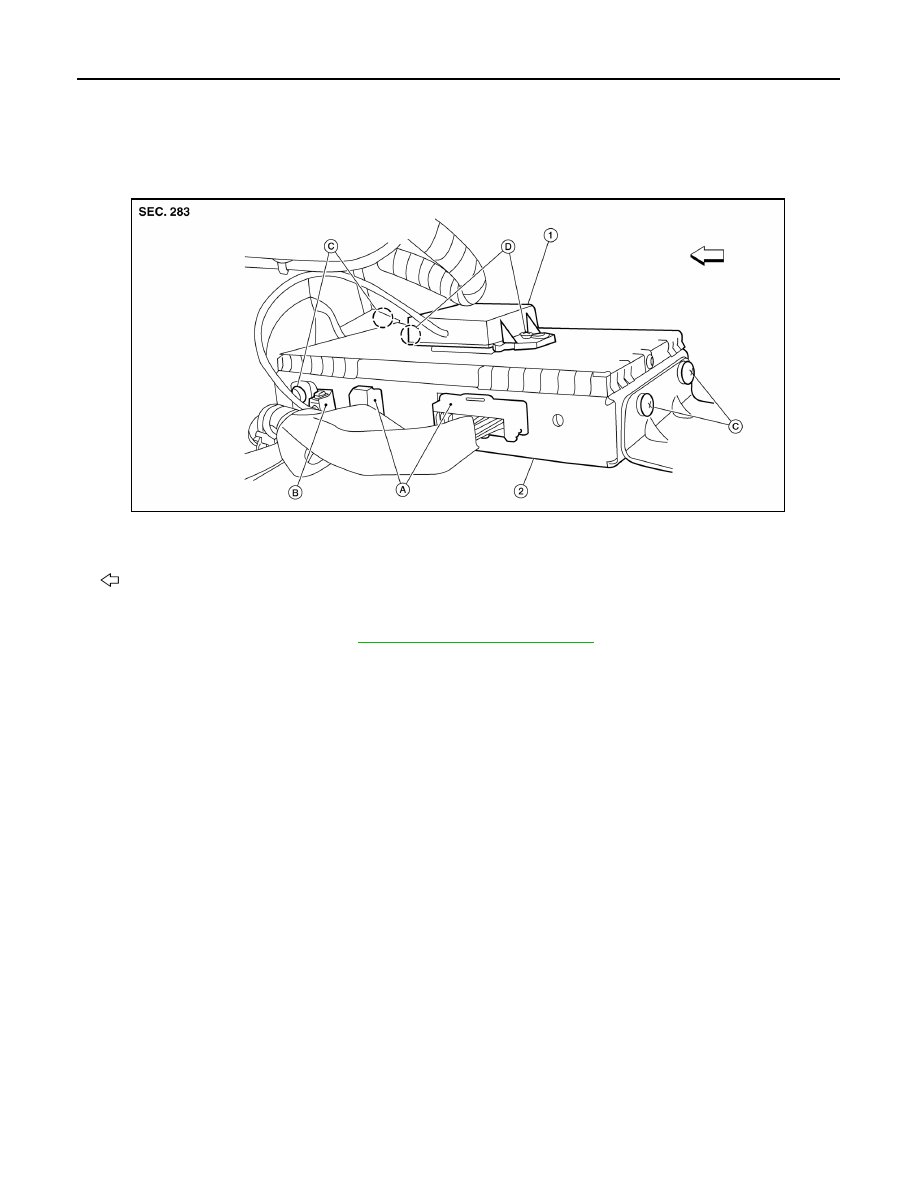

1. Remove the RH front seat. Refer to

SE-33, "Removal and Installation"

.

2. Disconnect the Bluetooth control unit connectors.
3. Remove the Bluetooth control unit bracket screws and remove the Bluetooth control unit assembly.
4. Remove the Bluetooth control unit screws.
5. Transfer the Bluetooth antenna to the new Bluetooth control unit.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth antenna

2.

Bluetooth control unit

A.

Bluetooth control unit connectors

B.

Bluetooth antenna connector

C.

Bluetooth control unit screws

D.

Bluetooth antenna screws

Vehicle front

AWNIA2414ZZ

August 2012

2012 Pathfinder

AV

BOSE SPEAKER AMP

AV-265

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000007830127

REMOVAL

NOTE:

Do not remove the LH front seat from the vehicle.

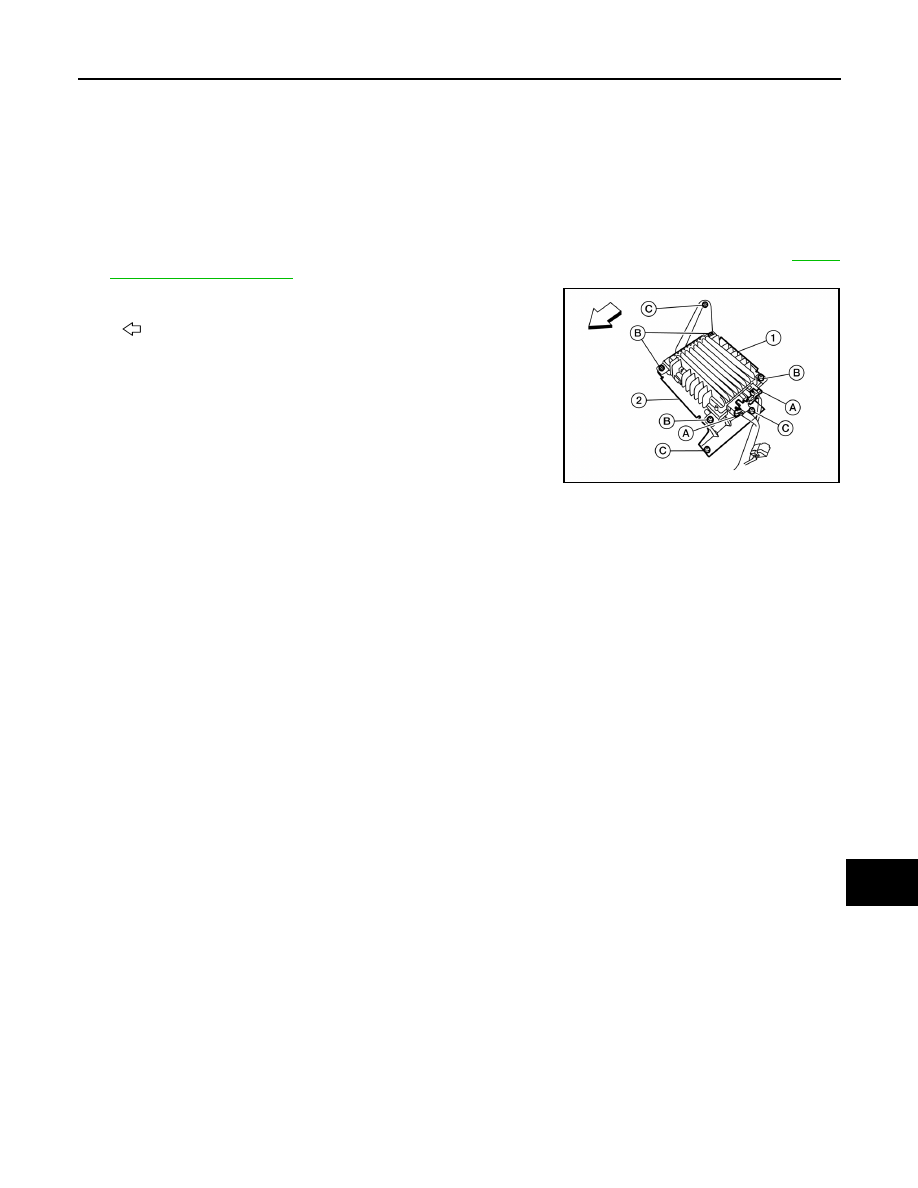

1. Remove LH front seat bolts, disconnect the LH front seat electrical harness connector. Refer to

SE-33,

"Removal and Installation"

.

2. Tilt the LH front seat back to access the BOSE speaker amp.

(1), then remove the BOSE speaker amp. screws (B).
•

: Vehicle front

3. Disconnect the Bose speaker amp. connectors (A) and remove

Bose speaker amp. (1) from the bracket (2).

4. Then remove the BOSE speaker amp. bracket screws (C) and

remove bracket (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1249ZZ
