Nissan Pathfinder (2012 year). Manual - part 53

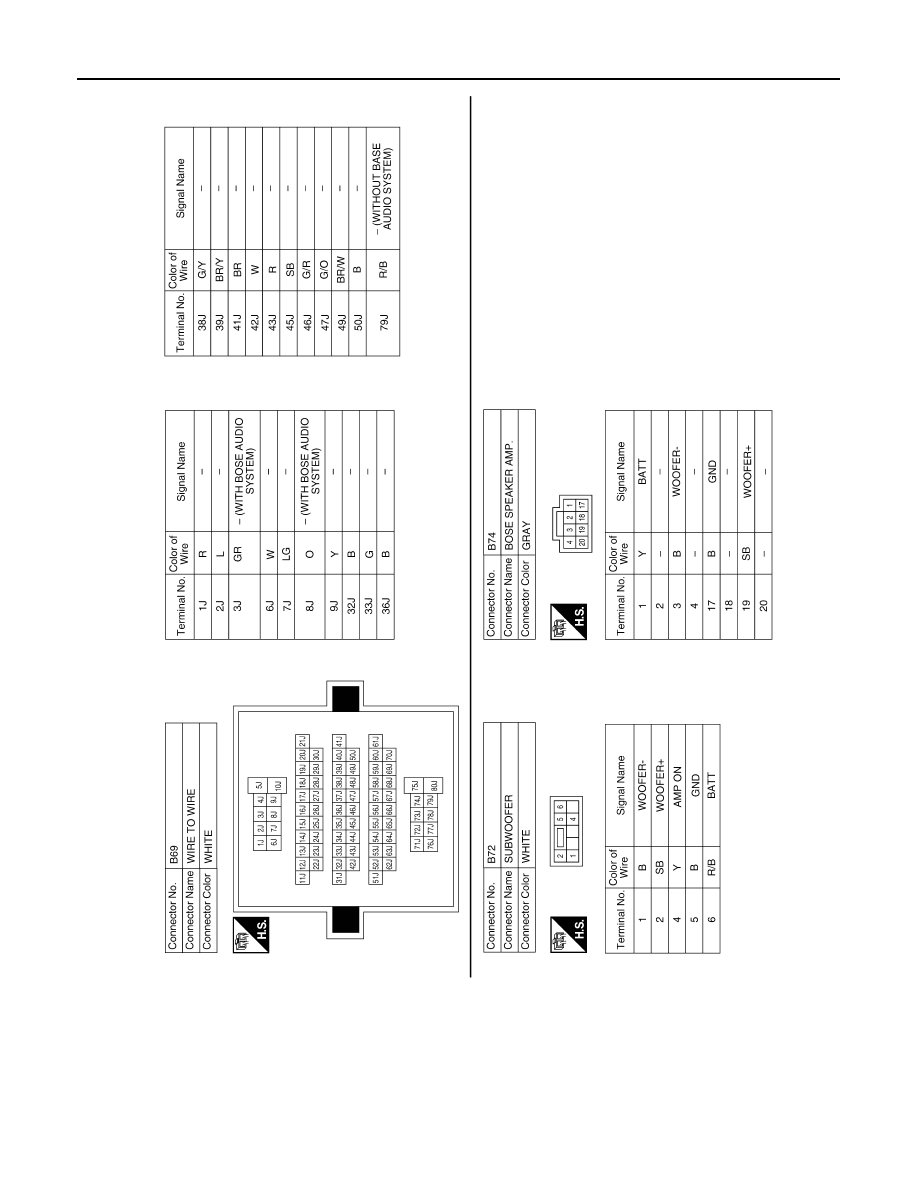

AV-242

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO SYSTEM

ABNIA2630GB

August 2012

2012 Pathfinder

AV

BOSE AUDIO SYSTEM

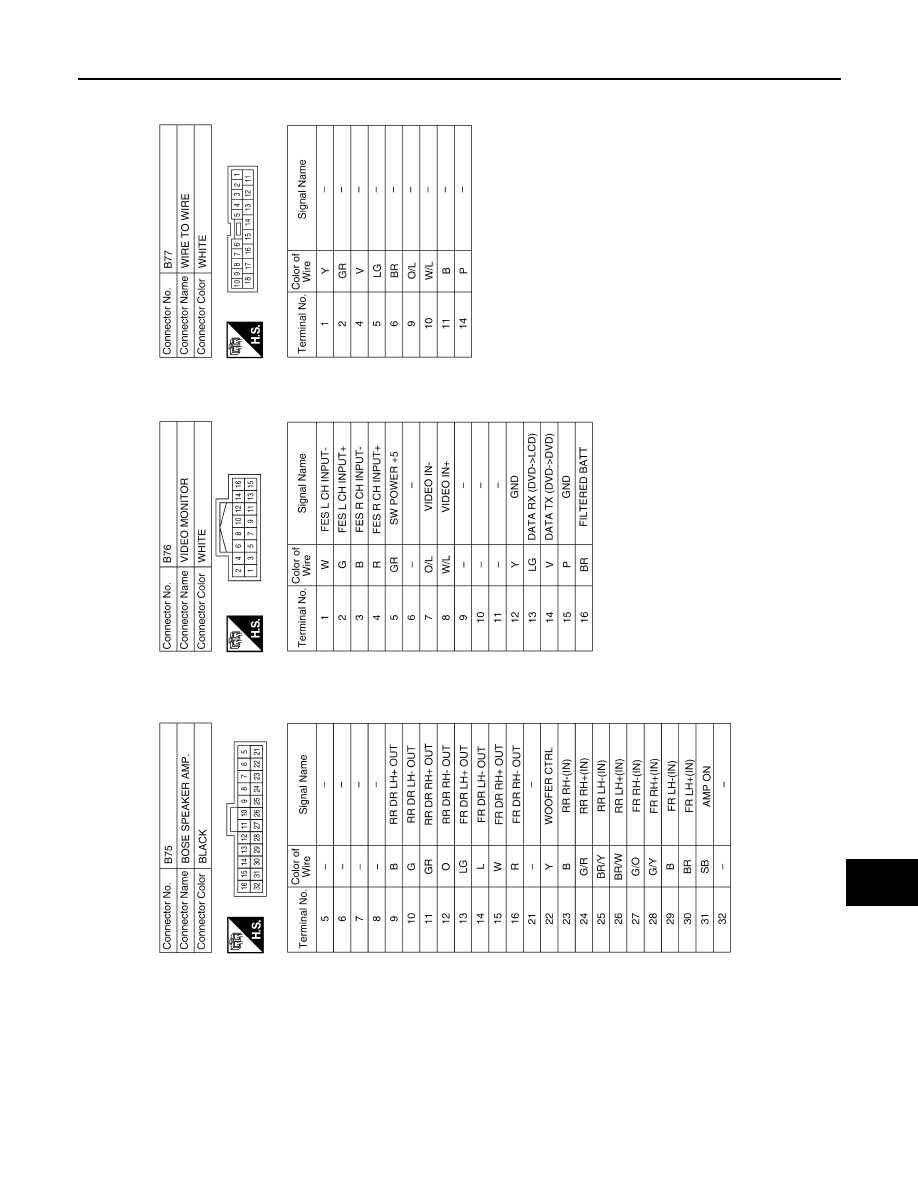

AV-243

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA2631GB

August 2012

2012 Pathfinder

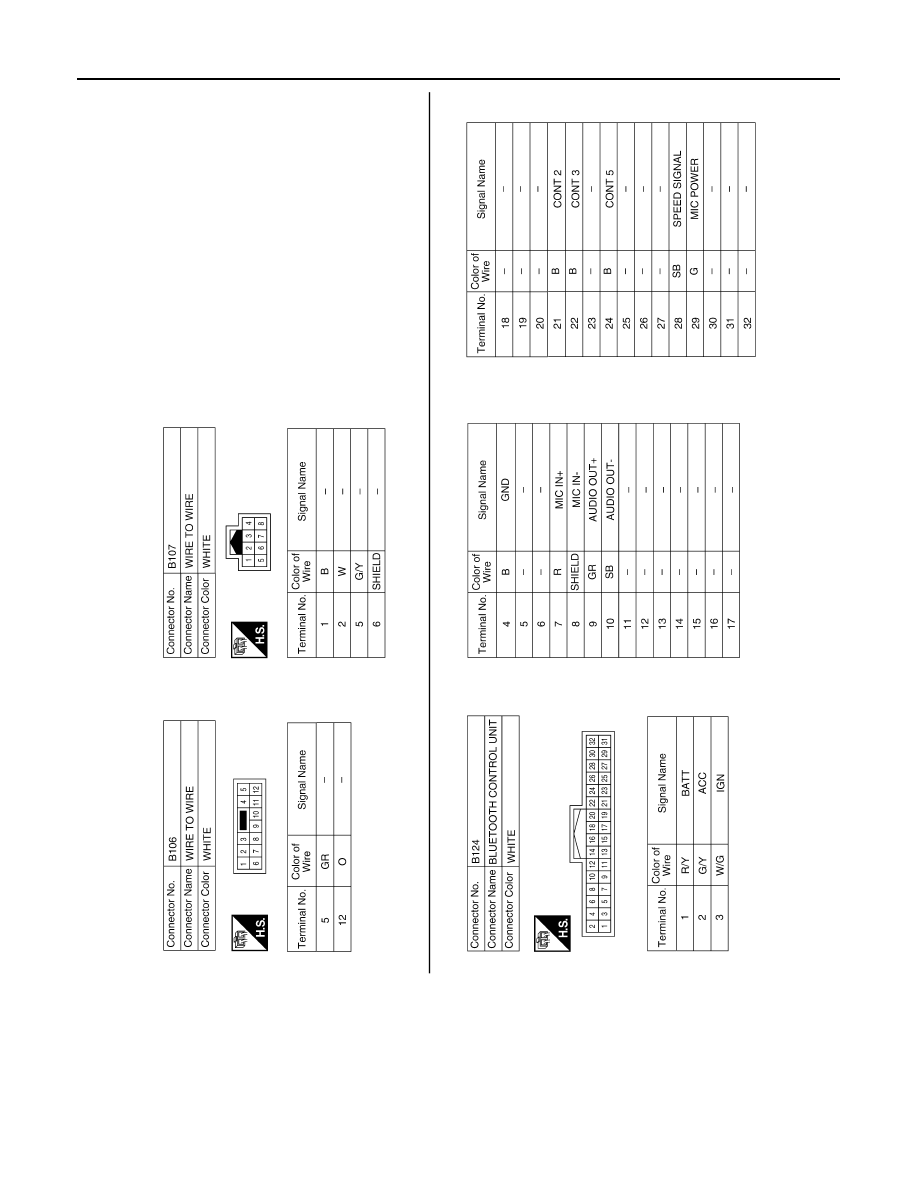

AV-244

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO SYSTEM

ABNIA2632GB

August 2012

2012 Pathfinder

AV

BOSE AUDIO SYSTEM

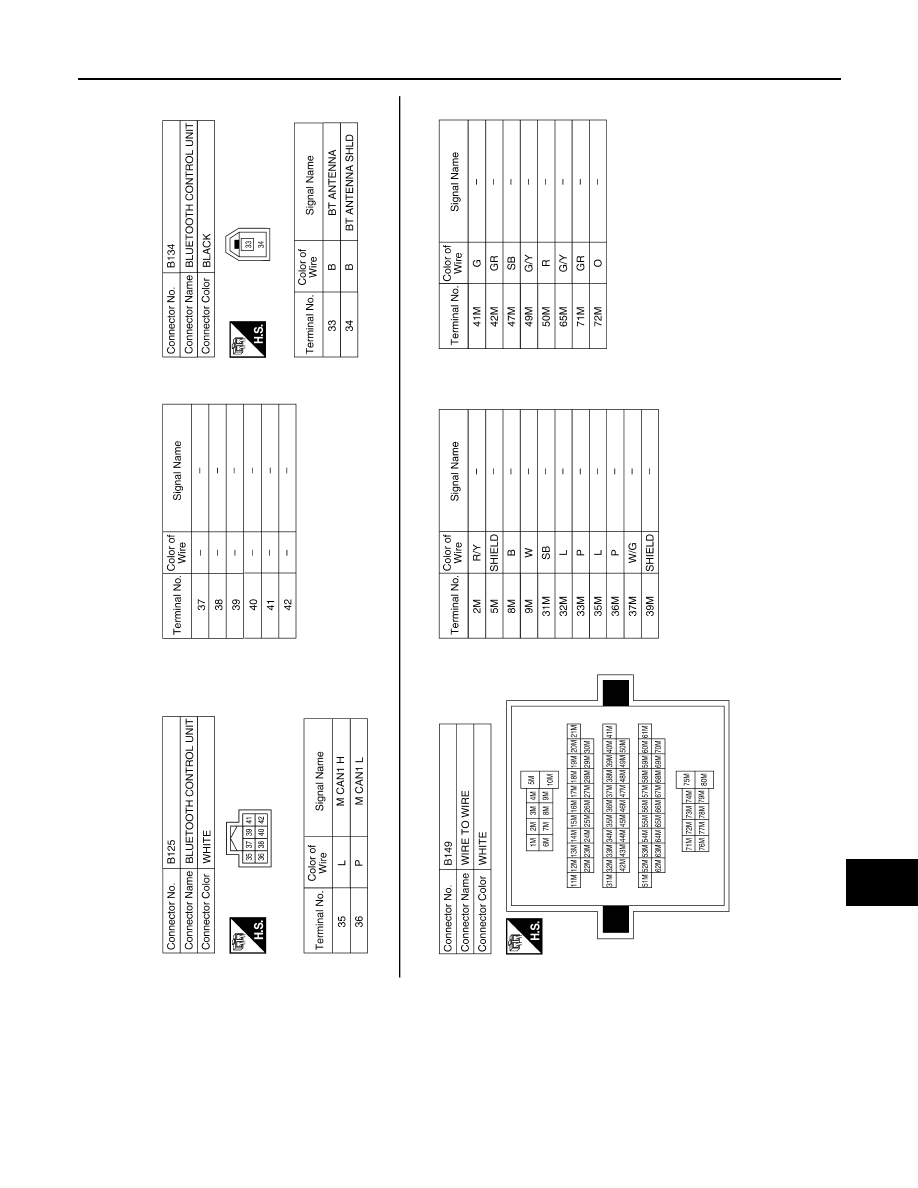

AV-245

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA3333GB

August 2012

2012 Pathfinder

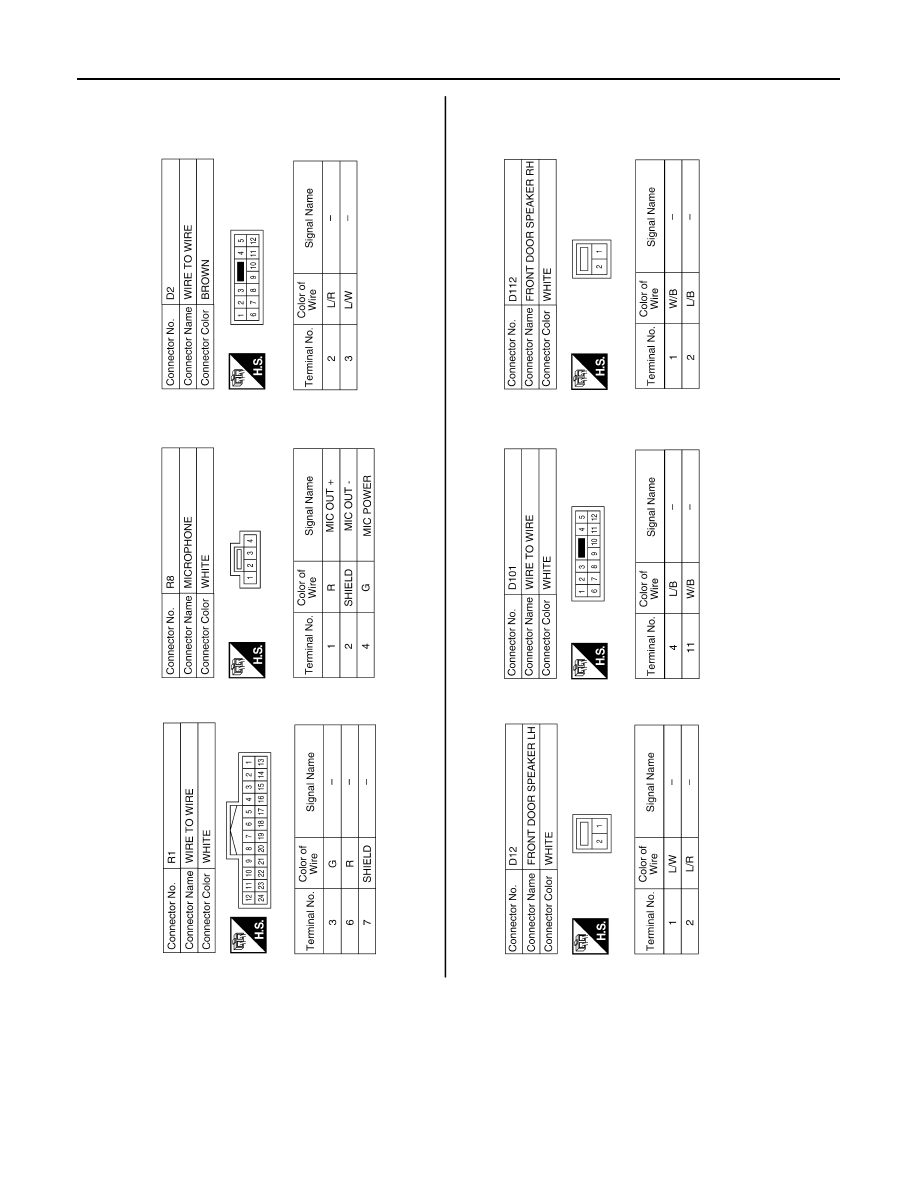

AV-246

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO SYSTEM

ABNIA2634GB

August 2012

2012 Pathfinder

AV

BOSE AUDIO SYSTEM

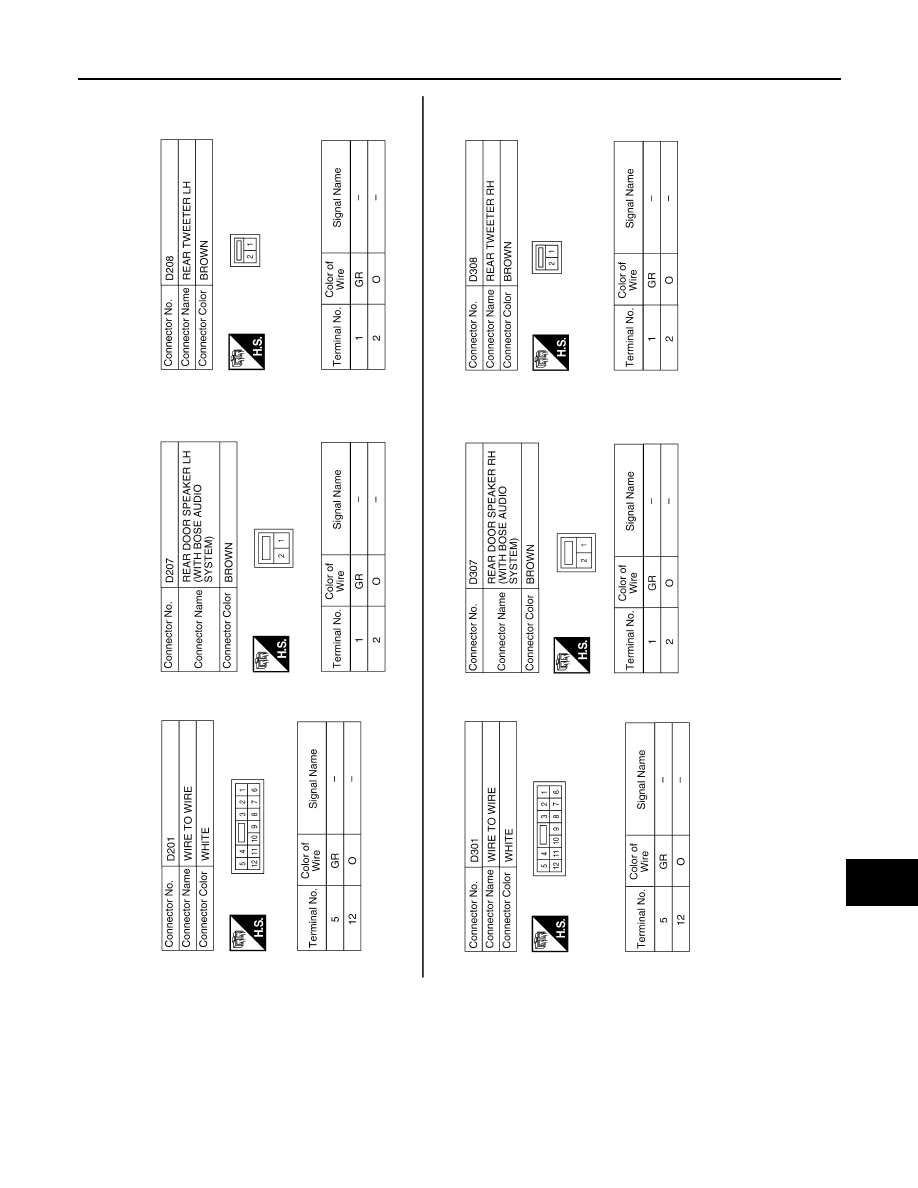

AV-247

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA2635GB

August 2012

2012 Pathfinder

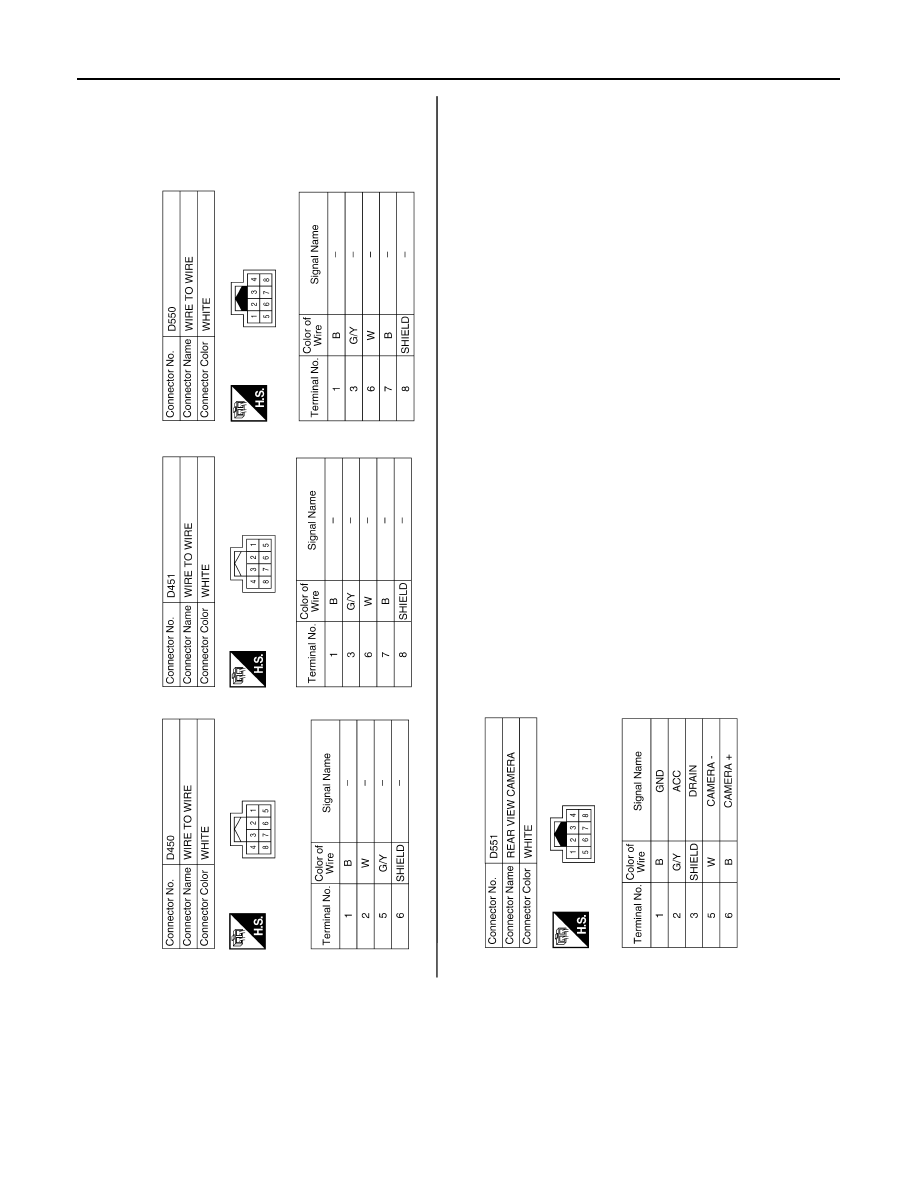

AV-248

< WIRING DIAGRAM >

[BOSE AUDIO WITHOUT NAVIGATION]

BOSE AUDIO SYSTEM

ABNIA2636GB

August 2012

2012 Pathfinder

AV

AUDIO SYSTEM

AV-249

< SYMPTOM DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

AUDIO SYSTEM

Symptom Table

INFOID:0000000007347783

AUDIO SYSTEM

CD

SATELLITE RADIO

DVD PLAYER

Symptom

Possible cause

Reference page

Inoperative

• AV control unit power supply and ground circuit
• AV control unit

•

AV-162

•

AV-141

Steering switch does not operate

• Steering switch
• AV control unit

•

AV-196

•

AV-141

All speakers do not sound

• Speaker circuit shorted to ground
• AV control unit
• BOSE speaker amp. ON signal
• BOSE speaker amp. power supply and ground circuit
• BOSE speaker amp.

•

AV-225

•

AV-141

•

AV-195

•

AV-165

•

AV-265

One or several speakers do not sound

• Front door speaker
• Front tweeter
• Rear door speaker
• Rear tweeter
• Subwoofer

•

AV-180

•

AV-183

•

AV-186

•

AV-189

•

AV-192

Buzz/rattle sound from speaker

The majority of buzz/rattle sounds are not indicative of
an issue with the speaker, usually something nearby the
speaker is causing the buzz/rattle.

Refer to "SQUEAK
AND RATTLE
TROUBLE DIAG-
NOSIS" in the ap-
propriate interior
trim section.

Symptom

Possible cause

Reference page

CD cannot be inserted.

AV control unit

AV-141

CD cannot be ejected.

The CD cannot be played.

The sound skips, stops suddenly, or is distorted.

Symptom

Possible cause

Reference page

Inoperative

• Satellite radio tuner power supply and ground circuit
• Satellite radio tuner communication circuit
• Satellite radio tuner

•

AV-166

•

AV-198

•

AV-273

Right or left channel does not sound

• Satellite radio tuner audio signal circuit
• Satellite radio tuner

•

AV-201

•

AV-273

Symptom

Possible cause

Reference page

DVD player inoperative

• DVD player power supply and ground circuit
• DVD player

•

AV-168

•

AV-267

No sound when playing a DVD

• Audio signal circuits
• AV  control  unit
• DVD player

•

AV-221

•

AV-141

•

AV-267

August 2012

2012 Pathfinder
