AV-130

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

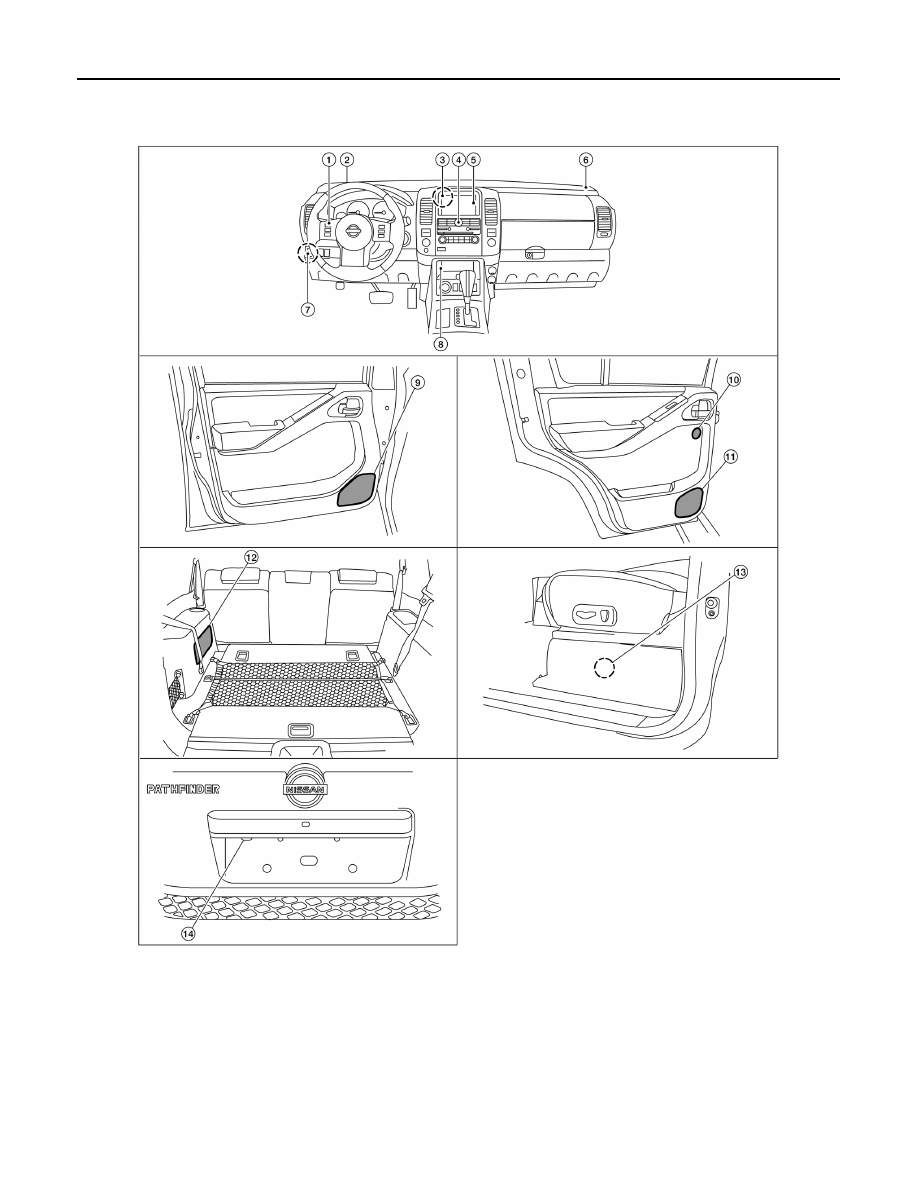

Component Parts Location

INFOID:0000000007347685

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M42, M43, M44, M45,
M46, M69, M70

4.

A/C and AV switch assembly M98

5.

Display unit M93

6.

Front tweeter RH M111

7.

Satellite radio tuner M41, M129

8.

Aux jack M85

9.

Front door speaker
LH D12
RH D112

AWNIA2299ZZ

August 2012

2012 Pathfinder

AV

AUDIO SYSTEM

AV-131

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000007347686

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear view camera D551

Part name

Description

AV control unit

Controls audio system and satellite radio system functions

Display unit

Displays all audio and climate control related information

BOSE speaker amp.

Receives power (amp ON) and audio signals from audio unit and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Audio operation can be operated
• Steering wheel audio control switch signal is output to audio unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to AV control unit

Satellite antenna

Audio signal (satellite radio) is received and output to AV control unit.

August 2012

2012 Pathfinder

AV-132

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW MONITOR SYSTEM

REAR VIEW MONITOR SYSTEM

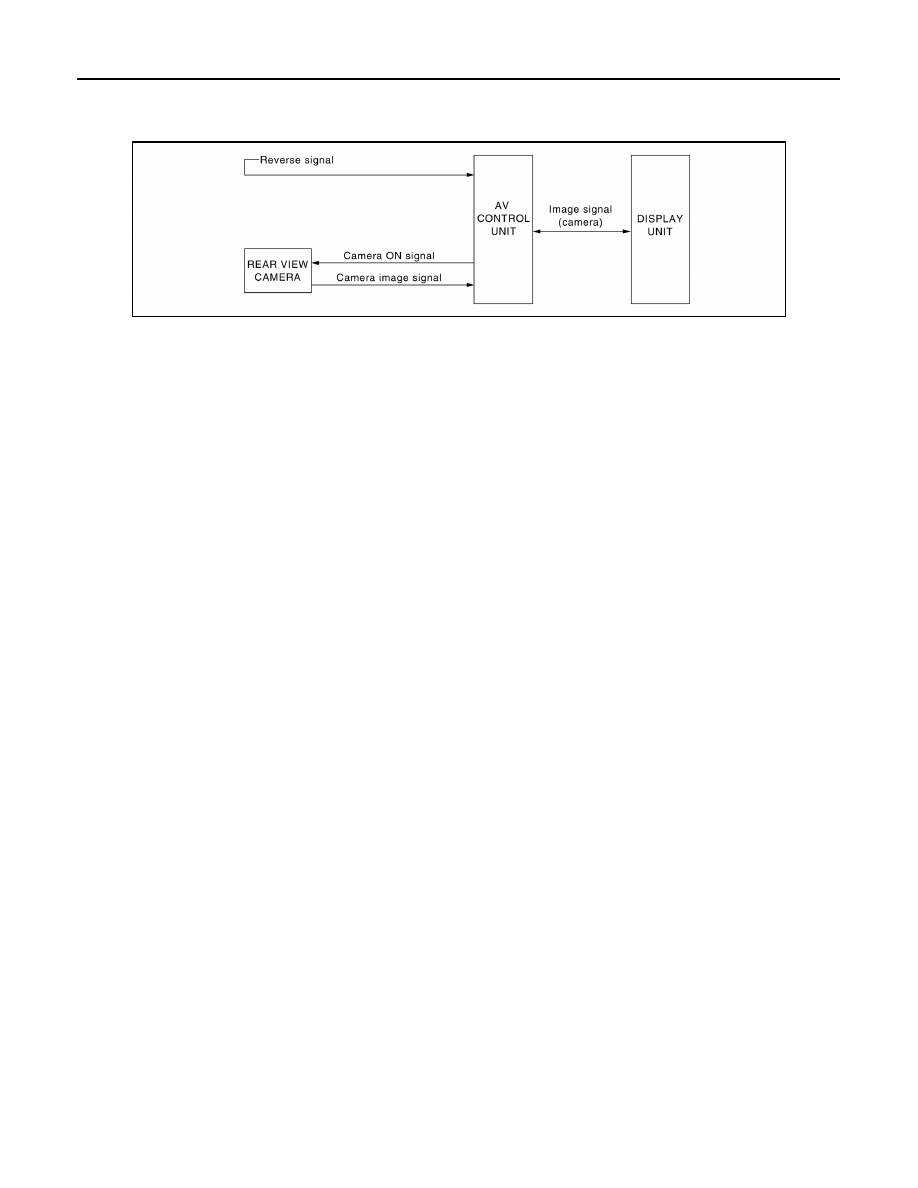

System Diagram

INFOID:0000000007347687

System Description

INFOID:0000000007347688

When the shift selector is in the R position the AV control unit receives the reverse signal and turns on the rear

view camera. The display unit receives camera image signals from the rear view camera. The display unit then

shows a view to the rear of the vehicle. Lines which indicate the vehicle clearance and distances are also dis-

played.

AWNIA2296GB

August 2012

2012 Pathfinder

AV

REAR VIEW MONITOR SYSTEM

AV-133

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

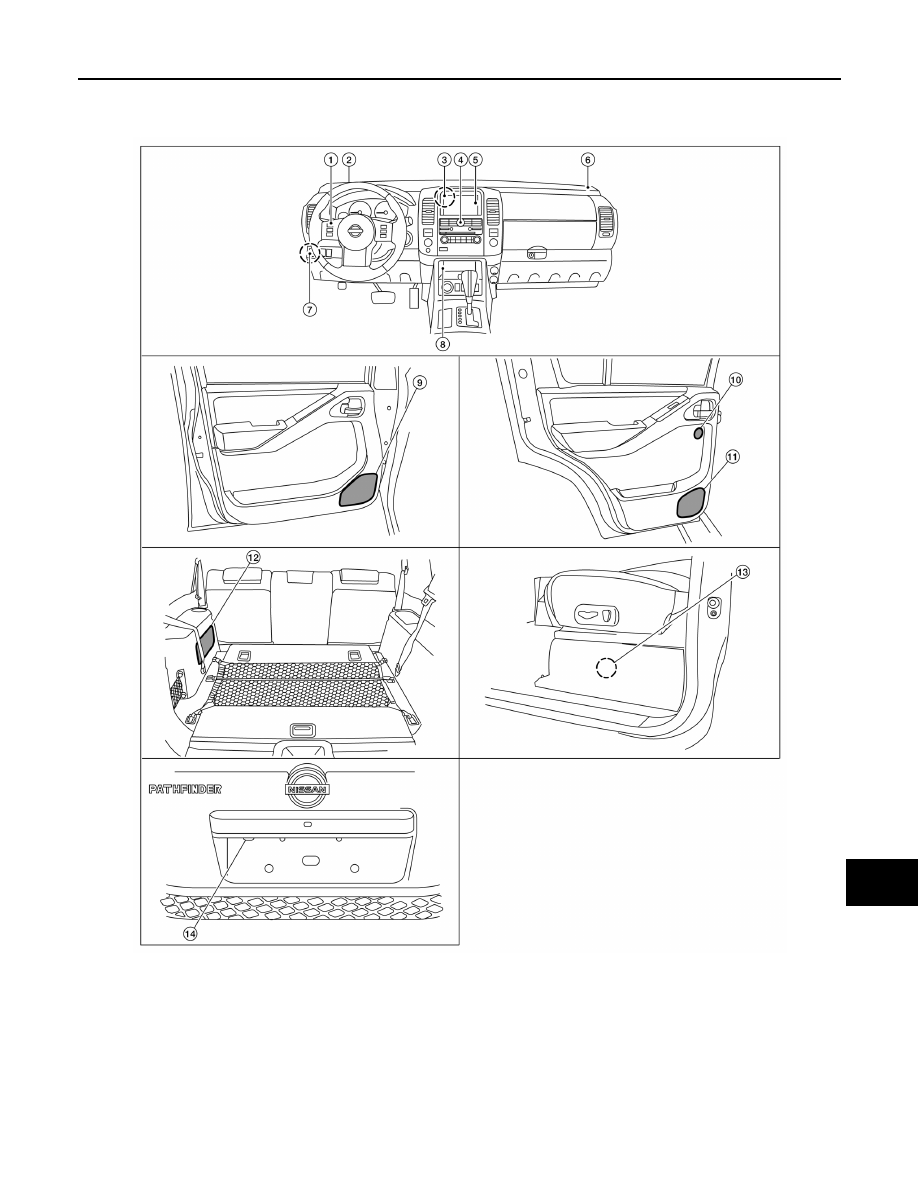

Component Parts Location

INFOID:0000000007347689

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M42, M43, M44, M45,
M46, M69, M70

4.

A/C and AV switch assembly M98

5.

Display unit M93

6.

Front tweeter RH M111

7.

Satellite radio tuner M41, M129

8.

Aux jack M85

9.

Front door speaker
LH D12
RH D112

AWNIA2299ZZ

August 2012

2012 Pathfinder

AV-134

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR VIEW MONITOR SYSTEM

Component Description

INFOID:0000000007347690

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear view camera D551

Part name

Description

AV control unit

• Receives reverse signal from back-up lamp relay
• Sends camera ON signal to rear view camera
• Receives image signal from rear view camera
• Sends camera image signal to display unit

Rear view camera

• Receives camera ON signal from AV control unit
• Sends image signal to the AV control unit

Display unit

• Receives camera image signal from AV control unit

August 2012

2012 Pathfinder

AV

DVD PLAYER

AV-135

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DVD PLAYER

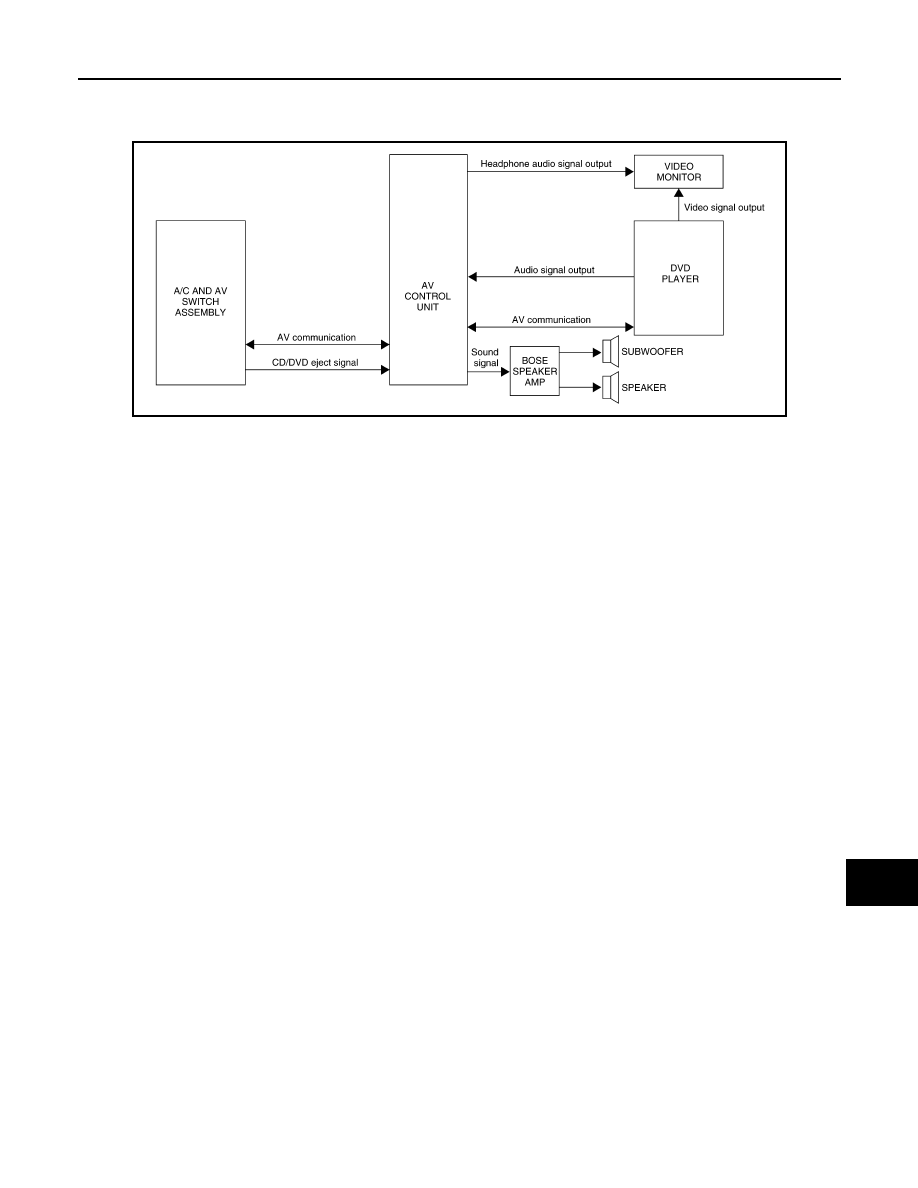

System Diagram

INFOID:0000000007347691

System Description

INFOID:0000000007347692

The DVD entertainment system consists of the following components

• AV control unit

• Display unit

• DVD player

• Video monitor

• A/C and AV switch assembly

• Steering wheel audio control switches

• BOSE speaker amp.

• Front tweeters

• Front door speakers

• Rear tweeters

• Rear door speakers

• Subwoofer

When the DVD entertainment system is on, video signals are sent from the DVD player to the video monitor.

Audio signals are sent to the AV control unit. Audio signals can be directed through wired or wireless infrared

headphones or through the BOSE speaker amp. to the vehicle speakers. Refer to the Owner's Manual for

complete DVD entertainment system operating instructions.

ALNIA0561GB

August 2012

2012 Pathfinder

AV-136

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

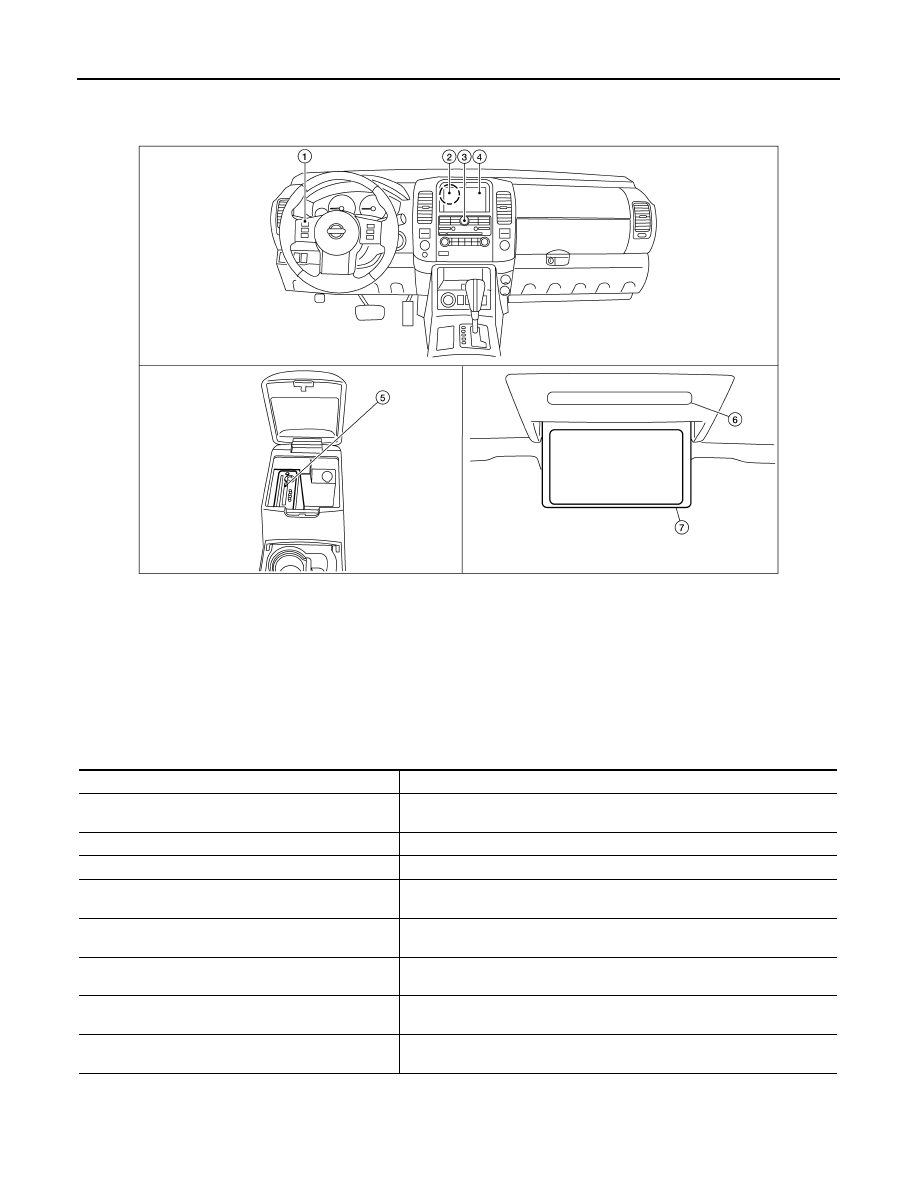

Component Parts Location

INFOID:0000000007347693

Component Description

INFOID:0000000007347694

1.

Steering wheel audio control switches 2.

AV control unit M42, M43, M44, M45,
M46, M69, M70

3.

A/C and AV switch assembly M98

4.

Display unit M93

5.

DVD player M205 (located in center
console)

6.

Infrared headphone and remote re-
ceiver/transmitter (part of video moni-
tor assembly)

7.

Video monitor B76

ALNIA0558GB

Part name

Description

DVD player

• Outputs DVD video to video monitor
• Outputs DVD audio to the AV control unit

Video monitor

• Receives and displays the DVD video signal

AV control unit

• Controls audio system and DVD entertainment system functions

BOSE speaker amp.

• Recieves audio signals from the AV control unit
• Outputs amplified audio signals to the speakers

A/C and AV switch assembly

• All audio and A/C operations can be operated
• Switch signal is output to the AV control unit and A/C auto amp

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal (operation signal) is output to AV control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Front and rear tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

August 2012

2012 Pathfinder

AV

DVD PLAYER

AV-137

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Part name

Description
