HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

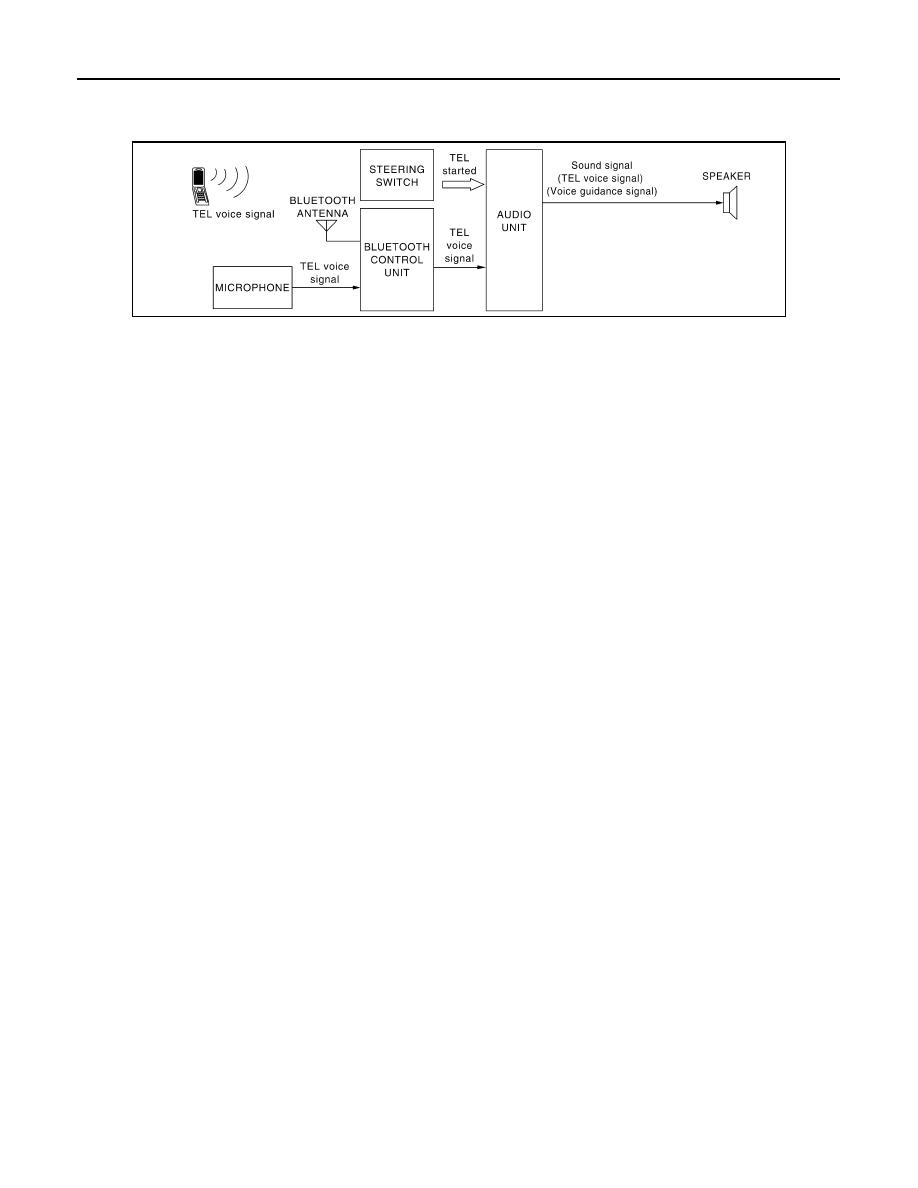

System Diagram

INFOID:0000000007347695

System Description

INFOID:0000000007347696

Refer to the owner's manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth cellular telephone to make a wireless connec-

tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be

sent and received. Personal memos can be created using the Nissan Voice Recognition system. Some Blue-

tooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular telephone or

the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit. Different

cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks.   Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AV CONTROL UNIT

The AV control unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.

AWNIA1782GB

August 2012

2012 Pathfinder

AV

HANDS-FREE PHONE SYSTEM

AV-139

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

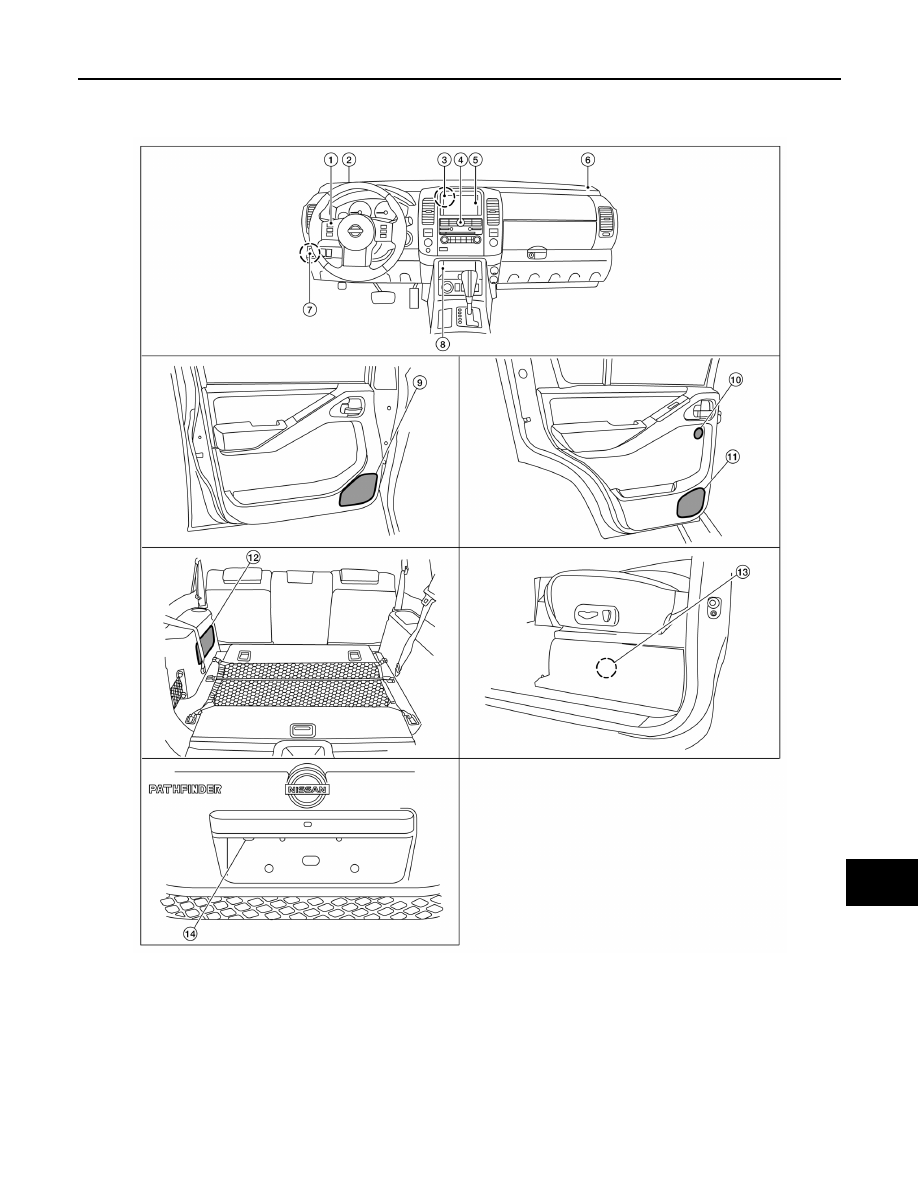

Component Parts Location

INFOID:0000000007347697

1.

Steering wheel audio control switch-
es

2.

Front tweeter LH M109

3.

AV control unit M42, M43, M44, M45,
M46, M69, M70

4.

A/C and AV switch assembly M98

5.

Display unit M93

6.

Front tweeter RH M111

7.

Satellite radio tuner M41, M129

8.

Aux jack M85

9.

Front door speaker
LH D12
RH D112

AWNIA2299ZZ

August 2012

2012 Pathfinder

AV-140

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000007347698

10. Rear tweeter

LH D208
RH D308

11. Rear door speaker

LH D207
RH D307

12. Subwoofer B72

13. BOSE speaker amp B74 & B75 (lo-

cated under driver seat)

14. Rear view camera D551

Part name

Description

AV control unit

• Receives telephone voice signal from Bluetooth control unit.
• Sends telephone voice and voice guidance signals to the speakers.

Door speaker

Receives telephone voice and voice guidance signals from the AV control unit.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to bluetooth control unit

August 2012

2012 Pathfinder

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-141

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV CONTROL UNIT
AV CONTROL UNIT : Diagnosis Description

INFOID:0000000007347699

DESCRIPTION

• Diagnosis function consists of the “Self-Diagnosis” mode performed automatically and the “Confirmation/

Adjustment” mode operated manually.

• “Self-Diagnosis” mode checks for connections between the units constituting this system, analyzes each

individual unit at the same time, and displays the results on the LCD screen.

• “Confirmation/Adjustment” mode is used to perform trouble diagnosis that requires operation and judgment

by an operator (trouble that cannot be automatically judged by the system), to check/change the set value,

and to display the error history of the AV control unit.

DIAGNOSIS ITEM

OPERATION PROCEDURE

1. Start the engine.
2. Turn the audio system off.

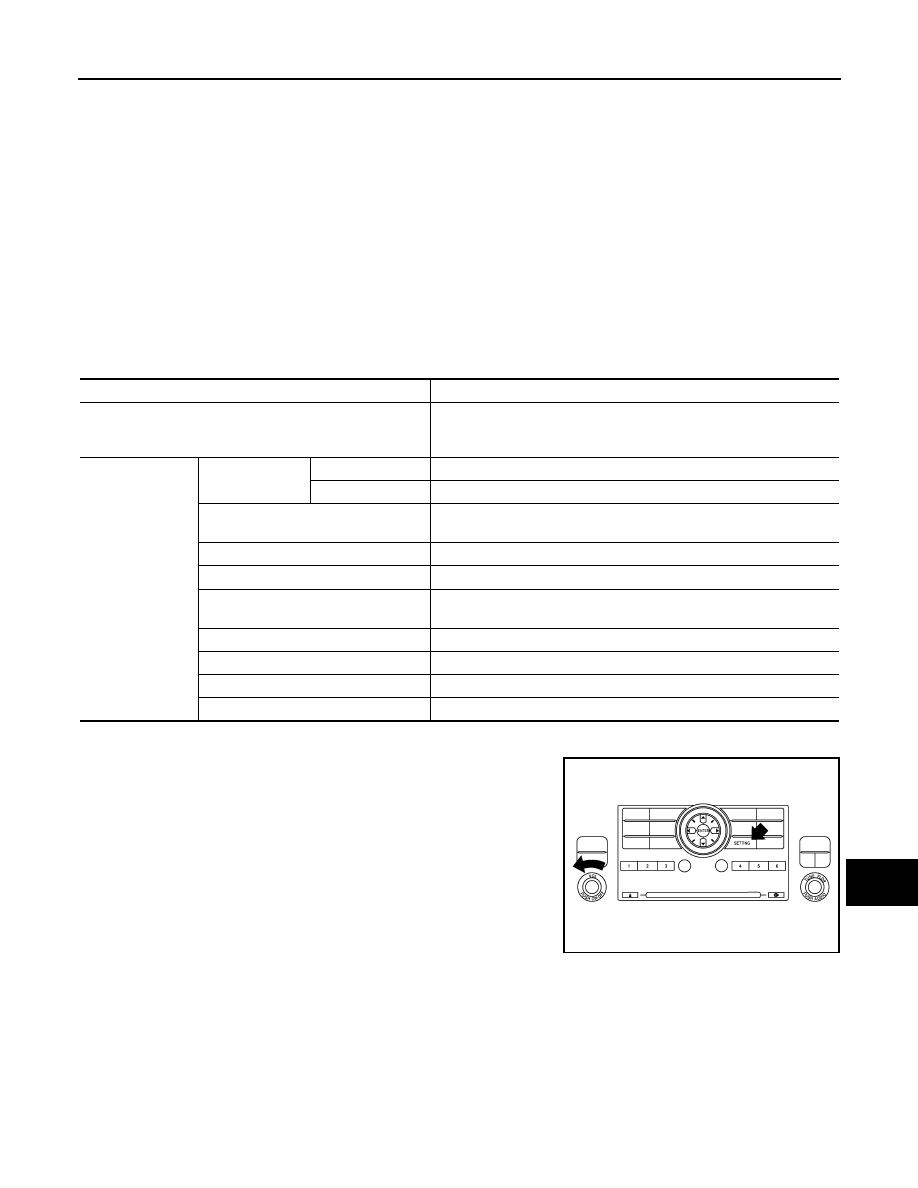

3. While pressing the “SETTING” button, turn the volume control

dial counterclockwise 30 clicks or more. (When the self-diagno-

sis mode is started, a short beep will be heard.)

Mode

Description

Self-diagnosis

• AV control unit diagnosis
• Analyzes connection between the AV control unit, front display, Blue-

tooth, DVD deck, Satellite tuner and  switches.

CONFIRMATION/
ADJUSTMENT

Display diagnosis

Color spectrum bar Color tone of the screen can be checked by the display of a color bar.

Gradation bar

Shading of the screen can be checked by the display of a gray scale.

Vehicle signals

The following vehicle signals are analyzed: Vehicle speed signal, park-
ing brake signal, light signal, ignition switch signal, and reverse signal.

Speaker test

Connection can be checked by sending a test tone to each speaker.

Climate control

Start automatic air conditioner self test.

Error history

Diagnosis results previously stored in the memory are displayed in this
mode.

Vehicle CAN diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM diagnosis

The transmitting/receiving of AV communication can be monitored.

Delete unit connection log

Erase the error history and connection history of the unit.

Initialize settings

All audio settings are reset to default levels.

ALNIA0446GB

August 2012

2012 Pathfinder

AV-142

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

4. The initial trouble diagnosis screen will be displayed, and items

“Self-Diagnosis” and “Confirmation/Adjustment” can be

selected.

SELF-DIAGNOSIS

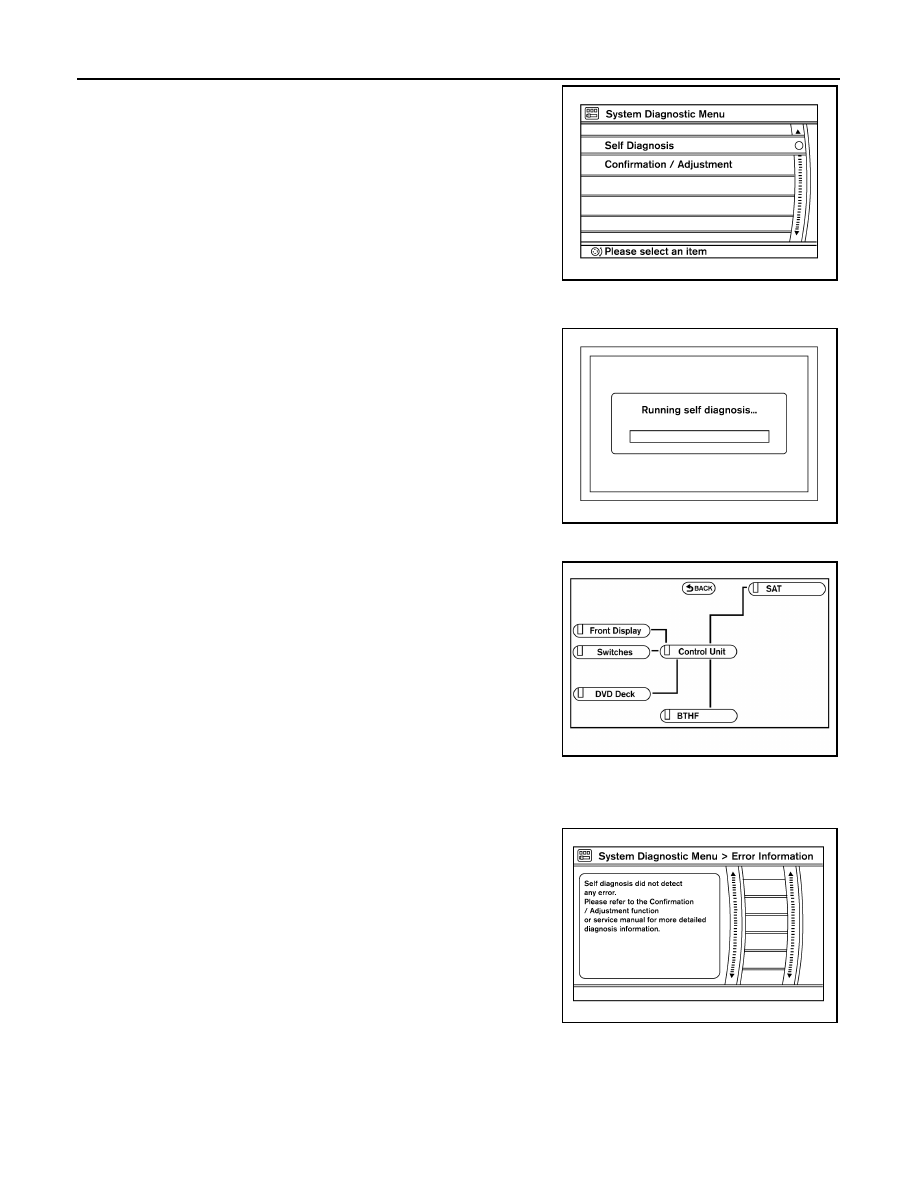

1. Perform self-diagnosis by selecting “Self-Diagnosis”.

• Self-diagnosis subdivision screen is displayed, and the self-

diagnosis mode starts.

• A bar graph visible on the center of the self-diagnosis subdivi-

sion screen indicates progress of the trouble diagnosis.

NOTE:

Self-diagnosis requires approximately 10 seconds to complete.

2. Diagnosis results are displayed after the self-diagnosis is com-

pleted. The unit names and the connection lines are color-coded

according to the diagnostic results.

Note:
• Only the AV control unit is displayed in red.
• If multiple malfunctions occur at the same time for a single unit, the screen switch colors are determined according to the follow-

ing order of priority: red > yellow > gray.

3. Select a component on the “Self-Diagnosis” screen and com-

ments for the diagnosis results will be shown.

Self-Diagnosis Results

ALNIA0259GB

ALNIA0258GB

Diagnosis results

Unit

Connection

line

Normal

Green

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

AWNIA2266GB

ALNIA0256GB

August 2012

2012 Pathfinder

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-143

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

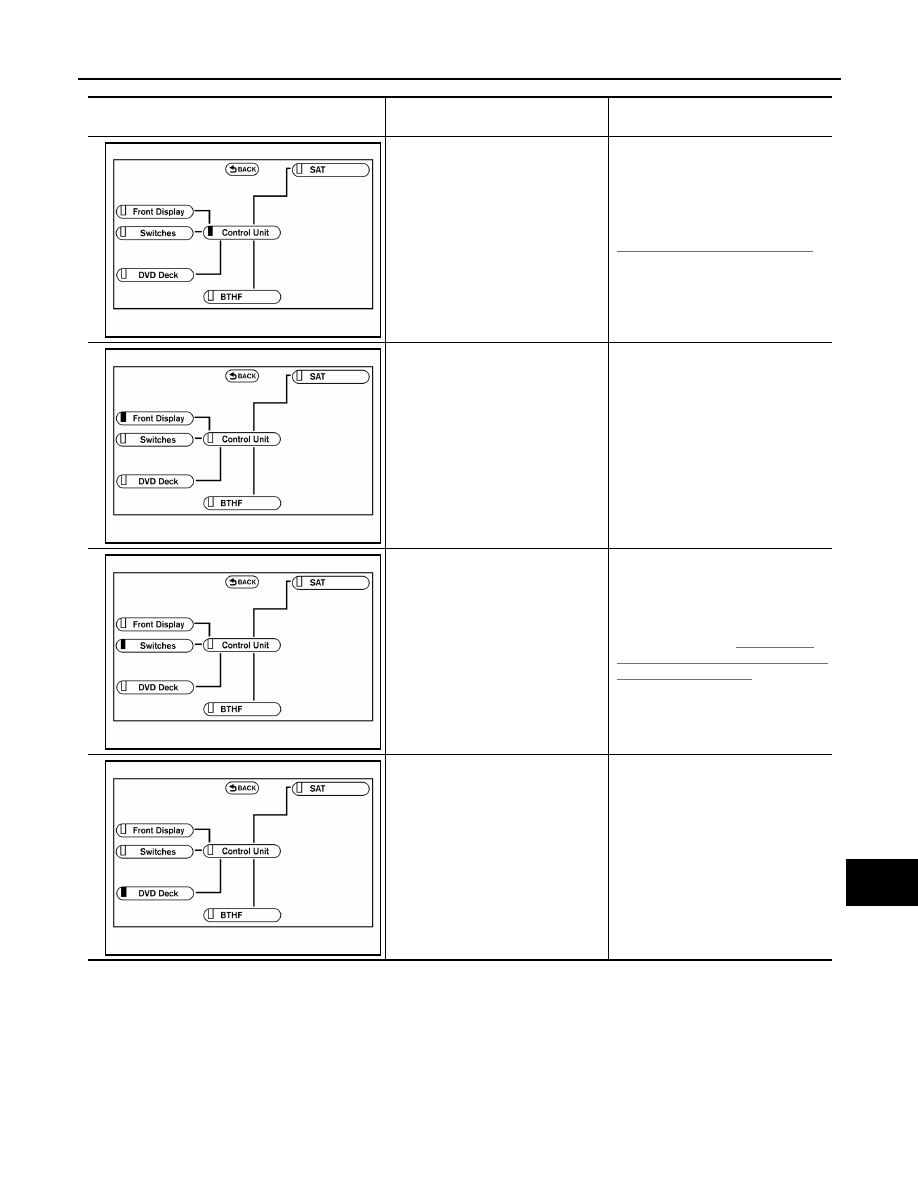

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

AV control unit malfunction is detect-
ed

Replace the AV control unit. Refer to

AV-255, "Removal and Installation"

.

Poor connection is detected for the
display unit

• Harness or connector
• AV control unit
• Display unit

Switch malfunction is detected

Perform A/C and AV switch assembly
diagnostics. Refer to

AV-148, "A/C

AND AV SWITCH ASSEMBLY : Com-
ponent Function Check"

.

Poor connection is detected for the
DVD player.

• Harness or connector
• AV control unit
• DVD player

AWNIA2267GB

AWNIA2268GB

AWNIA2269GB

AWNIA2270GB

August 2012

2012 Pathfinder

AV-144

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

CONFIRMATION/ADJUSTMENT MODE

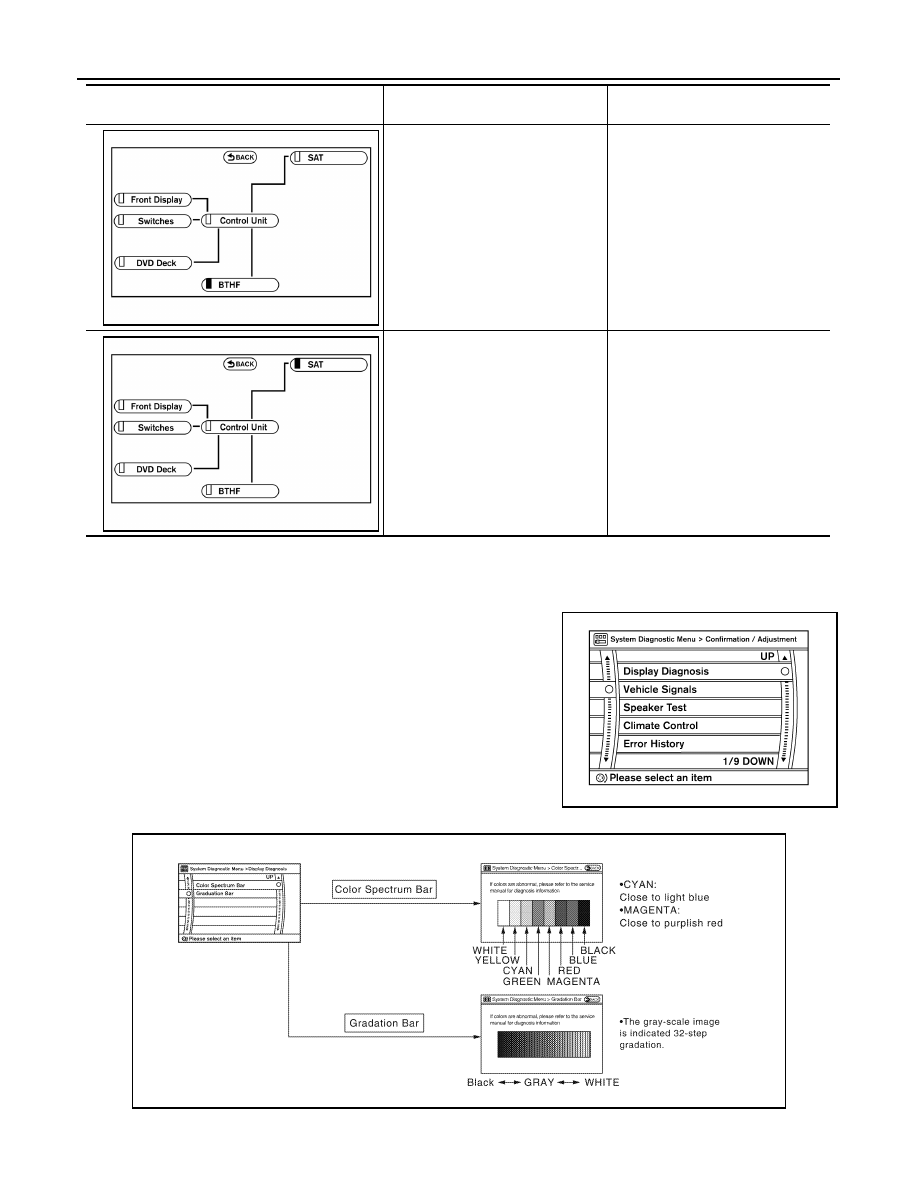

1. Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode

indicates where each item can be checked or adjusted.

2. Select each item on the “Confirmation/Adjustment” mode screen

to display the relevant trouble diagnosis screen. Touch “BACK”

on the display unit or press the “BACK” switch to return to the

initial Confirmation/Adjustment Mode screen.

Display Diagnosis

Vehicle Signals

Poor connection is detected for the
Bluetooth control unit

• Harness or connector
• AV control unit
• Bluetooth control unit

Poor connection is detected for the
satellite radio tuner.

• Harness or connector
• AV control unit
• Satellite radio tuner

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

AWNIA2271GB

AWNIA2272GB

ALNIA0251GB

ALNIA0260GB

August 2012

2012 Pathfinder

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-145

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

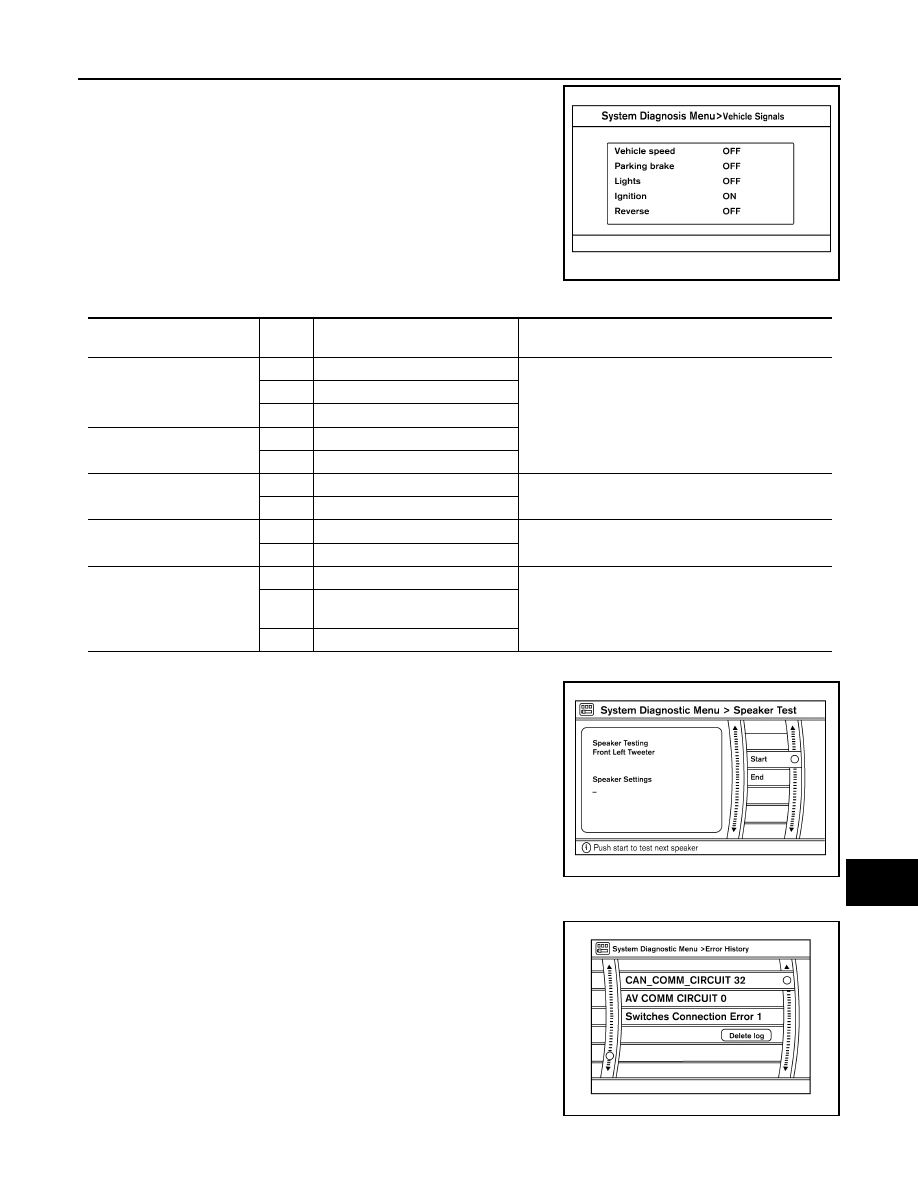

A comparison check can be made of each actual vehicle signal and

the signals recognized by the system.

Speaker Test

Select “Speaker Test” to display the speaker diagnosis screen. Press

“Start” to generate a test tone in speakers. Press “End” to stop the

test tones.

Error History

The self-diagnosis results are judged depending on whether any

error occurs from when “Self-diagnosis” is selected until the self-

diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has

occurred before the ignition SW is turned ON and then no error has

occurred until the self-diagnosis start. Check the “Error History” to

detect any error that may have occurred before the self-diagnosis

start because of this situation.

Count up method A

• The counter resets to 0 if an error occurs when IGN switch is

turned ON. The counter increases by 1 if the condition is normal at

a next IGN ON cycle.

ALNIA0261GB

Diagnosis item

Dis-
play

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h

−

Ignition switch in ACC position

Parking brake

ON

Parking brake is applied.

OFF

Parking brake is released.

Lights

ON

Light switch ON

Block the light beam from the auto light optical sensor.

OFF

Light switch OFF

Ignition

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

ON

Selector lever in R position

Changes in indication may be delayed by approxi-
mately 1.5 seconds. This is normal.

OFF

Selector lever in any position other
than R

−

Ignition switch in ACC position

ALNIA0262GB

ALNIA0263GB

August 2012

2012 Pathfinder
