AUTOMATIC DRIVE POSITIONER

ADP-129

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

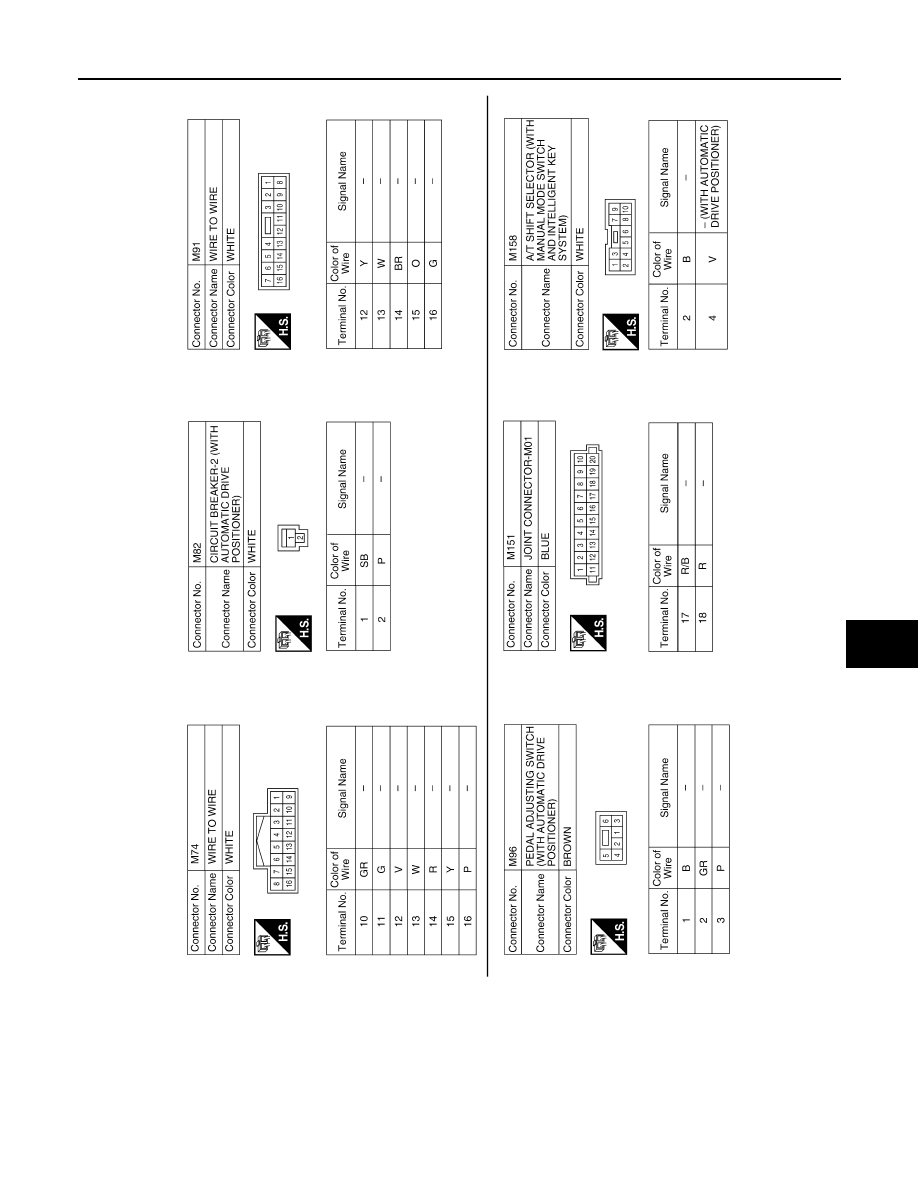

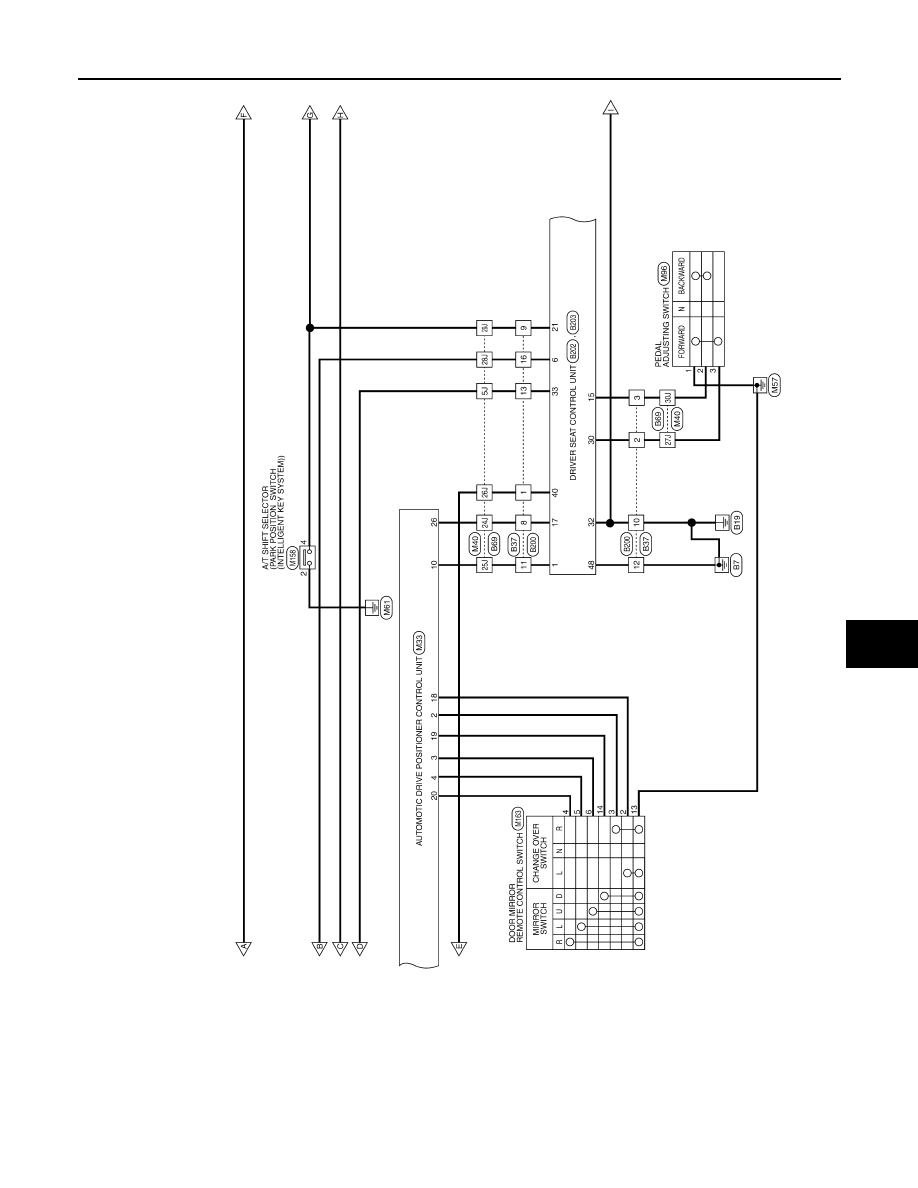

ABJWA0253GB

August 2012

2012 Pathfinder

ADP-130

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

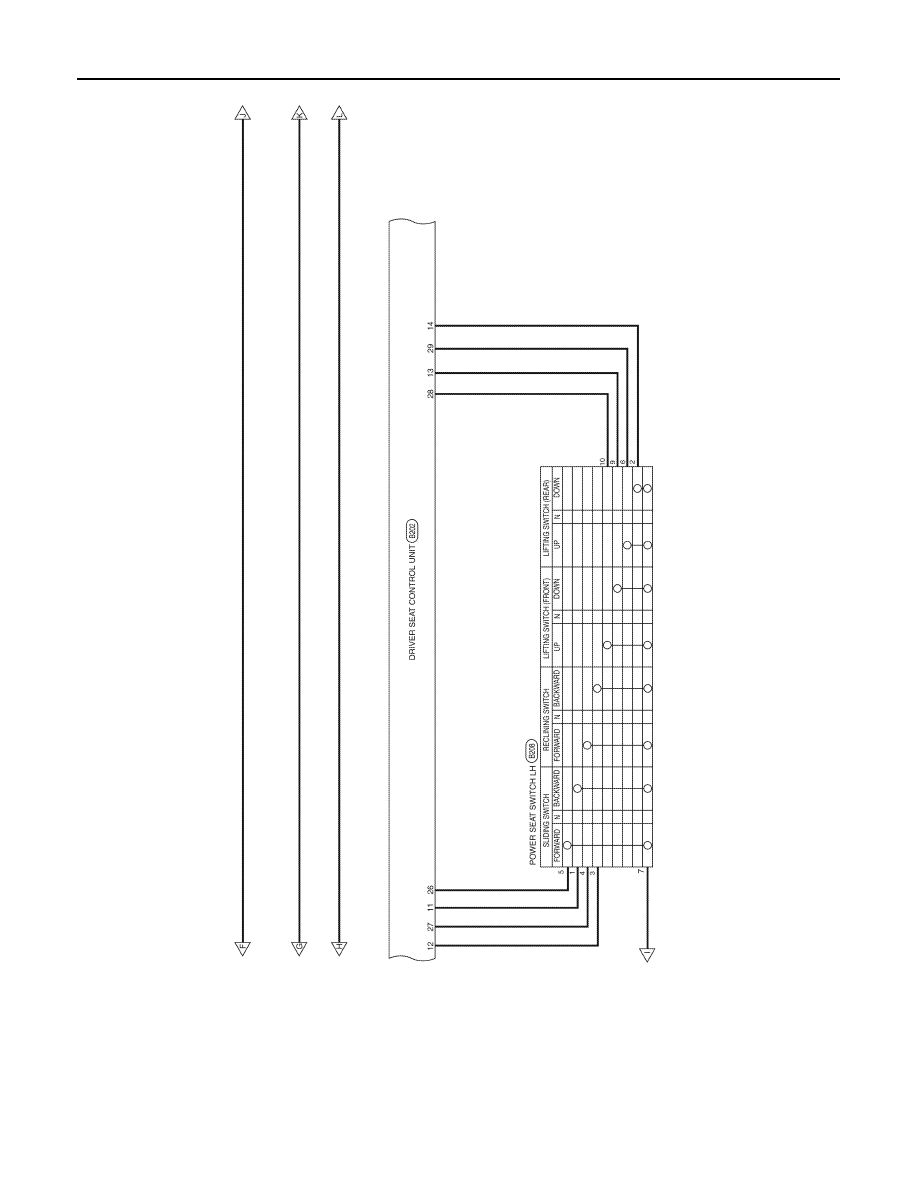

ABJWA0127GB

August 2012

2012 Pathfinder

AUTOMATIC DRIVE POSITIONER

ADP-131

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

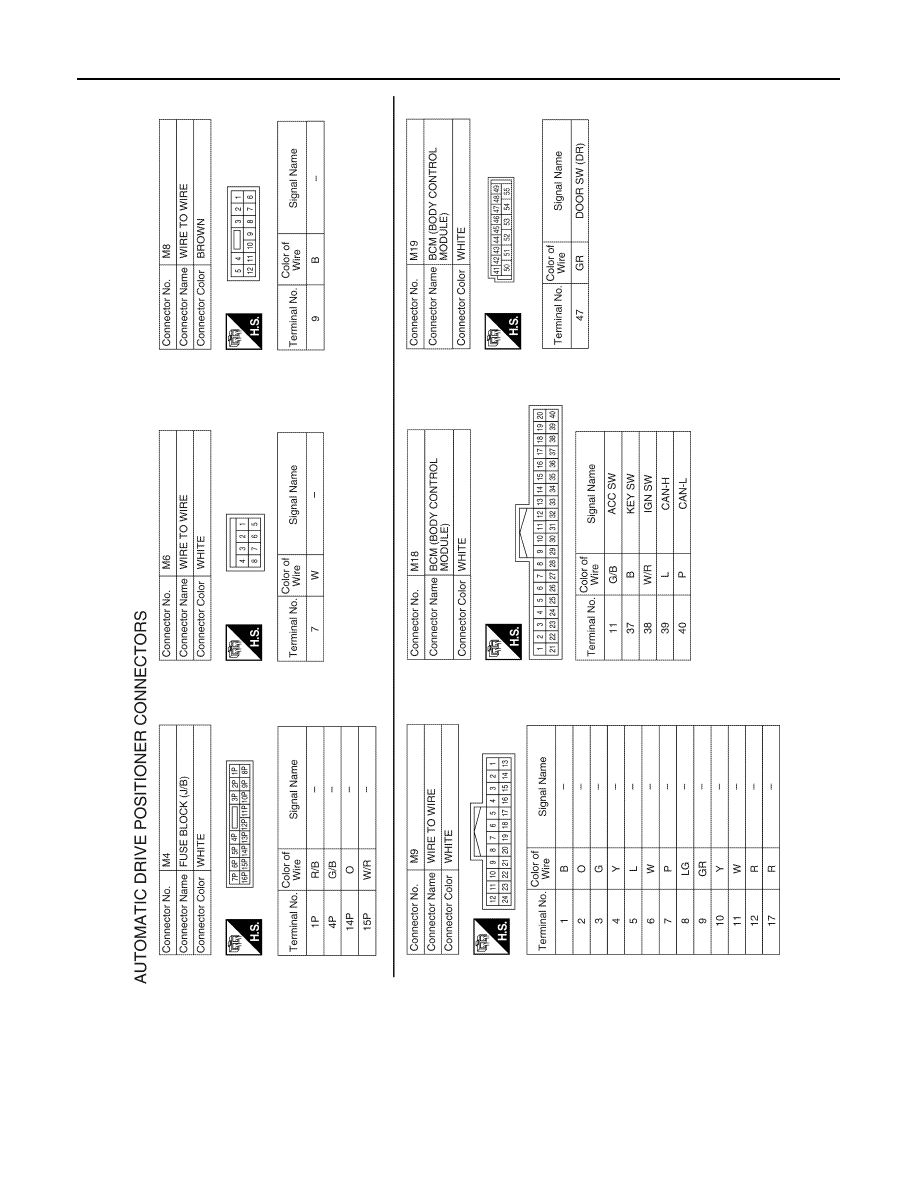

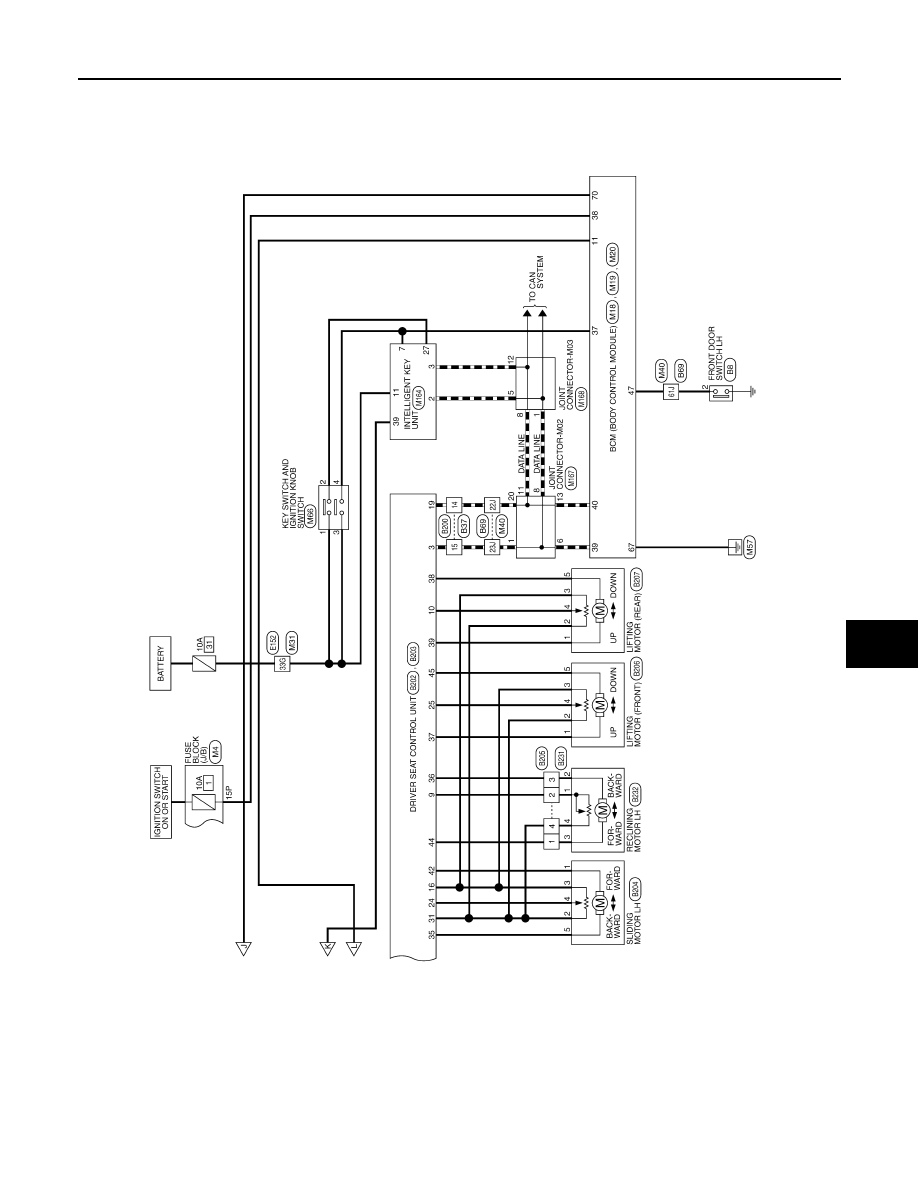

ABJWA0254GB

August 2012

2012 Pathfinder

ADP-132

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

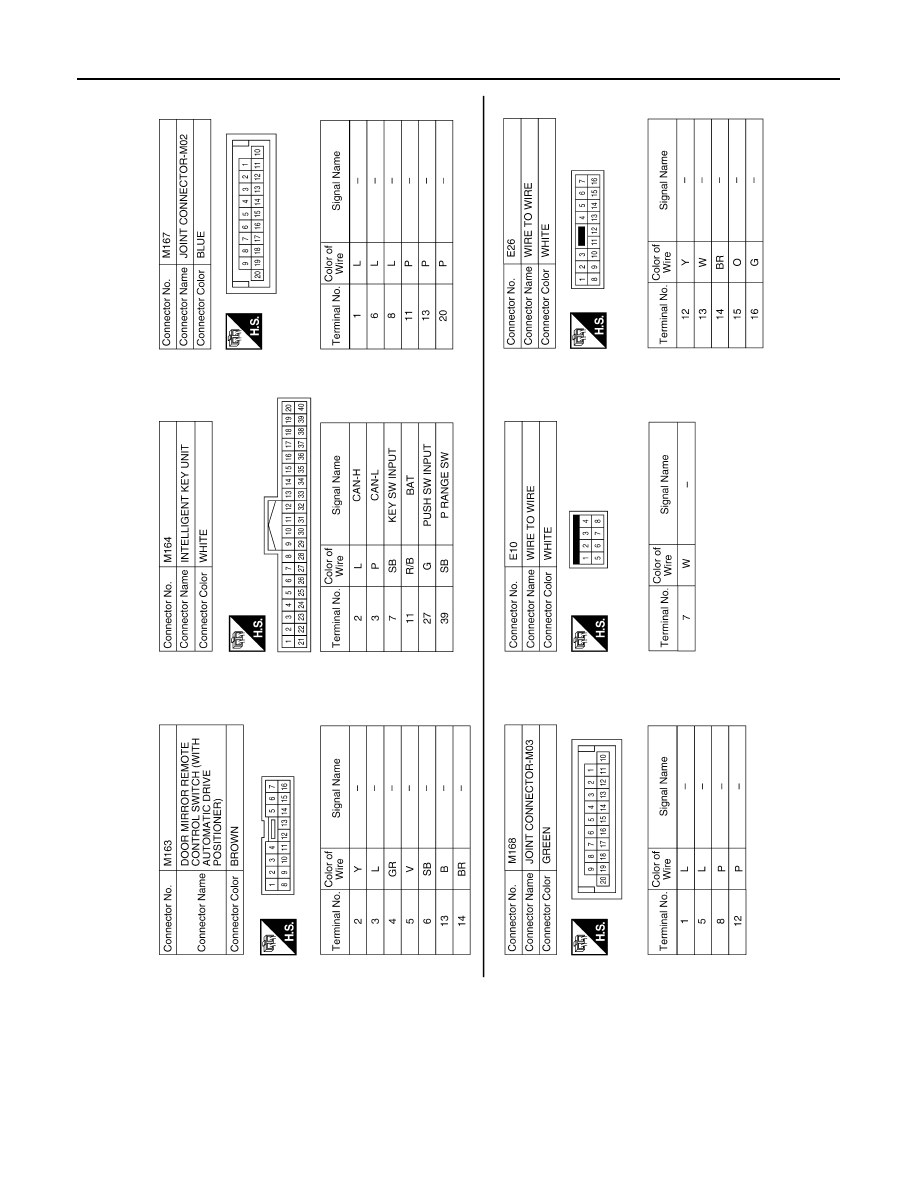

ABJIA0370GB

August 2012

2012 Pathfinder

AUTOMATIC DRIVE POSITIONER

ADP-133

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

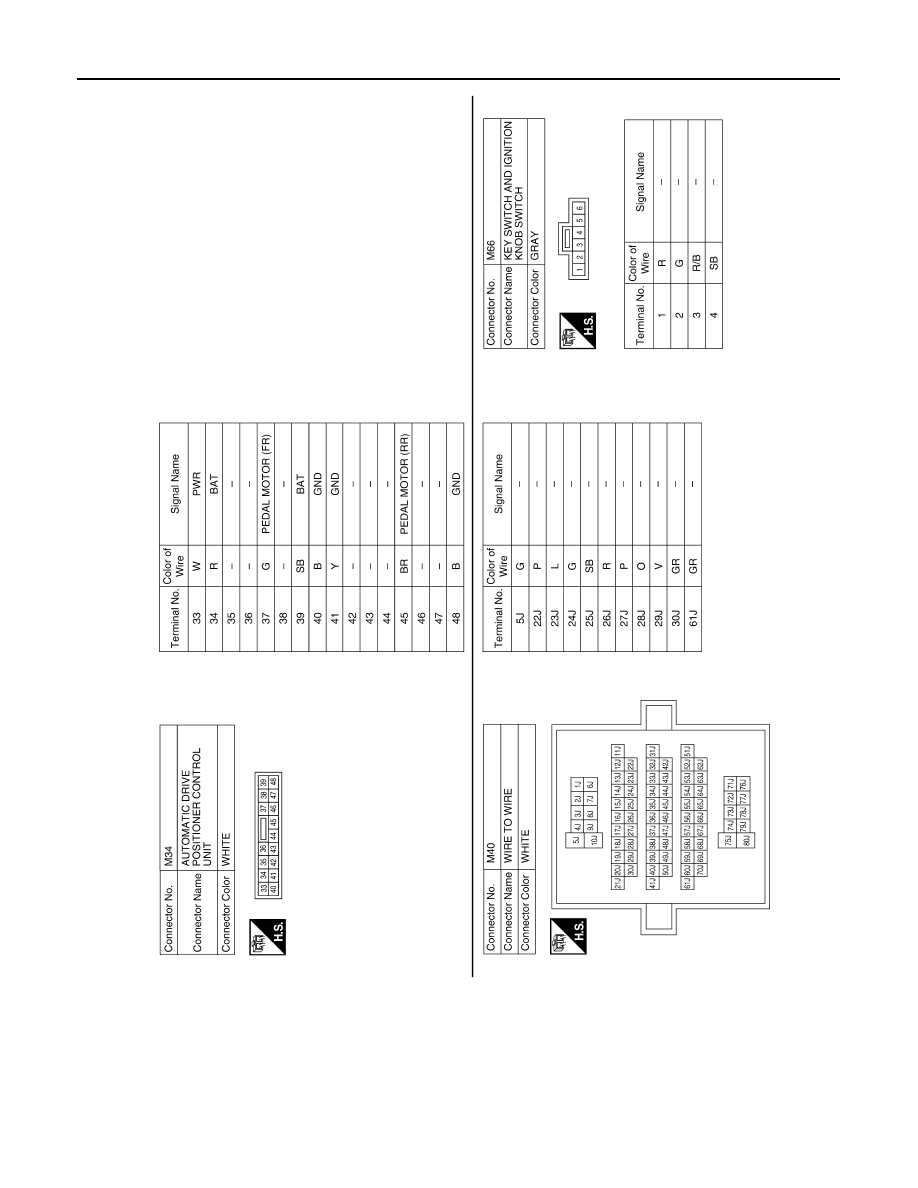

ABJIA0160GB

August 2012

2012 Pathfinder

ADP-134

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0013GB

August 2012

2012 Pathfinder

AUTOMATIC DRIVE POSITIONER

ADP-135

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

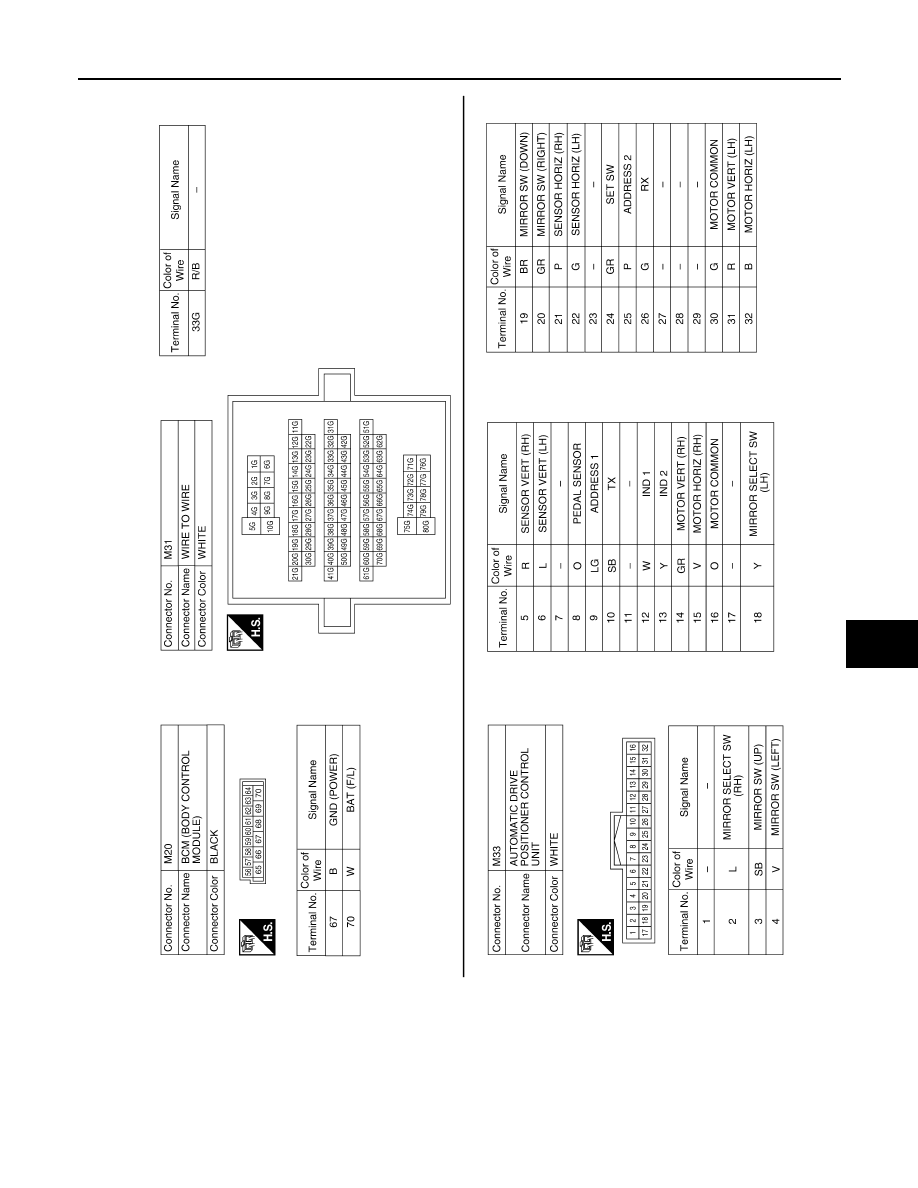

ABJIA0568GB

August 2012

2012 Pathfinder

ADP-136

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0569GB

August 2012

2012 Pathfinder
