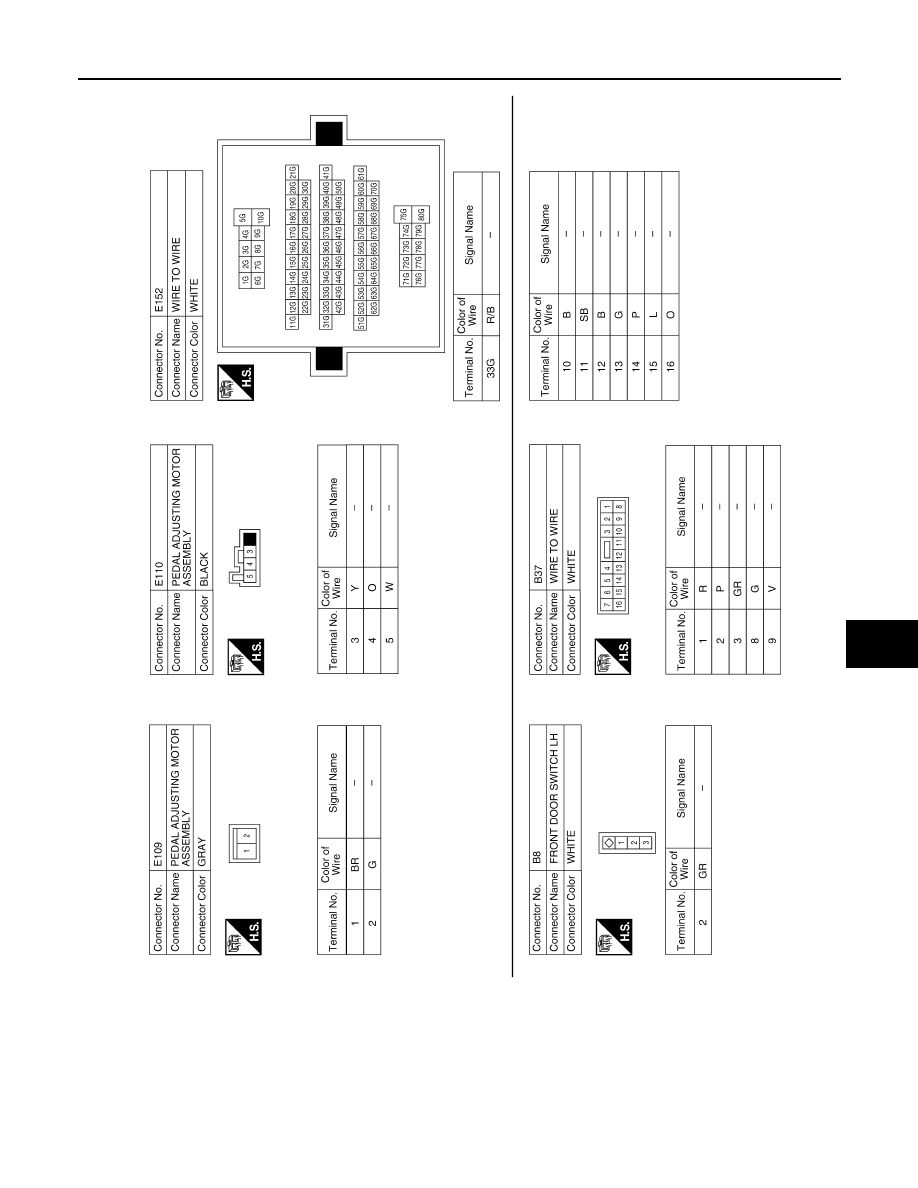

AUTOMATIC DRIVE POSITIONER

ADP-137

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0570GB

August 2012

2012 Pathfinder

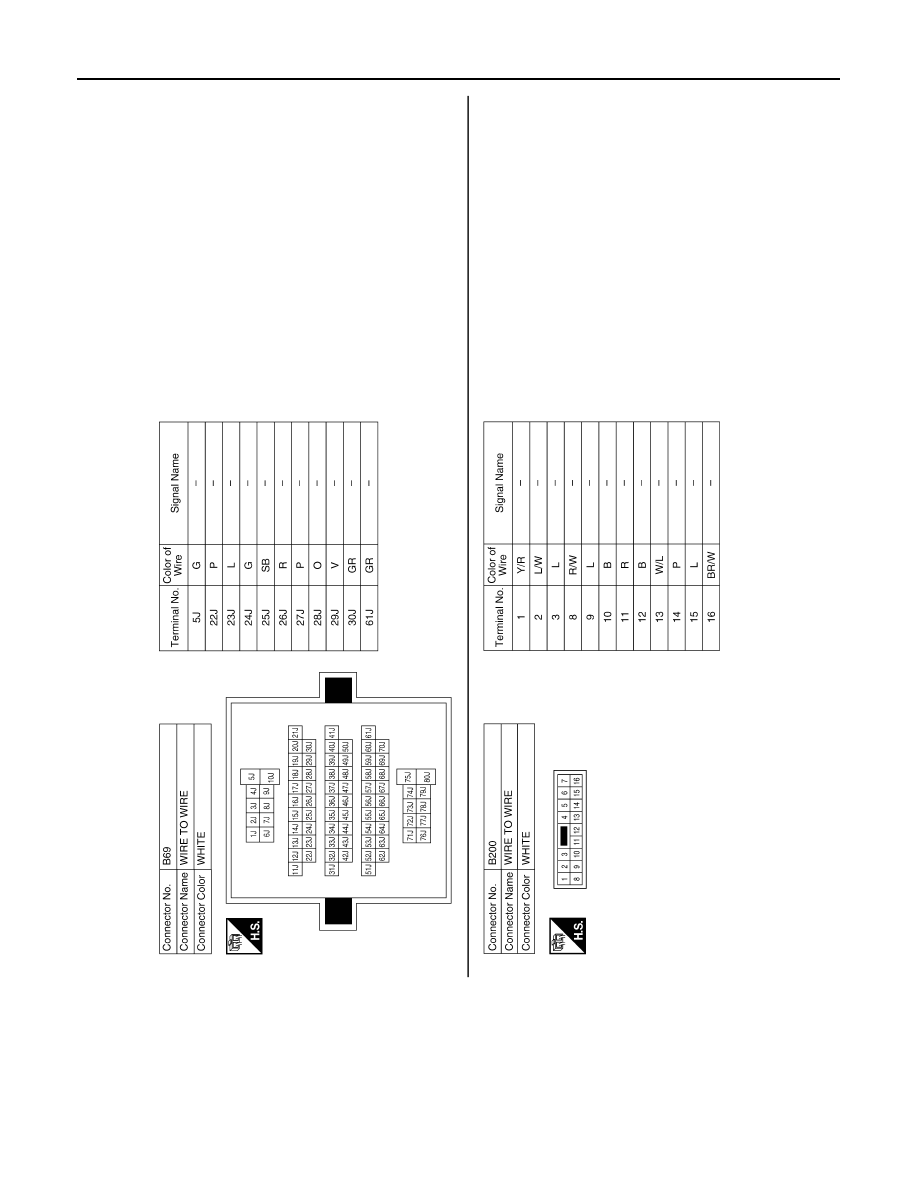

ADP-138

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0571GB

August 2012

2012 Pathfinder

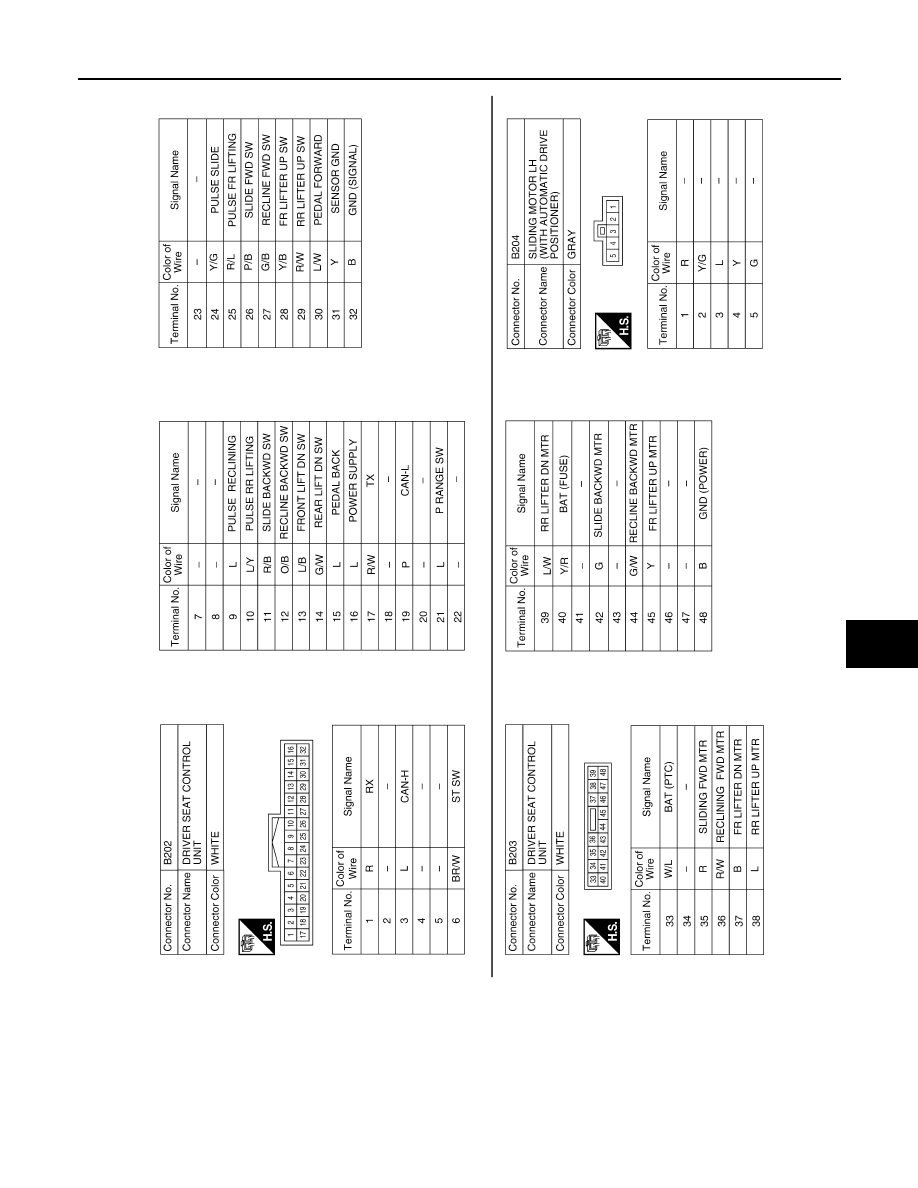

AUTOMATIC DRIVE POSITIONER

ADP-139

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0572GB

August 2012

2012 Pathfinder

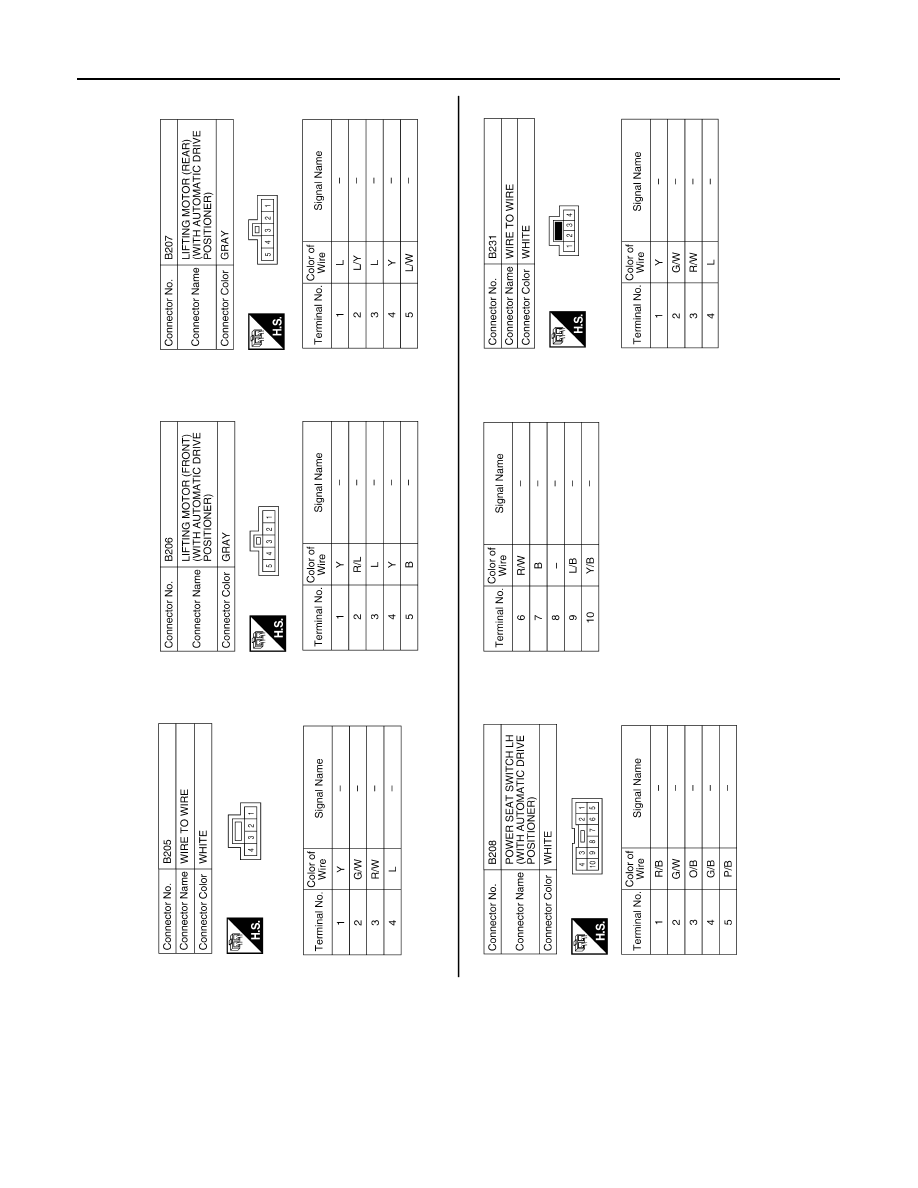

ADP-140

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0573GB

August 2012

2012 Pathfinder

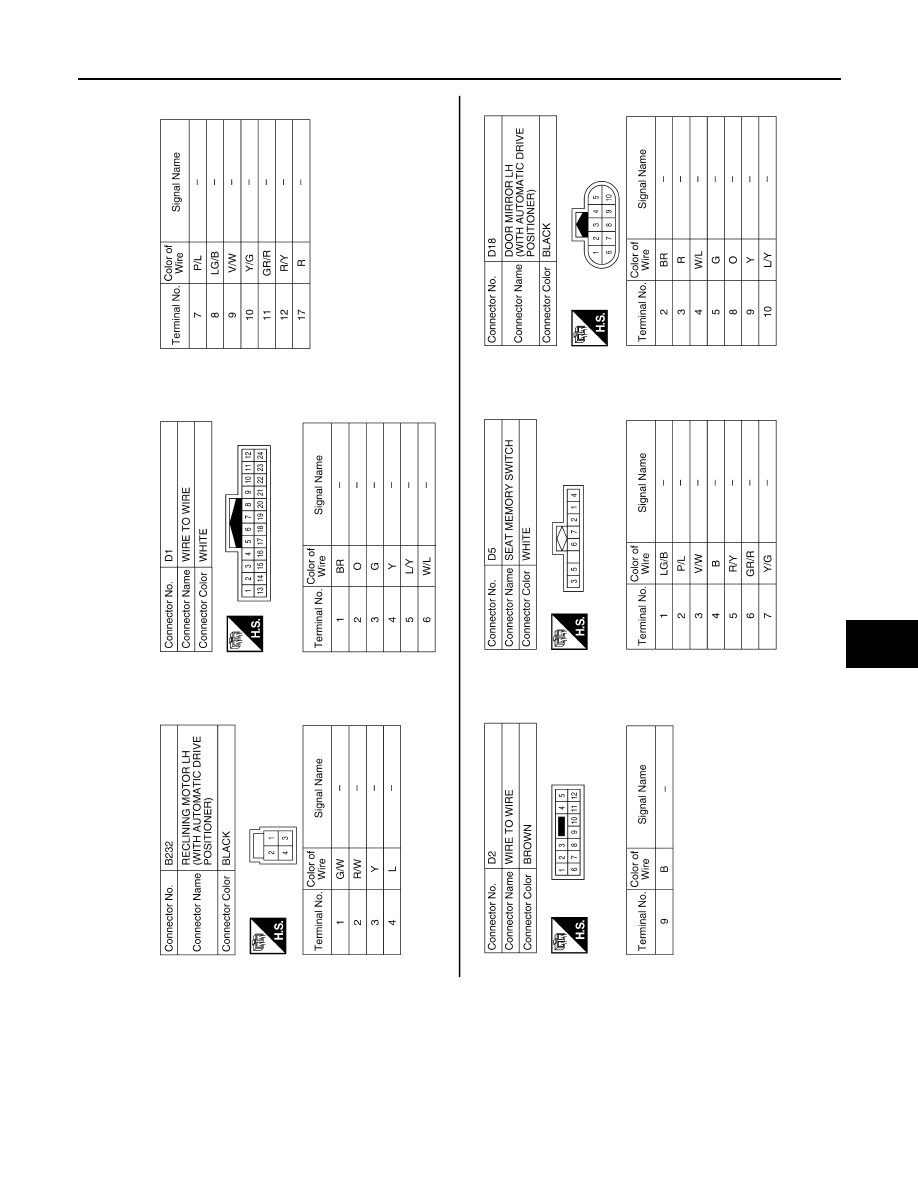

AUTOMATIC DRIVE POSITIONER

ADP-141

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ABJIA0574GB

August 2012

2012 Pathfinder

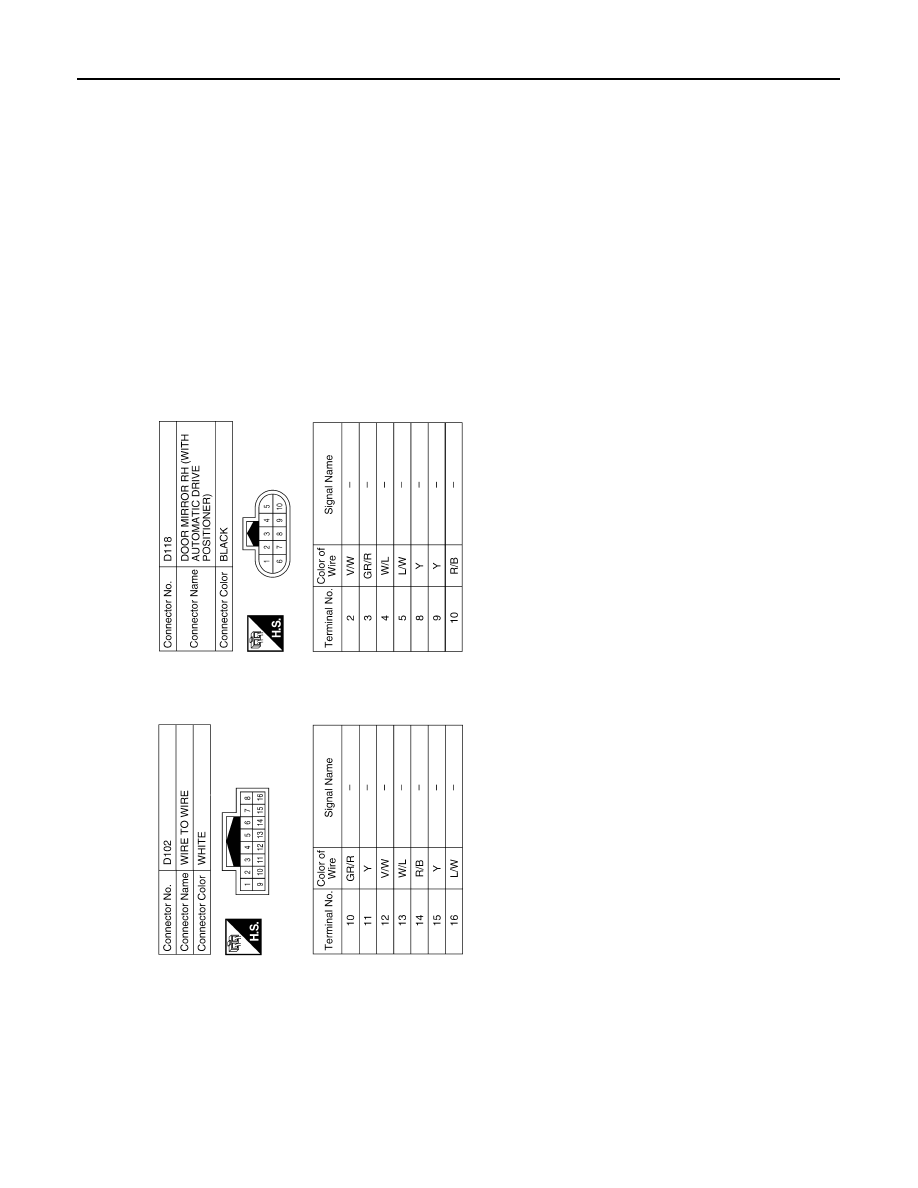

ADP-142

< WIRING DIAGRAM >

AUTOMATIC DRIVE POSITIONER

ABJIA0575GB

August 2012

2012 Pathfinder

ADP SYSTEM SYMPTOMS

ADP-143

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SYMPTOM DIAGNOSIS

ADP SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000007356233

NOTE:

 Always perform the “Basic Inspection” before performing diagnosis in the following table. Refer to

ADP-7,

"Work Flow"

.

SYMPTOM 1

SYMPTOM 2

SYMPTOM 3

SYMPTOM 4

Symptom

Diagnosis procedure

Reference

page

Manual functions (for specific part) do
not operate

Sliding operation

Check sliding switch.

ADP-51

Reclining operation

Check reclining switch.

ADP-54

Lifting operation (front)

Check lifting switch (front).

ADP-57

Lifting operation (rear)

Check lifting switch (rear).

ADP-60

Pedal operation

1. Check pedal adjusting switch.

ADP-63

2. Check pedal adjusting sensor.

ADP-87

Door mirror operation

1. Changeover switch.

ADP-68

2. Mirror switch

ADP-70

All parts of seat

Check power seat switch ground cir-
cuit.

ADP-74

Symptom

Diagnosis procedure

Reference

page

Memory functions (for specific part) do
not operate

Sliding operation

Check sliding sensor.

ADP-79

Reclining operation

Check reclining sensor.

ADP-81

Lifting operation (front)

Check lifting sensor (front).

ADP-83

Lifting operation (rear)

Check lifting sensor (rear).

ADP-85

Pedal operation

Check pedal adjusting sensor.

ADP-87

Door mirror operation

Check door mirror sensor.

Driver side:

ADP-89

Passenger

side:

ADP-91

Symptom

Diagnosis procedure

Reference

page

Memory functions and manual func-
tions (for specific part) do not operate

Sliding operation

Check sliding motor.

ADP-93

Reclining operation

Check reclining motor.

ADP-95

Lifting operation (front)

Check lifting motor (front).

ADP-97

Lifting operation (rear)

Check lifting motor (rear).

ADP-99

Pedal operation

Check pedal adjusting motor.

ADP-101

Door mirror operation

Check door mirror motor.

ADP-103

August 2012

2012 Pathfinder

ADP-144

< SYMPTOM DIAGNOSIS >

ADP SYSTEM SYMPTOMS

SYMPTOM 5

SYMPTOM 6

Symptom

Diagnosis procedure

Reference

page

Entry/Exit assist function does not operate.

1. Check system setting.

ADP-22

2. Perform initialization.

ADP-23

3. Check front door switch (driver side).

ADP-77

Intelligent Key interlock function does not operate.
(Other automatic operations and Intelligent Key system
are normal)

1. Check door lock function.

DLK-22

2. Perform memory storing.

ADP-12

Symptom

Diagnosis procedure

Reference

page

Memory indicators 1 and/or 2 do not illuminate.

1. Check seat memory switch.

ADP-66

2. Check seat memory indicator.

ADP-106

Symptom

Diagnosis procedure

Reference

page

Memory operation does not operate.

Check A/T shift selector (park position switch).

ADP-75
