ASSEMBLY

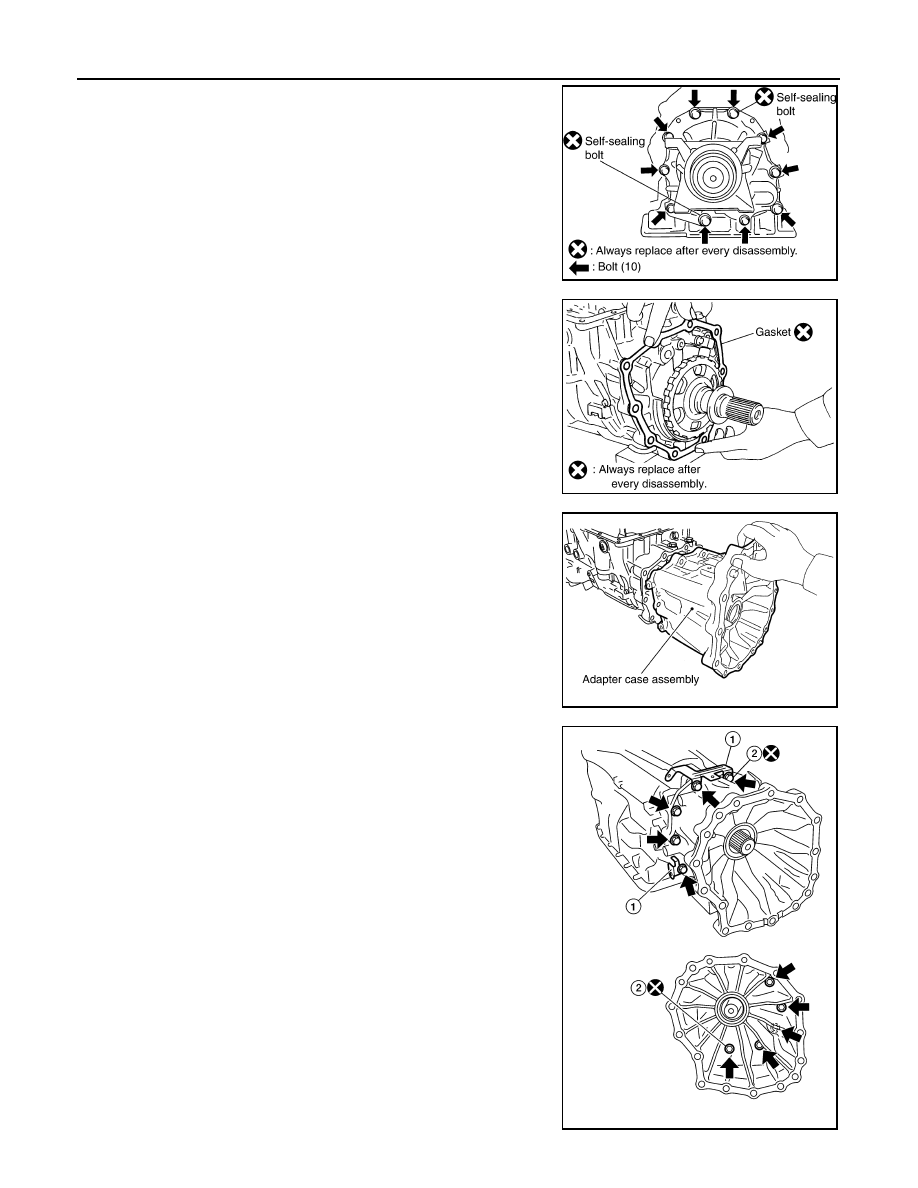

iii. Install rear extension assembly bolts and tighten to the specified

torque.

CAUTION:

Do not reuse self-sealing bolt.

b.

4WD models

i.

Install gasket onto transmission case.

CAUTION:

• Completely remove all moisture, oil, old gasket and any

foreign material from the transmission case and adapter

case assembly mating surfaces.

• Do not reuse gasket.

ii.

Install adapter case assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and

the parking actuator support when assembling the rear

extension assembly.

iii. Install brackets (1) (lower bracket VK56DE only).
iv. Tighten adapter case assembly bolts to specified torque.

CAUTION:

Do not reuse self-sealing bolts (2).

Rear extension
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt

: 61 N·m (6.2 kg-m, 45 ft-lb)

SCIA6941E

SCIA5231E

SCIA5186E

Adapter case
assembly bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt : 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0563E

2010 Pathfinder

ASSEMBLY

TM-265

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

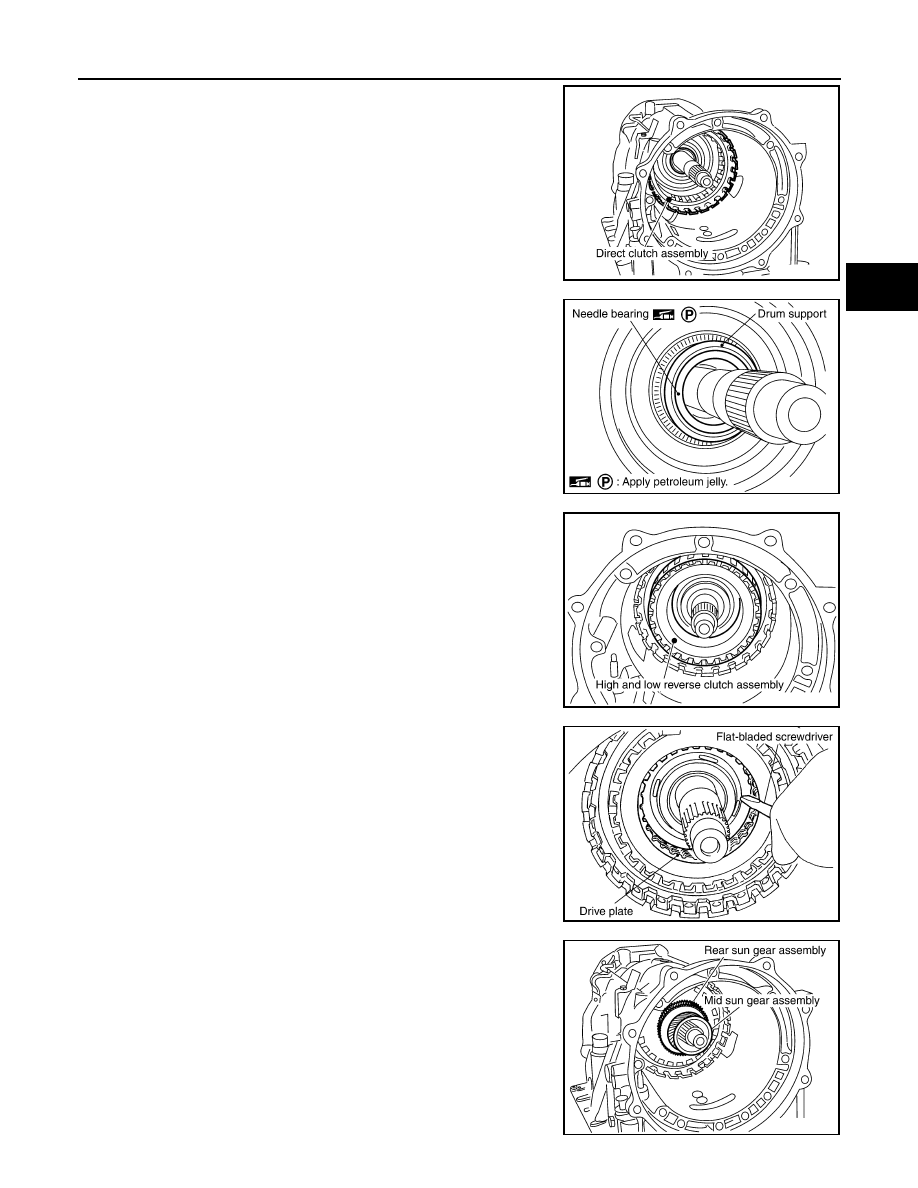

35. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch

inner boss edge surface come to almost same place.

36. Install needle bearing in drum support.

CAUTION:

Apply petroleum jelly to needle bearing.

37. Install high and low reverse clutch assembly in direct clutch.

38. Align the drive plate using suitable tool.

39. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5019E

SCIA5198E

SCIA2306E

SCIA3169E

SCIA5018E

2010 Pathfinder

TM-266

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

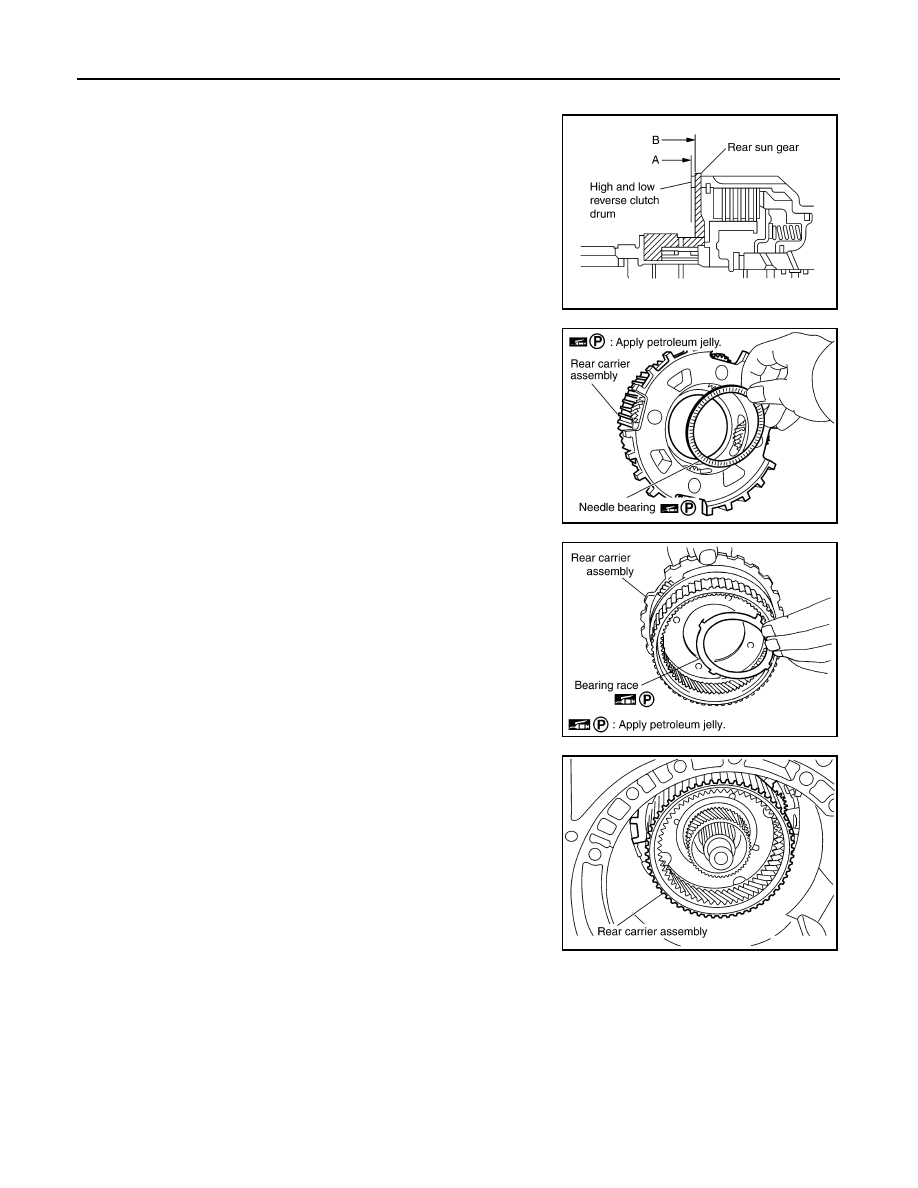

CAUTION:

Make sure that portion “A” of high and low reverse clutch

drum protrudes approximately 2 mm (0.08 in) beyond por-

tion “B” of rear sun gear.

40. Install needle bearing in rear carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

41. Install bearing race in rear carrier assembly.

CAUTION:

Apply petroleum jelly to bearing race.

42. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

2010 Pathfinder

ASSEMBLY

TM-267

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

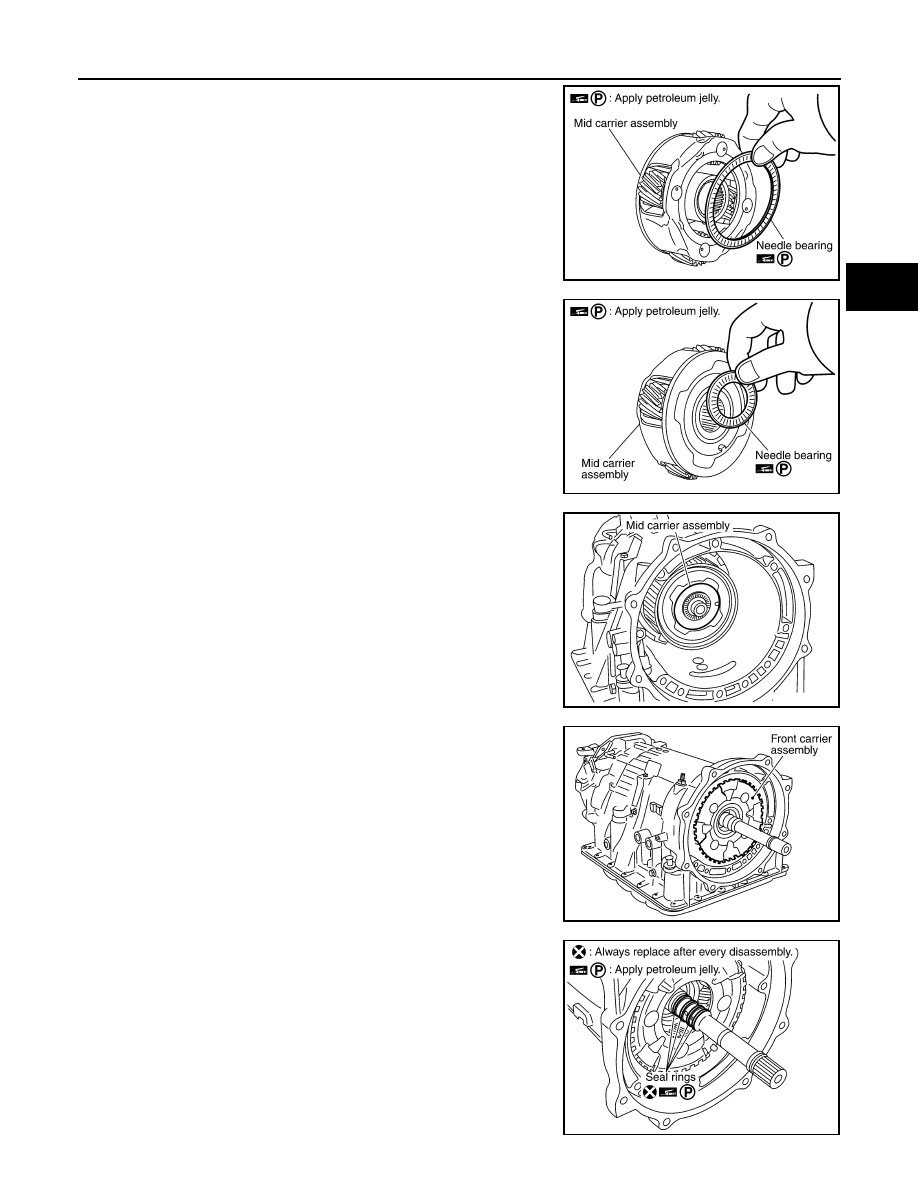

43. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

44. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Apply petroleum jelly to needle bearing.

45. Install mid carrier assembly in rear carrier assembly.

46. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

47. Install seal rings in input clutch assembly.

CAUTION:

• Do not reuse seal rings.

• Apply petroleum jelly to seal rings.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E

2010 Pathfinder

TM-268

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

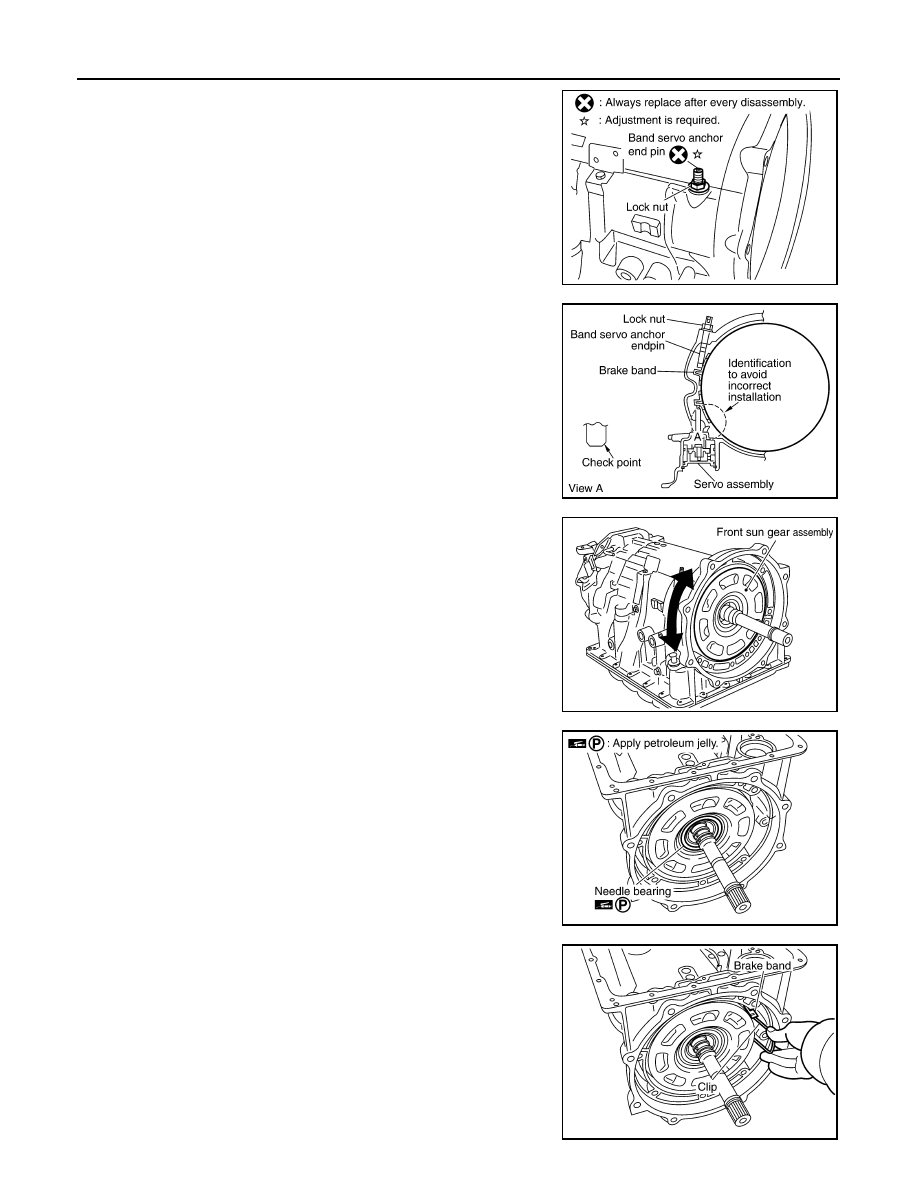

48. Install band servo anchor end pin and lock nut in transmission

case.

CAUTION:

Do not reuse band servo anchor end pin.

49. Install brake band in transmission case.

CAUTION:

Install it so that the identification to avoid incorrect installa-

tion faces the servo side.

50. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch

end bearing.

51. Install needle bearing to front sun gear.

CAUTION:

Apply petroleum jelly to needle bearing.

52. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E

2010 Pathfinder

ASSEMBLY

TM-269

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

53. Adjust brake band.
a. Loosen lock nut.
b. Tighten band servo anchor end pin to specified torque.

c. Back off band servo anchor end pin three turns.
d. Holding band servo anchor end pin, tighten lock nut to specified

torque.

Adjustment

INFOID:0000000005258214

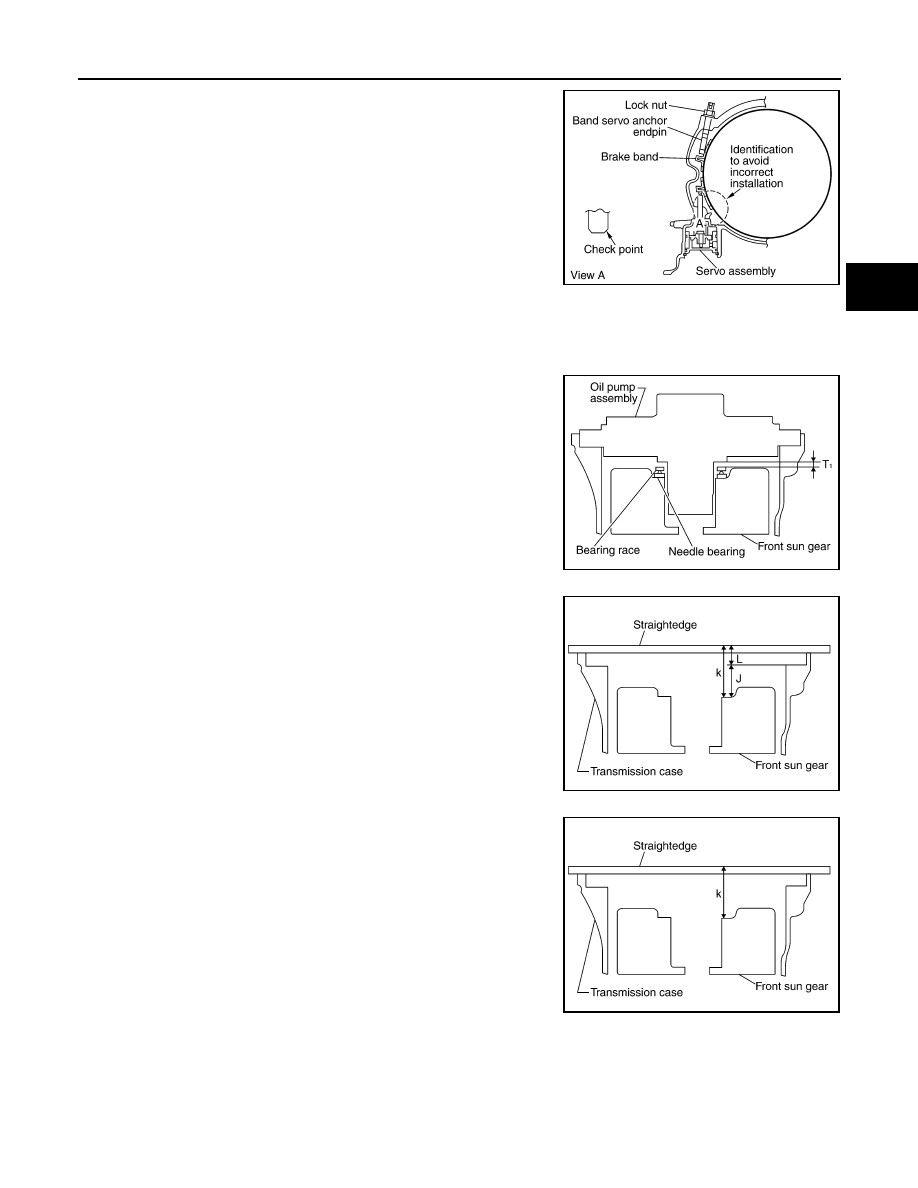

TOTAL END PLAY

• Measure clearance between front sun gear and bearing race for oil

pump cover.

• Select proper thickness of bearing race so that end play is within

specifications.

1. Measure dimensions “K” and “L” and then calculate dimension

“J”.

a. Measure dimension “K”.

Anchor end pin

: 5.0 N·m (0.51 kg-m, 44 in-lb)

Lock nut

: 46 N·m (4.7 kg-m, 34 ft-lb)

SCIA5498E

SCIA2810E

SCIA5350E

SCIA5351E

2010 Pathfinder

TM-270

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

b. Measure dimension “L”.
c.

Calculate dimension “J”.

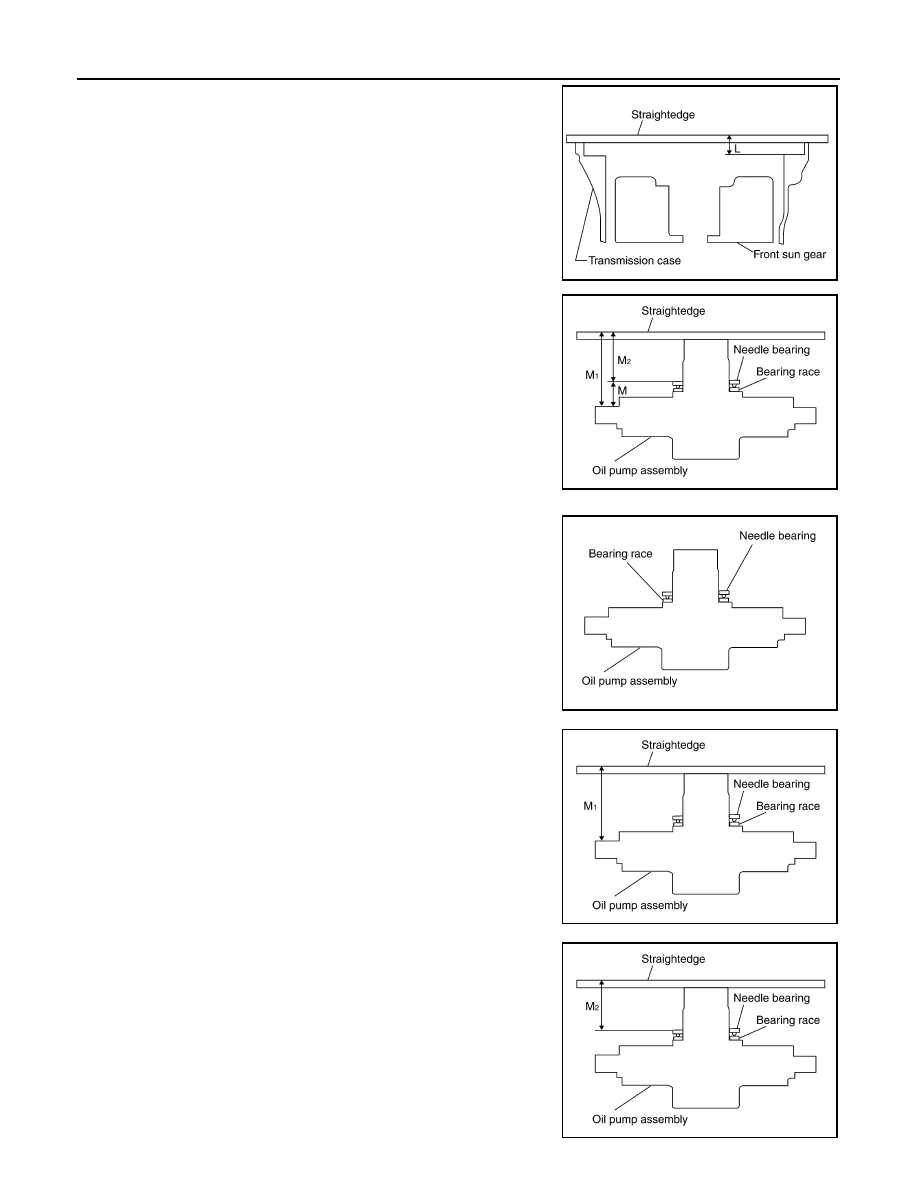

2. Measure dimensions “M

1

” and “M

2

” and then calculate dimen-

sion “M”.

a. Place bearing race and needle bearing on oil pump assembly.

b. Measure dimension “M

1

”.

c.

Measure dimension “M

2

”.

“J”: Distance between oil pump fitting surface of
transmission case and needle bearing mating surface
of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E

2010 Pathfinder

ASSEMBLY

TM-271

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

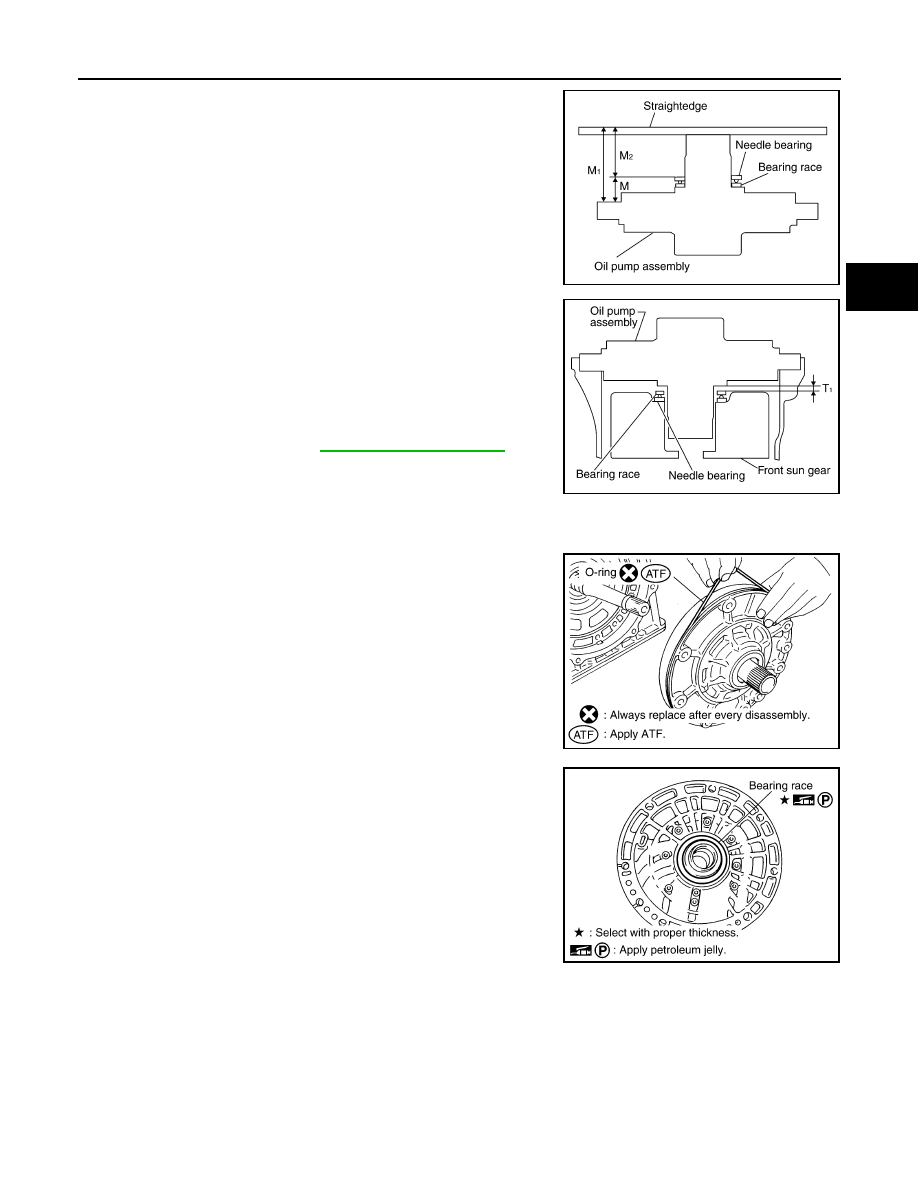

d. Calculate dimension “M”.

3. Adjust total end play “T

1

”.

• Select proper thickness of bearing race so that total end play

is within specifications.

Assembly (2)

INFOID:0000000005258215

1. Install O-ring to oil pump assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

2. Install bearing race to oil pump assembly.

CAUTION:

Apply petroleum jelly to bearing race.

“M”: Distance between transmission case fitting sur-
face of oil pump and needle bearing on oil pump.

M = M

1

 – M

2

SCIA3125E

T

1

 = J – M

Total end play “T

1

” : 0.25 - 0.55 mm (0.0098 - 0.0217 in)

Bearing races :Refer to

TM-281, "Total End Play"

.

SCIA2810E

SCIA5172E

SCIA6529E
