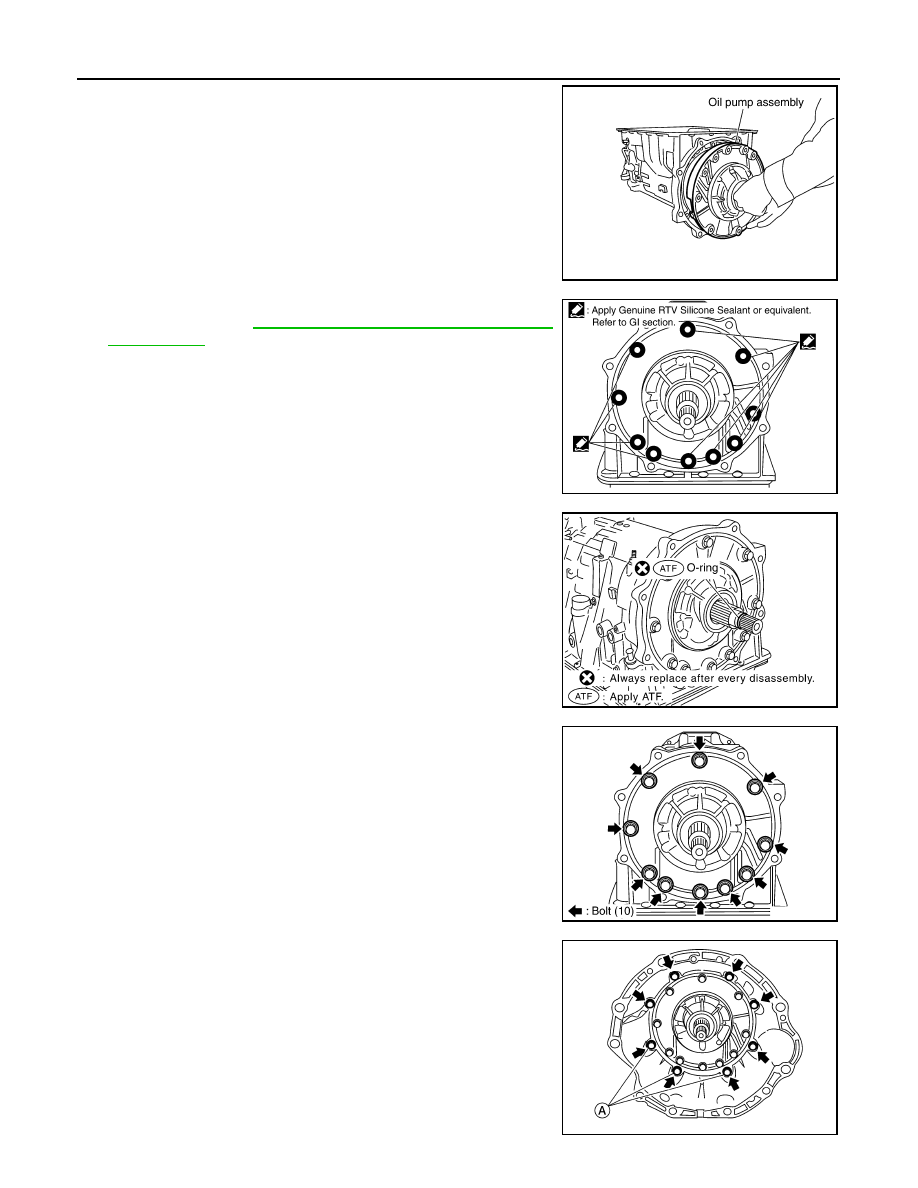

3. Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

4. Apply recommended sealant (Genuine RTV Silicone Sealant or

equivalent. Refer to

GI-14, "Recommended Chemical Products

and Sealants"

.) to oil pump assembly as shown.

CAUTION:

Completely remove all moisture, oil, old sealant and any

foreign material from the oil pump bolts and oil pump bolt

mating surfaces.

5. Install O-ring to input clutch assembly.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

6. Tighten oil pump bolts to specified torque.

CAUTION:

Apply ATF to oil pump bushing.

7. Install converter housing to transmission case and tighten bolts

to specified torque.

CAUTION:

Do not reuse self-sealing bolt (A).

SCIA2811E

SCIA5321E

SCIA5011E

Oil pump bolts

: 48 N·m (4.9 kg-m, 35 ft-lb)

SCIA2300E

Converter housing bolt

: 52 N·m (5.3 kg-m, 38 ft-lb)

Self-sealing bolt (A)

: 61 N·m (6.2 kg-m, 45 ft-lb)

WCIA0662E

2010 Pathfinder

ASSEMBLY

TM-273

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

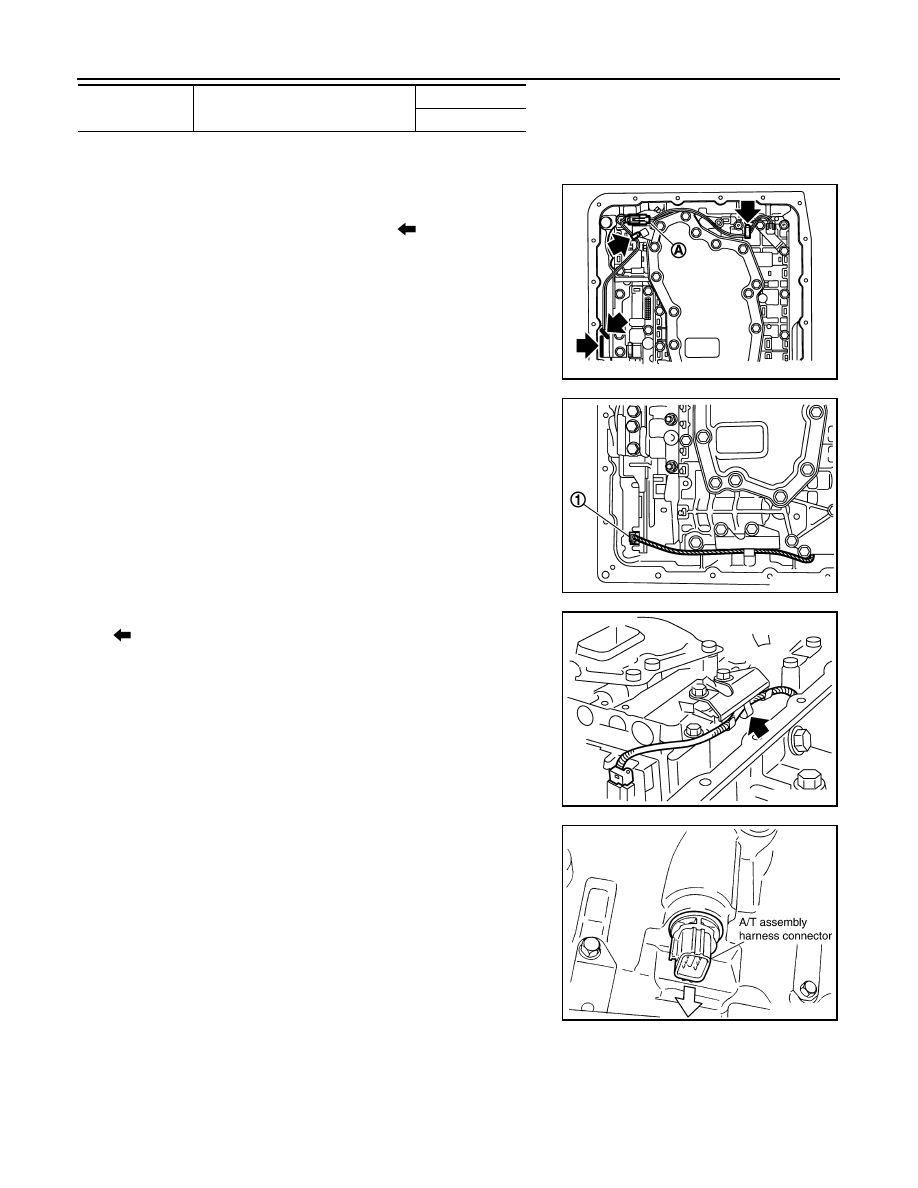

8. Make sure that brake band (1) does not close input speed sen-

sor hole (A).

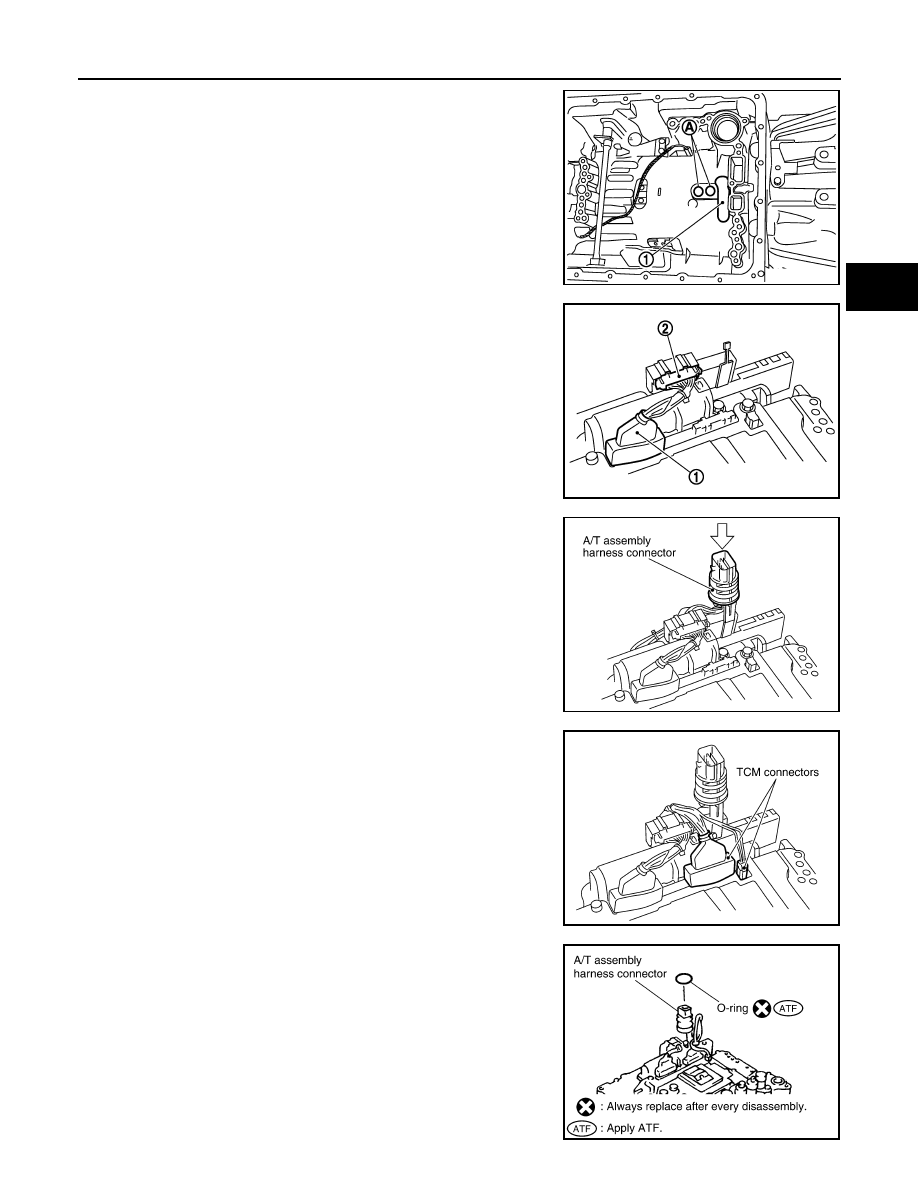

9. Connect TCM connector (1) and transmission range switch con-

nector (2).

10. Install A/T assembly harness connector to control valve with

TCM.

11. Connect TCM connectors.

12. Install O-ring to A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

JSDIA1318ZZ

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

2010 Pathfinder

TM-274

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

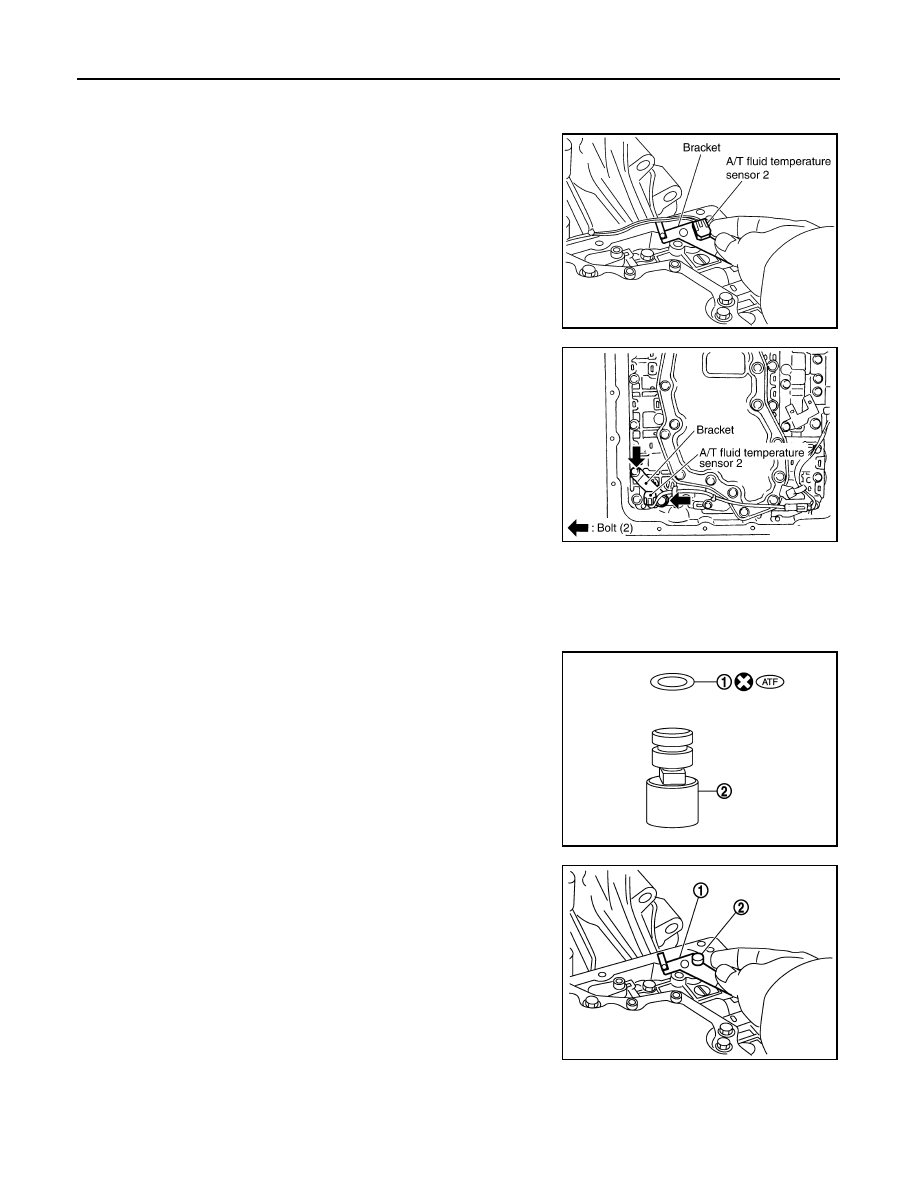

13. Install the A/T fluid temperature sensor 2 or plug as shown below.
a.

A/T fluid temperature sensor 2

i.

Install A/T fluid temperature sensor 2 to bracket.

ii.

Install A/T fluid temperature sensor 2 (with bracket) to control

valve with TCM and tighten bolt to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

b.

Plug

NOTE:

• When replacing the A/T fluid temperature sensor 2 with the plug, the A/T fluid temperature sensor 2 con-

nector should not be connected.

• Fold the terminal clips.

i.

Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

ii.

Install plug (2) to bracket (1).

SCIA5264E

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5253E

JSDIA1313ZZ

JSDIA1312ZZ

2010 Pathfinder

ASSEMBLY

TM-275

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

iii. Install plug (1) [with bracket (2)] to control valve with TCM and

tighten bolt (

) to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

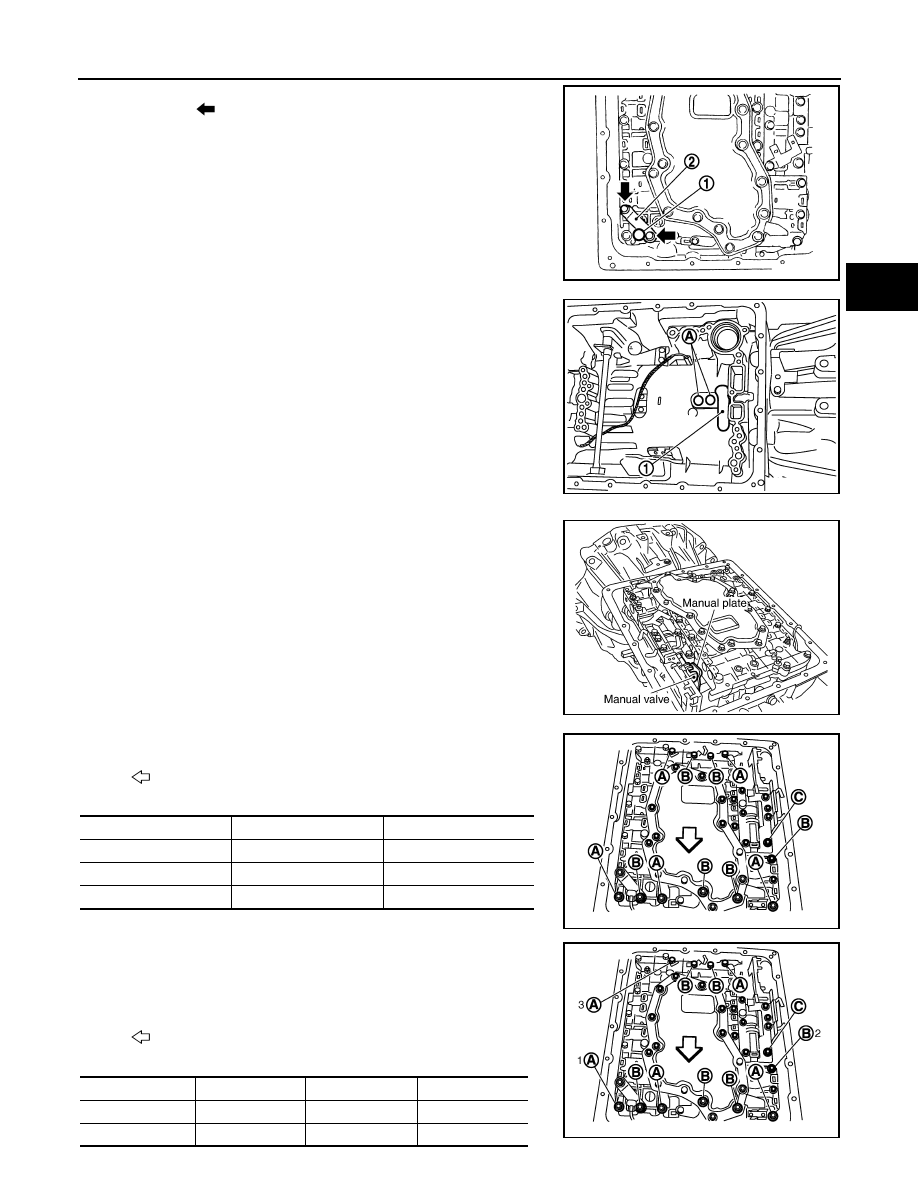

14. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

15. Install bolts (A), (B) and (C) to control valve with TCM.

16. Tighten bolt (1), (2) and (3) temporarily to prevent dislocation.

After that tighten them in order (A

→

 B

→

 C), and then tighten

other bolts. Tighten control valve with TCM bolts to the specified

torque.

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

JSDIA1311ZZ

1

: Brake band

JSDIA1318ZZ

SCIA5035E

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

SCIA8078E

2010 Pathfinder

TM-276

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

17. After installing the A/T fluid temperature sensor 2, connect the A/T fluid temperature sensor 2 connector

as shown below.

a. Connect A/T fluid temperature sensor 2 connector (A).
b. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips (

).

18. Connect output speed sensor connector (1).

19. Securely fasten output speed sensor harness with terminal clip

(

).

20. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8124E

JSDIA1319ZZ

JSDIA1320ZZ

SCIA5299E

2010 Pathfinder

ASSEMBLY

TM-277

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

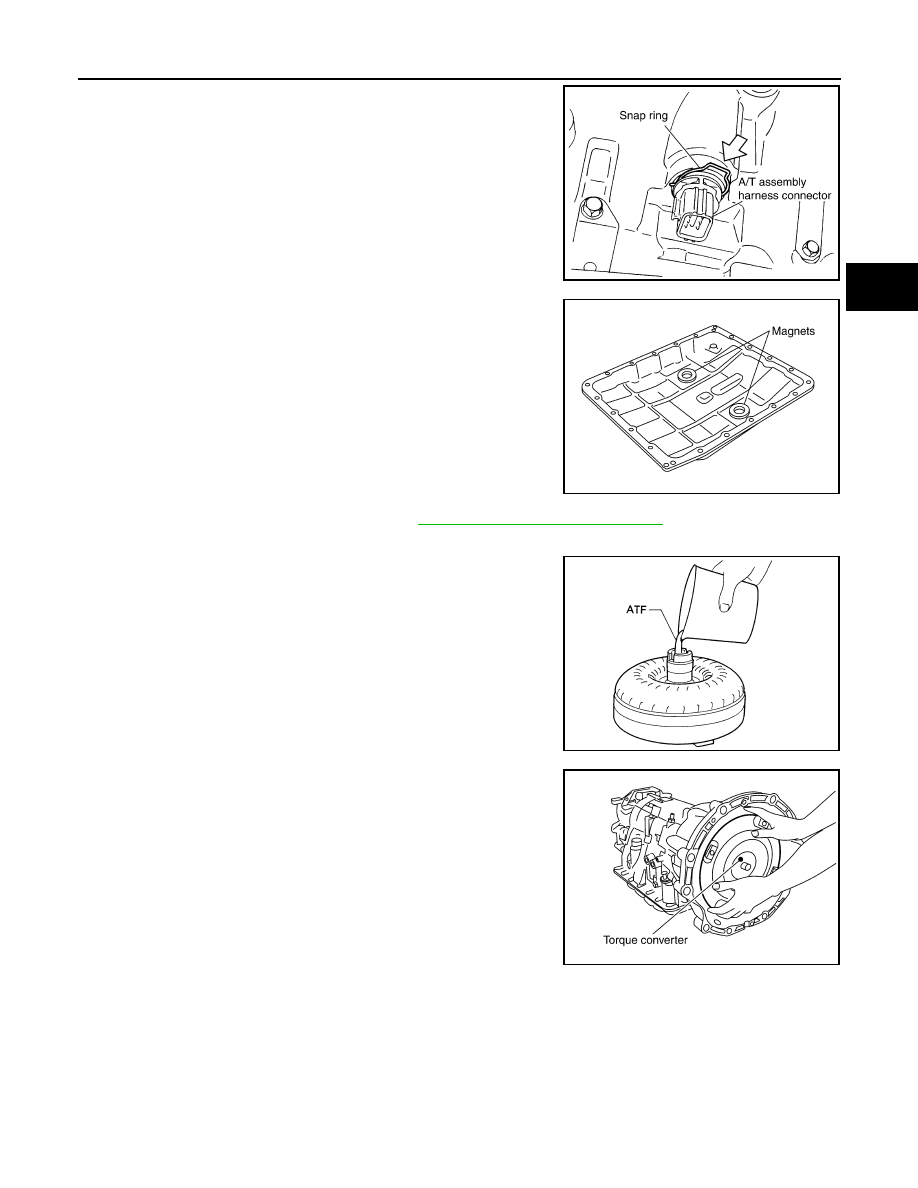

21. Install snap ring to A/T assembly harness connector.

22. Install magnets in oil pan.

23. Install oil pan to transmission case. Refer to

TM-172, "Removal and Installation"

.

24. Install torque converter.
a. Pour ATF into torque converter.

NOTE:

• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

b. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA5300E

SCIA5200E

SAT428DA

SCIA5010E

2010 Pathfinder

TM-278

< DISASSEMBLY AND ASSEMBLY >

ASSEMBLY

c.

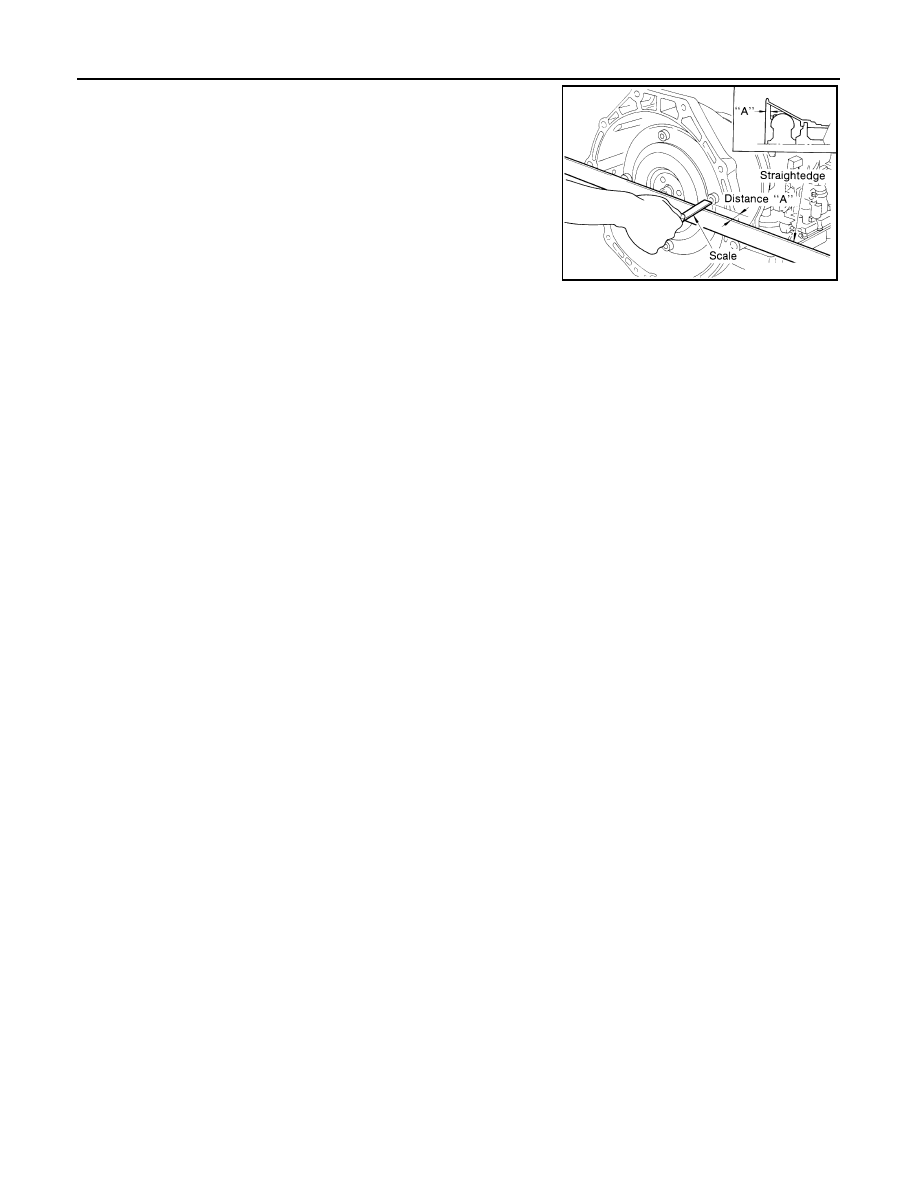

Measure distance "A" to make sure that torque converter is in

proper position.

Distance “A"
VQ40DE models

: 25.0 mm (0.98 in) or more

VK56DE models

: 24.0 mm (0.94 in) or more

SCIA5694E

2010 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-279

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)
