TM-40

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

HLR/C SOL (A)

—

ON OFF SOL (ON-OFF display)

—

LC/B solenoid

TCC SOL MON (A)

—

L/P SOL MON (A)

—

I/C SOL MON (A)

—

FR/B SOL MON (A)

—

D/C SOL MON (A)

—

HLR/C SOL MON (A)

—

ONOFF SOL MON (ON-OFF display)

—

LC/B solenoid

P POSI IND (ON-OFF display)

—

R POSI IND (ON-OFF display)

—

N POSI IND (ON-OFF display)

—

D POSI IND (ON-OFF display)

—

4TH POSI IND (ON-OFF display)

—

3RD POSI IND (ON-OFF display)

—

2ND POSI IND (ON-OFF display)

—

1ST POSI IND (ON-OFF display)

—

MANU MODE IND (ON-OFF display)

—

POWER M LAMP (ON-OFF display)

—

F-SAFE IND/L (ON-OFF display)

—

ATF WARN LAMP (ON-OFF display)

—

BACK-UP LAMP (ON-OFF display)

—

STARTER RELAY (ON-OFF display)

—

RANGE SW3 MON (ON-OFF display)

—

C/V CLB ID1

—

C/V CLB ID2

—

C/V CLB ID3

—

UNIT CLB ID1

—

UNIT CLB ID2

—

UNIT CLB ID3

—

TRGT GR RATIO

—

TRGT PRES TCC (kPa, kg/cm

or psi)

—

TRGT PRES L/P (kPa, kg/cm

or psi)

—

TRGT PRES I/C (kPa, kg/cm

or psi)

—

TRGT PRE FR/B (kPa, kg/cm

or psi)

—

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

2010 Pathfinder

DIAGNOSIS SYSTEM (TCM)

TM-41

< FUNCTION DIAGNOSIS >

DTC & SRT CONFIRMATION

DTC Work Support Mode

Diagnosis Procedure without CONSULT-III

INFOID:0000000005257968

OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)

Refer to

EC-86, "Generic Scan Tool (GST) Function"

(VQ40DE) or

EC-564, "Generic Scan Tool (GST) Func-

tion"

(VK56DE).

OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

Refer to

TM-35, "Malfunction Indicator Lamp (MIL)"

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) — WITH MANUAL MODE

Description

TRGT PRES D/C (kPa, kg/cm

or psi)

—

TRG PRE HLR/C (kPa, kg/cm

or psi)

—

SHIFT PATTERN

—

DRV CST JUDGE

—

START RLY MON

—

NEXT GR POSI

—

SHIFT MODE

—

MANU GR POSI

—

VEHICLE SPEED (km/h or mph)

—

Vehicle speed recognized by the TCM.

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU IN-

PUT SIG-

NALS

MAIN SIG-

NALS

SELEC-

TION

FROM
MENU

DTC work support item

Description

Check item

1ST GR FNCTN P0731

Following items for “1GR incorrect ratio” can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

• Input clutch solenoid valve
• Front brake solenoid valve
• Direct clutch solenoid valve
• High and low reverse clutch

solenoid valve

• Each clutch and brake
• Hydraulic control circuit

2ND GR FNCTN P0732

Following items for “2GR incorrect ratio” can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

3RD GR FNCTN P0733

Following items for “3GR incorrect ratio” can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

4TH GR FNCTN P0734

Following items for “4GR incorrect ratio” can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

5TH GR FNCTN P0735

Following items for “5GR incorrect ratio” can be confirmed.
• Self-diagnosis status (whether the diagnosis is being performed

or not)

• Self-diagnostic results (OK or NG)

2010 Pathfinder

TM-42

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

When the ignition switch is switched “ON”, the A/T CHECK indicator lamp lights up for 2 seconds. As a method

for locating the suspect circuit, when the self-diagnostics start signal is input, the memory for the malfunction

location is output and the A/T CHECK indicator lamp flashes to display the corresponding DTC.

Diagnostic Procedure

CHECK A/T CHECK INDICATOR LAMP

1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.

2. Turn ignition switch ON and OFF at least twice, then leave it in the OFF position.

3. Wait 10 seconds.

4. Turn ignition switch ON. (Do not start engine.)
Does A/T CHECK indicator lamp come on for about 2 seconds?

YES

>> GO TO 2.

>> Go to

TM-127, "Symptom Chart"

JUDGMENT PROCEDURE STEP 1

1. Turn ignition switch OFF.

2. Keep pressing shift lock release button.

3. Move selector lever from “P” to “D” position.

4. Release accelerator pedal. (Set the closed throttle position signal “ON”.)

5. Depress brake pedal. (Stop lamp switch signal “ON”.)

6. Turn ignition switch ON (Do not start engine.)

7. Wait 3 seconds.

8. Move the selector lever to the manual shift gate side. (Manual mode signal “ON”.)

9. Release brake pedal. (Stop lamp switch signal “OFF”.)

10. Move the selector lever to “D” position. (Manual mode signal ON.)

11. Depress brake pedal. (Stop lamp switch signal “ON”.)

12. Release brake pedal. (Stop lamp switch signal “OFF”.)

13. Depress accelerator pedal fully and release it.

>> GO TO 3.

CHECK SELF-DIAGNOSIS CODE

Check A/T CHECK indicator lamp.

Refer to “Judgement Self-diagnosis Code”.

If the system does not go into self-diagnostics. Refer to

TM-50, "Diagnosis Procedure"

TM-102, "Diagnosis

Procedure"

TM-103, "Diagnosis Procedure"

TM-97, "Diagnosis Procedure"

DIAGNOSIS END

Judgment Self-diagnosis Code

2010 Pathfinder

DIAGNOSIS SYSTEM (TCM)

TM-43

< FUNCTION DIAGNOSIS >

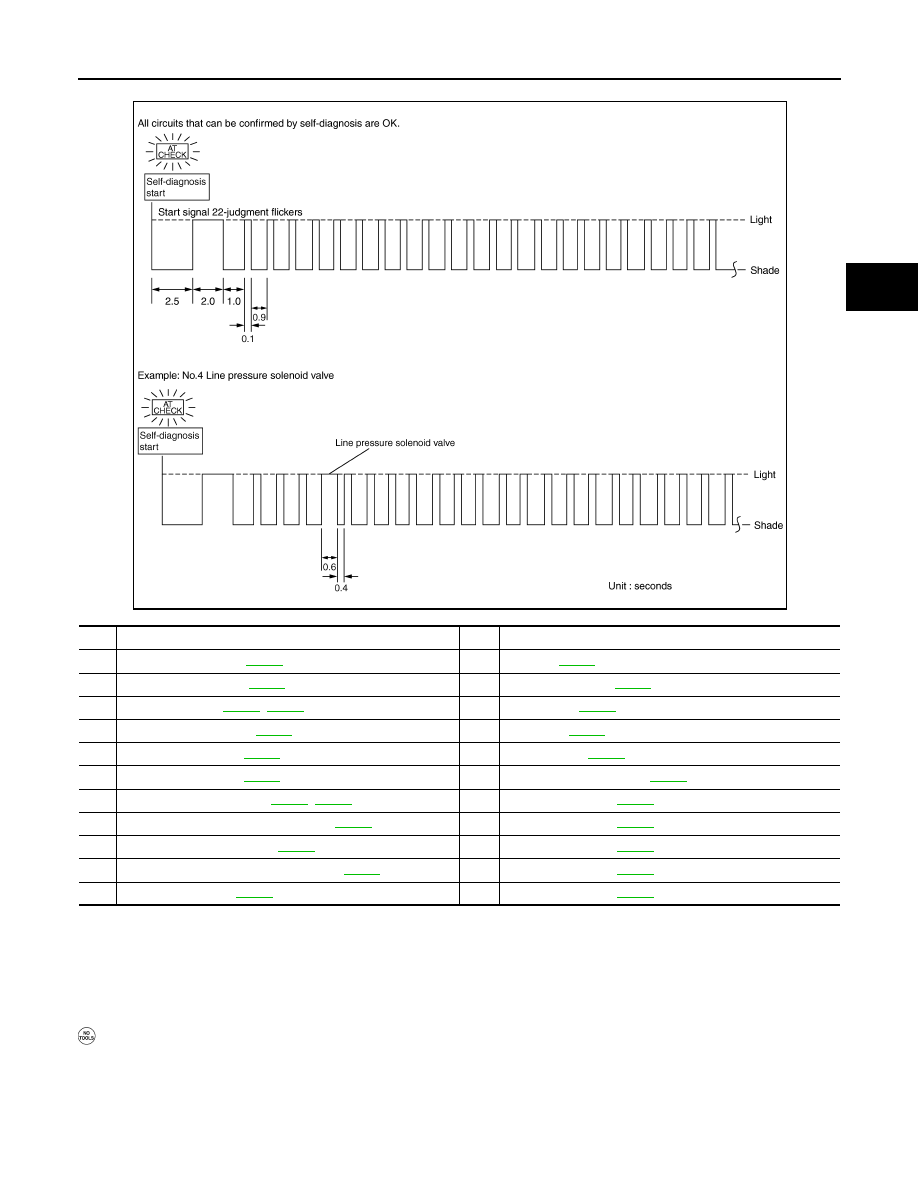

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

Erase Self-diagnosis

• In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is

stored into the control unit as necessary during use by the user. This memory is not erased no matter how

many times the ignition switch is turned ON and OFF.

• However, this information is erased by turning ignition switch OFF after executing self-diagnostics or by

erasing the memory using the CONSULT-III.

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS) — WITHOUT MANUAL MODE

Description

When the ignition switch is switched “ON”, the O/D OFF indicator lamp lights up for 2 seconds. As a method

for locating the suspect circuit, when the self-diagnostics start signal is input, the memory for the malfunction

location is output and the O/D OFF indicator lamp flashes to display the corresponding DTC.

JPDIA0024GB

No.

Malfunctioning item

No.

Malfunctioning item

Output speed sensor

TM-54

Interlock

TM-81

Direct clutch solenoid

1st engine braking

Torque converter

Starter relay

Line pressure solenoid

TM-73

TP sensor

TM-75

Input clutch solenoid

TM-85

Engine speed

TM-57

Front brake solenoid

TM-87

CAN communication line

TM-46

Low coast brake solenoid

TM-93

TM-95

1GR incorrect ratio

TM-59

High and low reverse clutch solenoid

TM-91

2GR incorrect ratio

TM-61

Transmission range switch

TM-50

3GR incorrect ratio

TM-63

Transmission fluid temperature sensor

4GR incorrect ratio

Input speed sensor

5GR incorrect ratio

2010 Pathfinder

TM-44

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (TCM)

Diagnostic Procedure

CHECK O/D OFF INDICATOR LAMP

1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.

2. Turn ignition switch ON and OFF at least twice, then leave it in the OFF position.

3. Wait 10 seconds.

4. Turn ignition switch ON. (Do not start engine.)
Does O/D OFF indicator lamp come on for about 2 seconds?

YES

>> GO TO 2.

>> Go to

TM-127, "Symptom Chart"

JUDGMENT PROCEDURE STEP 1

1. Turn ignition switch OFF.

2. Keep pressing shift lock release button.

3. Move selector lever from “P” to “D” position.

4. Release accelerator pedal. (Set the closed throttle position signal “ON”.)

5. Depress brake pedal. (Stop lamp switch signal “ON”.)

6. Turn ignition switch ON. (Do not start engine.)

7. Wait 3 seconds.

8. Move the selector lever from “D” to “3” position.

9. Release brake pedal. (Stop lamp switch signal “OFF”.)

10. Move the selector lever from “3” to “2” position.

11. Depress brake pedal. (Stop lamp switch signal “ON”.)

12. Depress accelerator pedal fully and release it.

>> GO TO 3.

CHECK SELF-DIAGNOSIS CODE

Check O/D OFF indicator lamp.

Refer to “Judgement Self-diagnosis Code”.

If the system does not go into self-diagnostics. Refer to

TM-50, "Diagnosis Procedure"

TM-102, "Diagnosis

Procedure"

TM-103, "Diagnosis Procedure"

DIAGNOSIS END

Judgment Self-diagnosis Code

2010 Pathfinder

DIAGNOSIS SYSTEM (TCM)

TM-45

< FUNCTION DIAGNOSIS >

If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.

Erase Self-diagnosis

• In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is

stored into the control unit as necessary during use by the user. This memory is not erased no matter how

many times the ignition switch is turned ON and OFF.

• However, this information is erased by turning ignition switch OFF after executing self-diagnostics or by

erasing the memory using the CONSULT-III.

JSDIA1433GB

No.

Malfunctioning item

No.

Malfunctioning item

Output speed sensor

TM-54

Interlock

TM-81

Direct clutch solenoid

1st engine braking

Torque converter

Starter relay

Line pressure solenoid

TM-73

TP sensor

TM-75

Input clutch solenoid

TM-85

Engine speed

TM-57

Front brake solenoid

TM-87

CAN communication line

TM-46

Low coast brake solenoid

TM-93

TM-95

1GR incorrect ratio

TM-59

High and low reverse clutch solenoid

TM-91

2GR incorrect ratio

TM-61

Transmission range switch

TM-50

3GR incorrect ratio

TM-63

Transmission fluid temperature sensor

4GR incorrect ratio

Input speed sensor

5GR incorrect ratio

2010 Pathfinder

TM-46

< COMPONENT DIAGNOSIS >

U1000 CAN COMM CIRCUIT

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005257969

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent malfunction detection ability.

Many electronic control units are equipped onto a vehicle, and each control unit shares information and links

with other control units during operation (not independent). In CAN communication, control units are con-

nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission

with less wiring. Each control unit transmits/receives data but selectively reads required data only.

On Board Diagnosis Logic

INFOID:0000000005257970

• This is an OBD-II self-diagnostic item.

• Diagnostic trouble code “U1000” with CONSULT-III or 17th judgment flicker without CONSULT-III is detected

when TCM cannot communicate to other control units.

Possible Cause

INFOID:0000000005257971

Harness or connectors

(CAN communication line is open or shorted.)

DTC Confirmation Procedure

INFOID:0000000005257972

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-III

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3. Start engine and wait for at least 6 seconds.

4. If DTC is detected, go to

TM-46, "Diagnosis Procedure"

WITH GST

Follow the procedure “WITH CONSULT-III”.

Diagnosis Procedure

INFOID:0000000005257973

CHECK CAN COMMUNICATION CIRCUIT

With CONSULT-III

1. Turn ignition switch “ON” and start engine.

2. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-III.
Is any malfunction of the “U1000” indicated?

YES

>> Go to LAN section. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

INSPECTION END

2010 Pathfinder

P0615 STARTER RELAY

TM-47

< COMPONENT DIAGNOSIS >

P0615 STARTER RELAY

Description

INFOID:0000000005257974

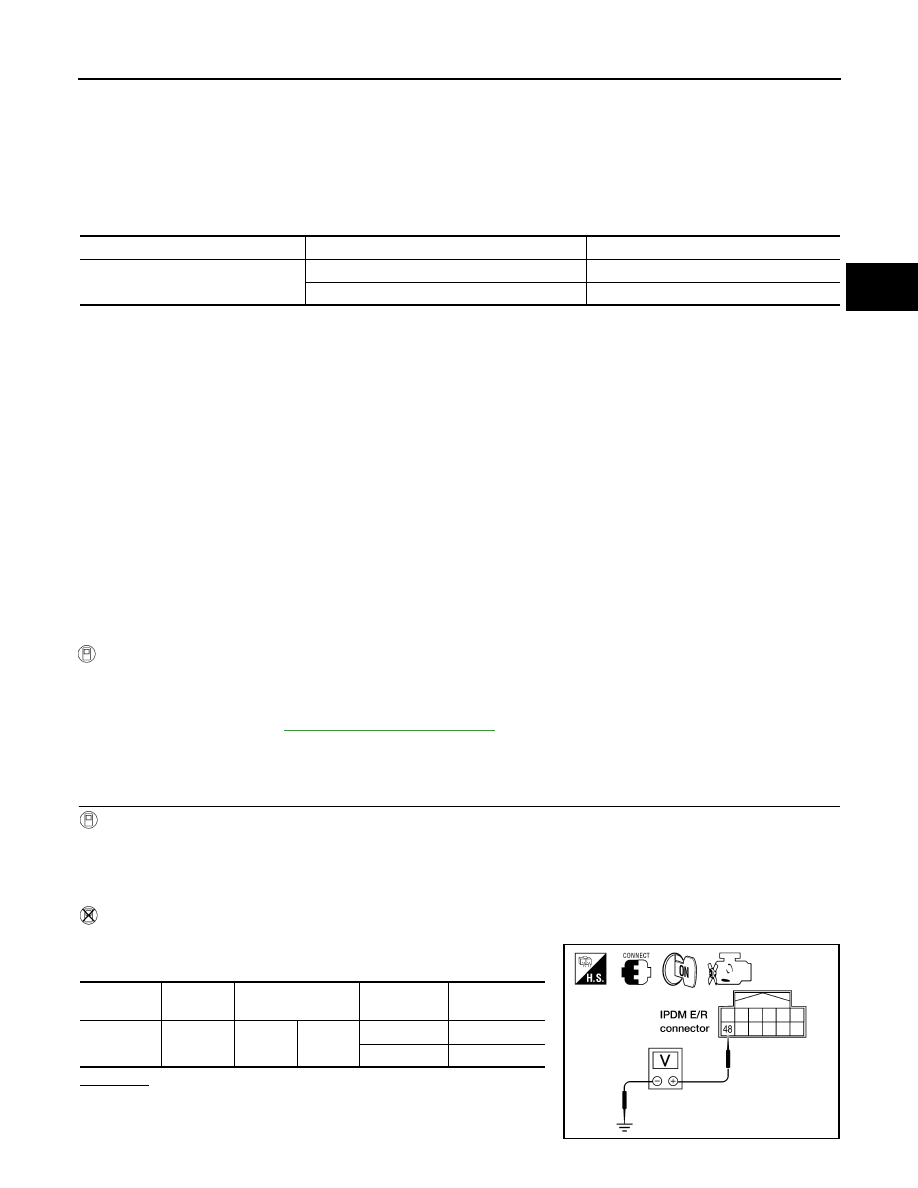

• TCM prohibits cranking other than at “P” or “N” position.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005257975

On Board Diagnosis Logic

INFOID:0000000005257976

• This is not an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0615” with CONSULT-III or 14th judgment flicker without CONSULT-III is detected

when starter relay is switched “ON” other than at “P” or “N” position. (Or when switched “OFF” at “P” or “N”

position).

Possible Cause

INFOID:0000000005257977

• Harness or connectors

(The starter relay and TCM circuit is open or shorted.)

• Starter relay

DTC Confirmation Procedure

INFOID:0000000005257978

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-III

1. Shift selector lever to “P” or “N” position.

2. Turn ignition switch ON and wait for at least 2 seconds.

3. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-III.

4. If DTC is detected, go to

TM-47, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000005257979

CHECK STARTER RELAY

With CONSULT-III

1. Turn ignition switch ON. (Do not start engine.)

2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for "TRANSMISSION" with CONSULT-III

and check monitor “STARTER RELAY” ON/OFF.

Without CONSULT-III

1. Turn ignition switch ON. (Do not start engine.)

2. Check voltage between the IPDM E/R connector and ground.

OK or NG

>> GO TO 5.

>> GO TO 2.

Item name

Condition

Display value

STARTER RELAY

Selector lever in “N”, “P” positions.

Selector lever in other position.

OFF

Item

Connector

Terminal

Shift position

Voltage (Ap-

prox.)

Starter relay

E122

Ground

“N” and “P”

Battery voltage

“R” and “D”

LCIA0320E

2010 Pathfinder

Nissan Pathfinder (2010 year). Manual - part 614
