Nissan Pathfinder (2010 year). Manual - part 588





SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005520630

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Occupant Classification System Precaution

INFOID:0000000005258527

Replace control unit and passenger front seat cushion as an assembly.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005258528

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

2010 Pathfinder

PRECAUTIONS

SR-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

SR-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

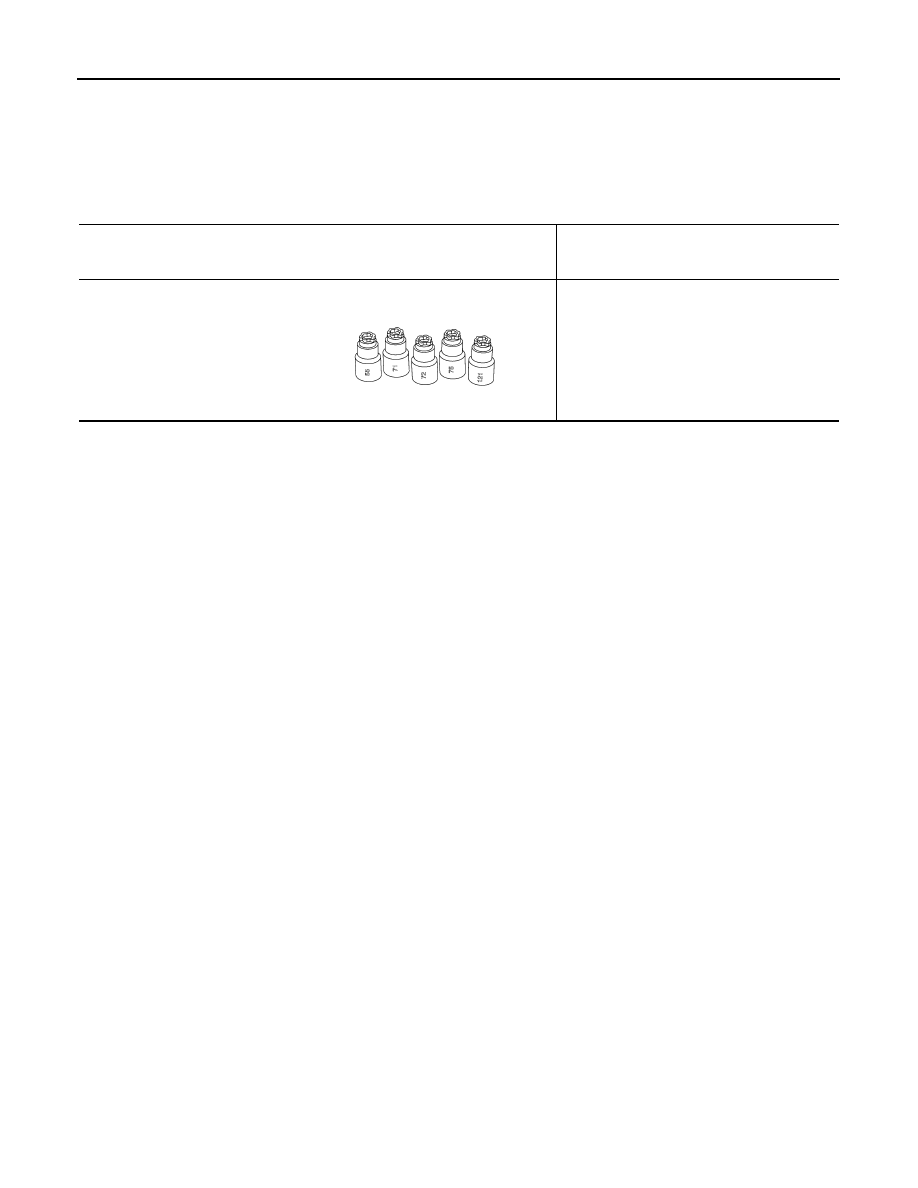

Special Service Tool

INFOID:0000000005258529

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

(J-42057-UPD)
Air bag key set
Part of kit (J-42057)

Removing and installing air bag lock

LRS210

2010 Pathfinder

DRIVER AIR BAG MODULE

SR-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

ON-VEHICLE REPAIR

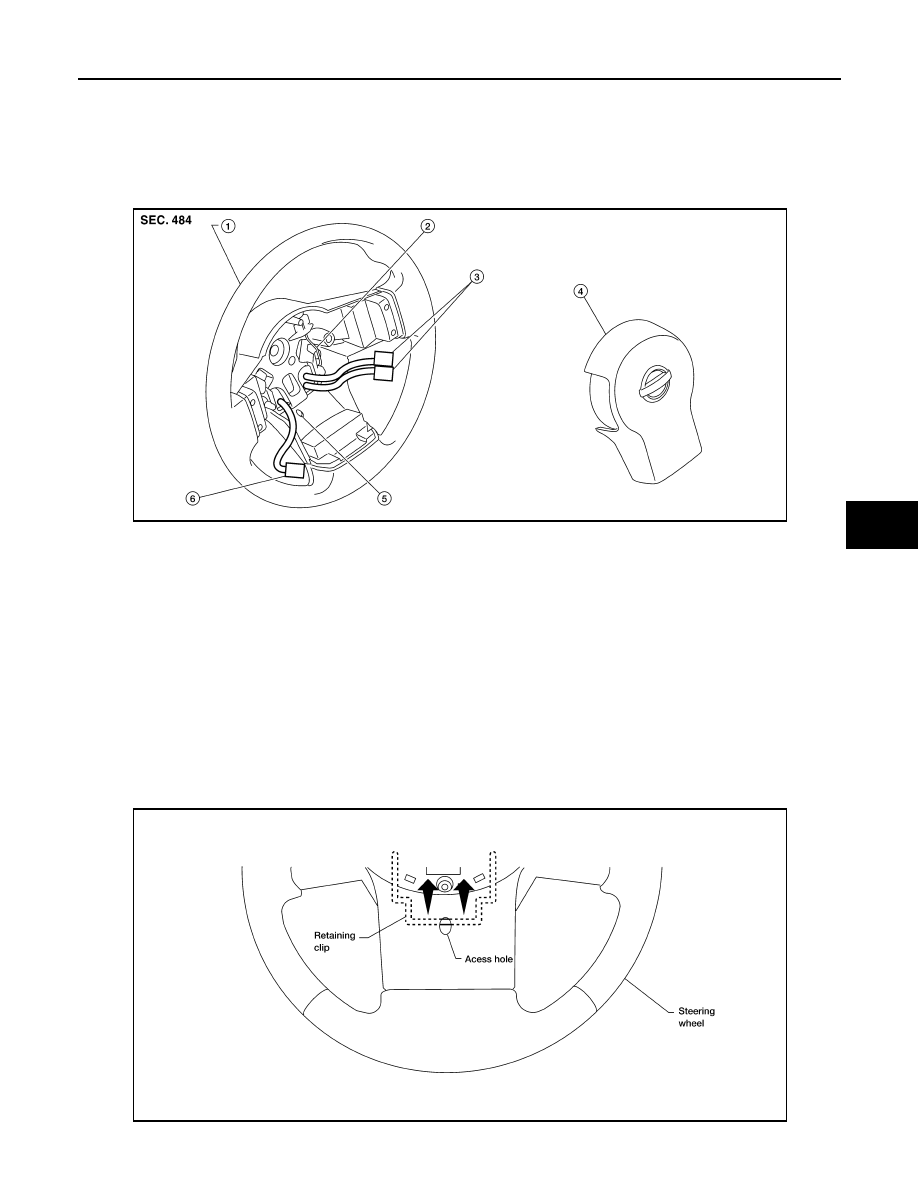

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000005258530

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver

air bag direct-connect harness connector is damaged, the spiral cable must be replaced.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least 3 minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least 3 minutes.
2. Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.

NOTE:

Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering

wheel, SRS components may be unintentionally damaged.

1.

Steering wheel

2.

Retaining clip

3.

Driver air bag module connectors

4.

Driver air bag module

5.

Retaining clip access hole

6.

Horn connector

LHIA0084E

LHIA0085E

2010 Pathfinder

SR-6

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

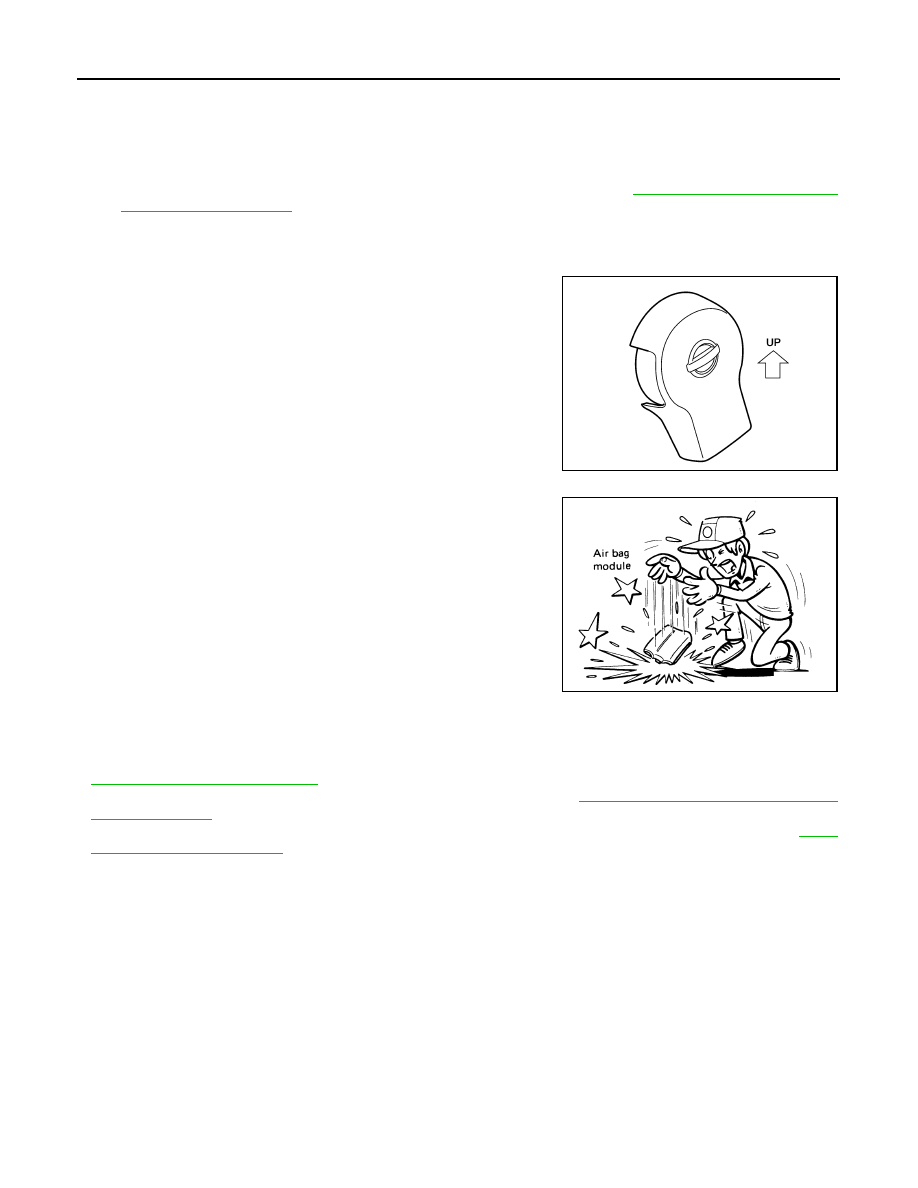

3. Press upward (toward center of steering wheel) on retaining clip until driver air bag module is released

from steering wheel.

4. Lift the driver air bag module from the steering wheel.
5. Disconnect the driver air bag module and horn connectors, then remove the driver air bag module.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

.

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.

• Always place air bag module with pad side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or connectors.

• Do not disassemble air bag module.

• Do not expose the air bag module to temperatures exceeding

90

°

C (194

°

F).

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

INSTALLATION

Installation is in the reverse order of installation.

• If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to

SR-7, "Removal and Installation"

.

• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-

13, "SRS Operation Check"

.

LHIA0086E

SBF814E

2010 Pathfinder

SPIRAL CABLE

SR-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

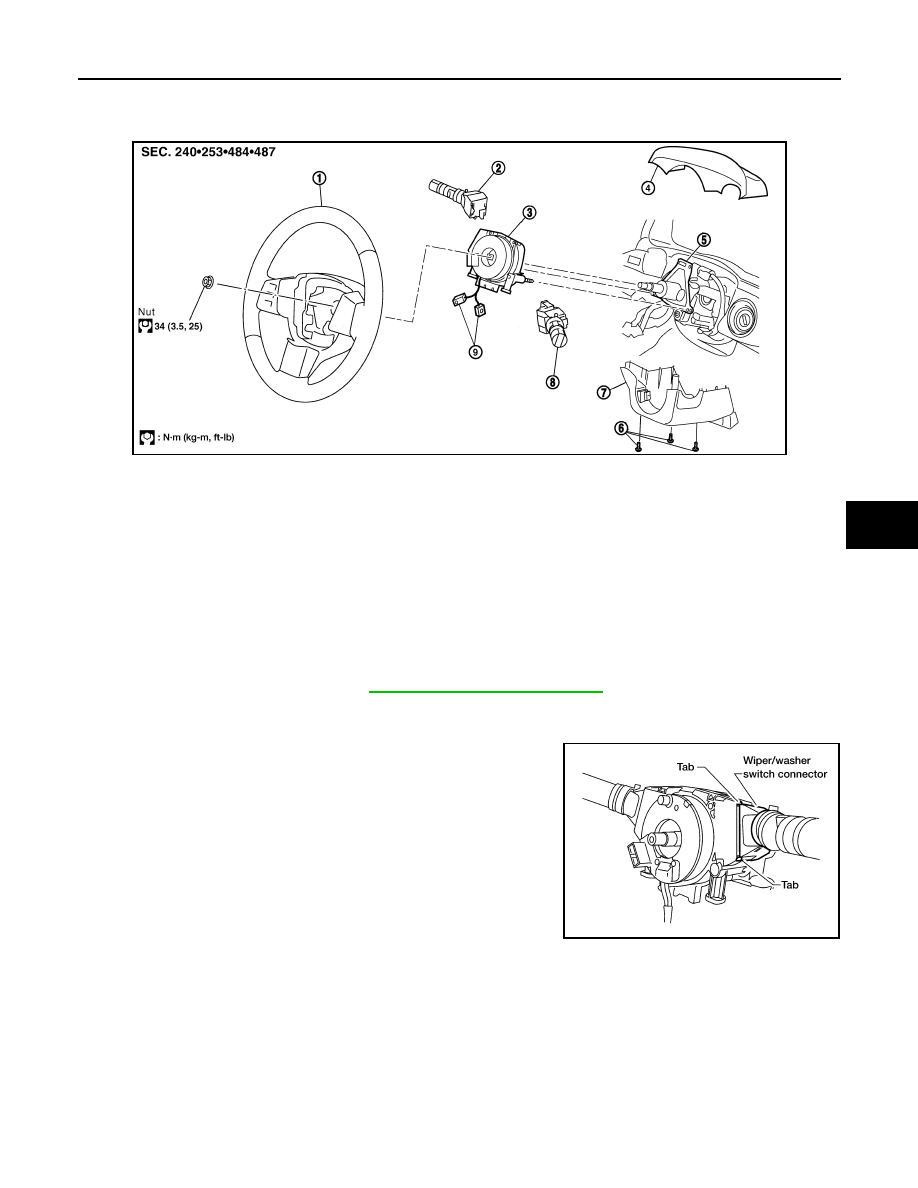

SPIRAL CABLE

Removal and Installation

INFOID:0000000005258531

REMOVAL

CAUTION:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Set the front wheels in the straight-ahead position.
3. Remove the steering wheel. Refer to

ST-18, "Removal and Installation"

.

4. Remove the column cover upper and lower.

5. Disconnect wiper and washer switch connector. Then while

pressing tabs, pull wiper and washer switch away from spiral

cable to remove.

LHIA0087E

1.

Steering wheel

2.

Lighting and turn signal switch

3.

Spiral cable

4.

Column cover upper

5.

Steering column assembly

6.

Screw

7.

Column cover lower

8.

Wiper and washer switch

9.

Driver air bag module connectors

LHIA0034E

2010 Pathfinder

SR-8

< ON-VEHICLE REPAIR >

SPIRAL CABLE

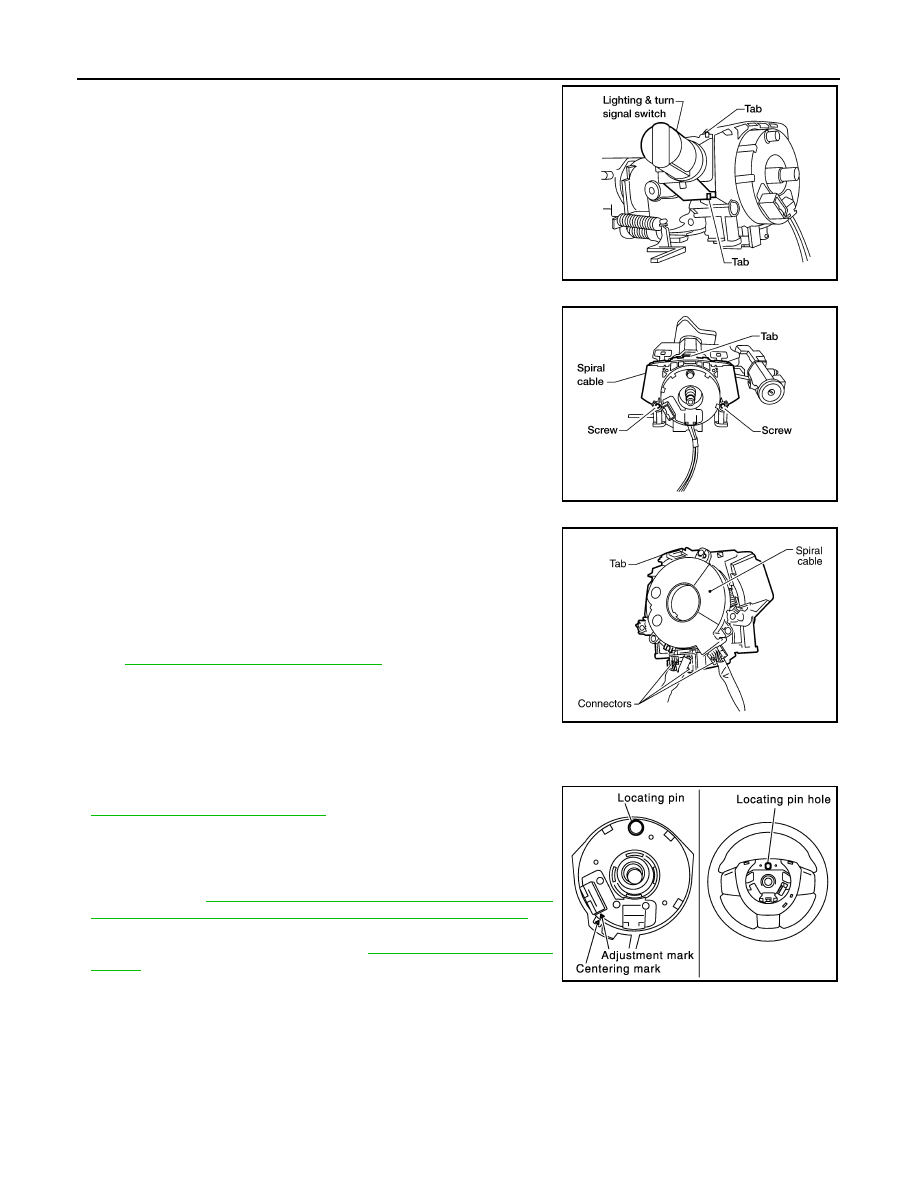

6. Disconnect lighting and turn signal switch connector. Then while

pressing tabs, pull lighting and turn signal switch toward driver

door to remove.

7. Remove the screws. Then while pressing the tab, pull the spiral

cable away from steering column assembly.

CAUTION:

• Do not disassemble spiral cable.

• Do not apply lubricant to the spiral cable.

8. Disconnect the spiral cable connectors.

CAUTION:

With the steering linkage disconnected, the spiral cable

may snap by turning the steering wheel beyond the limited

number of turns. The spiral cable can be turned counter-

clockwise about 2.5 turns from the neutral position.

9. Remove the steering angle sensor from the spiral cable. Refer

to

BRC-130, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

• Align spiral cable correctly when installing steering wheel, refer to

ST-18, "Removal and Installation"

. Make sure that the spiral cable

is in the neutral position. The neutral position is detected by turning

left 2.5 revolutions from the right end position and ending with the

locating pin at the top.

• Reset the steering angle sensor calibration after installing spiral

cable. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

• After the work is completed, perform self-diagnosis to make sure

no malfunction is detected. Refer to

SRC-13, "SRS Operation

Check"

.

CAUTION:

• The spiral cable may snap due to steering operation if the cable is not installed in the correct posi-

tion.

• With the steering linkage disconnected, the cable may snap by turning the steering wheel beyond

the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns from

the neutral position.

LHIA0035E

LHIA0036E

LHIA0088E

PHIA0275E

2010 Pathfinder

FRONT PASSENGER AIR BAG MODULE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

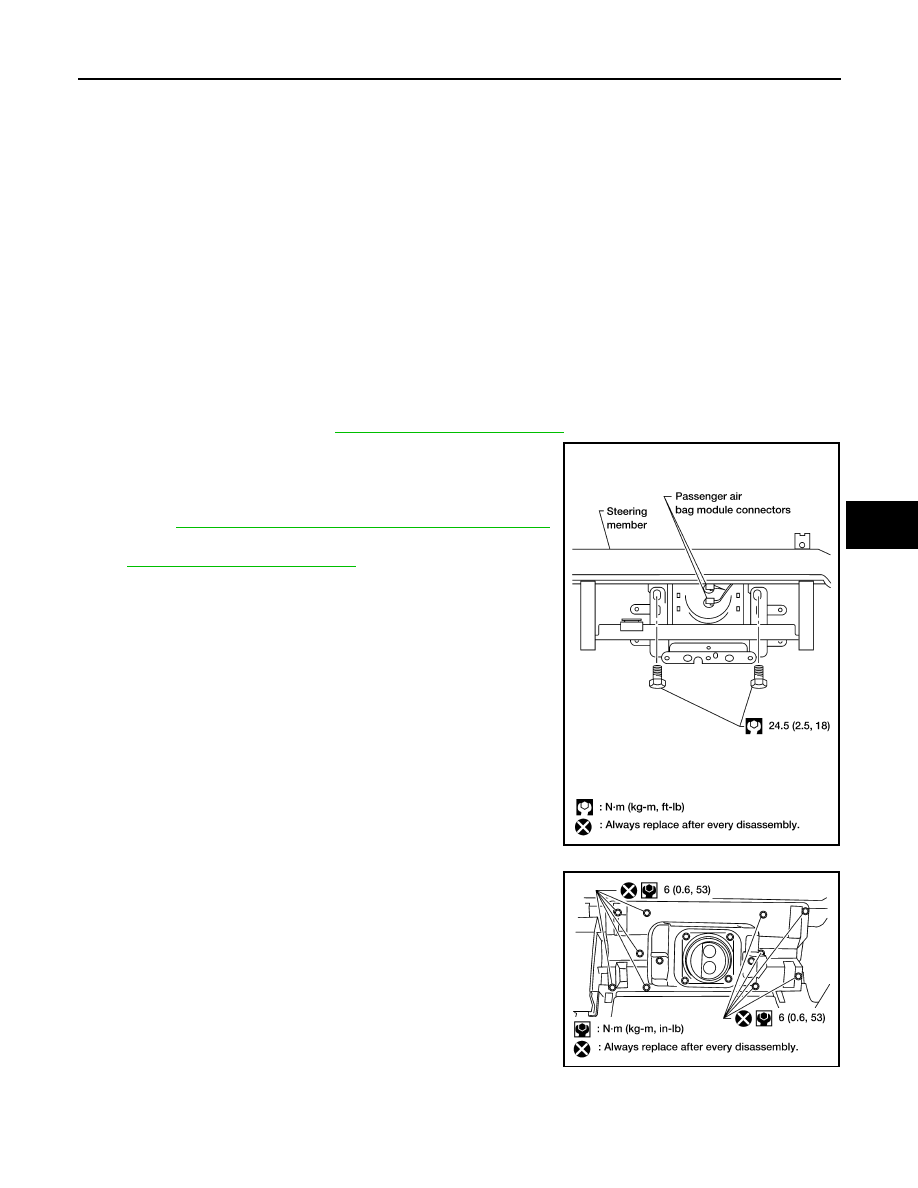

FRONT PASSENGER AIR BAG MODULE

Removal and Installation

INFOID:0000000005258532

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.

Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger

air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-

ness must be modified to allow connection of the service replacement passenger air bag module. Folow the

"WIRING HARNESS MODIFICATION" procedure.

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect front passenger air bag module connec-

tors. If a direct-connect harness connector is damaged, the front passenger air bag must be

replaced and the wiring harness modified.

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

• Always work from the side of or under front passenger air bag module.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove the glove box. Refer to

IP-12, "Removal and Installation"

.

3. Remove 2 bolts (through glove box opening) retaining front pas-

senger air bag module to the steering member.

4. Disconnect the passenger air bag module connectors.

• For removal/installation of the direct-connect SRS connectors,

refer to

SRC-9, "Direct-connect SRS Component Connectors"

.

5. Remove the instrument panel assembly from the vehicle. Refer

to

IP-12, "Removal and Installation"

6. Remove front passenger air bag module screws then remove

passenger air bag module from instrument panel assembly.

CAUTION:

LHIA0093E

WHIA0269E

2010 Pathfinder
