SEC-30

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2013 ID DISCORD I-KEY-STRG

Check continuity between steering lock solenoid harness connector

and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

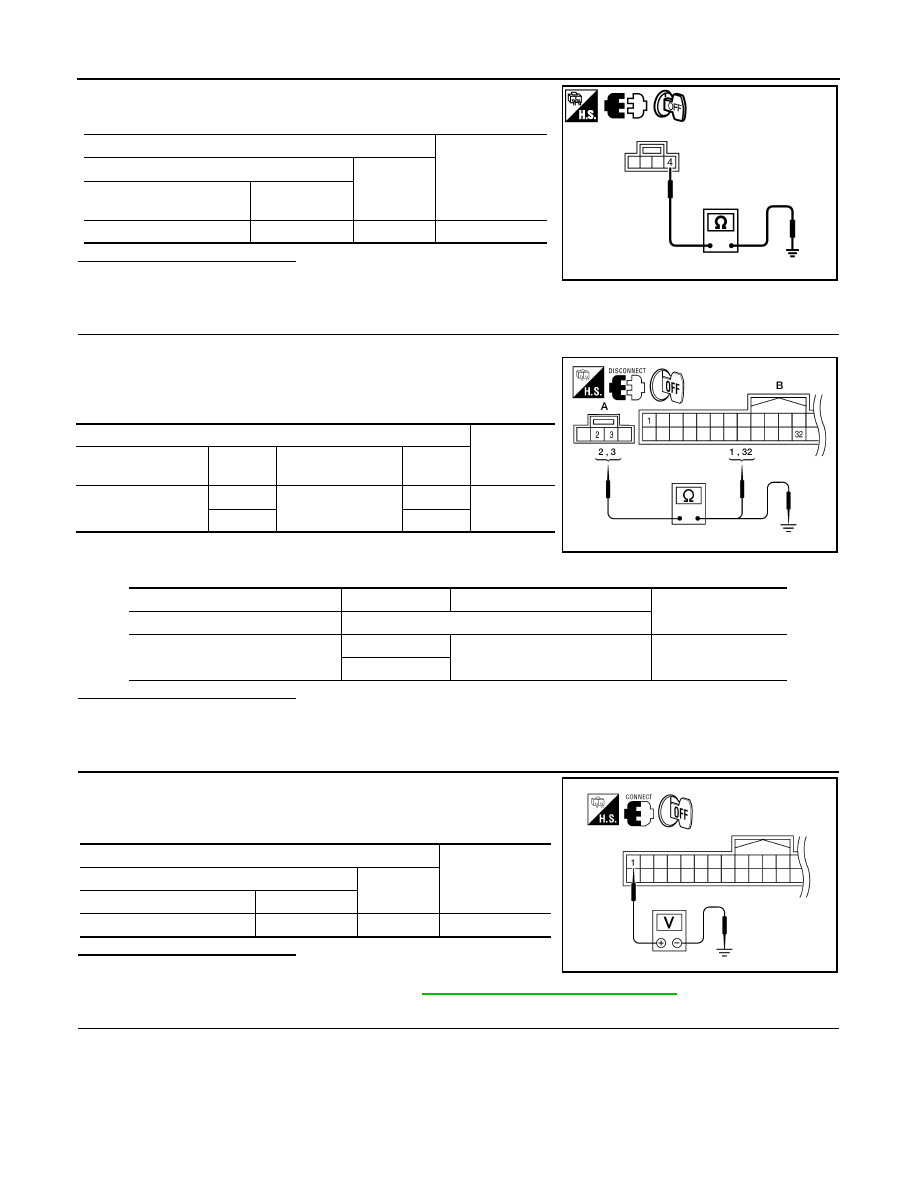

CHECK STEERING LOCK SOLENOID COMMUNICATION CIRCUITS

1. Disconnect Intelligent Key unit connector.

2. Check continuity between steering lock solenoid connector M65

(A) terminals 2, 3 and Intelligent Key unit connector M164 (B)

terminals 1, 32.

3. Check continuity between steering lock solenoid connector M65

(A) terminals 2, 3 and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Repair or replace harness.

5.

CHECK INTELLIGENT KEY UNIT POWER SUPPLY-2

1. Connect Intelligent Key unit connector.

2. Check voltage between Intelligent Key unit harness connector

and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace Intelligent Key unit. Refer to

SEC-118, "Removal and Installation"

.

6.

CHECK STEERING LOCK SOLENOID COMMUNICATION CIRCUIT

Terminals

Continuity

(+)

(–)

Steering lock solenoid con-

nector

Terminal

M65

4

Ground

Yes

PIIB6633E

Terminals

Continuity

Steering lock sole-

noid connector

Terminal

Intelligent Key unit

connector

Terminal

M65

2

M164

1

Yes

3

32

Terminals

Continuity

Steering lock solenoid connector

Terminals

M65

2

Ground

No

3

ALKIA1272ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key unit connector

Terminal

M164

1

Ground

5

WIIA1204E

2010 Pathfinder

B2013 ID DISCORD I-KEY-STRG

SEC-31

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

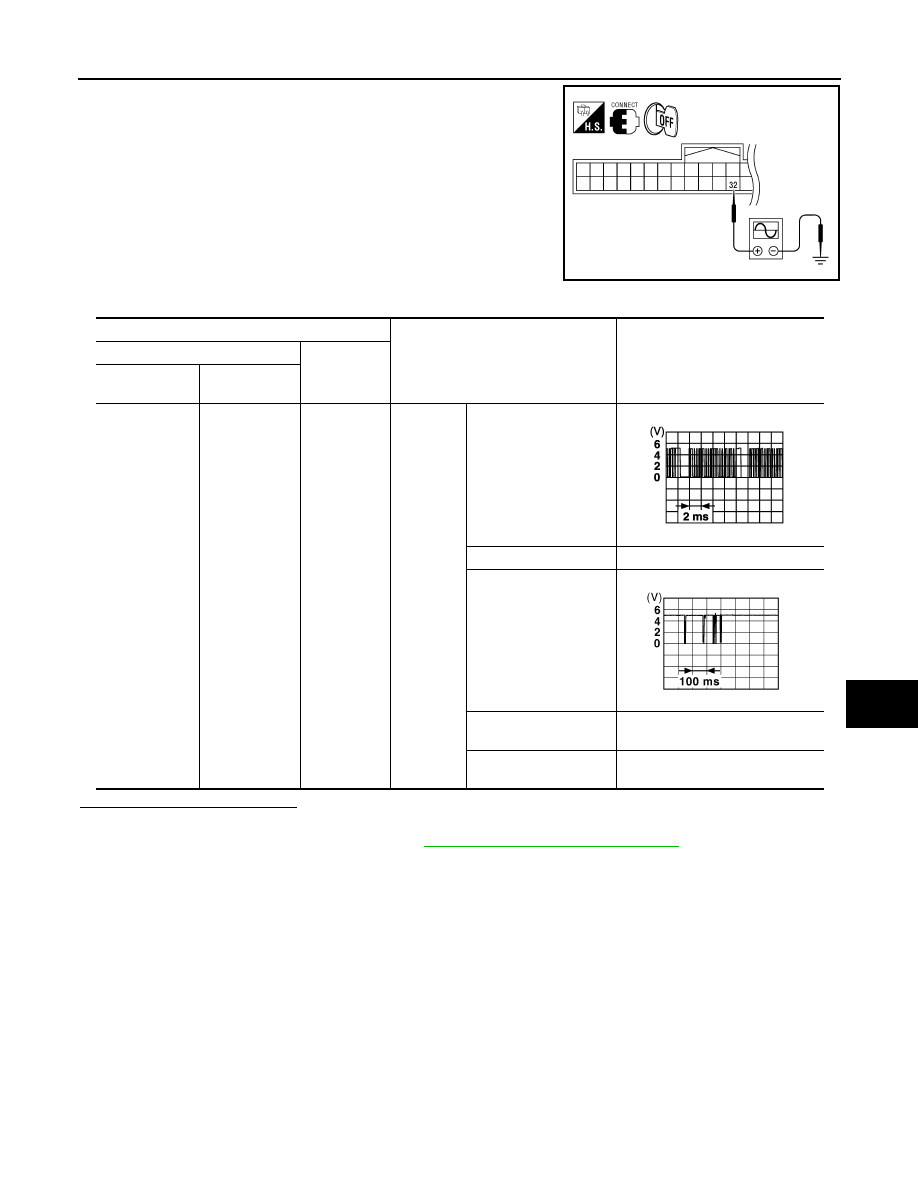

1. Connect steering lock solenoid connector.

2. Using an oscilloscope, check voltage between Intelligent Key

unit connector and ground.

Is the inspection result normal?

YES

>> Replace Steering lock solenoid.

NO

>> Replace Intelligent Key unit. Refer to

SEC-118, "Removal and Installation"

.

WIIA1205E

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key
unit connector

Terminal

M164

32

Ground

Steering
lock

Ignition knob is pushed

LOCK status

5

LOCK

⇔

 UNLOCK

For 15 seconds after
UNLOCK

5

15 seconds later UN-
LOCK

0

SIIA1911J

JMKIA0433ZZ

2010 Pathfinder

SEC-32

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2190, P1614 NATS ANTENNA AMP.

B2190, P1614 NATS ANTENNA AMP.

Description

INFOID:0000000005258965

Performs ID verification through BCM and NATS antenna amplifier when ignition knob switch is pressed.

Prohibits the release of steering lock or start of engine when an unregistered ID of mechanical key is used.

DTC Logic

INFOID:0000000005258966

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Insert mechanical key into the key cylinder.

2. Press the ignition knob switch.

3. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-32, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258967

Regarding Wiring Diagram information, refer to

SEC-63, "Wiring Diagram - NVIS"

.

1.

CHECK NATS ANTENNA AMP. INSTALLATION

Check NATS antenna amp. installation. Refer to

SEC-117, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Reinstall NATS antenna amp. correctly.

2.

CHECK NVIS (NATS) IGNITION KEY ID CHIP

Start engine with another registered NATS ignition key.
Does the engine start?

YES

>> • Ignition key ID chip is malfunctioning.

• Replace the ignition key.

• Perform initialization with CONSULT-III.

For initialization, refer to “CONSULT-III Operation Manual”.

NO

>> GO TO 3

3.

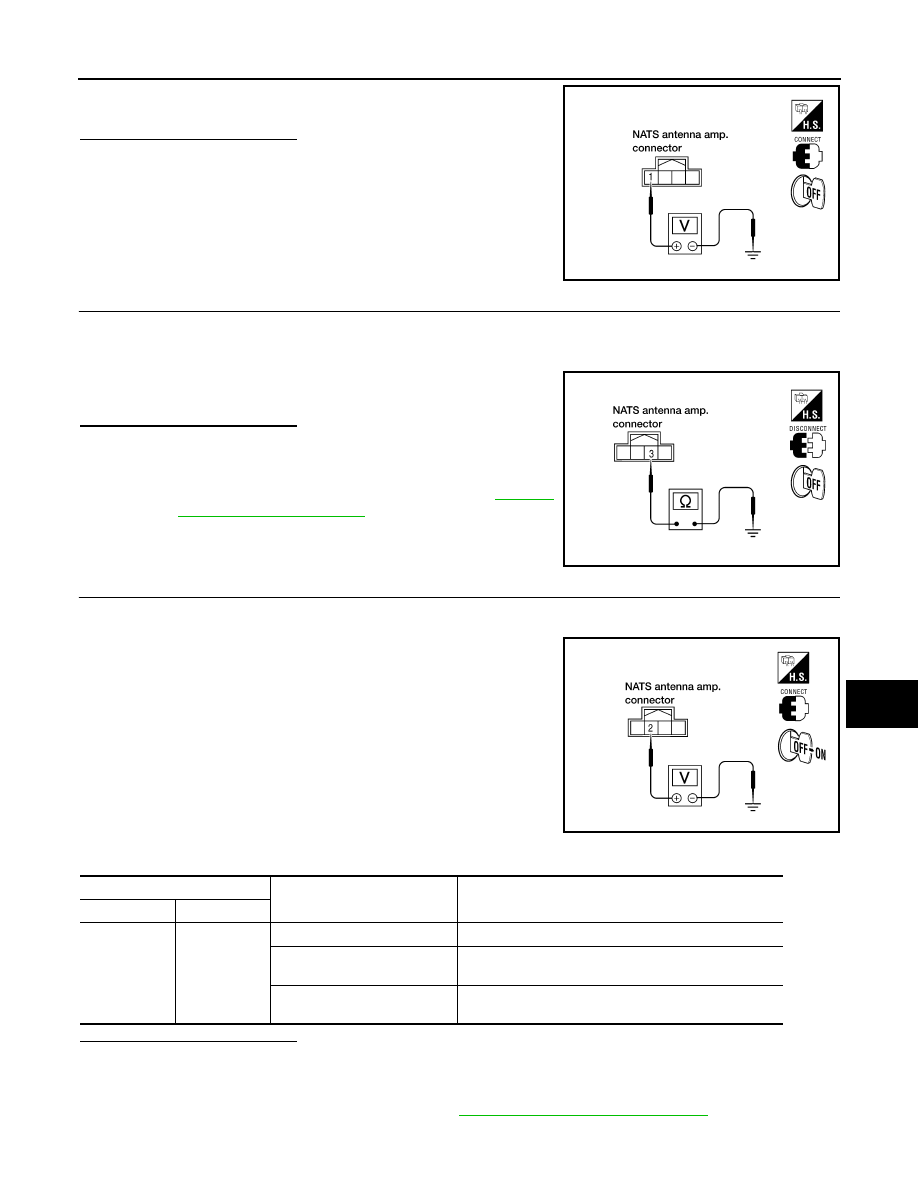

CHECK POWER SUPPLY FOR NATS ANTENNA AMP.

1. Turn ignition switch ON.

2. Check voltage between NATS antenna amp. connector M21 terminal 1 and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2190

NATS ANTENNA
AMP

• Inactive communication between NATS antenna

amp. and BCM.

• Mechanical key is malfunctioning.

• Harness or connectors

(The NATS antenna amp. circuit is
open or shorted)

• Mechanical key
• NATS antenna amp.
• BCM

P1614

2010 Pathfinder

B2190, P1614 NATS ANTENNA AMP.

SEC-33

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace fuse or harness.

4.

CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect NATS antenna amp. connector.

3. Check continuity between NATS antenna amp. connector M21 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> • Repair or replace harness.

NOTE:

If harness is OK, replace BCM, refer to

BCS-59,

"Removal and Installation"

. Perform initialization with

CONSULT-III. For initialization, refer to “CONSULT-III

Operation Manual”.

5.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 1

1. Connect NATS antenna amp. connector.

2. Turn ignition switch ON.

3. Check voltage between NATS antenna amp. connector M21 ter-

minal 2 and ground with analog tester.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> • Repair or replace harness.

NOTE:

If harness is OK, replace BCM, refer to

BCS-59, "Removal and Installation"

. Perform initializa-

tion with CONSULT-III. For initialization, refer to “CONSULT-III Operation Manual”.

1 - Ground

: Battery voltage

LIIA1280E

3 - Ground

: Continuity should exist.

LIIA1283E

LIIA1281E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

2

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition switch

ON

Pointer of tester should move for approx. 1 second, then

return to battery voltage

2010 Pathfinder

SEC-34

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2190, P1614 NATS ANTENNA AMP.

6.

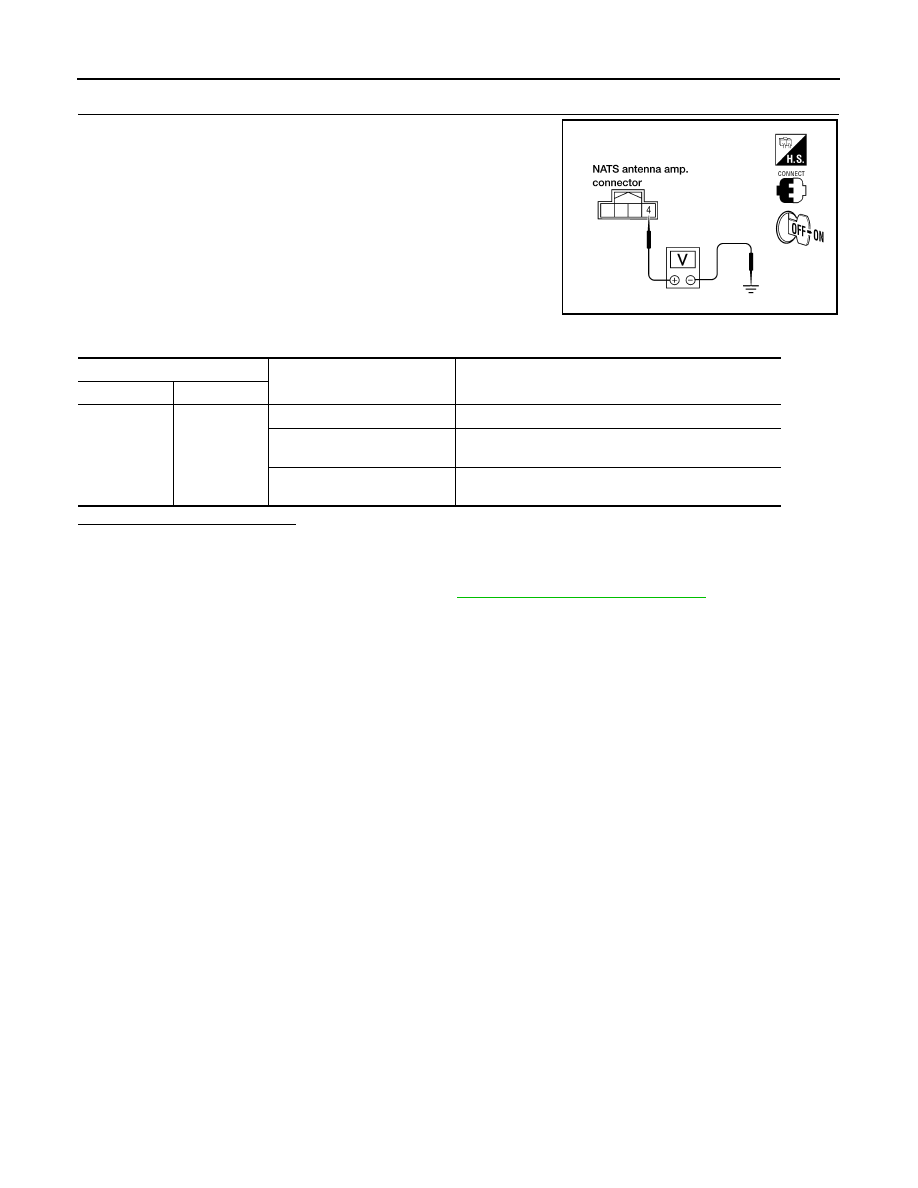

CHECK NATS ANTENNA AMP. SIGNAL LINE- 2

Check voltage between NATS antenna amp. connector M21 terminal

4 and ground with analog tester.

Is the inspection result normal?

YES

>> NATS antenna amp. is malfunctioning.

NO

>> • Repair or replace harness.

NOTE:

If harness is OK, replace BCM, refer to

BCS-59, "Removal and Installation"

. Perform initializa-

tion with CONSULT-III. For initialization, refer to “CONSULT-III Operation Manual”.

LIIA1282E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

4

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition switch

ON

Pointer of tester should move for approx. 1 second, then

return to battery voltage

2010 Pathfinder

B2191, P1615 DIFFERENCE OF KEY

SEC-35

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2191, P1615 DIFFERENCE OF KEY

Description

INFOID:0000000005258968

Performs ID verification through BCM when ignition knob switch is pressed.

Prohibits the release of steering lock or start of engine when an unregistered ID of mechanical key is used.

DTC Logic

INFOID:0000000005258969

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Insert mechanical key into the key cylinder.

2. Press the ignition knob switch.

3. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-35, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258970

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> Mechanical key was unregistered.

NO

>> BCM is malfunctioning.

• Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

• Perform initialization again.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2191

DIFFERENCE OF
KEY

The ID verification results between BCM and me-
chanical key are NG. The registration is necessary.

Mechanical key

P1615

2010 Pathfinder

SEC-36

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2192, P1611 ID DISCORD, IMMU-ECM

B2192, P1611 ID DISCORD, IMMU-ECM

Description

INFOID:0000000005258971

BCM performs the ID verification with ECM that allows the engine to start. BCM starts the communication with

ECM if ignition switch is turned ON and starts the engine if the ID is OK. ECM prevents the engine from start-

ing if the ID is not registered.

DTC Logic

INFOID:0000000005258972

DTC DETECTION LOGIC

NOTE:

• If DTC B2192 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

SEC-27, "DTC Logic"

.

• If DTC B2192 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

SEC-28, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-36, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258973

1.

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ID was unregistered.

NO

>> GO TO 2

2.

PEPLACE BCM

1. Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

2. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> BCM is malfunctioning.

NO

>> GO TO 3

3.

PEPLACE ECM

1. Replace ECM. Refer to Removal and Installation.

2. Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.

Can the system be initialized and can the engine be started with re-registered mechanical key?

YES

>> ECM is malfunctioning.

NO

>> GO TO 4

4.

CHECK INTERMITENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2192

ID DISCORD BCM-
ECM

The ID verification results between BCM and ECM
are NG. The registration is necessary.

• BCM
• ECM

P1611

2010 Pathfinder

B2192, P1611 ID DISCORD, IMMU-ECM

SEC-37

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

>> Inspection End.

2010 Pathfinder















Content      ..     565      566      567      568     ..
