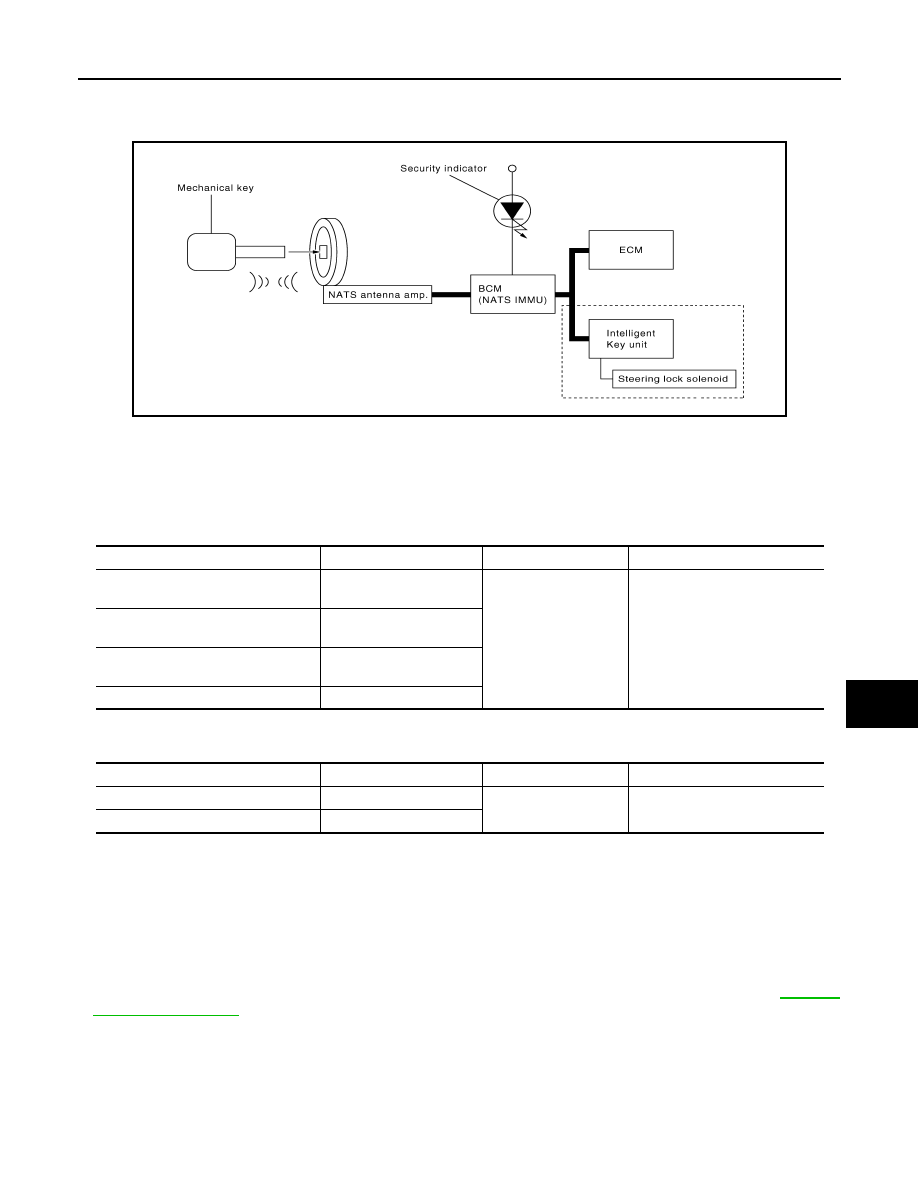

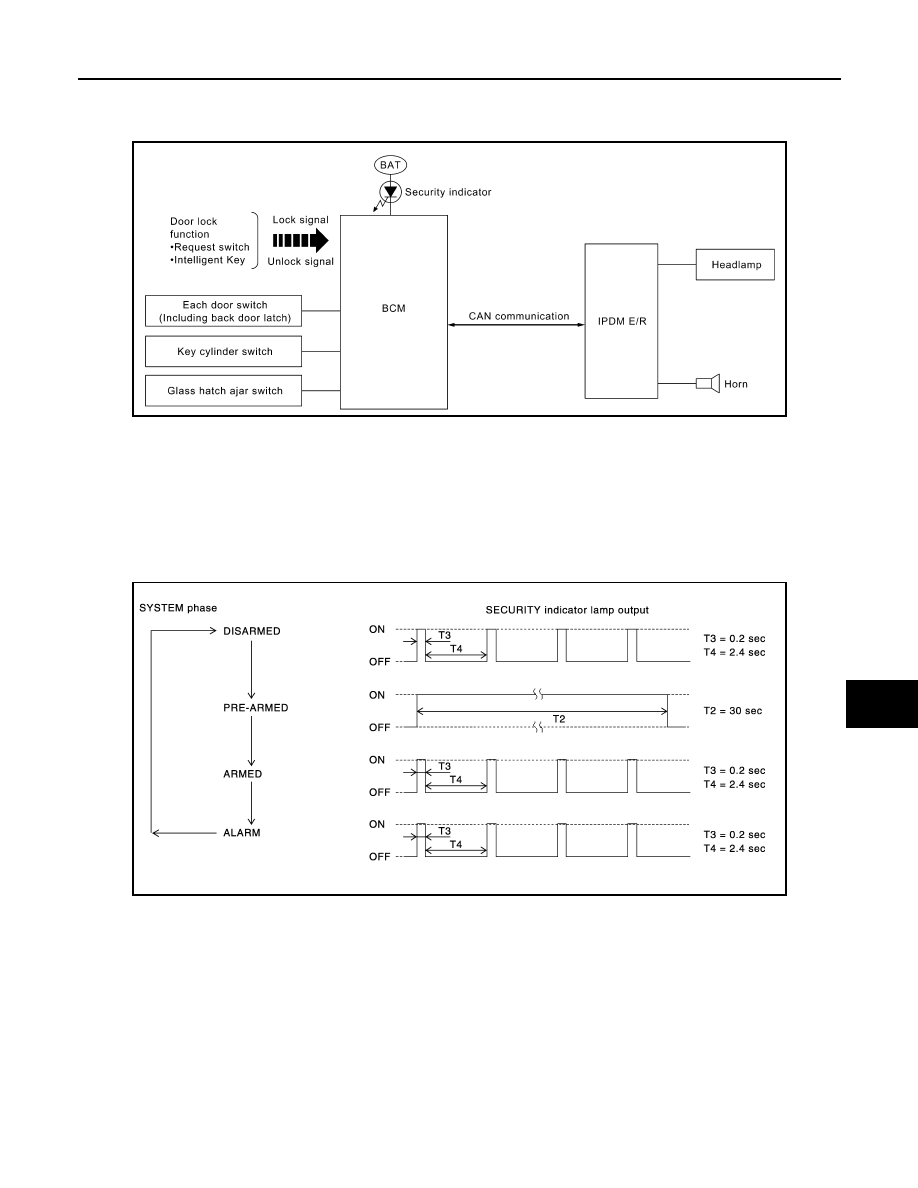

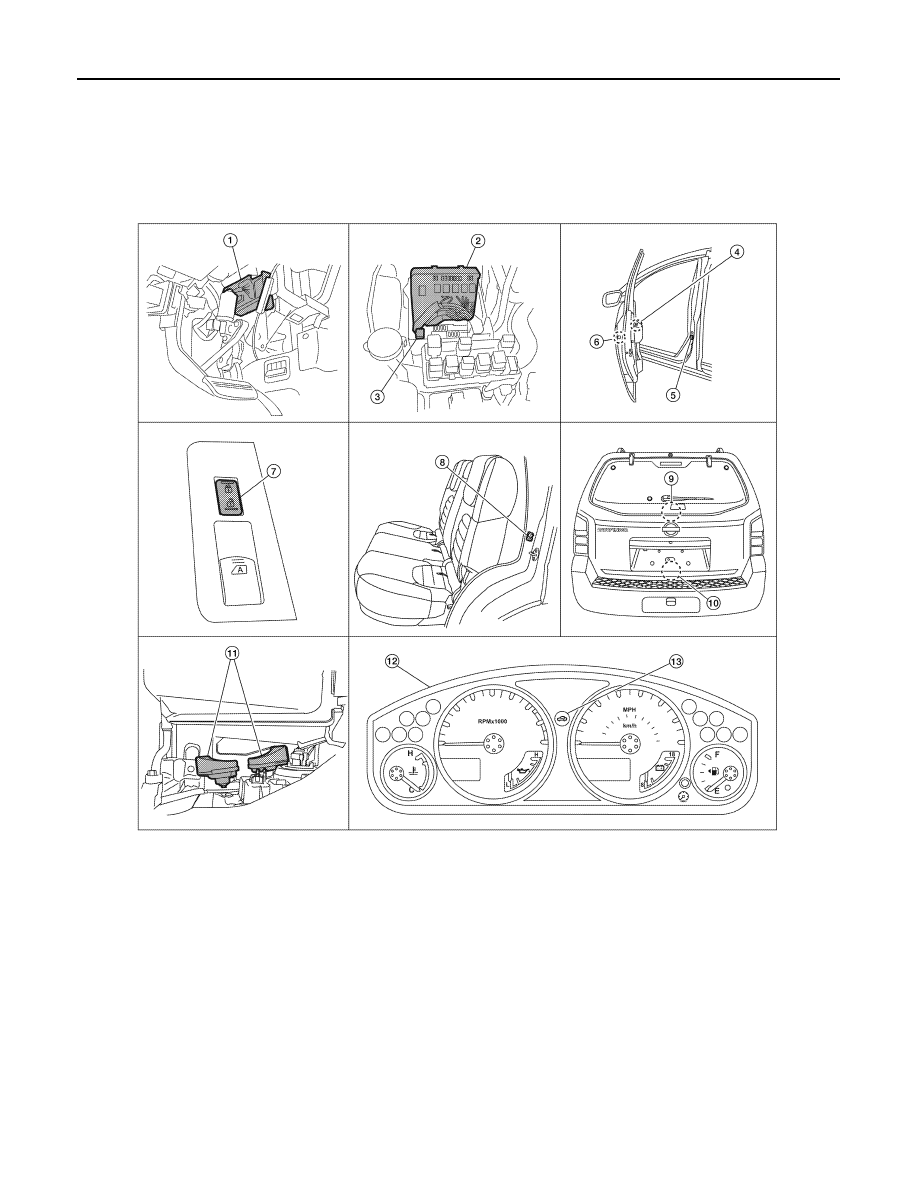

SEC-14 < FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM] INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION Component Description INFOID:0000000005258942 7. Remote keyless entry receiver M67 8. A/T shift selector (park position switch) 9. Insrument panel area antenna M68 10. Center console area antenna M212 (view with center console removed) 11. Luggage area antenna B129 (behind 3 rd row seat) 12. Intelligent Key warning buzzer E60 13. Front door switch LH B8 RH B108 14. Rear door switch LH B18 RH B116 15. Back door latch (door ajar switch) D502 16. A/T assembly F9 17. Combination meter M24 18. Vehicle security indicator lamp Item Function Intelligent Key unit Receives lock/unlock signal from remote keyless entry receiver, and then transmits to BCM. BCM Verifies the received signal from Intelligent Key, then informs ECM whether to allow engine start. Remote keyless entry receiver Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit. Intelligent Key Transmits button operation to remote keyless entry receiver. Ignition knob switch Monitors the status of the ignition knob switch. Steering lock solenoid Locks the steering wheel when the ignition key is off and the Intelligent Key is outside the vehicle. Inside key antenna Detects if Intelligent Key is inside the vehicle. Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound. A/T shift selector (park position Detects whether the shift lever is in park. 2010 Pathfinder |
