Nissan Pathfinder (2010 year). Manual - part 566

SEC-22

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005484550

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

IMMU

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps FLASHER

Air conditioner

AIR CONDITONER

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Immobilizer

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

RAP (retained accessory power)

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

Vehicle security system

THEFT ALM

Panic alarm

PANIC ALARM

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

SEC-23

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SEC

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000005484551

DATA MONITOR

ACTIVE TEST

THEFT ALM
THEFT ALM : CONSULT-III Function (BCM - THEFT ALM)

INFOID:0000000005484552

WORK SUPPORT

DATA MONITOR

1: With Intelligent Key
2: With remote keyless entry system

ACTIVE TEST

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position.

Test Item

Description

THEFT IND

This test is able to check security indicator operation [ON/OFF].

Test Item

Description

SECURITY ALARM SET

This mode is able to confirm and change security alarm ON-OFF setting.

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR” on
CONSULT-III screen.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC ON SW [ON/OFF]

Indicates ignition switch (ACC) status judged from ACC signal (accessory power supply)

I-KEY LOCK

[ON/OFF]

Indicates lock signal status received from Intelligent Key unit by CAN communication

I-KEY UNLOCK

[ON/OFF]

Indicates unlock signal status received from Intelligent Key unit by CAN communication

I-KEY TRUNK

[ON/OFF]

Indicates condition of back door opener switch

KEYLESS LOCK

[ON/OFF]

Indicates lock signal status received from remote keyless entry receiver (integrated in the BCM)

KEYLESS UNLOCK

[ON/OFF]

Indicates unlock signal status received from remote keyless entry receiver (integrated in the BCM)

TRNK OPNER SW [ON/OFF]

Indicates switch status of back door opener switch

TRNK OPN MNTR [ON/OFF]

Indicates switch status of back door latch

DOOR SW-DR [ON/OFF]

Indicates switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

Indicates switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

Indicates switch status input from rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates switch status input from rear door switch LH

BACK DOOR SW [ON/OFF]

Indicates switch status input from back door switch

KEY CYL LK-SW [ON/OFF]

Indicates lock switch status from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates unlock switch status from door key cylinder switch

CDL LOCK SW [ON/OFF]

Indicates lock switch status from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates unlock switch status from door lock and unlock switch

2010 Pathfinder

SEC-24

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

HEAD LAMP(HI)

This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.

2010 Pathfinder

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)

SEC-25

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SEC

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)

CONSULT-III Function (INTELLIGENT KEY)

INFOID:0000000005484805

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with Intelligent Key unit.

SELF-DIAG RESULT

Refer to

DLK-143, "DTC Index"

DATA MONITOR

Diagnosis mode

Function Description

SELF-DIAG RESULTS

Displays the diagnosis results judged by Intelligent Key unit.

DATA MONITOR

The Intelligent Key unit input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from Intelligent Key unit.

ECU IDENTIFICATION

The Intelligent Key unit part number is displayed.

Monitor Item

Condition

PUSH SW

Indicates [ON (pushed)/OFF (released)] condition of ignition knob switch.

KEY SW

Indicates [ON (inserted)/OFF (removed)] condition of key switch.

DR REQ SW

Indicates [ON (pressed)/OFF (released)] condition of door request switch (driver side).

AS REQ SW

Indicates [ON (pressed)/OFF (released)] condition of door request switch (passenger
side).

BD/TR REQ SW

This item is shown but not monitored.

IGN SW

Indicates [ON (ON or START position)/OFF (other than ON and START position)] con-
dition of ignition switch ON position.

ACC SW

Indicates [ON/OFF] condition of ignition switch ACC position.

STOP LAMP SW

Indicates [ON/OFF] condition of stop lamp switch.

P RANGE SW

Indicates [ON/OFF] position of shift lever park position switch.

BD OPEN SW

This item is shown but not monitored.

TR CANCEL SW

This item is shown but not monitored.

DOOR LOCK SIG

Indicates [ON/OFF] condition of LOCK signal from Intelligent Key.

DOOR UNLOCK SIG

Indicates [ON/OFF] condition of UNLOCK signal from Intelligent Key.

KEYLESS TRUNK

This item is shown but not monitored.

KEYLESS PANIC

Indicates [ON (pressed)/OFF (released)] condition of Intelligent Key panic button.

KEYLS PSD LH

This item is shown but not monitored.

KEYLS PSD RH

This item is shown but not monitored.

KEYLS PBD SIG

Indicates [ON (pressed)/OFF (released)] condition of Intelligent Key back door button.

DOOR SW DR

Indicates [OPEN/CLOSE] condition of front door switch (driver side) from BCM via CAN
communication.

DOOR SW AS

Indicates [OPEN/CLOSE] condition of front door switch (passenger side) from BCM via
CAN communication.

DOOR SW RR

Indicates [OPEN/CLOSE] condition of rear door switch (RH) from BCM via CAN com-
munication.

DOOR SW RL

Indicates [OPEN/CLOSE] condition of rear door switch (LH) from BCM via CAN com-
munication.

DOOR BK SW

Indicates [OPEN/CLOSE] condition of back door switch from BCM via CAN communi-
cation.

2010 Pathfinder

SEC-26

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)

ACTIVE TEST

TRUNK SW

This item is shown but not monitored.

VEHICLE SPEED

Displays the vehicle speed signal received from combination meter by numerical value
[km/h].

Monitor Item

Condition

Test item

Description

DOOR LOCK/UNLOCK

This test is able to check door lock/unlock operation.
• ALL UNLK: All door lock actuators are unlocked.
• DR UNLK: Door lock actuator (driver side) is unlocked.
• AS UNLK: Door lock actuator (passenger side) is unlocked.
• BK UNLK: This item is indicated, but inactive.
• LOCK: All door lock actuator is locked.

ANTENNA

This test is able to check Intelligent Key antenna operation.
When the following condition are met, hazard warning lamps flash.
• ROOM ANT1: Instrument panel area antenna detects Intelligent Key when “ROOM ANT1” is selected.
• ROOM ANT2: Center console and luggage area antennas detect Intelligent Key when “ROOM ANT2”is

selected.

• LUG ANT:This selection is not used.
• DRIVER ANT: Outside key antenna (driver side) detects Intelligent Key when “DR ANT” is selected.
• ASSIST ANT: Outside key antenna (passenger side) detects Intelligent Key when “AS ANT” is selected.
• BK DOOR ANT: Outside key antenna (rear bumper) detects Intelligent Key when “BK DR ANT” is selected.

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation.
• ON
• OFF

INSIDE BUZZER

This test is able to check warning chime in combination meter operation.
• TAKE OUT: Take away warning chime sounds.
• KNOB: Ignition knob switch warning chime sounds.
• KEY: Key warning chime sounds.
• OFF

INDICATOR

This test is able to check Intelligent Key warning lamps operation.
• Green "KEY" warning lamp illuminates when "BLUE ON" on CONSULT-III screen is touched.
• Red "KEY" warning lamp illuminates when "RED ON" on CONSULT-III screen is touched.
• Shift to park warning lamp illuminates when "KNOB ON" on CONSULT-III screen is touched.
• Green "KEY" warning lamp flashes when "BLUE IND" on CONSULT-III screen is touched.
• Red "KEY" warning lamp flashes when "RED IND" on CONSULT-III screen is touched.
• Shift to park warning lamp (P-SHIFT) flashes when "KNOB IND" on CONSULT-III screen is touched.
• OFF

2010 Pathfinder

U1000 CAN COMM CIRCUIT

SEC-27

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SEC

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005258955

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Modern

vehicle is equipped with many electronic control unit, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less

wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart, refer to

LAN-53, "CAN Communication Signal Chart"

DTC Logic

INFOID:0000000005258956

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005258957

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-5, "CAN Communication Control Circuit"

>> Refer to

GI-37, "Intermittent Incident"

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When Intelligent Key unit cannot communi-
cate CAN communication signal continuous-
ly for 2 seconds or more.

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Transmission
• Receiving (BCM)
• Receiving (ECM)
• Receiving (METER/M&A)

2010 Pathfinder

SEC-28

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000005258958

CAN (Controller Area Network) is a serial communication line for real time applications. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Modern

vehicle is equipped with many electronic control unit, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less

wiring. Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart, refer to

LAN-53, "CAN Communication Signal Chart"

DTC Logic

INFOID:0000000005258959

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005258960

REPLACE INTELLIGENT KEY UNIT

When DTC [U1010] is detected, replace Intelligent Key unit.

>> Replace Intelligent Key unit. Refer to

SEC-118, "Removal and Installation"

Special Repair Requirement

INFOID:0000000005258961

REQUIRED WORK WHEN REPLACING INTELLIGENT KEY UNIT

Initialize control unit. Refer to CONSULT-III Operation Manual.

>> Inspection End.

DTC

CONSULT-III display de-

scription

DTC Detection Condition

Possible cause

U1010

CONTROL UNIT (CAN)

When detecting error during the initial diagnosis of CAN control-
ler of Intelligent Key unit.

Intelligent Key unit

2010 Pathfinder

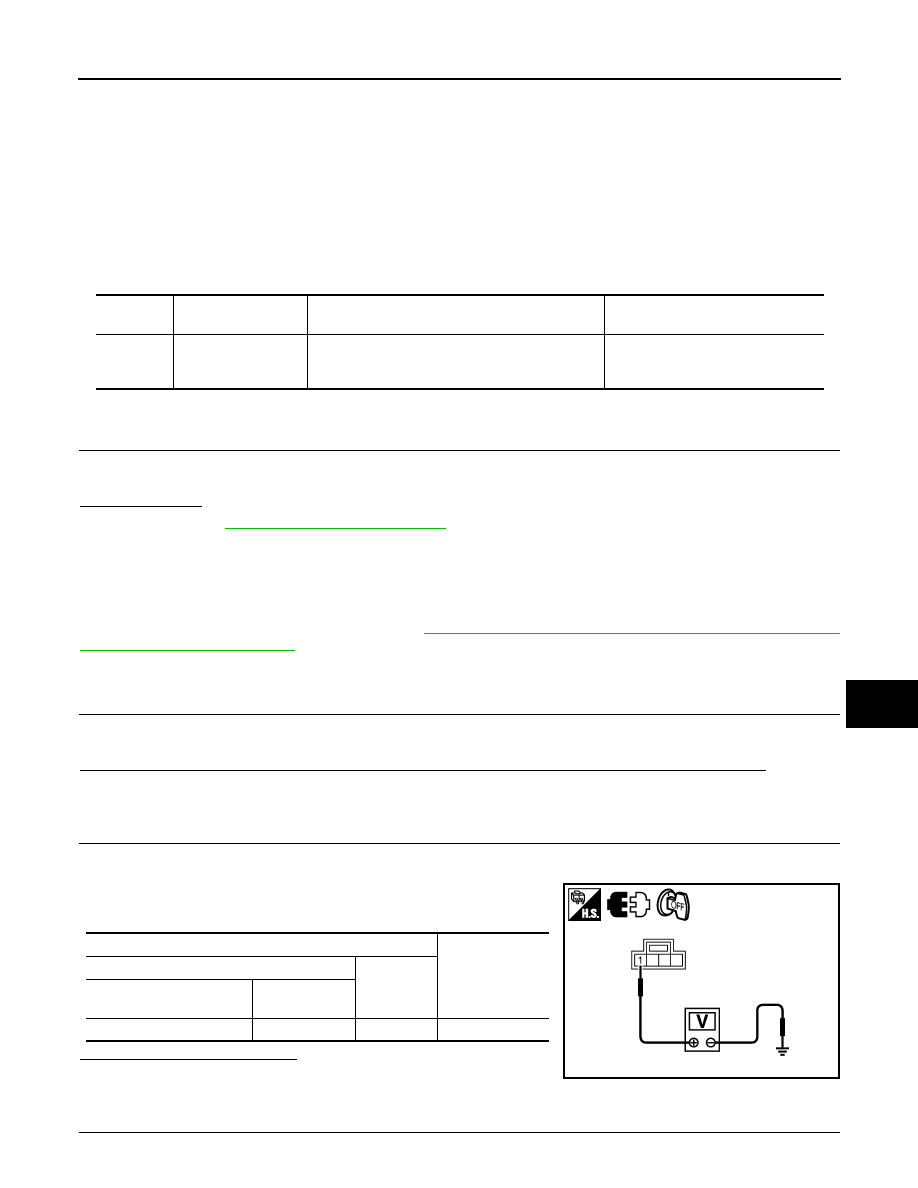

B2013 ID DISCORD I-KEY-STRG

SEC-29

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SEC

B2013 ID DISCORD I-KEY-STRG

Description

INFOID:0000000005258962

Intelligent Key unit performs the ID verification with the steering lock unit and releases the steering lock if both

Intelligent Key unit and steering lock unit ID are same. Intelligent Key unit starts the communication with the

steering lock unit when Intelligent Key is carried into the vehicle and the ignition knob switch is pressed.

DTC Logic

INFOID:0000000005258963

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

PERFORM DTC CONFIRMATION PROCEDURE

1. Press the ignition knob switch

2. Check “Self diagnostic result” with CONSULT-III.
Is DTC detected?

YES

>> Refer to

SEC-29, "Diagnosis Procedure"

>> Inspection End.

Diagnosis Procedure

INFOID:0000000005258964

Regarding Wiring Diagram information, refer to

SEC-85, "Wiring Diagram - INTELLIGENT KEY SYSTEM/

ENGINE START FUNCTION -"

PERFORM INITIALIZATION

Perform initialization with CONSULT-III. Re-register all mechanical keys.

For initialization and registration of mechanical key. Refer to “CONSULT-III Operation Manual”.
Can the system be initialized and can steering lock be released with re-registered mechanical key?

YES

>> Steering lock solenoid was unregistered.

>> GO TO 2

CHECK STEERING LOCK SOLENOID POWER SUPPLY-1

1. Turn ignition switch OFF.

2. Disconnect steering lock solenoid connector.

3. Check voltage between steering lock solenoid harness connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 3

>> Repair or replace harness.

CHECK STEERING LOCK SOLENOID GROUND CIRCUIT

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2013

STRG COMM 1

The ID verification results between Intelligent Key
unit and steering control unit are NG. The registra-
tion is necessary.

Steering lock unit

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Steering lock solenoid con-

nector

Terminal

M65

Ground

Battery voltage

PIIB6632E

2010 Pathfinder

Content .. 564 565 566 567 ..
