Nissan Pathfinder (2010 year). Manual - part 561





FRONT SEAT

SE-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Fold Flat Passenger Seat

10. Leg cover

11. Seat cushion front finisher

12. Passenger seat wiring harness

13. Power seat frame assembly

14. Seat cushion inner finisher

15. Seat belt buckle assembly

16. Leg cover

17. Seat cushion rear finisher

18. Manual seat frame assembly

19. Recline lever

20. Seat cushion rear finisher

21. Seatback board

22. Headrest holder with multi position

lock

23. Headrest holder

24. Seatback pad without side air bag

25. Seatback frame without side air bag

26. Damper assembly

27. Seatback heating element

LIIA2409E

2010 Pathfinder

SE-30

< ON-VEHICLE REPAIR >

FRONT SEAT

Removal and Installation

INFOID:0000000005256412

REMOVAL

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• Before removing the front seat, turn the ignition switch off, disconnect both battery terminals and

wait at least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.

1. Slide the seat until the four body bolts are visible and a tool can be inserted.

NOTE:

Set the front/rear cushion lifters to the top position.

2. Disconnect both the negative and positive battery terminals and wait at least 3 minutes.
3. Disconnect the side air bag module harness connector (if equipped).
4. On the passenger seat, disconnect the Occupant Classification System harness.
5. Remove the four body bolts.
6. Disconnect the power seat harness connectors (if equipped) and remove the seat from the vehicle.

NOTE:

When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

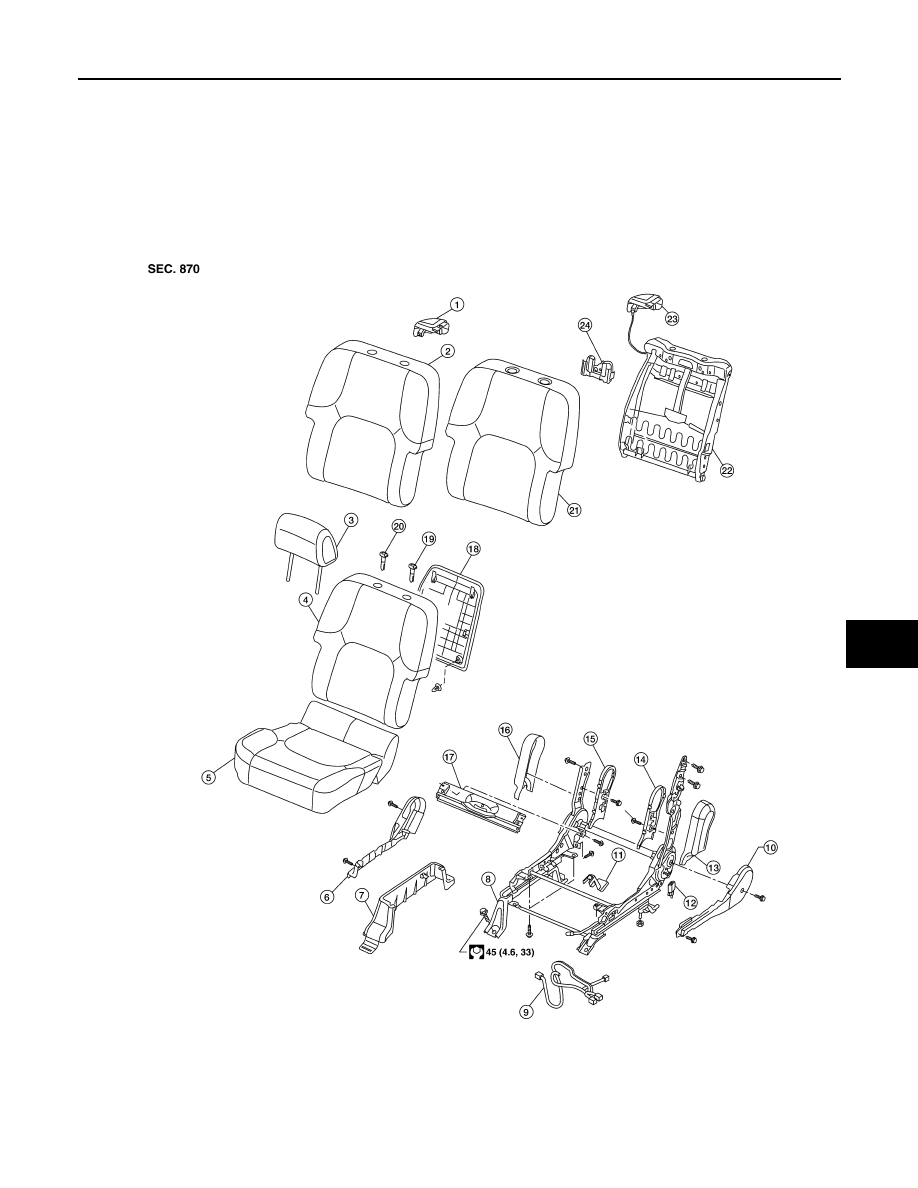

1.

Front seatback lever

2.

Seatback trim without side air bag

3.

Headrest

4.

Seatback assembly with side air bag 5.

Seat cushion assembly

6.

Seat cushion outer finisher

7.

Leg cover

8.

Seat frame assembly

9.

Passenger seat wiring harness

10. Seat cushion inner cover

11. Leg cover

12. Seat belt buckle assembly

13. Inboard reclining arm outer cover

14. Inboard reclining arm inner cover

15. Outboard reclining arm inner cover

16. Outboard reclining arm outer cover

17. Seat cushion rear finisher

18. Seatback board

19. Headrest holder with multi position

lock

20. Headrest holder

21. Seatback pad without side air bag

22. Seatback frame without side air bag

23. Seatback fold flat release lever as-

sembly

24. Damper assembly

2010 Pathfinder

REAR SEAT

SE-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

Removal and Installation

INFOID:0000000005256413

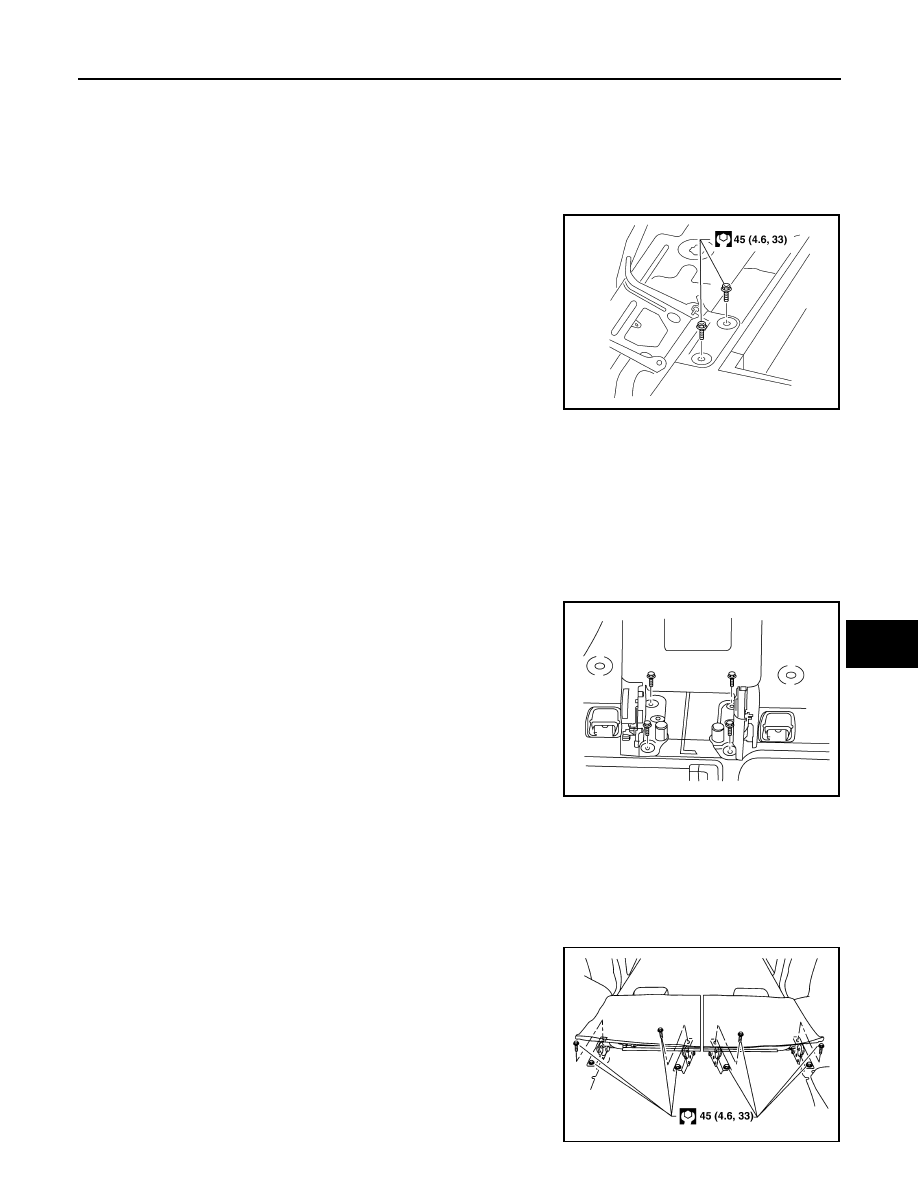

Second Row Outboard

Removal

1. Tilt seat cushion forward.
2. Remove two seat bolts.

3. Lower seat cushion and tilt seatback forward.
4. Remove seat base trim cover.
5. Remove forward seat nuts and assembly.

Installation

Installation is in the reverse order of removal.

Second Row Center

Removal

1. Tilt the seat cushion forward.
2. Remove the seat cushion bolts and assembly.
3. Remove the seatback bolts and assembly.

Installation

Installation is in the reverse order of removal.

Third Row

Removal

1. Remove the lower base trim covers.
2. Remove front anchor bolts.
3. Lower the seatback into the cargo floor position.
4. Remove the rear anchor bolts from the seat assembly.
5. Remove the seat assembly.

ALJIA0226GB

AWIIA0113ZZ

WIIA0764E

2010 Pathfinder

SE-32

< ON-VEHICLE REPAIR >

REAR SEAT

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

FRONT SEAT

SE-33

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Exploded View

INFOID:0000000005256414

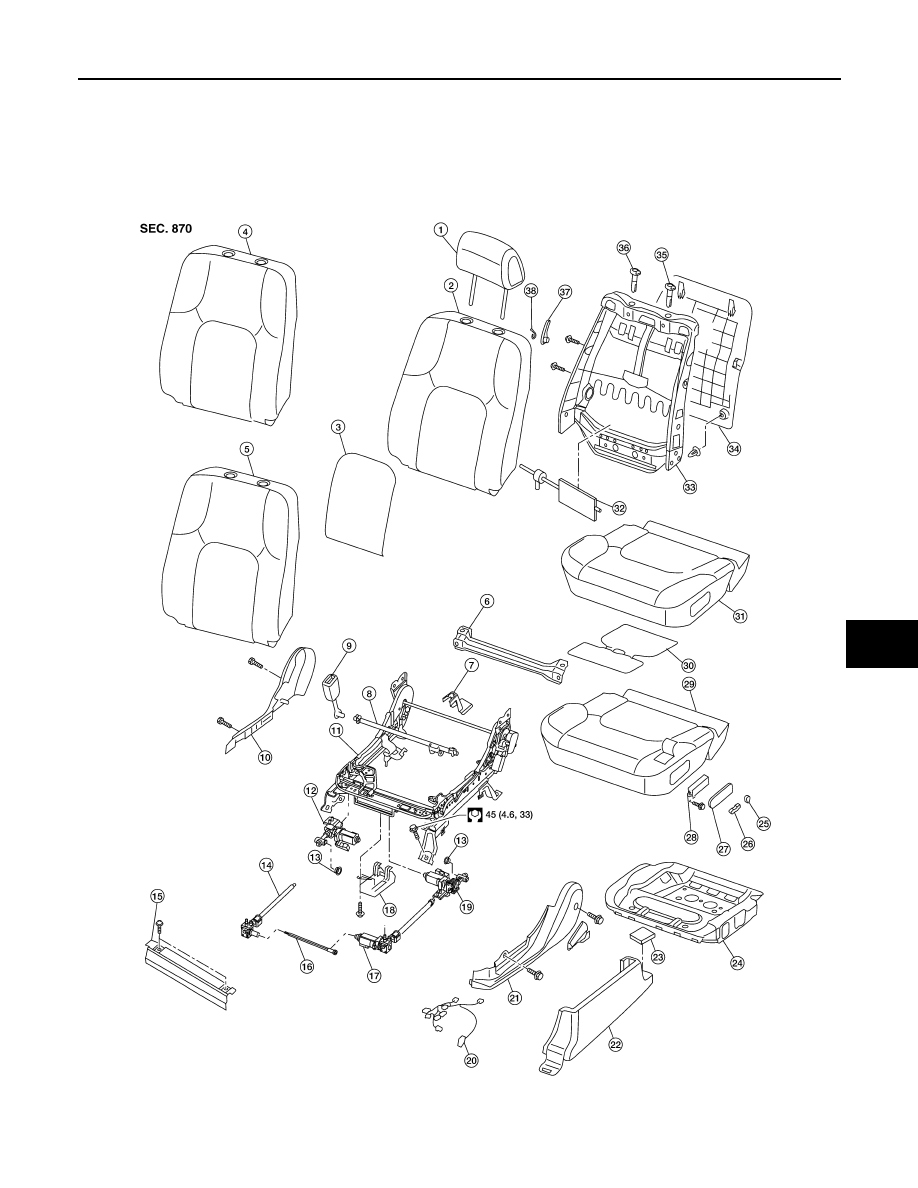

Power Driver Seat

LIIA2406E

2010 Pathfinder

SE-34

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

1.

Headrest

2.

Seatback pad without side air bag

3.

Seatback heating element

4.

Seatback assembly with side air bag 5.

Seatback trim without side air bag

6.

Power seat cushion rear finisher

7.

Leg Cover

8.

Lifter motor link bar

9.

Seat belt buckle assembly

10. Seat cushion inner finisher

11. Seat frame assembly

12. Seat lifter motor assembly

13. Seat spacer

14. Lock gear

15. Seat cushion front finisher

16. Flexible seat wire

17. Front seat slide motor assembly (LH) 18. Power seat control assembly

19. Lifter motor bracket assembly

20. Driver seat wiring harness

21. Seat cushion outer finisher

22 Leg cover

23 Bolt cover

24. Seat cushion frame

25. Recliner switch knob

26. Slide switch knob

27. Power seat switch escutcheon

28. Switch assembly

29. Seat cushion pad

30. Seat cushion heating element

31. Seat cushion trim

32. Lumbar support assembly

33. Seatback frame

34. Seatback board

35. Headrest holder with multi position

lock

36. Headrest holder

37. Lumbar support lever knob

38. Snap ring

2010 Pathfinder

FRONT SEAT

SE-35

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

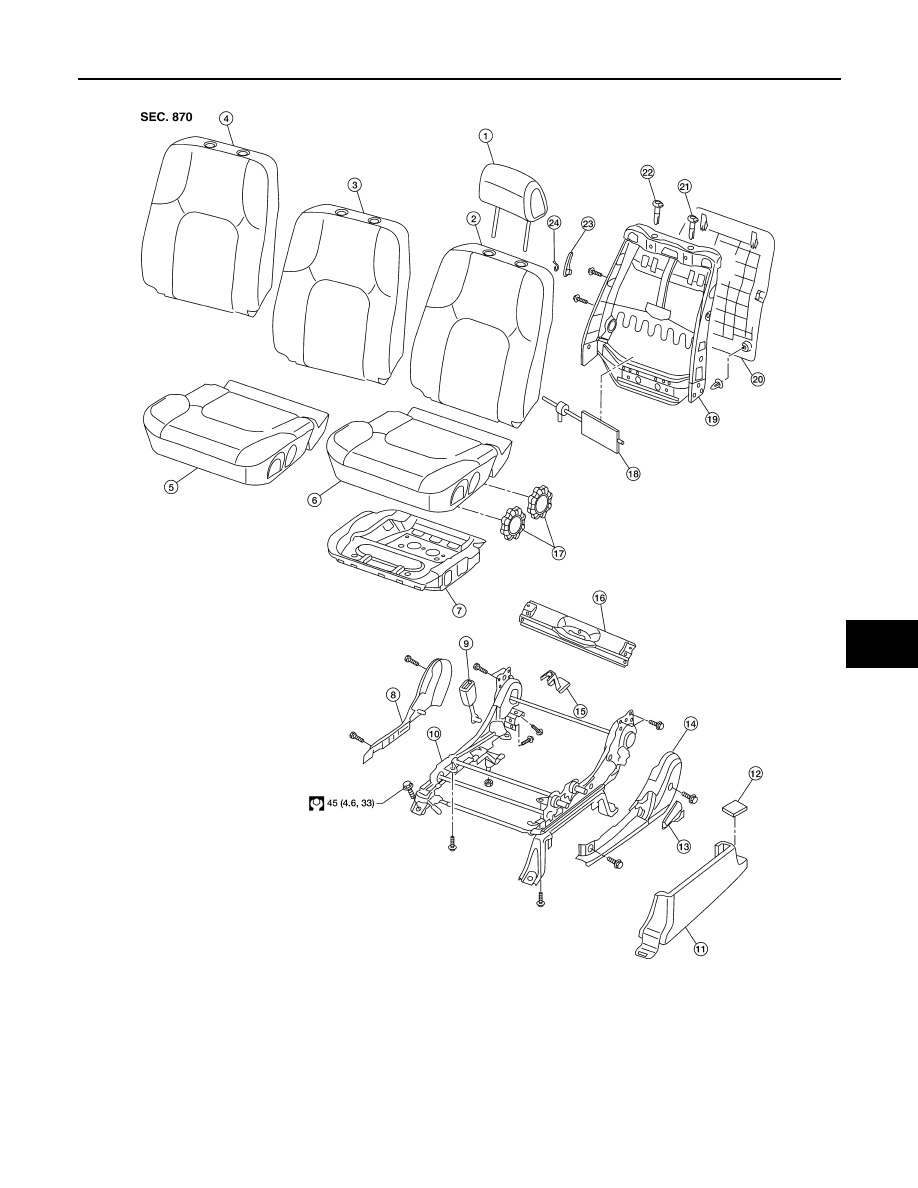

Manual Driver Seat

LIIA2407E

1.

Headrest

2.

Seatback pad without side air bag

3.

Seatback trim without side air bag

4.

Seatback assembly with side air bag 5.

Seat cushion trim cover

6.

Seat cushion pad

7.

Seat cushion frame

8.

Seat cushion inner finisher

9.

Seat belt buckle assembly

10. Seat frame assembly

11. Leg cover

12. Bolt cover

13. Recline lever

14. Seat cushion outer finisher

15. Leg cover

16. Seat cushion rear finisher

17. Seat cushion lift knobs

18. Lumbar support assembly

2010 Pathfinder

SE-36

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

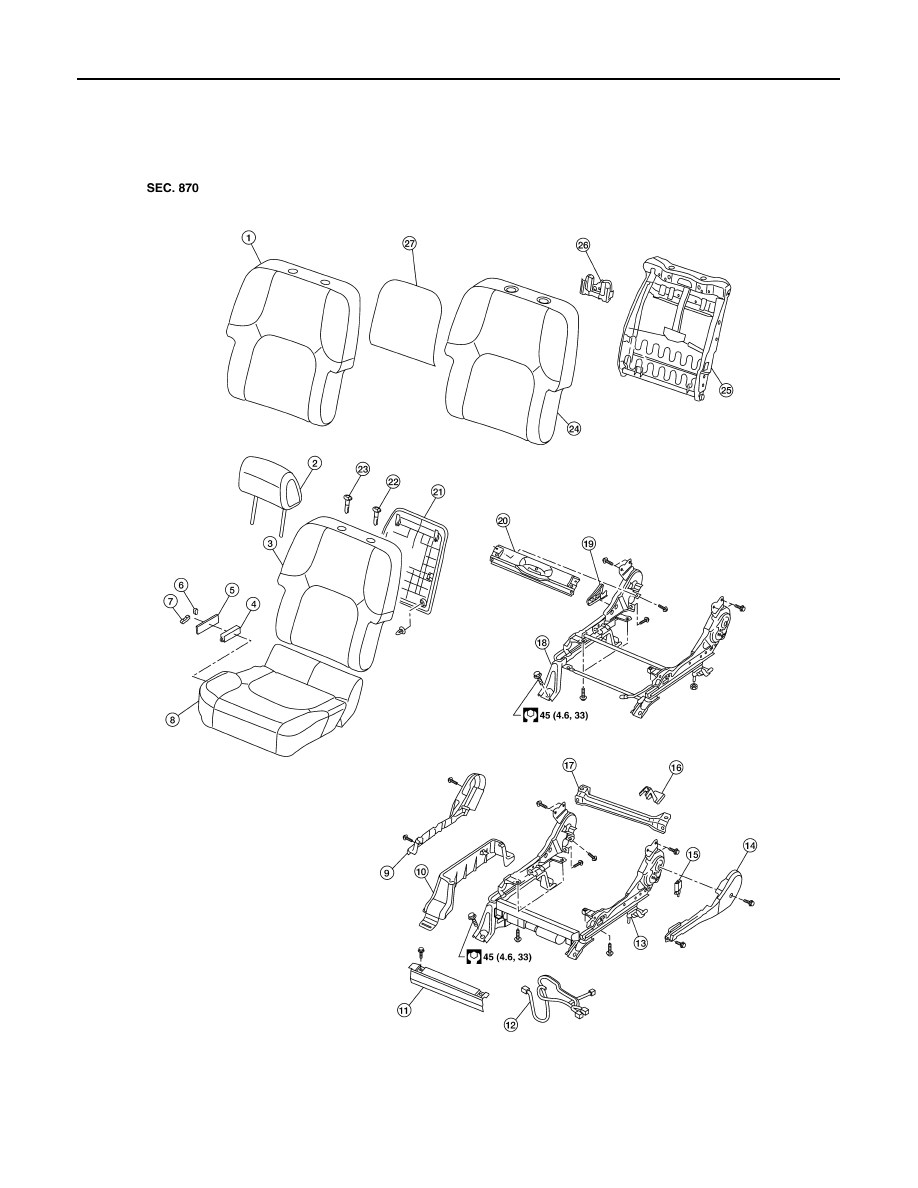

Conventional Passenger Seat

19. Seatback frame without side air bag

20. Seatback board

21. Headrest holder with multi position

lock

22 Headrest holder

23 Lumbar support lever knob

24. Snap ring

LIIA2408E

1.

Seatback trim without side air bag

2.

Headrest

3.

Seatback assembly with side air bag

4.

Switch assembly

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Seat cushion assembly

9.

Seat cushion outer cover

2010 Pathfinder
