HEATED SEAT

Description

INFOID:0000000005256404

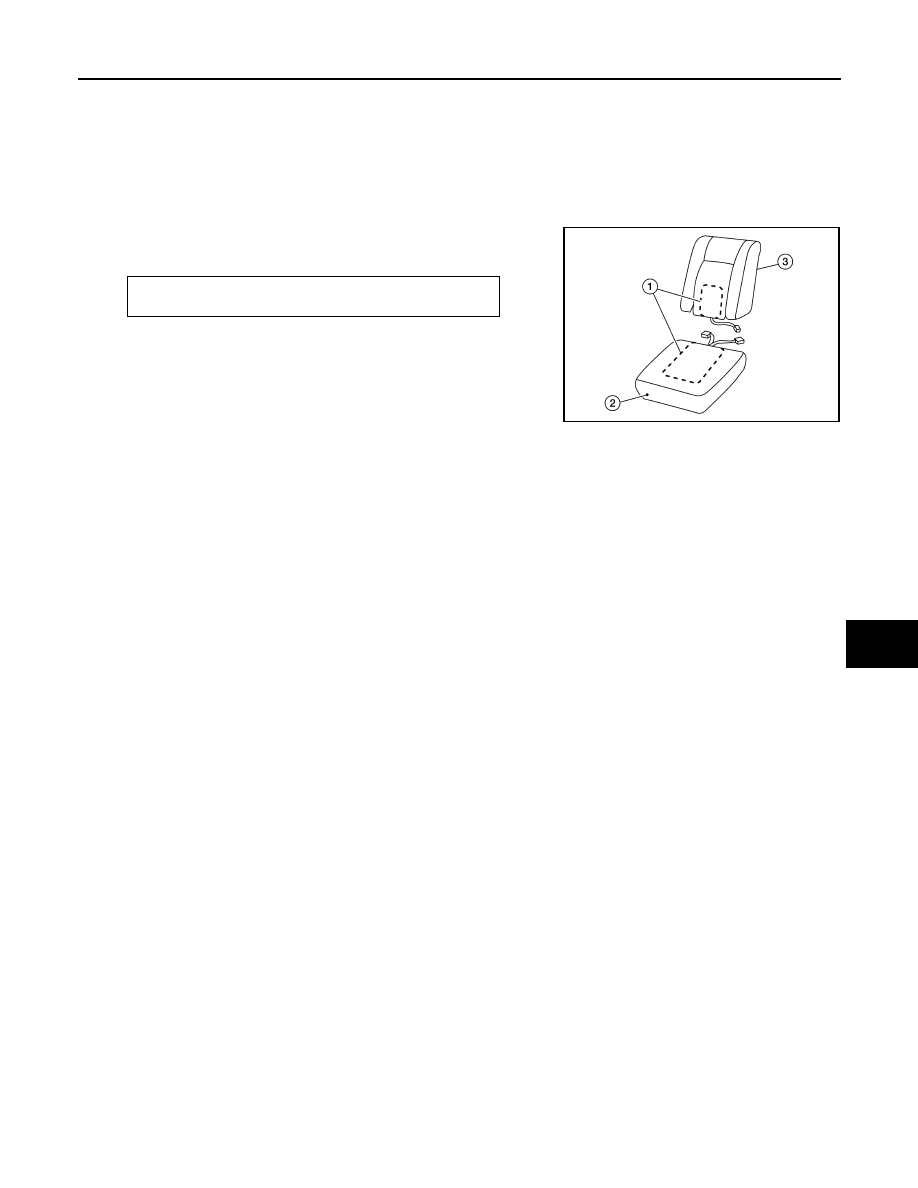

• When handling seat, be extremely careful not to scratch heating unit (1).

• To replace heating unit for vehicles without side air bags, seat trim and pad should be separated. For vehi-

cles equipped with side air bags, seat trim and pad should be separated for the front seat cushion LH. For

seatback and front seat cushion RH, complete cushion (2) or seatback assembly (3) must be replaced.

• Do not use any organic solvent, such as thinner, benzene, alcohol,

etc. to clean trim.

Thermostat operation

ON

OFF

Trim temperature

°

C (

°

F)

25 -35 (77 - 95)

35 - 45 (95 - 113)

AWJIA0054ZZ

2010 Pathfinder

SE-16

< COMPONENT DIAGNOSIS >

HEATED SEAT

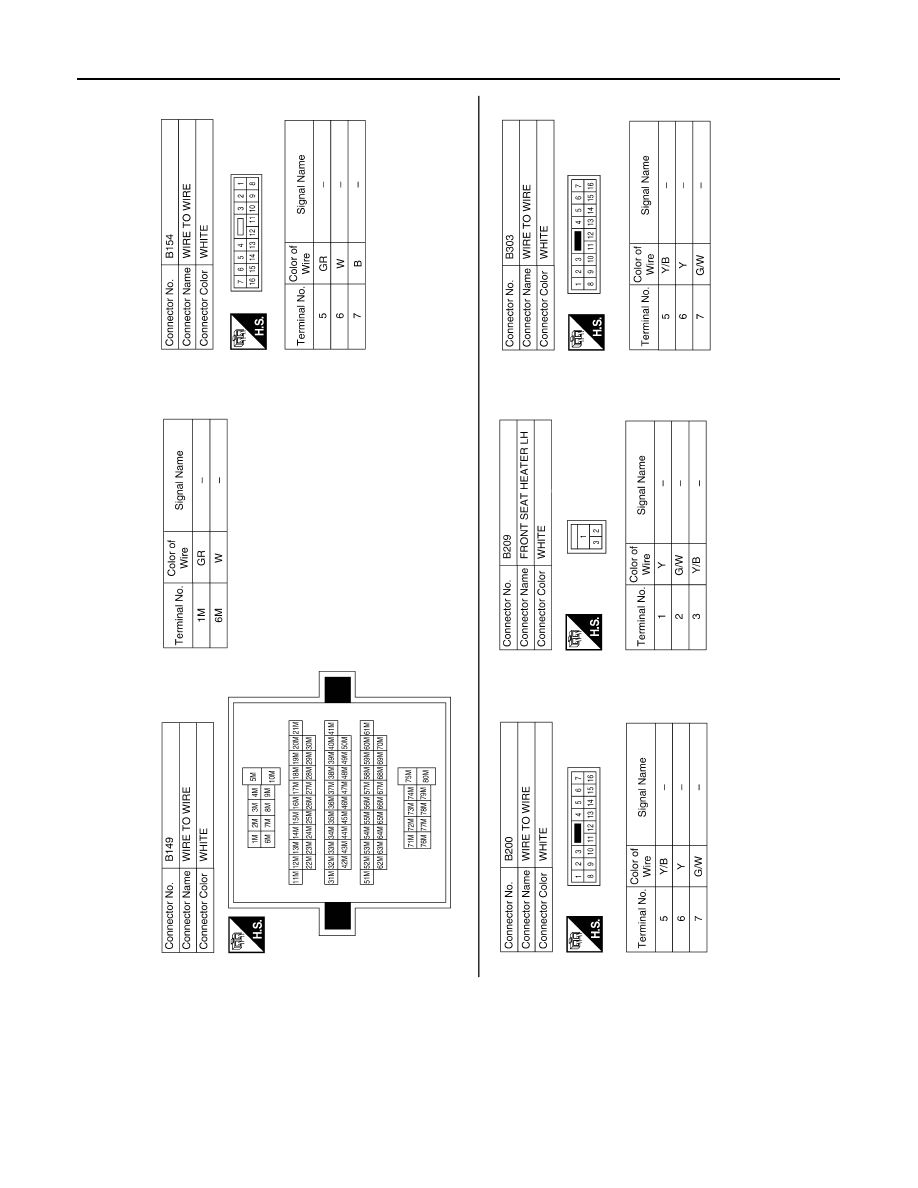

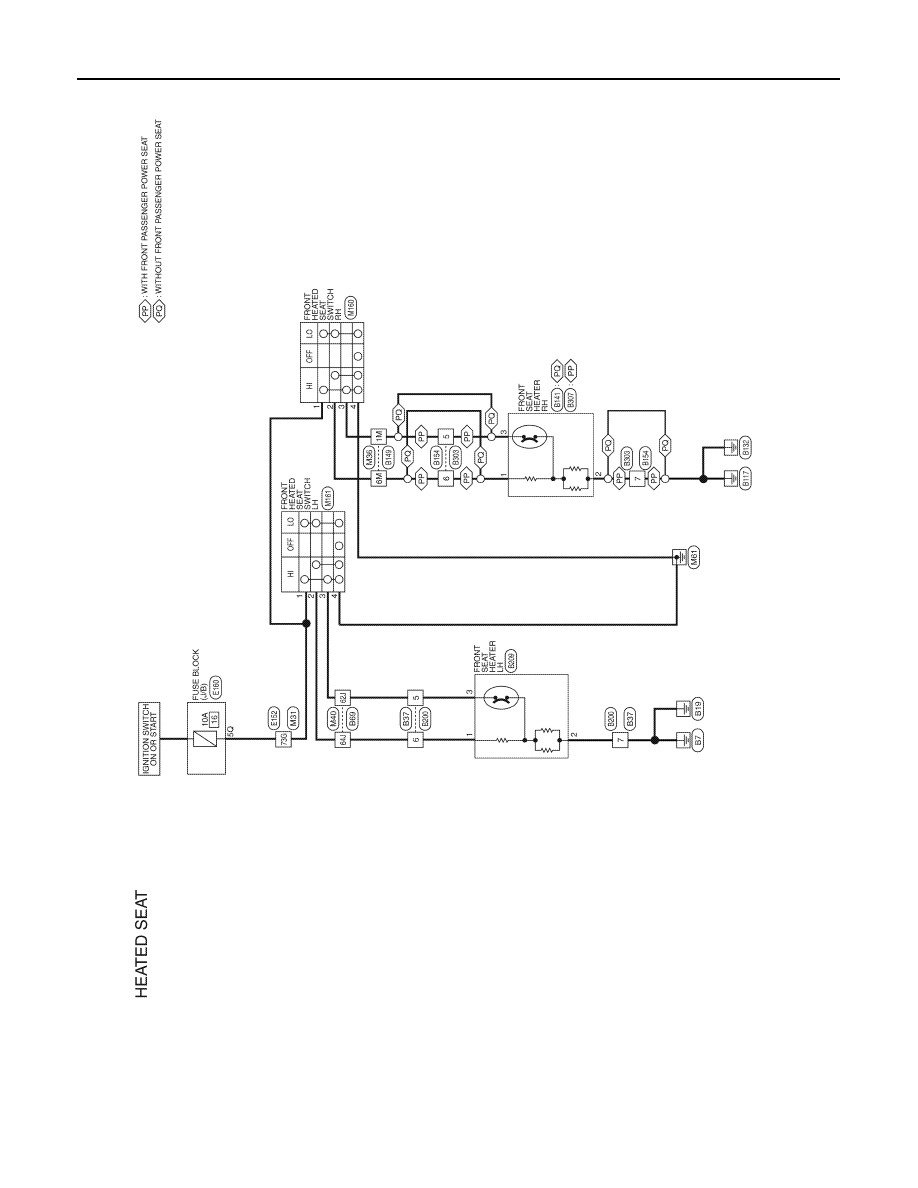

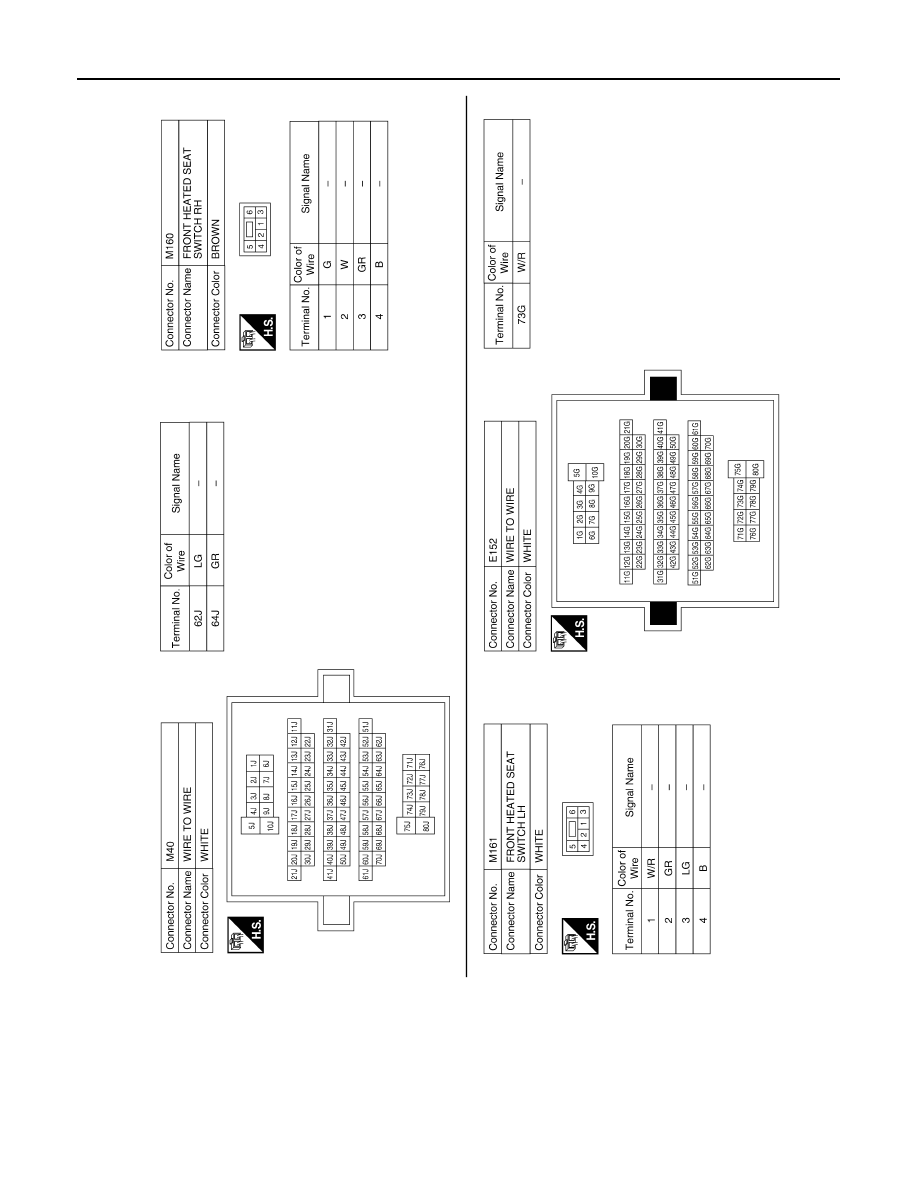

Wiring Diagram

INFOID:0000000005256405

ABJWA0130GB

2010 Pathfinder

HEATED SEAT

SE-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0021GB

2010 Pathfinder

SE-18

< COMPONENT DIAGNOSIS >

HEATED SEAT

ABJIA0022GB

2010 Pathfinder

HEATED SEAT

SE-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0374GB

2010 Pathfinder

SE-20

< COMPONENT DIAGNOSIS >

HEATED SEAT

ABJIA0010GB
