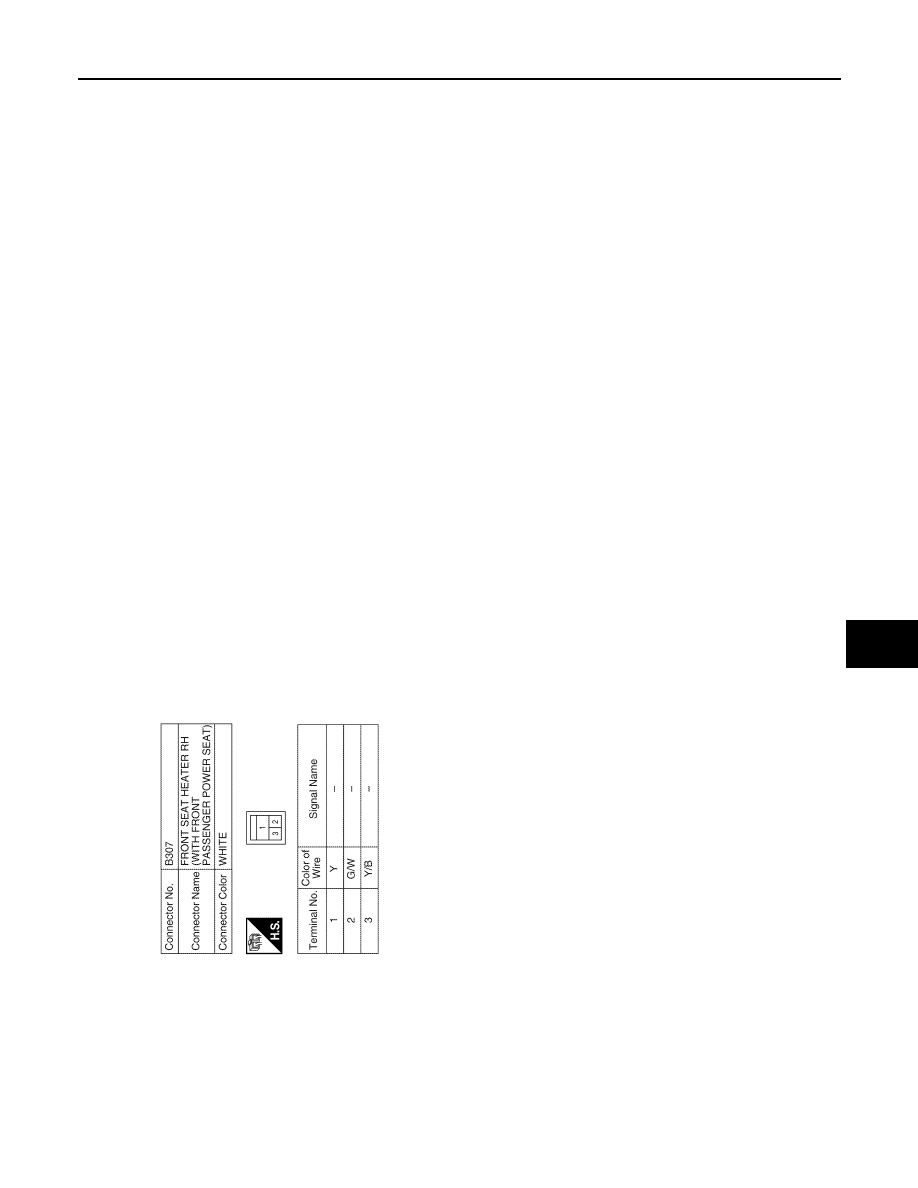

HEATED SEAT

SE-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0375GB

2010 Pathfinder

SE-22

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005503164

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Work

INFOID:0000000005256407

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After re-installation is completed, be sure to check that each part works normally.

• Follow the steps below to clean components.

- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.

Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005256408

NOTE:

2010 Pathfinder

PRECAUTIONS

SE-23

< PRECAUTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

SE-24

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

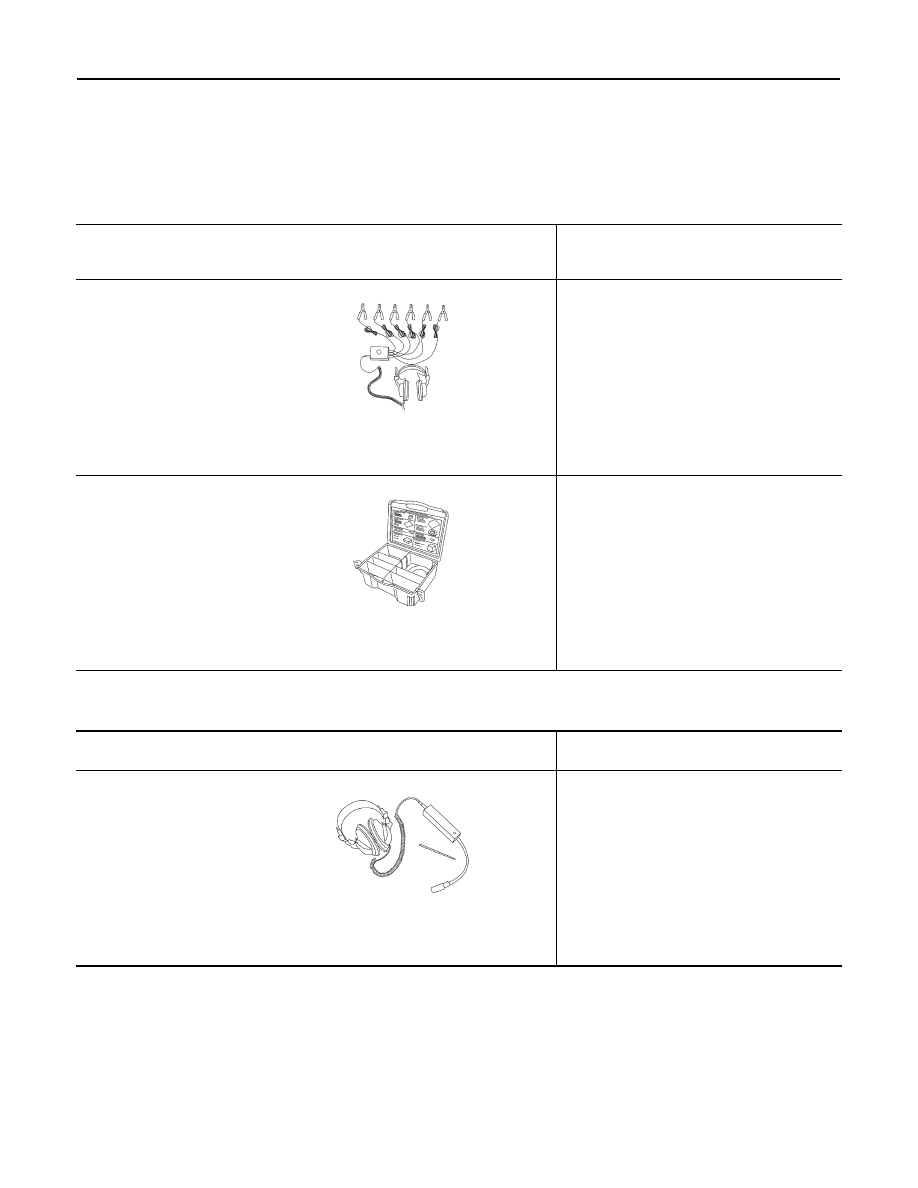

Special Service Tool

INFOID:0000000005256409

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005256410

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Locating the noise

(J-43980)
NISSAN Squeak  and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2010 Pathfinder

FRONT SEAT

SE-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

Exploded View

INFOID:0000000005256411

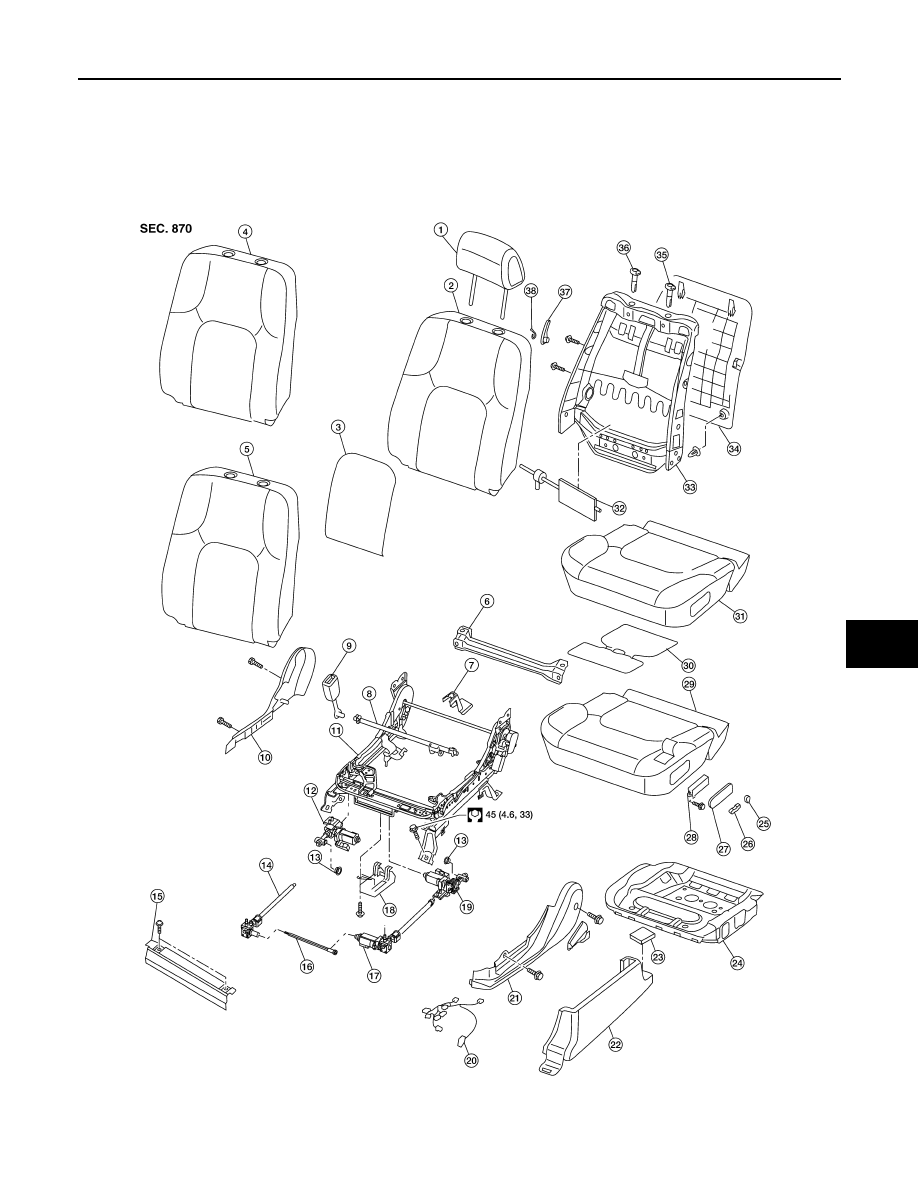

Power Driver Seat

LIIA2406E

2010 Pathfinder

SE-26

< ON-VEHICLE REPAIR >

FRONT SEAT

1.

Headrest

2.

Seatback pad without side air bag

3.

Seatback heating element

4.

Seatback assembly with side air bag 5.

Seatback trim without side air bag

6.

Power seat cushion rear finisher

7.

Leg Cover

8.

Lifter motor link bar

9.

Seat belt buckle assembly

10. Seat cushion inner finisher

11. Seat frame assembly

12. Seat lifter motor assembly

13. Seat spacer

14. Lock gear

15. Seat cushion front finisher

16. Flexible seat wire

17. Front seat slide motor assembly (LH) 18. Power seat control assembly

19. Lifter motor bracket assembly

20. Driver seat wiring harness

21. Seat cushion outer finisher

22 Leg cover

23 Bolt cover

24. Seat cushion frame

25. Recliner switch knob

26. Slide switch knob

27. Power seat switch escutcheon

28. Switch assembly

29. Seat cushion pad

30. Seat cushion heating element

31. Seat cushion trim

32. Lumbar support assembly

33. Seatback frame

34. Seatback board

35. Headrest holder with multi position

lock

36. Headrest holder

37. Lumbar support lever knob

38. Snap ring

2010 Pathfinder

FRONT SEAT

SE-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

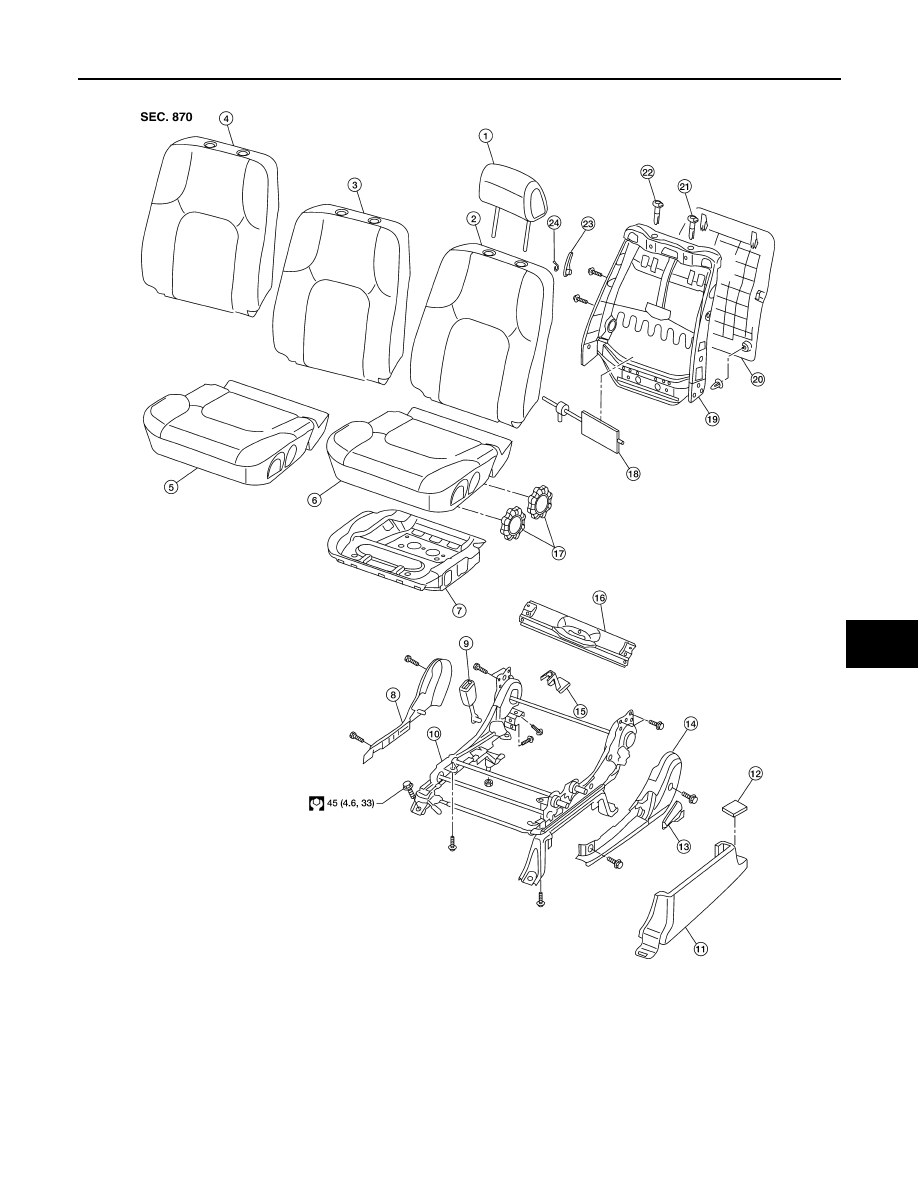

Manual Driver Seat

LIIA2407E

1.

Headrest

2.

Seatback pad without side air bag

3.

Seatback trim without side air bag

4.

Seatback assembly with side air bag 5.

Seat cushion trim cover

6.

Seat cushion pad

7.

Seat cushion frame

8.

Seat cushion inner finisher

9.

Seat belt buckle assembly

10. Seat frame assembly

11. Leg cover

12. Bolt cover

13. Recline lever

14. Seat cushion outer finisher

15. Leg cover

16. Seat cushion rear finisher

17. Seat cushion lift knobs

18. Lumbar support assembly

2010 Pathfinder

SE-28

< ON-VEHICLE REPAIR >

FRONT SEAT

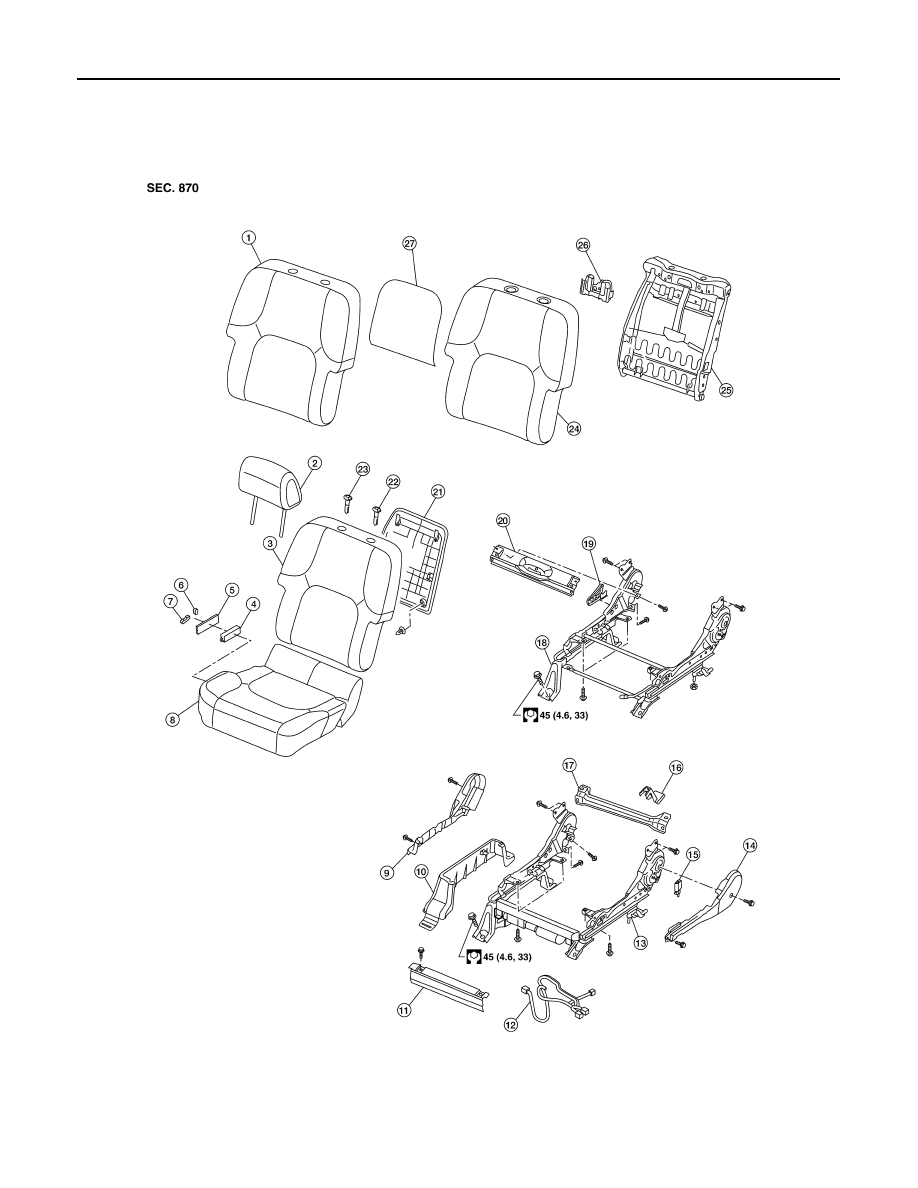

Conventional Passenger Seat

19. Seatback frame without side air bag

20. Seatback board

21. Headrest holder with multi position

lock

22 Headrest holder

23 Lumbar support lever knob

24. Snap ring

LIIA2408E

1.

Seatback trim without side air bag

2.

Headrest

3.

Seatback assembly with side air bag

4.

Switch assembly

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Seat cushion assembly

9.

Seat cushion outer cover
