Nissan Pathfinder (2010 year). Manual - part 526

PG-40

< COMPONENT DIAGNOSIS >

HARNESS

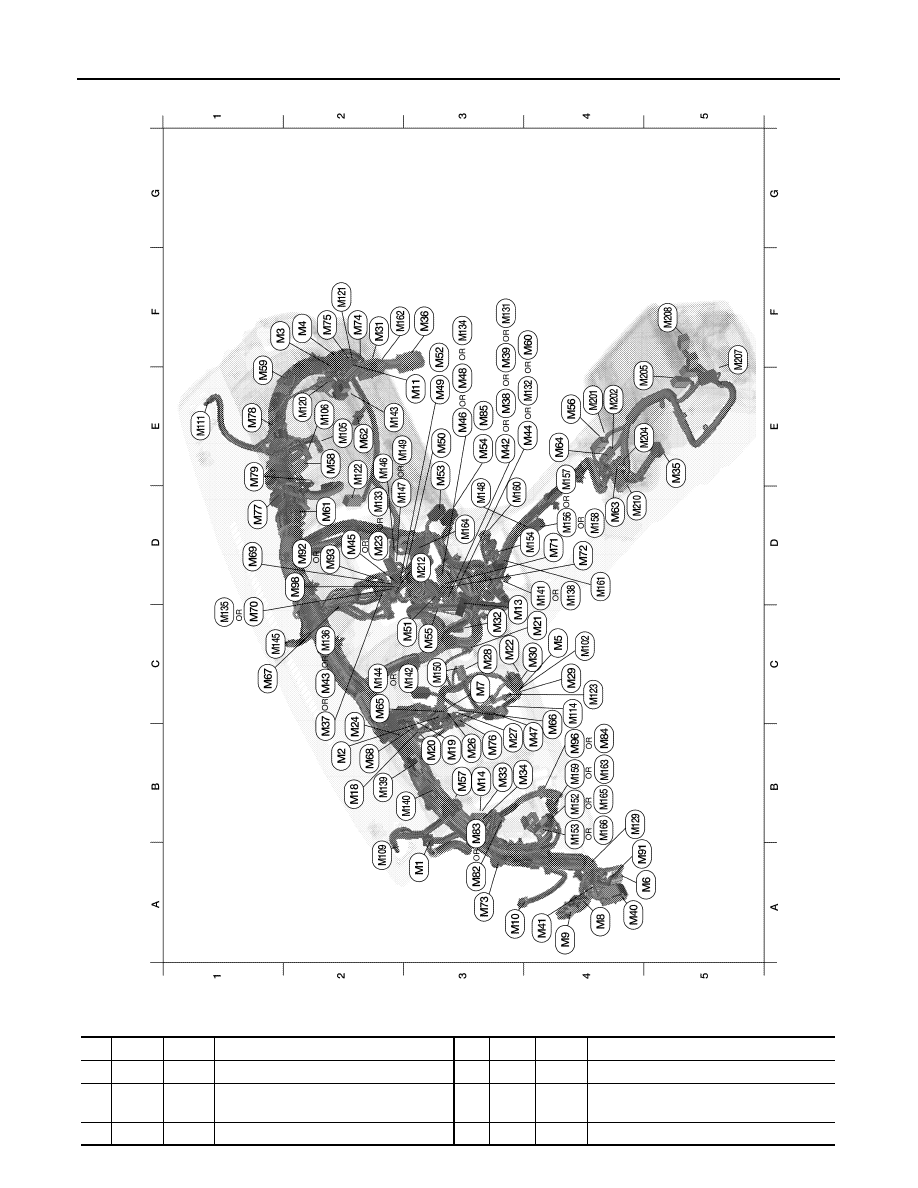

MAIN HARNESS

ABMIA1374GB

A3

M1

W/24

: To R1

F2

M75

W/12

: To D101

B2

M2

L/4

: Heated steering relay

B3

M76

W/6

: Electric brake (pre-wiring)

F1

M3

W/8

: Fuse block (J/B)

D1

M77

Y/4

: Front passenger air bag module
  (service replacement)

F2

M4

W/16

: Fuse block (J/B)

E1

M78

GR/3

: To M501

2010 Pathfinder

PG

HARNESS

PG-41

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

C4 M5

W/2

: Combination switch

E1

M79

—

: Body ground

A5

M6

W/8

: To E10

A3

M82

W/2

: Circuit breaker-2 (with automatic drive
  positioner)

C3 M7

W/6

: Heated steering wheel switch

B3

M83

W/2

: Circuit breaker-2 (without automatic drive
  positioner)

A4

M8

BR/12

: To D2

B4

M84

BR/6

: Pedal adjusting switch (without automatic
  drive positioner)

A4

M9

W/24

: To D1

E3

M85

W/4

: Aux in jack

A3

M10

Y/4

: To E29

A4

M91

W/16

: To E26

E3

M11

B/5

: Passenger select unlock relay

D2

M92

W/24

: Display unit (with NAVI)

C3 M13

BR/3

: Front passenger air bag OFF indicator
  (without front passenger power seat)

D2

M93

W/24

: Display unit (without NAVI)

B3

M14

BR/2

: Front passenger air bag OFF indicator
  (with front passenger power seat)

B4

M96

BR/6

: Pedal adjusting switch (with automatic
  drive positioner)

B2

M18

W/40

: BCM (body control module)

D2

M98

W/16

: A/C and AV switch assembly

B3

M19

W/15

: BCM (body control module)

C4

M102

GR/8

: Combination switch

B3

M20

B/15

: BCM (body control module)

F2

M105

Y/2

: Front passenger air bag module

C4 M21

W/4

: NATS antenna amp.

C3 M22

W/16

: Data link connector

F2

M106

O/2

: Front passenger air bag module

D2 M23

W/32

: AV control unit (with BOSE audio
  system with NAVI)

A2

M109

BR/2

: Front tweeter LH

B2

M24

W/40

: Combination meter

E2

M111

BR/2

: Front tweeter RH

B3

M26

W/6

: Ignition switch

C4

M114

W/2

: Heated steering wheel

B3

M27

W/2

: Key switch

E2

M120

W/4

: Remote keyless entry receiver

C3 M28

W/16

: Combination switch

F2

M121

W/4

: Front blower motor resistor

C4 M29

Y/6

: Combination switch

E2

M122

W/4

: Variable blower control

C4 M30

GR/8

: Combination switch

C4

M123

W/2

: Tire pressure warning check connector

F2

M31

SMJ

: To E152

B4

M129

W/1

: Satellite radio tuner or pre-wiring for
  satellite radio tuner

C3 M32

W/4

: In-vehicle sensor

F3

M131

W/20

: AV control unit (with mid audio system)

B3

M33

W/32

: Automatic drive positioner control unit

E3

M132

GR/3

: AV control unit (with mid audio system)

B4

M34

W/16

: Automatic drive positioner control unit

D2

M133

W/24

: AV control unit (with mid audio system)

E5

M35

Y/28

: Air bag diagnosis sensor unit

F3

M134

W/16

: AV control unit (with mid audio system)

F3

M36

SMJ

: To B149

C1

M135

W/32

: AV control unit (with mid audio system)

C2 M37

W/12

: AV control unit (with BOSE audio
  system with NAVI)

C2

M136

W/12

: AV control unit (with mid audio system)

E3

M38

W/20

: Audio unit

D4

M138

GR/8

: 4WD shift switch (part time 4WD system)

F3

M39

W/20

: AV control unit (with BOSE audio
  system with NAVI)

B2

M139

B/2

: Diode-1

A4

M40

SMJ

: To B69

B3

M140

B/2

: Diode-2

A4

M41

W/16

: Satellite radio tuner or Pre-wiring for
  satellite radio tuner

D4

M141

GR/8

: 4WD shift switch (all-mode 4WD system)

E3

M42

W/20

: AV control unit (with BOSE audio
  system without NAVI)

C2

M142

B/6

: Mode door motor (front) (with auto A/C)

D2 M43

W/12

: AV control unit (with BOSE audio
  system without NAVI)

E3

M143

B/6

: Air mix door motor (passenger)

E3

M44

GR/3

: AV control unit (with BOSE audio
  system without NAVI)

C2

M144

B/6

: Mode door motor (without auto A/C)

D2 M45

W/24

: AV control unit (with BOSE audio
  system without NAVI)

C1

M145

B/4

: Optical sensor

2010 Pathfinder

PG-42

< COMPONENT DIAGNOSIS >

HARNESS

E3

M46

W/16

: AV control unit (with BOSE audio
  system without NAVI)

E3

M146

GR/2

: Intake sensor

B4

M47

W/8

: Steering angle sensor

D2

M147

B/6

: Air mix door motor LH

E3

M48

W/40

: AV control unit (with BOSE audio
  system with NAVI)

B3

M148

B/2

: Diode-3

E3

M49

B/26

: A/C auto amp.

E3

M149

B/6

: Air mix door motor

E3

M50

L/26

: A/C auto amp.

C3

M150

W/2

: Ignition keyhole illumination

C3 M51

W/8

: Front blower switch

B4

M152

W/24

: Transfer control unit (all-mode 4WD)

F3

M52

B/26

: Front air control

B4

M153

GR/24

: Transfer control unit (all-mode 4WD)

E3

M53

B/3

: Lower front power socket

D4

M154

GR/6

: VDC off switch

E3

M54

B/3

: Upper front power socket (for
  cigarette lighter)

D4

M156

W/10

: A/T shift selector (without manual
  mode switch)

C3 M55

W/4

: Hazard switch

E4

M157

W/10

: A/T shift selector (with manual mode
  switch without intelligent key system)

E4

M56

W/16

: To M201

D4

M158

W/10

: A/T shift selector (with manual mode
  switch and intelligent key system)

B3

M57

—

: Body ground

B4

M159

W/16

: Door mirror remote control switch
  (without automatic drive positioner)

E2

M58

B/6

: Intake door motor

D3

M160

BR/6

: Front heated seat switch RH

E1

M59

BR/2

: Glove box lamp

D4

M161

W/6

: Front heated seat switch LH

F4

M60

GR/3

: AV control unit (with BOSE audio
  system with NAVI)

F2

M162

W/2

: To B131

D2 M61

—

: Body ground

B4

M163

BR/16

: Door mirror remote control switch
  (with automatic drive positioner)

E2

M62

B/2

: Front blower motor

D3

M164

W/40

: Intelligent key unit

E4

M63

W/6

: To M204

B4

M165

W/26

: Transfer control unit (part time 4WD)

D4 M64

W/6

: To M202

B4

M166

W/24

: Transfer control unit (part time 4WD)

C2 M65

W/4

: Steering lock solenoid

Console sub-harness

C4 M66

GR/6

: Key switch and ignition knob switch

E4

M201

W/16

: To M56

C2 M67

W/4

: Remote keyless entry receiver

E4

M202

W/6

: To M64

B2

M68

GR/2

: Instrument panel area antenna

E4

M204

W/6

: To M63

D1 M69

W/12

: AV control unit (with BOSE audio
  system without NAVI)

E4

M205

W/32

: DVD player

C1 M70

W/32

: AV control unit (with BOSE audio
  system without NAVI)

F5

M207

B/3

: Console power socket

D4 M71

V/1

: AV control unit (with BOSE audio
  system with NAVI)

F5

M208

B/10

: Rear air control (rear)

D4 M72

GR/2

: AV control unit (with BOSE audio
  system with NAVI)

D4

M210

W/18

: To B77

A3

M73

BR/1

: To M350

F2

M74

W/16

: To D102

2010 Pathfinder

PG

HARNESS

PG-43

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

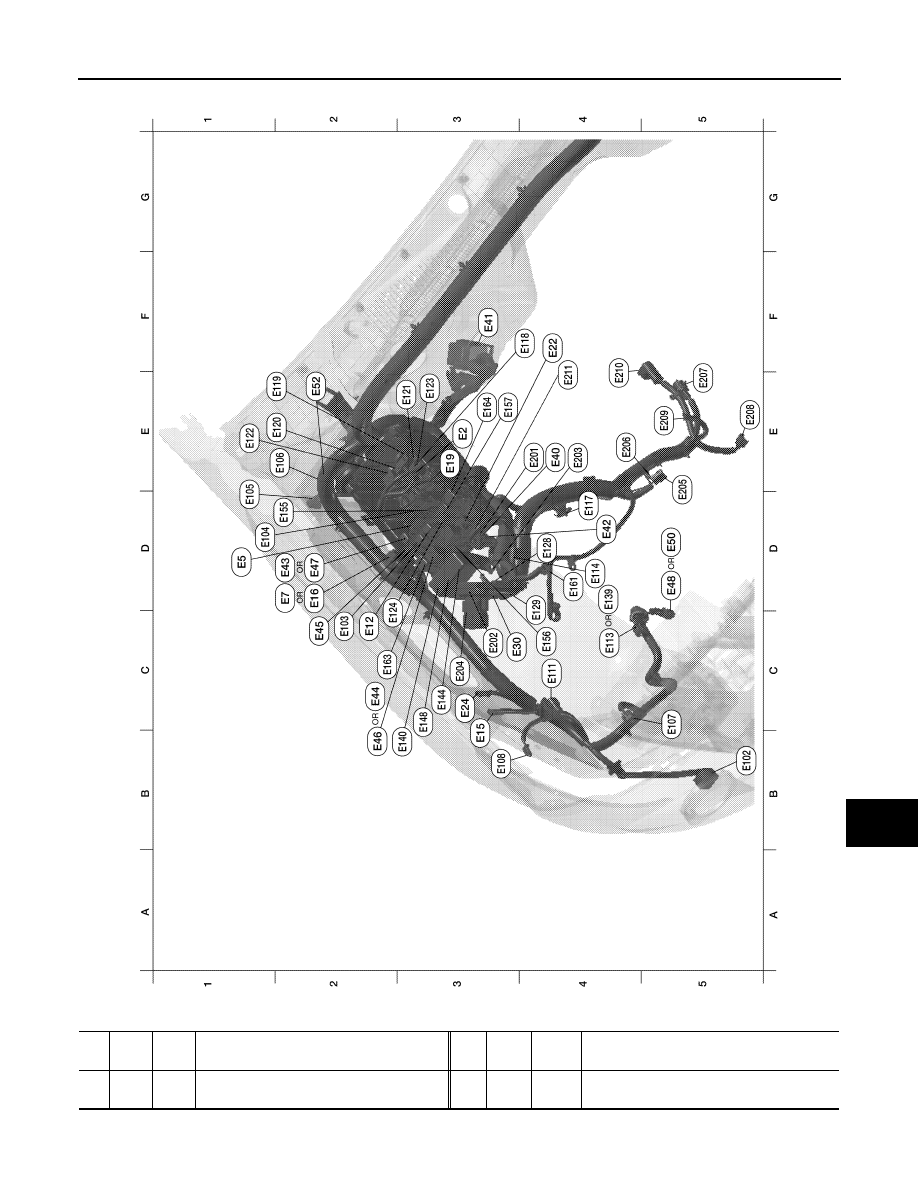

ENGINE ROOM HARNESS (RH VIEW)

Refer to "ENGINE ROOM HARNESS (LH VIEW)" for continuation of engine room harness"

ABMIA1402GB

E3

E2

W/16 : To F32

F4

E118

B/2

: IPDM E/R (intelligent power distribution
  module engine room)

D1 E5

W/24 : To F14

E2

E119

W/16

: IPDM E/R (intelligent power distribution
  module engine room)

2010 Pathfinder

PG-44

< COMPONENT DIAGNOSIS >

HARNESS

D2 E7

B/40

: ECM (with VK56DE)

E2

E120

W/6

: IPDM E/R (intelligent power distribution
  module engine room)

C2 E12

L/4

: Stop lamp relay

E3

E121

BR/12

: IPDM E/R (intelligent power distribution
  module engine room)

C3 E15

—

: Body ground

E1

E122

W/12

: IPDM E/R (intelligent power distribution
  module engine room)

D2 E16

B/40

: ECM (with VQ40DE)

E3

E123

BR/8

: IPDM E/R (intelligent power distribution
  module engine room)

D3 E19

W/16 : To F33

C2

E124

B/6

: IPDM E/R (intelligent power distribution
  module engine room)

F4

E22

BR/6

: Front blower motor relay (with auto A/C)

D4

E128

GR/2

: Fusible link box (battery)

C3 E24

—

: Body ground

D4

E129

B/2

: Fusible link box (battery)

C3 E30

—

: Fusible link box (battery)

D4

E139

B/4

: Cooling fan motor (with VK56DE)

E4

E40

GR/9 : To E201

B3

E140

BR/6

: Trailer tow relay 2

F3

E41

SMJ

: To C1

C3

E144

L/4

: Heater pump relay

D4 E42

B/4

: To E211

C3

E148

L/4

: Trailer tow relay 1

D2 E43

B/5

: Transfer shift low relay (part time 4WD
  system)

D2

E155

L/4

: Transfer shut off relay

C2 E44

B/5

: Transfer shift high relay (part time 4WD
  system)

C4

E156

L/4

: Transfer shut off relay 1

C2 E45

BR/6

: Back-up lamp relay

E3

E157

L/4

: Transfer shut off relay 2

B2

E46

B/5

: Transfer shift high relay (all-mode 4WD
  system)

D4

E161

B/3

: Battery current sensor

D2 E47

B/5

: Transfer shift low relay (all-mode 4WD
  system)

C2

E163

L/4

: Trailer turn relay LH

D5 E48

B/3

: Refrigerant pressure sensor (with
  VQ40DE)

E3

E164

L/4

: Trailer turn relay RH

D5 E50

B/3

: Refrigerant pressure sensor (with
  VK56DE)

Generator sub-harness

E2

E52

W/2

: To F35

E4

E201

GR/9

: To E40

B5

E102 B/2

: Front fog lamp RH

C3

E202

—

: Fusible link box (battery)

C2 E103 B/5

: Daytime light relay 1

E4

E203

—

: Body ground

D1 E104 L/4

: Daytime light relay 2

C3

E204

—

: Fusible link box (battery)

D1 E105 B/2

: Front and rear washer motor

D5

E205

B/3

: Generator

E2

E106 BR/2

: Washer fluid level switch

E4

E206

—

: Generator

C5 E107 B/3

: Front headlamp RH

F5

E207

GR/1

: Starter motor (with VQ40DE)

B3

E108 GR/2 : Front side marker lamp RH

E5

E208

GR/1

: Oil pressure switch

C4 E111

GR/3 : Front combination lamp RH

E5

E209

—

: Generator

C4 E113

GR/4 : Cooling fan motor (with VQ40DE)

E4

E210

B/1

: Starter motor

D4 E114

B/6

: Delta stroke sensor

E4

E211

B/4

: To E42

D4 E117

GR/2 : Front wheel sensor RH

2010 Pathfinder

PG

HARNESS

PG-45

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

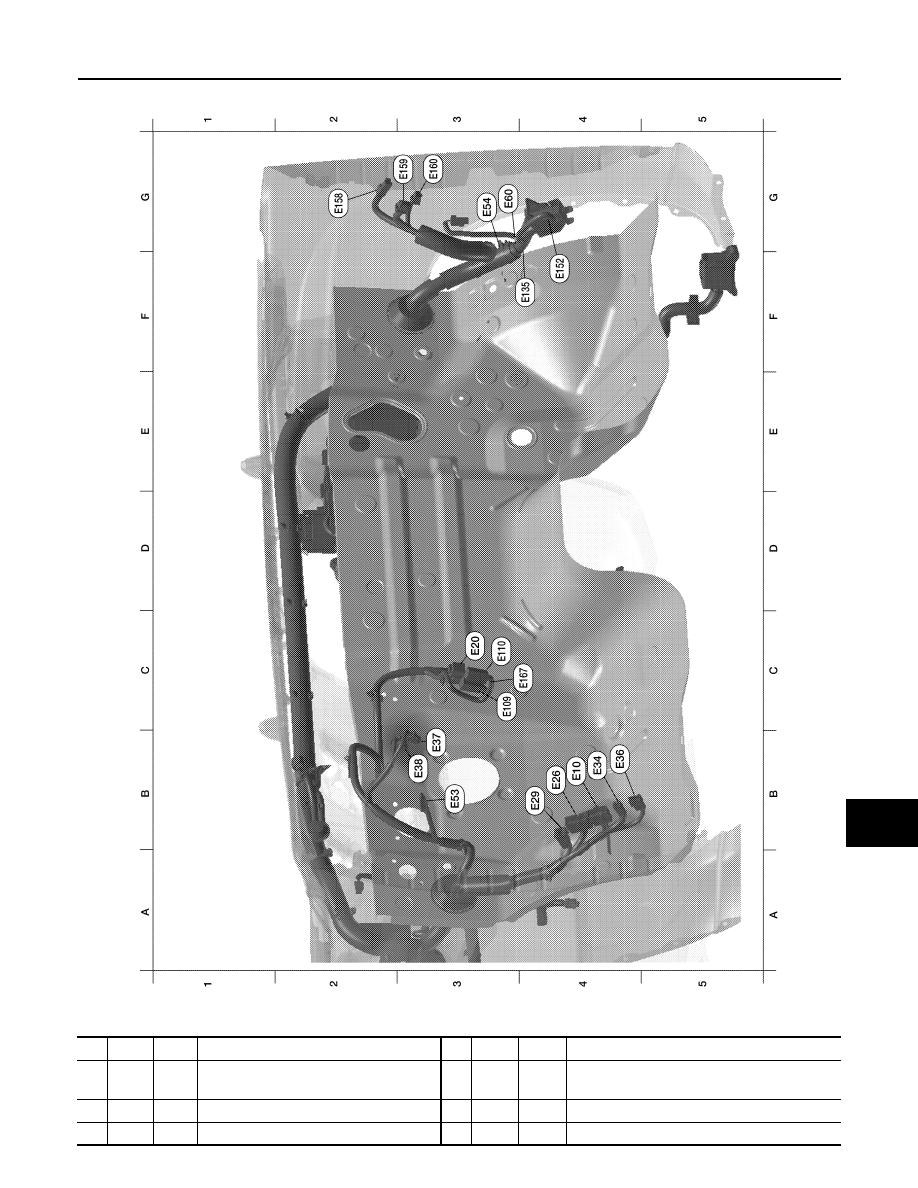

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

ABMIA0344GB

B4

E10

W/8

: To M6

G3 E60

BR/3

: Intelligent key warning buzzer

C3 E20

B/6

: Accelerator pedal position (APP)
  sensor

C3 E109

GR/2

: Pedal adjusting motor assembly

B4

E26

W/16

: To M91

C3 E110

B/3

: Pedal adjusting motor assembly

B4

E29

Y/4

: To M10

F4

E135

GR/2

: Transfer dropping resistor

2010 Pathfinder

PG-46

< COMPONENT DIAGNOSIS >

HARNESS

B4

E34

W/8

: To B40

F4

E152

SMJ

: To M31

B4

E36

W/2

: To B42

G2 E158

B/1

: Fuse block (J/B)

B3

E37

BR/2

: ASCD brake switch

G3 E159

B/2

: Fuse block (J/B)

B3

E38

W/4

: Stop lamp switch

G3 E160

W/8

: Fuse block (J/B)

B3

E53

B/1

: Parking brake switch

C3 E167

GR/2

: Pedal adjusting motor

G3 E54

BR/6

: Front blower motor relay (without auto
  A/C)

2010 Pathfinder

PG

HARNESS

PG-47

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

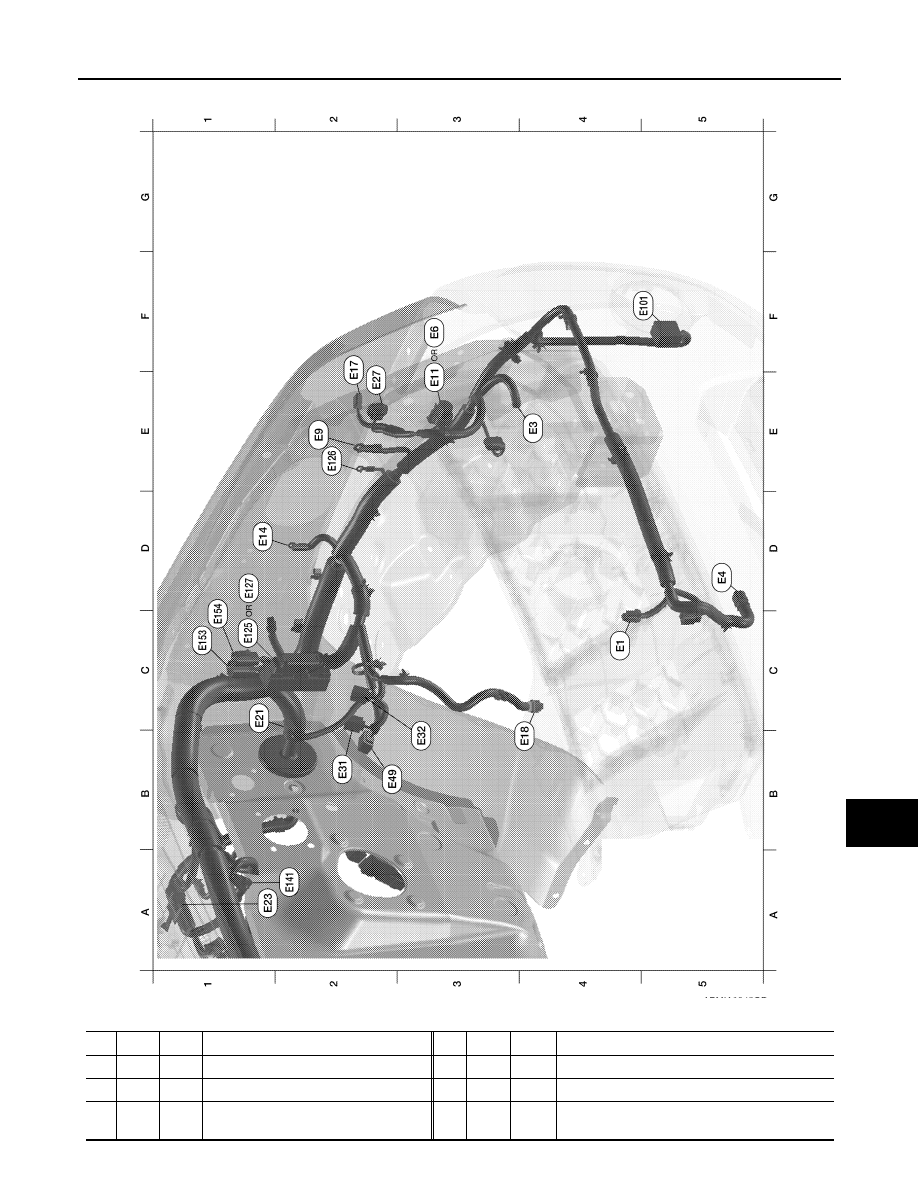

ENGINE ROOM HARNESS (LH VIEW)

Refer to "ENGINE ROOM HARNESS (RH VIEW)" for continuation of engine room harness"

ABMIA0345GB

C4 E1

B/2

: Ambient sensor

E2

E27

GR/3

: Front combination lamp LH

E4

E3

B/2

: Horn

B2

E31

B/3

: Front pressure sensor

D5 E4

Y/2

: Crash zone sensor

B3

E32

B/3

: Rear pressure sensor

F3

E6

B/3

: Front headlamp LH (with daytime
  light system)

B3

E49

B/6

: Active booster

2010 Pathfinder
