Nissan Pathfinder (2010 year). Manual - part 525

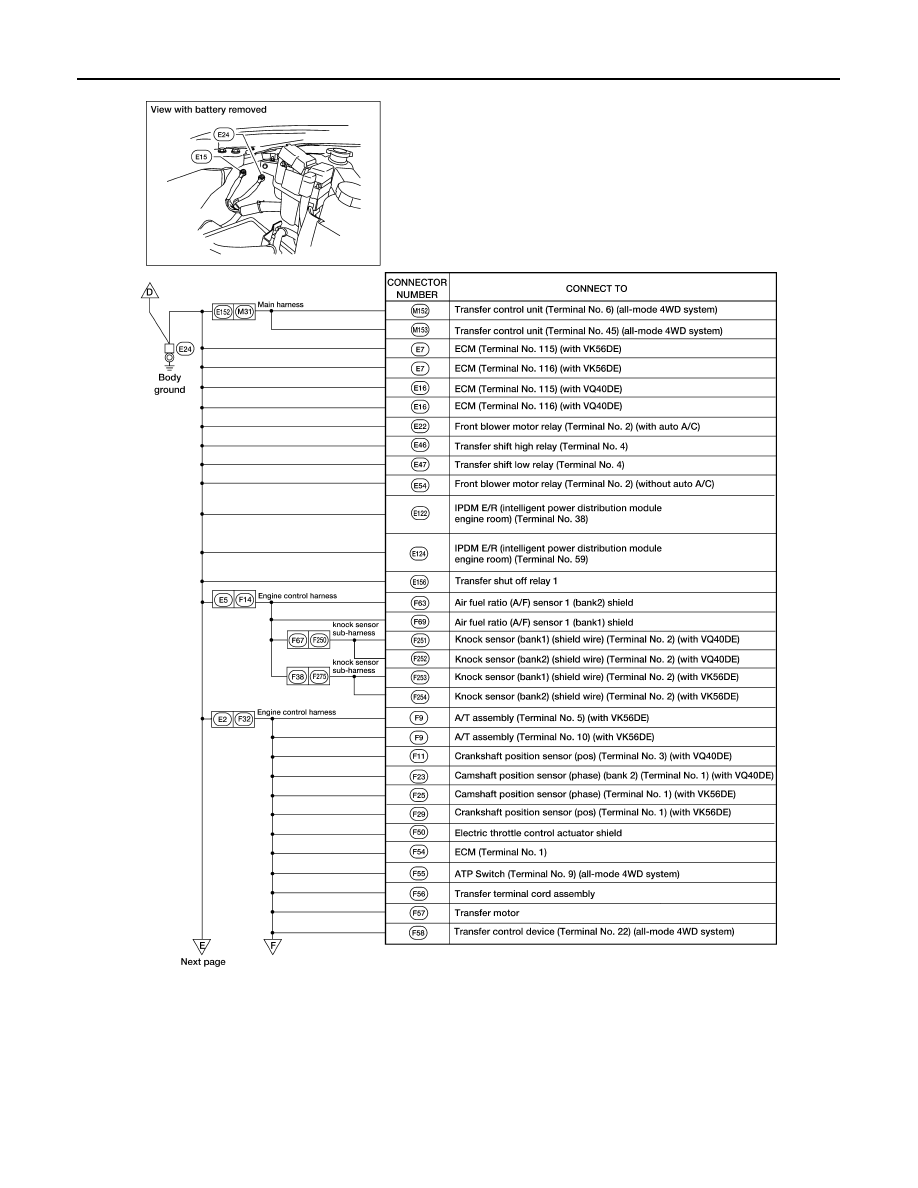

PG-32

< COMPONENT DIAGNOSIS >

GROUND CIRCUIT

ABMIA1367GB

2010 Pathfinder

PG

GROUND CIRCUIT

PG-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1368GB

2010 Pathfinder

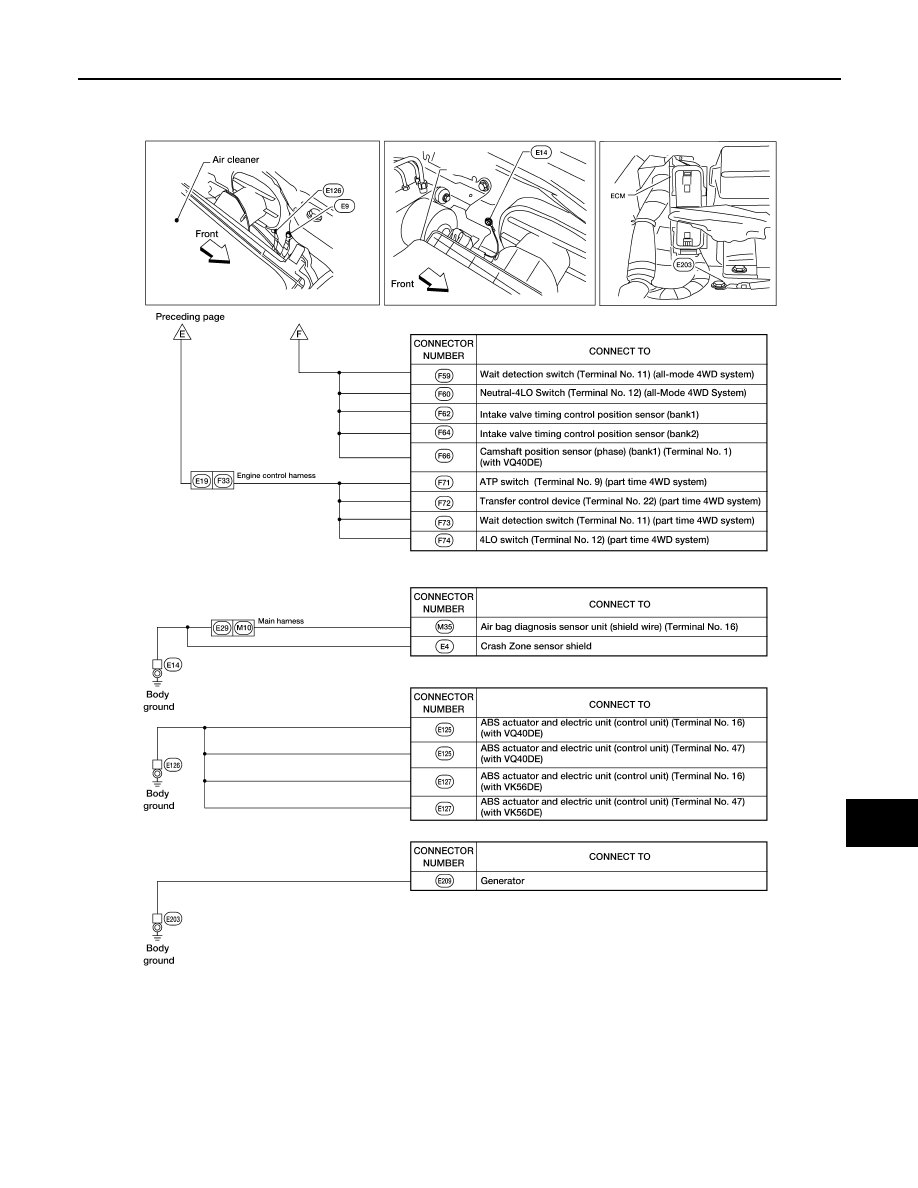

PG-34

< COMPONENT DIAGNOSIS >

GROUND CIRCUIT

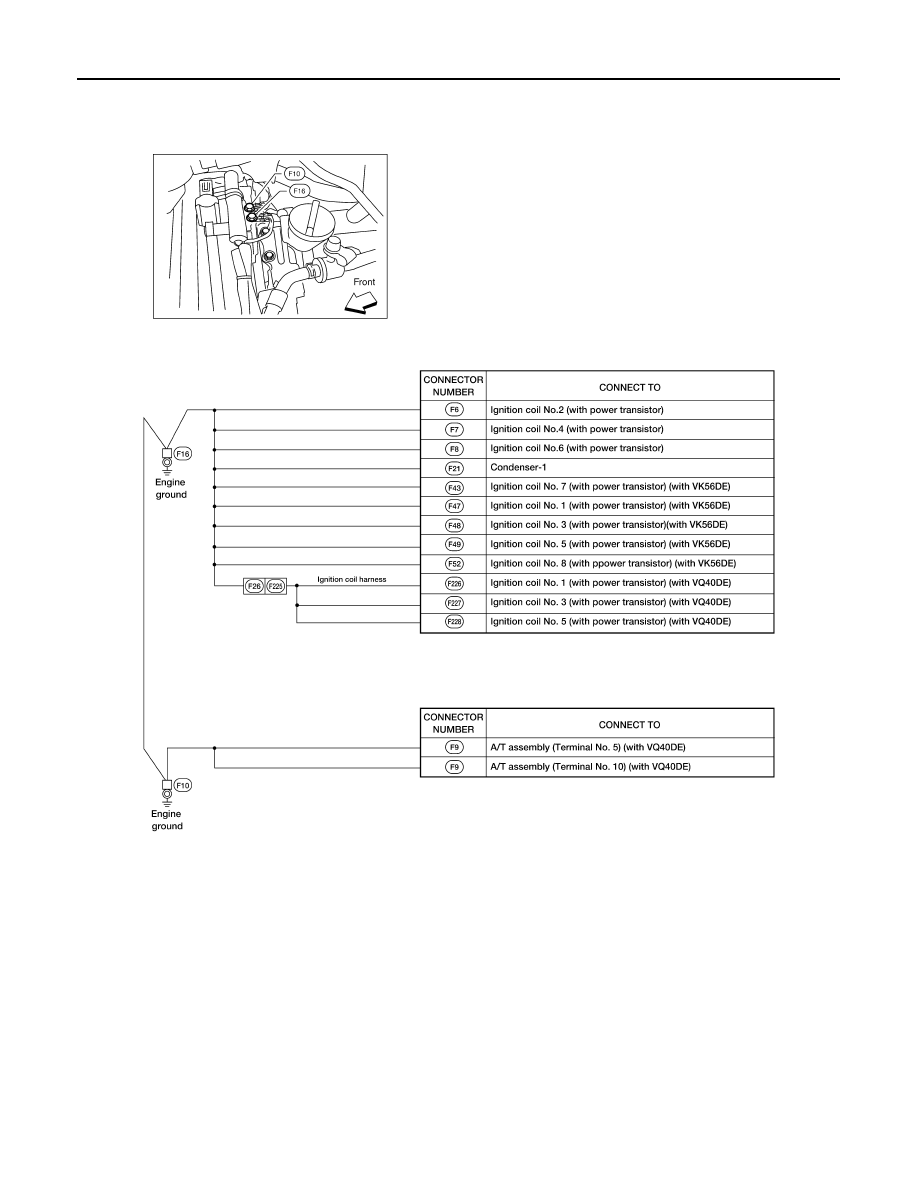

Engine Control Harness

ABMIA0323GB

2010 Pathfinder

PG

GROUND CIRCUIT

PG-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

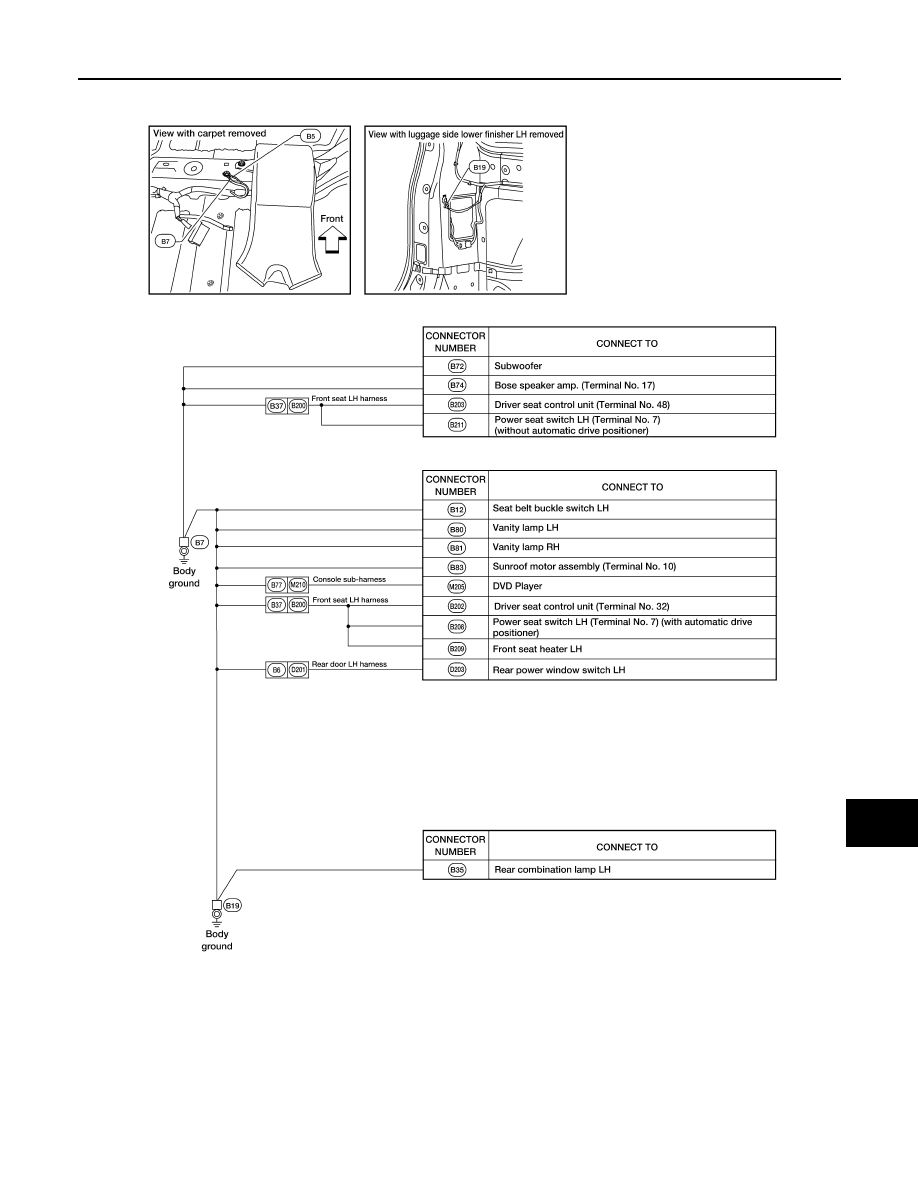

Body Harness

ABMIA1369GB

2010 Pathfinder

PG-36

< COMPONENT DIAGNOSIS >

GROUND CIRCUIT

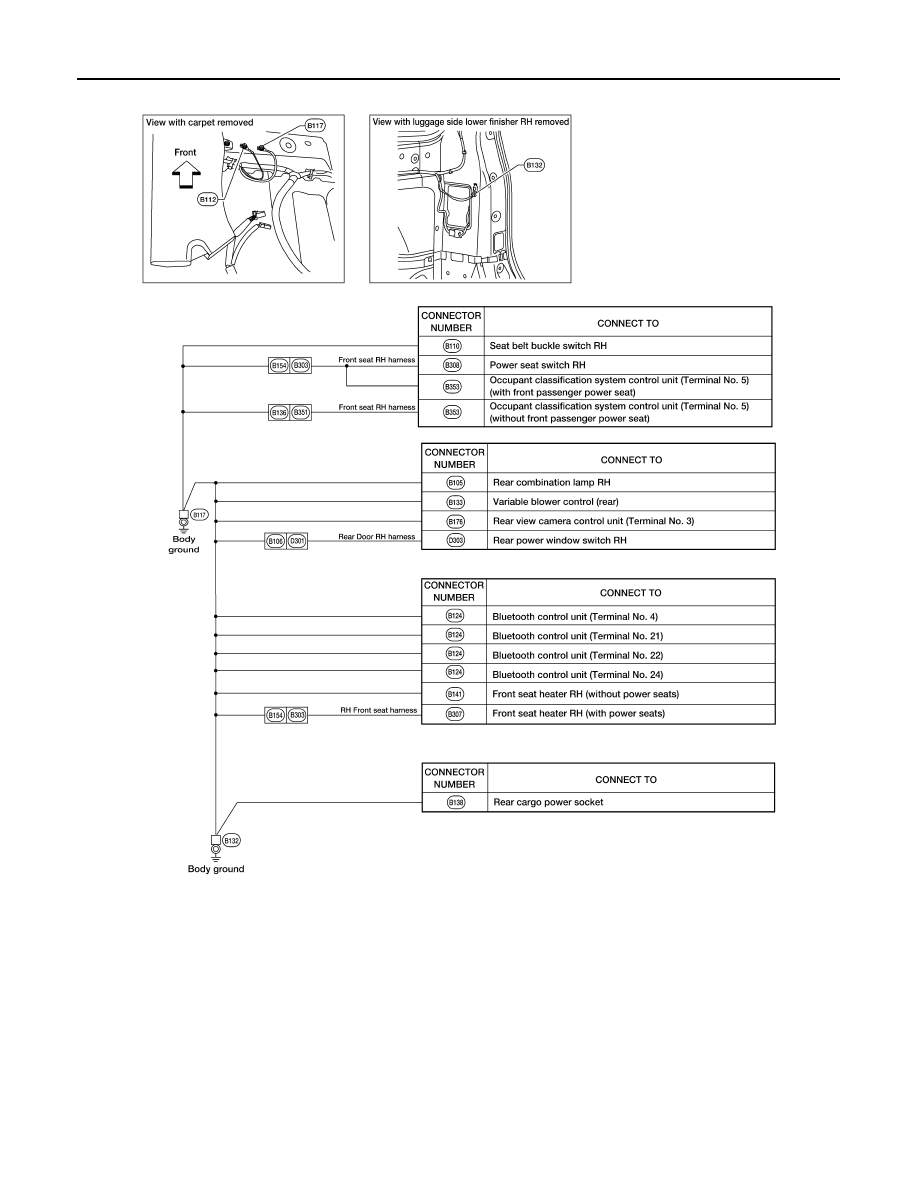

Body No. 2 Harness

ABMIA1370GB

2010 Pathfinder

PG

GROUND CIRCUIT

PG-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

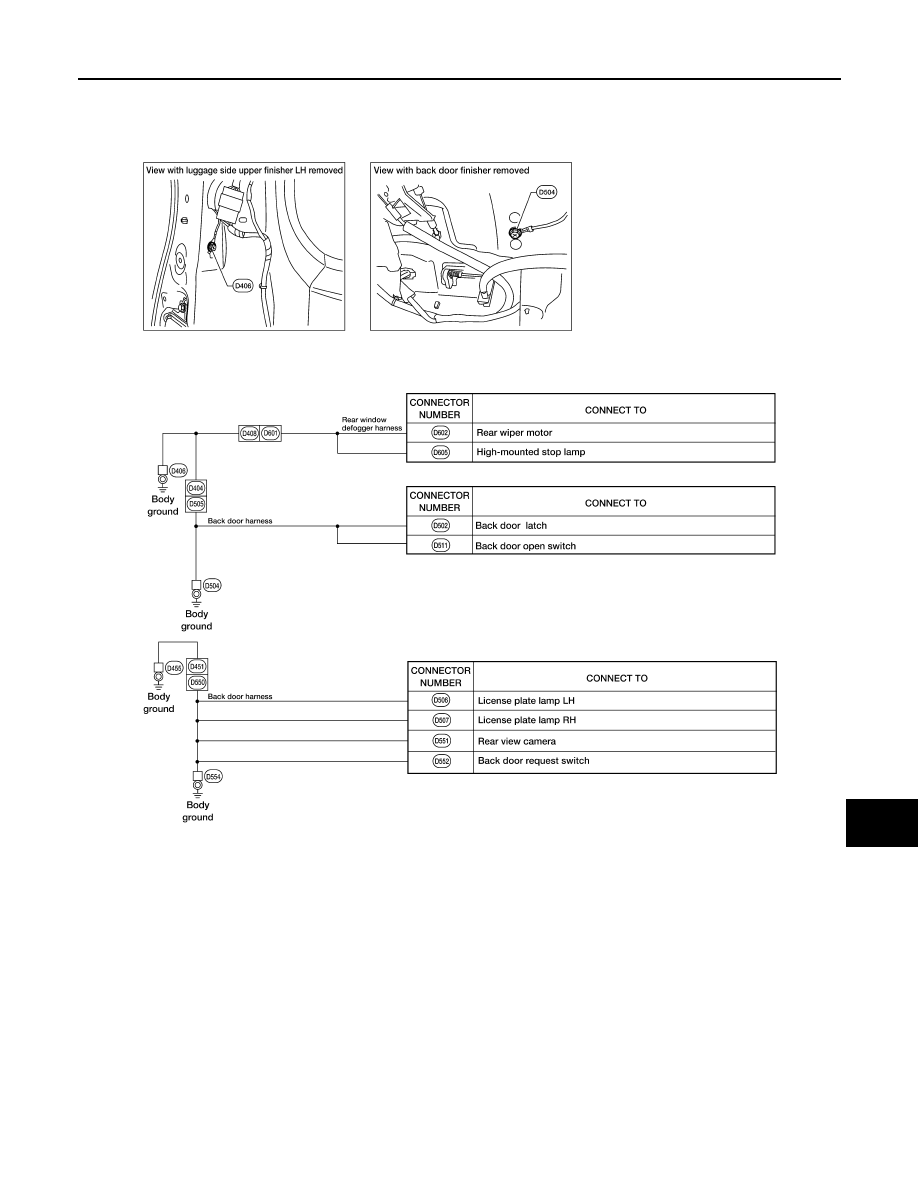

Back Door No. 2 and Back Door Harness

ABMIA1371GB

2010 Pathfinder

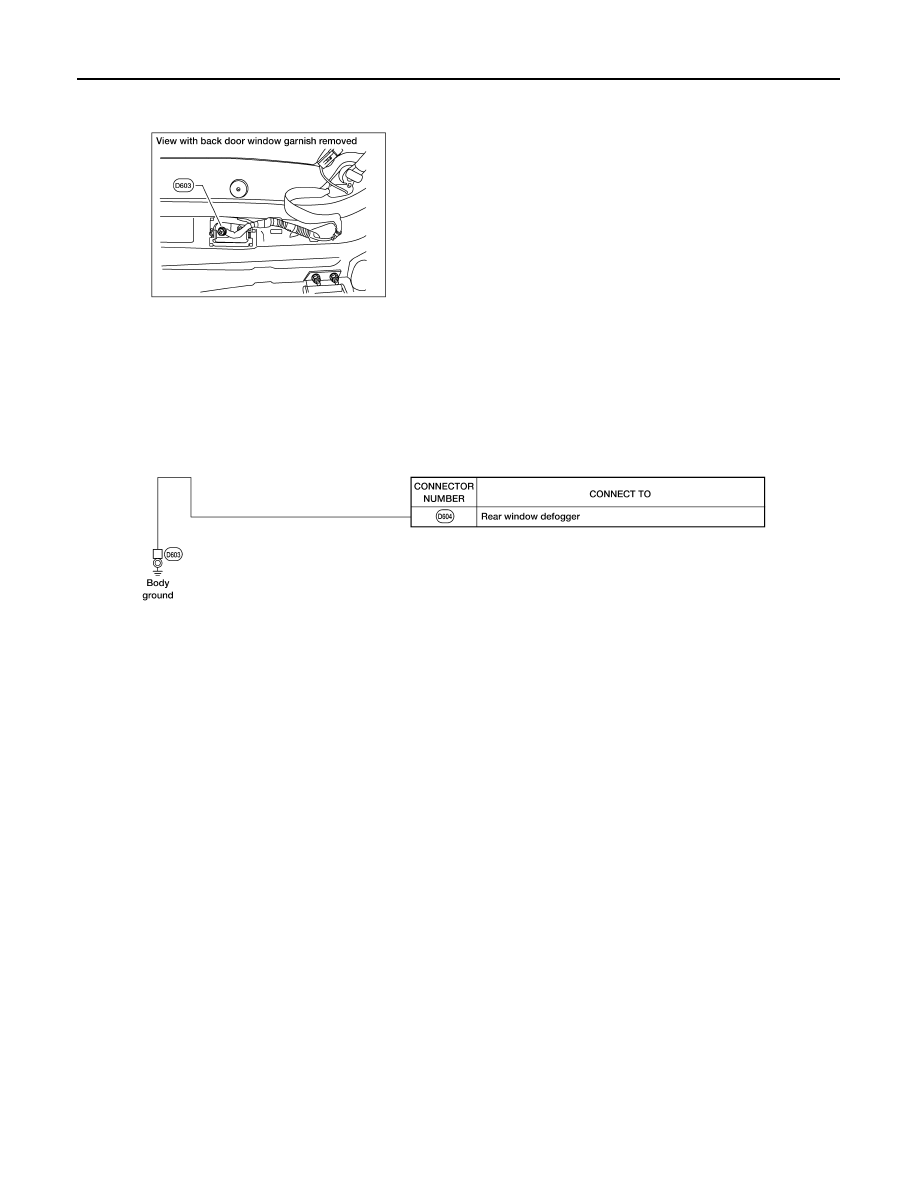

PG-38

< COMPONENT DIAGNOSIS >

GROUND CIRCUIT

ABMIA1372GB

2010 Pathfinder

PG

HARNESS

PG-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

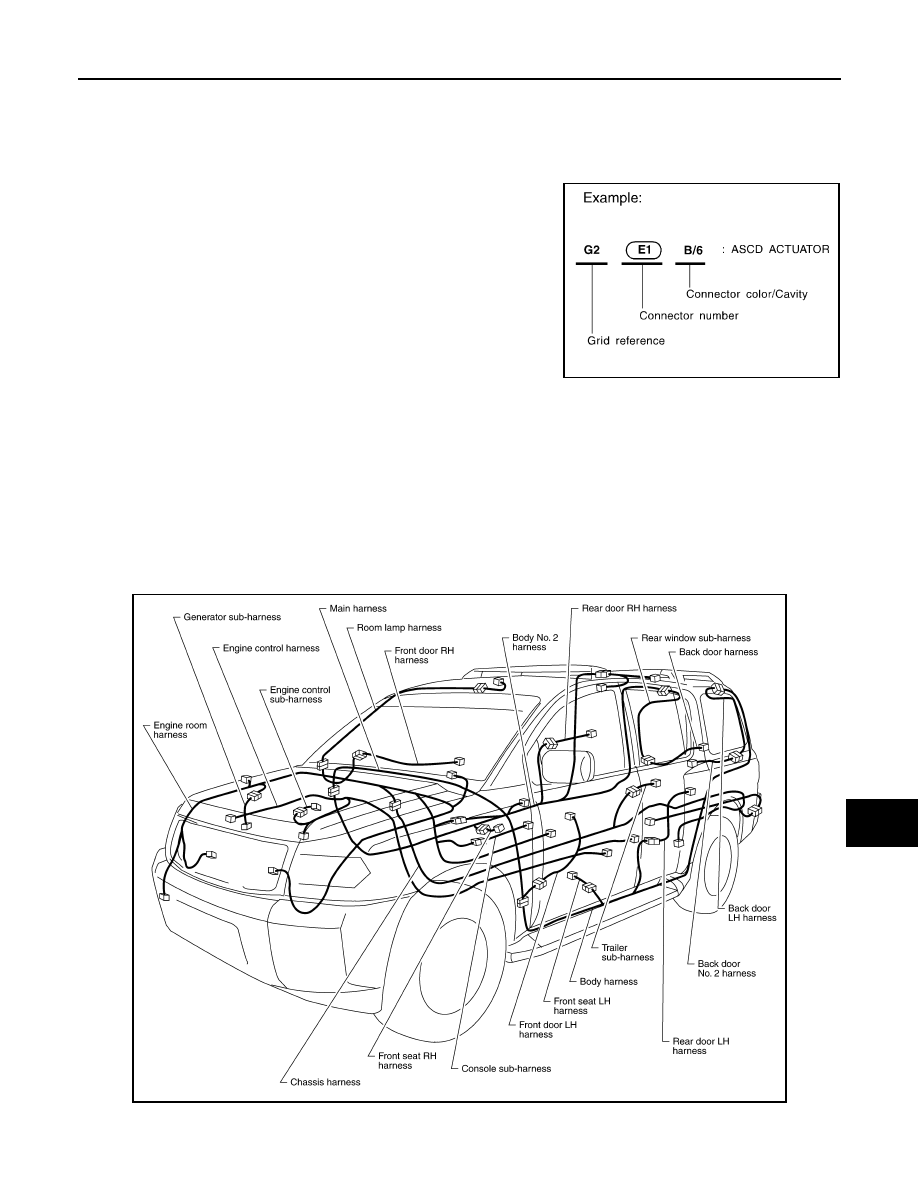

HARNESS

Harness Layout

INFOID:0000000005260660

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness and Console Sub-harness

• Engine Room Harness (RH View) and Generator Sub-harness

• Engine Room Harness (Passenger Compartment)

• Engine Room Harness (LH View)

• Engine Control Harness (VQ40DE), Injector Sub-harness, Ignition

Coil Sub-harness and Knock Sensor Sub-harness

• Engine Control Harness (VK56DE) and Knock Sensor Sub-har-

ness

• Chassis Harness and Trailer Sub-harness

• Body Harness and Front Seat LH Harness

• Body No. 2 Harness and Front Seat RH Harness

• Room Lamp Harness

• Back Door No. 2 Harness, Back Door Harness, Rear Window Sub-harness and Back Door LH Harness

To use the grid reference

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

ABMIA1373GB

2010 Pathfinder
