Nissan Pathfinder (2010 year). Manual - part 464





HRN-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005519260

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005548875

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

PRECAUTIONS

HRN-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

HRN-4

< COMPONENT DIAGNOSIS >

HORN

COMPONENT DIAGNOSIS

HORN

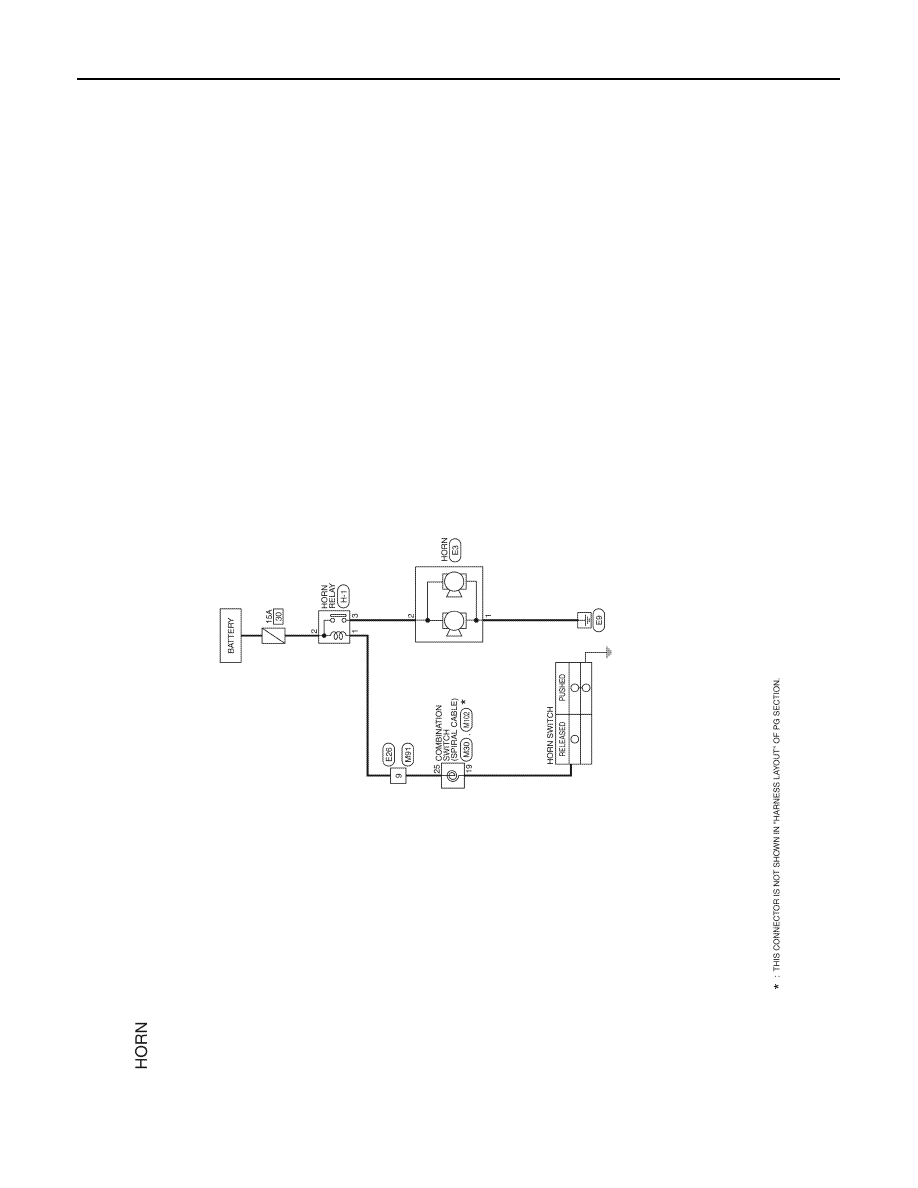

Wiring Diagram

INFOID:0000000005259127

ABLWA0565GB

2010 Pathfinder

HORN

HRN-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

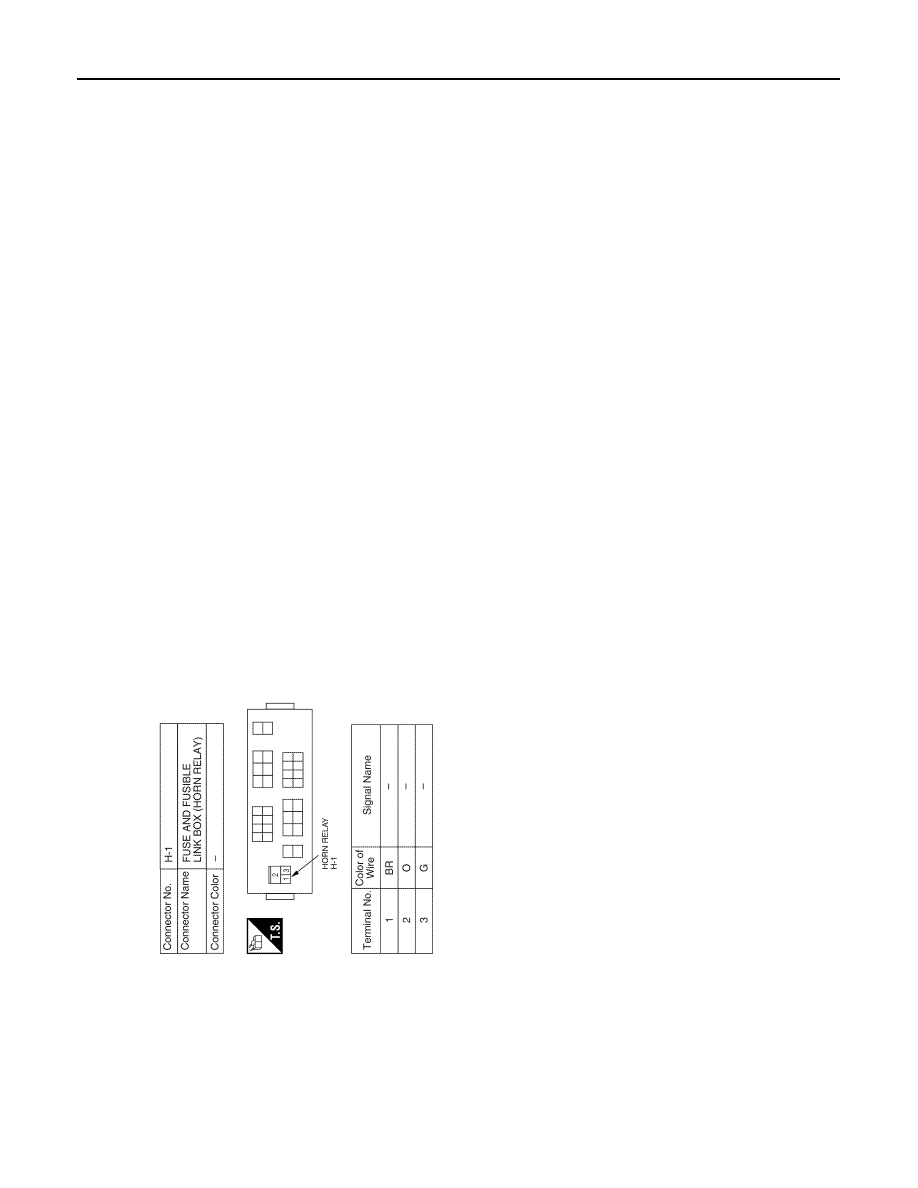

ABLIA0566GB

2010 Pathfinder

HRN-6

< COMPONENT DIAGNOSIS >

HORN

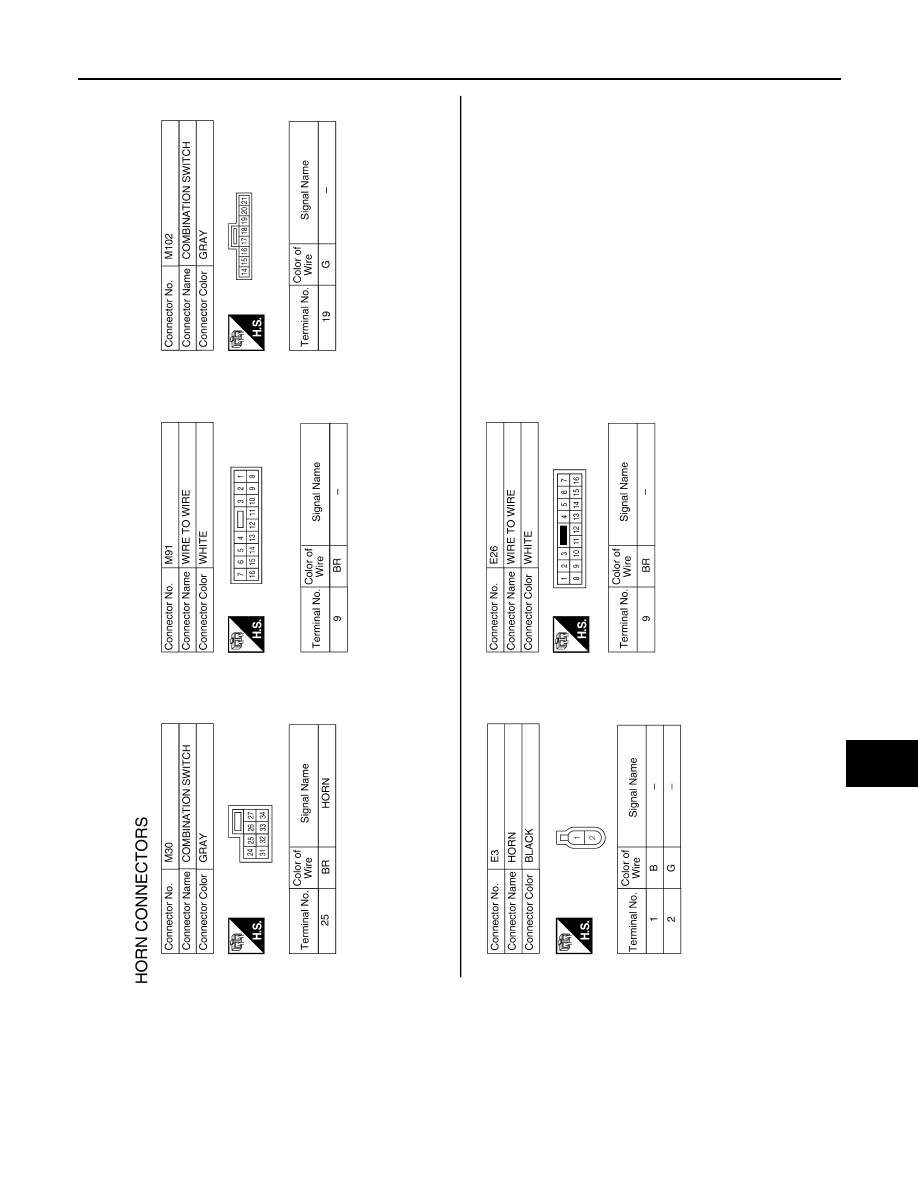

ABLIA1692GB

2010 Pathfinder

HORN

HRN-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

ON-VEHICLE REPAIR

HORN

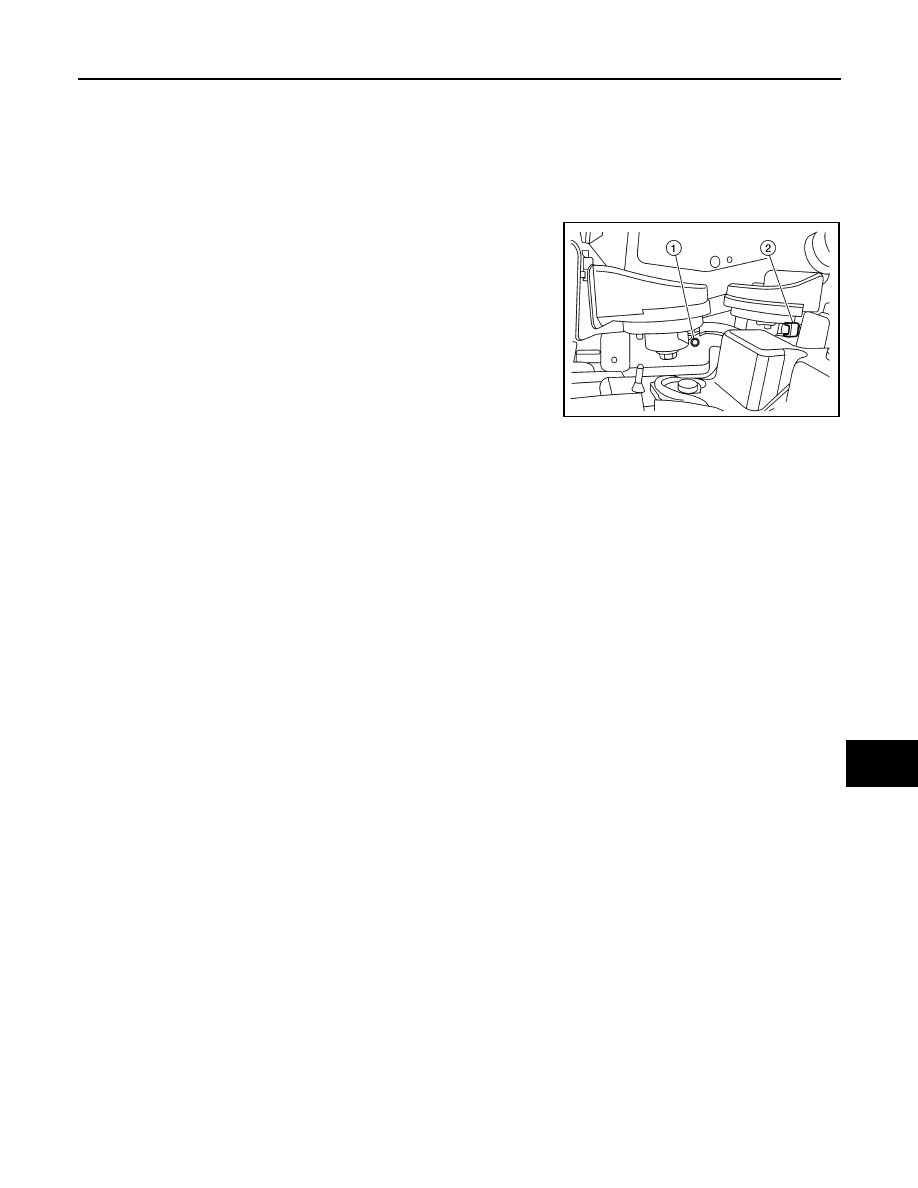

Removal and Installation

INFOID:0000000005259128

REMOVAL

1. Disconnect the horn connector (2).
2. Remove the bolt (1) and the horn from vehicle.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0685E

2010 Pathfinder

INL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

INL

A

B

INL

N

O

P

CONTENTS

INTERIOR LIGHTING SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

6

INTERIOR ROOM LAMP CONTROL SYSTEM

.....

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

7

Component Description .............................................

8

ILLUMINATION CONTROL SYSTEM .................

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ...........................................

10

DIAGNOSIS SYSTEM (BCM)  ............................

11

COMMON ITEM .........................................................

11

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

11

INT LAMP  ..................................................................

11

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) .....................................................................

12

BATTERY SAVER  .....................................................

13

BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER)  ...............................................

13

COMPONENT DIAGNOSIS  .........................

15

POWER SUPPLY AND GROUND CIRCUIT ......

15

BCM ...........................................................................

15

BCM : Diagnosis Procedure ....................................

15

BATTERY SAVER OUTPUT/POWER SUP-
PLY CIRCUIT  .....................................................

17

Description ...............................................................

17

Component Function Check  ....................................

17

Diagnosis Procedure  ...............................................

17

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

19

Description ...............................................................

19

Component Function Check  ....................................

19

Diagnosis Procedure  ...............................................

19

CARGO LAMP CONTROL CIRCUIT ................

21

Description ...............................................................

21

Component Function Check  ....................................

21

Diagnosis Procedure  ...............................................

21

IGNITION KEYHOLE ILLUMINATION CON-
TROL CIRCUIT  .................................................

23

Description ...............................................................

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

INTERIOR ROOM LAMP CONTROL SYSTEM

...

25

Wiring Diagram ........................................................

25

ILLUMINATION .................................................

36

Wiring Diagram ........................................................

36

ECU DIAGNOSIS .........................................

47

BCM (BODY CONTROL MODULE)  .................

47

Reference Value ......................................................

47

Terminal Layout .......................................................

50

Physical Values  .......................................................

50

Wiring Diagram ........................................................

56

DTC Inspection Priority Chart ...............................

59

DTC Index ...............................................................

60

SYMPTOM DIAGNOSIS  ..............................

62

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

62

Symptom Table  .......................................................

62

2010 Pathfinder
