Nissan Pathfinder (2010 year). Manual - part 463





HAC-180

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

INSUFFICIENT COOLING

Low-pressure Side Becomes Negative

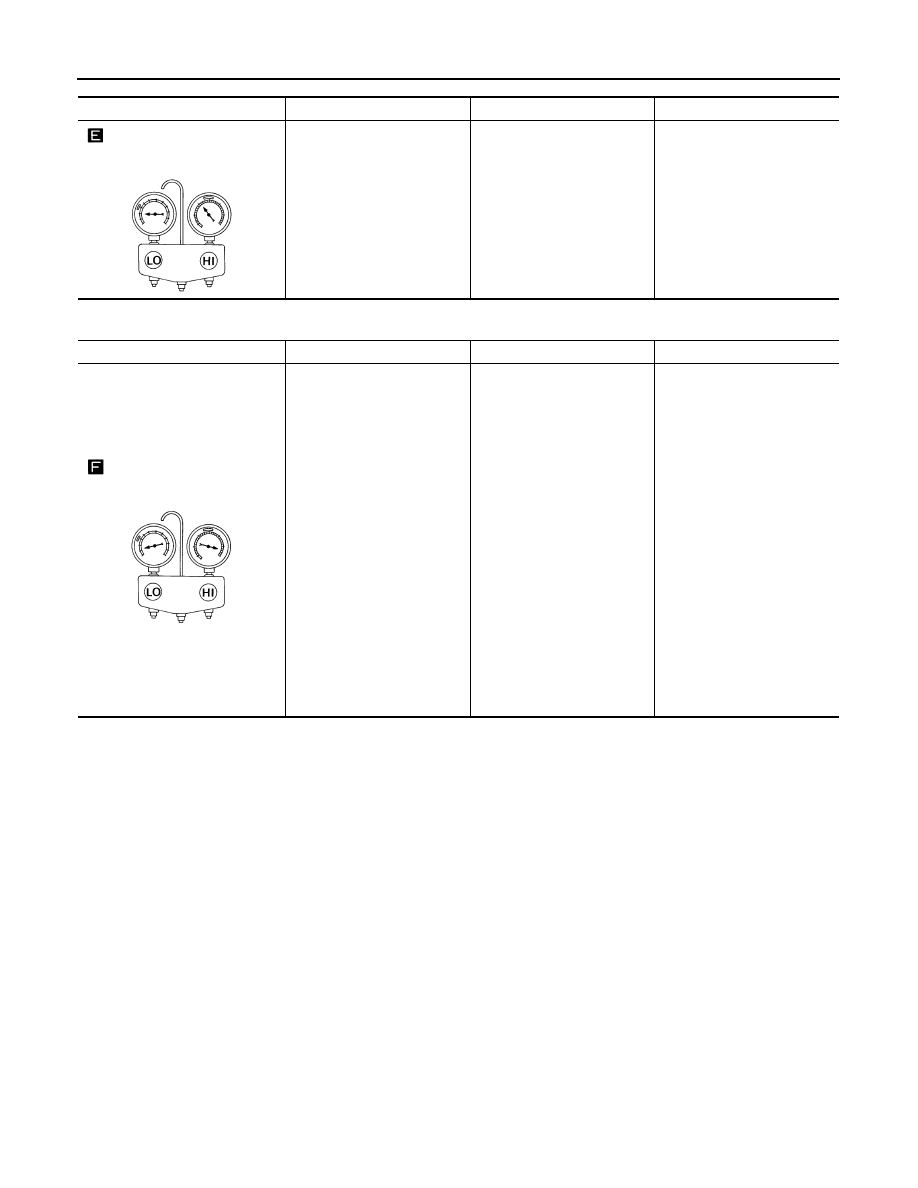

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side sometimes be-
comes negative.

• Air conditioning system does

not function and does not cy-
clically cool the compart-
ment air.

• The system constantly func-

tions for a certain period of
time after compressor is
stopped and restarted.

Refrigerant does not discharge
cyclically.

Moisture is frozen at expan-
sion valve outlet and inlet.

Water is mixed with refrigerant.

• Drain water from refrigerant

or replace refrigerant.

• Replace liquid tank.

AC354A

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Low-pressure side becomes nega-
tive.

Liquid tank or front/rear side of
expansion valve

s pipe is frost-

ed or dewed.

High-pressure side is closed
and refrigerant does not flow.

Expansion valve or liquid tank
is frosted.

Leave the system at rest until
no frost is present. Start it
again to check whether or not
the malfunction is caused by
water or foreign particles.
• If water is the cause, initially

cooling is okay. Then the wa-
ter freezes causing a block-
age. Drain water from
refrigerant or replace refrig-
erant.

• If due to foreign particles, re-

move expansion valve and
remove the particles with dry
and compressed air (not
shop air).

• If either of the above meth-

ods cannot correct the mal-
function, replace expansion
valve.

• Replace liquid tank.
• Check oil for contamination.

AC362A

2010 Pathfinder

INSUFFICIENT HEATING

HAC-181

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSUFFICIENT HEATING

Component Function Check

INFOID:0000000005257020

SYMPTOM: Insufficient heating

INSPECTION FLOW

1.

CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - TEMPERATURE INCREASE

1. Rotate blower control dial clockwise.

2. Turn the temperature control dial clockwise to maximum heat.

3. Check for hot air at discharge air outlets.
Can the symptom be duplicated?

YES

>> GO TO 2.

NO

>> Perform complete operational check (front). Refer to

HAC-123, "Operational Check"

.

2.

CHECK FOR SERVICE BULLETINS

Check for any service bulletins.

>> GO TO 3.

3.

CHECK ENGINE COOLING SYSTEM

1. Check for proper engine coolant level.

2. Check hoses for leaks or kinks.

3. Check radiator cap. Refer to

CO-18, "Checking Radiator"

.

4. Check for air in cooling system.

>> GO TO 4.

4.

CHECK AIR MIX DOOR OPERATION

Check the operation of the air mix door.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Check the air mix door motor circuit. Refer to

HAC-140, "Air Mix Door Motor Component Function

Check"

.

5.

CHECK AIR DUCTS

Check for disconnected or leaking air ducts.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair all disconnected or leaking air ducts.

6.

CHECK HEATER HOSE TEMPERATURES

1. Start engine and warm it up to normal operating temperature.

2. Touch both the inlet and outlet heater hoses. The inlet hose should be hot and the outlet hose should be

warm.

Is the inspection result normal?

YES

>> Hot inlet hose and a warm outlet hose: GO TO 7.

NO

>> Both hoses warm: GO TO 8.

7.

CHECK ENGINE COOLANT SYSTEM

Check engine coolant temperature sensor. Refer to

EC-135, "Component Inspection"

.

Is the inspection result normal?

YES

>> System OK.

NO

>> Repair or replace as necessary. Retest.

8.

CHECK HEATER HOSES

Check heater hoses for proper installation.

2010 Pathfinder

HAC-182

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

INSUFFICIENT HEATING

Is the inspection result normal?

YES

>> System OK.

NO

>> 1. Back flush heater core.

2. Drain the water from the system.

3. Refill system with new engine coolant. Refer to

CO-12, "Changing Engine Coolant"

4. GO TO 9 to retest.

9.

CHECK HEATER HOSE TEMPERATURES

1. Start engine and warm it up to normal operating temperature.

2. Touch both the inlet and outlet heater hoses.The inlet hose should be hot and the outlet hose should be

warm.

Is the inspection result normal?

YES

>> System OK.

NO

>> Replace heater core. Refer to

VTL-26, "Removal and Installation"

.

2010 Pathfinder

NOISE

HAC-183

< SYMPTOM DIAGNOSIS >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NOISE

Component Function Check

INFOID:0000000005257021

SYMPTOM: Noise

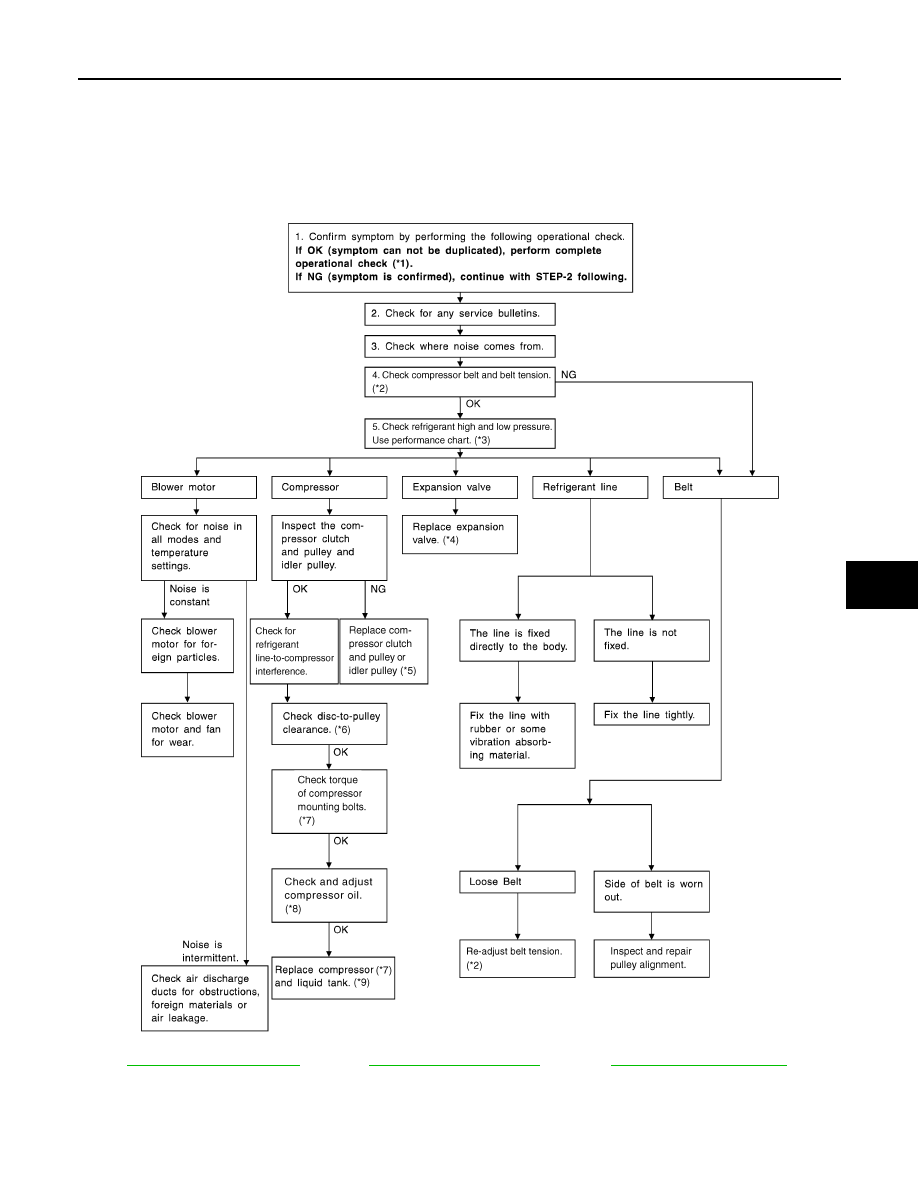

INSPECTION FLOW

*1

HAC-123, "Operational Check"

*2

EM-14, "Checking Drive Belts"

*3

HAC-176, "Performance Chart"

AWIIA1001GB

2010 Pathfinder

PRECAUTIONS

HAC-185

< PRECAUTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005484537

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Working with HFC-134a (R-134a)

INFOID:0000000005257023

WARNING:

• CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. If the refrigerants

are mixed compressor failure is likely to occur. Refer to

HA-4, "Contaminated Refrigerant"

. To deter-

mine the purity of HFC-134a (R-134a) in the vehicle and recovery tank, use Refrigerant Recovery/

Recycling Recharging equipment and Refrigerant Identifier.

• Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If

oil other than that specified is used, compressor failure is likely to occur.

• The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following

handling precautions must be observed:

- When removing refrigerant components from a vehicle, immediately cap (seal) the component to

minimize the entry of moisture from the atmosphere.

- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just

before connecting the components. Connect all refrigerant loop components as quickly as possible

to minimize the entry of moisture into system.

- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without

proper sealing, oil will become moisture saturated and should not be used.

- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.

Remove HFC-134a (R-134a) from the A/C system using certified service equipment meeting require-

ments of SAE J2210 [HFC-134a (R-134a) recycling equipment], or J2209 [HFC-134a (R-134a) recy-

cling equipment], If accidental system discharge occurs, ventilate work area before resuming

service. Additional health and safety information may be obtained from refrigerant and oil manufac-

turers.

- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.

CONTAMINATED REFRIGERANT

2010 Pathfinder

HAC-186

< PRECAUTION >

[MANUAL AIR CONDITIONER]

PRECAUTIONS

If a refrigerant other than pure HFC-134a (R-134a) is identified in a vehicle, your options are:

• Explain to the customer that environmental regulations prohibit the release of contaminated refrigerant into

the atmosphere.

• Explain that recovery of the contaminated refrigerant could damage your service equipment and refrigerant

supply.

• Suggest the customer return the vehicle to the location of previous service where the contamination may

have occurred.

• If you choose to perform the repair, recover the refrigerant using only

dedicated equipment and contain-

ers. Do not recover contaminated refrigerant into your existing service equipment.

 If your facility does

not have dedicated recovery equipment, you may contact a local refrigerant product retailer for available ser-

vice. This refrigerant must be disposed of in accordance with all federal and local regulations. In addition,

replacement of all refrigerant system components on the vehicle is recommended.

• If the vehicle is within the warranty period, the air conditioner warranty is void. Please contact NISSAN Cus-

tomer Affairs for further assistance.

Precaution for Service Equipment

INFOID:0000000005257024

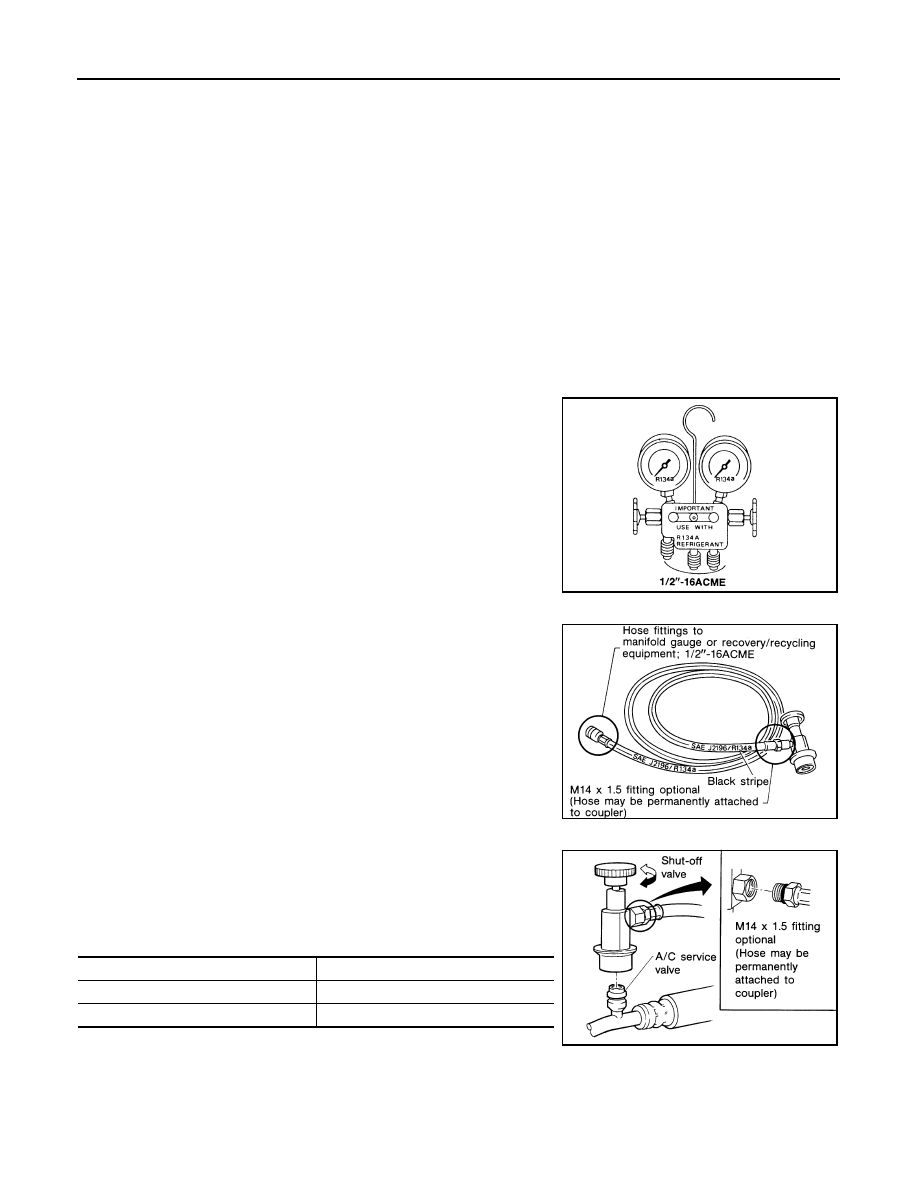

MANIFOLD GAUGE SET

Be certain that the gauge face indicates R-134a or 134a. Make sure

the gauge set has 1/2

-16 ACME threaded connections for service

hoses. Confirm the set has been used only with refrigerant HFC-

134a (R-134a) along with specified oil.

SERVICE HOSES

Be certain that the service hoses display the markings described

(colored hose with black stripe). All hoses must include positive shut-

off devices (either manual or automatic) near the end of the hoses

opposite the manifold gauge.

SERVICE COUPLERS

Never attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will

not properly connect to the CFC-12 (R-12) system. However, if an

improper connection is attempted, discharging and contamination

may occur.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

2010 Pathfinder
