Nissan Pathfinder (2010 year). Manual - part 415





FAX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005510396

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution

INFOID:0000000005255642

Observe the following precautions when disassembling and servicing the wheel hub and drive shafts.

• Perform work in a location which is as dust-free as possible.

• Before disassembling and servicing, clean the outside of parts.

• Prevention of the entry of foreign objects must be taken into account during disassembly of the component

parts.

• Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover

must be placed over parts.

• Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering

to parts.

• Disassembled parts (except for rubber parts) should be cleaned with a suitable solvent which shall be

removed by blowing with air or wiping with paper shop cloths.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005255643

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

2010 Pathfinder

PRECAUTIONS

FAX-3

< PRECAUTION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

FAX-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005255644

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005255645

Tool number
(Kent-Moore No.)
Tool name

Description

ST29020001
(J-24319-01)
Gear arm puller

Removing ball joint for steering knuckle

a: 34 mm (1.34 in)
b: 6.5 mm (0.256 in)
c: 61.5 mm (2.421 in)

KV38105500
(J-33904)
Protector

Installing drive shaft

a: 32 mm (1.26 in) dia

KV40107300
(

)

Boot band crimping tool

Installing boot bands

NT694

ZZA0835D

ZZA1229D

Tool name

Description

Power tools

Removing bolts and nuts

PBIC0190E

2010 Pathfinder

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

FAX-5

< SYMPTOM DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005255646

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

F

AX-22

FAX-7

FAX-6

FAX-6

FAX-7

FAX-6

DLN-313, "

NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

 (2

F1

31

0)

DLN-346, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

 (R18

0A)

DLN-381, "

NVH T

ro

ub

les

h

oot

in

g Ch

art

"

 (M

20

5)

FS

U-5, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

WT

-4

6,

 "

NV

H T

rou

bl

es

ho

oti

ng

 Cha

rt

"

WT

-4

6,

 "

NV

H T

rou

bl

es

ho

oti

ng

 Cha

rt

"

BR

-6

, "

NV

H T

rou

bl

es

ho

oti

ng

 Cha

rt

"

ST

-12,

 "

NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

Possible cause and SUSPECTED PARTS

Ex

ce

ss

iv

e j

oi

nt an

gl

e

Jo

in

t s

lid

in

g re

si

st

an

ce

Imb

al

anc

e

Im

pro

pe

r in

st

al

lat

ion

lo

ose

ness

P

art

s interference

W

he

el be

arin

g da

ma

ge

PR

OP

EL

LE

R

 S

H

A

F

T

FRO

N

T FINAL DRIVE

S

U

S

PENSION

TI

RE

S

ROAD W

H

EEL

BR

AK

E

S

S

T

EERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

2010 Pathfinder

FAX-6

< ON-VEHICLE MAINTENANCE >

WHEEL HUB

ON-VEHICLE MAINTENANCE

WHEEL HUB

On-Vehicle Inspection and Service

INFOID:0000000005255647

Make sure the mounting conditions (looseness, backlash) of each component and component status (wear,

damage) are normal.

WHEEL BEARING INSPECTION

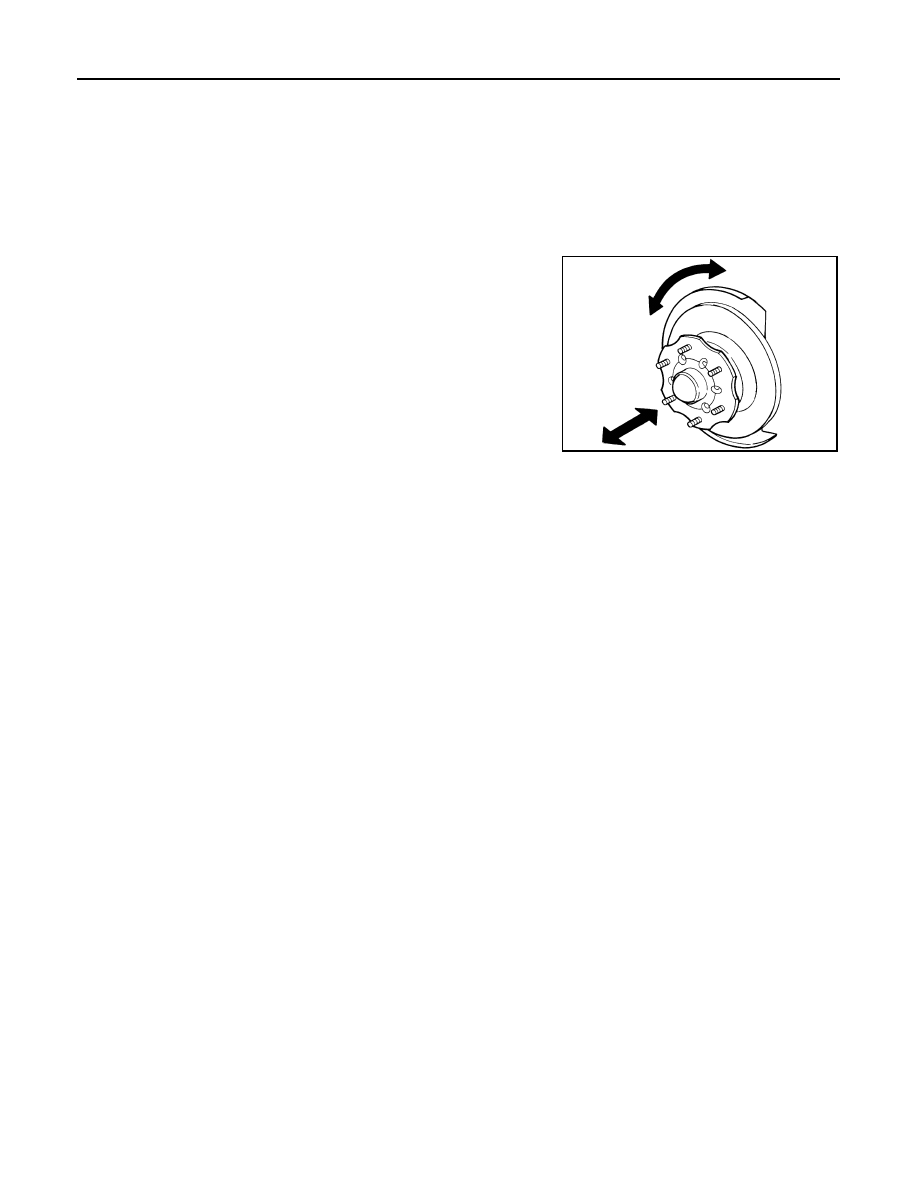

• Move wheel hub in the axial direction by hand. Make sure there is

no looseness of wheel bearing.

• Rotate wheel hub and make sure there is no unusual noise or

other irregular conditions. If there are any irregular conditions,

replace wheel hub and bearing assembly.

Axial end play limit  : 0.05 mm (0.002 in) or less

SMA571A

2010 Pathfinder

DRIVE SHAFT

FAX-7

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

REMOVAL AND INSTALLATION

DRIVE SHAFT

VQ40DE
VQ40DE : Removal and Installation

INFOID:0000000005255648

REMOVAL

1. Remove wheel and tire using power tool.
2. Remove rear engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

4. Remove wheel hub and bearing assembly. Refer to

FAX-10, "Removal and Installation"

.

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.

• Carefully feed wheel sensor harness through hole in splash shield.

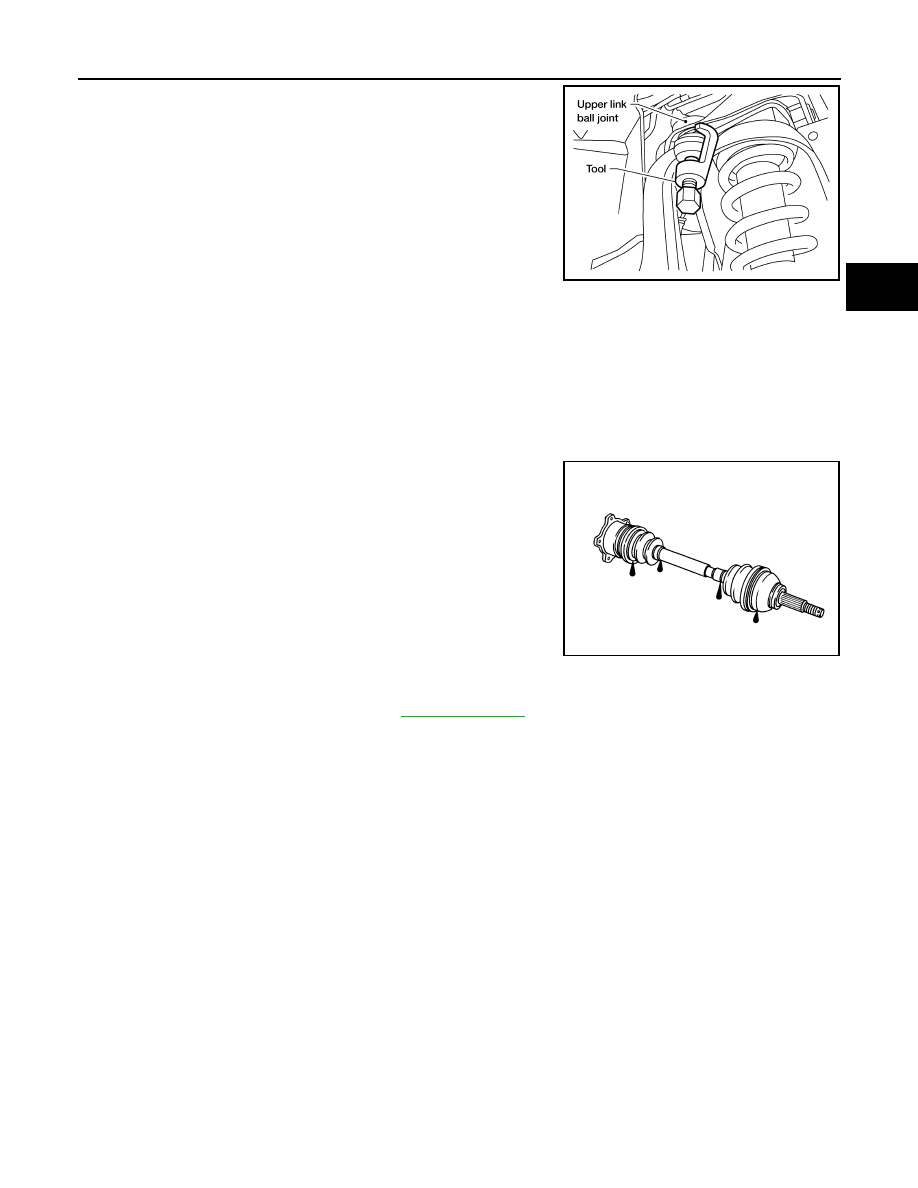

5. Separate upper link ball joint stud from steering knuckle using

Tool.

• Support lower link with jack.

6. Remove drive shaft assembly.

• Pry drive shaft front final drive using suitable tool.

CAUTION:

• When removing drive shaft, do not apply an excessive angle to drive shaft joint. Also be careful

not to excessively extend slide joint.

INSPECTION AFTER REMOVAL

• Move joint up, down, left, right, and in axial direction. Check for any rough movement or significant loose-

ness.

1.

Differential side oil seal

2.

Drive shaft

3.

Drive shaft lock nut

4.

Cotter pin

WDIA0341E

Tool number

: ST29020001 (J-24319-01)

WEIA0119E

2010 Pathfinder

FAX-8

< REMOVAL AND INSTALLATION >

DRIVE SHAFT

• Check boot for cracks or other damage, and for grease leakage.

• If damaged, disassemble drive shaft to verify damage, and repair

or replace as necessary.

INSTALLATION

Installation is in the reverse order of removal.

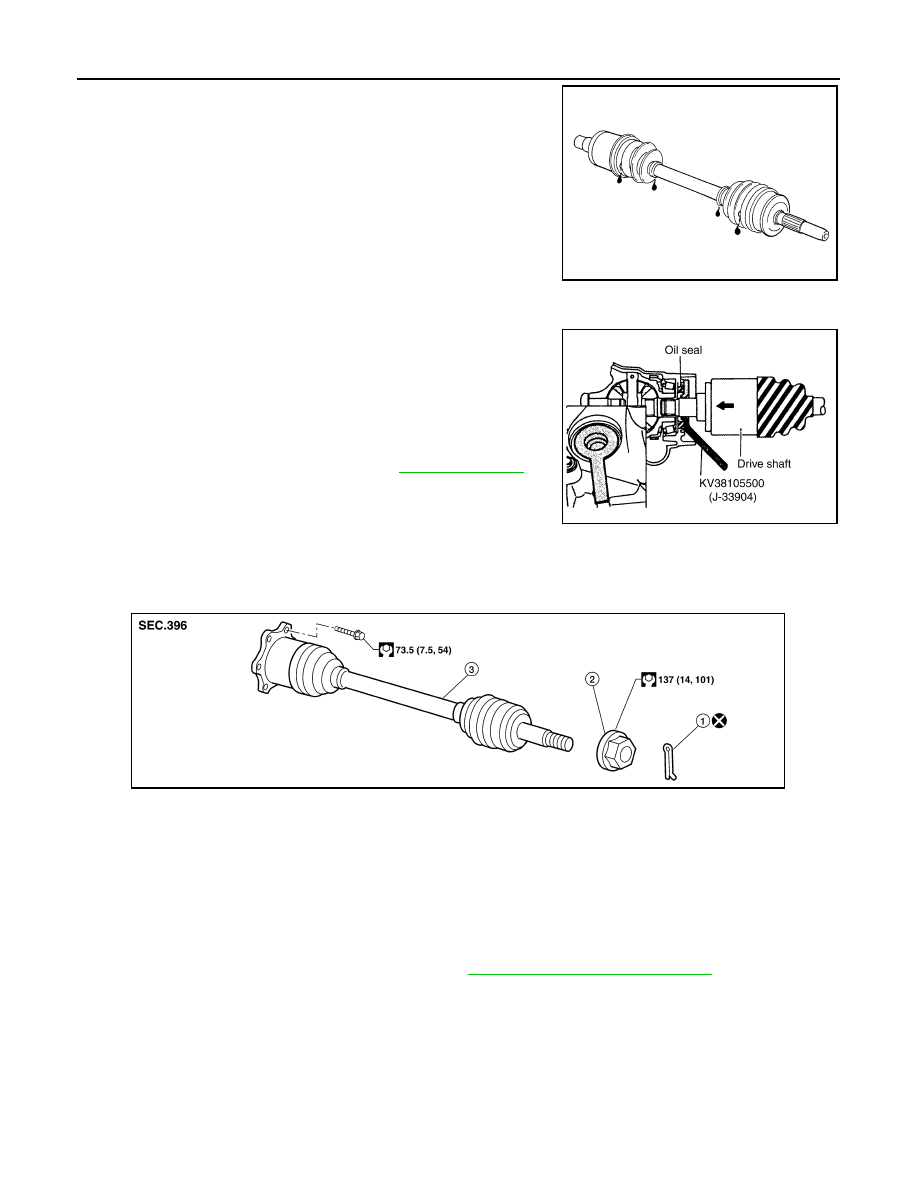

• When installing drive shaft onto front final drive, use Tool to pre-

vent damage to the oil seal while inserting drive shaft. Slide drive

shaft sliding joint and tap with a hammer to install securely.

CAUTION:

Never reuse the differential side oil seal.

• Tighten wheel nuts to specification. Refer to

WT-49, "Rotation"

.

VK56DE
VK56DE : Removal and Installation

INFOID:0000000005255649

REMOVAL

1. Remove wheel and tire using power tool.
2. Remove engine under cover using power tool.
3. Remove wheel sensor harness from mount on knuckle, then disconnect wheel sensor harness connector.

CAUTION:

Do not pull on wheel sensor harness.

4. Remove wheel hub and bearing assembly. Refer to

FAX-10, "Removal and Installation"

.

• It is not necessary to remove wheel sensor from wheel hub when wheel hub is not being replaced.

• Carefully feed wheel sensor harness through hole in splash shield.

SFA108A

Tool number

: KV38105500 (J-33904)

SDIA2615E

1.

Cotter pin

2.

Drive shaft nut

3.

Drive shaft

WDIA0329E

2010 Pathfinder

DRIVE SHAFT

FAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

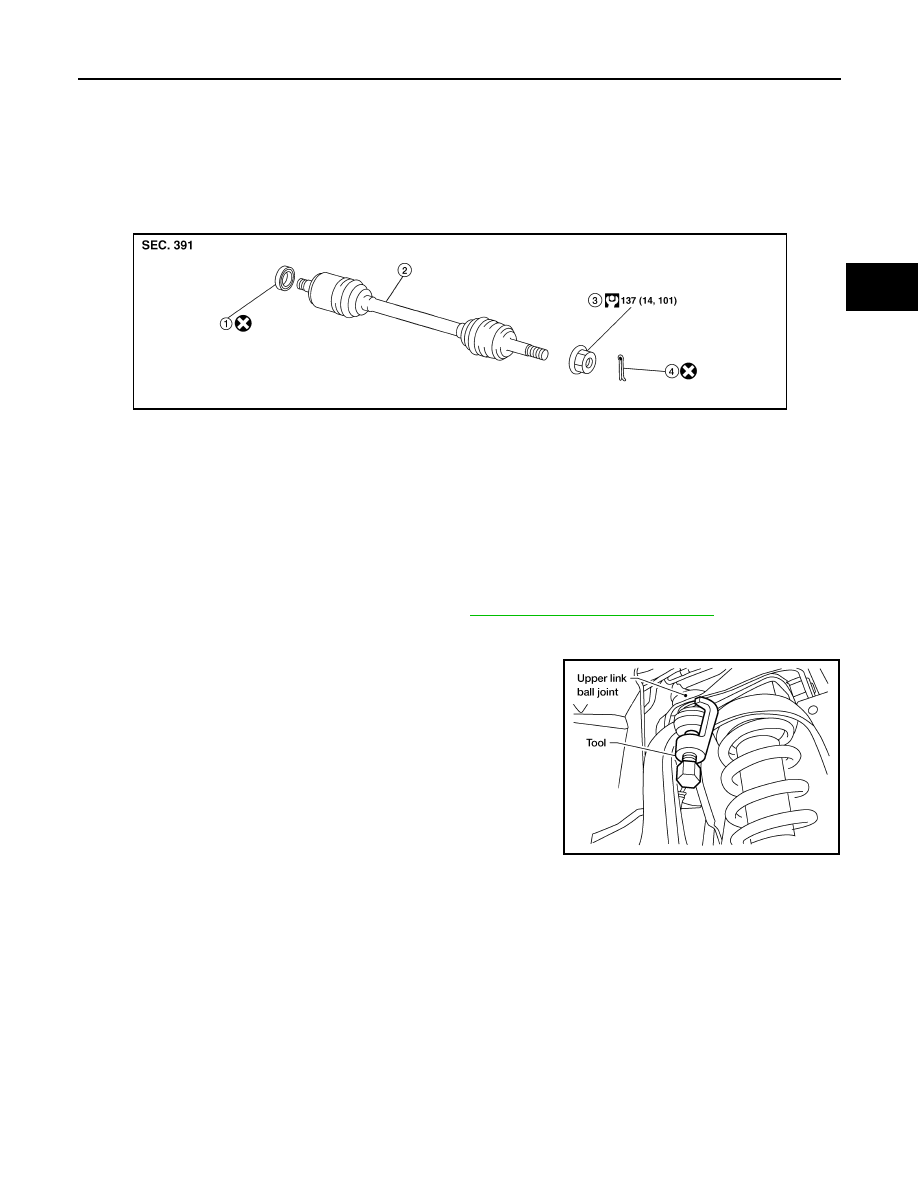

5. Separate upper link ball joint stud from steering knuckle using
