EC-28

< FUNCTION DIAGNOSIS >

[VQ40DE]

ENGINE CONTROL SYSTEM

FUNCTION DIAGNOSIS

ENGINE CONTROL SYSTEM

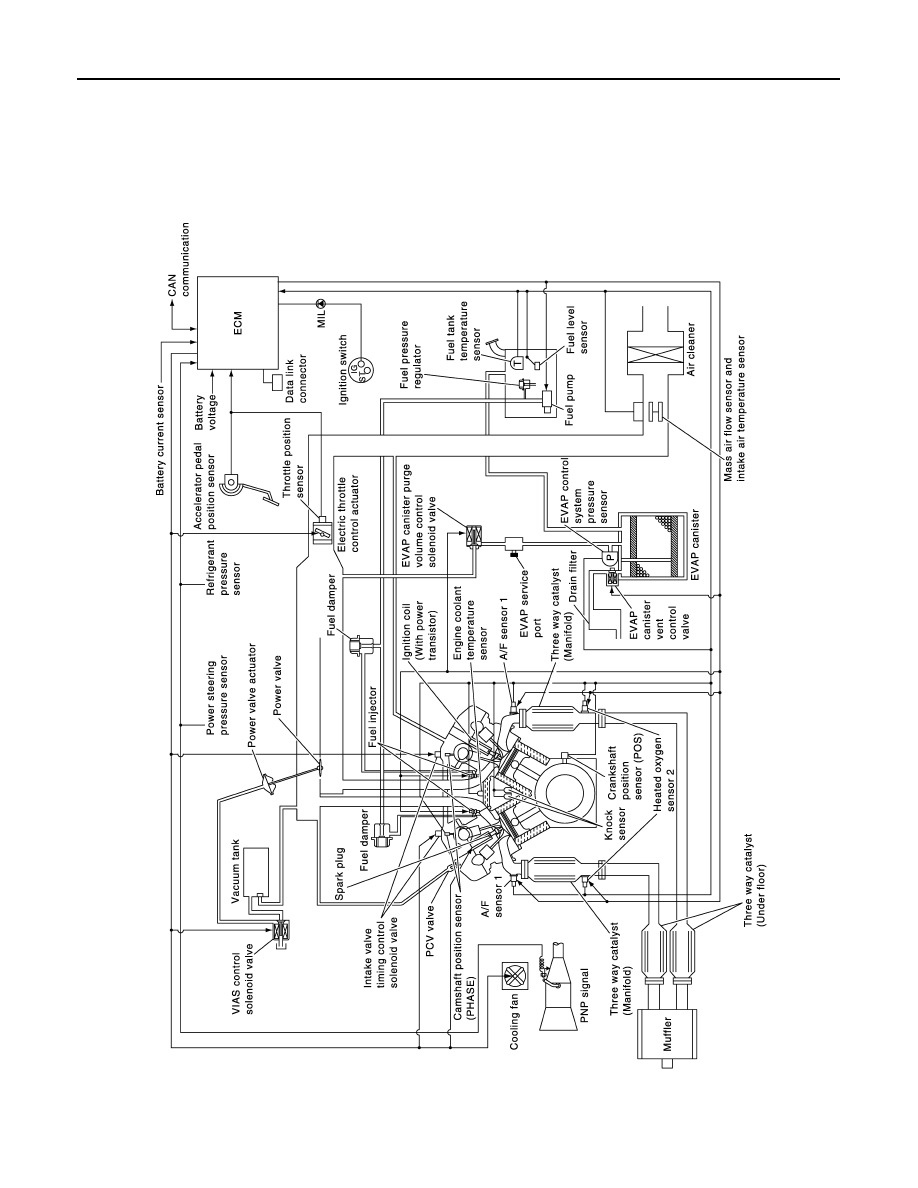

System Diagram

INFOID:0000000005257033

JPBIA3069GB

2010 Pathfinder

ENGINE CONTROL SYSTEM

EC-29

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

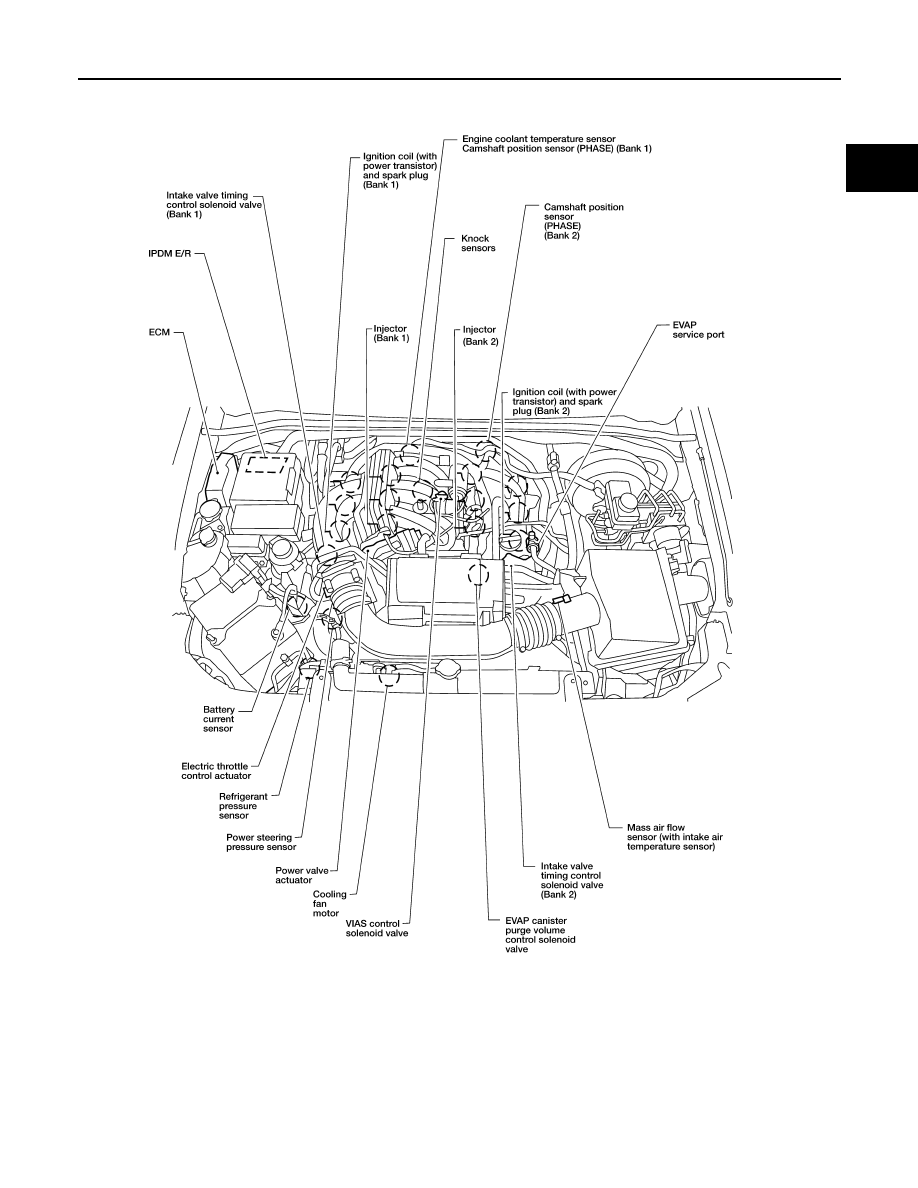

Engine Control Component Parts Location

INFOID:0000000005257034

BBIA0536E

2010 Pathfinder

EC-30

< FUNCTION DIAGNOSIS >

[VQ40DE]

ENGINE CONTROL SYSTEM

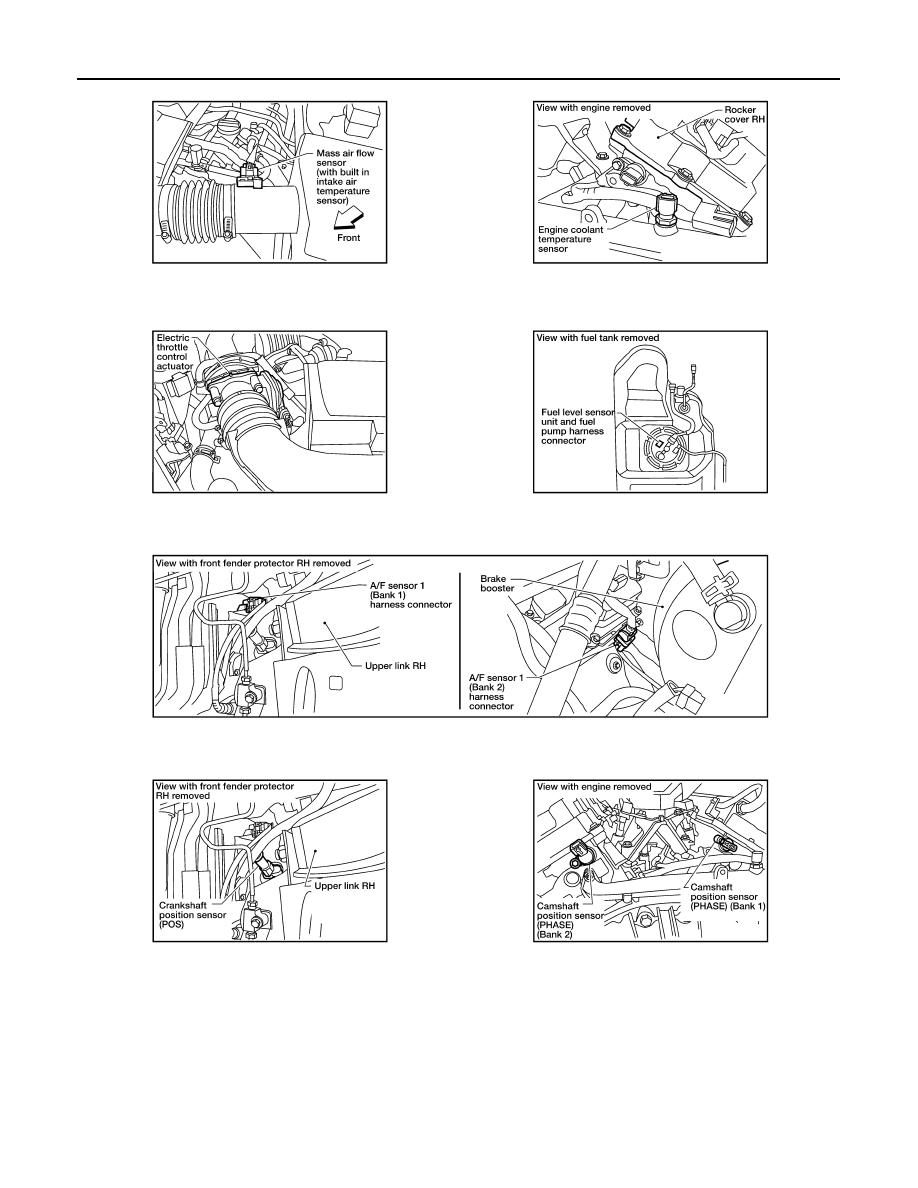

BBIA0578E

2010 Pathfinder

ENGINE CONTROL SYSTEM

EC-31

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

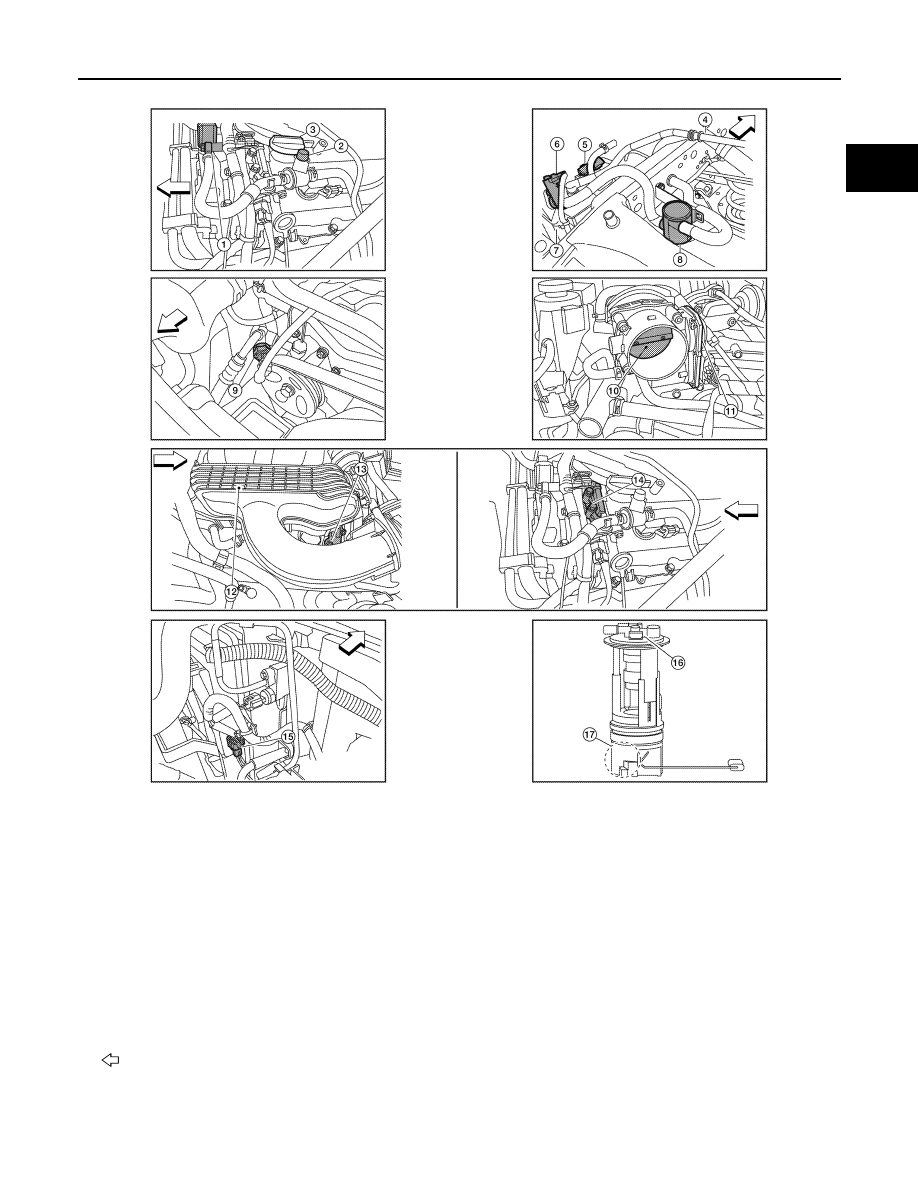

1.

EVAP canister purge volume control
solenoid valve (view with engine
cover removed)

2.

EVAP service port

3.

Oil filler cap

4.

Fuel filler pipe (top of frame view)

5.

EVAP control system pressure sen-
sor

6.

EVAP canister vent control valve

7.

EVAP canister

8.

Drain filter

9.

Power steering pressure sensor

10. Throttle valve (view with intake air

duct removed)

11. Electric throttle control actuator

12. Intake manifold collector

13. Intake valve timing control solenoid

valve (bank 1)

14. Intake valve timing control solenoid

valve (bank 2) (view with engine cov-
er and intake air duct removed)

15. Cooling fan motor harness connec-

tor (view with battery removed)

16. Fuel pump, fuel level sensor unit and

fuel filter

17. Fuel pressure regulator

: Front

AWBIA0135ZZ

2010 Pathfinder

EC-32

< FUNCTION DIAGNOSIS >

[VQ40DE]

ENGINE CONTROL SYSTEM

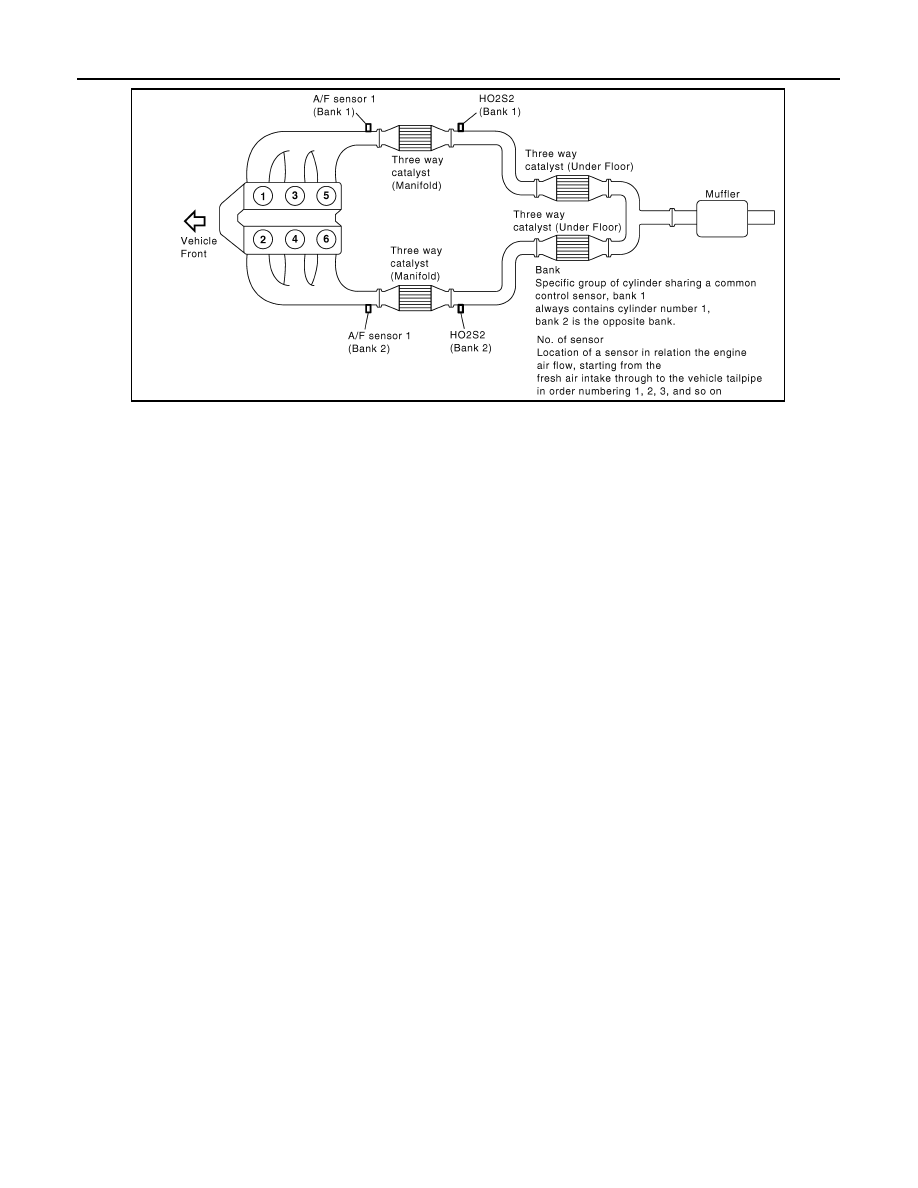

PBIB2530E

2010 Pathfinder

ENGINE CONTROL SYSTEM

EC-33

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

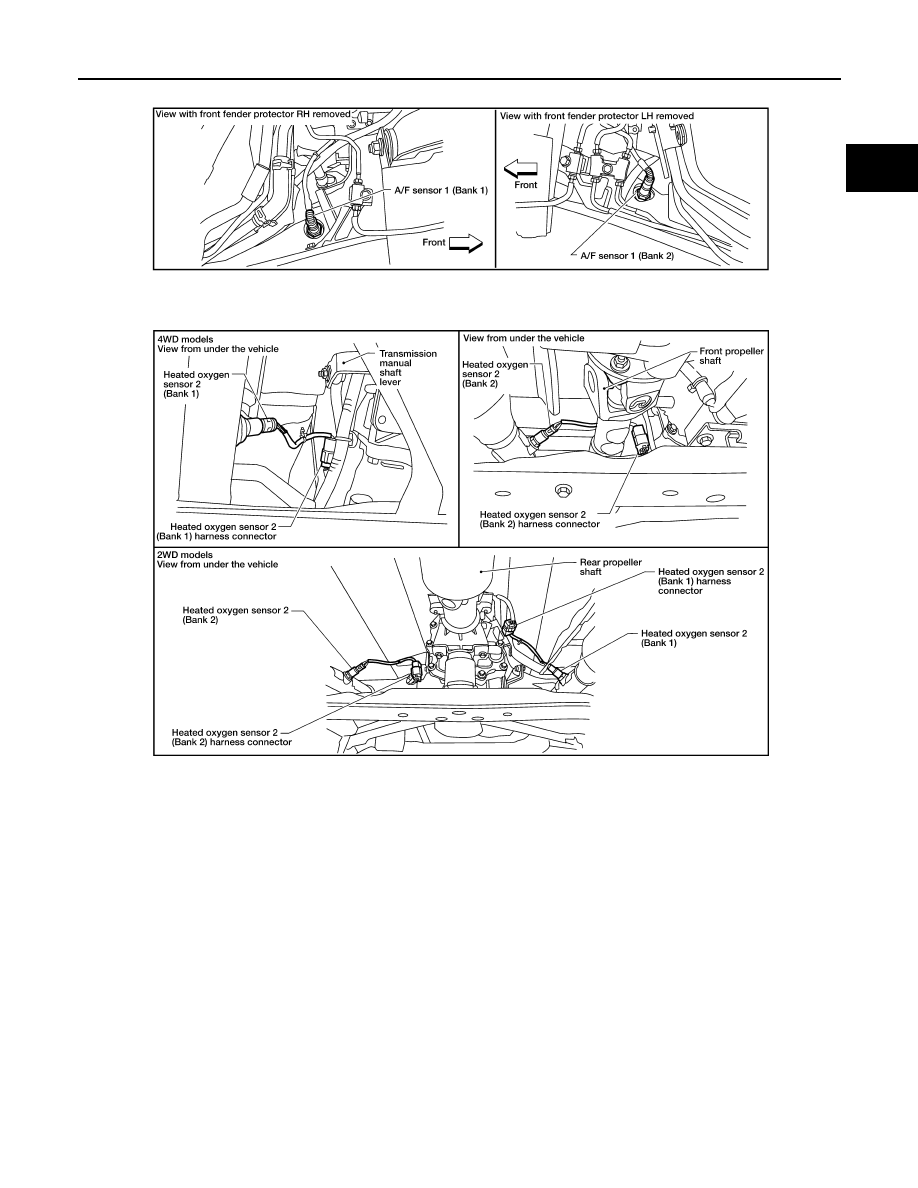

BBIA0577E

2010 Pathfinder

EC-34

< FUNCTION DIAGNOSIS >

[VQ40DE]

ENGINE CONTROL SYSTEM

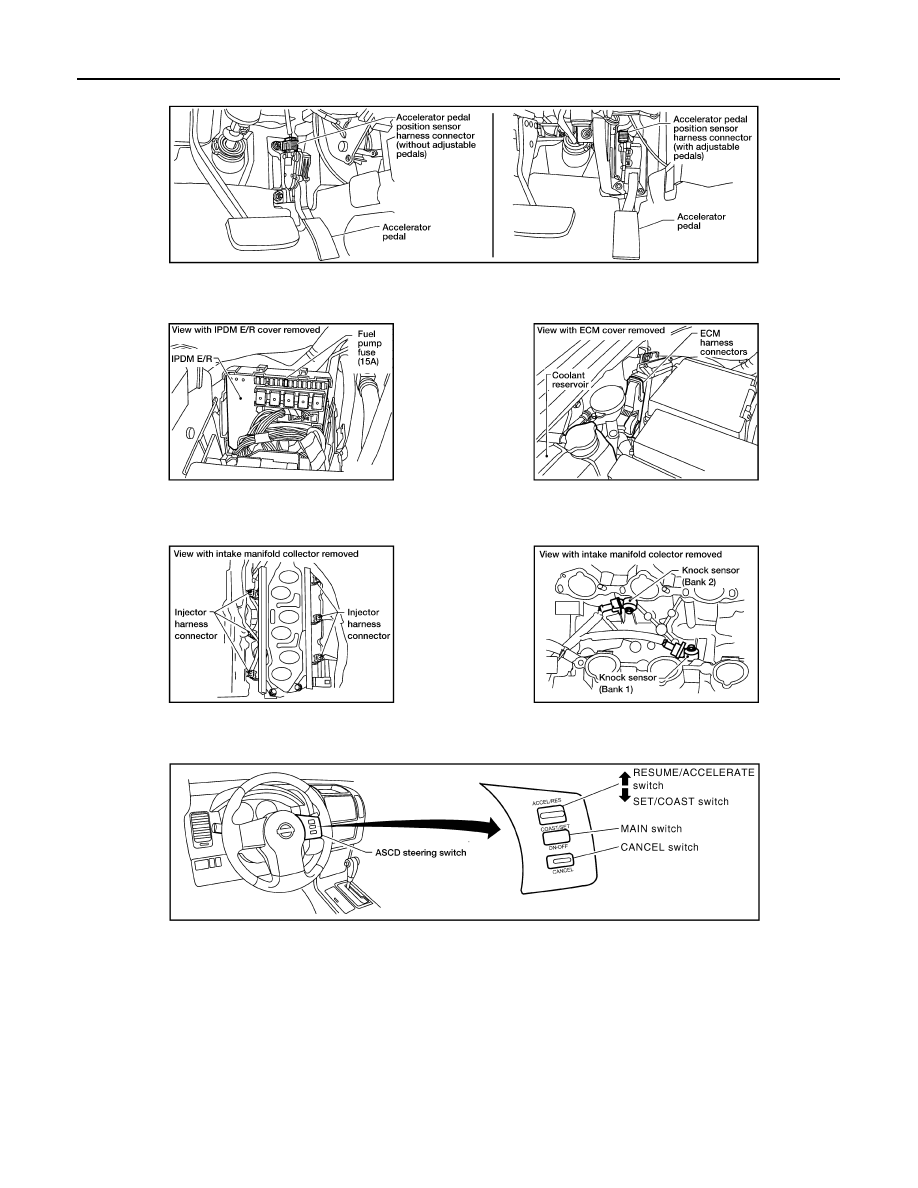

PBIB2646E

2010 Pathfinder

ENGINE CONTROL SYSTEM

EC-35

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

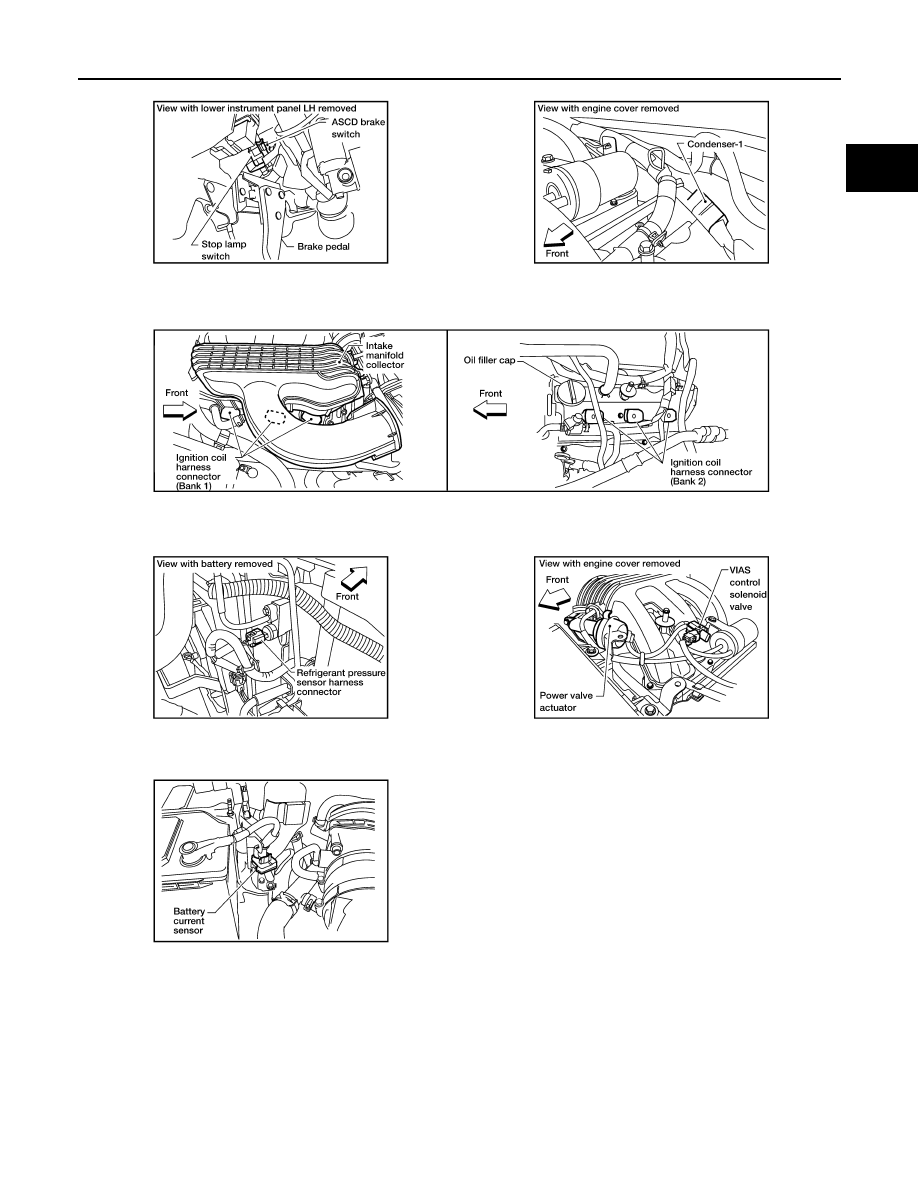

BBIA0581E
