2010 Pathfinder

EC-14

< BASIC INSPECTION >

[VQ40DE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Trouble Diagnosis Introduction

INFOID:0000000005257025

INTRODUCTION

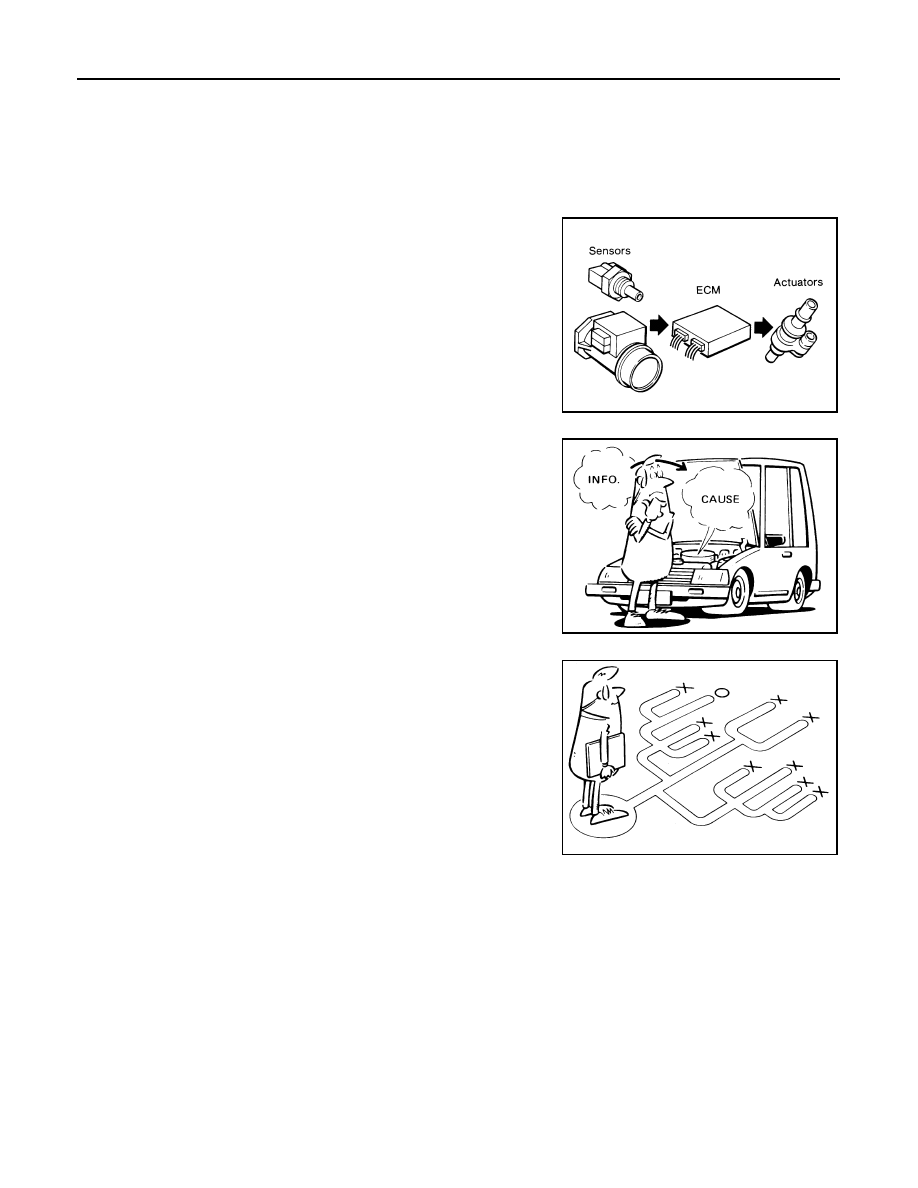

The engine has an ECM to control major systems such as fuel con-

trol, ignition control, idle air control system, etc. The ECM accepts

input signals from sensors and instantly drives actuators. It is essen-

tial that both input and output signals are proper and stable. At the

same time, it is important that there are no malfunctions such as vac-

uum leaks, fouled spark plugs, or other malfunctions with the engine.

It is much more difficult to diagnose an incident that occurs intermit-

tently rather than continuously. Most intermittent incidents are

caused by poor electric connections or improper wiring. In this case,

careful checking of suspected circuits may help prevent the replace-

ment of good parts.

A visual check only may not find the cause of the incidents. A road

test with CONSULT-III (or GST) or a circuit tester connected should

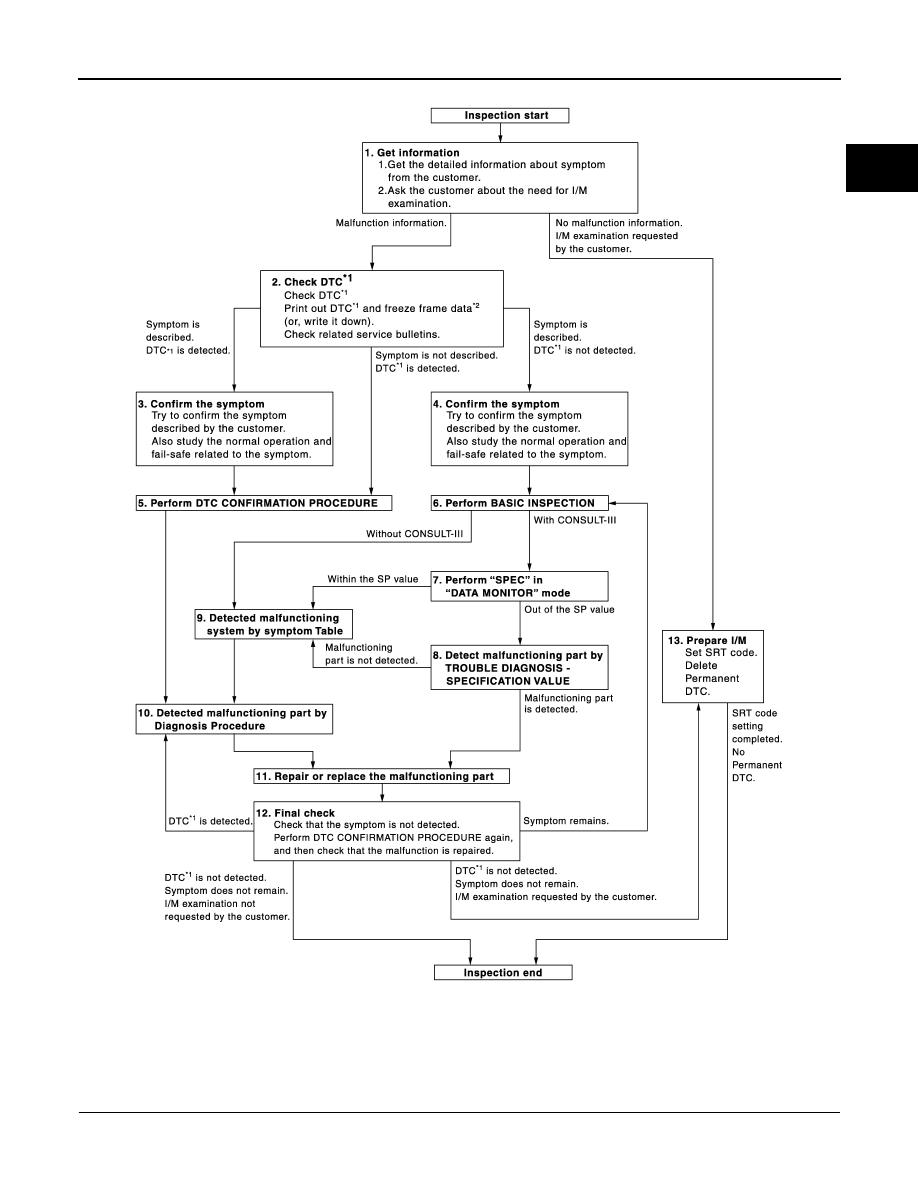

be performed. Follow the Work Flow on "Work Flow".

Before undertaking actual checks, take a few minutes to talk with a

customer who approaches with a driveability complaint. The cus-

tomer can supply good information about such incidents, especially

intermittent ones. Find out what symptoms are present and under

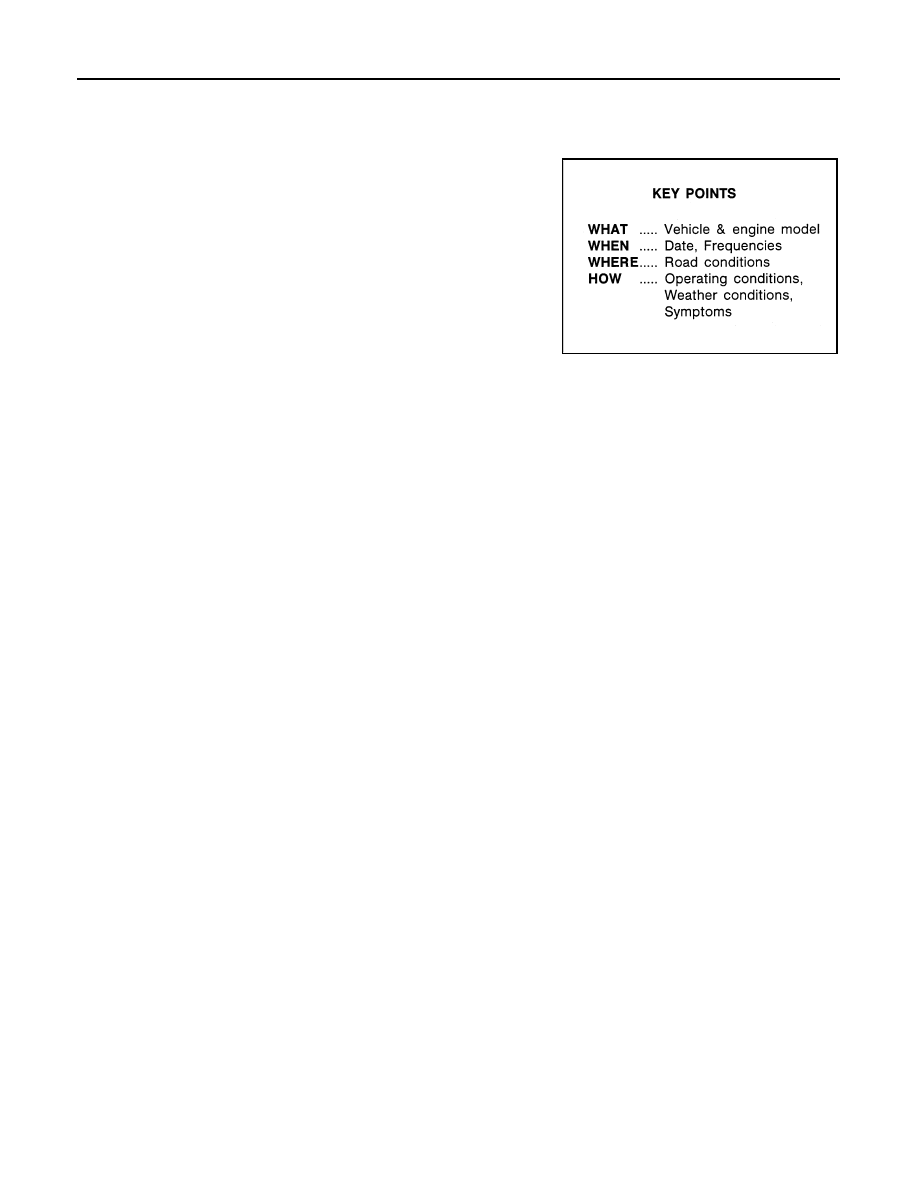

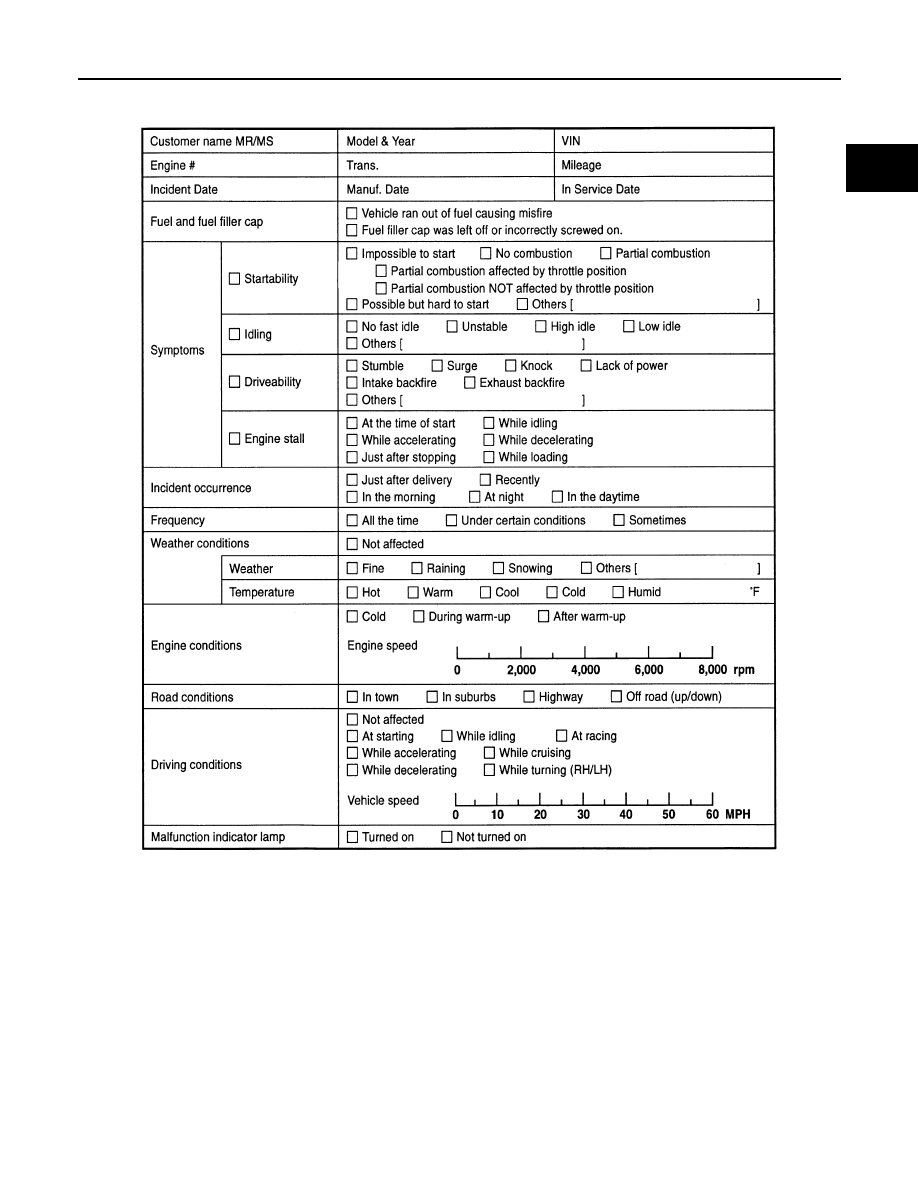

what conditions they occur. A Diagnostic Worksheet like the example

on "Worksheet Sample" should be used.

Start your diagnosis by looking for conventional malfunctions first.

This will help troubleshoot driveability malfunctions on an electroni-

cally controlled engine vehicle.

WORK FLOW

Overall Sequence

MEF036D

SEF233G

SEF234G

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

EC-15

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Detailed Flow

1.

GET INFORMATION FOR SYMPTOM

*1: Include 1st trip DTC.
*2: Include 1st trip freeze frame data.

JSBIA0067GB

2010 Pathfinder

EC-16

< BASIC INSPECTION >

[VQ40DE]

DIAGNOSIS AND REPAIR WORKFLOW

1. Get the detailed information from the customer about the symptom (the condition and the environment

when the incident/malfunction occurred) using the “Diagnostic Work Sheet”.

2. Ask if the customer requests I/M examination.

Malfunction information, obtained>>GO TO 2.

No malfunction information, but a request for I/M examination>>GO TO 13.

2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data. (Print them out with CONSULT-III or GST.)

-

Erase DTC. (Refer to

EC-53, "Emission-related Diagnostic Information"

, .)

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

(Symptom Table is useful. Refer to

EC-484, "Symptom Matrix Chart"

.)

3. Check related service bulletins for information.
Are any symptoms described and any DTCs detected?

Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MIL ON).

Also study the normal operation and fail-safe related to the symptom.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom.

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then make sure that DTC is

detected again.

If two or more DTCs are detected, refer to

EC-460, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during

this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-

MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 10.

NO

>> Check according to

GI-33, "Work Flow"

.

6.

PERFORM BASIC INSPECTION

Perform

EC-20, "Basic Inspection"

.

Do you have CONSULT-III?

YES

>> GO TO 7.

NO

>> GO TO 9.

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

EC-17

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

7.

PERFORM SPEC IN DATA MONITOR MODE

With CONSULT-III

Make sure that “MAS A/F SE-B1”, “MAS A/F SE-B2”, “B/FUEL SCHDL”, “A/F ALPHA-B1”, and “A/F ALPHA-

B2” are within the SP value using CONSULT-III “SPEC” in “DATA MONITOR” mode. Refer to

EC-89, "Inspec-

tion Procedure"

.

Is the measurement value within the SP value?

YES

>> GO TO 9.

NO

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Detect malfunctioning part according to

EC-89, "Diagnosis Procedure"

.

Is a malfunctioning part detected?

YES

>> GO TO 11.

NO

>> GO TO 9.

9.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to

EC-484, "Symptom Matrix Chart"

 based on the confirmed symptom

in step 4, and determine the trouble diagnosis order based on possible causes and symptoms.

>> GO TO 10.

10.

DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

NOTE:

The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection

is also required for the circuit check in the Diagnosis Procedure. For details, refer to

GI-33, "Work Flow"

.

Is a malfunctioning part detected?

YES

>> GO TO 11.

NO

>> Monitor input data from related sensors or check voltage of related ECM terminals using CON-

SULT-III. Refer to

EC-429, "ECM Terminal and Reference Value"

EC-426, "CONSULT-III Refer-

ence Value in Data Monitor Mode"

.

11.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-

ment.

3. Check DTC. If DTC is displayed, erase it. Refer to

EC-53, "Emission-related Diagnostic Information"

.

>> GO TO 12.

12.

FINAL CHECK

When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function

Check again, and then make sure that the malfunction have been completely repaired.

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure

that the symptom is not detected.
Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 10.

YES-2 >> Symptom remains: GO TO 6.

NO-1 >> No request for I/M examination from the customer: Before returning the vehicle to the customer,

always erase unnecessary DTC in ECM and TCM (Transmission Control Module). Refer to

EC-

53, "Emission-related Diagnostic Information"

.

NO-2 >>  I/M examination, requested from the customer: GO TO 13.

13.

PREPARE FOR I/M EXAMINATION

1. Set SRT codes. Refer to

EC-53, "Emission-related Diagnostic Information"

.

2. Erase permanent DTCs. Refer to

EC-53, "Emission-related Diagnostic Information"

.

2010 Pathfinder

EC-18

< BASIC INSPECTION >

[VQ40DE]

DIAGNOSIS AND REPAIR WORKFLOW

>> INSPECTION END

DIAGNOSTIC WORKSHEET

Description

There are many operating conditions that lead to the malfunction of

engine components. A good grasp of such conditions can make trou-

bleshooting faster and more accurate.

In general, each customer feels differently about symptoms. It is

important to fully understand the symptoms or conditions for a cus-

tomer complaint.

Utilize a diagnostic worksheet like the one on the next page in order

to organize all the information for troubleshooting.

Some conditions may cause the MIL to illuminate or blink and DTC

to be detected. Examples:

• Vehicle ran out of fuel, which caused the engine to misfire.

• Fuel filler cap was left off or incorrectly screwed on, allowing fuel to

evaporate into the atmosphere.

SEF907L

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

EC-19

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Worksheet Sample

LEC031A

2010 Pathfinder















Content      ..     238      239      240      241     ..
