Nissan Pathfinder (2010 year). Manual - part 241





EC-20

< BASIC INSPECTION >

[VQ40DE]

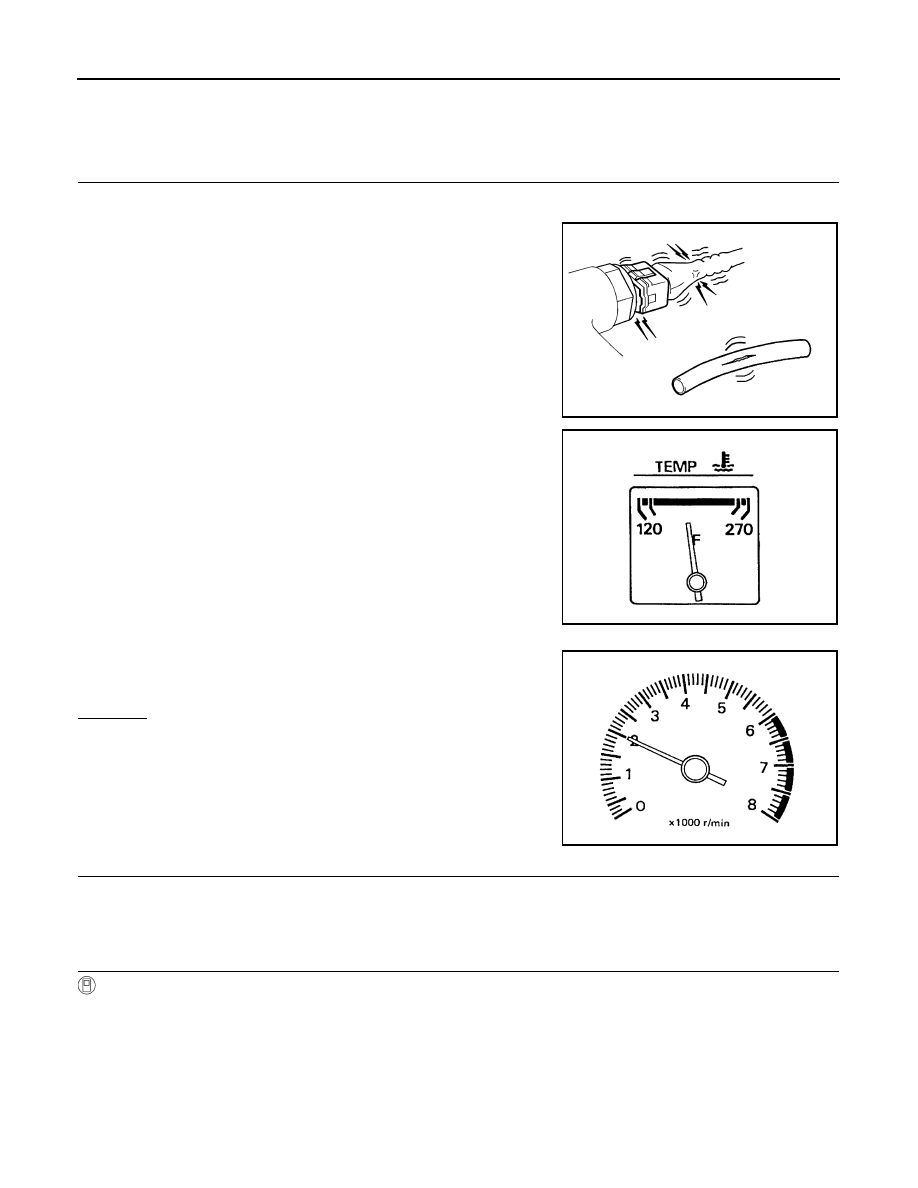

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

Basic Inspection

INFOID:0000000005257026

1.

INSPECTION START

1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for

scheduled maintenance.

2. Open engine hood and check the following:

-

Harness connectors for improper connections

-

Wiring harness for improper connections, pinches and cut

-

Vacuum hoses for splits, kinks and improper connections

-

Hoses and ducts for leakage

-

Air cleaner clogging

-

Gasket

3. Check that electrical or mechanical loads are not applied.

-

Headlamp switch is OFF.

-

Air conditioner switch is OFF.

-

Rear window defogger switch is OFF.

-

Steering wheel is in the straight-ahead position, etc.

4. Start engine and warm it up until engine coolant temperature

indicator points to the middle of gauge.

Ensure engine stays below 1,000 rpm.

5. Run engine at about 2,000 rpm for about 2 minutes under no

load.

6. Make sure that no DTC is displayed with CONSULT-III or GST.
OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

REPAIR OR REPLACE

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

>> GO TO 3.

3.

CHECK TARGET IDLE SPEED

 With CONSULT-III

1. Run engine at about 2,000 rpm for about 2 minutes under no load.

SEF983U

SEF976U

SEF977U

2010 Pathfinder

INSPECTION AND ADJUSTMENT

EC-21

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

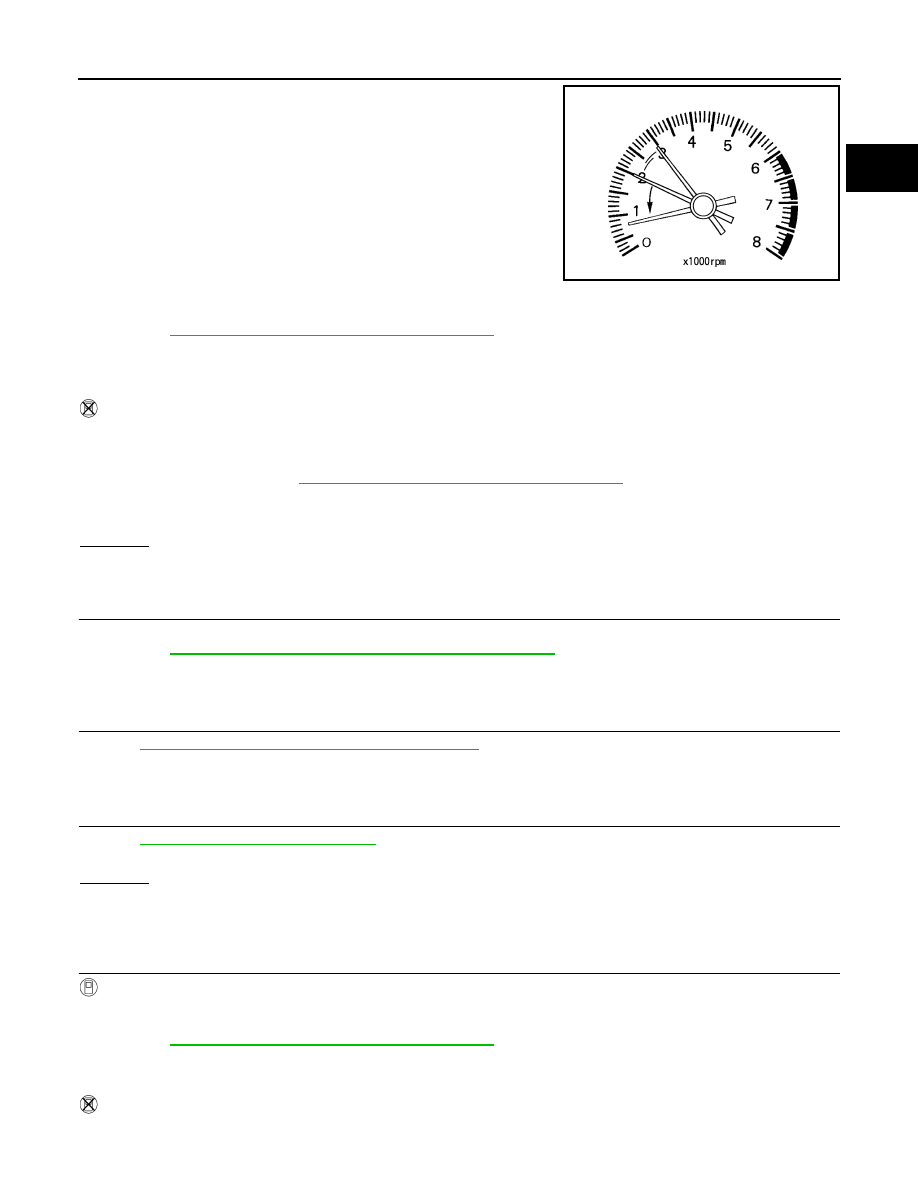

2. Rev engine (2,000 to 3,000 rpm) two or three times under no

load, then run engine at idle speed for about 1 minute.

3. Read idle speed in “DATA MONITOR” mode with CONSULT-III.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

 Without CONSULT-III

1. Run engine at about 2,000 rpm for about 2 minutes under no load.

2. Rev engine (2,000 to 3,000 rpm) two or three times under no load, then run engine at idle speed for about

1 minute.

3. Check idle speed. Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 4.

4.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.

2. Perform

EC-25, "Accelerator Pedal Released Position Learning"

.

>> GO TO 5.

5.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perfor

EC-25, "Throttle Valve Closed Position Learning"

.

>> GO TO 6.

6.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-25, "Idle Air Volume Learning"

.

Is Idle Air Volume Learning carried out successfully?

Yes or No

Yes

>> GO TO 7.

No

>> 1. Follow the instruction of Idle Air Volume Learning.

2. GO TO 4.

7.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Read idle speed in “DATA MONITOR” mode with CONSULT-III.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

 Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.

PBIA8513J

625

±

 50 rpm (in P or N position)

625

±

 50 rpm (in P or N position)

625

±

 50 rpm (in P or N position)

2010 Pathfinder

EC-22

< BASIC INSPECTION >

[VQ40DE]

INSPECTION AND ADJUSTMENT

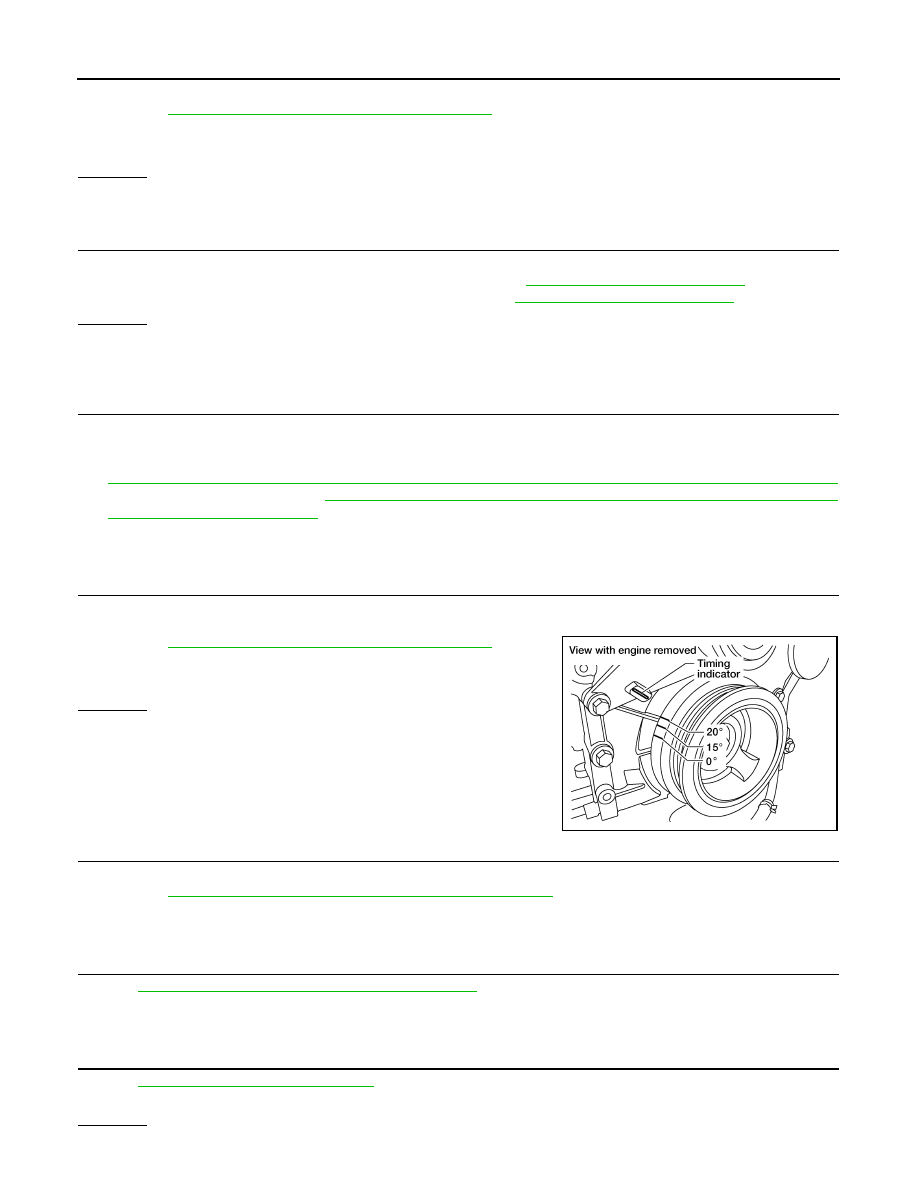

2. Check idle speed.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART

Check the following.

• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-223, "Diagnosis Procedure"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-218, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 9.

NG

>> 1. Repair or replace.

2. GO TO 4.

9.

CHECK ECM FUNCTION

1. Substitute with a non-malfunctioning ECM to check ECM function. (ECM may be the cause of the incident,

although  this is rare.)

2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to

SEC-10, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

(with Intelligent Key system) or

SEC-124, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

: Special Repair Requirement"

 (without Intelligent Key system).

>> GO TO 4.

10.

CHECK IGNITION TIMING

1. Run engine at idle.

2. Check ignition timing with a timing light.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

OK or NG

OK

>> GO TO 19.

NG

>> GO TO 11.

11.

PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING

1. Stop engine.

2. Perform

EC-25, "Accelerator Pedal Released Position Learning"

.

>> GO TO 12.

12.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Perform

EC-25, "Throttle Valve Closed Position Learning"

.

>> GO TO 13.

13.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-25, "Idle Air Volume Learning"

.

Is Idle Air Volume Learning carried out successfully?

Yes or No

625

±

 50 rpm (in P or N position)

15

±

 5

°

 BTDC (in P or N position)

BBIA0531E

2010 Pathfinder

INSPECTION AND ADJUSTMENT

EC-23

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

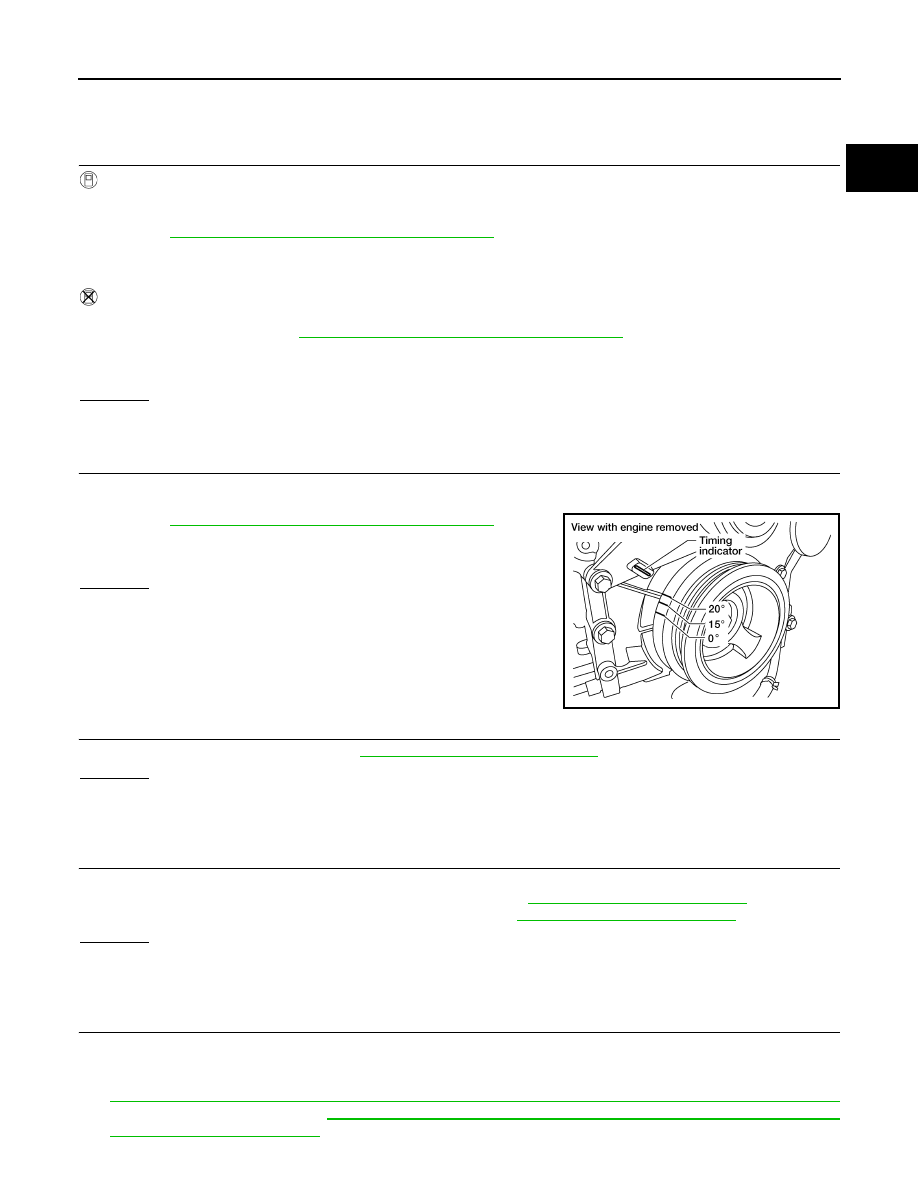

Yes

>> GO TO 14.

No

>> 1. Follow the instruction of Idle Air Volume Learning.

2. GO TO 4.

14.

CHECK TARGET IDLE SPEED AGAIN

 With CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Read idle speed in “DATA MONITOR” mode with CONSULT-III.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

 Without CONSULT-III

1. Start engine and warm it up to normal operating temperature.

2. Check idle speed. Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

OK or NG

OK

>> GO TO 15.

NG

>> GO TO 17.

15.

CHECK IGNITION TIMING AGAIN

1. Run engine at idle.

2. Check ignition timing with a timing light.

Refer to

EC-24, "Idle Speed and Ignition Timing Check"

.

OK or NG

OK

>> GO TO 19.

NG

>> GO TO 16.

16.

CHECK TIMING CHAIN INSTALLATION

Check timing chain installation. Refer to

EM-60, "Removal and Installation"

.

OK or NG

OK

>> GO TO 17.

NG

>> 1. Repair the timing chain installation.

2. GO TO 4.

17.

DETECT MALFUNCTIONING PART

Check the following.

• Check camshaft position sensor (PHASE) and circuit. Refer to

EC-223, "Diagnosis Procedure"

.

• Check crankshaft position sensor (POS) and circuit. Refer to

EC-218, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 18.

NG

>> 1. Repair or replace.

2. GO TO 4.

18.

CHECK ECM FUNCTION

1. Substitute with a non-malfunctioning ECM to check ECM function. (ECM may be the cause of the incident,

although this is rare.)

2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to

SEC-10, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

(with Intelligent Key system) or

SEC-124, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

: Special Repair Requirement"

 (without Intelligent Key system).

625

±

 50 rpm (in P or N position)

625

±

 50 rpm (in P or N position)

15

±

 5

°

 BTDC (in P or N position)

BBIA0531E

2010 Pathfinder

EC-24

< BASIC INSPECTION >

[VQ40DE]

INSPECTION AND ADJUSTMENT

>> GO TO 4.

19.

INSPECTION END

Did you replace the ECM, referring this Basic Inspection Procedure?
Yes or No

Yes

>> 1. Perform

EC-25, "VIN Registration"

.

2.

INSPECTION END

No

>>

INSPECTION END

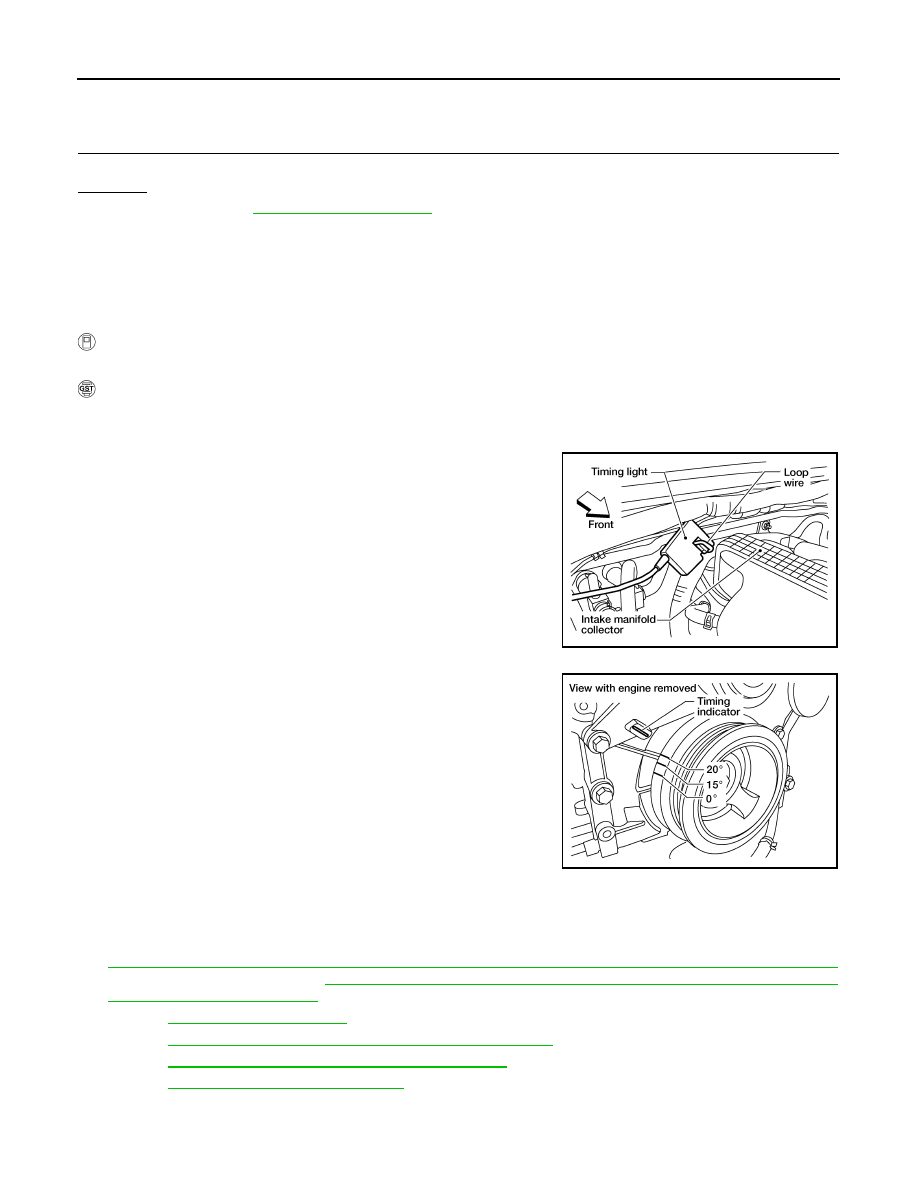

Idle Speed and Ignition Timing Check

INFOID:0000000005257027

IDLE SPEED

With CONSULT-III

Check idle speed in “DATA MONITOR” mode with CONSULT-III.

With GST

Check idle speed with GST.

IGNITION TIMING

1. Attach timing light to loop wire as shown.

2. Check ignition timing.

Procedure After Replacing ECM

INFOID:0000000005257028

When replacing ECM, the following procedure must be performed.
1. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to

SEC-10, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

(with Intelligent Key system) or

SEC-124, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

: Special Repair Requirement"

 (without Intelligent Key system).

2. Perform

EC-25, "VIN Registration"

.

3. Perform

EC-25, "Accelerator Pedal Released Position Learning"

.

4. Perform

EC-25, "Throttle Valve Closed Position Learning"

.

5. Perform

EC-25, "Idle Air Volume Learning"

.

BBIA0530E

BBIA0531E

2010 Pathfinder

INSPECTION AND ADJUSTMENT

EC-25

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

VIN Registration

INFOID:0000000005257029

DESCRIPTION

VIN Registration is an operation to register VIN in ECM. It must be performed each time ECM is replaced.

NOTE:

Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).

OPERATION PROCEDURE

 With CONSULT-III

1. Check the VIN of the vehicle and note it. Refer to

GI-21, "Identification Number"

.

2. Turn ignition switch ON with engine stopped.
3. Select “VIN REGISTRATION” in “WORK SUPPORT” mode.
4. Follow the instruction on the CONSULT-III display.

Accelerator Pedal Released Position Learning

INFOID:0000000005257030

DESCRIPTION

Accelerator Pedal Released Position Learning is an operation to learn the fully released position of the accel-

erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time

the harness connector of the accelerator pedal position sensor or ECM is disconnected.

OPERATION PROCEDURE

1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.

Throttle Valve Closed Position Learning

INFOID:0000000005257031

DESCRIPTION

Throttle Valve Closed Position Learning is an operation to learn the fully closed position of the throttle valve by

monitoring the throttle position sensor output signal. It must be performed each time the harness connector of

electric throttle control actuator or ECM is disconnected.

OPERATION PROCEDURE

1. Check that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.

Make sure that throttle valve moves during the above 10 seconds by confirming the operating sound.

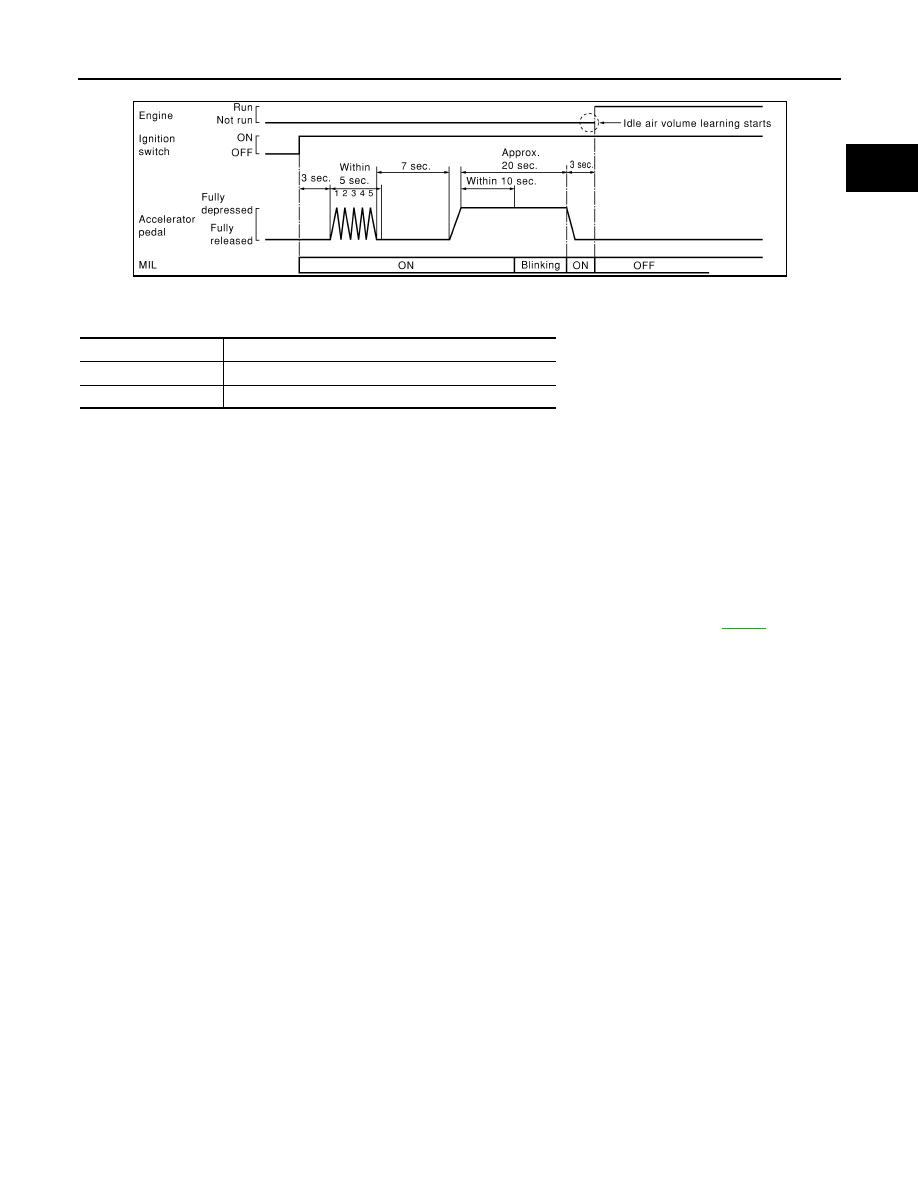

Idle Air Volume Learning

INFOID:0000000005257032

DESCRIPTION

Idle Air Volume Learning is an operation to learn the idle air volume that keeps each engine within the specific

range. It must be performed under the following conditions:

• Each time electric throttle control actuator or ECM is replaced.

• Idle speed or ignition timing is out of specification.

PREPARATION

Before performing Idle Air Volume Learning, make sure that all of the following conditions are satisfied.

Learning will be cancelled if any of the following conditions are missed for even a moment.

• Battery voltage: More than 12.9 V (At idle)

• Engine coolant temperature: 70 - 100

°

C (158 - 212

°

F)

• Selector lever: P or N

• Electric load switch: OFF

(Air conditioner, headlamp, rear window defogger)

2010 Pathfinder

EC-26

< BASIC INSPECTION >

[VQ40DE]

INSPECTION AND ADJUSTMENT

On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is

started the headlamp will not illuminate.

• Steering wheel: Neutral (Straight-ahead position)

• Vehicle speed: Stopped

• Transmission: Warmed-up

- With CONSULT-III: Drive vehicle until “ATF TEMP SE” in “DATA MONITOR” mode of “A/T” system indicates

less than 0.9 V.

- Without CONSULT-III: Drive vehicle for 10 minutes.

OPERATION PROCEDURE

 With CONSULT-III

1. Perform

EC-25, "Accelerator Pedal Released Position Learning"

.

2. Perform

EC-25, "Throttle Valve Closed Position Learning"

.

3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

6. Touch “START” and wait 20 seconds.

7. Check that “CMPLT” is displayed on CONSULT-III screen. If “CMPLT” is not displayed, Idle Air Volume

Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the

Diagnostic Procedure below.

8. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the

specifications.

 Without CONSULT-III

NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1. Perform

EC-25, "Accelerator Pedal Released Position Learning"

.

2. Perform

EC-25, "Throttle Valve Closed Position Learning"

.

3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Confirm that accelerator pedal is fully released, then turn ignition switch ON and wait 3 seconds.
7. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
8. Wait 7 seconds, fully depress the accelerator pedal it for approx. 20 seconds until the MIL stops blinking

and turns ON.

9. Fully release the accelerator pedal within 3 seconds after the MIL turns ON.
10. Start engine and let it idle.

ITEM

SPECIFICATION

Idle speed

625

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

2010 Pathfinder

INSPECTION AND ADJUSTMENT

EC-27

< BASIC INSPECTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

11. Wait 20 seconds.

12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the

specifications.

13. If idle speed and ignition timing are not within the specification, Idle Air Volume Learning will not be carried

out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCE-

DURE below.

DIAGNOSTIC PROCEDURE

If idle air volume learning cannot be performed successfully, proceed as follows:

1.

Check that throttle valve is fully closed.

2.

Check PCV valve operation.

3.

Check that downstream of throttle valve is free from air leakage.

4.

When the above three items check out OK, engine component parts and their installation condi-

tion are questionable. Check and eliminate the cause of the incident.



It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to

EC-89

.

5.

If any of the following conditions occur after the engine has started, eliminate the cause of the

incident and perform Idle Air Volume Learning again:

Engine stalls.

Incorrect idle.

ITEM

SPECIFICATION

Idle speed

625

±

 50 rpm (in P or N position)

Ignition timing

15

±

 5

°

 BTDC (in P or N position)

SEC897C

2010 Pathfinder















Content      ..     239      240      241      242     ..
