PREPARATION

DLN-269

< PREPARATION >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

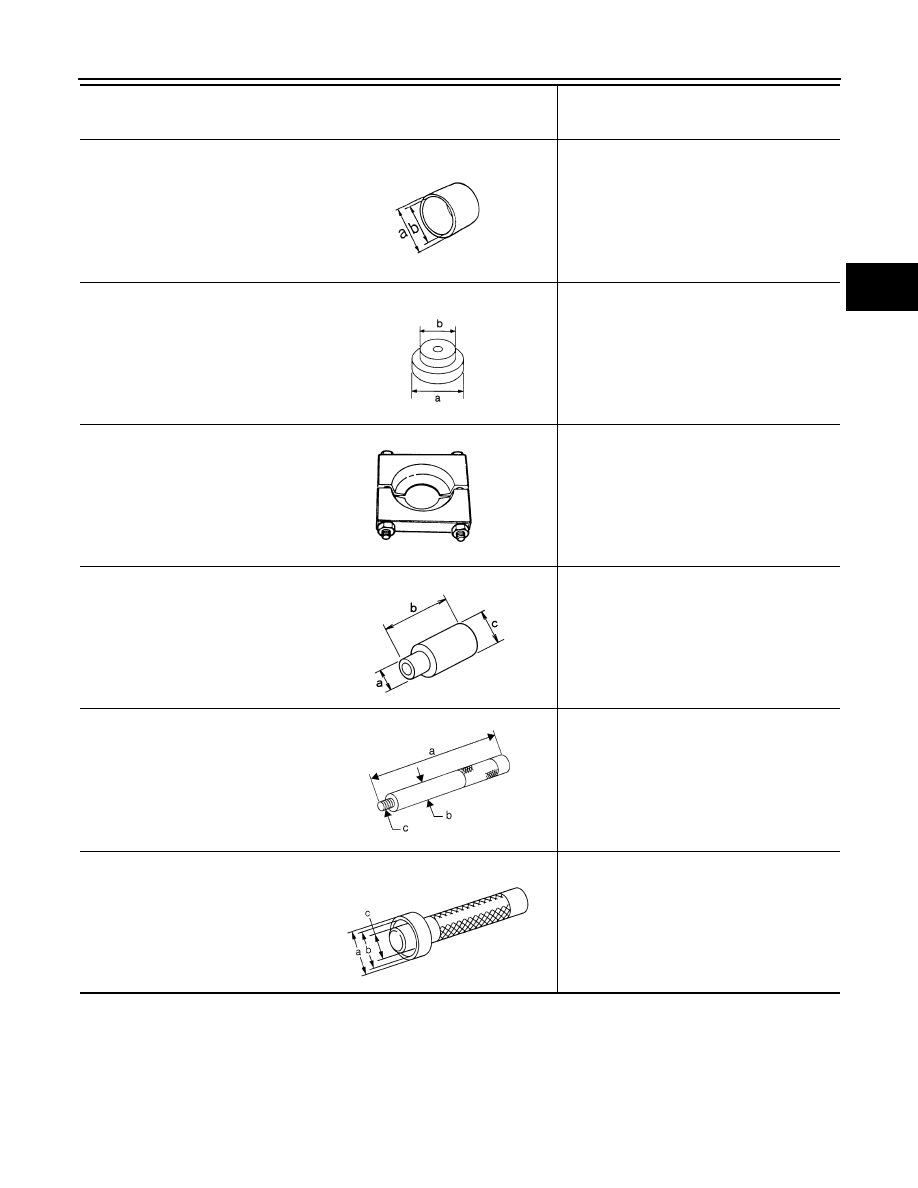

KV40104830
(

)

Drift

• Installing input oil seal

a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.50 in) dia.

ST35300000
(

)

Drift

• Removing carrier bearing
• Installing metal bushing
• Removing front bearing

a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

ST30021000
(J-22912-01)
Puller

• Removing carrier bearing
• Removing front bearing
• Removing rear bearing

ST33710000
(

)

Drift

• Removing needle bearing
• Removing metal bushing
• Removing rear bearing

a: 89 mm (3.5 in)
b: 30 mm (1.18 in) dia.
c: 24 mm (0.94 in) dia.

ST35325000
(

)

Drift bar

• Removing metal bushing

a: 215 mm (8.46 in)
b: 25 mm (0.98 in) dia.
c: M12

×

 1.5P

ST33220000
(

)

Drift

• Installing needle bearing

a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

NT073

ZZA0537D

ZZA1057D

NT663

ZZA1046D

2010 Pathfinder

DLN-270

< PREPARATION >

[TRANSFER: TX15B]

PREPARATION

Commercial Service Tool

INFOID:0000000005258434

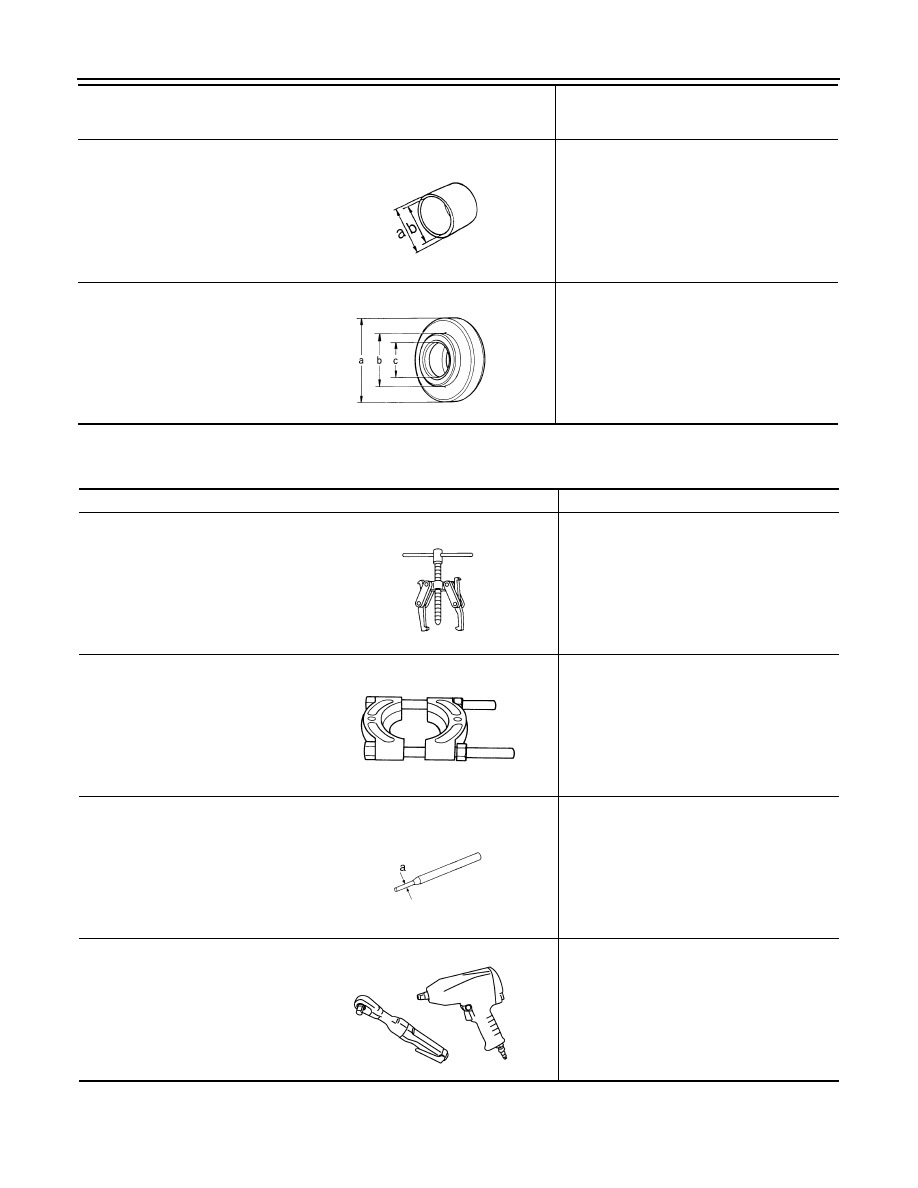

ST27863000
(

)

Drift

• Installing carrier bearing

a: 75 mm (2.95 in) dia.
b: 62 mm (2.44 in) dia.

ST30901000
(J-26010-01)
Drift

• Installing rear bearing
• Installing front bearing

a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.38 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1003D

ZZA0978D

Tool name

Description

Puller

• Removing companion flange
• Removing mainshaft rear bearing

Puller

• Removing mainshaft rear bearing

Pin punch

• Removing retaining pin

a: 6 mm (0.24 in) dia.

Power tool

• Loosening bolts and nuts

NT077

ZZB0823D

NT410

PBIC0190E

2010 Pathfinder

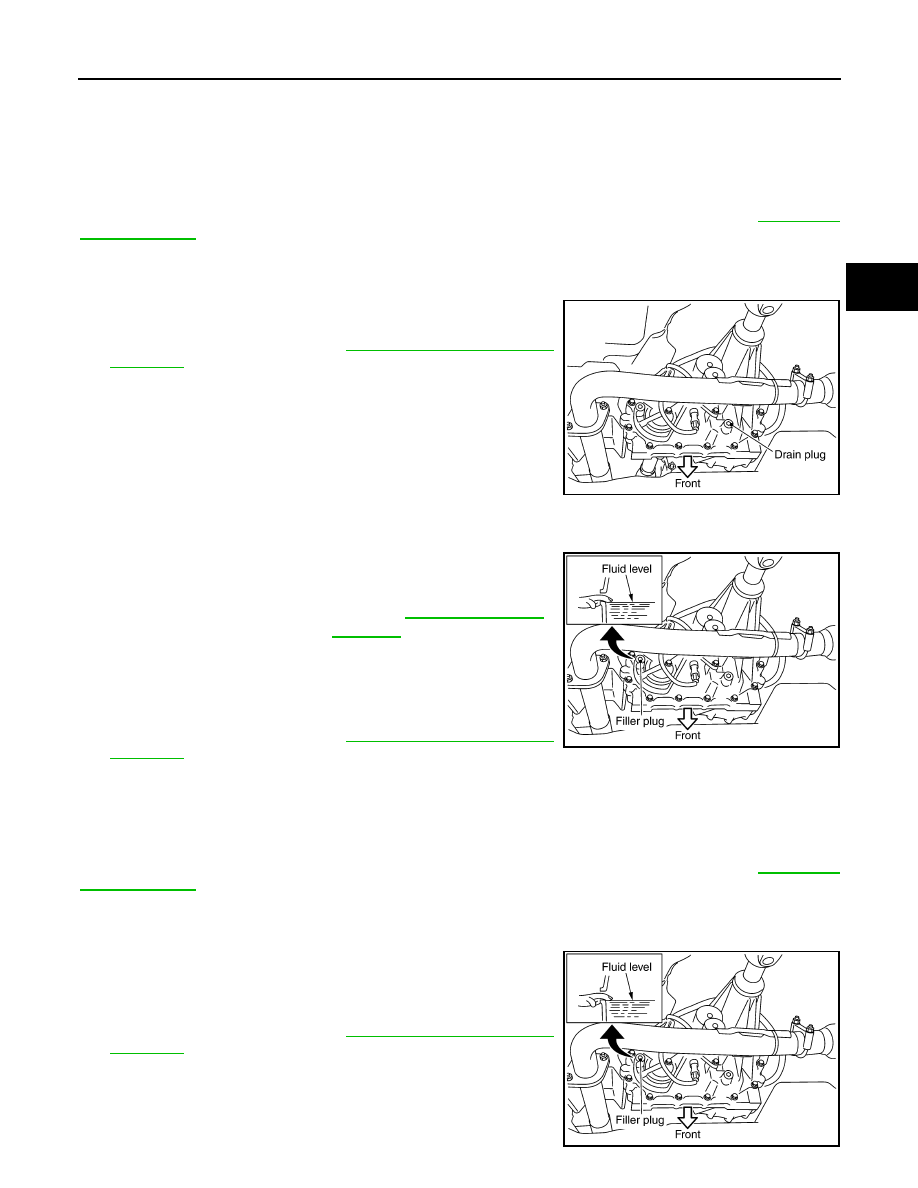

TRANSFER FLUID

DLN-271

< ON-VEHICLE MAINTENANCE >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ON-VEHICLE MAINTENANCE

TRANSFER FLUID

Replacement

INFOID:0000000005258435

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "For

North America"

.

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-283, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-283, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000005258436

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "For

North America"

.

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-283, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

SDIA3286E

Fluid grade and capacity : Refer to

MA-16, "For North

America"

.

SDIA3287E

SDIA3287E

2010 Pathfinder

DLN-272

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

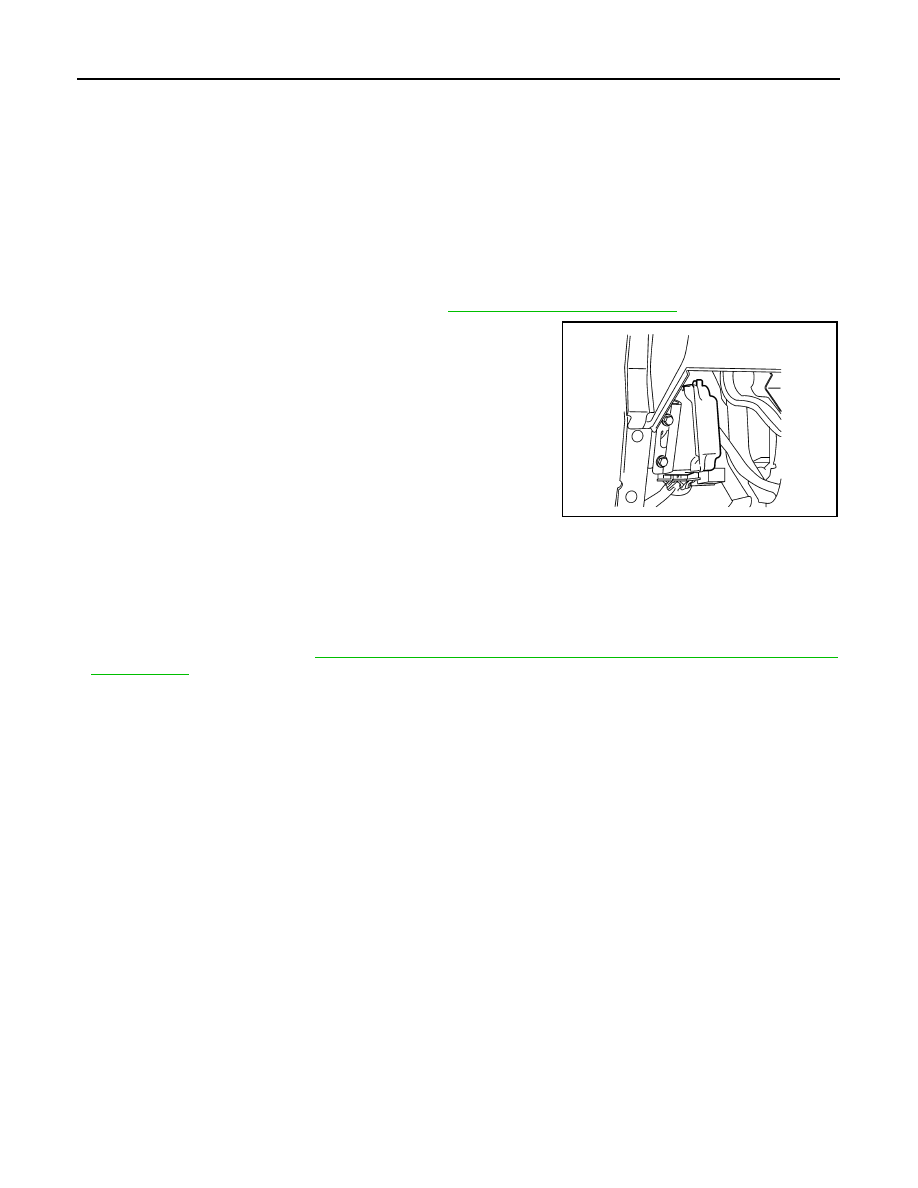

TRANSFER CONTROL UNIT

ON-VEHICLE REPAIR

TRANSFER CONTROL UNIT

Removal and Installation

INFOID:0000000005258437

REMOVAL

1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD.

CAUTION:

When removing transfer control unit, transfer state must be at 2WD.

2. Turn the ignition switch OFF and disconnect negative battery terminal.
3. Remove the lower instrument panel LH. Refer to

IP-12, "Removal and Installation"

.

4. Disconnect the two transfer control unit connectors.
5. Remove the transfer control unit bolts.
6. Remove the transfer control unit.

INSTALLATION

Installation is in the reverse order of removal.

• When installing the transfer control unit, tighten bolts to the specified torque.

• After the installation, check 4WD shift indicator pattern. If NG, adjust position between transfer assembly and

transfer control unit. Refer to

DLN-265, "Precaution for Transfer Assembly and Transfer Control Unit

Replacement"

.

LDIA0168E

Transfer control unit bolts : 3.4 N·m (0.35 kg-m, 30 in-lb)

2010 Pathfinder

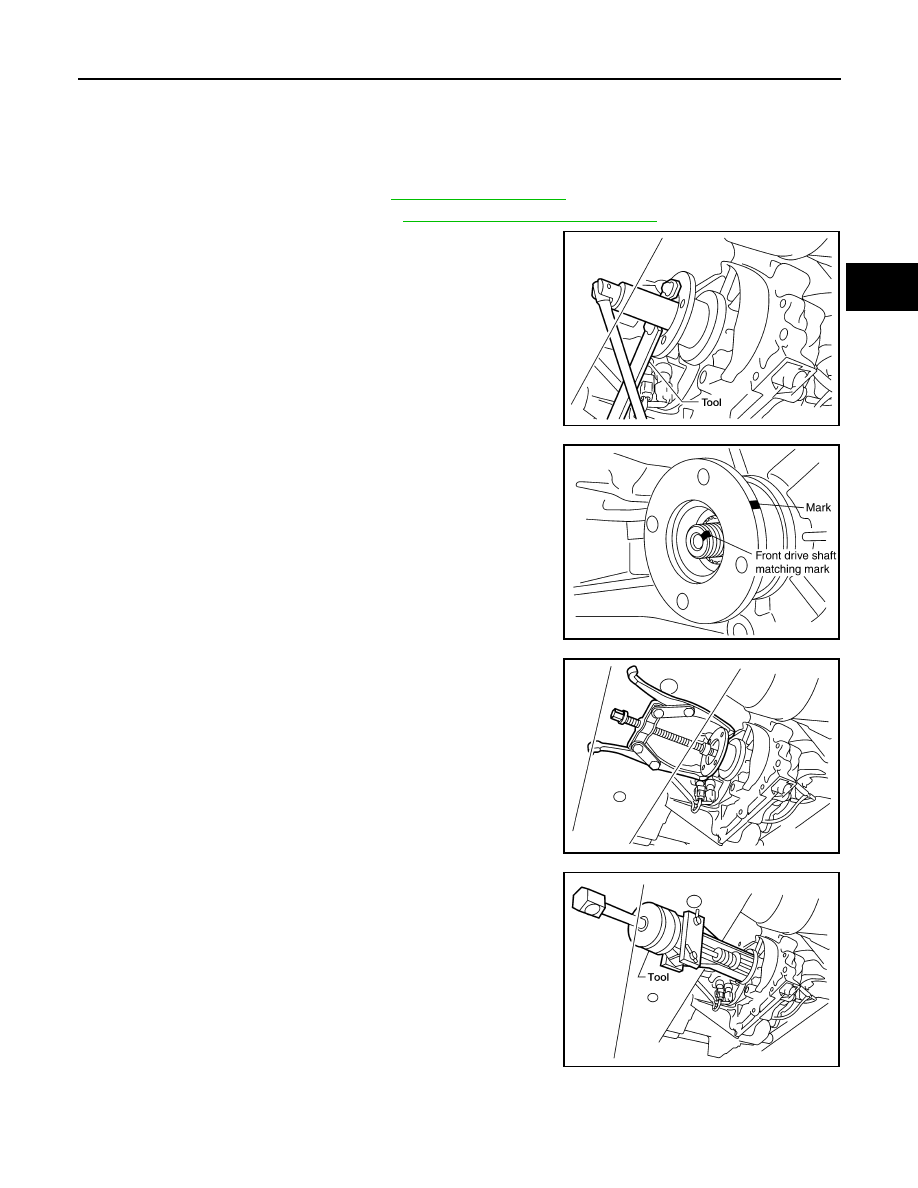

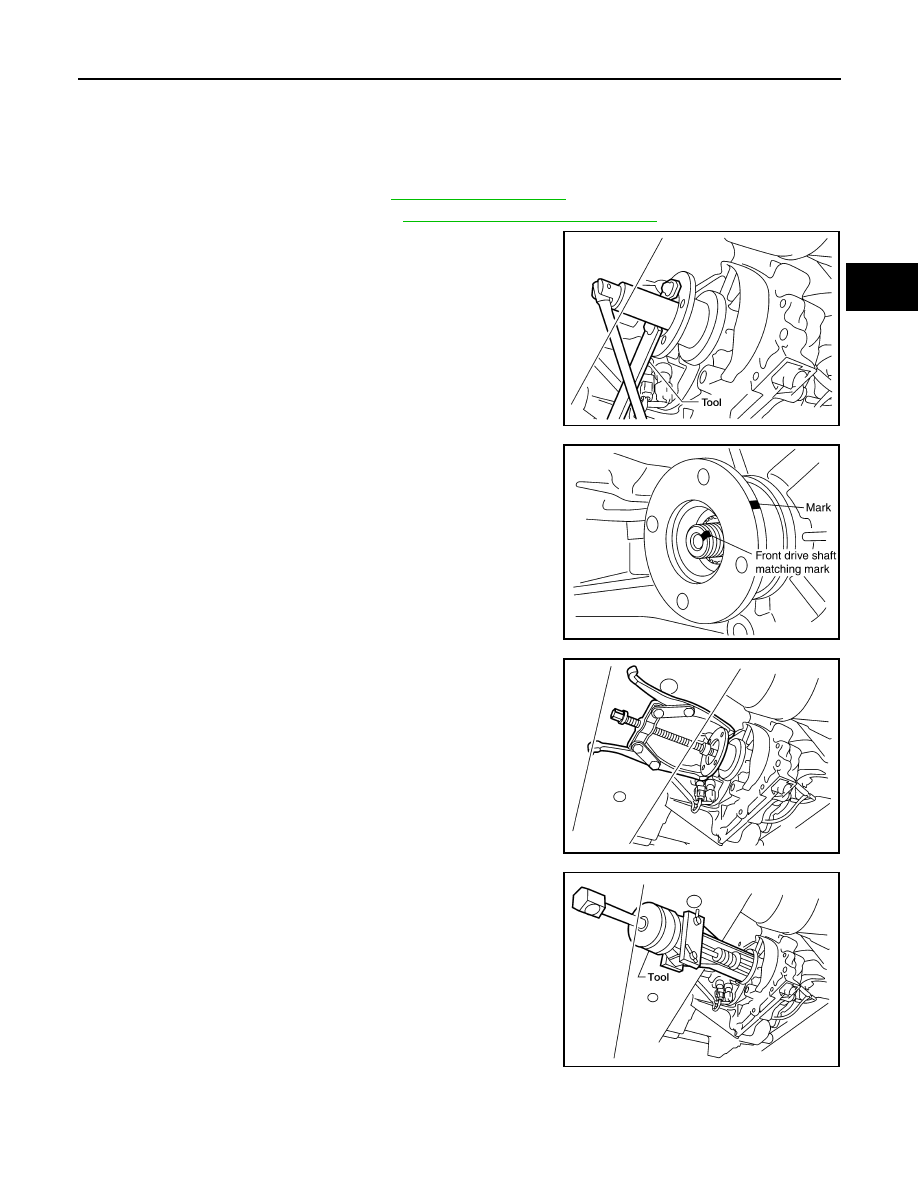

FRONT OIL SEAL

DLN-273

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

FRONT OIL SEAL

Removal and Installation

INFOID:0000000005258438

REMOVAL

1. Partially drain the transfer fluid. Refer to

DLN-271, "Replacement"

.

2. Remove the front propeller shaft. Refer to

DLN-315, "Removal and Installation"

.

3. Remove the companion flange self-lock nut using suitable tool.

4. Put a matching mark on top of the front drive shaft in line with

the mark on the companion flange.

CAUTION:

Use paint to make the matching mark on the front drive

shaft. Do not damage the front drive shaft.

5.  Remove the companion flange using suitable tool.

6. Remove the front oil seal from the front case using Tool.

CAUTION:

Do not damage front case.

INSTALLATION

LDIA0142E

SDIA2779E

WDIA0193E

Tool number

: ST33290001 (J-34286)

LDIA0144E

2010 Pathfinder

DLN-274

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

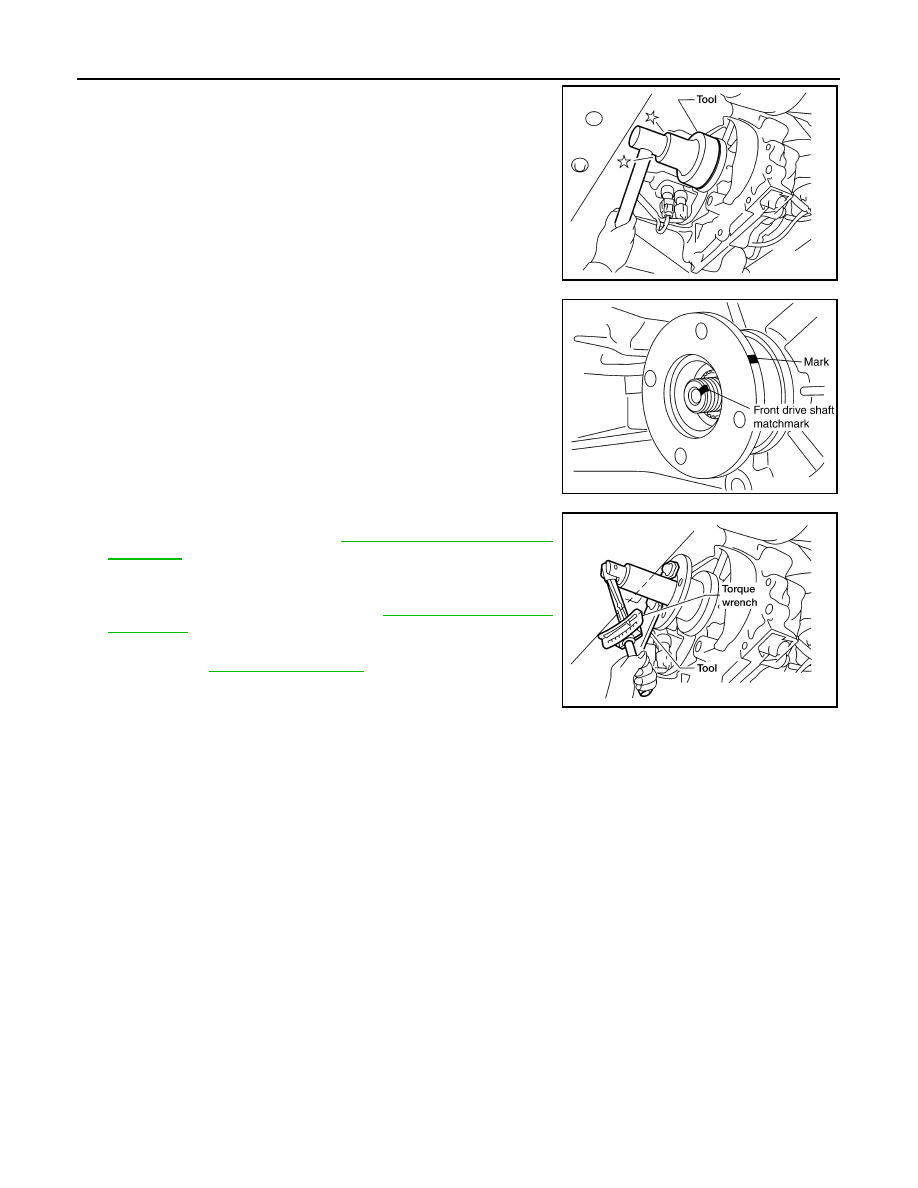

FRONT OIL SEAL

1. Install the new front oil seal until it is flush with the end face of

the front case using suitable tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Align the matching mark of the front drive shaft with the match-

ing mark of the companion flange, then install the companion

flange.

3. Install the new self-lock nut and tighten to the specified torque

using suitable tool. Refer to

DLN-283, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse self-lock nut.

4. Install the front propeller shaft. Refer to

DLN-315, "Removal and

Installation"

.

5. Refill the transfer with fluid and check for fluid leakage and fluid

level. Refer to

DLN-271, "Inspection"

.

LDIA0145E

SDIA2214E

LDIA0147E

2010 Pathfinder

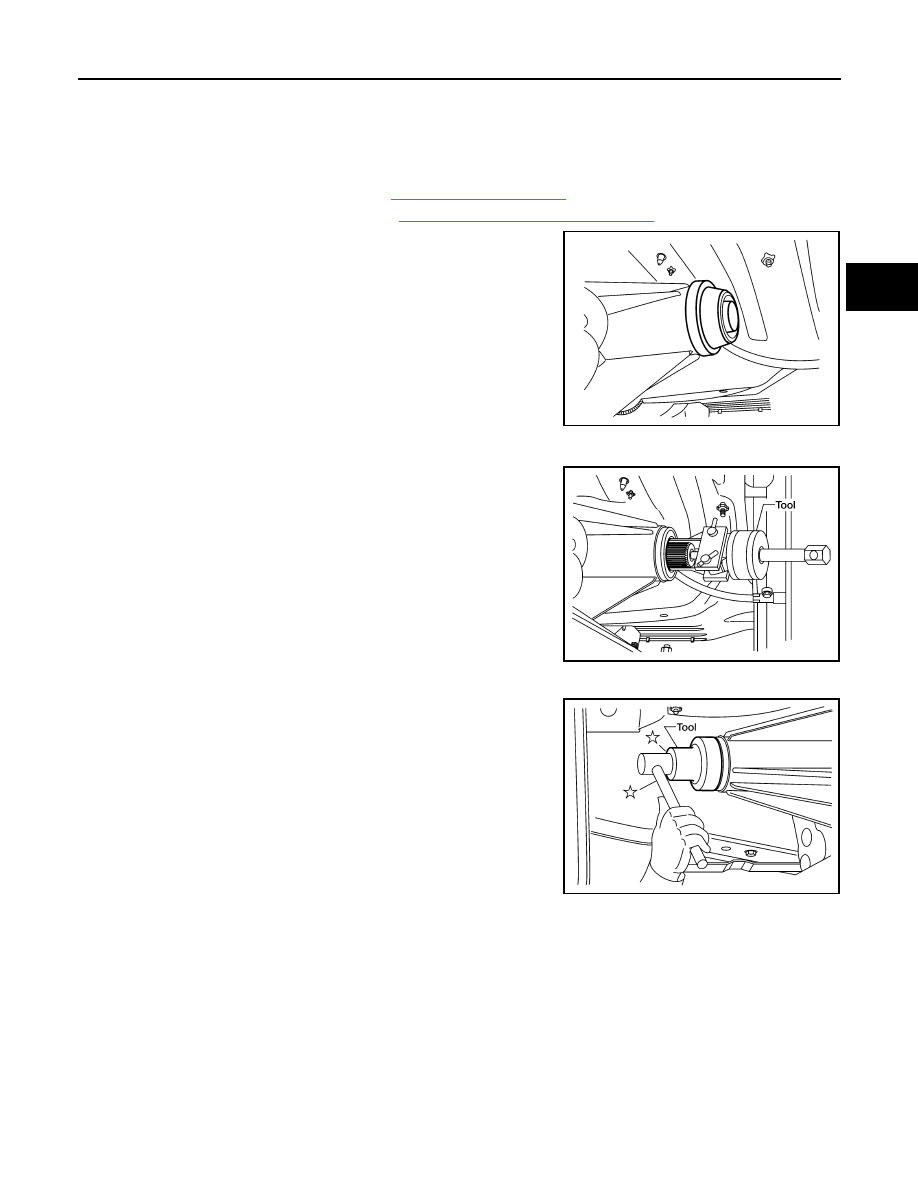

REAR OIL SEAL

DLN-275

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REAR OIL SEAL

Removal and Installation

INFOID:0000000005258439

REMOVAL

1. Partially drain the transfer fluid. Refer to

DLN-271, "Replacement"

.

2. Remove the rear propeller shaft. Refer to

DLN-325, "Removal and Installation"

.

3. Remove the dust cover from the rear case.

CAUTION:

Do not damage the rear case.

4. Remove the oil cover from the dust cover.
5. Remove the rear oil seal from the rear case using Tool.

CAUTION:

Do not damage the rear case.

INSTALLATION

1. Install the new rear oil seal until it is flush with the end face of the

rear case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to oil seal.

2. Install the oil cover until it reaches the end face of the new dust cover.

CAUTION:

Position the oil cover with the notch at bottom position.

WDIA0127E

Tool number

: ST33290001 (J-34286)

LDIA0139E

Tool number

: KV38100500 ( — )

LDIA0140E

2010 Pathfinder

DLN-276

< ON-VEHICLE REPAIR >

[TRANSFER: TX15B]

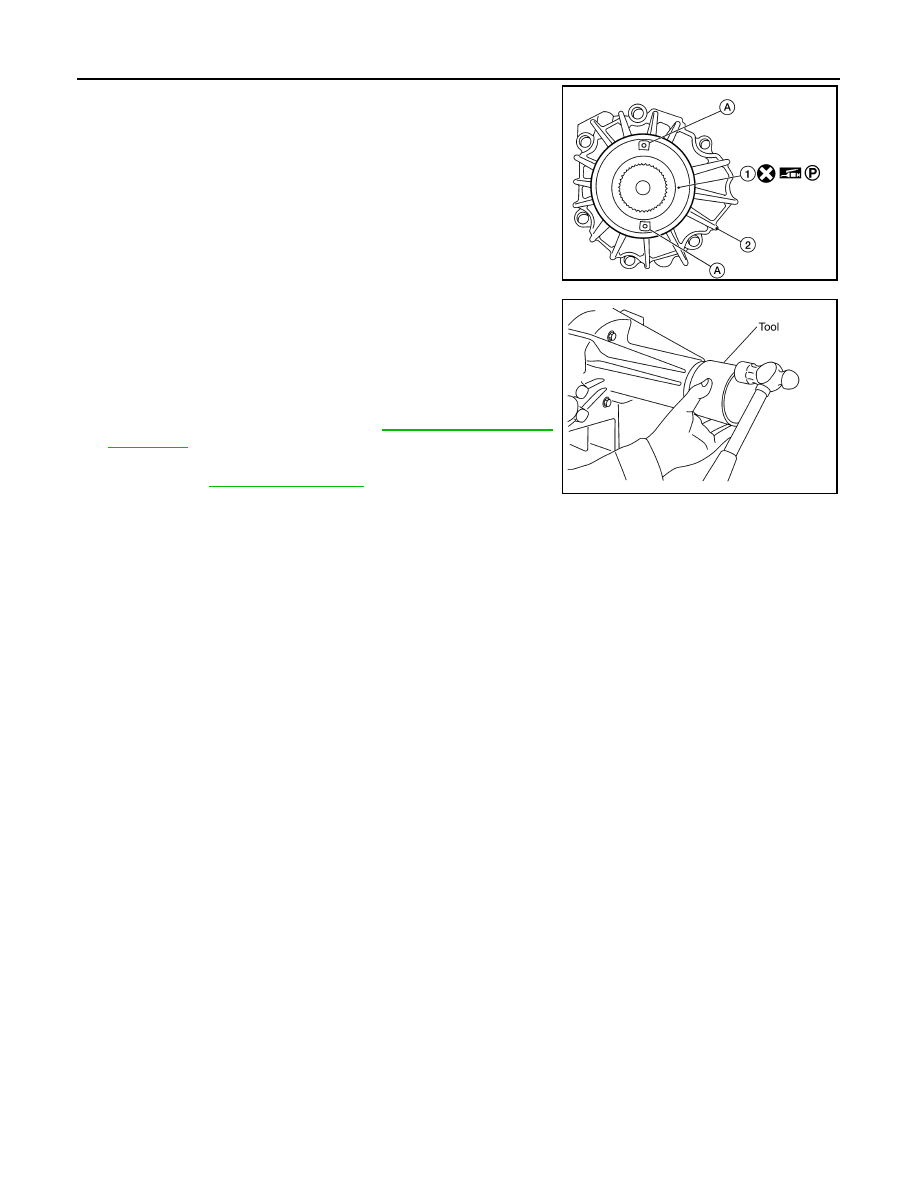

REAR OIL SEAL

3. Apply petroleum jelly to the circumference of the new dust cover.

Position the new dust cover as shown.

CAUTION:

• Do not reuse dust cover.

• Position the protrusions at the position shown.

• 1: Dust cover

• A: Protrusions

• 2: Rear case assembly

4. Install the new dust cover to the rear case using Tool.

CAUTION:

• Do not reuse dust cover.

• Apply petroleum jelly to dust cover.

5. Install the rear propeller shaft. Refer to

DLN-325, "Removal and

Installation"

.

6. Refill the transfer with fluid and check for fluid leakage and fluid

level. Refer to

DLN-271, "Inspection"

.

AWDIA0550GB

Tool number

: KV40105310 ( — )

PDIA0116E

2010 Pathfinder
