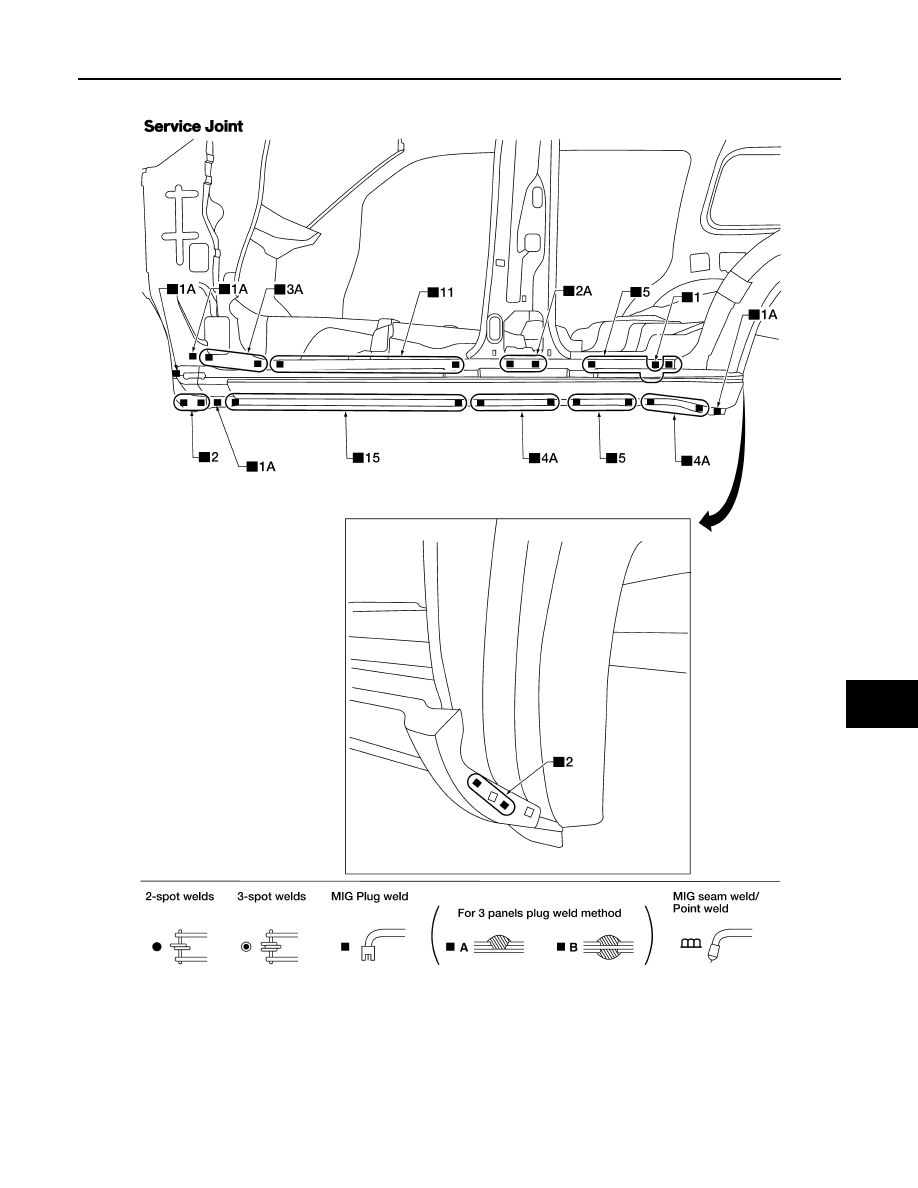

OUTER SILL

LIIA1813E

2010 Pathfinder

BRM-50

< SERVICE INFORMATION >

BODY REPAIR

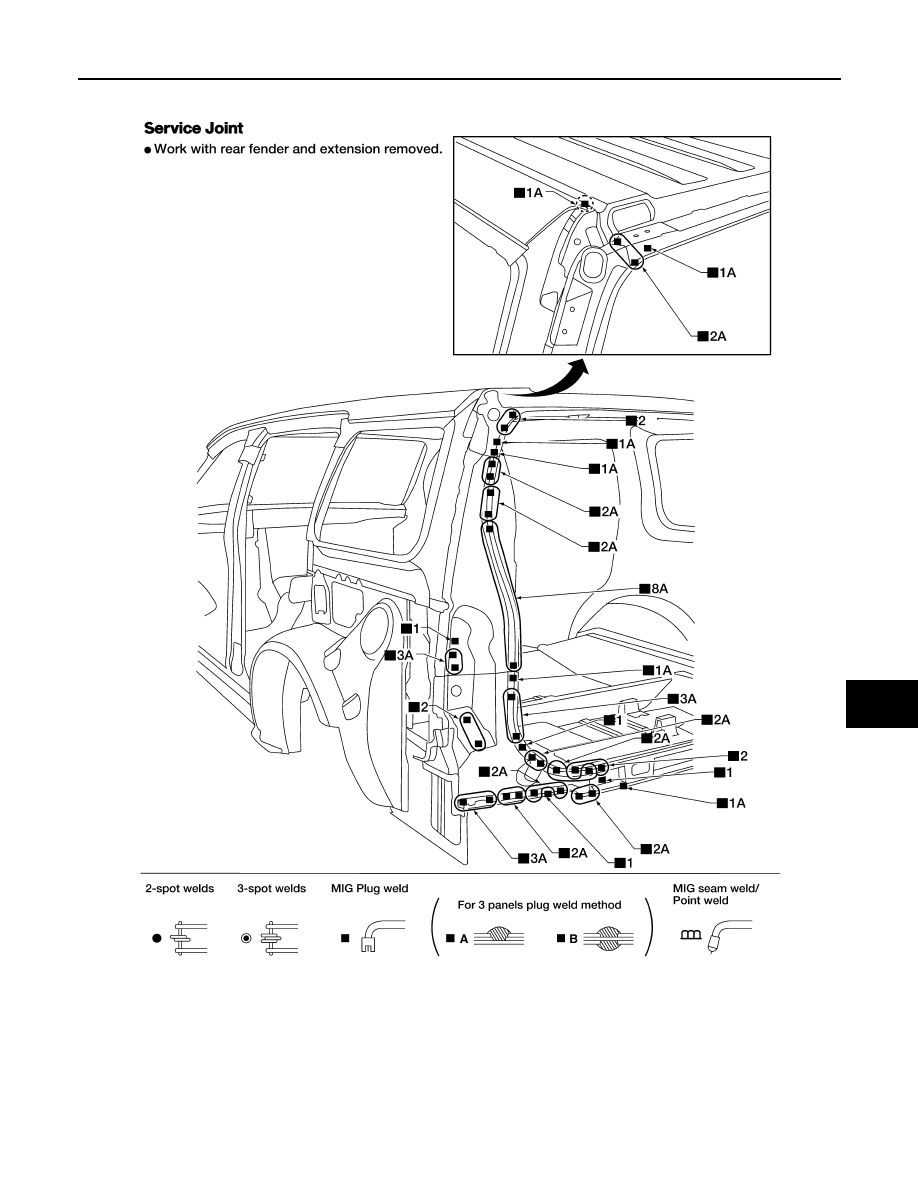

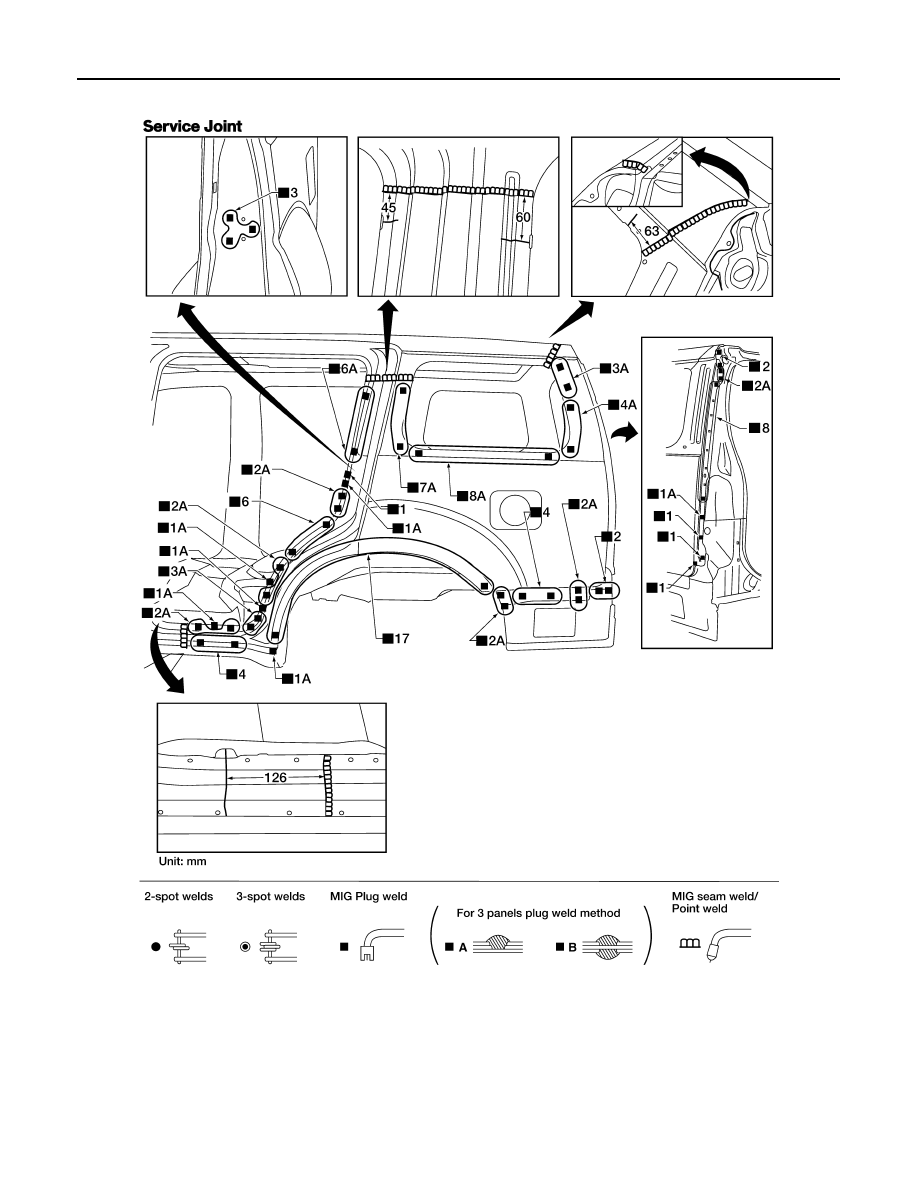

REAR FENDER

REAR FENDER EXTENSION

LIIA1814E

2010 Pathfinder

BODY REPAIR

BRM-51

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LH

LIIA1818E

2010 Pathfinder

BRM-52

< SERVICE INFORMATION >

BODY REPAIR

RH

LIIA1819E

2010 Pathfinder

BODY REPAIR

BRM-53

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

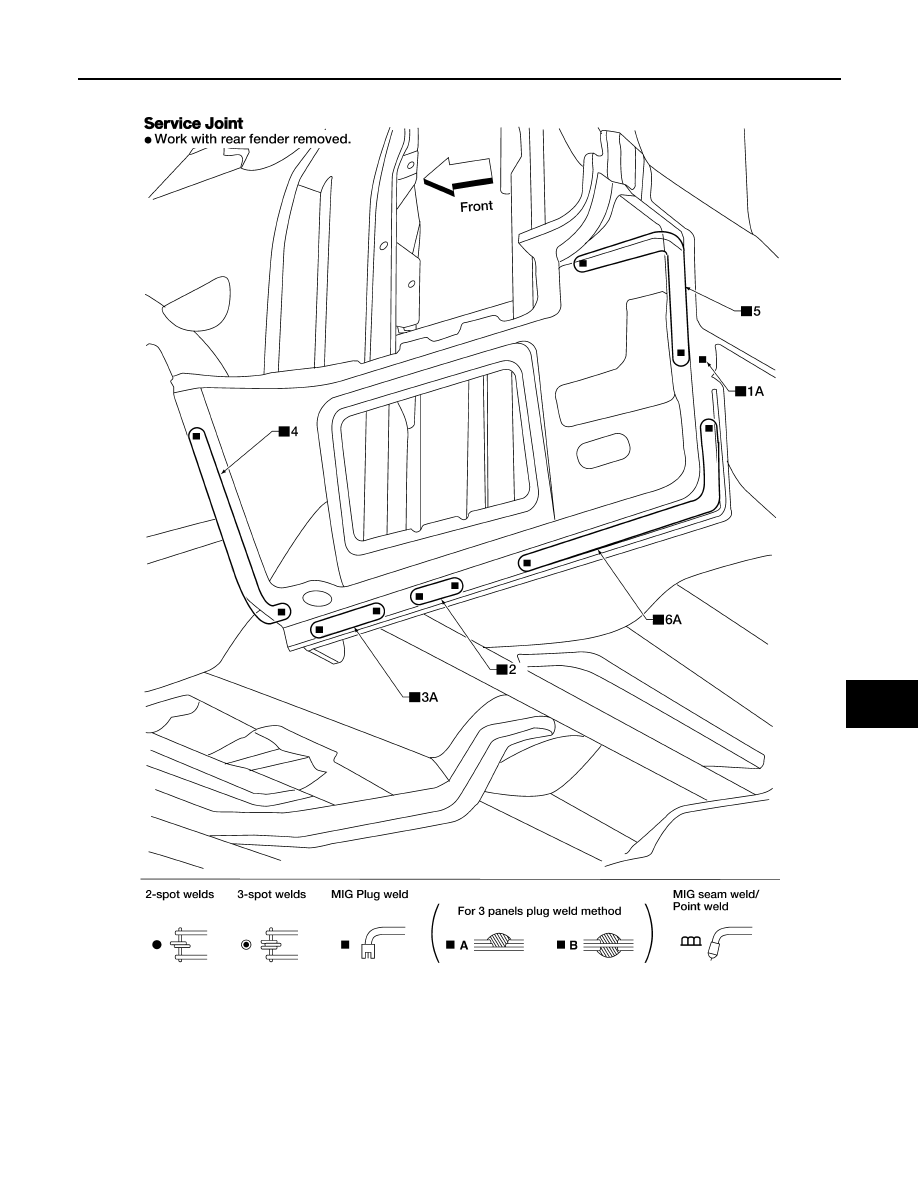

REAR FENDER REINFORCEMENT

LIIA1820E

2010 Pathfinder

BRM-54

< SERVICE INFORMATION >

BODY REPAIR

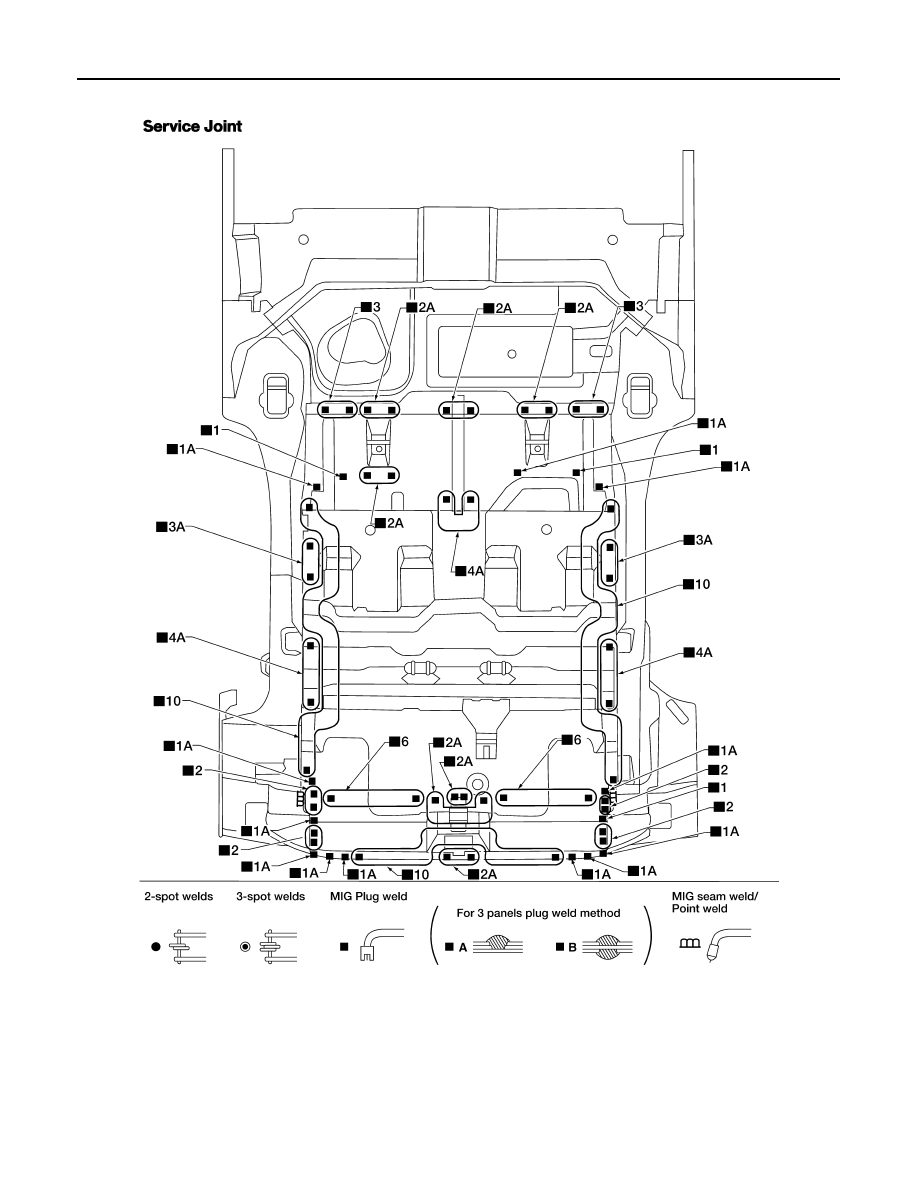

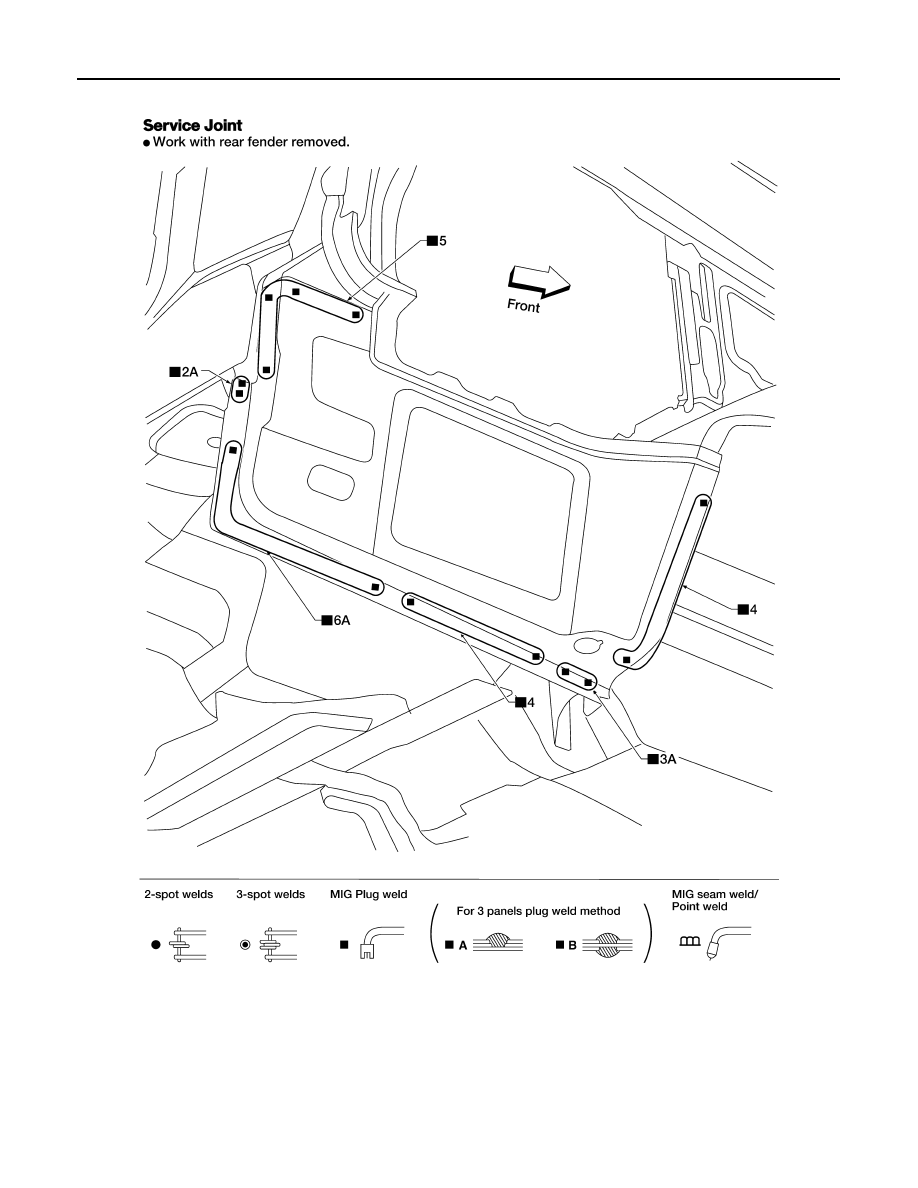

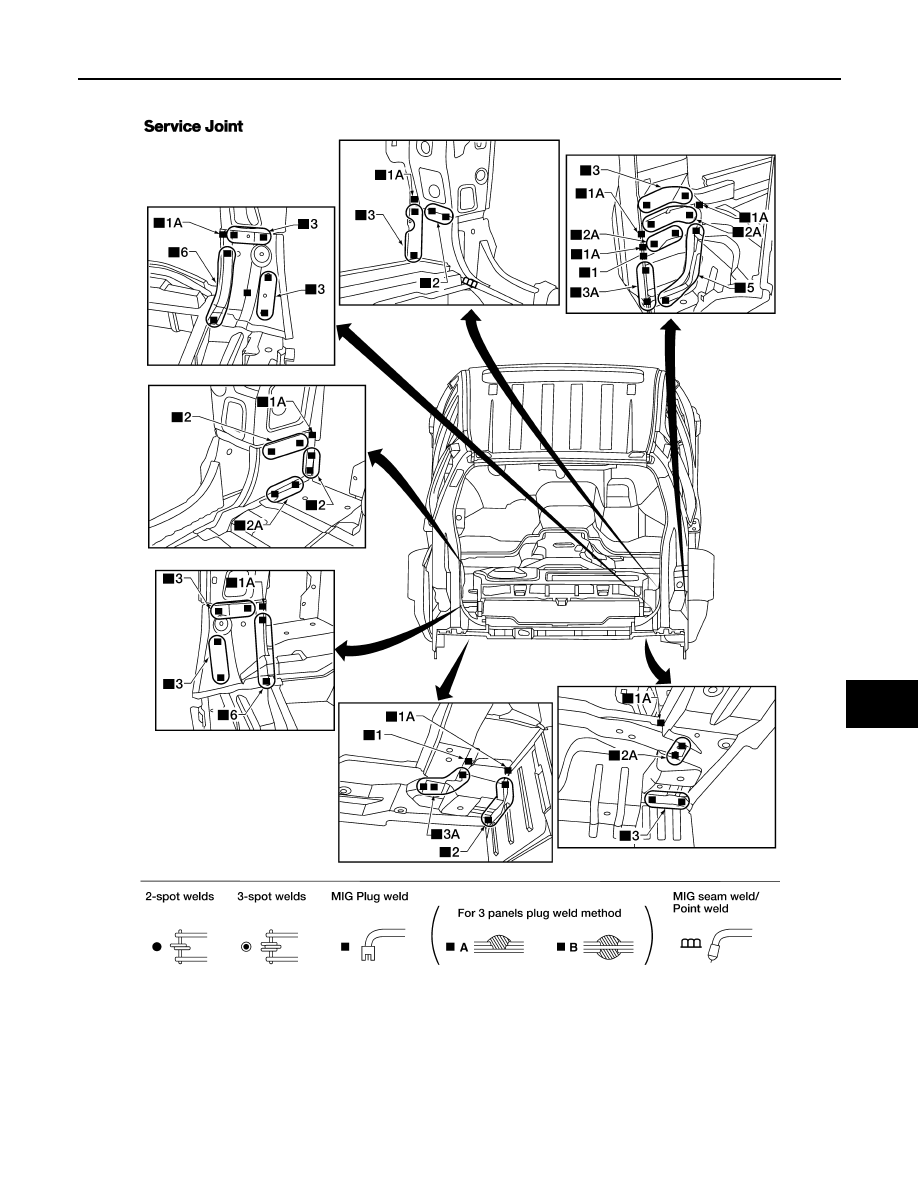

REAR FLOOR REAR

LIIA1815E

2010 Pathfinder

BODY REPAIR

BRM-55

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REAR CROSSMEMBER

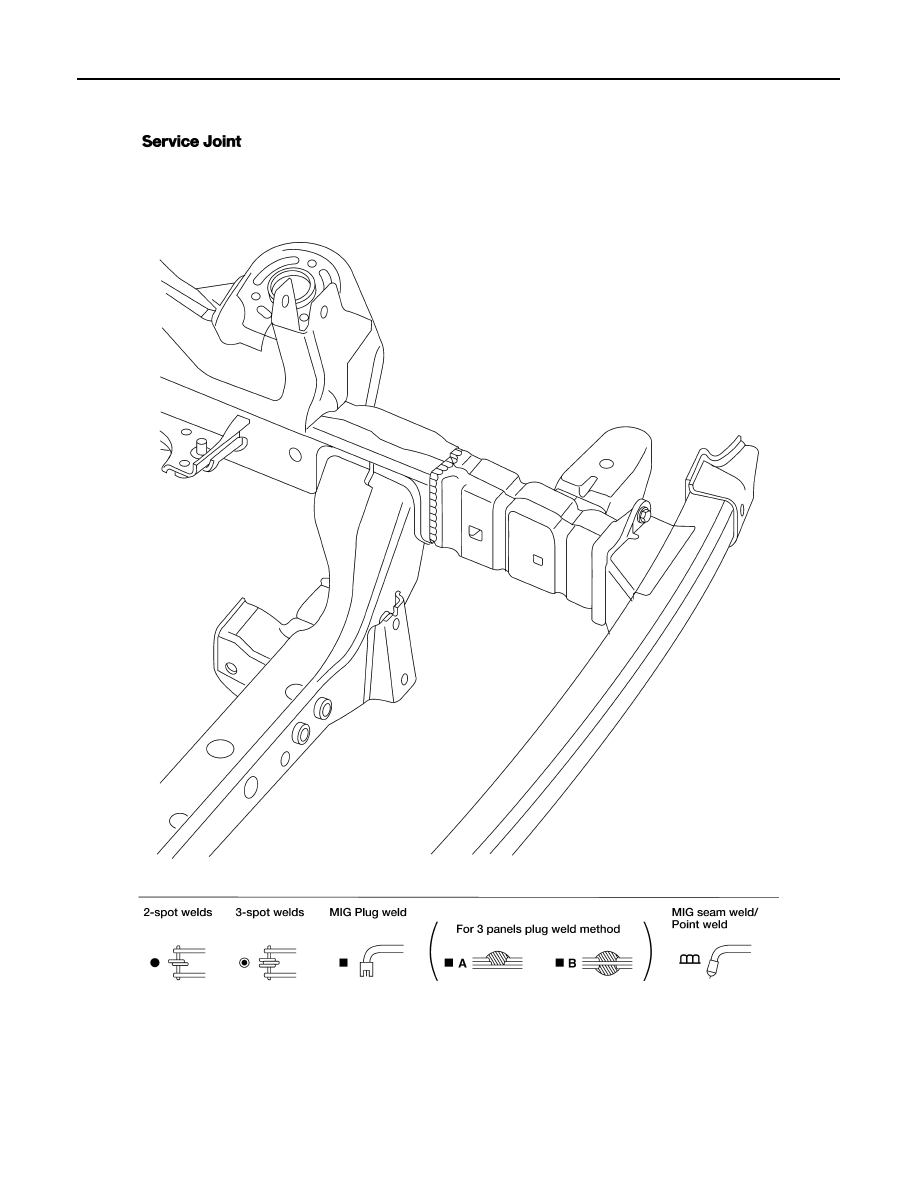

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,

such as cutting and butt-joint welding the crush horn.

LIIA1816E

2010 Pathfinder

BRM-56

< SERVICE INFORMATION >

BODY REPAIR

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body

mounting bracket.
