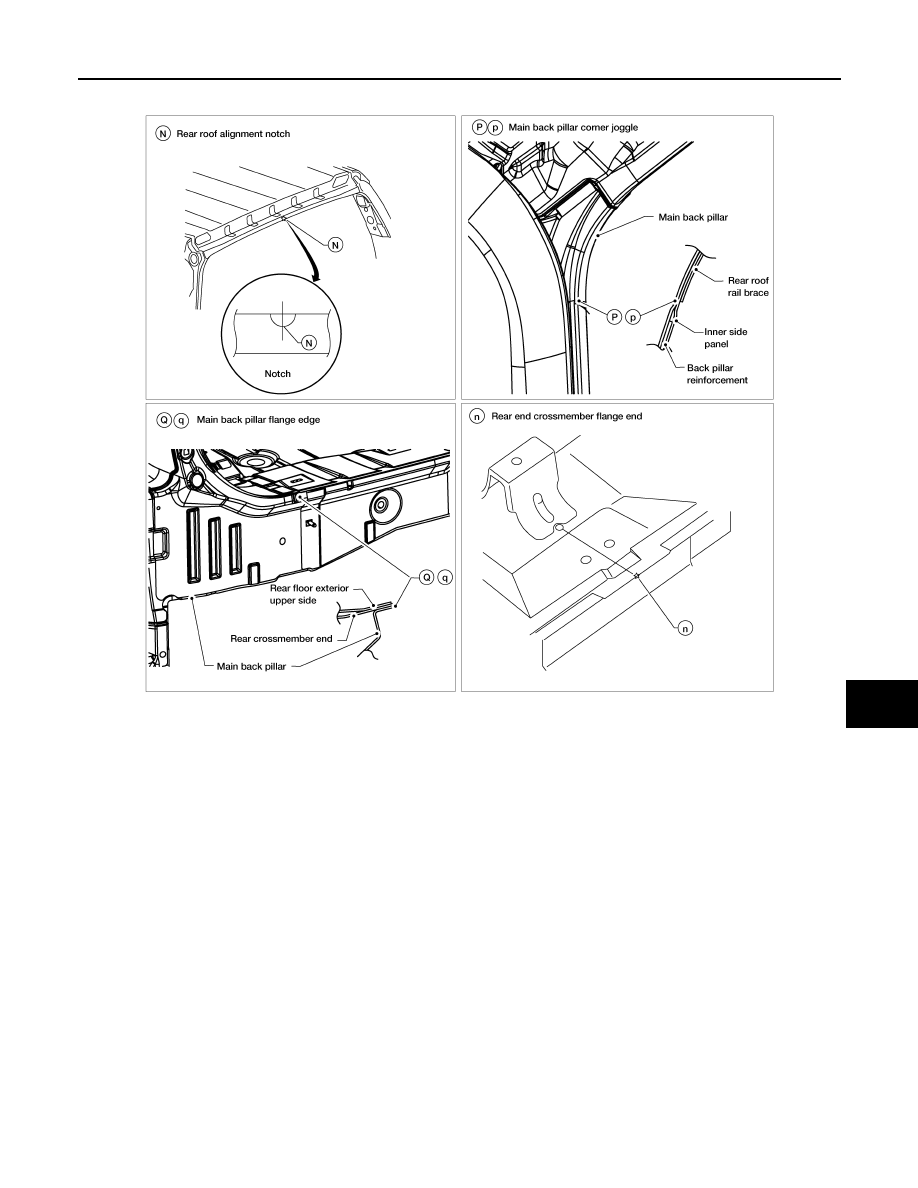

MEASUREMENT POINTS

Handling Precaution for Plastics

INFOID:0000000005259211

HANDLING PRECAUTIONS FOR PLASTICS

LIIA1804E

2010 Pathfinder

BRM-34

< SERVICE INFORMATION >

BODY REPAIR

1. When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics

(influence of heat and solvent) and remove them if necessary or take suitable measures to protect them.

2. Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe up quickly).

Flammable

PVC

Polyvinyl Chloride

80 (176)

Same as above.

Poison gas is emitted
when burned.

EPM/
EPDM

Ethylene Propylene (Diene) rub-
ber

80 (176)

Same as above.

Flammable

TPO/
TPR

Thermoplastic Olefine/
Thermoplastic Rubber

80 (176)

Same as above.

Flammable

PP

Polypropylene

90 (194)

Same as above.

Flammable, avoid bat-
tery acid.

UP

Polyester thermoset

90 (194)

Same as above.

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

ABS

Acrylonitrile Butadiene Styrene
resin

80 (176)

Avoid gasoline and solvents.

AES

Acrylonitrile Ethylene Styrene

80 (176)

Same as above.

PMMA

Polymethyl Methacrylate

85 (185)

Same as above.

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Same as above.

AS

Acrylonitrile Styrene

85 (185)

Same as above.

EVA

Polyvinyl Ethyl Acetate

90 (194)

Same as above.

ASA

Acrylonitrile Styrene Acrylate

100 (222)

Same as above.

Flammable

PPO/
PPE

Polyphenylene Oxide/
Polyphenylene Ether

110 (230)

Same as above.

PC

Polycarbonate

120 (248)

Same as above.

PAR

Polyacrylate

180 (356)

Same as above.

L-
LDPE

Lenear Low Density PE

45 (100)

Gasoline and most solvents are
harmless.

Flammable

PUR

Polyurethane

90 (194)

Same as above.

TPU

Thermoplastic Urethane

110 (230)

Same as above.

PPC

Polypropylene Composite

115 (239)

Same as above.

Flammable

POM

Polyacetal

120 (248)

Same as above.

Avoid battery acid.

PBT+P
C

Polybutylene Terephtha-
late+Polycarbonate

120 (248)

Same as above.

Flammable

PA

Polyamide (Nylon)

140 (284)

Same as above.

Avoid immersing in wa-
ter.

PBT

Polybutylene Terephthalate

140 (284)

Same as above.

FRP

Fiber Reinforced Plastics

170 (338)

Same as above.

Avoid battery acid.

PET

Polyethylene Terephthalate

180 (356)

Same as above.

PEI

Polyetherimide

200 (392)

Same as above.

2010 Pathfinder

BODY REPAIR

BRM-35

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

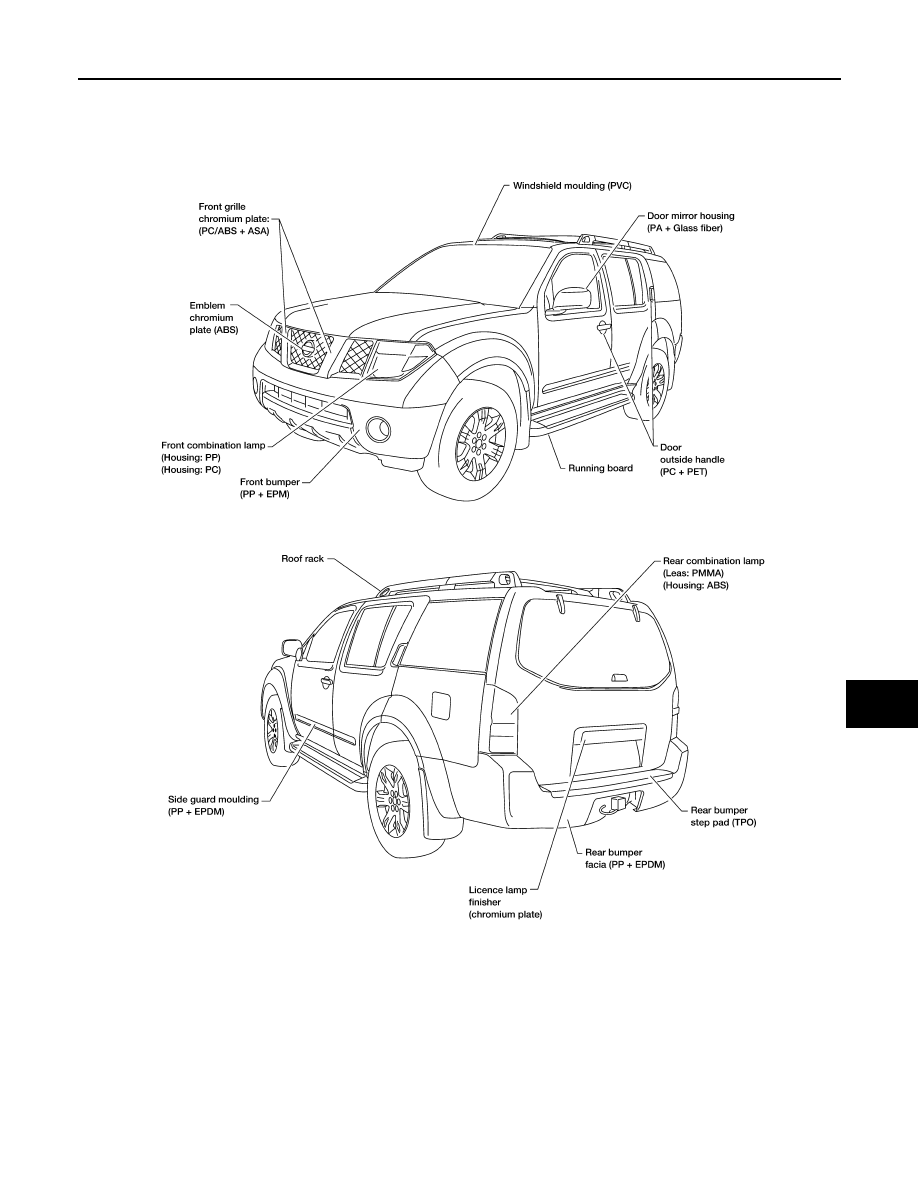

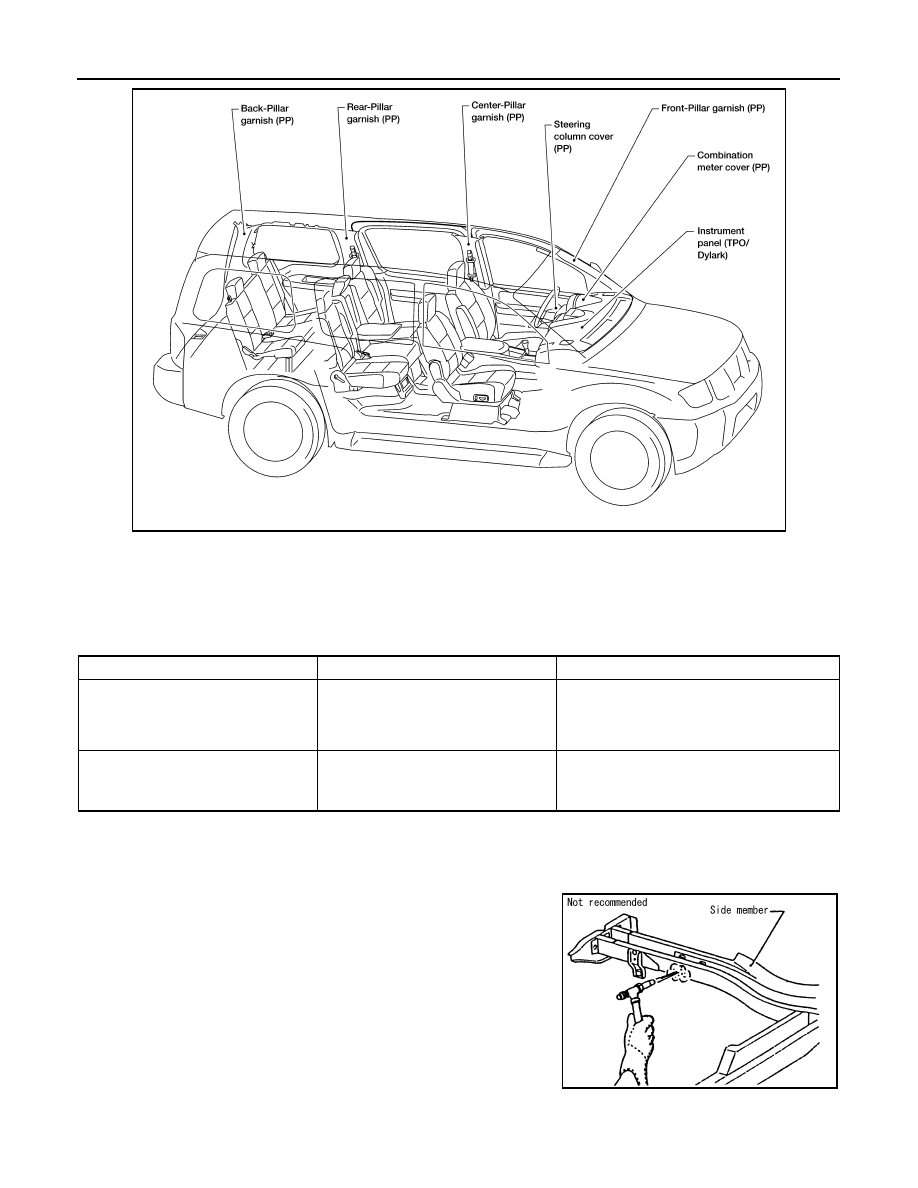

LOCATION OF PLASTIC PARTS

LIIA1805E

2010 Pathfinder

BRM-36

< SERVICE INFORMATION >

BODY REPAIR

Precaution in Repairing High Strength Steel

INFOID:0000000005259212

High strength steel is used for body panels in order to reduce vehicle weight.

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

High strength steel (hss) used in nissan vehicles

SP130 is the most commonly used HSS.
SP150 HSS is used only on parts that require much more strength.

Read the following precautions when repairing HSS:
1. Additional points to consider

• The repair of reinforcements (such as side members) by heat-

ing is not recommended since it may weaken the component.

When heating is unavoidable, do not heat HSS parts above

550

°

C (1,022

°

F).

Verify heating temperature with a thermometer.

(Crayon-type and other similar type thermometer are appropri-

ate.)

LIIA1806E

Tensile strength

Nissan/Infiniti designation

Major applicable parts

373 N/mm

2

(38kg/mm

2

,54klb/sq in)

SP130

• Front inner pillar upper
• Front pillar hinge brace
• Outer front pillar reinforcement
• Other reinforcements

785-981 N/mm

2

(80-100kg/mm

2

114-142klb/sq in)

SP150

• Outer sill reinforcement
• Main back pillar

PIIA0115E

2010 Pathfinder

BODY REPAIR

BRM-37

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

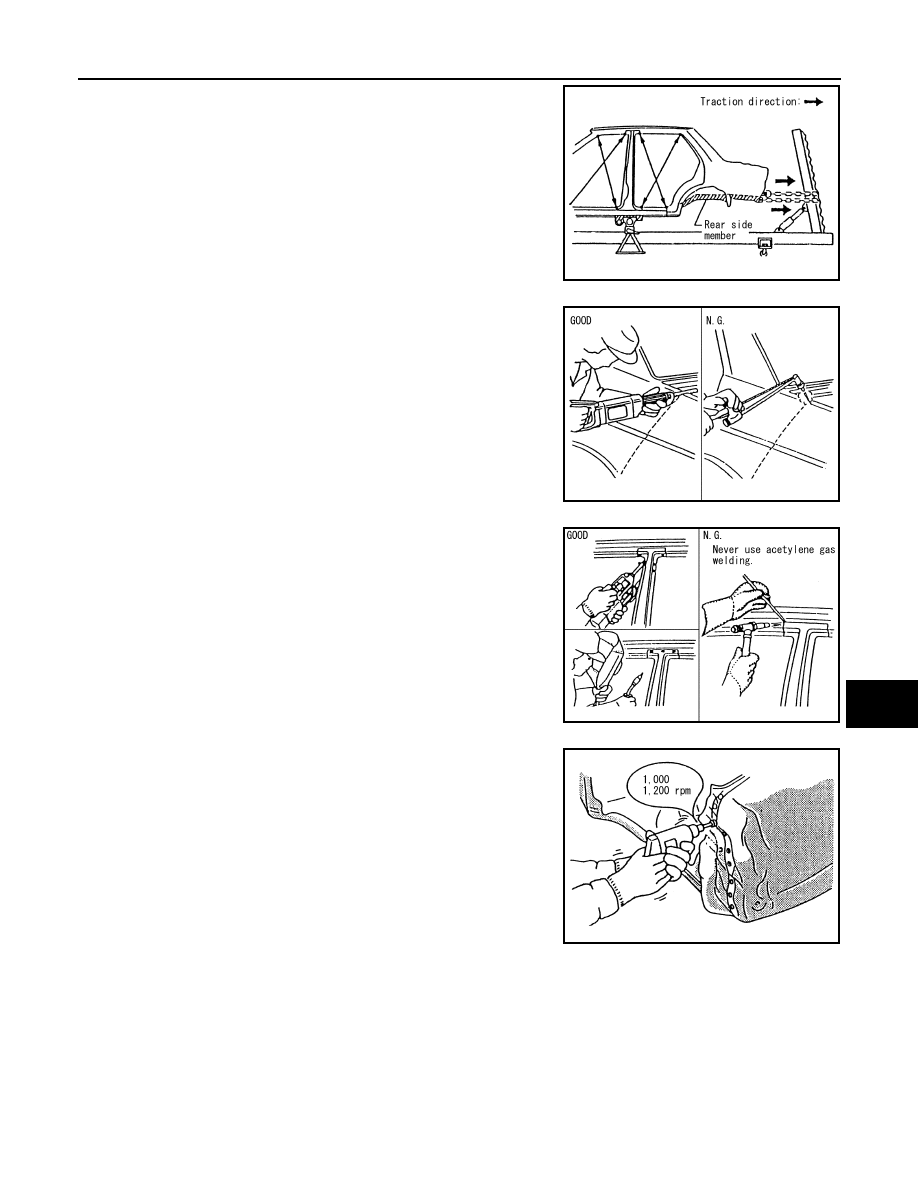

• When straightening body panels, use caution in pulling any

HSS panel. Because HSS is very strong, pulling may cause

deformation in adjacent portions of the body. In this case,

increase the number of measuring points, and carefully pull

the HSS panel.

• When cutting HSS panels, avoid gas (torch) cutting if possible.

Instead, use a saw to avoid weakening surrounding areas due

to heat. If gas (torch) cutting is unavoidable, allow a minimum

margin of 50 mm (1.97in).

• When welding HSS panels, use spot welding whenever possi-

ble in order to minimize weakening surrounding areas due to

heat.

If spot welding is impossible, use M.I.G. welding. Do not use

gas (torch) welding because it is inferior in welding strength.

• The spot weld on HSS panels is harder than that of an ordi-

nary steel panel.

Therefore, when cutting spot welds on a HSS panel, use a low

speed high torque drill (1,000 to 1,200 rpm) to increase drill bit

durability and facilitate the operation.

• SP150 HSS panels with a tensile strength of 785 to 981 N/

mm

2

 (80 to 100 kg/mm

2

, 114 to 142 klb/sq in), used as rein-

forcement in the door guard beams, is too strong to repair.

When these HSS parts are damaged, the outer panels also

sustain substantial damage; therefore, the assembly parts

must be replaced.

PIIA0116E

PIIA0117E

PIIA0144E

PIIA0145E

2010 Pathfinder

BRM-38

< SERVICE INFORMATION >

BODY REPAIR

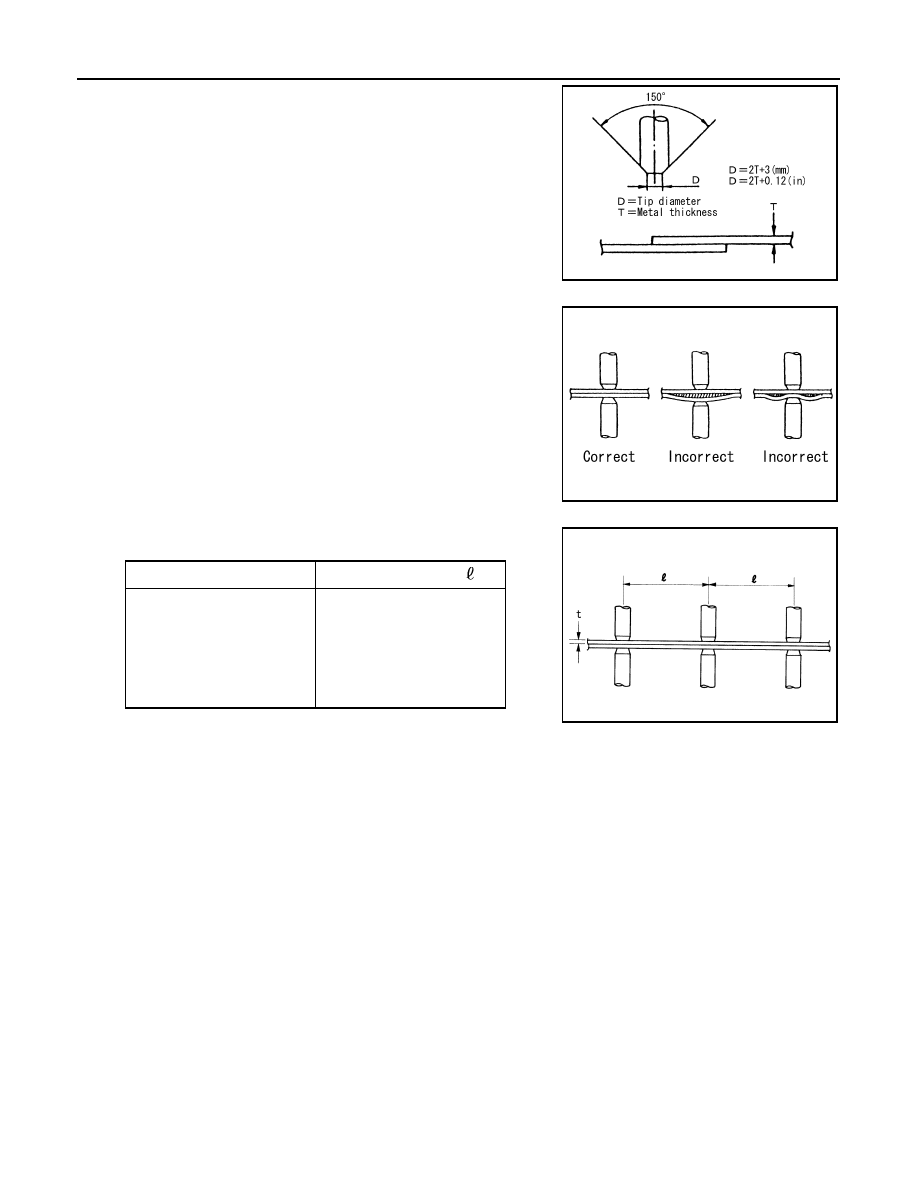

2. Precautions in spot welding HSS

This work should be performed under standard working condi-

tions. Always note the following when spot welding HSS:

• The electrode tip diameter must be sized properly according to

the metal thickness.

• The panel surfaces must fit flush to each other, leaving no

gaps.

• Follow the specifications for the proper welding pitch.

Unit:mm

Foam Repair

INFOID:0000000005259213

During factory body assembly, foam insulators are installed in certain body panels and locations around the

vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available spray foam for sealant (foam material) repair of material used on vehicle. Read

instructions on product for fill procedures.

FILL PROCEDURES

PIIA0146E

PIIA0147E

Thickness (t)

Minimum pitch ( )

0.6 (0.024)
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.6 (0.063)
1.8 (0.071)

10 (0.39) or over
12 (0.47) or over
18 (0.71) or over
20 (0.79) or over
27 (1.06) or over
31 (1.22) or over

PIIA0148E

2010 Pathfinder

BODY REPAIR

BRM-39

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

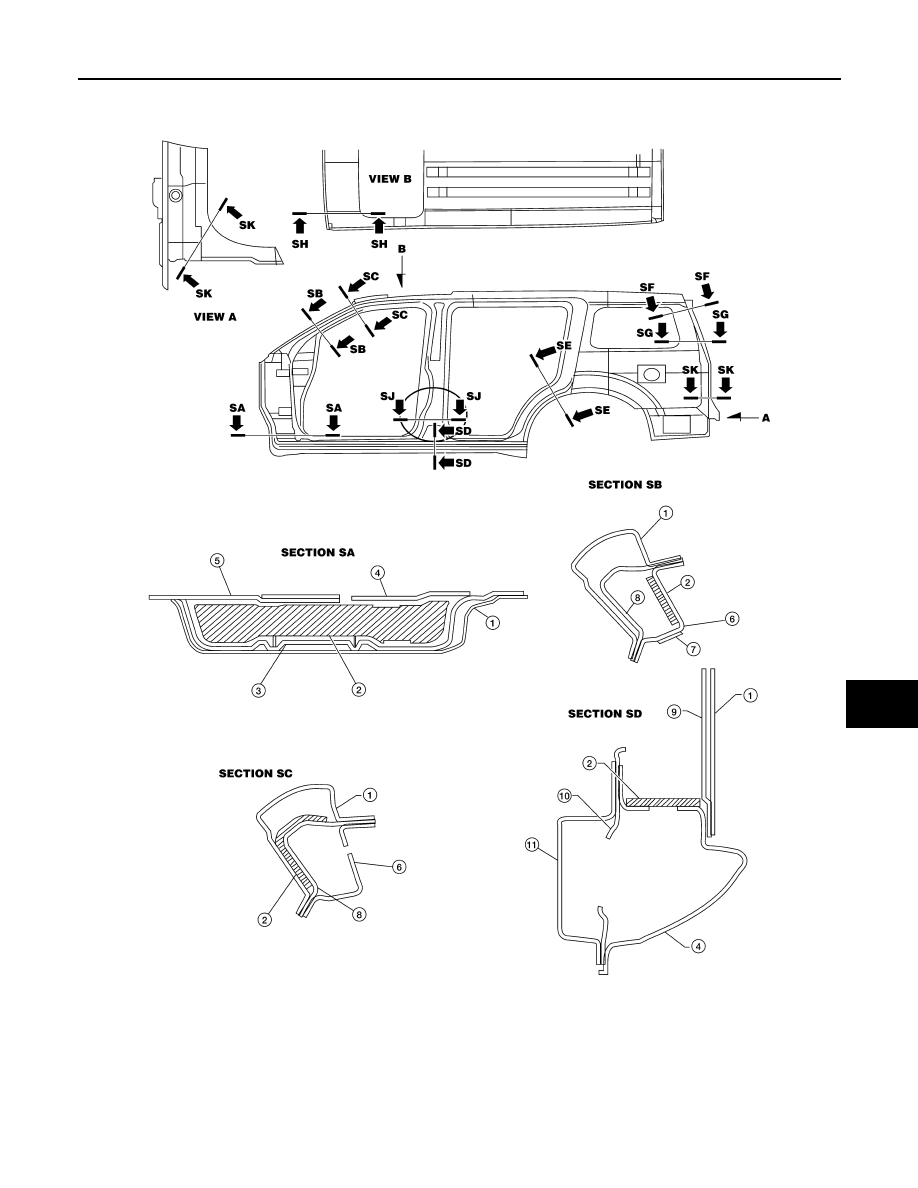

1.

Body side outer

2.

Body side insulation (foam)

3.

A-pillar lower hinge brace

4.

Sill outer reinforcement

5.

front sill outer reinforcement

6.

Inner A-pillar upper

7.

A-pillar inner bracket

8.

A-pillar upper hinge brace

9.

B-pillar hinge brace

10. Inner B-pillar

11. Inner sill extension

LIIA1807E

2010 Pathfinder

BRM-40

< SERVICE INFORMATION >

BODY REPAIR

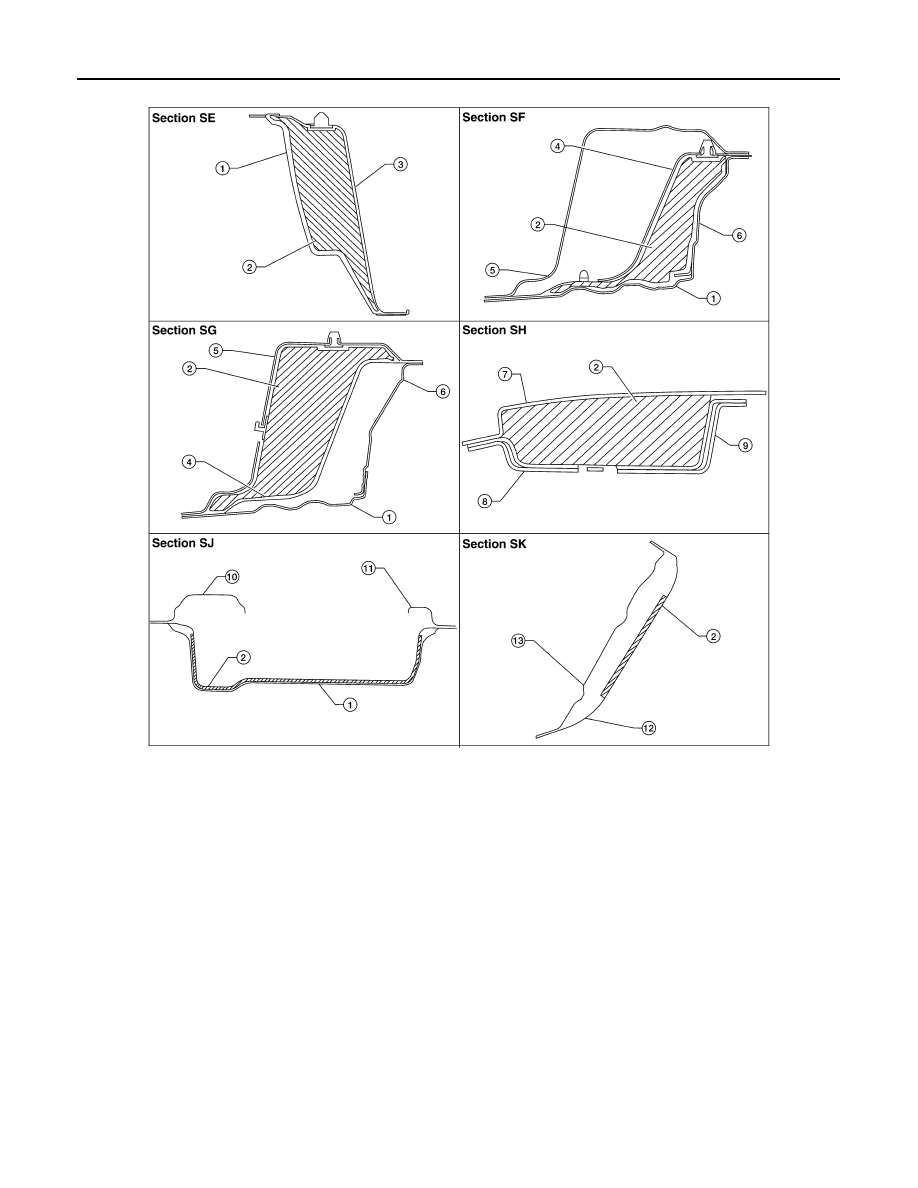

1. Fill procedures after installation of service part.

1.

Body side outer

2.

Body side insulation (foam)

3.

Rear wheel outer

4.

Side panel inner

5.

D-pillar inner reinforcement

6.

D-pillar outer reinforcement

7.

Roof

8.

Front roof rail

9.

Front roof rail brace

10. B-pillar inner

11. B-pillar hinge brace

12. Rear side inner extension

13. D-pillar mail lower

LIIA1817E

2010 Pathfinder
