BRC-76

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1178, C1181, C1184, C1189 ABS ACTIVE BOOSTER

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

2010 Pathfinder

C1179 ABS DELTA S SEN NG

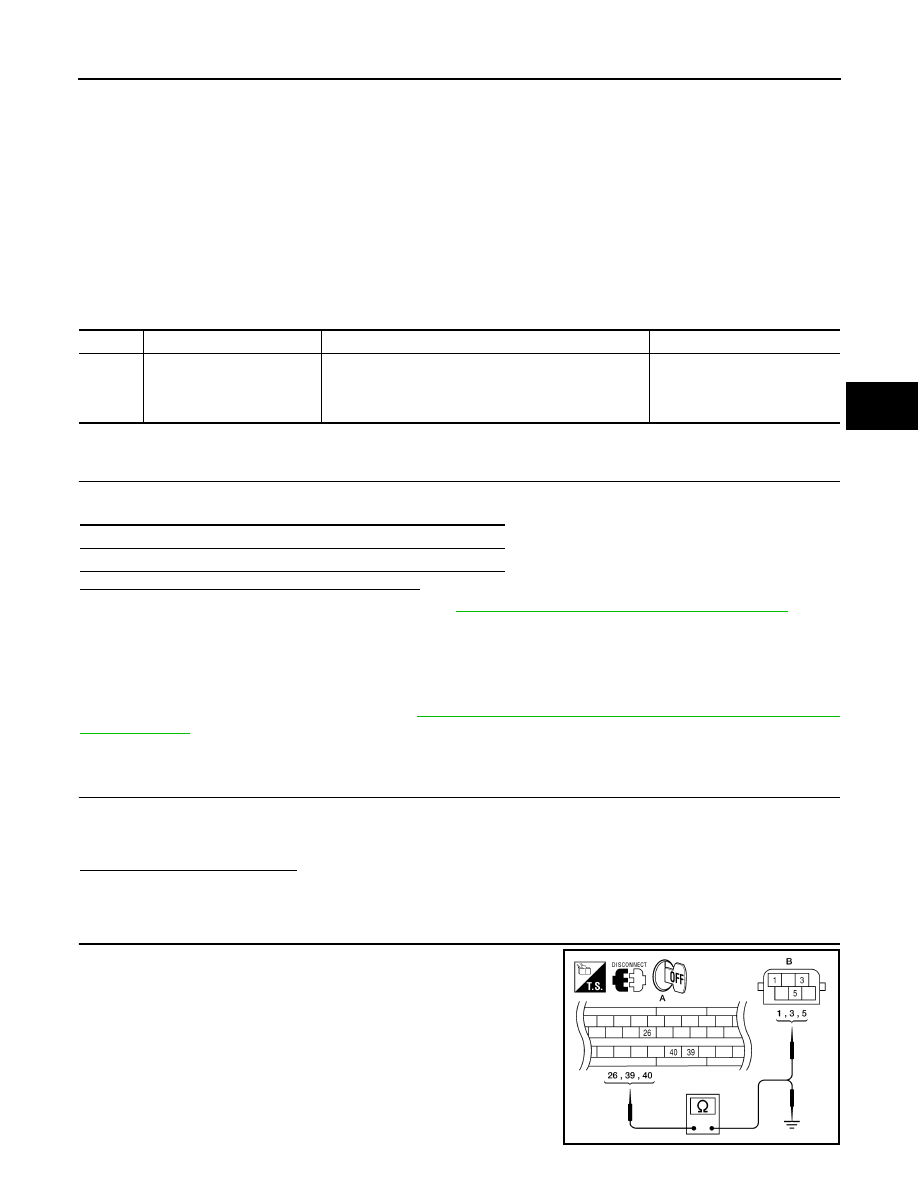

BRC-77

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1179 ABS DELTA S SEN NG

Description

INFOID:0000000005258737

The active brake booster consists of a vacuum booster, an active booster control group and a delta stroke

sensor. If a brake booster system malfunction occurs due to loss of vacuum, the delta stroke sensor will signal

the ABS actuator and electric unit (control unit) that a booster malfunction has occurred. The active booster

then applies supplemental force to the master cylinder relative to the amount of force exerted on the brake

pedal.

DTC Logic

INFOID:0000000005258738

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-77, "Diagnosis Procedure (With VK56DE)"

.

NO

>> Inspection End

Diagnosis Procedure (With VK56DE)

INFOID:0000000005258739

Regarding Wiring Diagram information, refer to

BRC-102, "Wiring Diagram - BRAKE CONTROL SYSTEM -

WITH VK56DE"

.

1.

CONNECTOR INSPECTION

1. Turn the ignition switch OFF.

2. Disconnect the delta stroke sensor connector and ABS actuator and electric unit (control unit) connector

and inspect the terminals for deformation, disconnection, looseness, or damage.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair connector.

2.

DELTA STROKE SENSOR CIRCUIT INSPECTION

1. Measure the continuity between ABS actuator and electric unit

(control unit) connector E127 (A) and delta stroke sensor con-

nector E114 (B).

DTC

Display item

Malfunction detected condition

Possible cause

C1179

ABS DELTA S SEN NG

Delta stroke sensor is malfunctioning, or signal line of
delta stroke sensor is open or shorted.

• Harness or connector
• Delta stroke sensor
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

ABS DELTA S SEN NG

AWFIA0029ZZ

2010 Pathfinder

BRC-78

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1179 ABS DELTA S SEN NG

2. Measure the continuity between ABS actuator and electric unit (control unit) connector E127 (A) and

ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness or connector.

3.

DELTA STROKE SENSOR INSPECTION

1. Reconnect the delta stroke sensor and ABS actuator and electric unit (control unit) connectors.

2. Perform the delta stroke sensor component inspection. Refer to

BRC-78, "Component Inspection"

.

Is the inspection result normal?

YES

>> Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit

(control unit). Refer to

BRC-127, "Removal and Installation"

.

NO

>> Replace the delta stroke sensor. Refer to

BR-34, "Removal and Installation"

.

Component Inspection

INFOID:0000000005258740

1.

CHECK DATA MONITOR

Use “DATA MONITOR” to check if the status of “DELTA S SEN” is normal.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Replace the delta stroke sensor. Refer to

BR-34, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000005484916

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

ABS actuator and electric unit

(control unit)

Delta stroke sensor

Continuity

Connector

Terminal

Connector

Terminal

E127 (A)

26

E114 (B)

1

Yes

39

3

40

5

ABS actuator and electric unit (control

unit)

—

Continuity

Connector

Terminal

E127 (A)

26

Ground

No

39

40

Condition

DELTA S SEN

(DATA MONITOR)

When brake pedal is depressed.

1.05–1.80 mm

When brake pedal is released.

0.00 mm (+0.6/-0.4)

2010 Pathfinder

C1179 ABS DELTA S SEN NG

BRC-79

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

>> END

2010 Pathfinder

BRC-80

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

U1000 CAN COMM CIRCUIT

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005258742

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Many elec-

tronic control units are equipped onto a vehicle, and each control unit shares information and links with other

control units during operation (not independent). In CAN communication, control units are connected with 2

communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.

Each control unit transmits/receives data but selectively reads required data only.

DTC Logic

INFOID:0000000005258743

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005258744

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check

the terminals for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or

replace the terminal.

2. Reconnect connector and perform self-diagnosis.
Is “CAN COMM CIRCUIT” displayed in self-diagnosis display items?

YES

>> Print out the self-diagnostic results, and refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

NO

>> Connector terminal is loose, damaged, open, or shorted.

DTC

Display item

Malfunction detected condition

Possible cause

U1000

CAN COMM CIRCUIT

When ABS actuator and electric unit (control unit) is not
transmitting or receiving CAN communication signal for 2
seconds or more.

• CAN communication line
• ABS actuator and electric unit

(control unit)

2010 Pathfinder

VDC OFF SWITCH

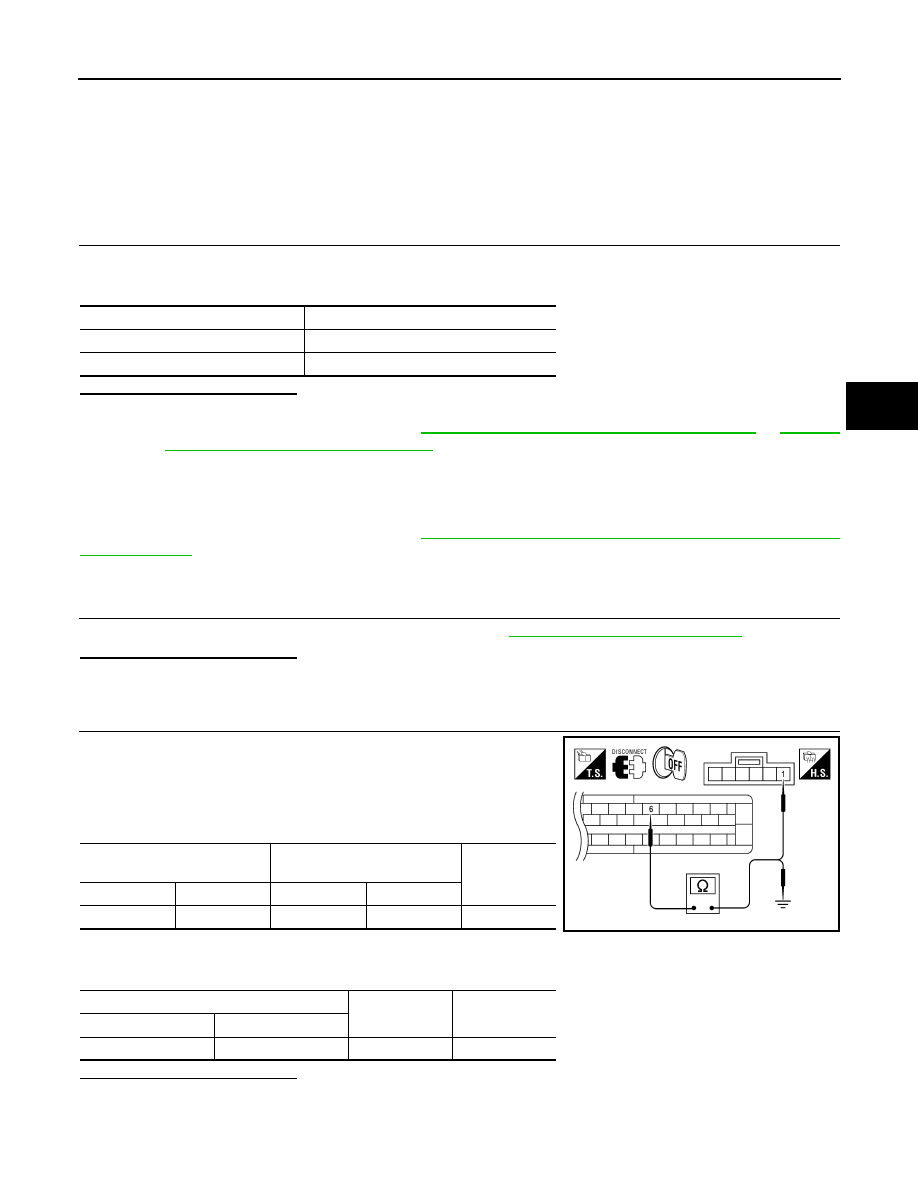

BRC-81

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC OFF SWITCH

Description

INFOID:0000000005258746

VDC OFF switch can deactivate (turn OFF) the VDC/TCS function by pressing the VDC OFF switch.

Component Function Check

INFOID:0000000005258747

1.

CHECK VDC OFF SWITCH OPERATION

Turn ON/OFF the VDC OFF switch and check that the VDC OFF indicator lamp in the combination meter turns

ON/OFF correctly.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-81, "Diagnosis Procedure (With VQ40DE)"

 or

BRC-82,

"Diagnosis Procedure (With VK56DE)"

.

Diagnosis Procedure (With VQ40DE)

INFOID:0000000005258748

Regarding Wiring Diagram information, refer to

BRC-94, "Wiring Diagram - BRAKE CONTROL SYSTEM -

WITH VQ40DE"

.

1.

CHECK VDC OFF SWITCH

Perform the VDC OFF switch component inspection. Refer to

BRC-83, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace VDC OFF switch.

2.

CHECK VDC OFF SWITCH HARNESS

1. Disconnect ABS actuator and electric unit (control unit) connec-

tor.

2. Check continuity between ABS actuator and electric unit (control

unit) connector E125 (A) terminal 6 and VDC OFF switch con-

nector M154 (B) terminal 1.

3. Check continuity between ABS actuator and electric unit (control

unit) connector E125 (A) terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

Condition

VDC OFF indicator lamp illumination status

VDC OFF switch: ON

ON

VDC OFF switch: OFF

OFF

ABS actuator and electric unit

(control unit)

VDC OFF switch

Continuity

Connector

Terminal

Connector

Terminal

E125 (A)

6

M154 (B)

1

Yes

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E125 (A)

6

Ground

No

AWFIA0475ZZ

2010 Pathfinder

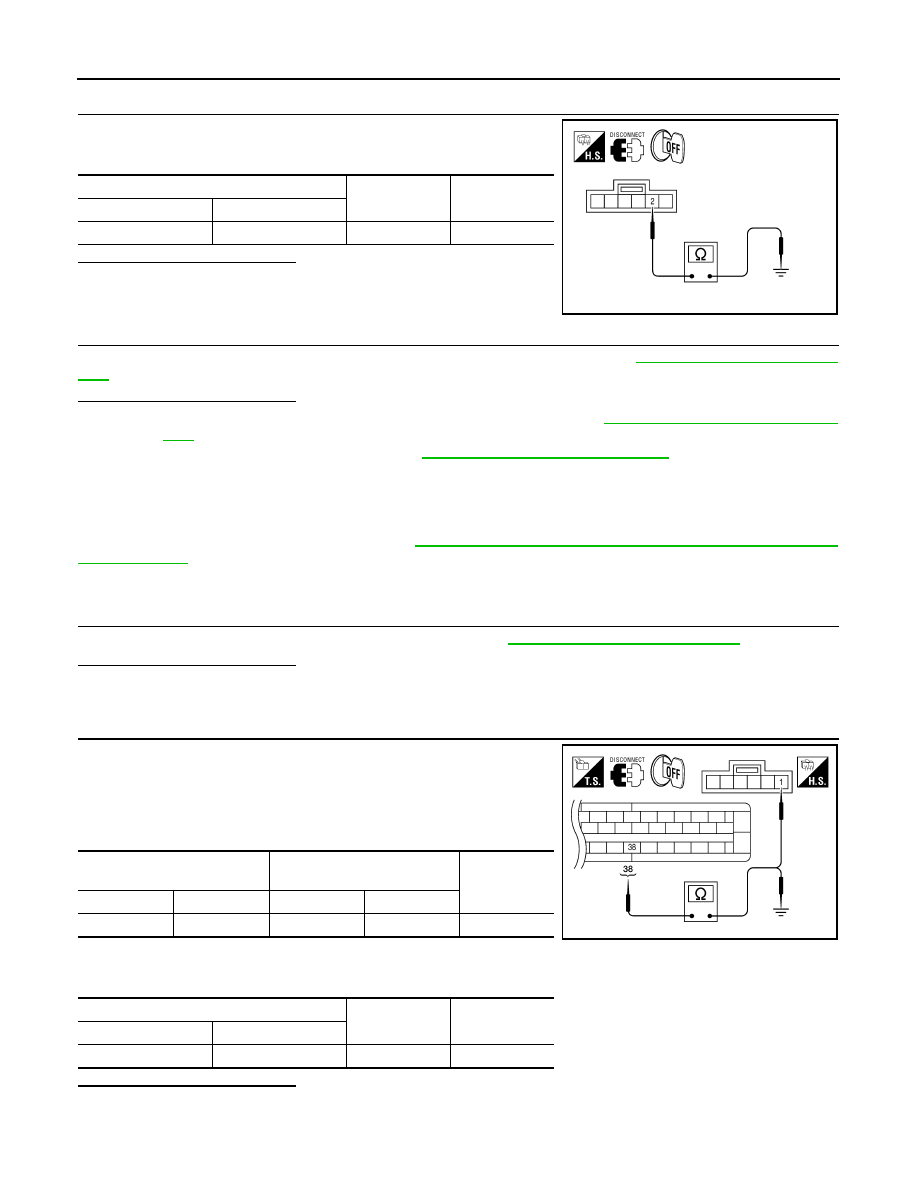

BRC-82

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

VDC OFF SWITCH

3.

CHECK VDC OFF SWITCH GROUND

Check continuity between VDC OFF switch connector M154 and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-23, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-127, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-96, "Removal and Installation"

.

Diagnosis Procedure (With VK56DE)

INFOID:0000000005258749

Regarding Wiring Diagram information, refer to

BRC-102, "Wiring Diagram - BRAKE CONTROL SYSTEM -

WITH VK56DE"

.

1.

CHECK VDC OFF SWITCH

Perform the VDC OFF switch component inspection. Refer to

BRC-83, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace VDC OFF switch.

2.

CHECK VDC OFF SWITCH HARNESS

1. Disconnect ABS actuator and electric unit (control unit) connec-

tor.

2. Check continuity between ABS actuator and electric unit (control

unit) connector E127 (A) terminal 38 and VDC OFF switch con-

nector M154 (B) terminal 1.

3. Check continuity between ABS actuator and electric unit (control

unit) connector E127 (A) terminal 38 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

VDC OFF switch

—

Continuity

Connector

Terminal

M154

2

Ground

Yes

AWFIA0031ZZ

ABS actuator and electric unit

(control unit)

VDC OFF switch

Continuity

Connector

Terminal

Connector

Terminal

E127 (A)

38

M154 (B)

1

Yes

ABS actuator and electric unit (control unit)

—

Continuity

Connector

Terminal

E127 (A)

38

Ground

No

AWFIA0030ZZ

2010 Pathfinder

VDC OFF SWITCH

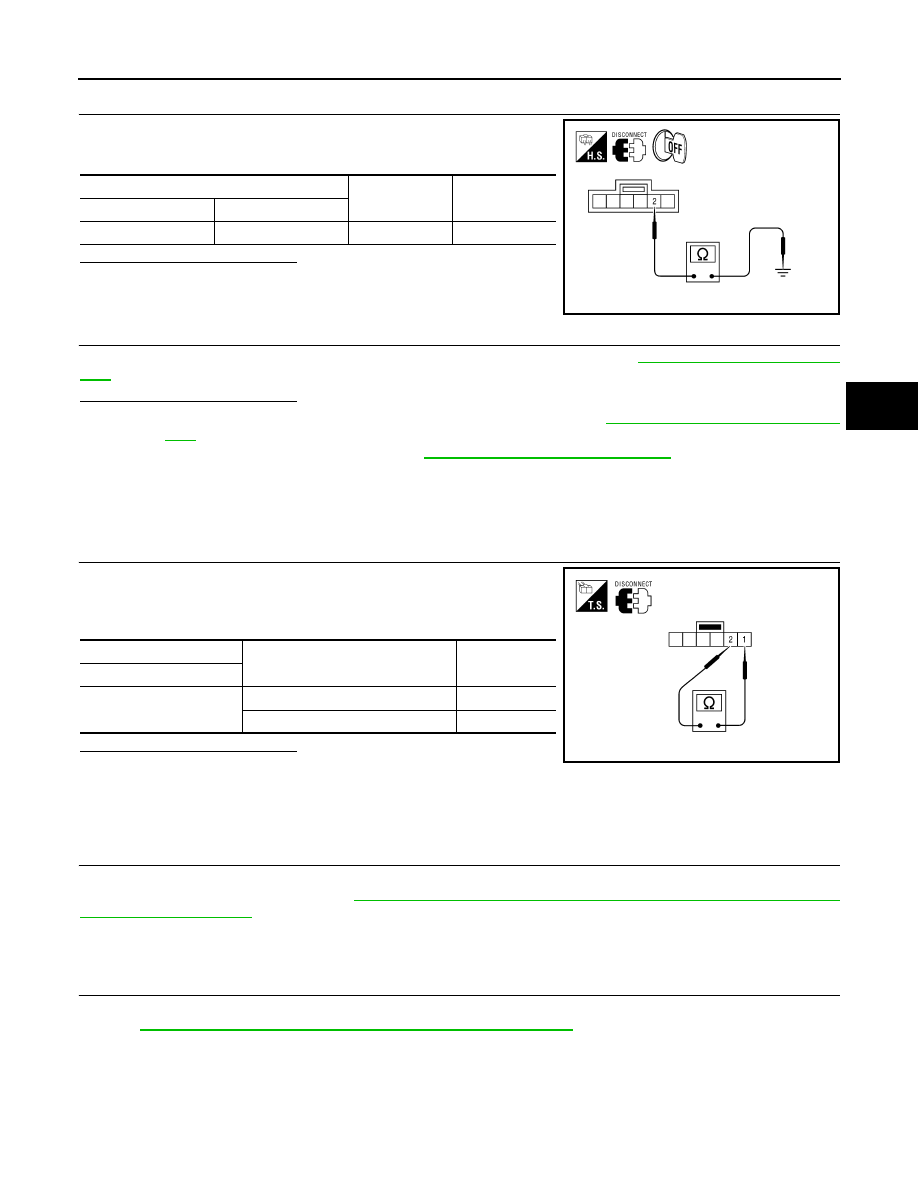

BRC-83

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

3.

CHECK VDC OFF SWITCH GROUND

Check continuity between VDC OFF switch connector M154 and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-23, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-127, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-96, "Removal and Installation"

.

Component Inspection

INFOID:0000000005258750

INSPECTION PROCEDURE

1.

CHECK VDC OFF SWITCH

1. Turn ignition switch OFF.

2. Disconnect VDC OFF switch connector.

3. Check continuity between VDC OFF switch terminals.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Replace VDC OFF switch.

Special Repair Requirement

INFOID:0000000005484917

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

VDC OFF switch

—

Continuity

Connector

Terminal

M154

2

Ground

Yes

AWFIA0031ZZ

VDC OFF switch

Condition

Continuity

Terminal

1

−

 2

When VDC OFF switch is pressed.

Yes

When VDC OFF switch is released.

No

AWFIA0446ZZ

2010 Pathfinder
