Nissan Pathfinder (2010 year). Manual - part 106





BRC-60

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1142 PRESS SENSOR

YES

>> GO TO 3

NO

>> Repair or replace harness or connector.

3.

REAR PRESSURE SENSOR INSPECTION

1. Reconnect the rear pressure sensor and ABS actuator and electric unit (control unit) connectors.

2. Perform the rear pressure sensor (PRESS SEN2) component inspection. Refer to

BRC-60, "Component

Inspection"

.

Is the inspection result normal?

YES

>> Perform self-diagnosis again. If the same results appear, replace the ABS actuator and electric

unit (control unit). Refer to

BRC-127, "Removal and Installation"

.

NO

>> Replace the rear pressure sensor.

Component Inspection

INFOID:0000000005258705

1.

CHECK DATA MONITOR

On “DATA MONITOR”, select “PRESS SENSOR” and “PRESS SEN2” and check the brake fluid pressure.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Replace the appropriate pressure sensor. Refer to

BR-48, "Disassembly and Assembly"

.

Special Repair Requirement

INFOID:0000000005484909

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Condition

PRESS SENSOR and PRESS SEN2

(DATA MONITOR)

With ignition switch turned ON and brake pedal released.

Approx. 0 bar

With ignition switch turned ON and brake pedal depressed.

Positive value

2010 Pathfinder

C1143, C1144 STEERING ANGLE SENSOR

BRC-61

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1143, C1144 STEERING ANGLE SENSOR

Description

INFOID:0000000005258707

The steering angle sensor detects the rotation amount, angular velocity and direction of the steering wheel,

and transmits the data to the ABS actuator and electric unit (control unit) via CAN communication.

DTC Logic

INFOID:0000000005258708

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-61, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000005258709

Regarding Wiring Diagram information, refer to

BRC-94, "Wiring Diagram - BRAKE CONTROL SYSTEM -

WITH VQ40DE"

 or

BRC-102, "Wiring Diagram - BRAKE CONTROL SYSTEM - WITH VK56DE"

.

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF.

2. Disconnect ABS actuator and electric unit (control unit) connector.

3. Disconnect steering angle sensor connector.

4. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or

replace terminal.

5. Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-22, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminal. Repair or replace connector.

2.

CHECK STEERING ANGLE SENSOR HARNESS

1. Turn ignition switch OFF.

2. Disconnect steering angle sensor connector.

DTC

Display item

Malfunction detected condition

Possible cause

C1143

ST ANG SEN CIRCUIT

Neutral position of steering angle sensor is dislocated, or
the steering angle sensor is malfunctioning.

• Harness or connector
• Steering angle sensor
• ABS actuator and electric unit

(control unit)

C1144

ST ANG SEN SIGNAL

Neutral position of steering angle sensor is not finished.

Self-diagnosis results

ST ANG SEN CIRCUIT

ST ANG SEN SIGNAL

2010 Pathfinder

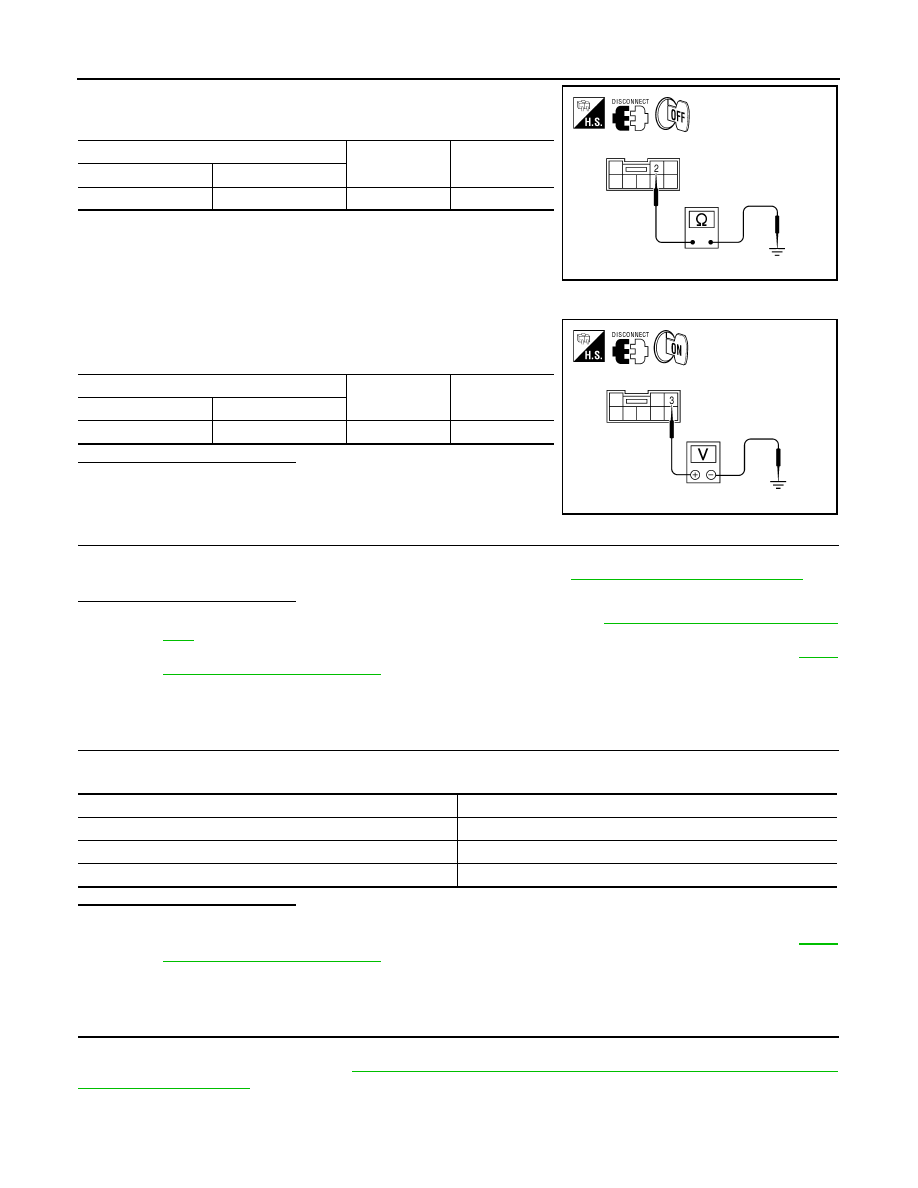

BRC-62

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C1143, C1144 STEERING ANGLE SENSOR

3. Check continuity between steering angle sensor connector M47

terminal 2 and ground.

4. Turn ignition switch ON.

5. Check voltage between steering angle sensor connector M47

terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK DATA MONITOR

1. Connect the steering angle sensor connector and ABS actuator and electric unit (control unit) connector.

2. Perform the steering angle sensor component inspection. Refer to

BRC-62, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-127, "Removal and Installa-

tion"

.

NO

>> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to

BRC-

130, "Removal and Installation"

.

Component Inspection

INFOID:0000000005258710

1.

CHECK DATA MONITOR

Select “STR ANGLE SIG” in “DATA MONITOR” and check steering angle sensor signal.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to

BRC-

130, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000005484910

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

Steering angle sensor

Continuity

Connector

Terminal

M47

2

Ground

Yes

WFIA0399E

Steering angle sensor

Voltage

Connector

Terminal

M47

3

Ground

Battery voltage

AWFIA0023ZZ

Steering condition

STR ANGLE SIG (DATA MONITOR)

Driving straight

0

±

2.5

°

Turn 90

°

 to left

Approx. +90

°

Turn 90

°

 to right

Approx.

90

°

2010 Pathfinder

C1143, C1144 STEERING ANGLE SENSOR

BRC-63

< COMPONENT DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

2010 Pathfinder

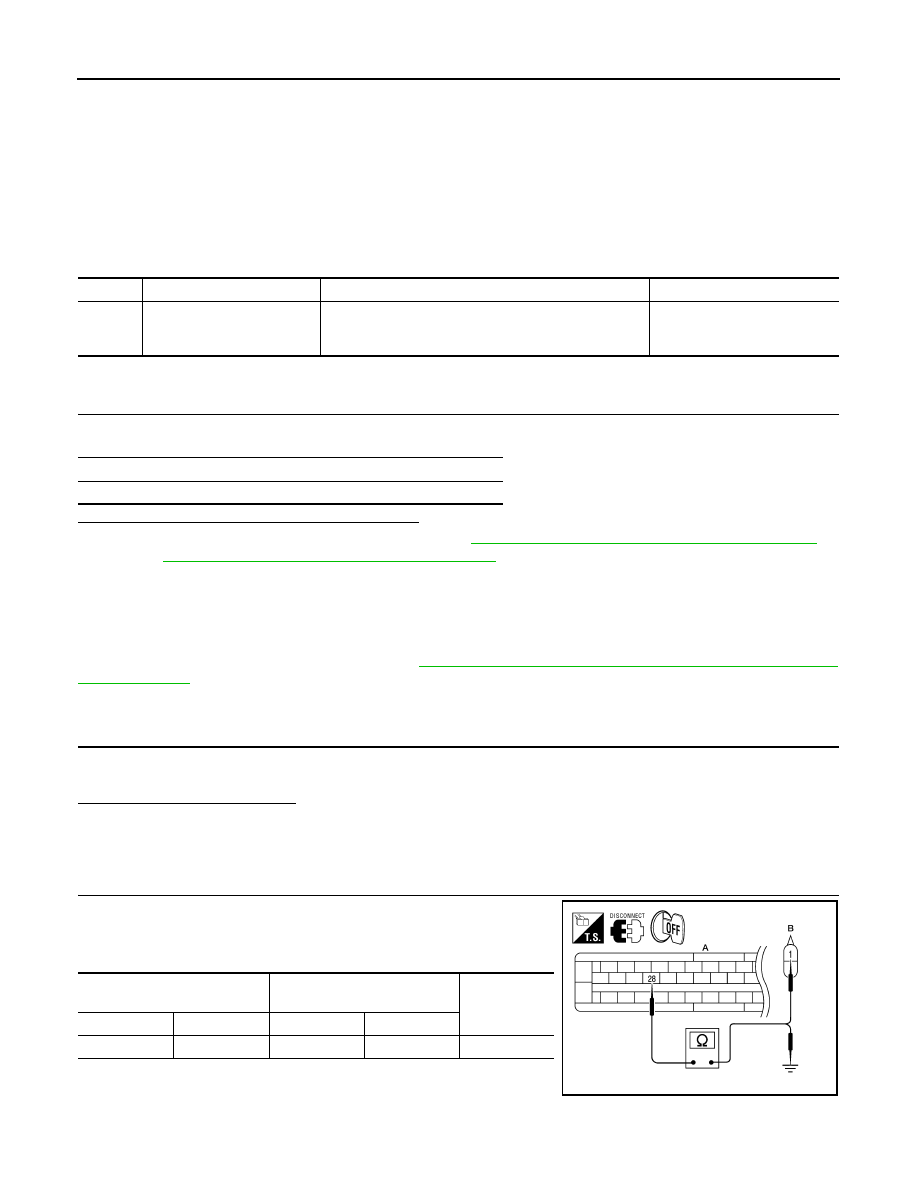

BRC-64

< COMPONENT DIAGNOSIS >
