Nissan Pathfinder (2010 year). Manual - part 91





BCS

PRECAUTIONS

BCS-57

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005510395

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005255783

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

BCS-58

< PRECAUTION >

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

BCS

BCM (BODY CONTROL MODULE)

BCS-59

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

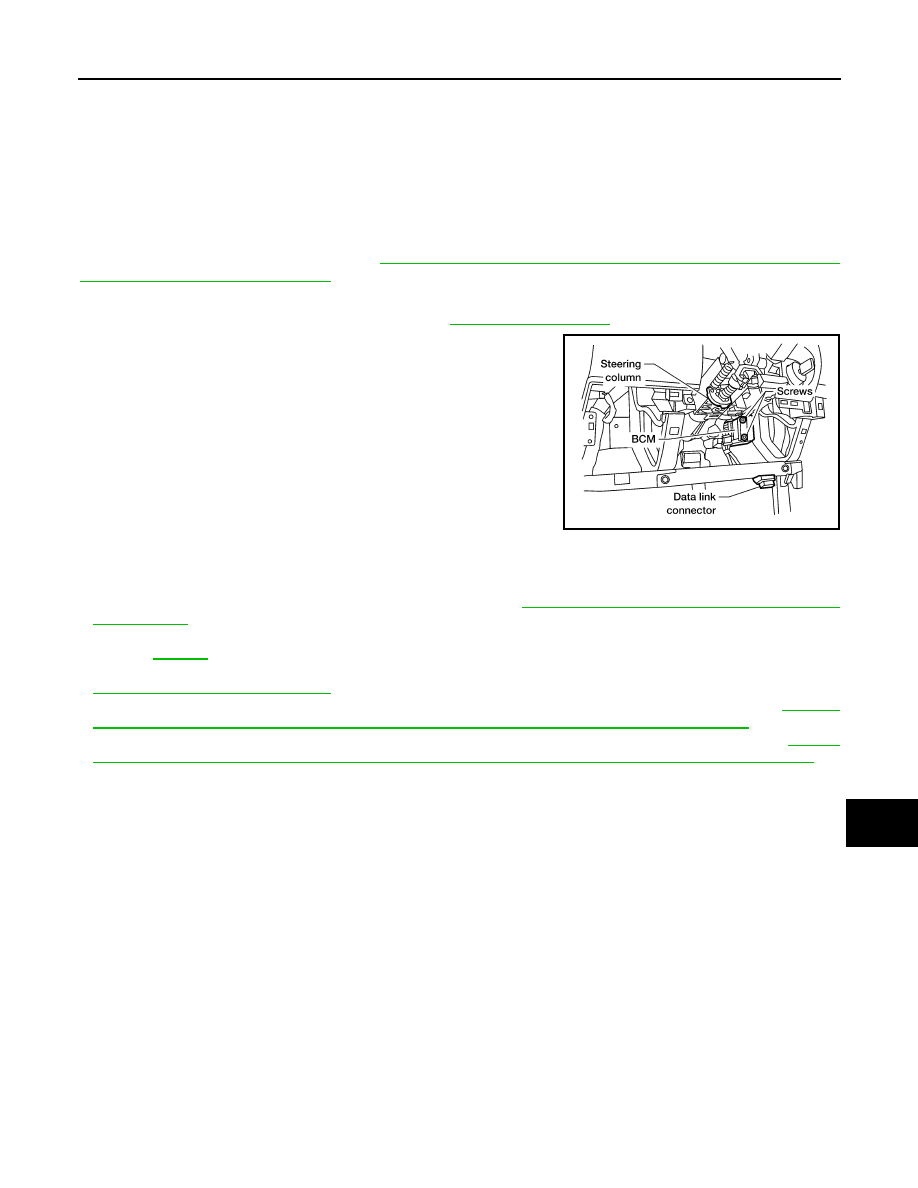

BCM (BODY CONTROL MODULE)

Removal and Installation

INFOID:0000000005255784

REMOVAL

NOTE:

If possible, before removing BCM, retrieve current BCM configuration to use for reference when configuring

brand-new BCM after installation. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL

UNIT : Special Repair Requirement"

.

1. Disconnect the battery negative terminal.
2. Remove the lower instrument panel LH. Refer to

IP-11, "Exploded View"

.

3. Remove the BCM screws and release the BCM.
4. Disconnect the BCM connectors and then remove the BCM.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• When replacing the BCM, it must be configured. Refer to

BCS-4, "CONFIGURATION : Special Repair

Requirement"

.

• When replacing the BCM, perform initialization of NATS system and registration of all NATS ignition key IDs.

Refer to

SEC-10

.

• When replacing the BCM, perform ID registration procedure of low tire pressure warning system. Refer to

WT-6, "ID Registration Procedure"

.

• When replacing the BCM, register the remote keyless entry system keyfob ID codes. Refer to

DLK-10,

"ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement"

.

• When replacing the BCM, perform adjustment procedure for the steering angle sensor. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

LKIA0564E

2010 Pathfinder

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

3

Precaution for Brake System  ....................................

4

Precaution for Procedure without Cowl Top Cover

......

4

PREPARATION ............................................

5

PREPARATION ...................................................

5

Special Service Tool  .................................................

5

Commercial Service Tool  ..........................................

5

FUNCTION DIAGNOSIS ...............................

6

NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

6

NVH Troubleshooting Chart  ......................................

6

BASIC INSPECTION  ....................................

7

FRONT DISC BRAKE .........................................

7

BRAKE PAD ................................................................

7

BRAKE PAD : Inspection  ..........................................

7

DISC ROTOR ...............................................................

7

DISC ROTOR : Inspection  ........................................

7

REAR DISC BRAKE ...........................................

9

BRAKE PAD ................................................................

9

BRAKE PAD : Inspection  ..........................................

9

DISC ROTOR ...............................................................

9

DISC ROTOR : Inspection  ........................................

9

BRAKE BOOSTER  ............................................

10

Inspection ................................................................

10

VACUUM LINES  ...............................................

11

Inspection ................................................................

11

BRAKE MASTER CYLINDER  ..........................

12

On Board Inspection ................................................

12

BRAKE TUBE AND HOSE  ...............................

13

Hydraulic Circuit  ......................................................

13

FRONT BRAKE  .........................................................

15

FRONT BRAKE : Inspection ....................................

15

REAR BRAKE ............................................................

16

REAR BRAKE : Inspection  ......................................

16

ON-VEHICLE MAINTENANCE ....................

17

BRAKE PEDAL .................................................

17

Inspection and Adjustment - Standard Pedal  ..........

17

Inspection and Adjustment - Adjustable Pedal  ........

18

BRAKE FLUID  ..................................................

20

On Board Inspection ................................................

20

Drain and Refill  ........................................................

20

Bleeding Brake System  ...........................................

20

ON-VEHICLE REPAIR .................................

22

BRAKE PEDAL .................................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

23

BRAKE TUBE AND HOSE  ...............................

26

Hydraulic Circuit  ......................................................

26

Removal and Installation of Front Brake Piping
and Brake Hose .......................................................

28

Removal and Installation of Rear Brake Piping
and Brake Hose .......................................................

29

Inspection After Installation  .....................................

30

BRAKE MASTER CYLINDER  ..........................

32

Removal and Installation  .........................................

32

2010 Pathfinder

BR-2

BRAKE BOOSTER ............................................

34

Removal and Installation  ........................................

34

VACUUM LINES  ................................................

36

Removal and Installation  ........................................

36

FRONT DISC BRAKE ........................................

37

Exploded View of Brake Pads  ................................

37

Removal and Installation of Brake Pad  ..................

38

Brake Burnishing  ....................................................

39

Exploded View of Brake Caliper  .............................

40

Removal and Installation of Brake Caliper and
Disc Rotor ..............................................................
.

40

REAR DISC BRAKE ..........................................

43

Exploded View of Brake Pad  ..................................

43

Removal and Installation of Brake Pad  ..................

43

Brake Burnishing  ....................................................

44

Exploded View of Brake Caliper  .............................

45

Removal and Installation of Brake Caliper and
Disc Rotor ..............................................................
.

45

DISASSEMBLY AND ASSEMBLY  .............

48

BRAKE MASTER CYLINDER ...........................

48

Disassembly and Assembly  ....................................

48

FRONT DISC BRAKE  .......................................

50

Exploded View of Brake Caliper  .............................

50

Disassembly and Assembly  ....................................

50

REAR DISC BRAKE ..........................................

53

Exploded View of Brake Caliper  .............................

53

Disassembly and Assembly  ....................................

53

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

56

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

56

General Specification ..............................................

56

Brake Pedal  ............................................................

56

Brake Booster  .........................................................

57

Check Valve ............................................................

57

Front Disc Brake  .....................................................

58

Rear Disc Brake ......................................................

58

2010 Pathfinder

PRECAUTIONS

BR-3

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005561527

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005561528

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

BR-4

< PRECAUTION >

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

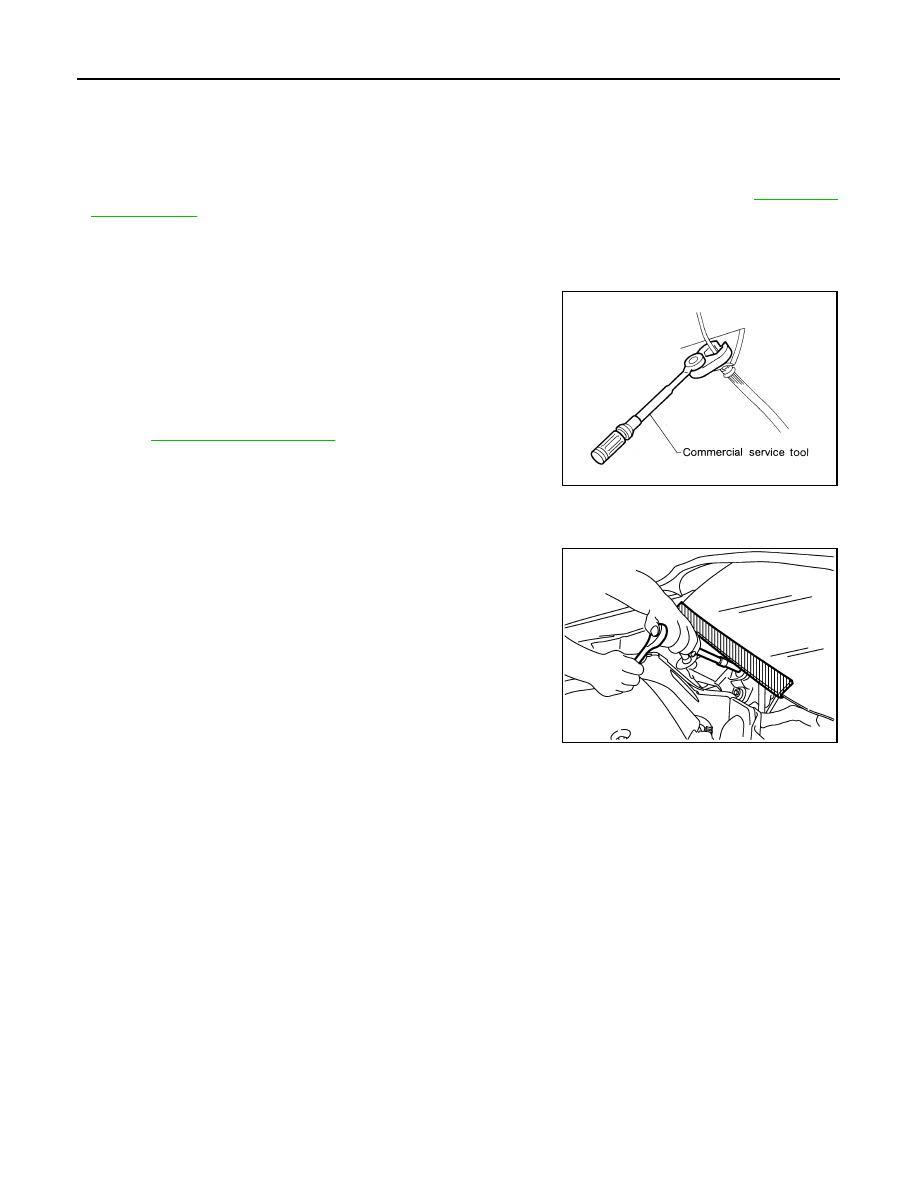

Precaution for Brake System

INFOID:0000000005260185

• Recommended fluid is Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent. Refer to

MA-16, "For

North America"

.

• Do not reuse drained brake fluid.

• Be careful not to splash brake fluid on painted areas.

• To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.

• Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

• Use flare nut wrench when removing and installing brake tube.

• Always check tightening torque when installing brake lines.

• Before working, turn ignition switch to OFF and disconnect con-

nectors for ABS actuator and electric unit (control unit) or battery

negative terminal.

• Burnish the brake contact surfaces after refinishing or replacing

drums or rotors, after replacing pads or linings, or if a soft pedal

occurs at very low mileage.

Refer to

BR-39, "Brake Burnishing"

.

WARNING:

• Clean brake pads and shoes with a waste cloth, then wipe

with a dust collector.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000005260187

When performing any procedure after removing the cowl top cover,

cover the lower edge of the windshield with urethane to protect the

glass from damage.

SBR686C

PIIB3706J

2010 Pathfinder

PREPARATION

BR-5

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

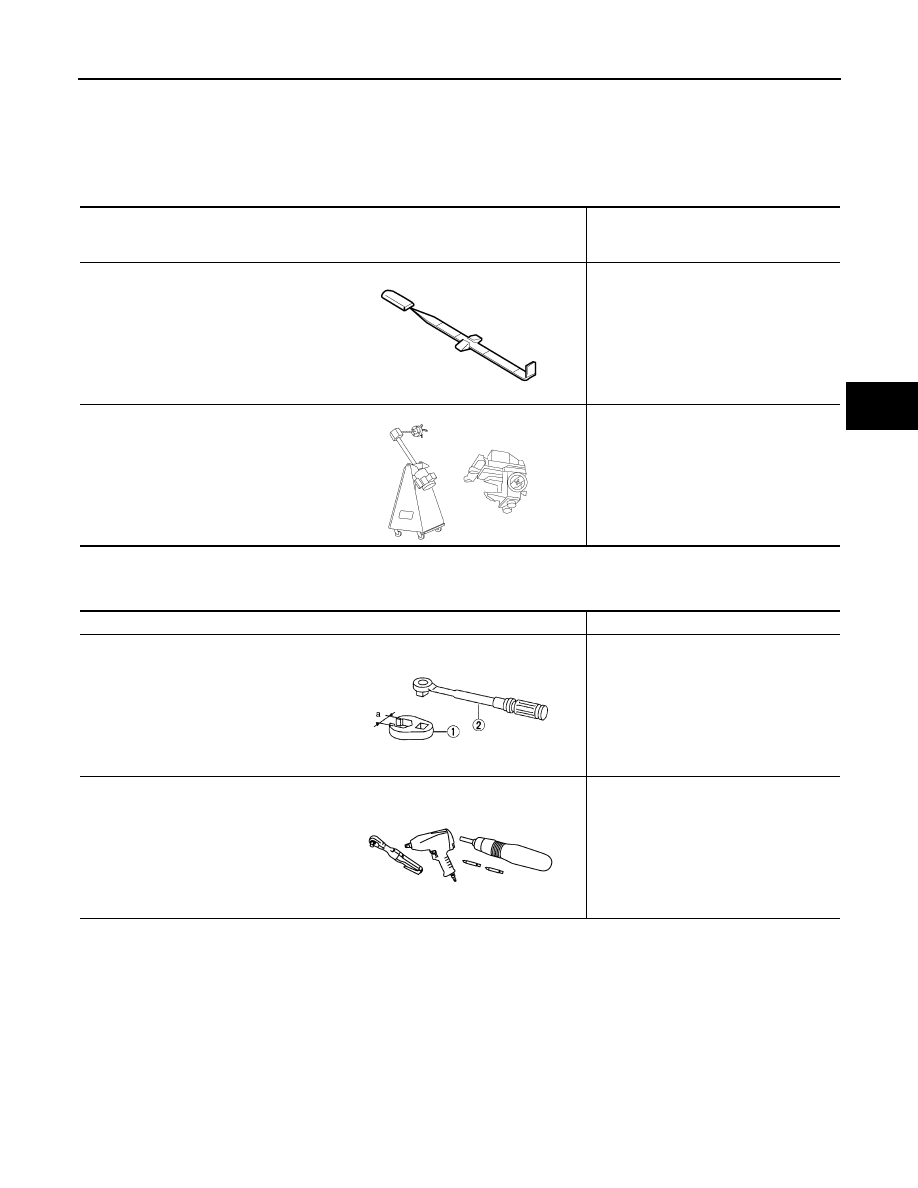

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005260188

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005260189

Tool number
(Kent-Moore No.)
Tool name

Description

(J-46532)
Brake and clutch pedal height measure-
ment tool

Measuring brake pedal height

38-PFM90.5
( — )
Pro-Cut PFM 90 On-Car Brake Lathe

Turning rotors

LFIA0227E

ALFIA0092ZZ

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Removing and installing each brake pip-
ing

a: 10 mm (0.39 in) / 12 mm (0.47 in)

Power tool

Removing nuts, bolts and screws

S-NT360

PIIB1407E

2010 Pathfinder















Content      ..     89      90      91      92     ..
