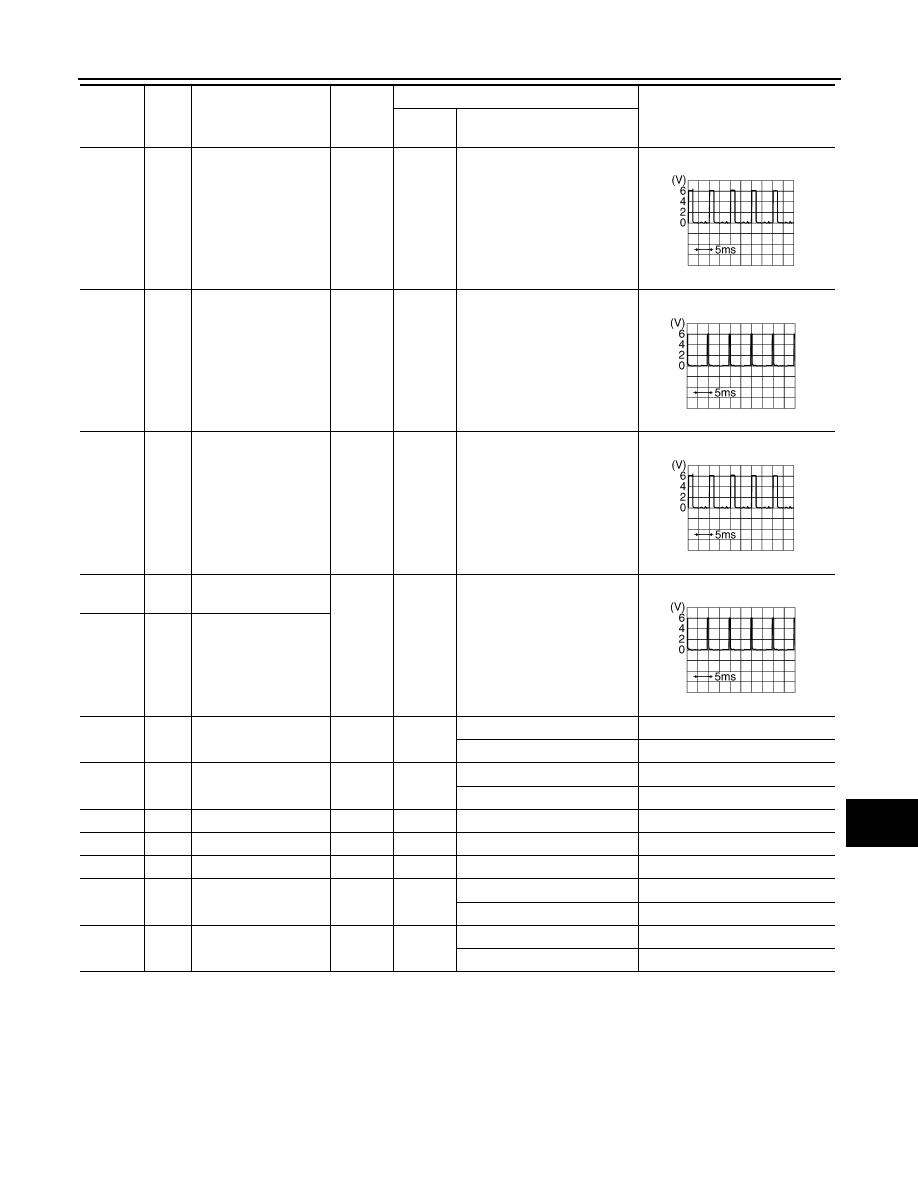

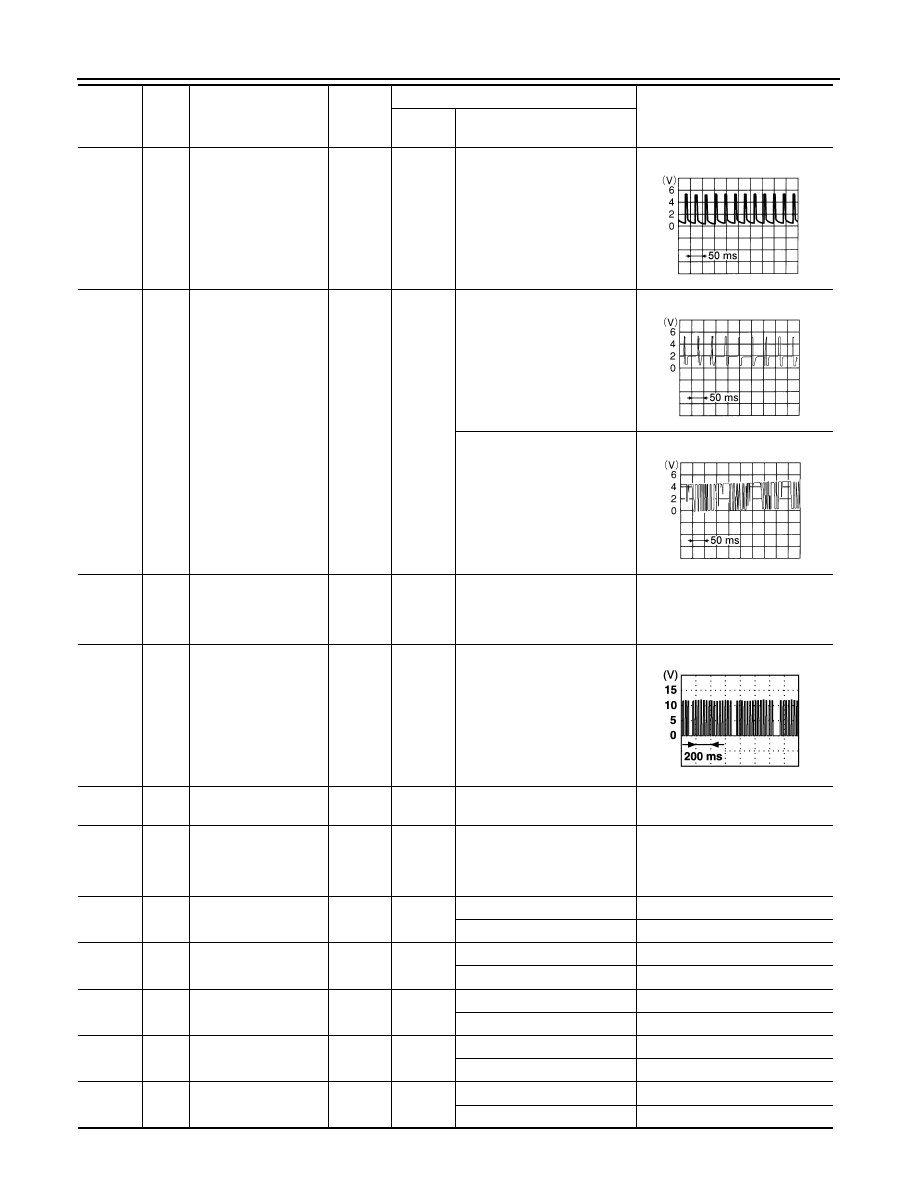

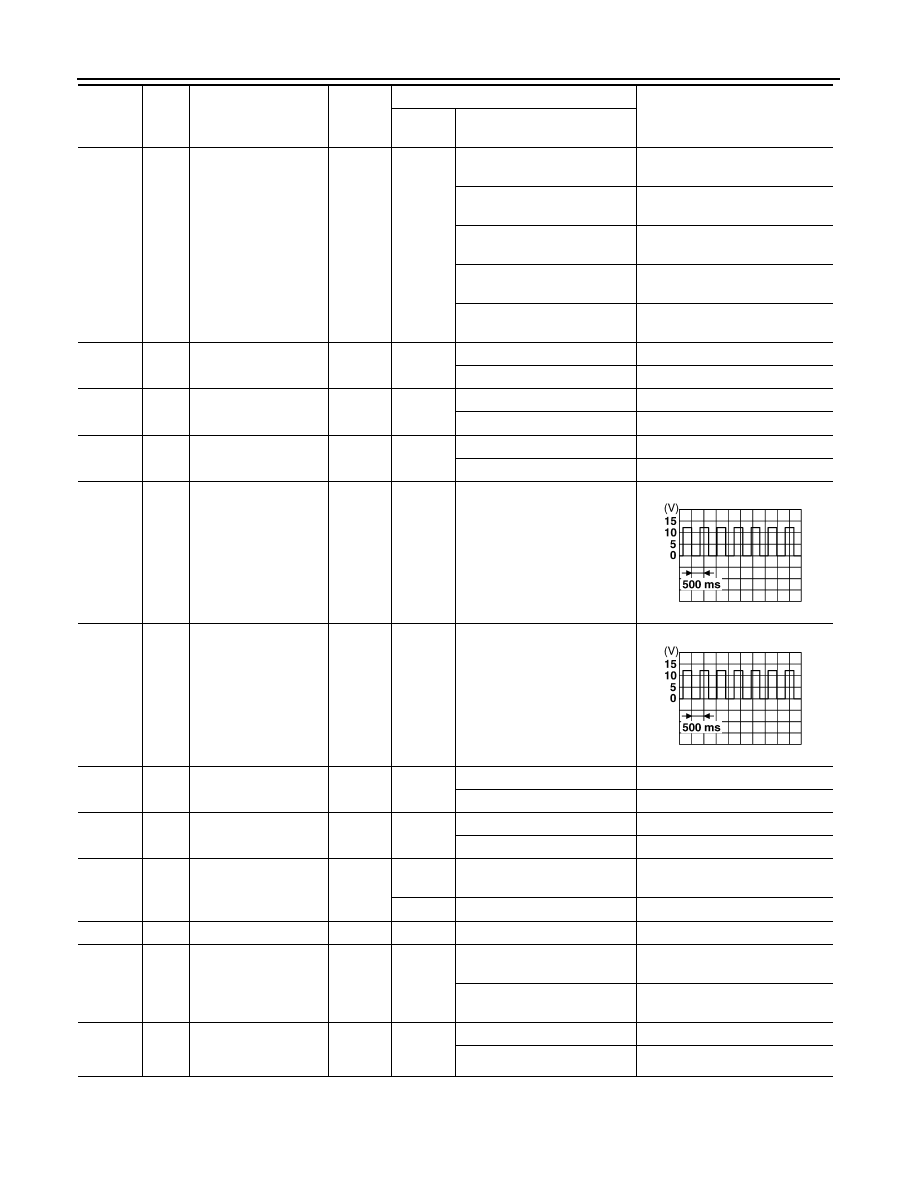

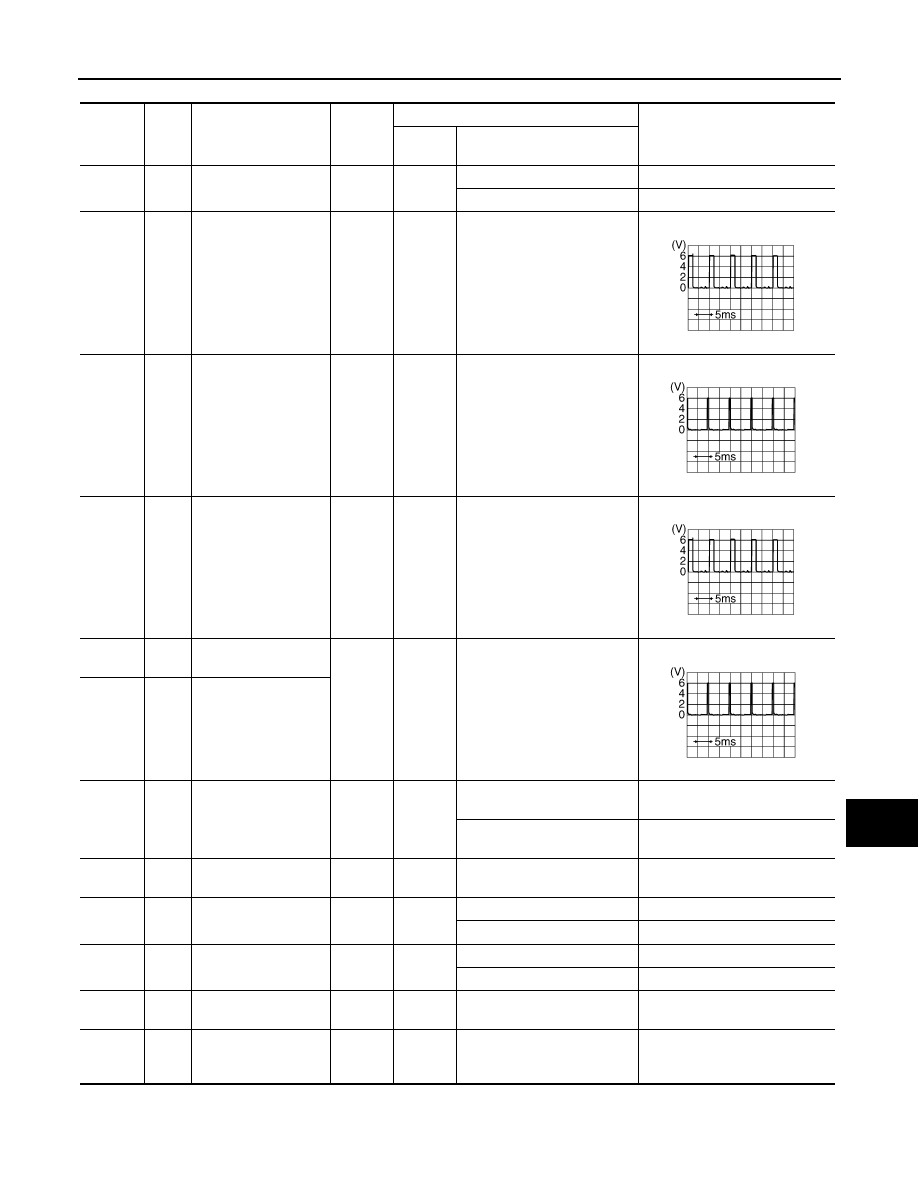

BCS BCM (BODY CONTROL MODULE) BCS-41 < ECU DIAGNOSIS > C D E F G H I J K L B A O P N ECU DIAGNOSIS BCM (BODY CONTROL MODULE) Reference Value INFOID:0000000005255774 VALUES ON THE DIAGNOSIS TOOL Monitor Item Condition Value/Status AIR COND SW A/C switch OFF OFF A/C switch ON ON AUT LIGHT SYS Outside of the room is dark OFF Outside of the room is bright ON AUTO LIGHT SW Lighting switch OFF OFF Lighting switch AUTO ON BACK DOOR SW Back door closed OFF Back door opened ON CDL LOCK SW Door lock/unlock switch does not operate OFF Press door lock/unlock switch to the LOCK side ON CDL UNLOCK SW Door lock/unlock switch does not operate OFF Press door lock/unlock switch to the UNLOCK side ON DOOR SW-AS Front door RH closed OFF Front door RH opened ON DOOR SW-DR Front door LH closed OFF Front door LH opened ON DOOR SW-RL Rear door LH closed OFF Rear door LH opened ON DOOR SW-RR Rear door RH closed OFF Rear door RH opened ON ENGINE RUN Engine stopped OFF Engine running ON FR FOG SW Front fog lamp switch OFF OFF Front fog lamp switch ON ON FR WASHER SW Front washer switch OFF OFF Front washer switch ON ON FR WIPER LOW Front wiper switch OFF OFF Front wiper switch LO ON FR WIPER HI Front wiper switch OFF OFF Front wiper switch HI ON FR WIPER INT Front wiper switch OFF OFF Front wiper switch INT ON FR WIPER STOP Any position other than front wiper stop position OFF Front wiper stop position ON HAZARD SW When hazard switch is not pressed OFF When hazard switch is pressed ON LIGHT SW 1ST Lighting switch OFF OFF Lighting switch 1st ON 2010 Pathfinder |
