U1000 CAN COMM CIRCUIT

BCS-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005255761

Refer to

LAN-53, "CAN Communication Signal Chart"

.

DTC Logic

INFOID:0000000005255762

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005255763

1.

 PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result” of BCM.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-37, "Intermittent Incident"

.

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When BCM cannot communicate CAN com-
munication signal continuously for 2 sec-
onds or more.

Any item (or items) of the following listed below is
malfunctioning in CAN communication system.
• Transmission
• Receiving (ECM)
• Receiving (METER/M&A)
• Receiving (TCM)
• Receiving (MULTI AV)
• Receiving (IPDM E/R)
• Receiving (I-KEY)

2010 Pathfinder

BCS-34

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005255767

Regarding Wiring Diagram information, refer to

BCS-50, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

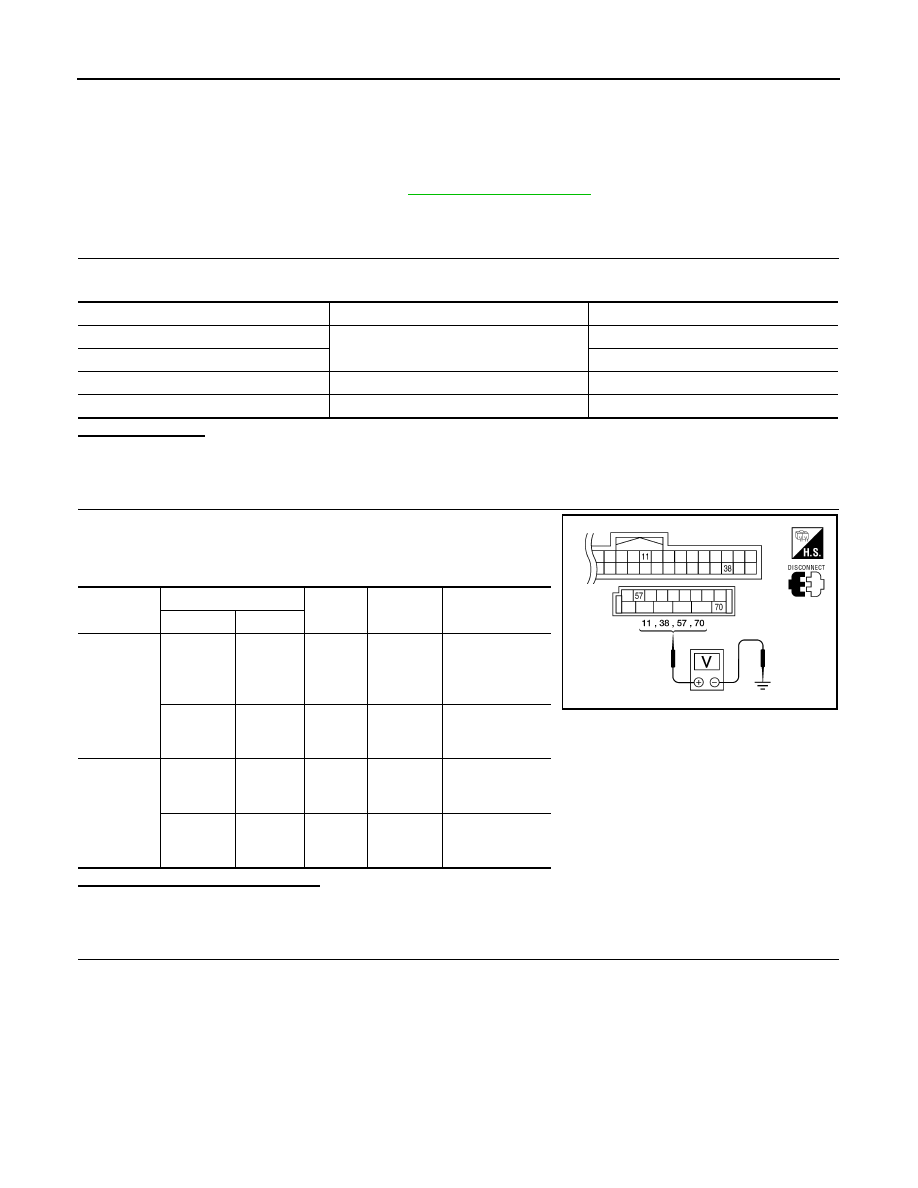

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

18 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

2010 Pathfinder

BCS

POWER SUPPLY AND GROUND CIRCUIT

BCS-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

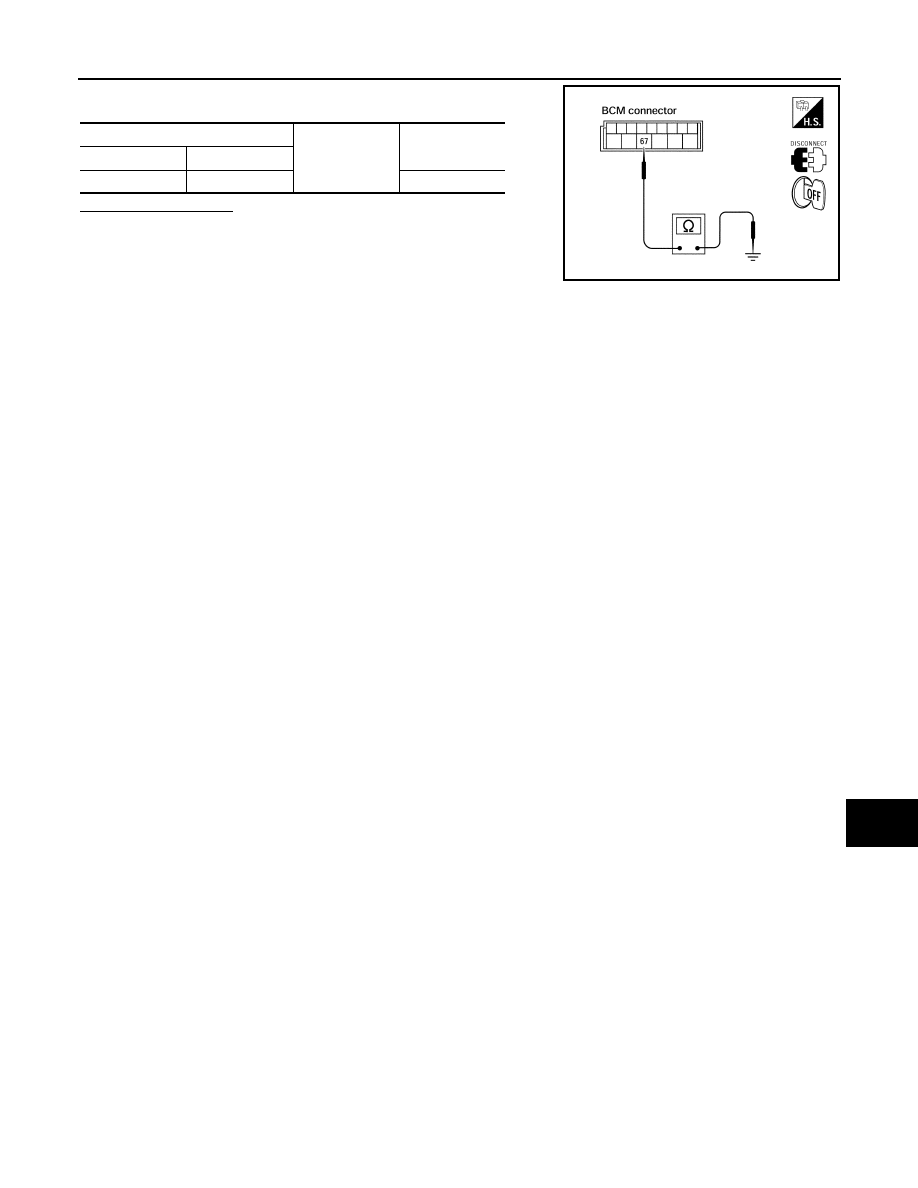

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

2010 Pathfinder

BCS-36

< COMPONENT DIAGNOSIS >

COMBINATION SWITCH INPUT CIRCUIT

COMBINATION SWITCH INPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000005255768

Regarding Wiring Diagram information, refer to

BCS-50, "Wiring Diagram"

.

1.

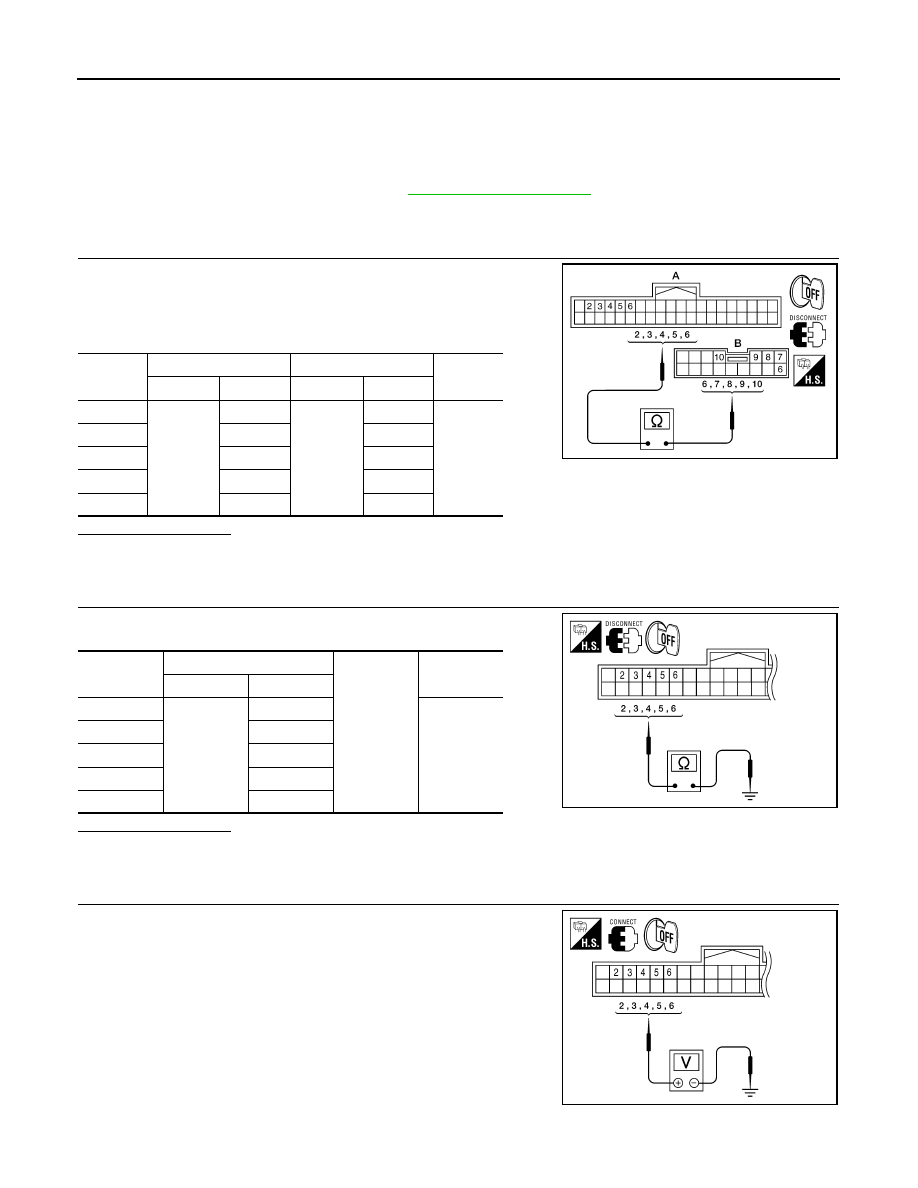

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch.

3. Check continuity between BCM harness connector and combi-

nation switch harness connector.

Does continuity exist?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 3

3.

 CHECK BCM OUTPUT VOLTAGE

1. Connect BCM.

2. Turn ignition switch ON.

3. Check voltage between BCM harness connector and ground.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

INPUT 1

M18

(A)

6

M28

(B)

6

Yes

INPUT 2

5

7

INPUT 3

4

10

INPUT 4

3

9

INPUT 5

2

8

ALMIA0275ZZ

System

BCM

Ground

Continuity

Connector

Terminal

INPUT 1

M18

6

No

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

ALMIA0276ZZ

ALMIA0277ZZ

2010 Pathfinder

BCS

COMBINATION SWITCH INPUT CIRCUIT

BCS-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

4.

 CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-39, "Description"

.

Is the check result normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Replace the combination switch (applicable parts). Refer to

EXL-152, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000005255769

1.

 ADDITIONAL SERVICE WHEN REPLACING BCM

>> Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

System

Terminals

Voltage

(Approx.)

(+)

(

−

)

BCM

Ground

Connector

Terminal

INPUT 1

M18

6

Refer to

BCS-

41, "Refer-

ence Value"

.

INPUT 2

5

INPUT 3

4

INPUT 4

3

INPUT 5

2

2010 Pathfinder

BCS-38

< COMPONENT DIAGNOSIS >

COMBINATION SWITCH OUTPUT CIRCUIT

COMBINATION SWITCH OUTPUT CIRCUIT

Diagnosis Procedure

INFOID:0000000005255770

Regarding Wiring Diagram information, refer to

BCS-50, "Wiring Diagram"

.

1.

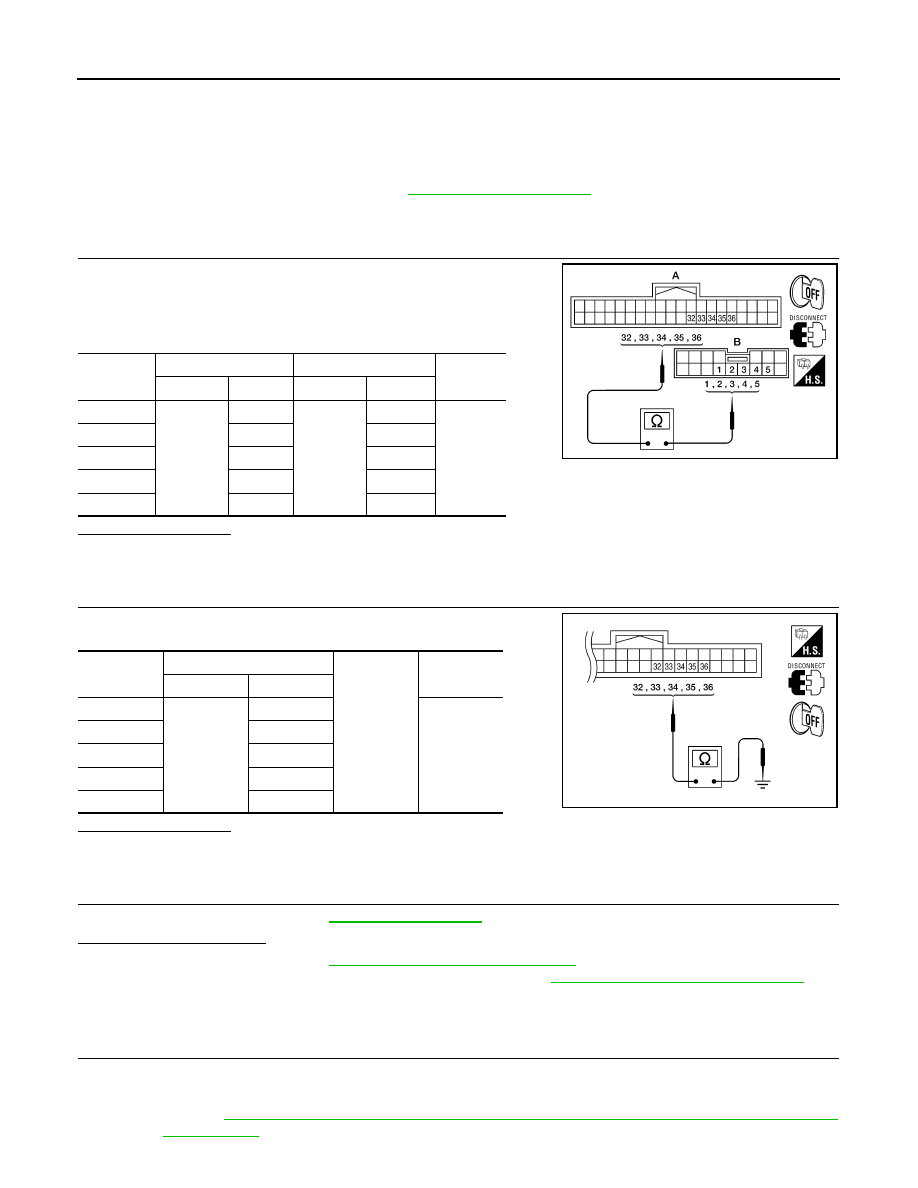

 CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect BCM and combination switch.

3. Check continuity between BCM harness connector and combi-

nation switch harness connector.

Does continuity exist?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK OUTPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT

Check for continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> GO TO 3

3.

 CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-39, "Description"

.

Is the check result normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Replace combination switch (applicable parts). Refer to

EXL-152, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000005255771

1.

 ADDITIONAL SERVICE WHEN REPLACING BCM

>> Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair

Requirement"

.

System

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

OUTPUT 1

M18

(A)

36

M28

(B)

1

Yes

OUTPUT 2

35

2

OUTPUT 3

34

3

OUTPUT 4

33

4

OUTPUT 5

32

5

ALMIA0278ZZ

System

BCM

Ground

Continuity

Connector

Terminal

OUTPUT 1

M18

36

No

OUTPUT 2

35

OUTPUT 3

34

OUTPUT 4

33

OUTPUT 5

32

ALMIA0279ZZ

2010 Pathfinder

BCS

COMBINATION SWITCH

BCS-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

COMBINATION SWITCH

Description

INFOID:0000000005255772

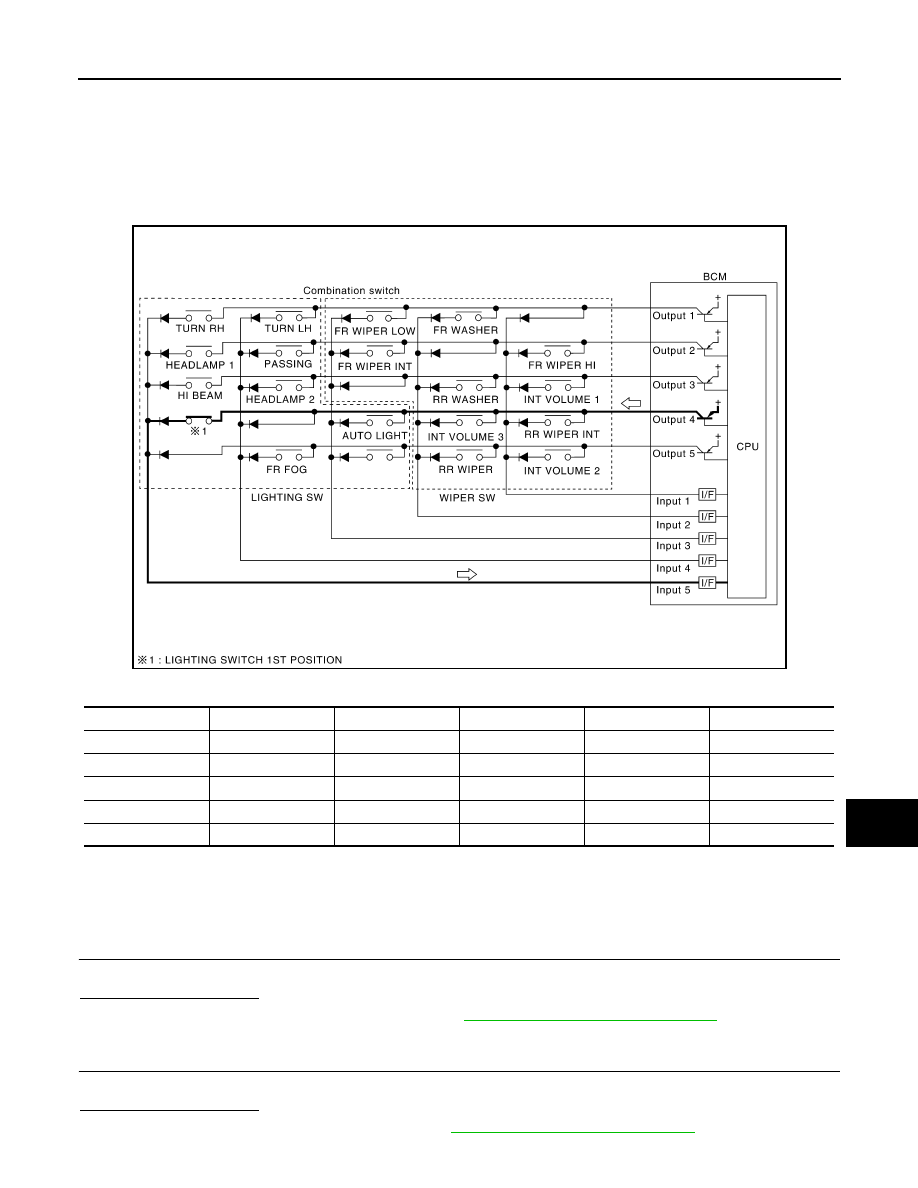

COMBINATION SWITCH MATRIX

Combination switch consists of INPUT circuit and OUTPUT circuit.

Combination switch circuit

Combination switch INPUT-OUTPUT system list

NOTE:

Headlamp has a dual system switch.

Diagnosis Procedure

INFOID:0000000005255773

1.

 CHECK LIGHT & TURN SIGNAL SWITCH

Check operation with normal light & turn signal switch installed.
Does it operate normally?

YES

>> Replace light & turn signal switch. Refer to

EXL-152, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK WIPER & WASHER SWITCH

Check operation with normal wiper & washer switch installed.
Does it operate normally?

YES

>> Replace wiper & washer switch. Refer to

WW-78, "Removal and Installation"

.

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

INPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

INPUT 2

FR WIPER HI

—

FR WIPER INT

PASSING

HEADLAMP 1

INPUT 3

INT VOLUME 1

RR WASHER

—

HEADLAMP 2

HI BEAM

INPUT 4

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INPUT 5

INT VOLUME 2

RR WIPER

—

FR FOG

—

LIIA0760E

2010 Pathfinder

BCS-40

< COMPONENT DIAGNOSIS >

COMBINATION SWITCH

NO

>> GO TO 3

3.

 CHECK SWITCH BASE (SPIRAL CABLE)

Check operation with normal switch base (spiral cable) installed.
Does it operate normally?

YES

>> Replace switch base (spiral cable). Refer to

SR-7, "Removal and Installation"

.

NO

>> Combination switch is normal.
