Nissan Pathfinder (2010 year). Manual - part 83





AV

AUXILIARY INPUT JACK

AV-471

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000005570799

Removal

1. Remove the A/T finisher. Refer to

IP-12, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

2010 Pathfinder

AV-472

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

ANTENNA AMP.

ANTENNA AMP.

Removal and Installation

INFOID:0000000005550747

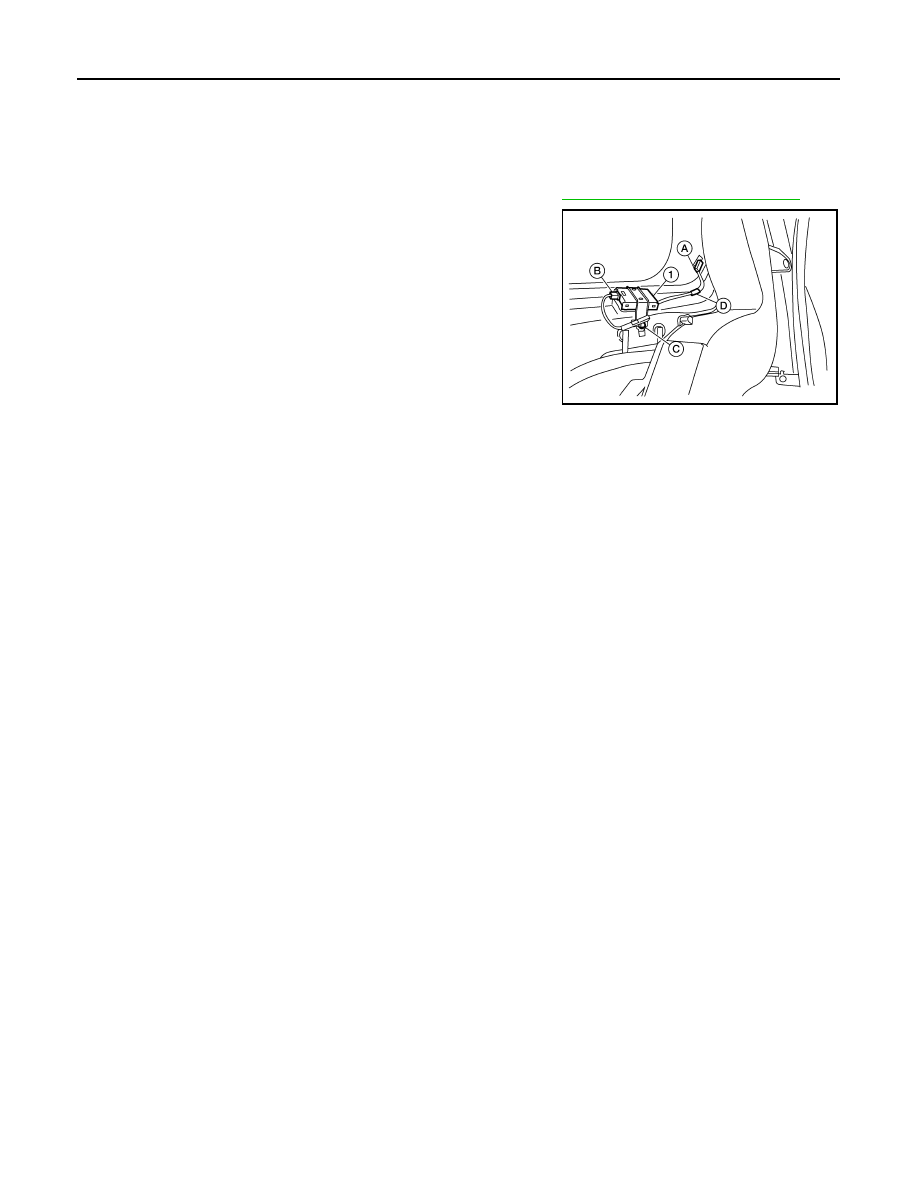

REMOVAL

1. Remove the luggage side upper and lower RH finishers. Refer to

INT-22, "Removal and Installation"

.

2. Detach the antenna amp. harness clip (D), disconnect the

antenna amp. connector (A), harness connector (B), then

remove the antenna amp. screw (C) and remove the antenna

amp. (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1228ZZ

2010 Pathfinder

2010 Pathfinder

AV

GPS ANTENNA

AV-473

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000005259641

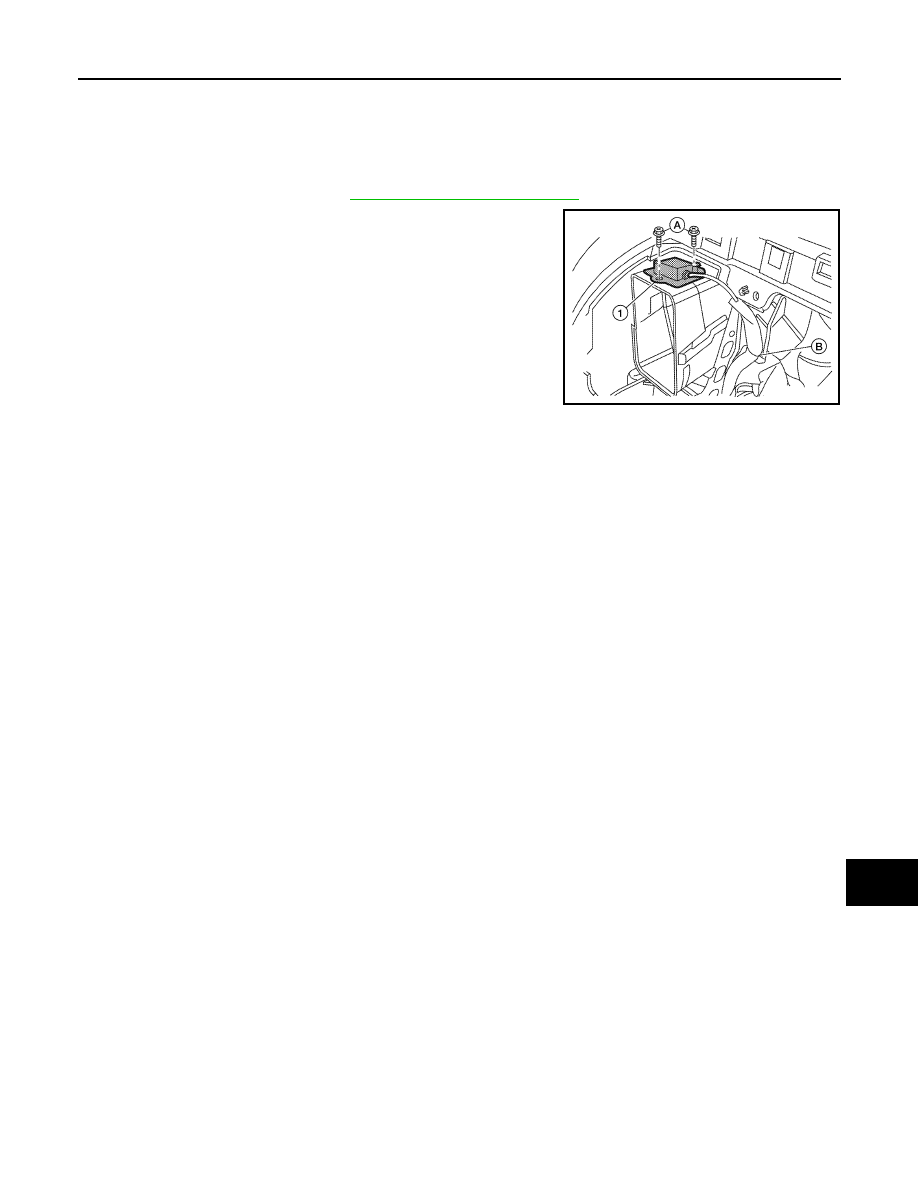

REMOVAL

1. Remove the cluster lid C. Refer to

IP-12, "Removal and Installation"

.

2. Remove the GPS antenna screws (A), detach the GPS antenna

harness clip (B).

3. Remove GPS antenna and feeder assembly (1) out of the instru-

ment panel.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0378ZZ

2010 Pathfinder

2010 Pathfinder

AV-474

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000005259642

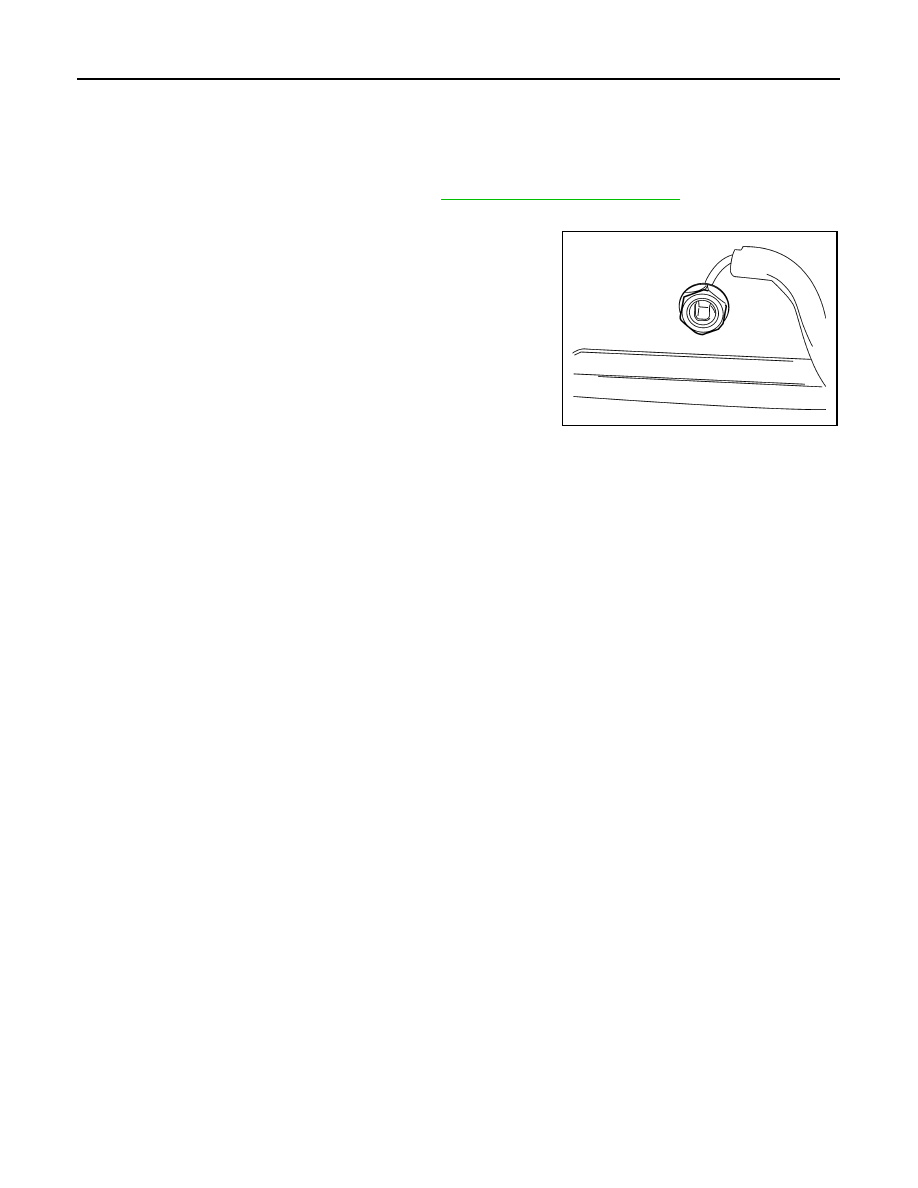

REMOVAL

1. Remove the front roof console finisher. Refer to

INT-19, "Removal and Installation"

.

2. Disconnect the satellite antenna connector.
3. Remove the satellite antenna nut.
4. Remove the satellite antenna.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0679E

2010 Pathfinder

2010 Pathfinder

AV

STEERING SWITCH

AV-475

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000005520632

Removal and Installation

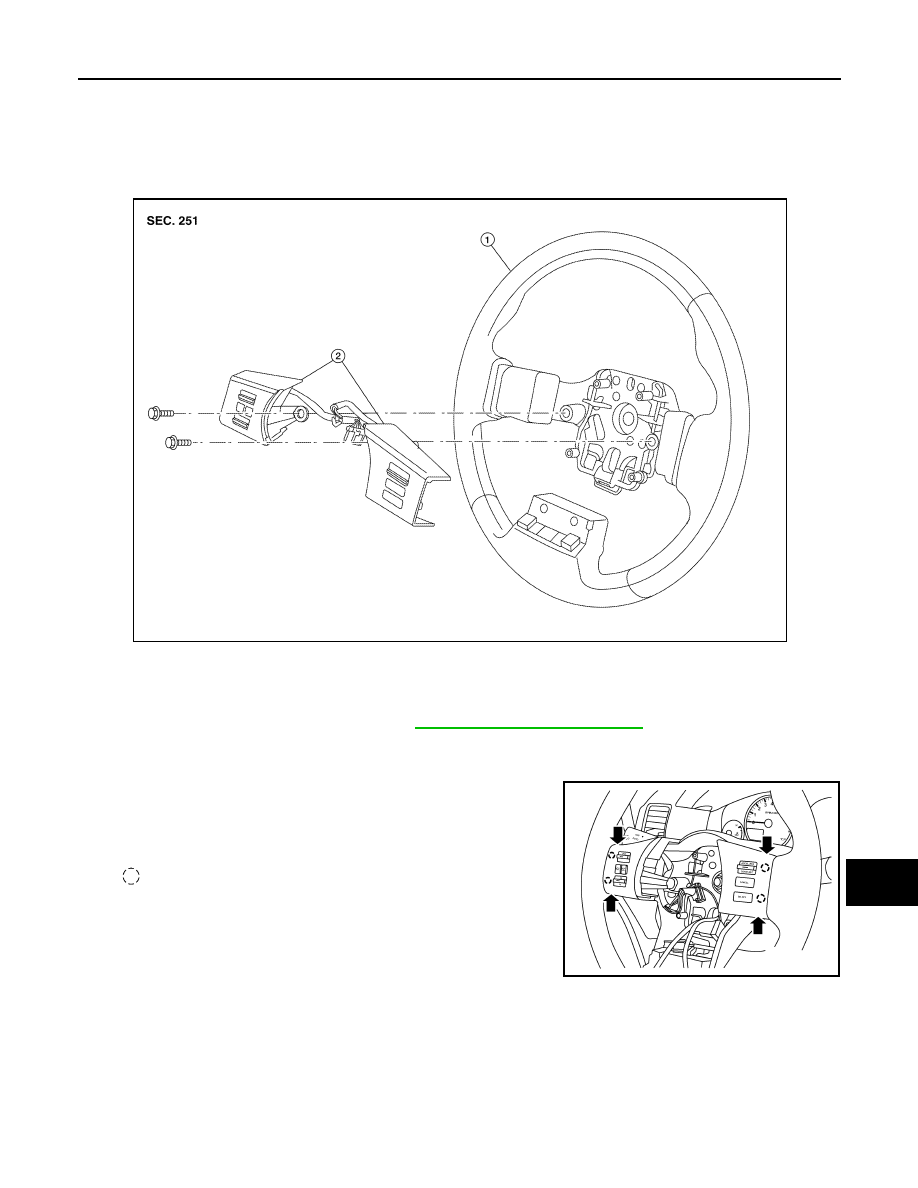

REMOVAL

1. Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the steering wheel audio control switches connector.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

:Pawl

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

2010 Pathfinder

2010 Pathfinder

AV-476

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000005259644

REMOVAL

1. Remove the front roof console finisher. Refer to

INT-19, "Removal and Installation"

.

2. Detach the microphone (1) from the front console finisher tabs

(A).

3. Detach the microphone connector (B) and remove the micro-

phone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0379ZZ

2010 Pathfinder

2010 Pathfinder

AV

REAR VIEW CAMERA

AV-477

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000005259645

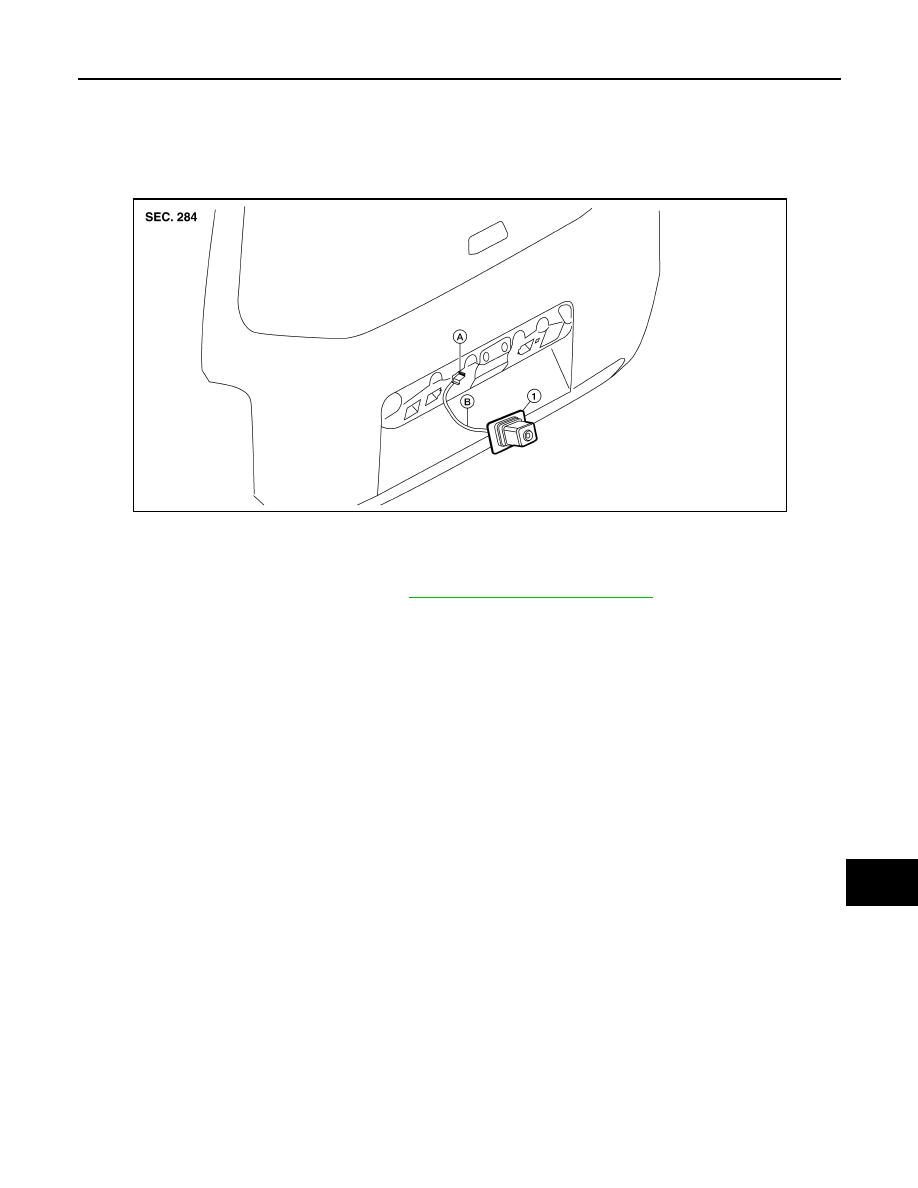

Rear View Camera

REMOVAL

1. Remove the license lamp finisher. Refer to

EXT-21, "Removal and Installation"

.

2. Disconnect the rear view camera connector.
3. Detach the rear view camera harness clip.
4. Detach the rear view camera to release, then pull out to remove the rear view camera while feeding the

rear view camera harness and connector through the back door.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear view camera

A.

Rear view camera connector

B.

Rear view camera harness clip

ALNIA1182ZZ

2010 Pathfinder

2010 Pathfinder

AV-478

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW CAMERA CONTROL UNIT

REAR VIEW CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000005259646

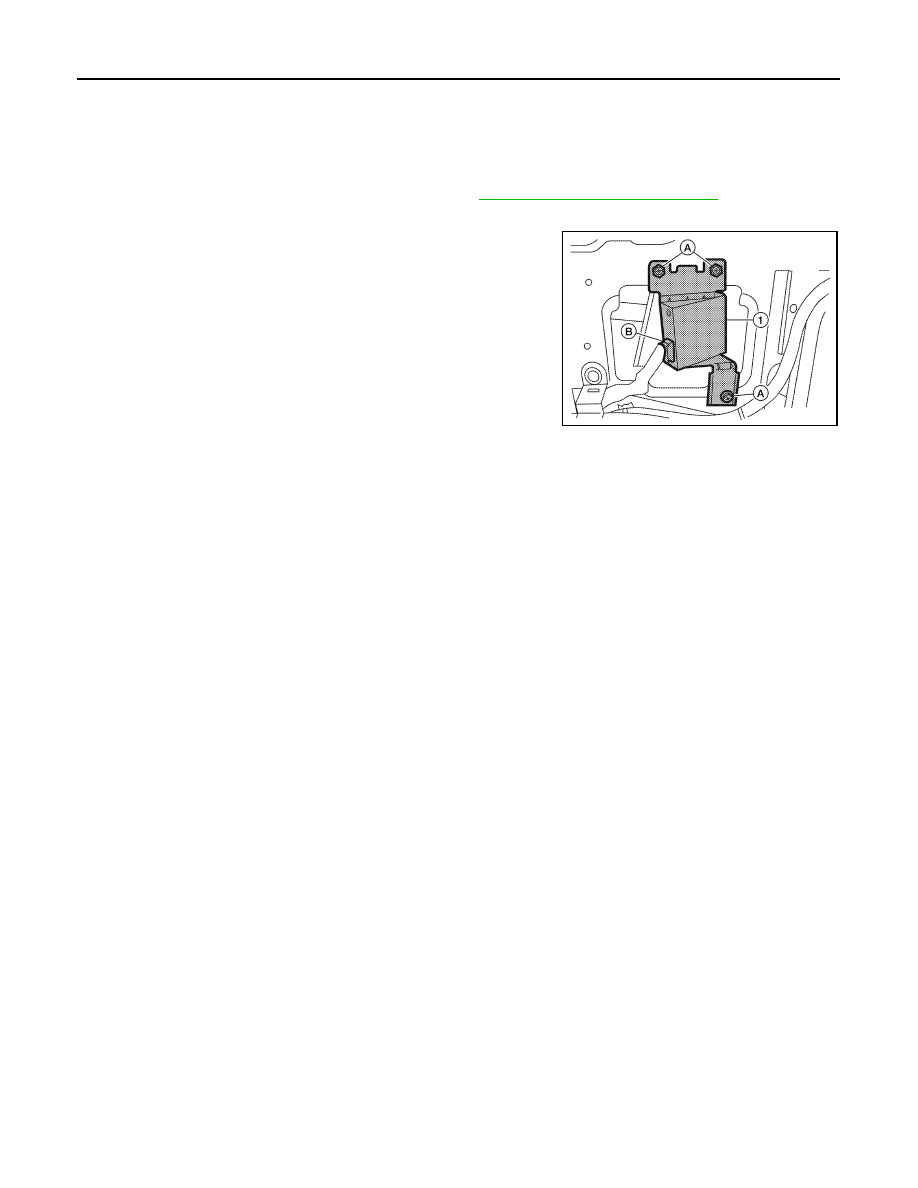

REMOVAL

1. Remove the luggage side lower finisher RH. Refer to

INT-22, "Removal and Installation"

.

2. Remove the rear HVAC duct tube (C103) fastener and remove the HVAC duct tube.
3. Remove the rear view camera control unit screws (A), discon-

nect the rear view camera control unit connector (B) and remove

the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0377ZZ

2010 Pathfinder

2010 Pathfinder
